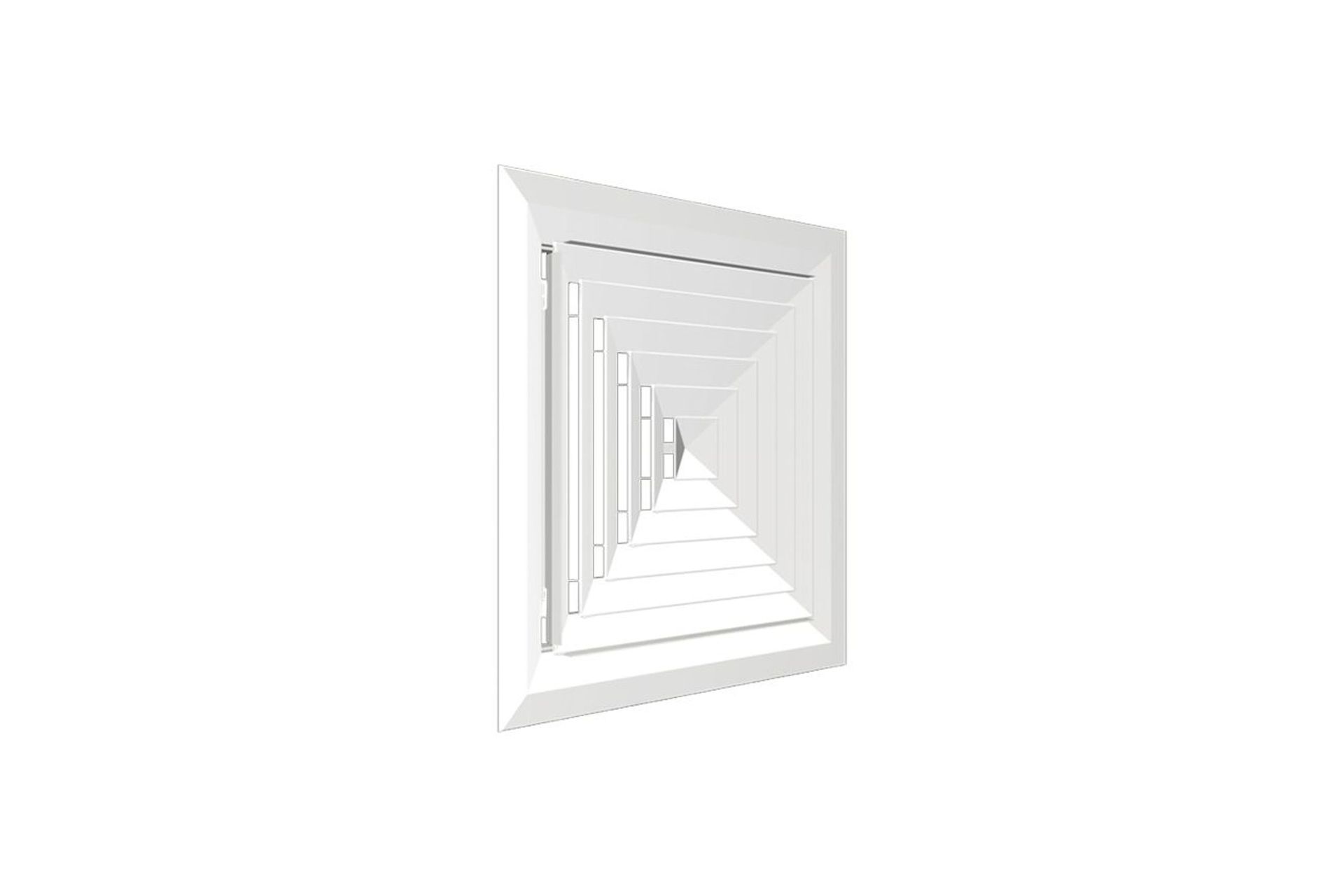

CMP Direction Diffusers

Auckland

432.1K profile views
27 saves

Standard Flange Frame
Designed for surface mounting on all types of ceilings and lay-in applications.

Panel Diffuser
For installation in all suspended, acoustical or metal tile ceilings. A panel is required in most suspended ceiling modules. Size 450 x 450 has an overall face size of 595 x 595. It, therefore, does not require a panel in a 600 grid and fits ‘T’ rail spacing with clearance.

Drop Frame
Can be used on any standard type ceiling installation. Drop mounting frame lowers the face of the diffuser below the ceiling line – for those installations where ceiling obstacles – beams, lighting, fixtures, etc. – must be avoided to minimise downdrafts. Can be supplied in any size from 13 to 100 mm but unless otherwise specified frame drop * of 40 mm will be furnished. Special order only.

Bevelled Drop Frame
For all surface mounting applications. Smartly styled, bevelled-type drop border serves to enhance diffuser mounting while providing maximum ceiling protection. Special order only.

Panel Diffuser For installation in all suspended, acoustical or metal tile ceilings. A panel is required in most suspended ceiling modules. Size 450 x 450 has an overall face size of 595 x 595. It, therefore, does not require a panel in a 600 grid and fits ‘T’ rail spacing with clearance. Drop Frame Can be used on any standard type ceiling installation. Drop mounting frame lowers the face of the diffuser below the ceiling line – for those installations where ceiling obstacles – beams, lighting, fixtures, etc. – must be avoided to minimise downdrafts. Can be supplied in any size from 13 to 100 mm but unless otherwise specified frame drop * of 40 mm will be furnished. Special order only. Bevelled Drop Frame For all surface mounting applications. Smartly styled, bevelled-type drop border serves to enhance diffuser mounting while providing maximum ceiling protection. Special order only.

Standard Flange FrameDesigned for surface mounting on all types of ceilings and lay-in applications.

Specs: Louvred Face Ceiling Diffusers shall be Holyoake Model CMPA of extruded aluminium construction with removable core to provide the air distribution pattern as shown in the documentation. Louvred Face Ceiling Diffusers shall be finished in powder coat. Diffusers shall be fitted with accessories and dampers where indicated as manufactured by Holyoake.
