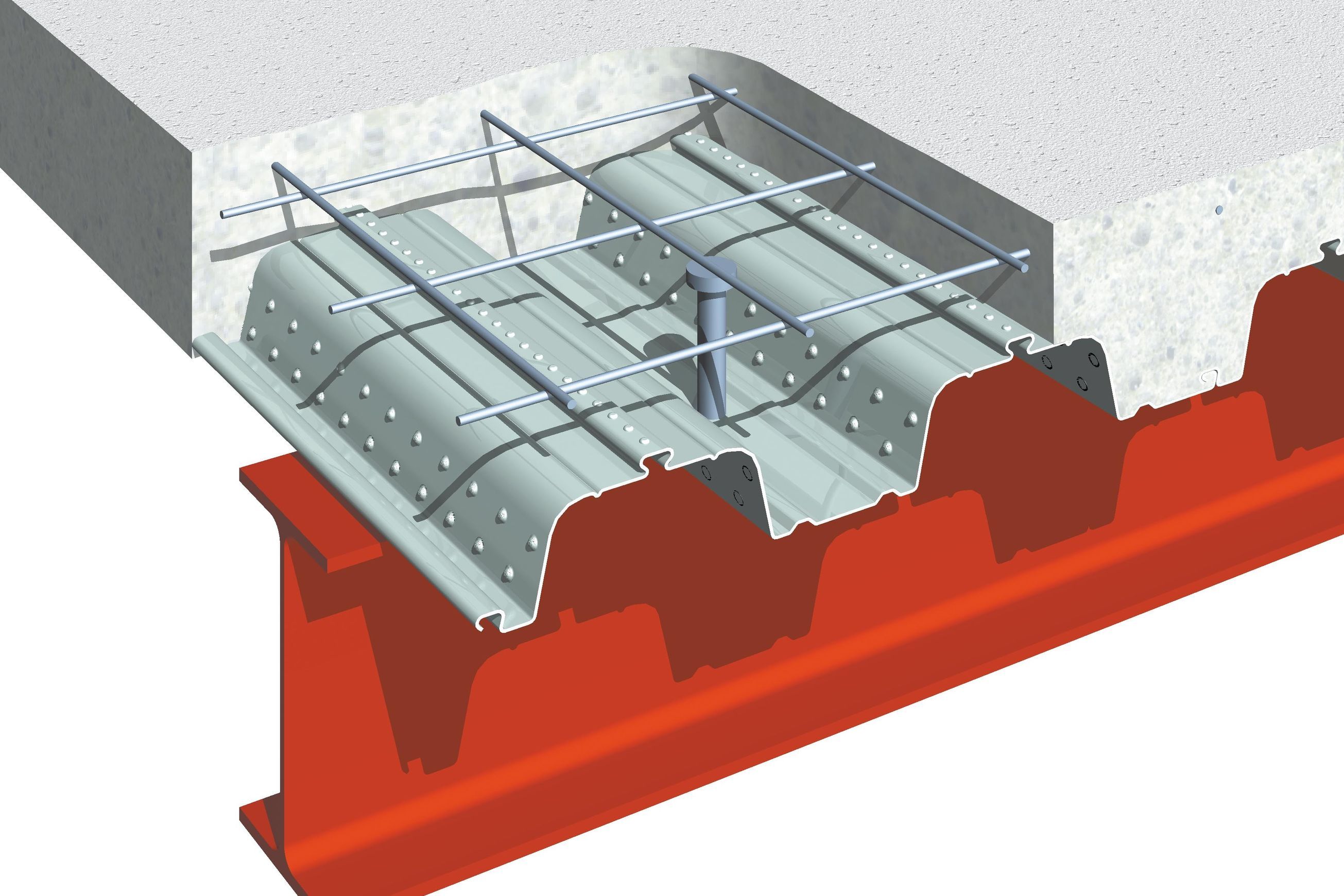

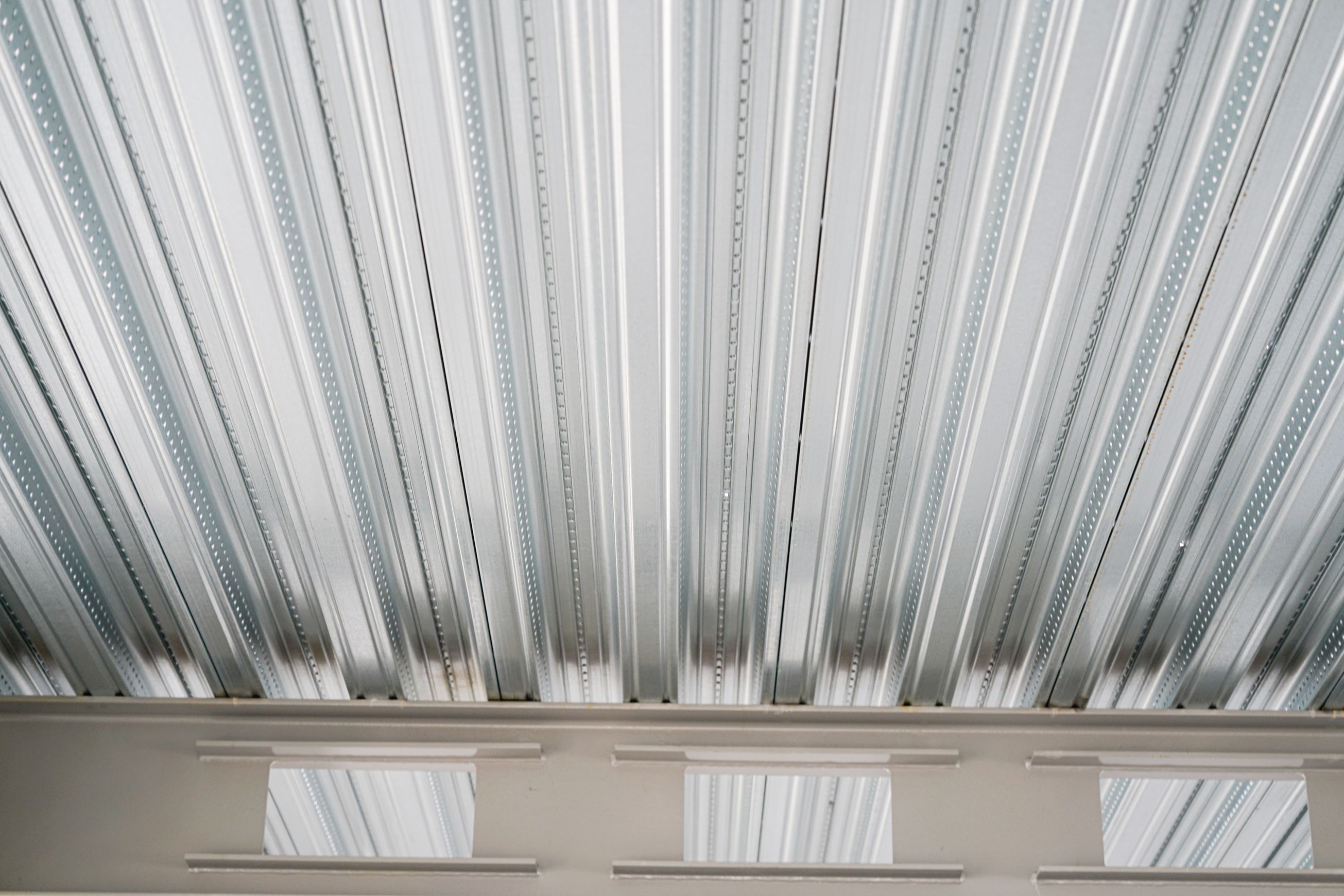

ComFlor 80 Composite Steel Floor Decking
ComFlor 80 is a new generation composite steel deck that offers longer spans, minimised concrete volumes, and sets new benchmarks for shallow slab construction efficiencies. The large curved corner, combined with the use of high strength G500 galvanised steel, stretches unpropped continuous spans to 5.3 metres and propped spans to 7.1 metres. Longer spans simplify and reduce the number of support beams in the steel frame, driving down overall construction cost.
Installing services and ceilings is fast and simple with a no drill M10 wedge nut system that supports Max. ULS gravity loads of 4.7 kN for ComFlor 80.
- CategoryCar Park Flooring, Construction 4.0, Structural Flooring
- RangeComFlor
Long-span capability:
- Reduced construction costs due to large spanning capability.
- The large corner curvature detail provides a very efficient profile.In conjunction with the higher grade of steel, it ensures unpropped spans of up to 4.00m simply supported and in the continuous condition, can achieve spans of up to 5.20m.
- Gauge options of 0.75mm to 1.20mm to suit the particular span.
- Propped spans over 6.50m are also possible using bottom steel.
Cost efficient:
- large spans achievable mean less structural steel is required reducing the overall construction cost.
- concrete usage means that ComFlor® 80 is very economical compared to similar decks..
Keep it simple

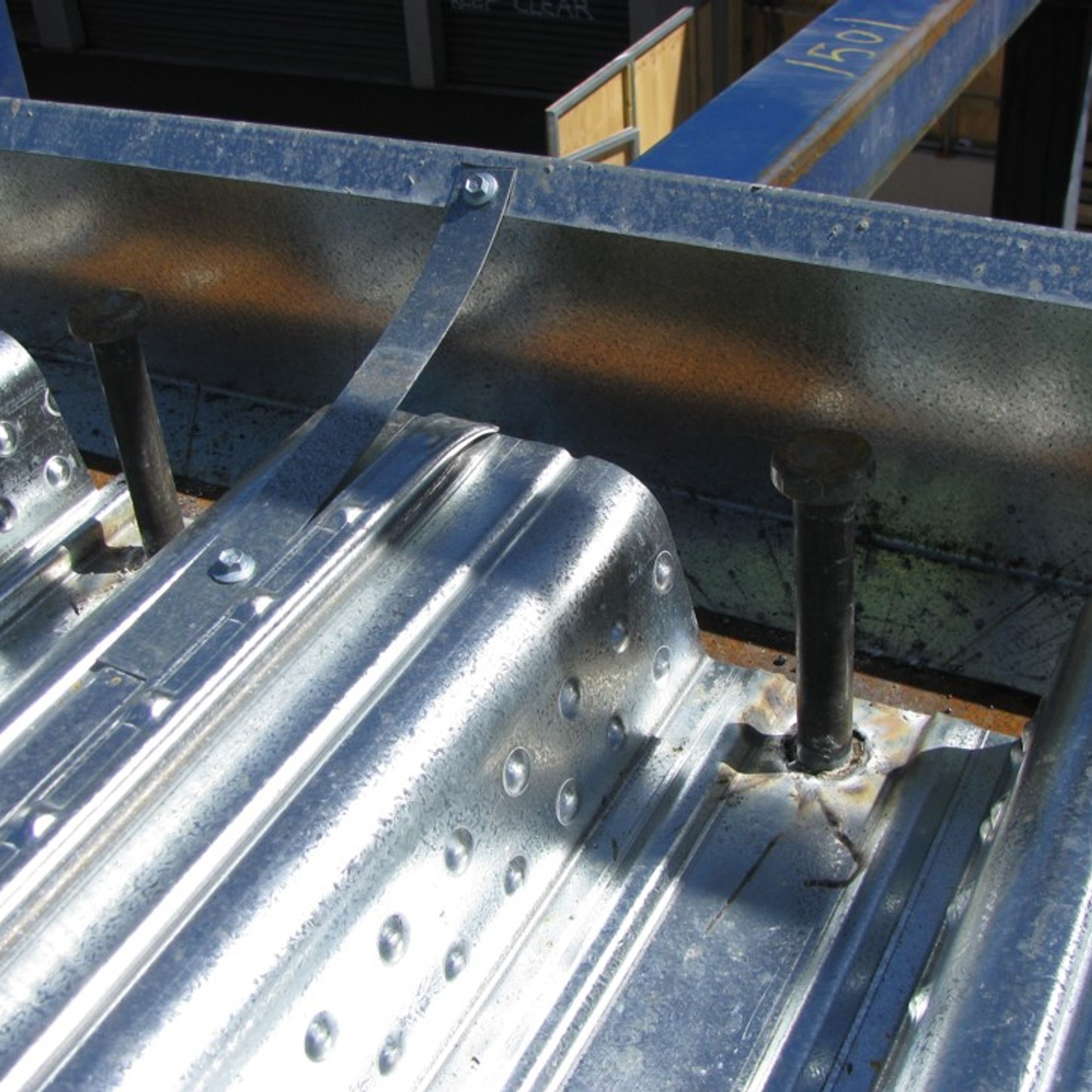

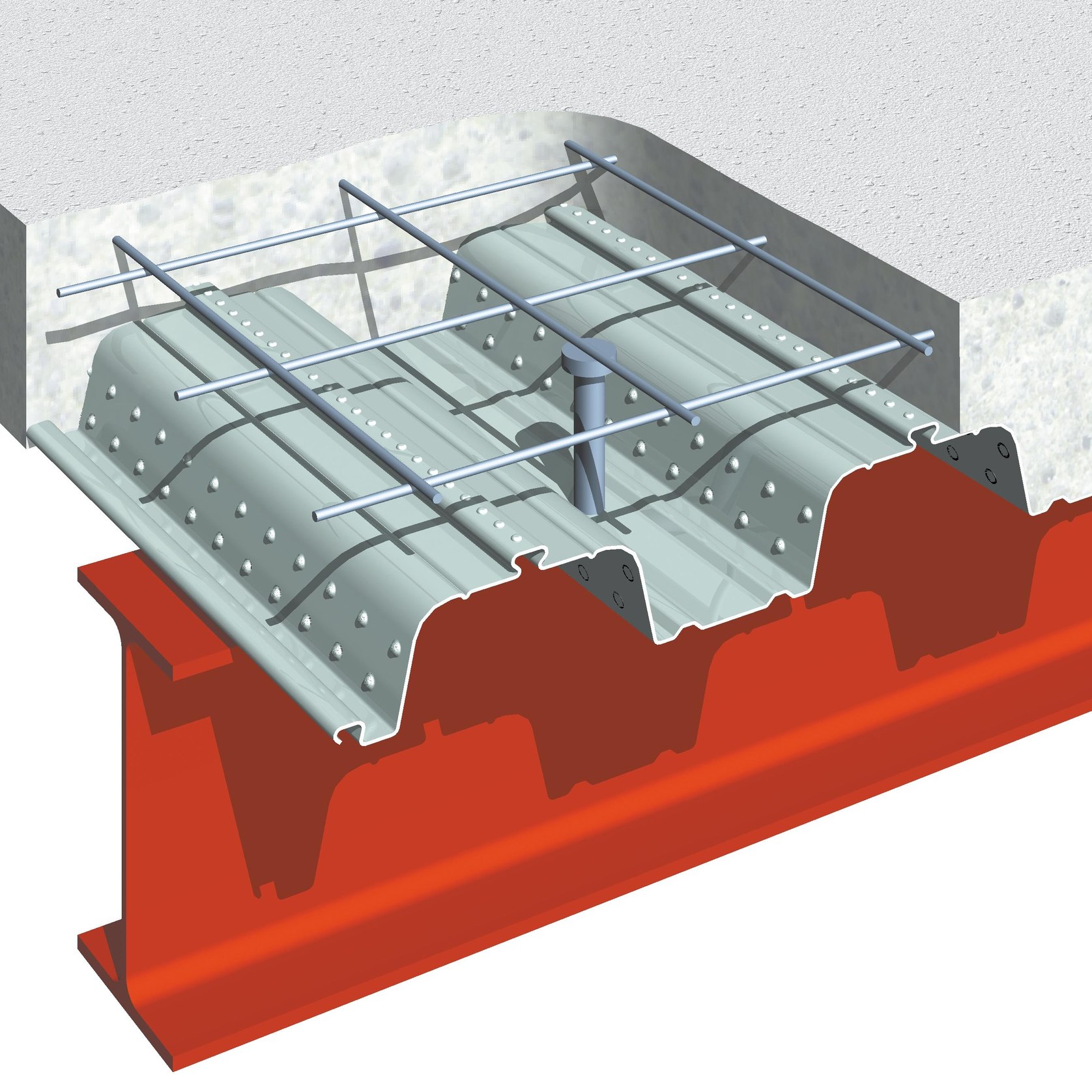

- Stud placement ensures correct stud location. The centralised stud position ensures optimum capacity of the shear connectors, enhancing composite action, whilst reducing the need for site checking of stud location. The result is a saving on beam weights and reduced construction risk.
Acoustic and fire performance
- Fire ratings up to 4 hours are possible with ComFlor 80
- Excellent acoustic properties
Safer manual handling

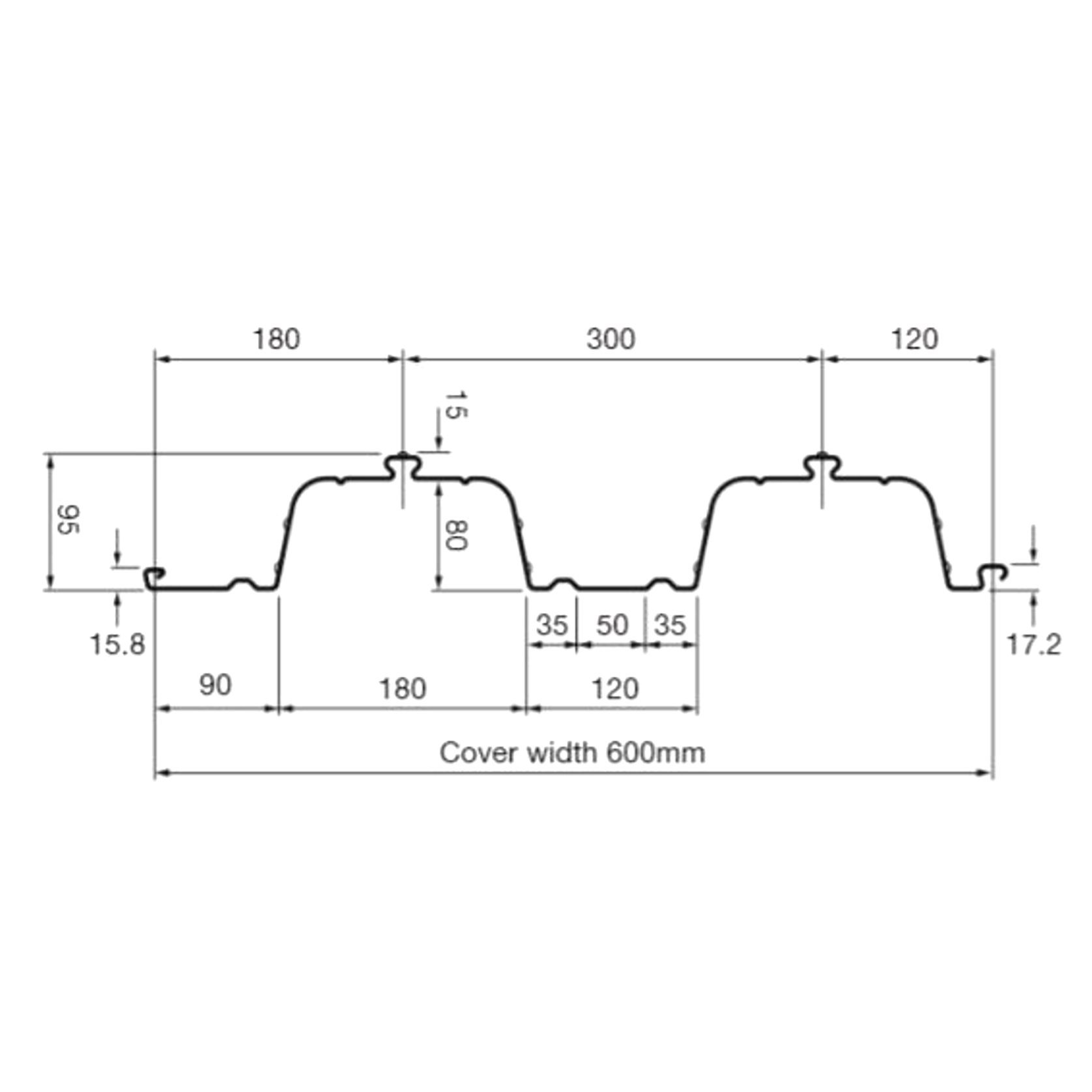

- The cover width of ComFlor® 80 is 600mm. This reduces sheet weight and improves handling.
