WALSC AAC FLOORING SYSTEM

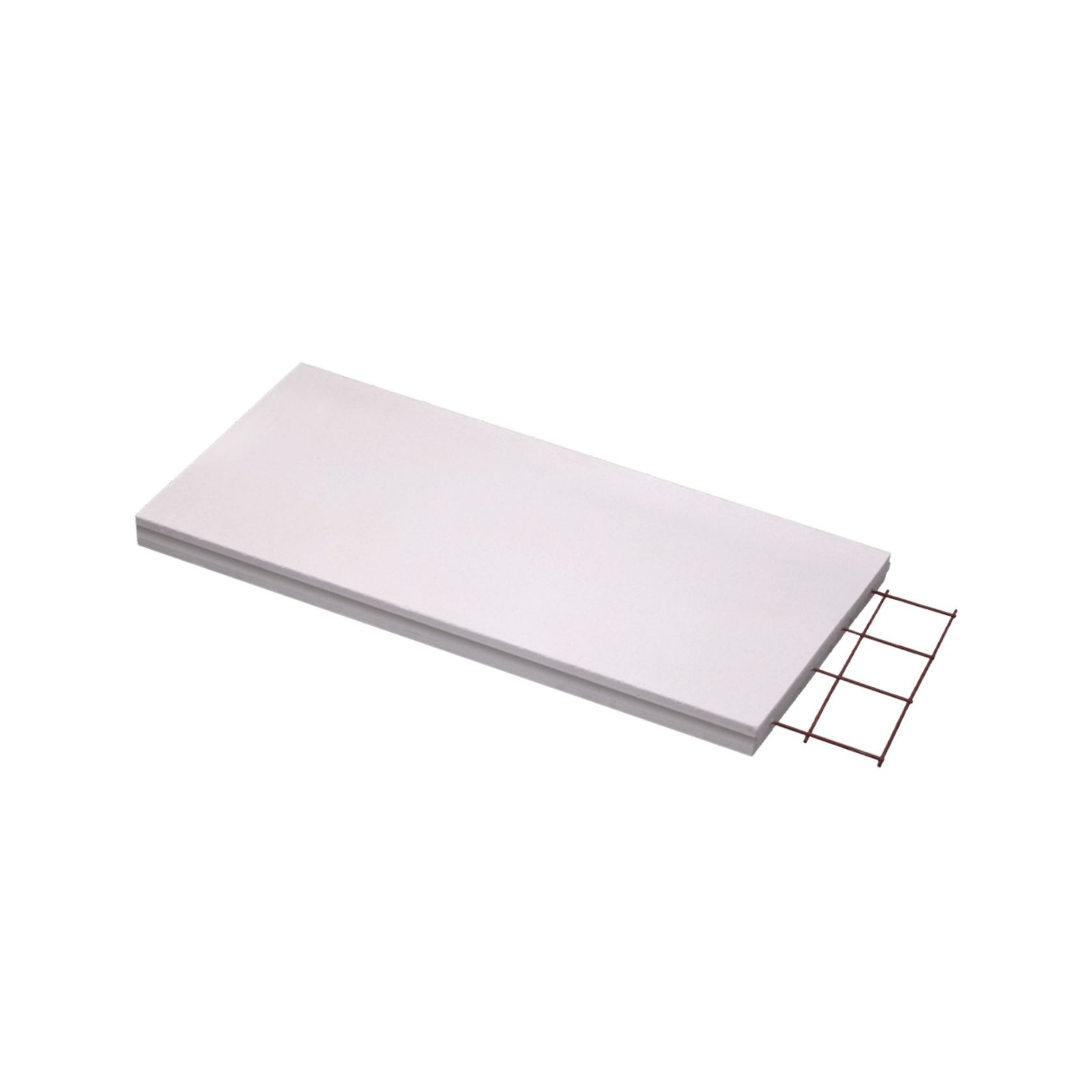

The Walsc AAC Flooring System for low-rise residential buildings consists of 75mm reinforced Walsc AAC Floor Panels installed onto a timber or steel joist floor frame. Construction adhesive is applied to the top of the joists prior to the panel being laid and fixed using screws embedded into the joists. All panel edges in contact with another panel require a 2-3mm panel adhesive joint except where control joints are required.
Start visualizing the AAC Flooring System: https://walsc.com.au/products/walsc-flooring-system
Product Details
- Product
- Walsc AAC Flooring System
- Category
- Structural Flooring
- Sold by
- Walsc AAC Panel Systems
- Brand
- Walsc AAC Panel Systems
- Year
- 2014
- Country of origin
- Australia
- Type of use
- Commercial and Residential
- Dimensions
- XL - L1800 x W600 x H75 mm - 56kg
Product Variants
- Panels Per Pack
- Size
Walsc AAC Panel Systems is specified by
WALSC AAC FLOORING SYSTEM The Walsc AAC Flooring System for low-rise residential buildings consists of 75mm reinforced Walsc AAC Floor Panels installed onto a timber or steel joist floor frame.
Construction adhesive is applied to the top of the joists prior to the panel being laid and fixed using screws embedded into the joists. All panel edges in contact with another panel require a 2-3mm panel adhesive joint except where control joints are required.
Start visualizing the AAC Flooring System: https://walsc.com.au/products/walsc-flooring-system
- Features
- Standard size 1800x600x75mm T&G
- Tongue & Groove edge profile for better joint
- NCC/BCA compliant
- Lightweight and strong
- Solid and comfortable
- Quick to install
- Local technical support team
- Great thermal/acoustic and fire-stopping performance
- Great return value in investment
- Eliminates annoying squeeze noise from particular board flooring
- Scope of use
For Low-rise Residential Buildings
- Technical Data
- Panel Thickness: 75 mm
- Panel Width: 600 mm
- Panel Length: 1800 mm
- Panel Edge Profile:Tongue & Groove
- Dry Density: 525 kg/m³
- Declared Density Class: 600 kg/m³
- Characteristic AAC Compressive Strength: 3.0 MPa
- Ultimate Strength Bending Capacity: 0.696 kNm/m
- Tensile Yield Strength: 500 MPa
- Characteristic Weld Strength: 3.1 kN
- Coefficient of Thermal Expansion: 7.0 × 10⁻⁶/K
- System Component
- Walsc AAC Floor Panel
- Walsc AAC Adhesive
- Construction Glue / Floor Bond
- Screw Fixings
- Walsc Aluminium Bracket
- Control Joints
- Walsc Anti-corrosion Protection Paint
Learn about System components in details
- System Overview
- Floor Finishes
- Foam Underlay
- Floor Penetration
- Walsc AAC Floor Panel – 1800 × 600 × 75mm T&G
- Timber or Steel Joists
- Ledger Plate for Additional Support
Click Here for More Information
Downloads
Downloads (4)4 Direct downloads • 5 Available on request
Installers for
this Product
Frequently asked questions about
Walsc AAC Flooring System
The Walsc AAC Flooring System is supplied by Walsc AAC Panel Systems. It is also on their website, and you can browse every product Walsc AAC Panel Systems lists on ArchiPro.
Walsc AAC Panel Systems does not publish a price for the Walsc AAC Flooring System on ArchiPro. for pricing, or visit their website.
Yes. It is part of the Low-rise & Multi-Residential Buildings range from Walsc AAC Panel Systems, where you can see every product in the range together.

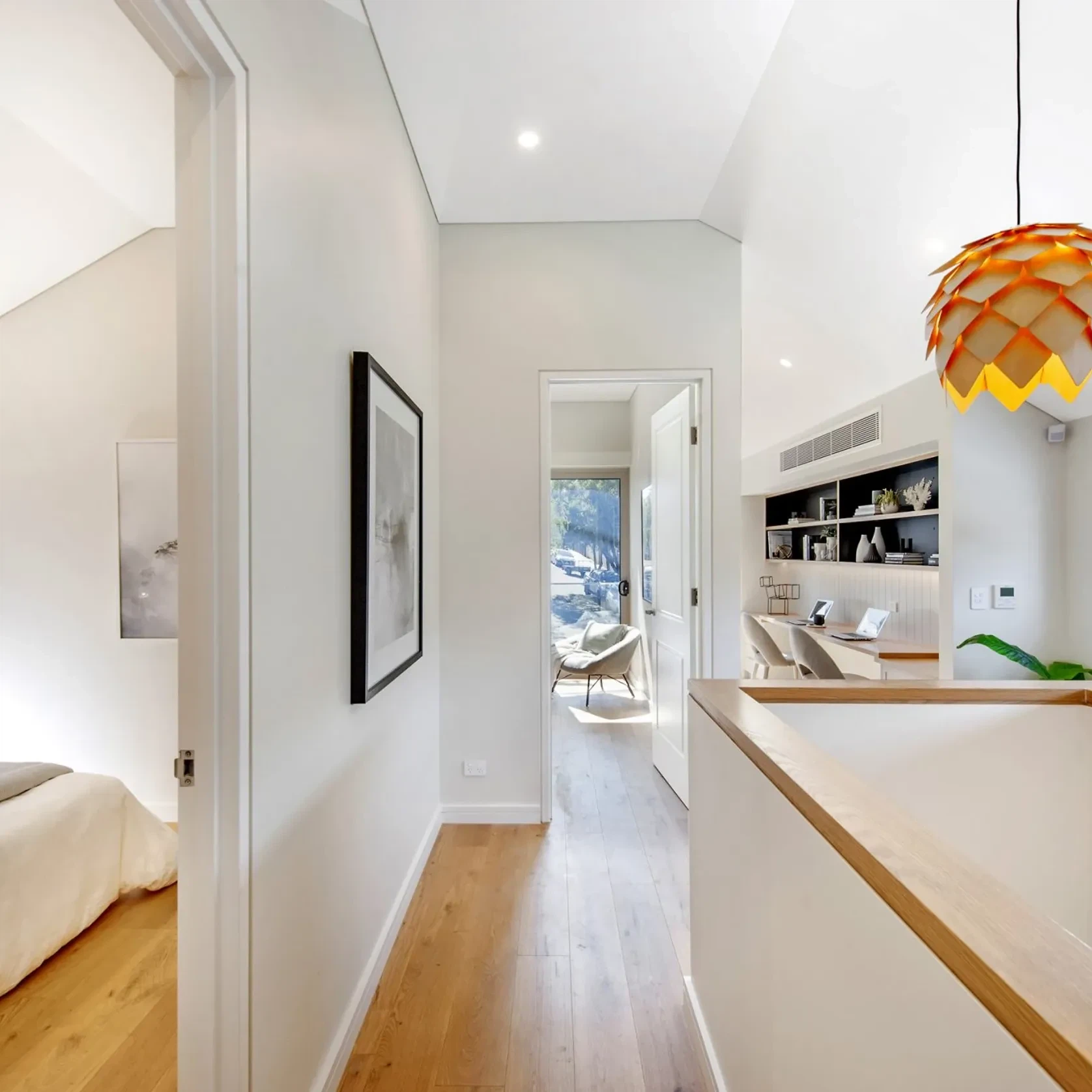

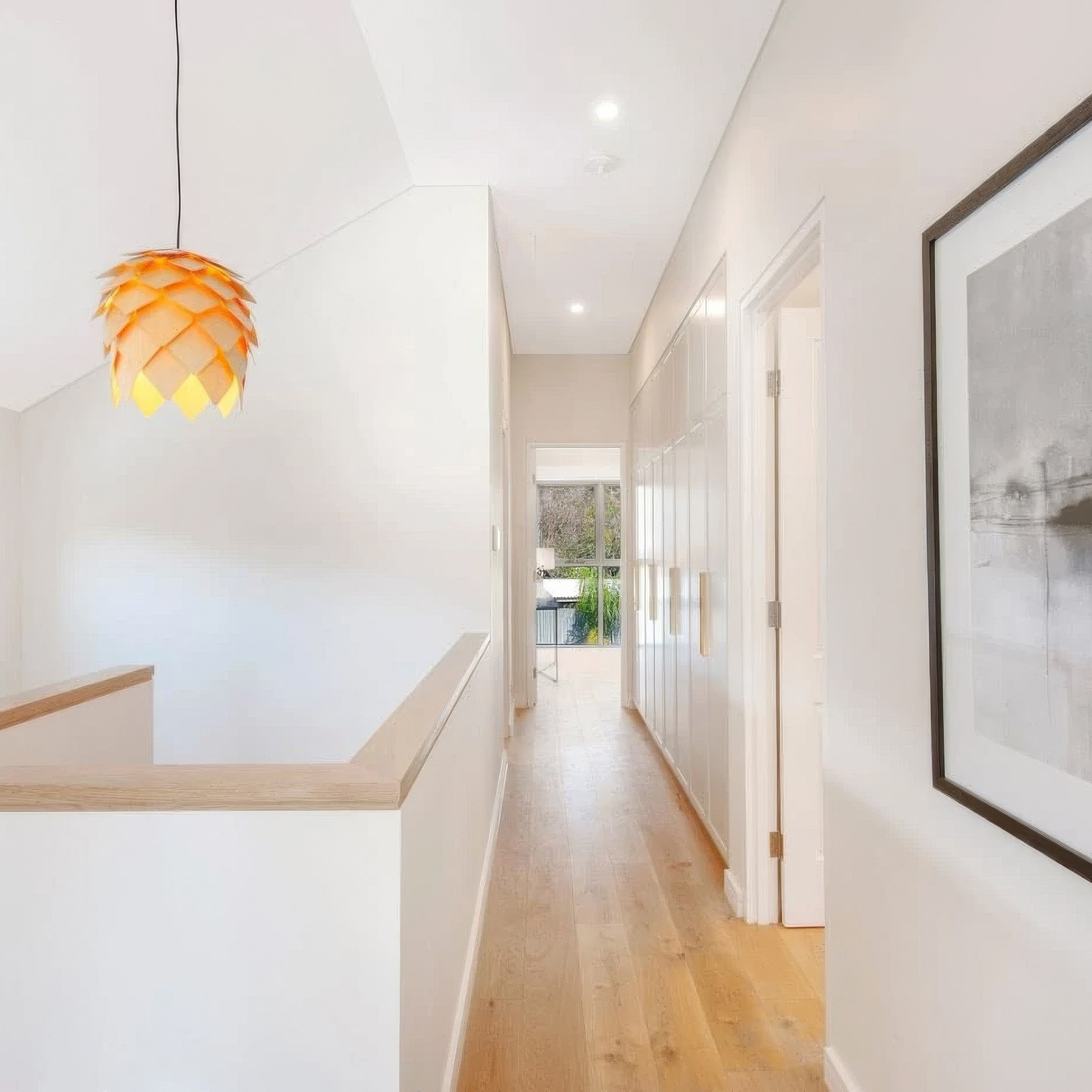

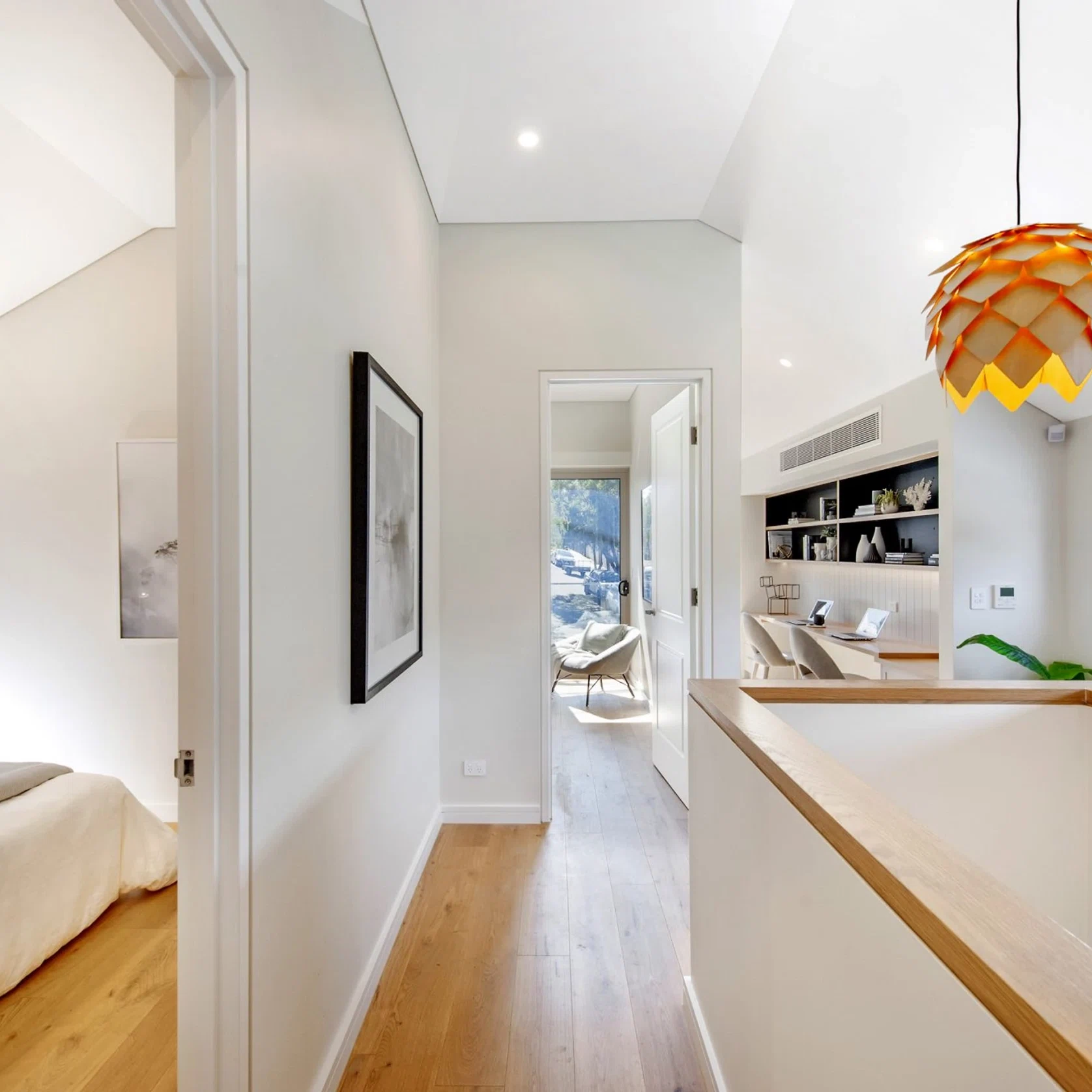

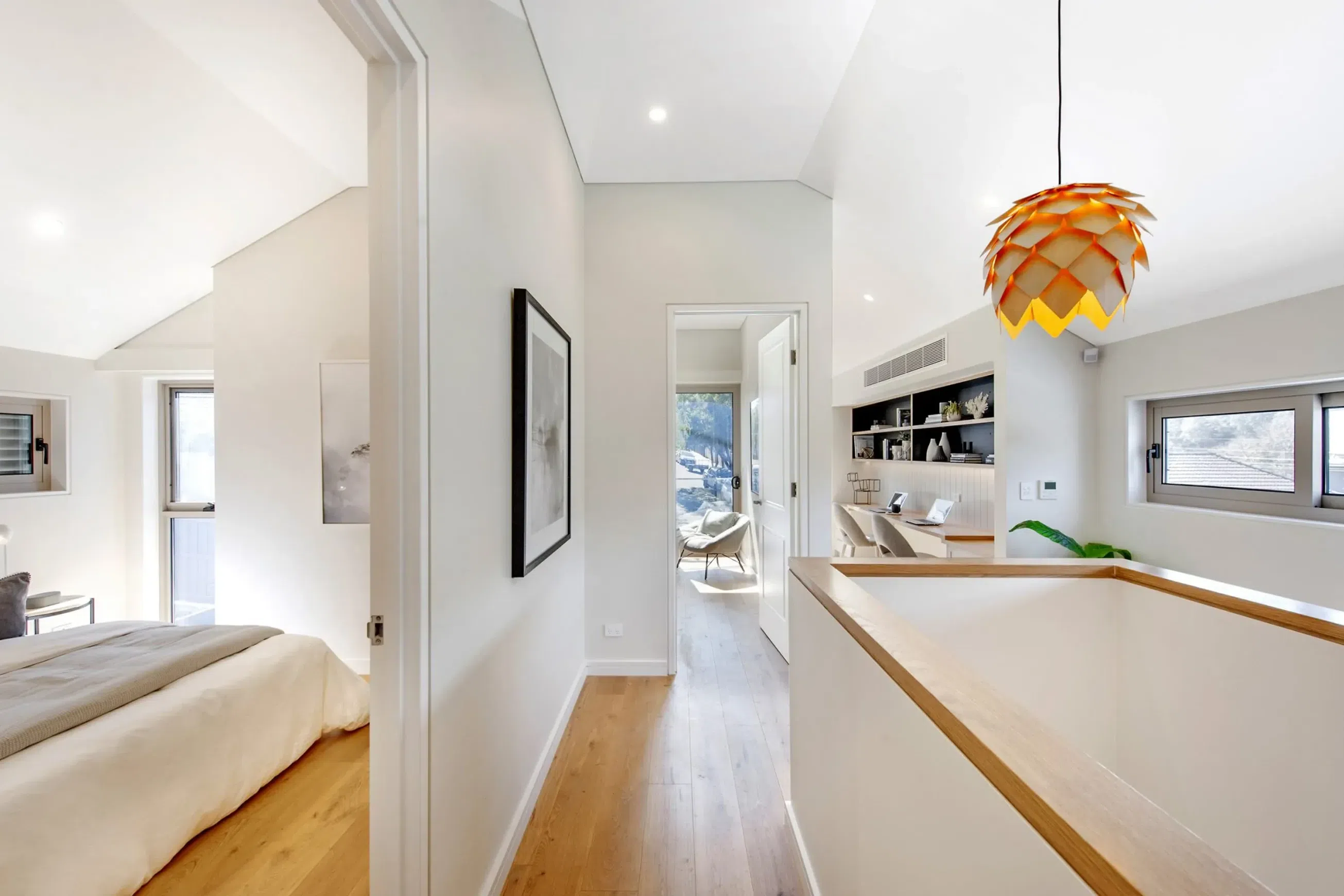

Yes. It has been specified in projects on ArchiPro, including Lilyfield Townhouse by Walsc AAC Panel Systems and Contemporary House| Concord NSW by Walsc AAC Panel Systems. See how it was used in a finished space.
