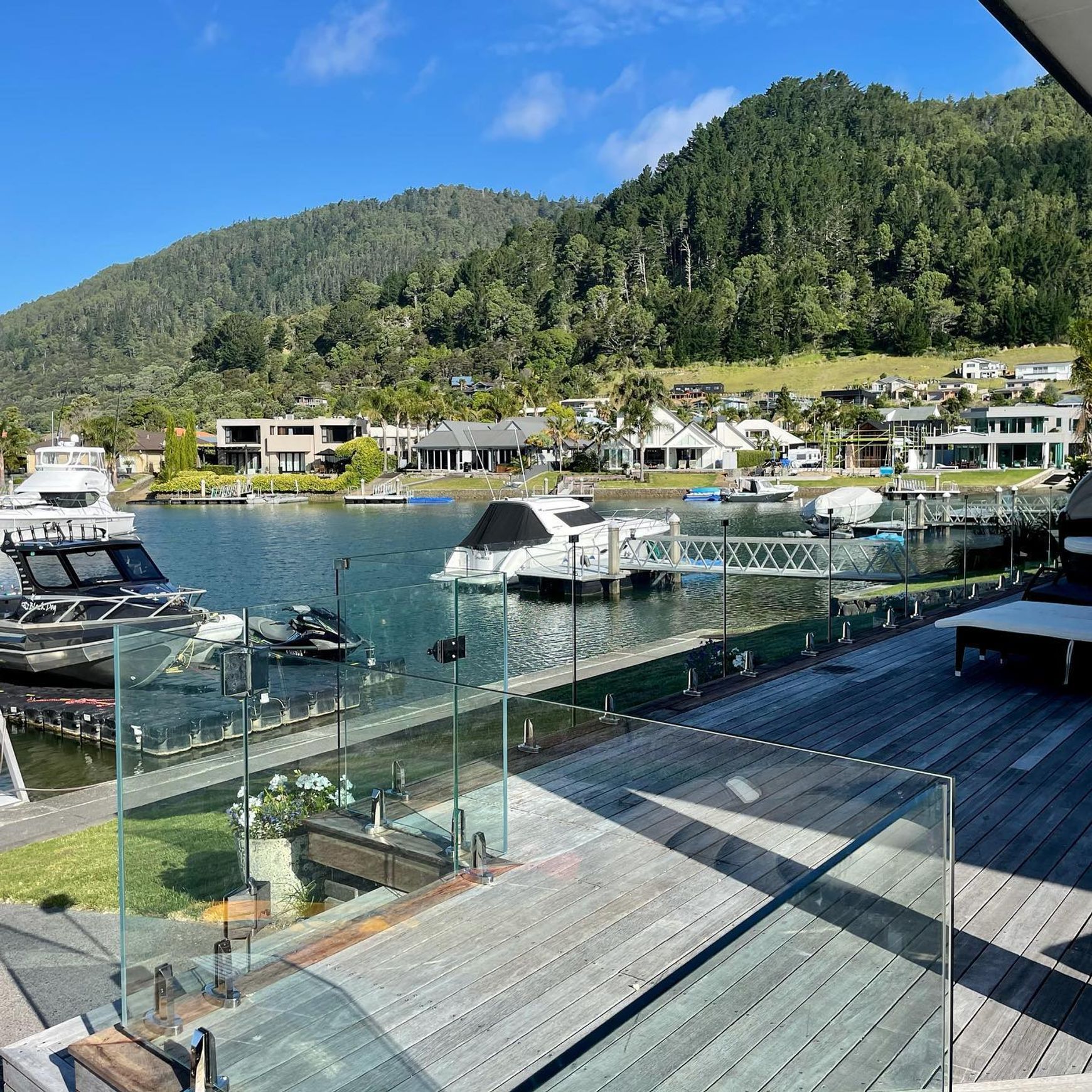

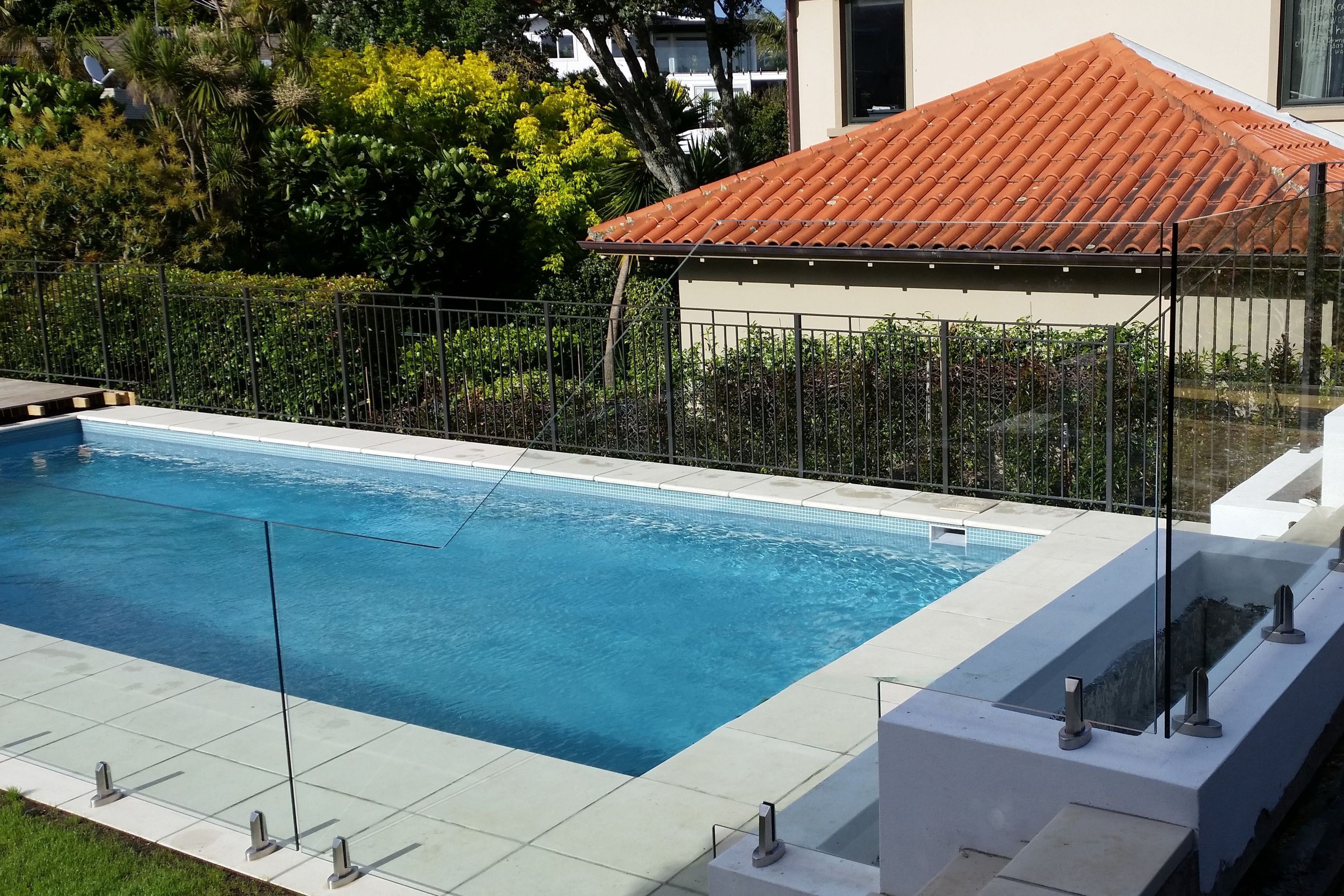

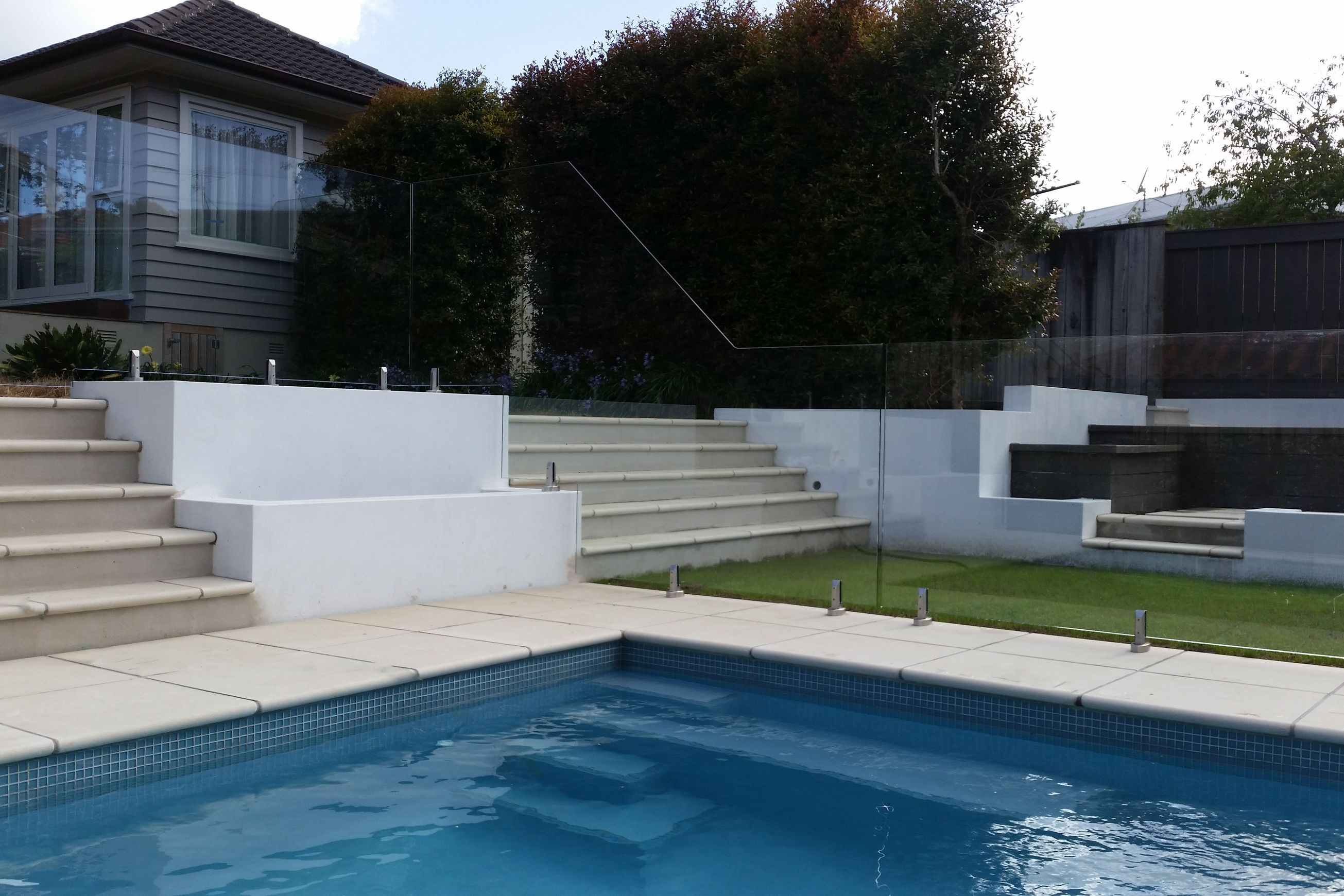

Edgetec Matador® Series I Mini Post Glass Balustrade

A stainless steel top mounted mini post system for frameless glass with incorporated hidden fixings.

Features

• 2205 Duplex Stainless Steel
• Corrosion resistant
• Top fix
• Hidden fixings
• Can be installed with 12mm Toughened glass or 13.52mm SentryGlas™ panels
• Designed as a structural barrier with or without a handrail
• Compliant with Clause F4 for the purpose of preventing a fall of over 1m
• Fast and easy installation
• No holes required for installation of glass panels
• At a touch, the glass panels tilt to allow inline adjustment using Juralco's patent-pending adjustment technology
• Producer Statement available

Scope of use

• Domestic and Residential applications
• Occupancy Types A, A Other, B, C3 & E only. Occupancy Types as per AS/NZ 1170.1.2002
• Suitable for deck and balcony barriers, stairways and pool fencing
• Balustrading and pool fencing
• Up to Extra High Wind Zone
• Fix to timber and concrete
• Especially suited, but not limited to Pool Fencing
• Compliant with Clause F4 for the purpose of preventing a fall of over 1m

Performance

• Complies With AS/NZS 1170:2002, NZS 4223.3.2016, 170:2002, NZS 4223.3.2016, NZ Building uilding Code B1, B2, F2, F4 and F9
• The Juralco Edgetec Matador® Mini Post Balustrade System has been reviewed by Lautrec Technology Group Ltd  to demonstrate compliance with the structural requirements of the New Zealand Building Code and NZS 1170 : 2002 occupancy A, B, E, A Other and C3, NZS 3604 for Low, Medium, High, and up to Very High Wind Zones
• The Structural Engineering design includes the requirements of B1 Structure, B2 Durability, F2 Hazardous material and F4 Safety from falling, all from the Building Code
• Verification Method B1 / VM1, B2/AS1, F4 / AS1
• All glass used in the Juralco Matador Mini Post Balustrade System must conform to AS/NZS 2208. Edgetec® ® Complies with NZS 4223.3.2016
• Separation of dissimilar materials (as relates to B2 compliance) has been reviewed. For other combinations refer to NZS 3604:2011 Section 2.3.3 Separation and Section 4 Durability
• Juralco Aluminium Building Products Ltd is a Dulux Registered Applicator site, registration number 2101. JABP uses only Dulux branded powder coating materials
• Dulux Duralloy® powder coating systems are suitable for properties greater than 100m from high tide level AAMA 2603 performance. Residential buildings, 3 levels max. Warranty 10 yrs
• Dulux Duralloy Plus® powder coating systems are suitable for properties greater than 10m from high tide level. AAMA 2603 performance. Residential and Light commercial buildings, 3 levels max. Warranty 15 yrs
• Dulux Duratec® powder coating systems are suitable for properties greater than 10m from high tide level AAMA2603 and 2604 performance. All Residential and Commercial buildings. Warranty 25 yr
