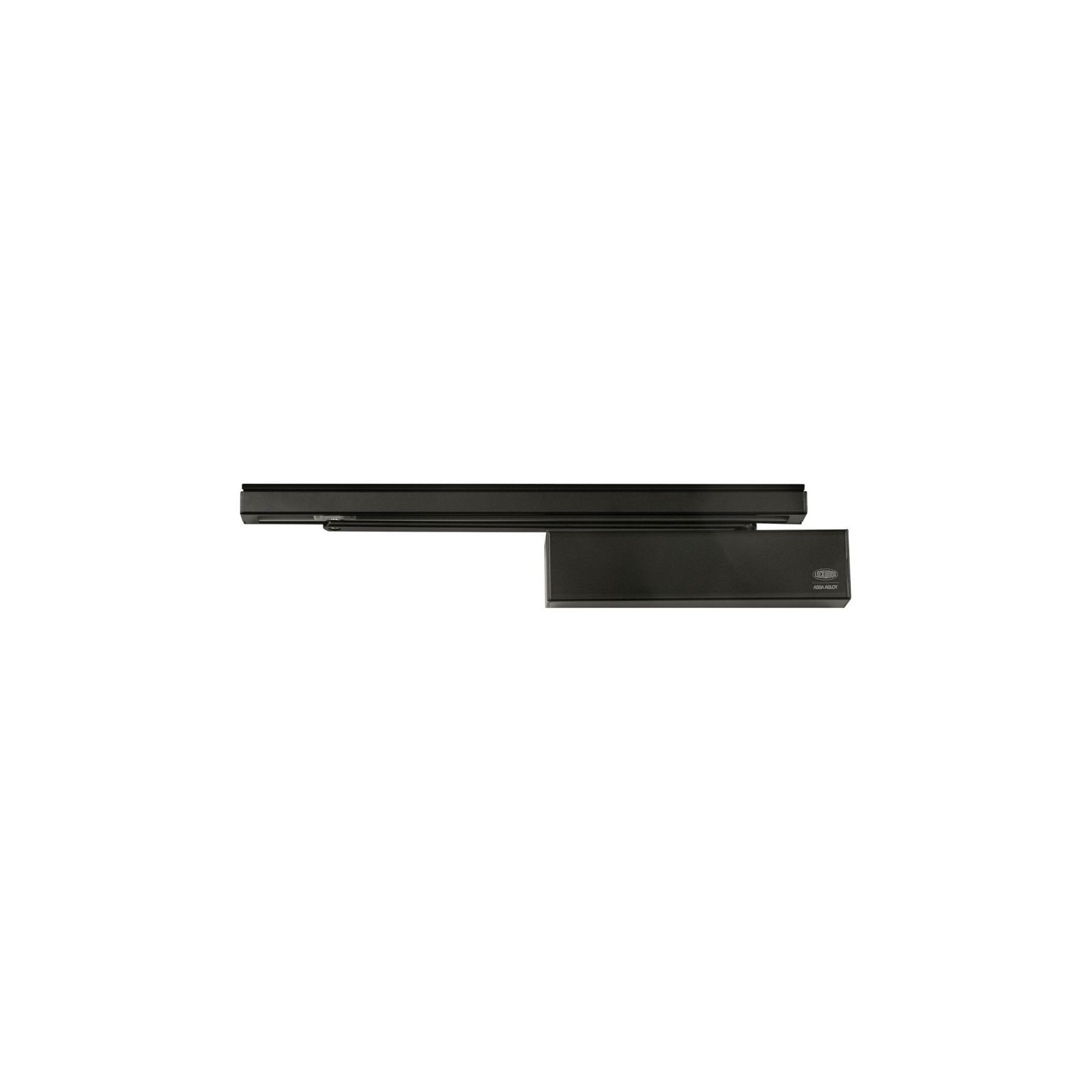

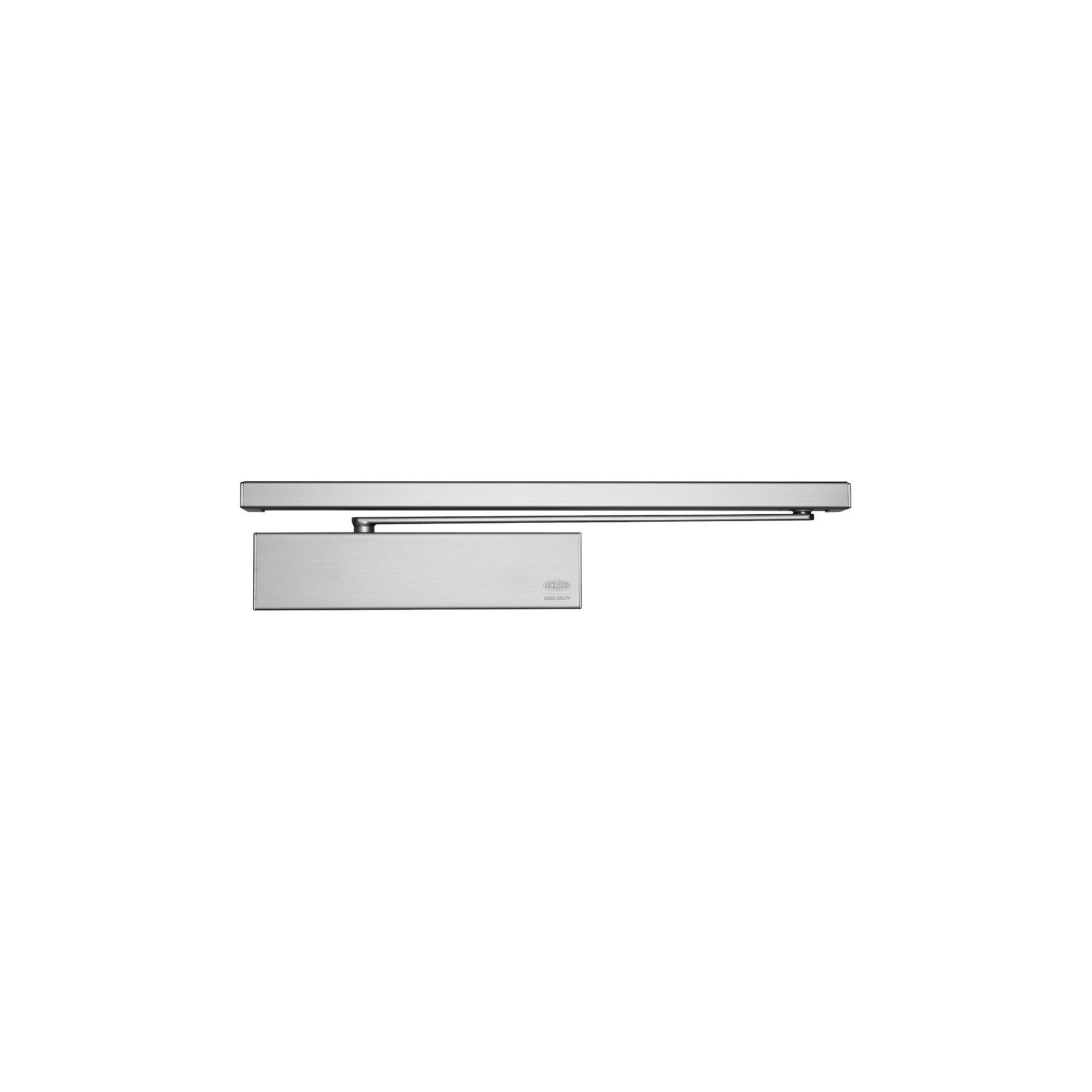

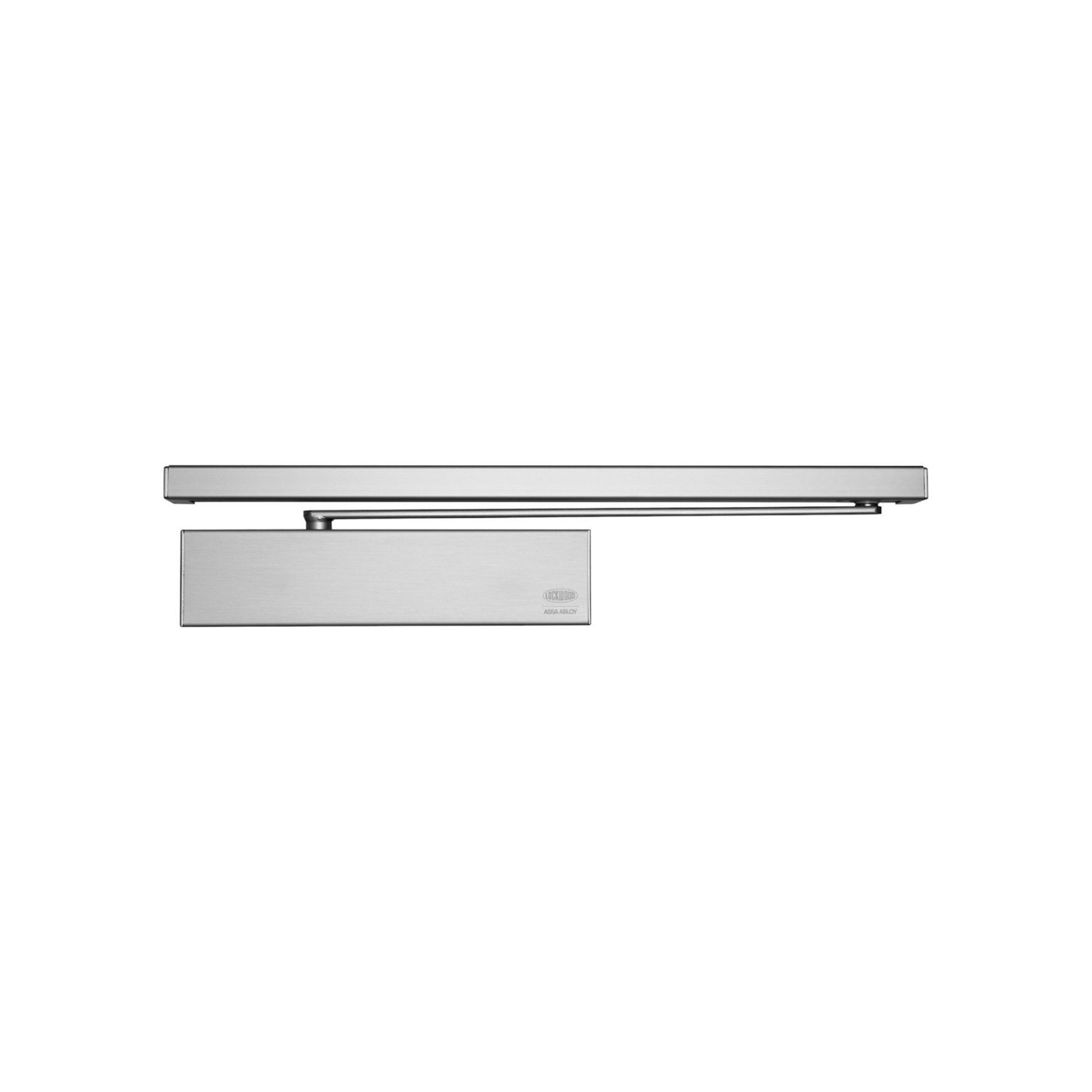

Lockwood 2615 CAM Action Door Closer with Slide Arm
- 192.9K profile views
- 17 saves
The Lockwood 2615 Series is a non-handed CAM Action Door Closer.
Due to the CAM design this premium door closer is light to open but still strong enough to close a door.
The Lockwood 2615 Door Closer can be adjusted to meet the requirements of a light door opening resistance and is ideal for both interior and exterior doors.
The Lockwood 2615 is light to open, but its adjustable closing force is high enough for heavy duty applications.
For disabled toilet applications where a breakout feature is required, the double action of the mechanism allows the door to be operated in the opposite direction for easy access into the room.
One model (2615) covers right hand and left hand applications, pull side/ push side applications and also features an adjustable arm height.
The 2615 has a very high efficiency of 70% - 80%.
Product Details
- Product
- Lockwood 2615 CAM Action Door Closer with Slide Arm
- Category
- Door Closers
- Range
- Lockwood
- Brand
- Lockwood
ASSA ABLOY Door Locks & Security Solutions is specified by
Design King CompanyArchitects
JOST ArchitectsArchitects
Winter ArchitectureArchitects
ClarkeHopkinsClarkeArchitects
Katz ArchitectureArchitects
DX ArchitectsArchitects
Ha ArchitectureArchitects
Rama ArchitectsArchitects
Wood MarshArchitects
Woods BagotArchitects
Abe McCarthy ArchitectsArchitects
Glasshouse ProjectsDesign & Build
KarmatectureBuilding Designers
Keeler HardwareManufacturers and Suppliers
Studio NicholasInterior Designers
Alabaster WorkshopManufacturers and Suppliers
Australian Institute of ArchitectsAssociations
The Lockwood 2615 Series is a non-handed CAM Action Door Closer.
Due to the CAM design this premium door closer is light to open but still strong enough to close a door.
The Lockwood 2615 Door Closer can be adjusted to meet the requirements of a light door opening resistance and is ideal for both interior and exterior doors.
The Lockwood 2615 is light to open, but its adjustable closing force is high enough for heavy duty applications.
For disabled toilet applications where a breakout feature is required, the double action of the mechanism allows the door to be operated in the opposite direction for easy access into the room.
One model (2615) covers right hand and left hand applications, pull side/ push side applications and also features an adjustable arm height.
The 2615 has a very high efficiency of 70% - 80%.
- Specs
- Power: EN adjustable 1 to 5
- Back check (BC): Adjustable
- Hold Open: Adjustable. Hold-open can be set at any angle up to 120° of opening
- Handing: Non-handed. Suitable for left or right hand doors.
- Cover: Formed metal cover
- Materials: Cast aluminium body manufactured from high performance silicon alloy
- Mechanism: CAM action
- Mounting: Pull side, push side and over-door mounting
- Valves: Two pressure relief valves are a standard feature to protect against abuse
- Delayed Action: Adjustable
- Closing Speed: Adjustable
- Latching Speed: Adjustable
Standards and Compliance
The Lockwood 2616 series closer has been successfully tested up to four hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS1905.1:2005, Part: Fire Resistant Door sets. Note: Hold open option is not approved on any fire door.
Disabled Access Australian Standard (AS1428.1) Design for access and mobility.
