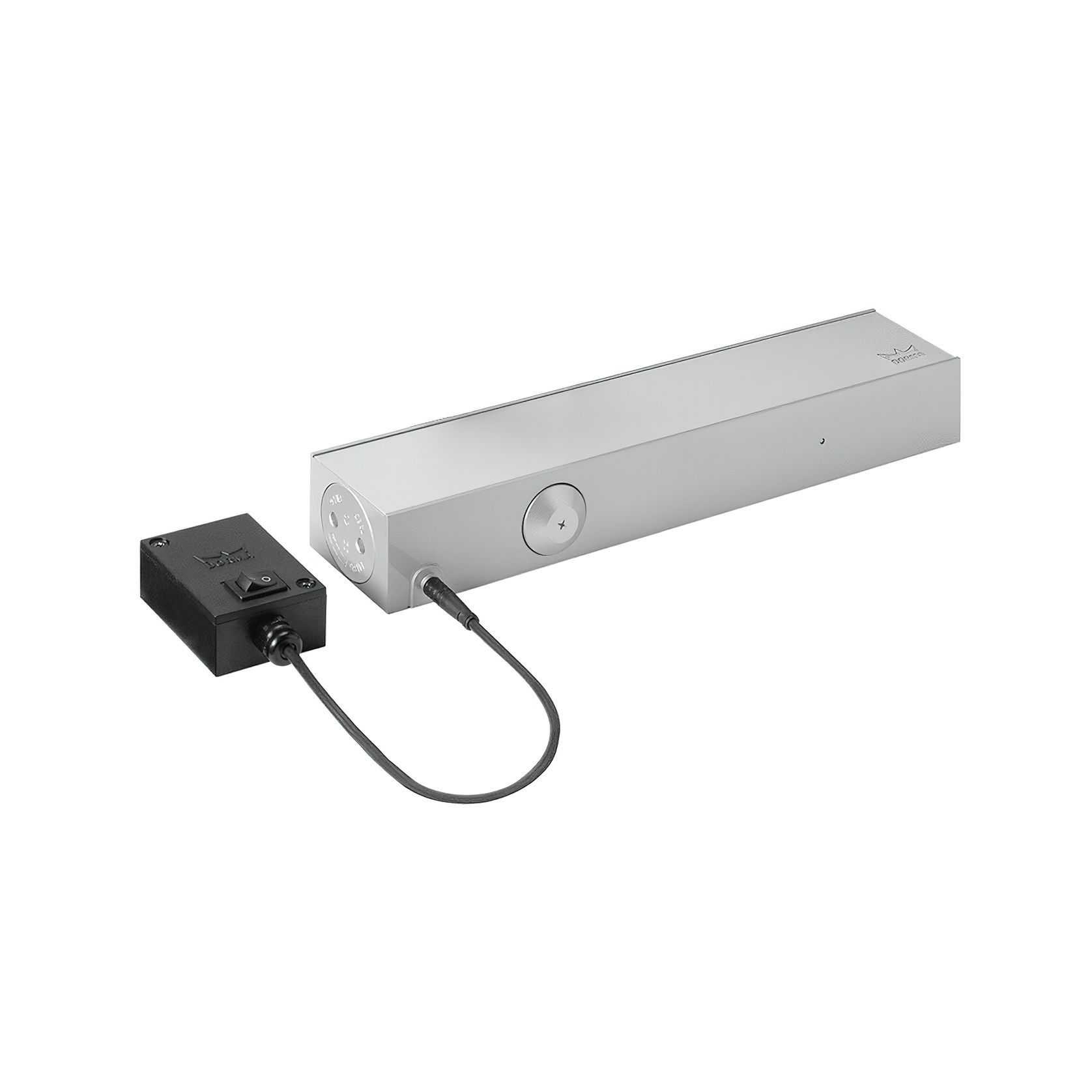

Dorma TS73 EMF EN4-6 Electro Magnetic Hold Open Door Closers Body Only Silver
Wetherill Park, Australia
- 995.1K profile views
- 51 saves
Door closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming. A door closer function is a hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.
Combination of hydraulic door closer and electromagnetic hold-open unit. Hold-open of the door is performed under electromagnetic control. In the event of a fire, door is reliably closed by the integral hydraulic closer. Closing cycle is also initiated by manual door operation or automatically in the event of a power failure.
Product Details
- Product
- Dorma TS73 EMF EN4-6 Electro Magnetic Hold Open Door Closers Body Only Silver
- Category
- Door Closers
- Sold by
- Keeler Hardware
- Range
- Dorma
Keeler Hardware is specified by
Cadence & CoArchitects
Anderson ArchitectureArchitects
Bryant Alsop ArchitectsArchitects
David Baillie ArchitectArchitects
Dieppe DesignArchitects
Invilla ArchitectureArchitects
J Mammone ArchitectureArchitects
Alexander &CO.Architects
Hive ArchitectureArchitects
mcmahon and nerlichArchitects
Ha ArchitectureArchitects
R ARCHITECTUREArchitects
Ian Moore ArchitectsArchitects
Scale ArchitectureArchitects
TDDP ArchitectsArchitects
Bones StudioArchitects
De Moyer ArchitectureArchitects
Habitat Studio ArchitectsArchitects
Bijl ArchitectureArchitects
JOST ArchitectsArchitects
Ironbark ArchitectureArchitects
Kate NixonInterior Designers
Rise Architectural BuildersBuilders
TrueBuild HomesDesign & Build
Susie Miles DesignInterior Designers
X + OInterior Designers
New SpacesBuilders
APC BuildBuilders
Jumble & StackInterior Designers
Dasch AssociatesInterior Designers
Ilm InteriorsJoiners
STUDIO GAXAInterior Designers
Schemes & SpacesInterior Designers
Door closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.
A door closer function is a hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.
Combination of hydraulic door closer and electromagnetic hold-open unit. Hold-open of the door is performed under electromagnetic control. In the event of a fire, door is reliably closed by the integral hydraulic closer. Closing cycle is also initiated by manual door operation or automatically in the event of a power failure.
- Specs
Spring Strenght:
- EN4
- EN5
- EN6
Max Door Width:
- 1100mm
- 1250mm
- 1400mm
Operating Voltage: 24V DC
Type: Standard Fix

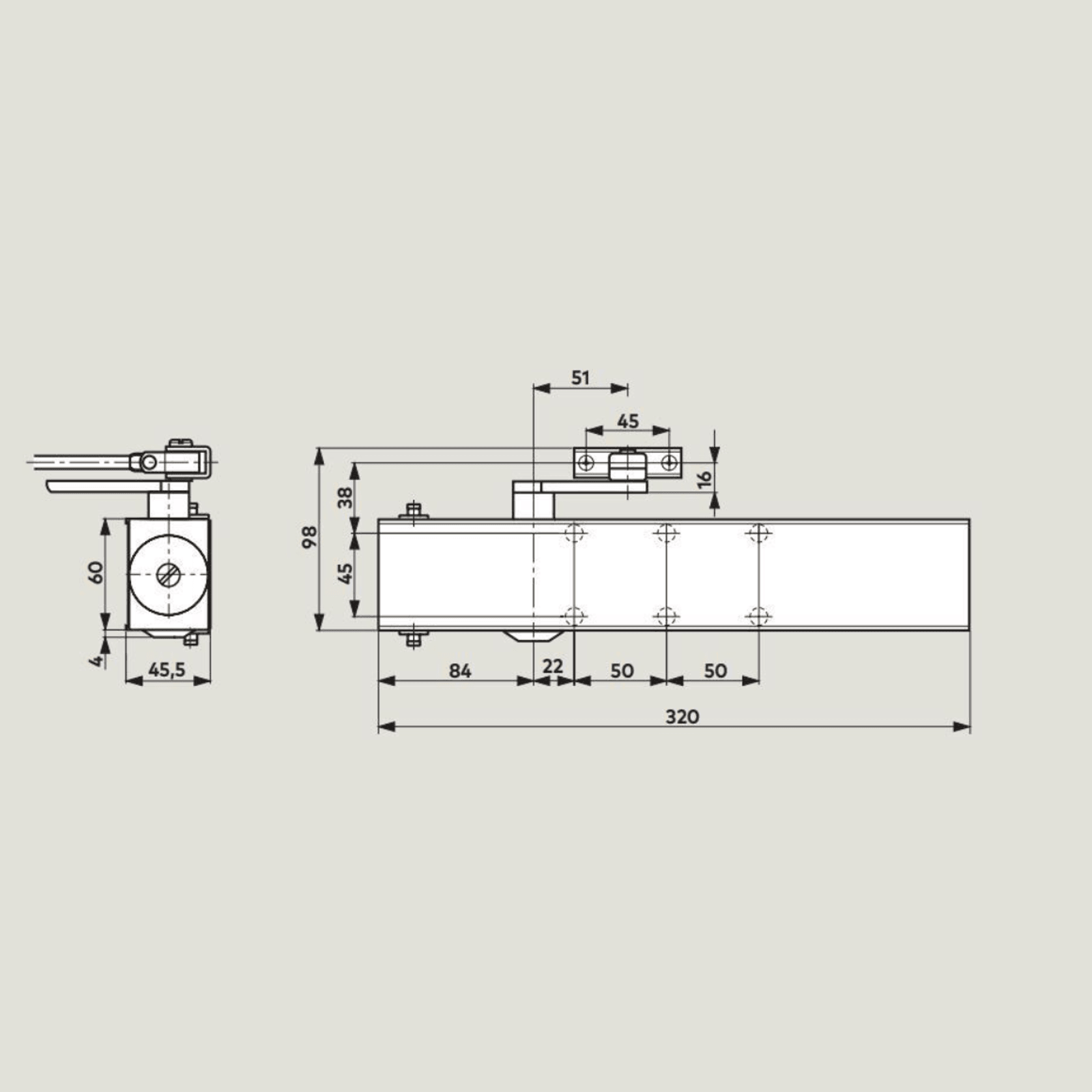

Length: 320mm
Width: 45.5mm
Height: 60mm
Finish: Silver
- Features
- Suitable for fire doors
- Input voltage is 24VDC
- Power input max is 2 volts
- Closing speed adjustable by valve and latching speed is adjustable by arm.
- Free selection of the hold open point (opening angles over 75°) is variable at any time without the need for adjustment of setting controls.
- Body Only
- Certification
- CE Marked
- CERTIFIRE approved for fire doors: ITT120 MM/IMM240
- BSI approved BS EN1155
Downloads
Downloads (3)3 Direct downloads • 5 Available on request
