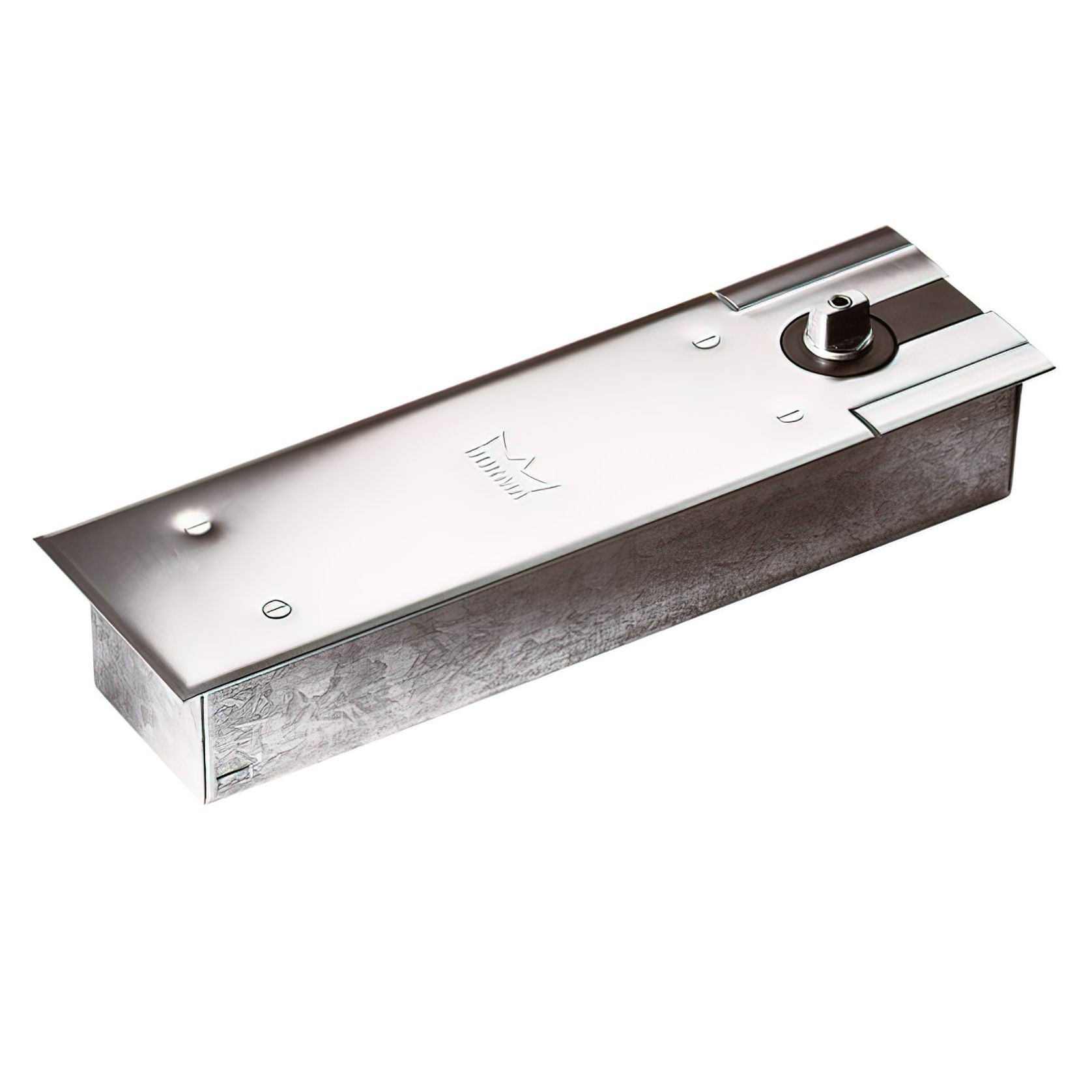

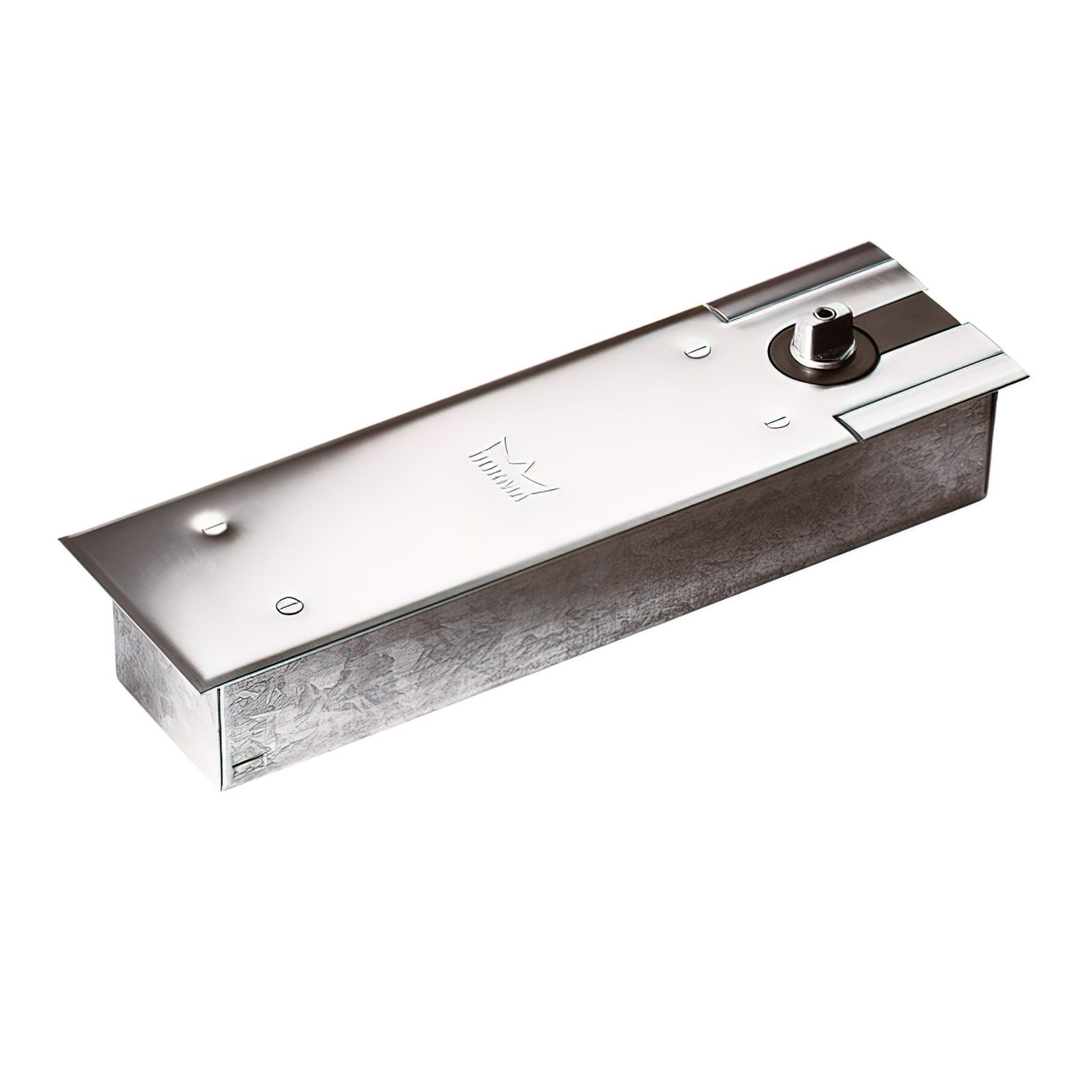

Dorma Floor Spring EN1-4 Non Hold Open Combi Pack
Wetherill Park, Australia
- 992.8K profile views
- 51 saves
Dorma Floor Spring EN 1-4 Non Hold Open Combi Pack For Aluminium Door BTS75VA Floor Spring Door Closer is a mechanical door closing device mostly used for glass doors along with patch fitting. Mostly used where both pull and push movement is required. Floor springs are used is in Interior doors of a Business park, Malls, Hospital building. Floor Spring Door Closer Function - designed to hold the door open when the door is opened past 90 degrees. Simple pushing of the door towards the closed position, activates the closer and it also commences the closing action of the door. Includes: 1 x Dorma EN1-4 Floor Spring Non Hold Open (61701000) 1 x Dorma Top Centres 8062 (8062) 1 x Dorma Bottom Strap 7422 (46010002) 1 x Dorma Universal Cover Plate 7510V (46700059) 1 x Dorma Sealing Compound 2300 (45090086) 1 x Dorma 8064 Cover Plate Satin Stainless Steel (46020044) Dorma BTS75V EN1-4 Floor Spring Non Hold Open With Back Check 61701000 Features: Suitable for installation on single and double action doors up to 1100mm (W) with a max. 120kg leaf weight.
Product Details
- Product
- Dorma Floor Spring EN1-4 Non Hold Open Combi Pack
- Category
- Door Closers
- Sold by
- Keeler Hardware
- Range
- Dormakaba
- Brand
- Dormakaba
- Dimensions
- 308mm
Product Variants
- Colours
- Size
Keeler Hardware is specified by
Bones StudioArchitects
Scale ArchitectureArchitects
JOST ArchitectsArchitects
Anderson ArchitectureArchitects
mcmahon and nerlichArchitects
R ARCHITECTUREArchitects
Bryant Alsop ArchitectsArchitects
Ha ArchitectureArchitects
Ironbark ArchitectureArchitects
Dieppe DesignArchitects
Ian Moore ArchitectsArchitects
De Moyer ArchitectureArchitects
Habitat Studio ArchitectsArchitects
Cadence & CoArchitects
Invilla ArchitectureArchitects
Alexander &CO.Architects
Bijl ArchitectureArchitects
Hive ArchitectureArchitects
J Mammone ArchitectureArchitects
TDDP ArchitectsArchitects
David Baillie ArchitectArchitects
Rise Architectural BuildersBuilders
X + OInterior Designers
Ilm InteriorsJoiners
New SpacesBuilders
Brianda ProjectsBuilders
Dasch AssociatesInterior Designers
Kate NixonInterior Designers
TrueBuild HomesDesign & Build
STUDIO GAXAInterior Designers
IverManufacturers and Suppliers
CastellaManufacturers and Suppliers
APC BuildBuilders
Jumble & StackInterior Designers
Schemes & SpacesInterior Designers
ASSA ABLOY Door Locks & Security SolutionsManufacturers and Suppliers
Susie Miles DesignInterior Designers
Matic by DesignInterior Designers
Dorma Floor Spring EN 1-4 Non Hold Open Combi Pack For Aluminium Door BTS75VA Floor Spring Door Closer is a mechanical door closing device mostly used for glass doors along with patch fitting.
Mostly used where both pull and push movement is required. Floor springs are used is in Interior doors of a Business park, Malls, Hospital building. Floor Spring Door Closer Function - designed to hold the door open when the door is opened past 90 degrees. Simple pushing of the door towards the closed position, activates the closer and it also commences the closing action of the door. Includes: 1 x Dorma EN1-4 Floor Spring Non Hold Open (61701000) 1 x Dorma Top Centres 8062 (8062) 1 x Dorma Bottom Strap 7422 (46010002) 1 x Dorma Universal Cover Plate 7510V (46700059) 1 x Dorma Sealing Compound 2300 (45090086) 1 x Dorma 8064 Cover Plate Satin Stainless Steel (46020044) Dorma BTS75V EN1-4 Floor Spring Non Hold Open With Back Check 61701000 Features: Suitable for installation on single and double action doors up to 1100mm (W) with a max. 120kg leaf weight.
- Specs
SPECIFICATIONS: Length: 308mm Width: 105mm Thickness: 1.5mm Finish: Satin Stainless Steel
- Features
Universal application range
- Whether standard, narrow or wide, whether LH, RH, or single or double-action – the Dorma BTS 75 V door spring is designed for all types of doors. A comprehensive program of accessories ensures that it can be used successfully with a wide variety of door constructions and floor coverings.
Maximum reliability and quality
- Thanks to a wide range of functions which can be individually selected to suit different requirements, Dorma BTS 75 V floor springs offer maximum reliability and quality.

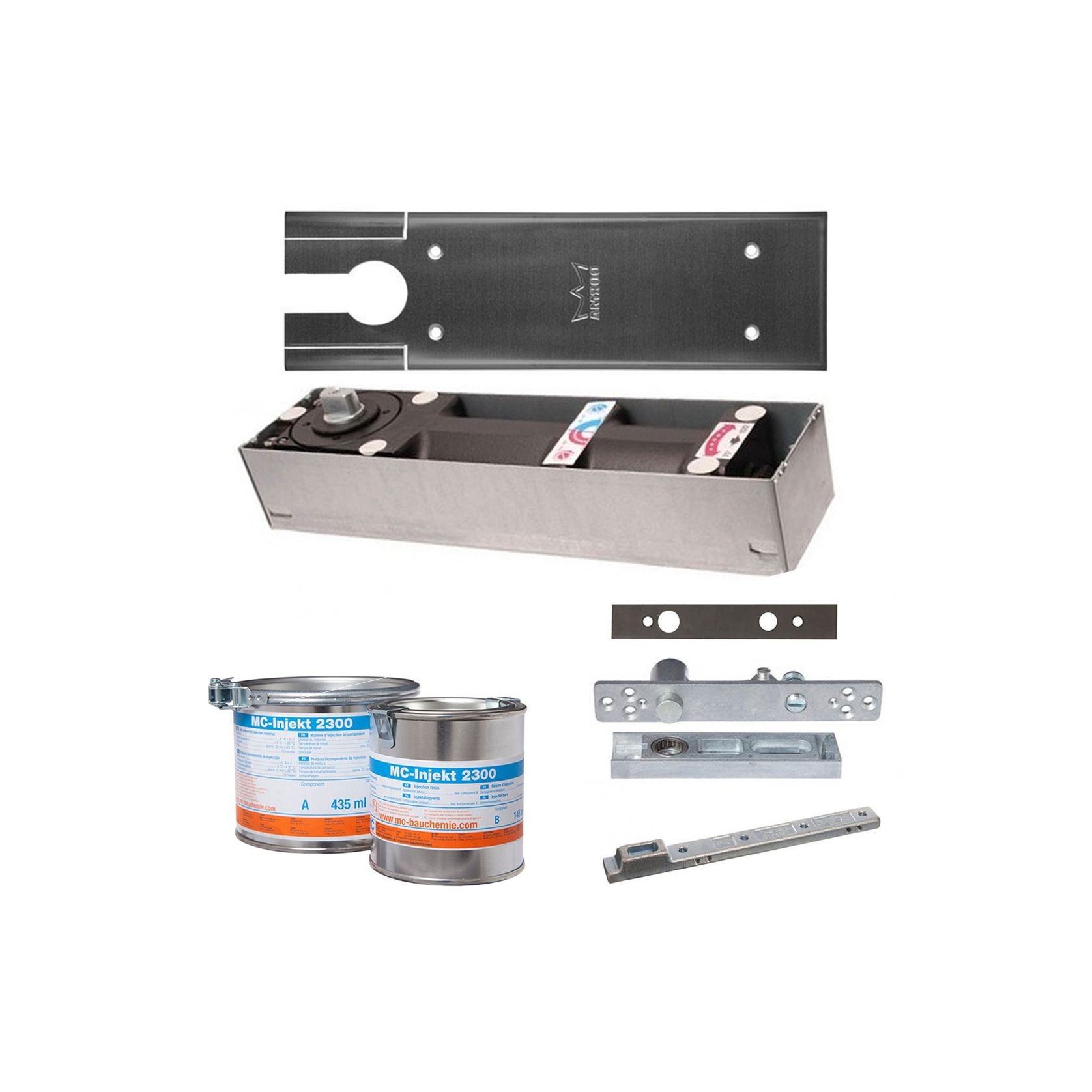

Includes:
- 1 x Dorma Floor Spring Non Hold Open (DORM61701000)
- 1 x Dorma Top Centres 8062 (DORM8062)
- 1 x Dorma Bottom Strap 7422 (DORM46010002)
- 1 x Universal Cover Plate 7510V (DORM46700059)
- 1 x Dorma Sealing Compound 2300 (DORM45090086)
