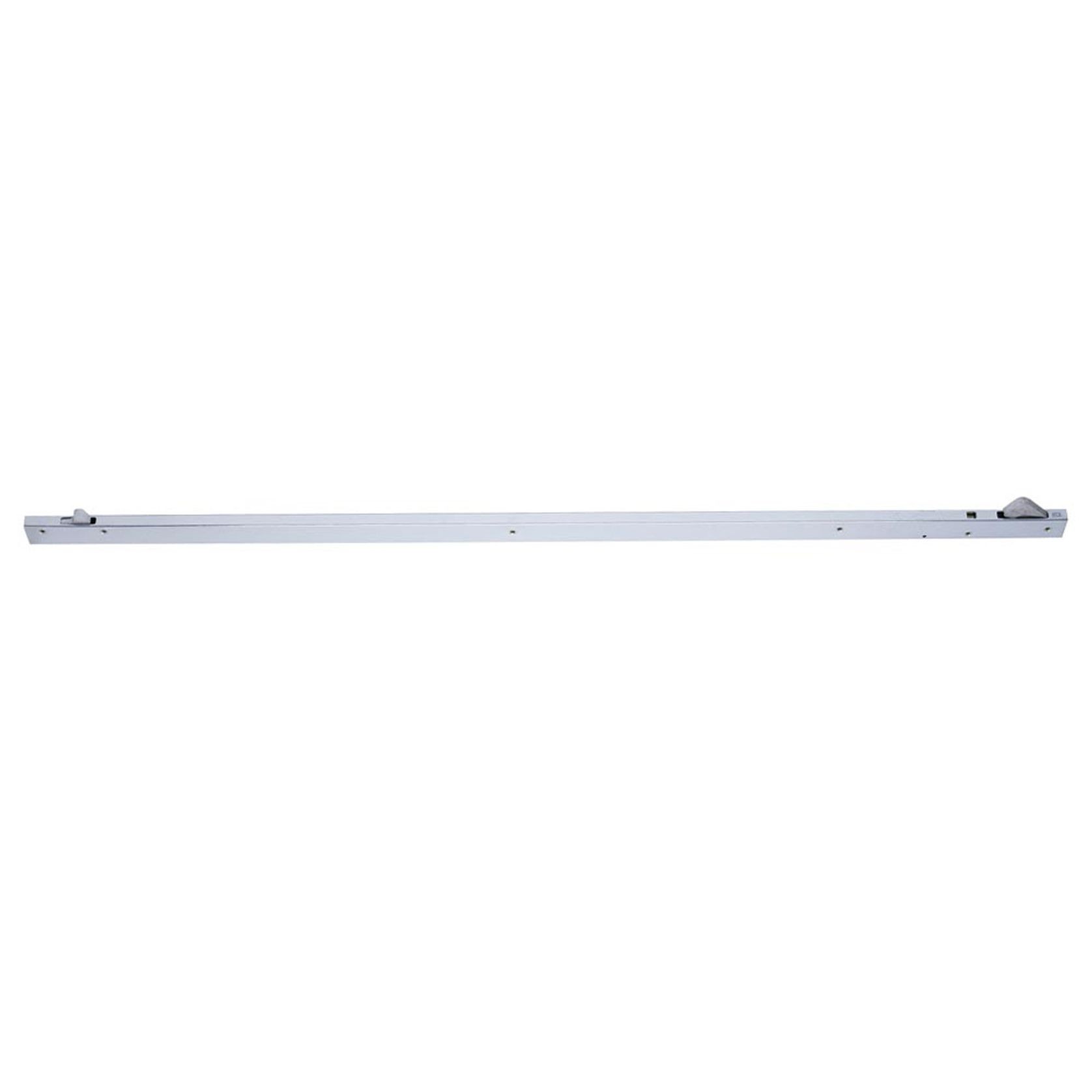

Allegion Ives Bar Door Coordinator
Bar Coordinator Function - designed for use on pairs of doors when one door needs to close before the other, the active door lever, which is closest to the active stop, keeps the active door open until the inactive leaf closes, releasing the trigger mechanism.
- Can be used in conjunction with LCN and Briton door closers.
- Designed for commercial projects and are suited to high traffic areas
Features:
- Equipped with an override feature which allows the active door to close under extreme pressure
- Compatible with Ives auto flush bolts
- Available in varying sizes for variable door opening widths

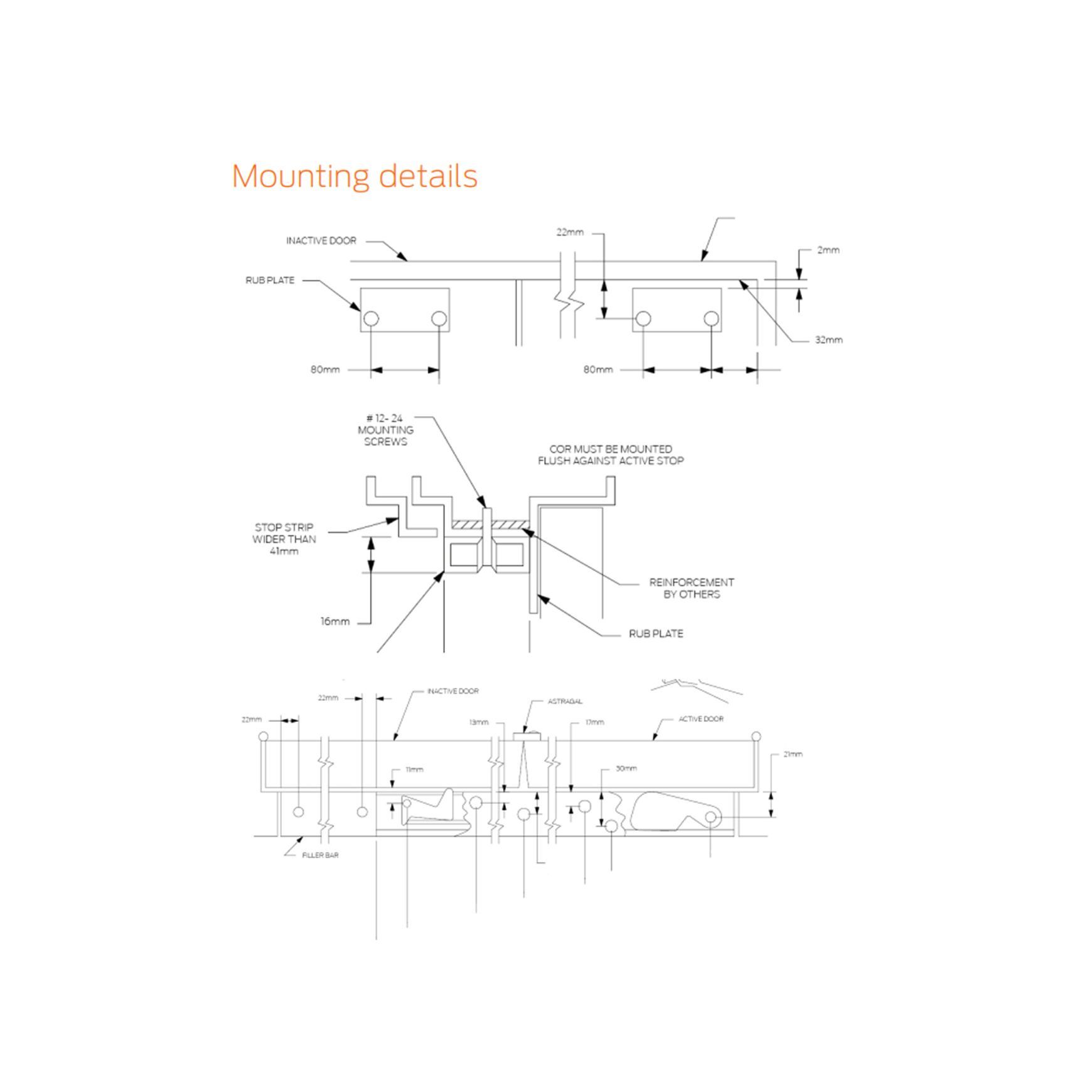

- Optional mounting brackets available for other stop applied hardware such as exit devices
- Does not cover the entire length of the stop, so a filler bar can be provided to maintain architecturally clean lines
- Surface mounted and are suitable for installations where door seals may clash with other types of coordinators
Product Details
- Product
- Allegion Ives Bar Door Coordinator
- Category
- Door Closers
- Sold by
- Keeler Hardware
- Range
- Allegion
- Brand
- Allegion
Product Variants
- For Opening Width
- Size
Keeler Hardware is specified by
R ARCHITECTUREArchitects
Ironbark ArchitectureArchitects
J Mammone ArchitectureArchitects
Ha ArchitectureArchitects
Ian Moore ArchitectsArchitects
TDDP ArchitectsArchitects
De Moyer ArchitectureArchitects
David Baillie ArchitectArchitects
Alexander &CO.Architects
Bijl ArchitectureArchitects
Habitat Studio ArchitectsArchitects
Bryant Alsop ArchitectsArchitects
Cadence & CoArchitects
Bones StudioArchitects
mcmahon and nerlichArchitects
JOST ArchitectsArchitects
Dieppe DesignArchitects
Scale ArchitectureArchitects
Invilla ArchitectureArchitects
Anderson ArchitectureArchitects
Hive ArchitectureArchitects
IverManufacturers and Suppliers
ASSA ABLOY Door Locks & Security SolutionsManufacturers and Suppliers
Brianda ProjectsBuilders
New SpacesBuilders
Kate NixonInterior Designers
Rise Architectural BuildersBuilders
Matic by DesignInterior Designers
Jumble & StackInterior Designers
Susie Miles DesignInterior Designers
APC BuildBuilders
Schemes & SpacesInterior Designers
X + OInterior Designers
CastellaManufacturers and Suppliers
STUDIO GAXAInterior Designers
Ilm InteriorsJoiners
Dasch AssociatesInterior Designers
TrueBuild HomesDesign & Build

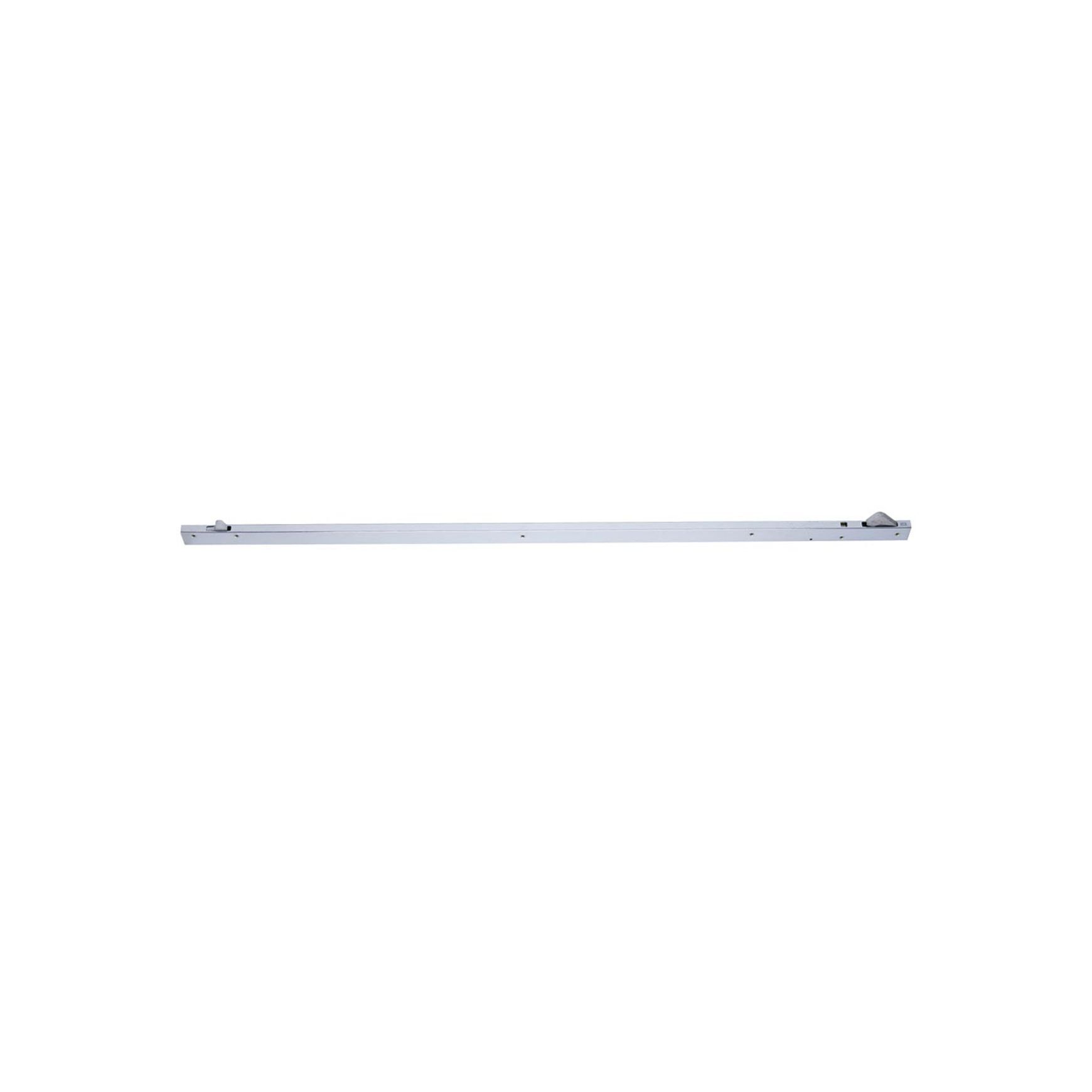

Allegion Ives Bar Door Coordinator
Bar Coordinator Function - designed for use on pairs of doors when one door needs to close before the other, the active door lever, which is closest to the active stop, keeps the active door open until the inactive leaf closes, releasing the trigger mechanism.
- Can be used in conjunction with LCN and Briton door closers.
- Designed for commercial projects and are suited to high traffic areas
Features:
- Equipped with an override feature which allows the active door to close under extreme pressure
- Compatible with Ives auto flush bolts
- Available in varying sizes for variable door opening widths

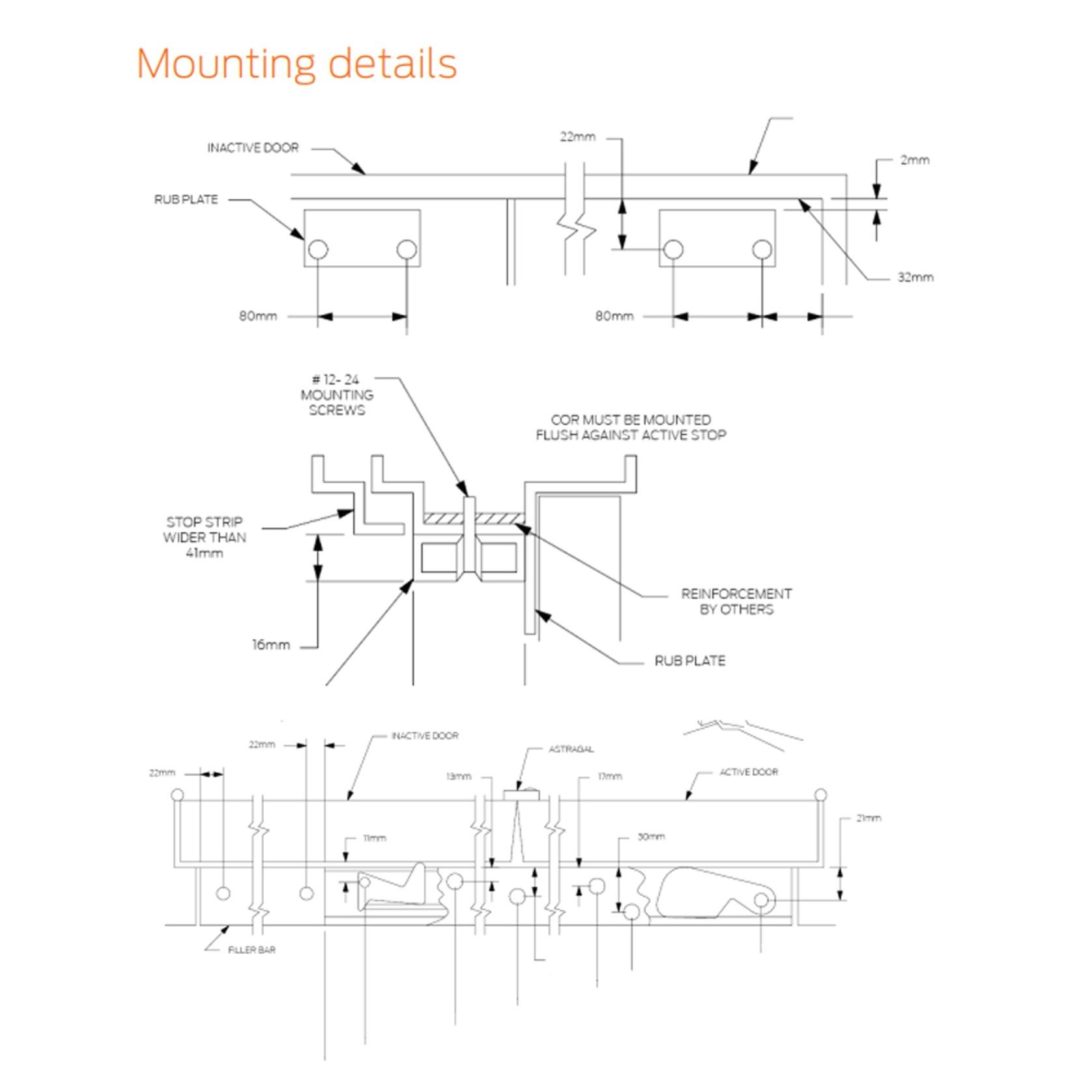

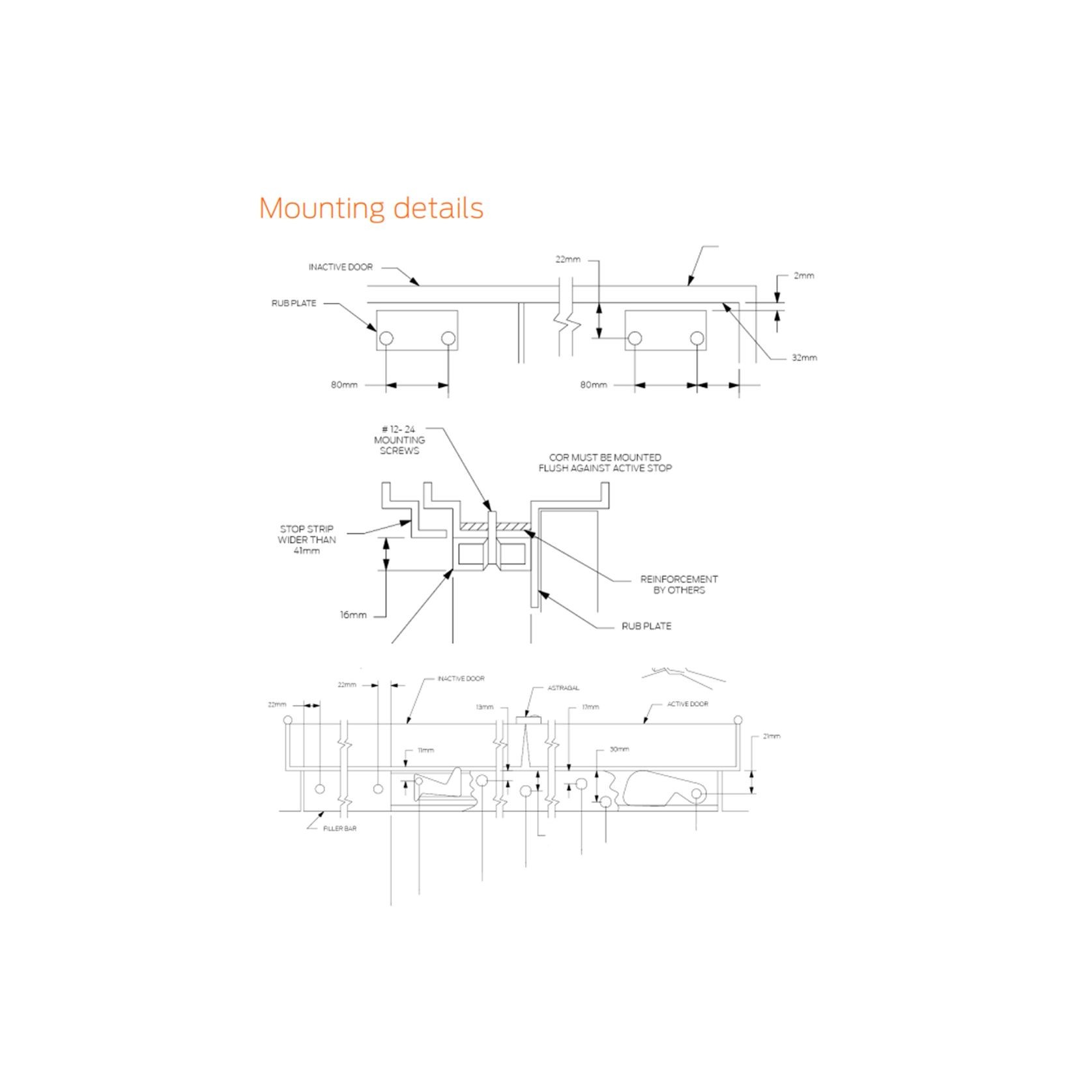

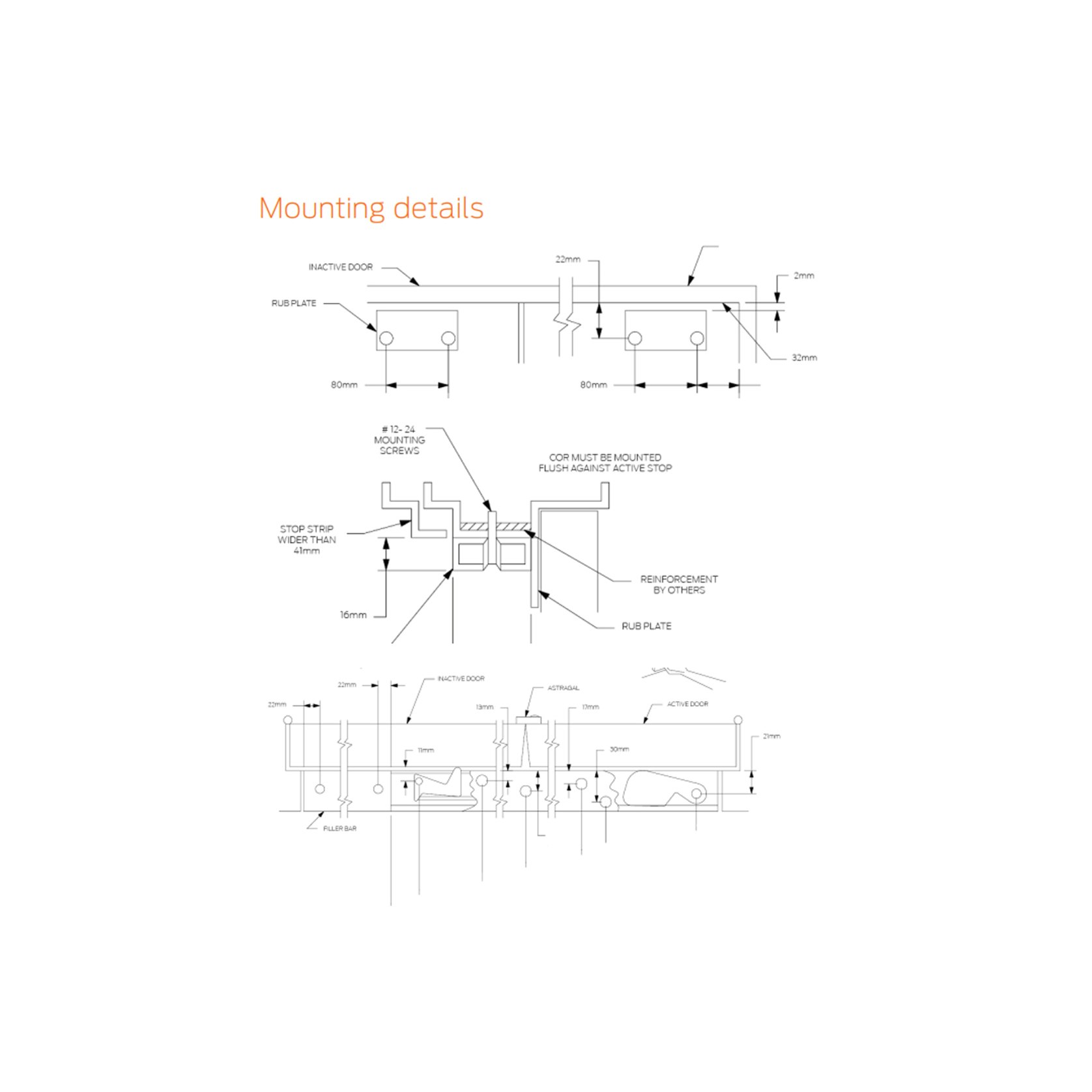

- Optional mounting brackets available for other stop applied hardware such as exit devices
- Does not cover the entire length of the stop, so a filler bar can be provided to maintain architecturally clean lines
- Surface mounted and are suitable for installations where door seals may clash with other types of coordinators
- Specs
Specifications:
- Material:
- COR32, COR42, COR52 Aluminium
- CORG7, CORG9 Forged brass
- Available Length of Channel:
- 178mm
- 228mm
- 813mm
- 1320mm
- For Opening Width: 864mm - 2337mm
- Available Finish:
- COR32, COR42, COR52 Aluminium
- CORG7, CORG9 Satin chrome plate
- Material:
- Scope of use
Bar Coordinator are used to control the closing sequence of a pair of doors .
