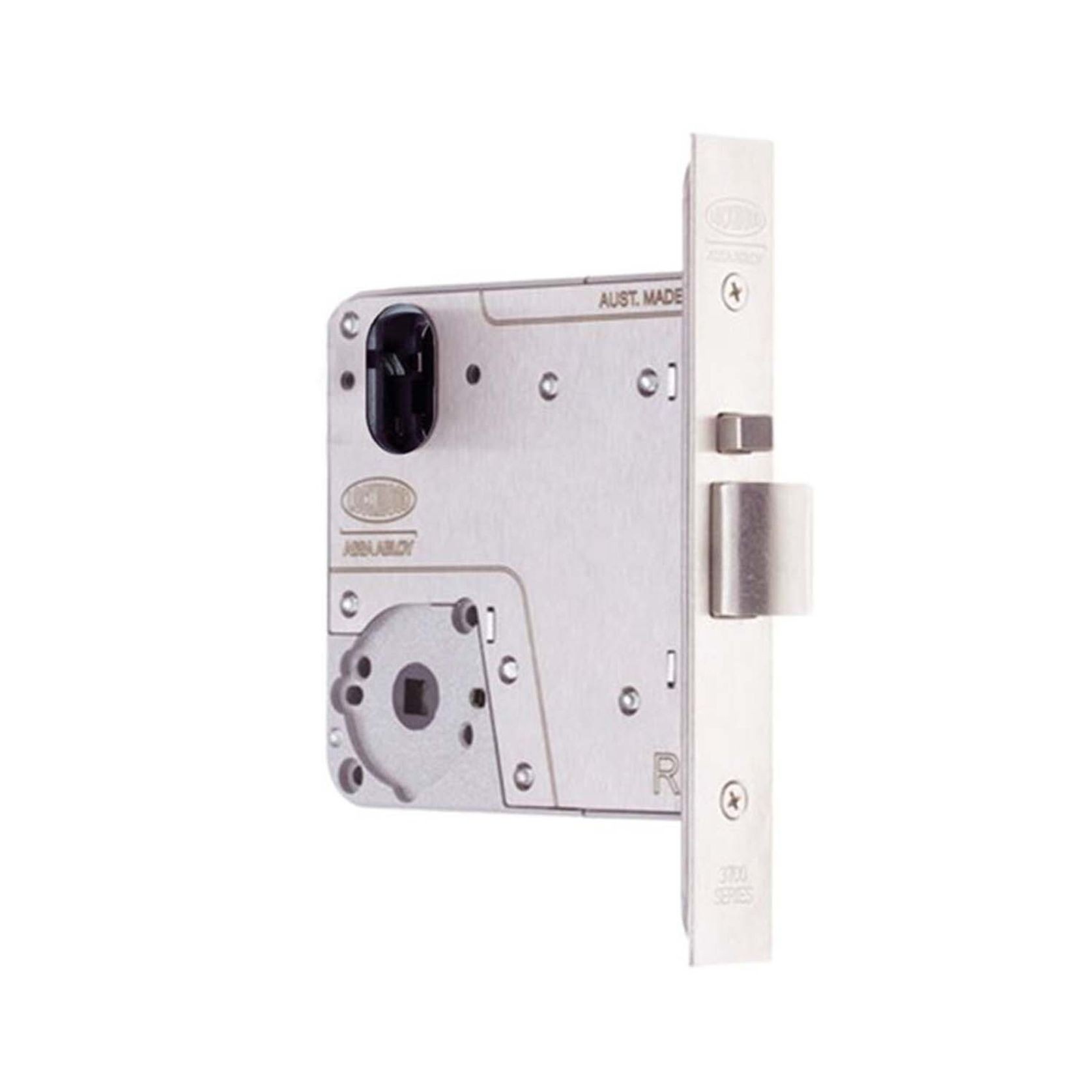

Lockwood 4772 Universal Primary Mortice Lock 89mm Backset Stainess Steel 4772SS

Lockwood 4772 Universal Primary Mortice Lock 4772SS  Mortice Lock provides more security on exterior doors that have windows.

Specs

Features:

• All handing settings (Passage, Combination, or Escape) can be adjusted via the hub selector located under the faceplate.
• Universal function 89mm primary mortice lock.
• Easy Red /Green function setting.
• All lock settings are made from under the faceplate allowing for simple in-door configuration.
• Standard primary locks include anti-lockout and holdback capabilities (holdback not suitable for fire doors).
• Operated by key or handle outside or by turn snib, key or handle inside.
• Zinc diecast body with stainless steel chassis plates for improved strength.
• Through-fixing of rose furniture turn knobs and escutcheons.
• Electric Strike compatibility.
• 15 mm stainless steel reversible latch bolt.
• Supplied less cylinder.
• Supplied with Selector 'V' cam.
• Compatible with most restricted keying systems.
• Tested to Australian Standard

Specifications:

• Fire Rating: Successfully tested up to 4 hours (depending on the type of door set) on fire door assemblies in accordance with Australian Standard AS 1905.1-2005, Part 1: Fire Resistant Doorsets*.

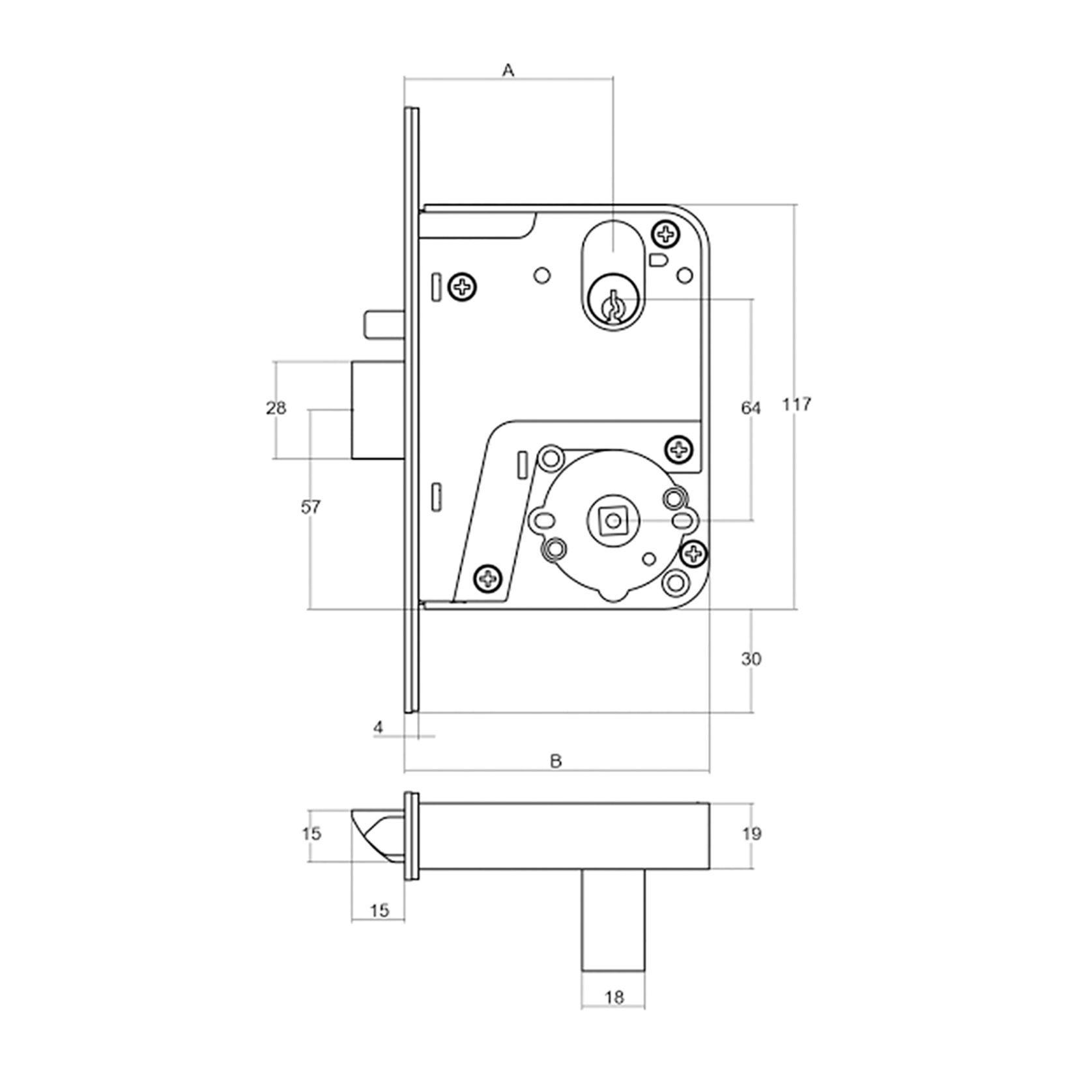

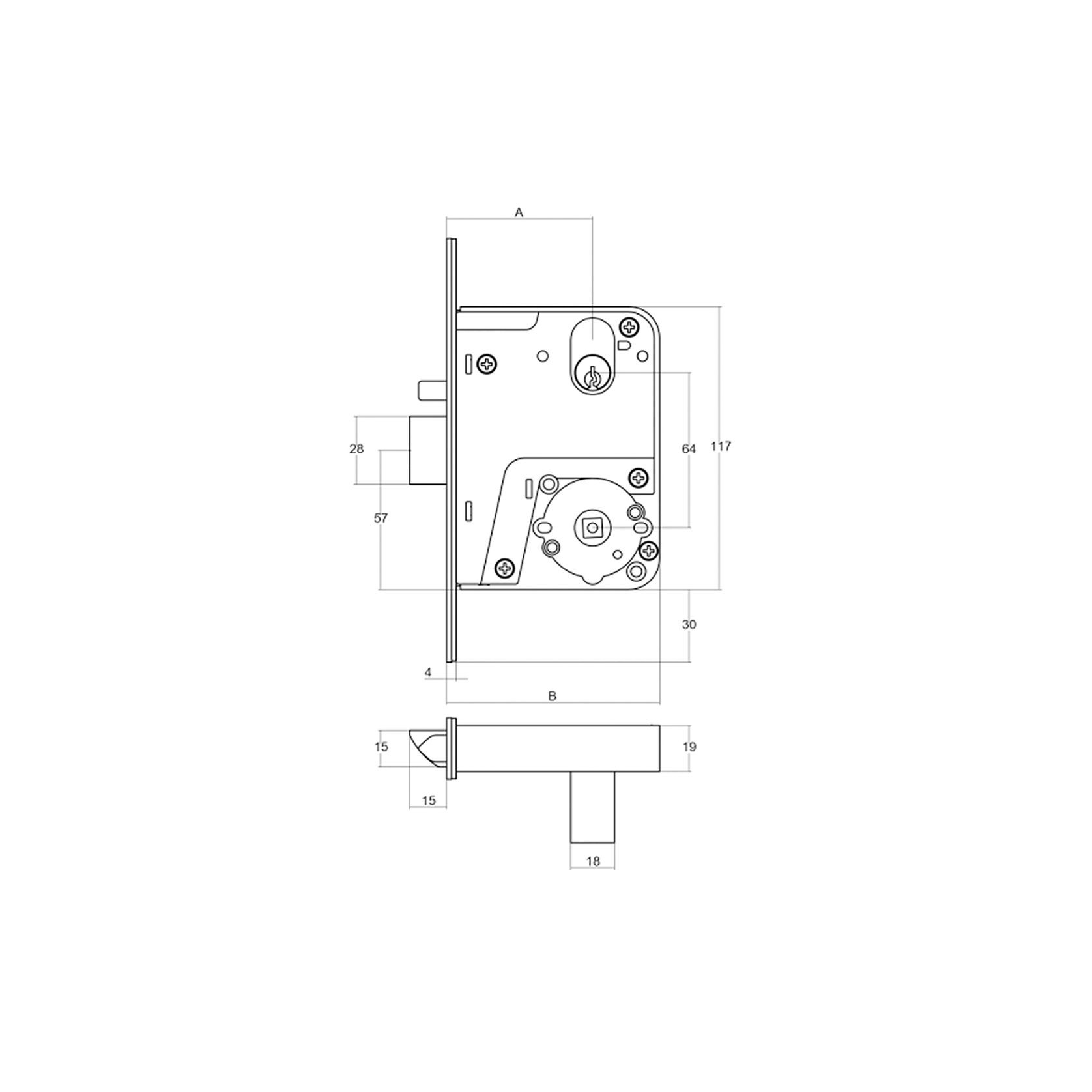

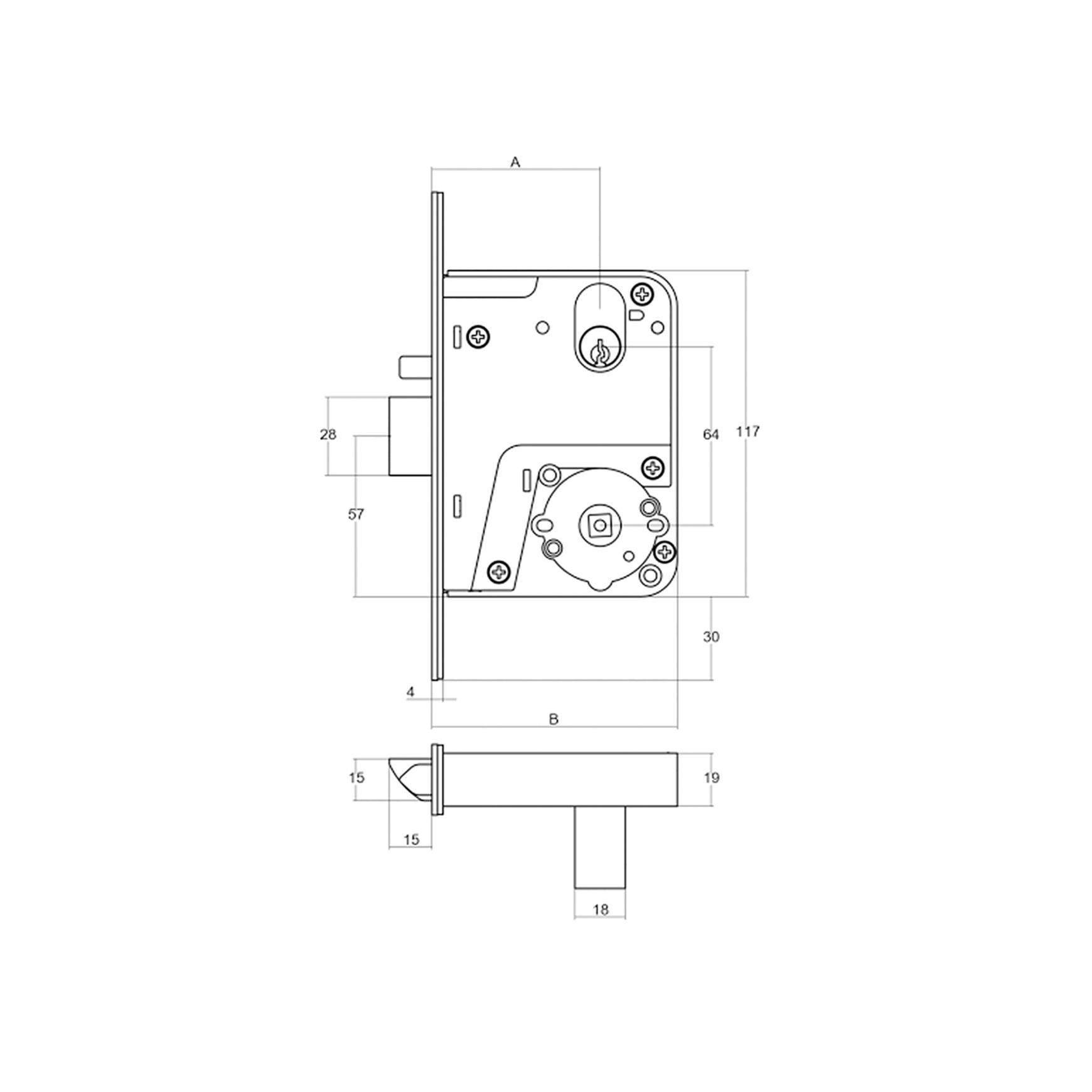

• Backset: 89mm
• Suits: Door thickness 32mm to 50mm
• Finish: Satin Stainless Steel

Note:  Holdback must not be activated on fire doors.
