HB2050 High Security Roller Ball Euro Lock
Victoria
- 674.9K profile views
- 58 saves
HB2050 ADJUSTABLE ROLLER BALL LOCK 55MM BACKSET

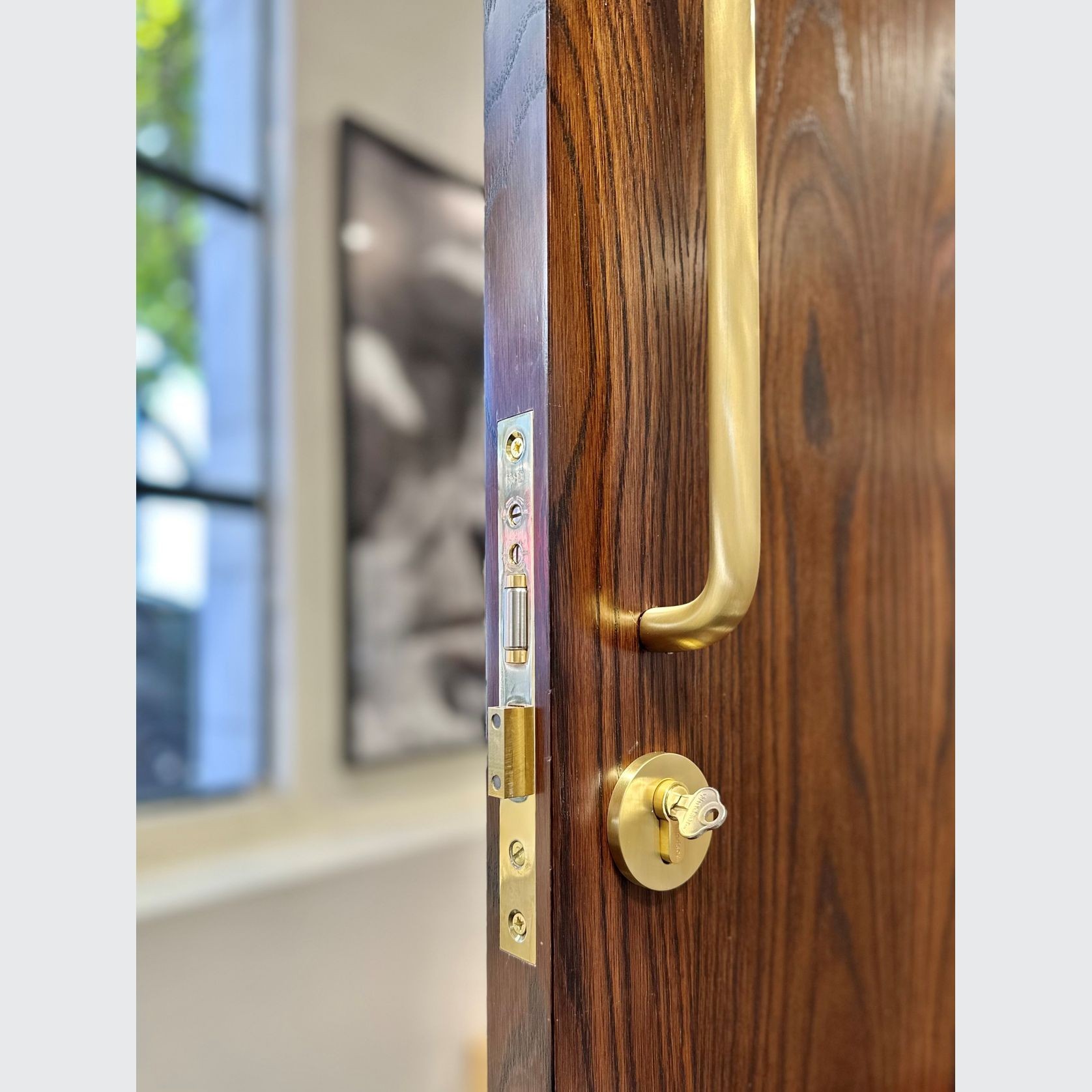

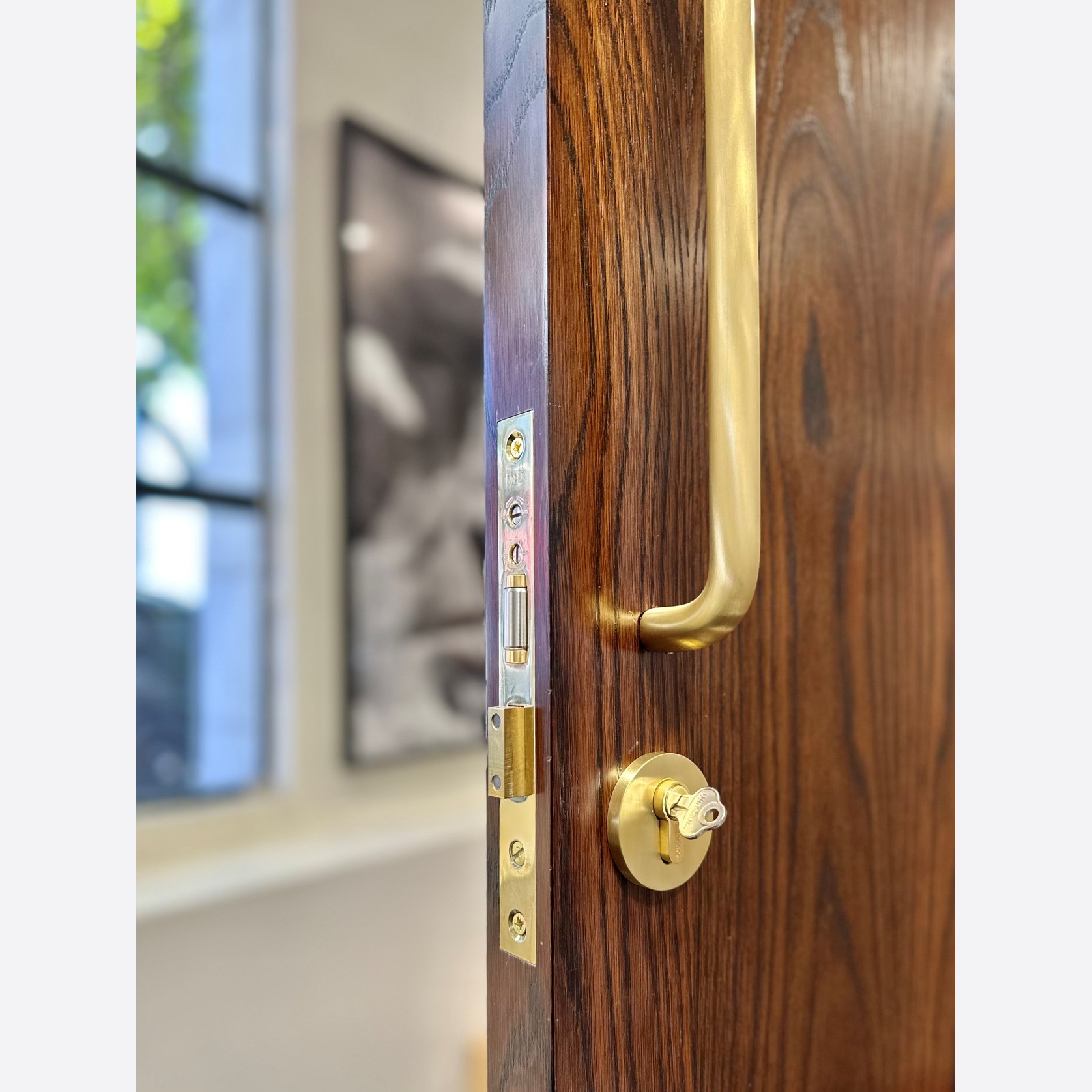

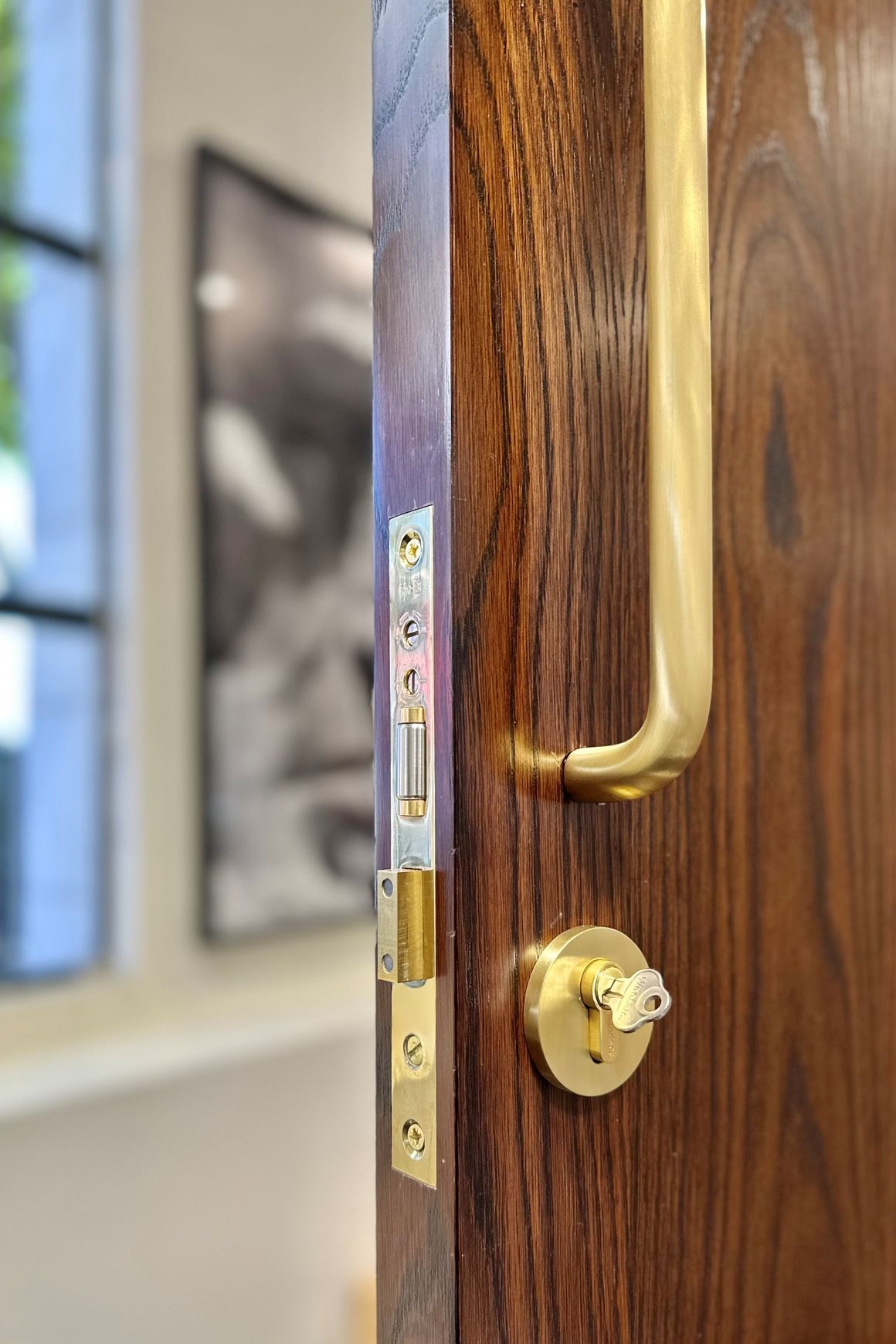

The largest of the Halliday + Baillie stand alone mortice locks, the HB 2050, combines a fully adjustable roller ball catch with a high security dead bolt. Designed specifically for use on hinge and pivot doors where pull handles are used rather than a lever handle, the roller ball allows for door control even when unlocked and can be used with any standard Euro cylinder escutcheon. For ultimate flexibility pull handles, door furniture and cylinders are sold separately, enabling you to mix and match to your projects aesthetic.

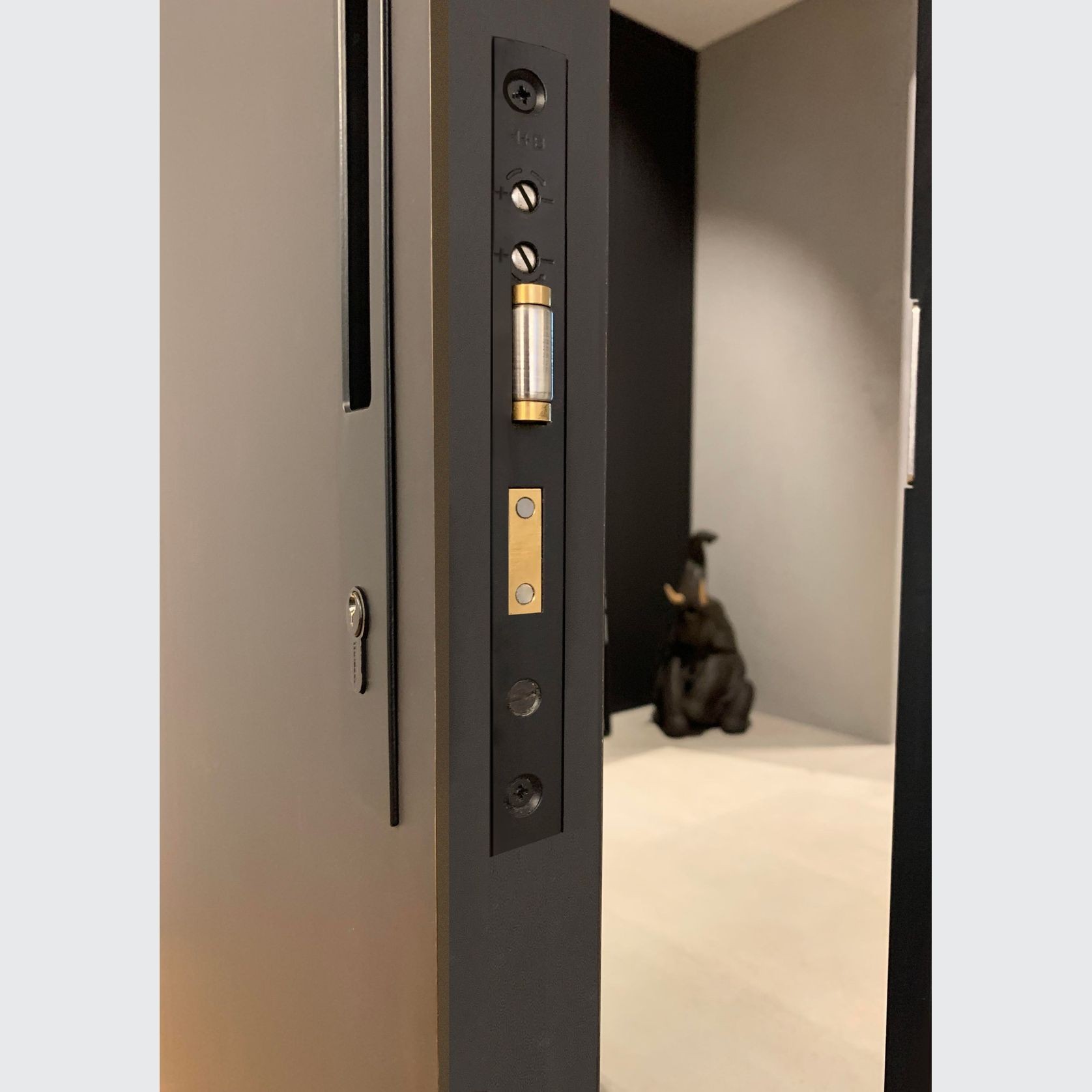

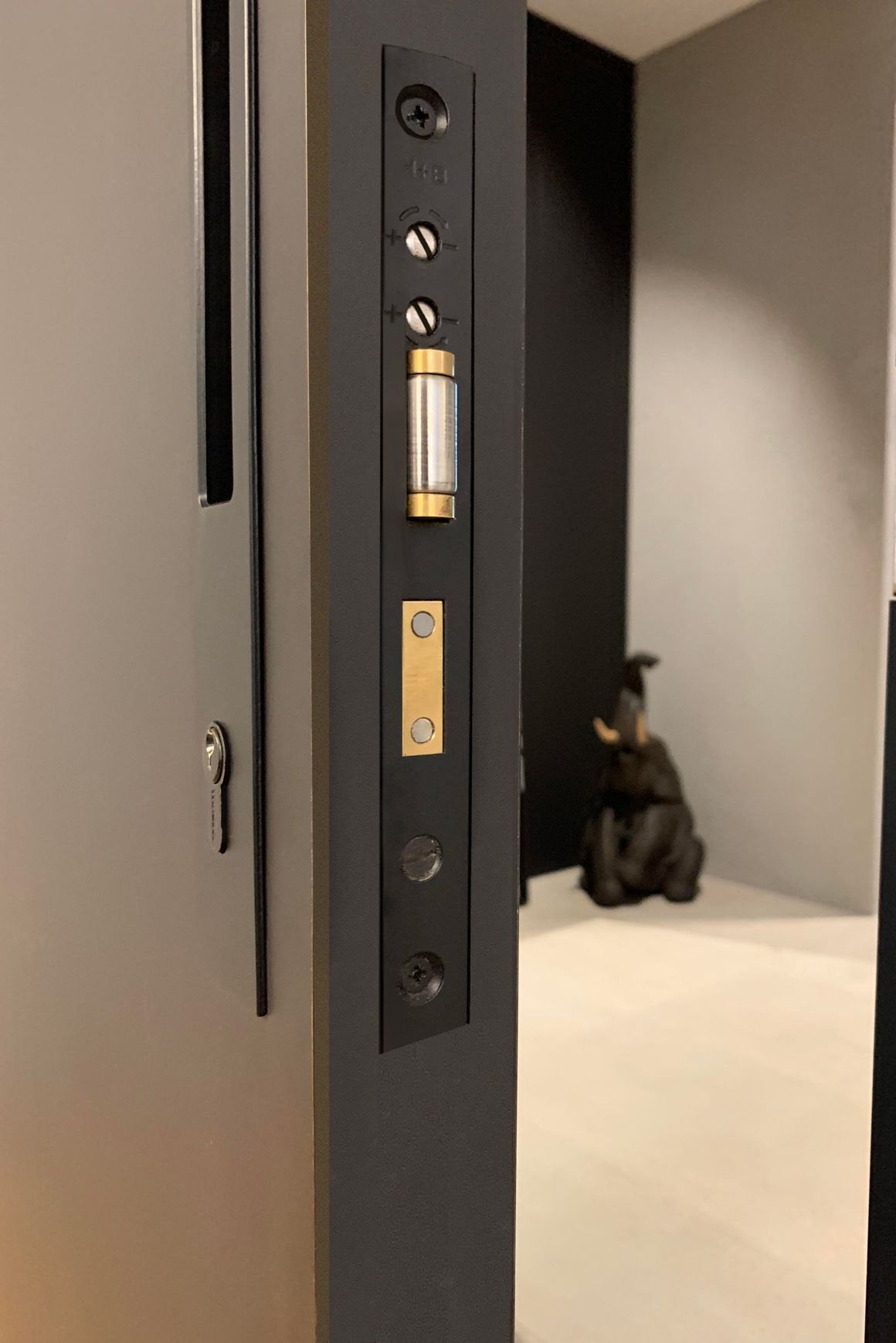

The roller ball is milled from 316 marine grade stainless steel, with double adjustment screws. The top screw adjusts the tension and pressure of the roller ball, with the bottom screw adjusting the projection of the roller from the lock body. Irrespective of the door detail the roller ball is designed to firmly seat in the strike plate no matter what the situation.
Fact sheet below:
https://www.hallidaybaillie.com/au/wp-content/uploads/sites/10/2022/08/HB2050_Roller-Ball-Lock-5mm-Backset.pdf
Product Details
- Product
- HB2050 High Security Roller Ball Euro Lock
- Category
- Latches and Locks
- Sold by
- Halliday + Baillie
- Designer
- Halliday + Baillie
- Brand
- Halliday + Baillie
- Year
- 2019
- Country of origin
- New Zealand
- Type of use
- Commercial and Residential
- Package type
- Special packaging required
- Installation
- Professional installation recommended
- Assembly
- No assembly required
- Warranty
- 5 years
Halliday + Baillie is specified by
TKD ArchitectsArchitects
MHNDUArchitects
Studio IlkArchitects
Abe McCarthy ArchitectsArchitects
Smyth & SmythArchitects
Anderson ArchitectureArchitects
Woods BagotArchitects
Utz Sanby ArchitectsArchitects
Cadence & CoArchitects
Bryant Alsop ArchitectsArchitects
DX ArchitectsArchitects
Shade FactorManufacturers and Suppliers
HB2050 ADJUSTABLE ROLLER BALL LOCK 55MM BACKSET The largest of the Halliday + Baillie stand alone mortice locks, the HB 2050, combines a fully adjustable roller ball catch with a high security dead bolt.
Designed specifically for use on hinge and pivot doors where pull handles are used rather than a lever handle, the roller ball allows for door control even when unlocked and can be used with any standard Euro cylinder escutcheon. For ultimate flexibility pull handles, door furniture and cylinders are sold separately, enabling you to mix and match to your projects aesthetic.
The roller ball is milled from 316 marine grade stainless steel, with double adjustment screws. The top screw adjusts the tension and pressure of the roller ball, with the bottom screw adjusting the projection of the roller from the lock body. Irrespective of the door detail the roller ball is designed to firmly seat in the strike plate no matter what the situation.
Fact sheet below:
- Specs
The high security bolt is a double action 20mm length throw with integrated tungsten carbide pins. Known for it’s superior hardness and scratch resistance the pins will hold the bolt secure even under sustained force.
Material : Diecast Zinc, Brass, 316 Stainless Steel
Dimensions (faceplate) : 215mm x 24mm Dimensions (case) : 165mm x 85mm
Backset : 55mm Minimum door thickness : 35mm
Suitable for timber and aluminium doors, or steel doors with an integrated lock box.
- Features
The high security bolt is a double action 20mm length throw with integrated tungsten carbide pins. Known for it’s superior hardness and scratch resistance the pins will hold the bolt secure even under sustained force.
Material : Diecast Zinc, Brass, 316 Stainless Steel
Dimensions (faceplate) : 215mm x 24mm Dimensions (case) : 165mm x 85mm
Backset : 55mm Minimum door thickness : 35mm
Suitable for timber and aluminium doors, or steel doors with an integrated lock box.
- Scope of use
Interior/Exterior
