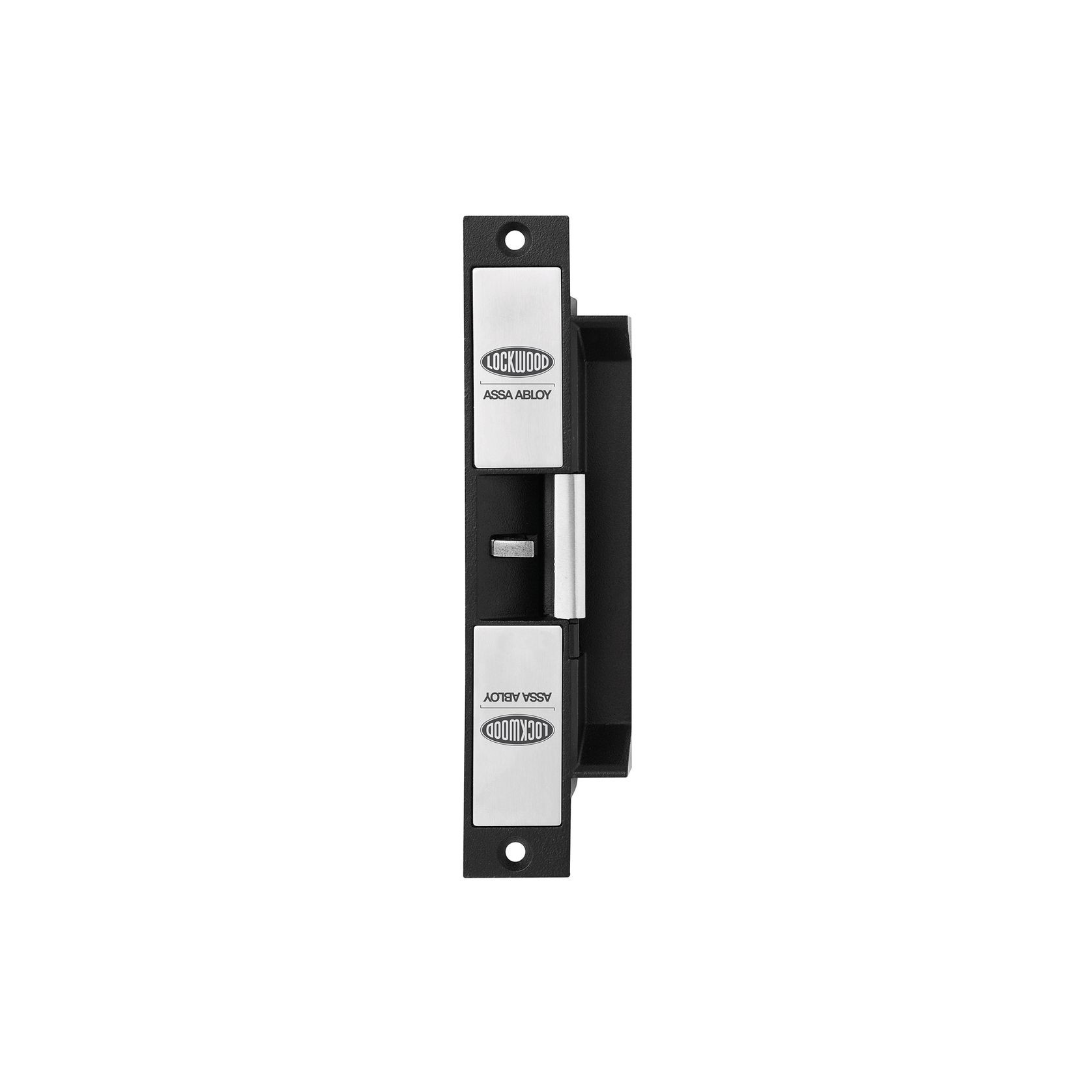

Lockwood ES2000 Monitored Electric Strike Fail Safe

By Keeler Hardware
Website
Black

ctric Strike Fail Safe
ES2000-1

Electric Stike Function - replaces a standard door strike and connected to a power supply. An electric strike's ramped surface can, upon command, pivot out of the way when the lock on the door is in the locked position and the door is opened.

  • These strikes are flexible and can be changed from fail safe to fail secure, mounted on the left or right hand side of the door and are available in 12Vdc.
  • They offer a strong, dependable and long-lasting electric strike solution with a 850kg holding force and endurance rating of 1 million cycles.

Features:

  • Fully monitored - strike locked and door latched
  • Fail safe/fail secure changeable on site
  • High security
  • 4 Hour fire rating
  • 850kg holding force
  • 1 million cycles endurance rating
  • Cast stainless steel body
  • Stainless steel locking pins
  • SCEC Endorsed
  • Low Current consumption - Max 175ma @12Vdc
  • Solenoid rated for continuous use
  • Mounting kit supplied as standard
  • TRICARE® 5 Year Warranty
Details
  • Category
    Latches and Locks
  • Range
    Lockwood
  • Brand
    Lockwood
  • Warranty
    N/A
General
  • Country of origin
    Australia
  • Type of use
    Commercial
  • Package type
    Fragile - handle with care
  • Care and cleaning
    Easy maintenance
  • Installation
    Minor installation required
  • Assembly
    Minor assembly required
Specifications

Specifications:

  • Voltage: 12Vdc
  • Current: 175 mA @ 12Vdc
  • Solenoids: Solenoids are rated for continuous use
  • Holding Force: 850kg Static Strength Rating
  • Endurance: Cycle tested to 1,000,000 operations
  • Latch: Suitable for 15mm latch bolt with 3mm door gap
  • Environment: Operational temperature range - 20°C to +60°C
  • Body: Solid Stainless Steel Construction
  • Keeper: Stainless Steel

Applications:

  • High traffic areas
  • Fire rated door sets
  • Open in/open out doors
  • Suitable for use with all access control systems

Monitoring

  • Solenoid Monitor - 1 amp NO/NC microswitch
  • Door/Latch Monitor - 1 amp NO/NC microswitch

Specification Statement

  • The strike should be constructed of solid stainless steel, have a minimum holding force of 850kg and have an endurance rating of 1 million cycles
  • Monitoring must include independent door / latch& solenoid monitoring
  • The one strike must be changeable from fail safe to fail secure on site where required
  • The strike should not consume current greater than 175mA at 12Vdc and have a solenoid rated for continuous use.
  • Certifications must include CE, C-Tick and 4 hr fire rating.
Scope of use

Electric strikes are fully monitored high security products manufactured from stainless steel and designed for use with all access control systems. The strikes are suitable for use with hinged doors which require either fire or security control as part of a building management system.

SKU: ASSES20001
