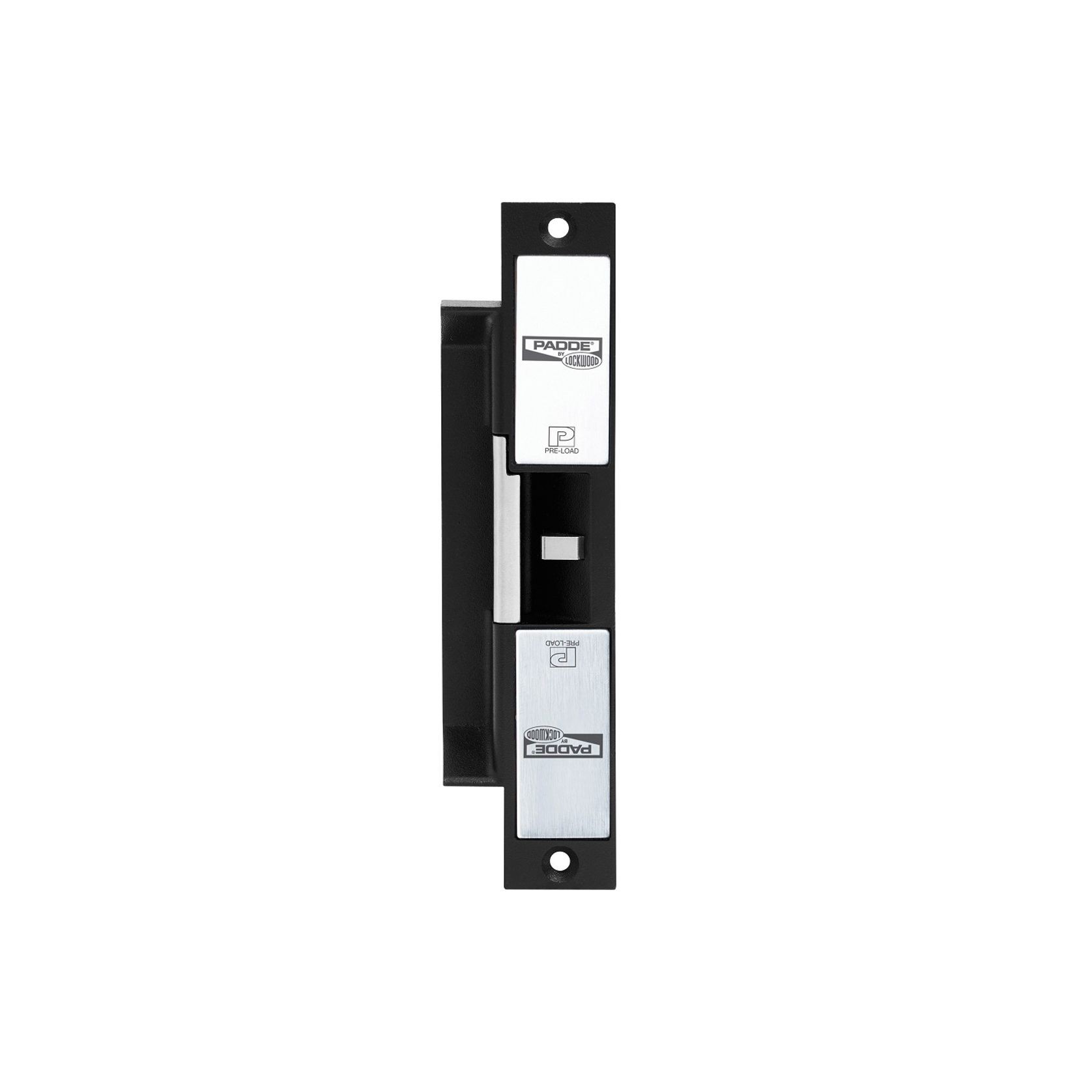

Lockwood ES9000 Electric Strike 10-30V Multi Function
Padde By Lockwood ES9000 Series Electric Strike
109001-000
Electric Stike Function - replaces a standard door strike and connected to a power supply. An electric strike's ramped surface can, upon command, pivot out of the way when the lock on the door is in the locked position and the door is opened.
- The ES9000 has been designed to suit the harshest commercial environments, and has the unique feature of the ability to operate with up to 25kg of pre-load pressure on the keeper.
- Pre-load is a common condition that is caused by pulling on a door before it unlocks, the weight of warped or drooping doors, seals on fire doors, or by differential air pressure created when heating and cooling systems are in use.
- Standard features include multi voltage 10 - 30Vdc and field changeable settings from fail safe to fail secure.
- Built to last, this is a premium locking solution that has been tested in excess of 2 million cycles and boasts unique features like no other available on the market today.
Applications:
- High traffic areas
- Doors subjected to side load (pre load)
- Fire rated door sets
- Open in/open out doors
- Suitable for use with all access control systems
- CategoryLatches and Locks
- RangeLockwood
- BrandLockwood
- WarrantyN/A
- Country of originAustralia
- Type of useResidential
- Package typeFragile - handle with care
- Care and cleaningEasy maintenance
- InstallationTools required
- AssemblyProfessional assembly recommended
Specifications:
- Voltage: 10 - 30Vdc
- Current: 250mA @12Vdc - 130mA @24Vdc
- Solenoid: Solenoids are rated for continuous use.
- Monitoring: Solenoid Monitor - 1 amp NO/NC microswitch, Door / Latch Monitor - 1 amp NO/NC microswitch
- Holding Force: 1300kg Static Strength Rating
- Endurance: 1,200,000 cycles endurance rating @ 25kg pre-load, 2,500,000 cycles general durability without pre-load conditions
- Latching: Suitable for 15mm latch with 3mm door gap
- Environment: Operational temperature range -20°C to +60°C
- Body: Solid Stainless Steel Construction
- Keeper: Stainless Steel
Electric Strike intended for door security in commercial & industrial applications with heavy traffic that require access control systems. Suitable for use on hinged doors to work with an extensive range of locks.
Standards and Compliance:
- S3 (Security) Australian Lock Standard (AS4145.2.1993)
- D3 (Durability) Australian Lock Standard (AS4145.2.1993)
- Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1. 2005 (Part 1: Fire resistant door sets)
- CE Approved
- C-Tick Certified
- IP 54 Rating
- SCEC Approved for Security Level 3
