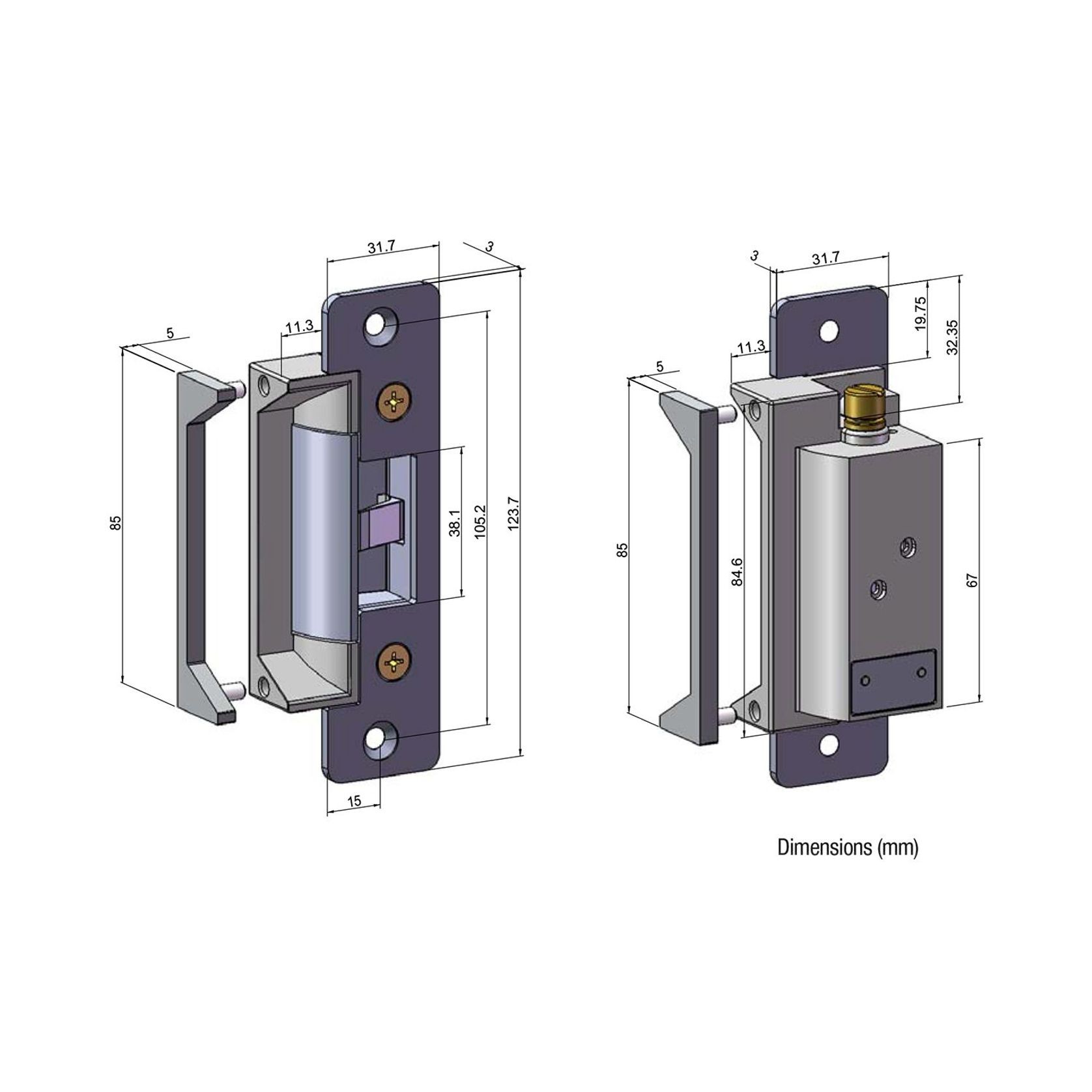

LOX Electric Strike Monitored ANSI Footprint 12/24V DC ES10M

LOX Electric Strike

Electric Strike intended for door security in commercial & industrial applications with heavy traffic that require access control systems. Suitable for use on hinged doors to work with an extensive range of locks.

Electric Stike Function - replaces a standard door strike and connected to a power supply. An electric strike's ramped surface can, upon command, pivot out of the way when the lock on the door is in the locked position and the door is opened.

  • One of the most successful residential & light commercial Electric Strike
  • Site interchangeable from FailSecure to Fail Safe (Power to Release to Power to Lock) by only using a small screw-driver
  • Designed to be morticed into a door frame on a single swing door equipped with either a mortice lock or a cylindrical tongue lock
  • Category
    Latches and Locks
  • Range


  • Voltage/Current: Dual voltage 12/24VDC 12VDC = 200mA 24VDC = 100mA
  • Holding Strength: Up To 1200Kg Tested 1 Million Cycles
  • DSS Monitoring: Door Latch Sensor, Door Latch Engaged Within Strike Keeper ES10M Version
  • Ip Rating: Not Weather Resistant
  • Environmental: Operational Temperature Range - 20 Derees Celsius To 60 Derees Celsius


  • Monitored Non Weather Resistant
  • Comes with a 5-year warranty and have a holding strength of up to 1200kg.
  • Simple Power To Lock/Power To Release interchange
  • Pre-drilled for extension lips
  • Fire rated


  • Up To 4 Hour Fire Rated To A.S Standard, Ce & C-Tick
