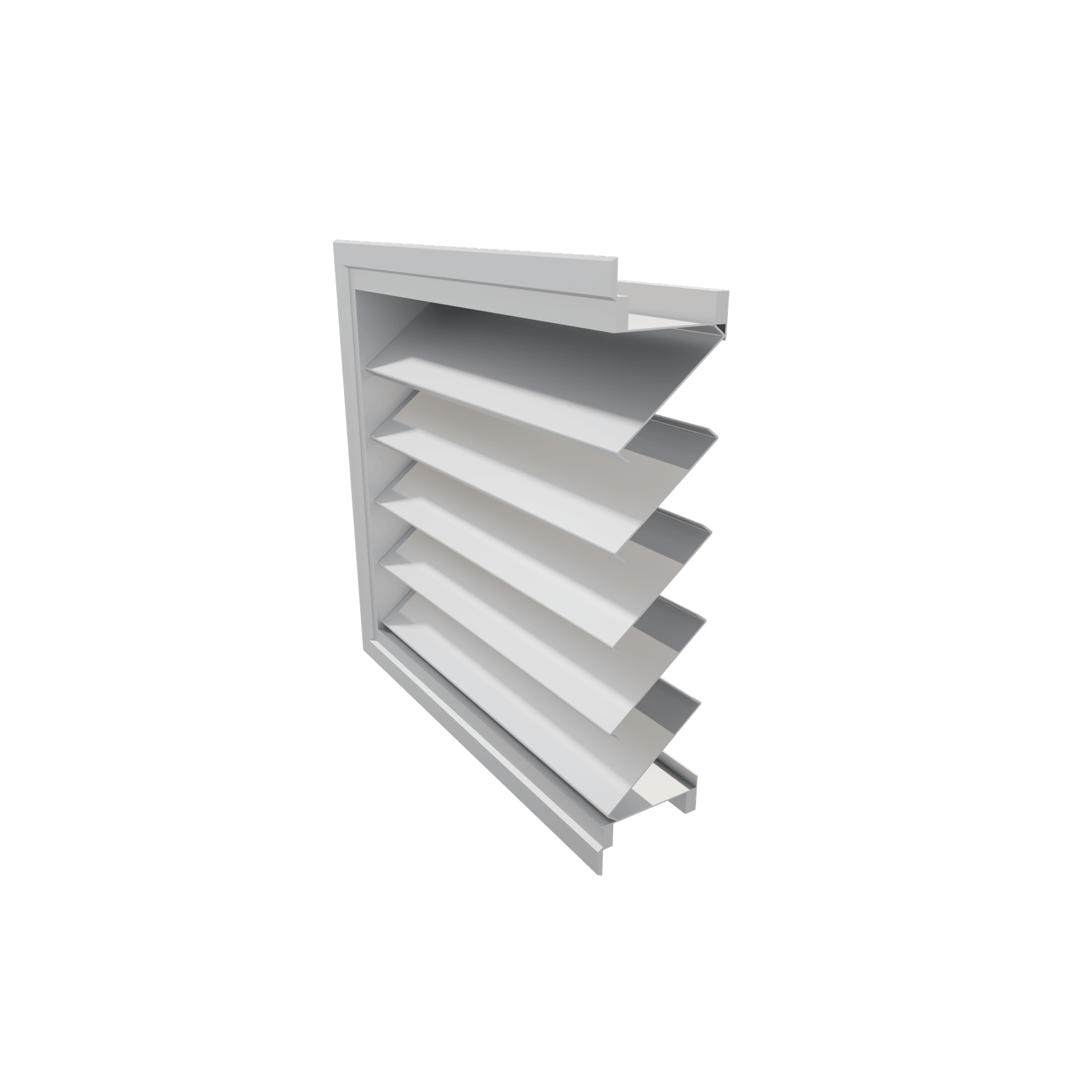

The Holyoake OHL-124 louver is an attractive, high performance, multi-purpose louver, which features a high “effective pressure area”, for applications where maximum airflow is a requirement. Based on proven Holyoake louver technology, the flat profile louver blades are set at a low angled pitch. The blades are spaced at 76mm centres which ensure enhanced aerodynamic performance coupled with high weatherability. The installed blades overlap one another to minimise the possibility of any water carryover. The OHL-124 is available in conventional single panel construction with a maximum blade length of 2.8 meters or for greater lengths an architectural style is available to give a continuous line.

Details
  • Category
    Ventilation Components, Mechanical Ventilation Systems
  • Range
    Architectural Louvres
  • Brand
    Price Holyoake
  • Warranty
    5 years
Specifications

Weather Louvres shall be Holyoake Model OHL-F/C-124 straight profile 100mm louvred blades set at 76mm centres and constructed in a 107mm flanged (F) or channel (C) frame to suit the installation profile. Weather Louvres shall be of extruded aluminium construction and finished in natural anodised, powder coat and fitted with accessories and dampers where indicated as manufactured by Holyoake.

Features
  • High performance louver.
  • Straight blade profile.
  • Low resistance louver.
  • Obstructed line of sight.
  • Single stop blade.
  • The OHL-124 is available in three surround options: Flangeless channel surround, 25mm flange cover and 40mm flange cover
