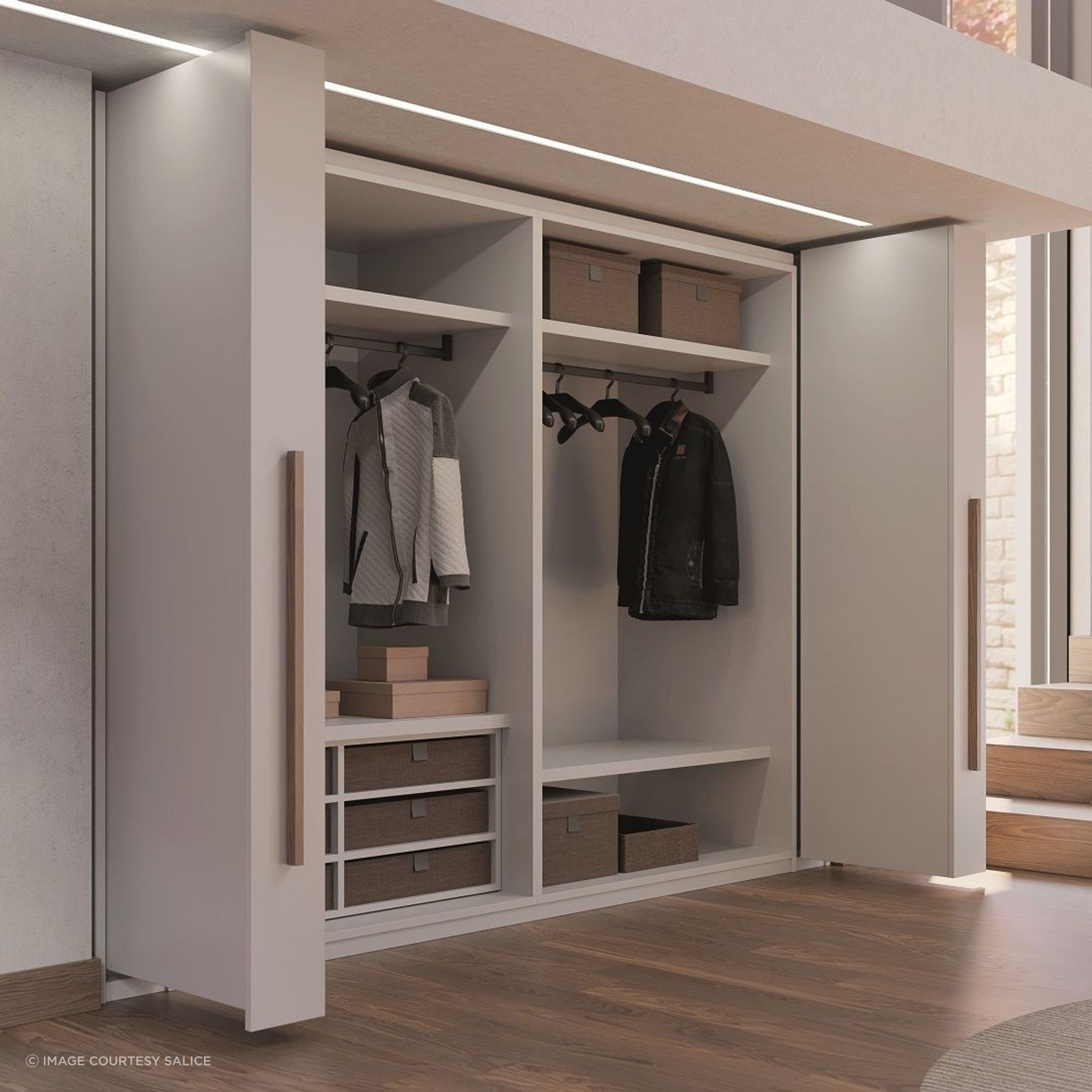

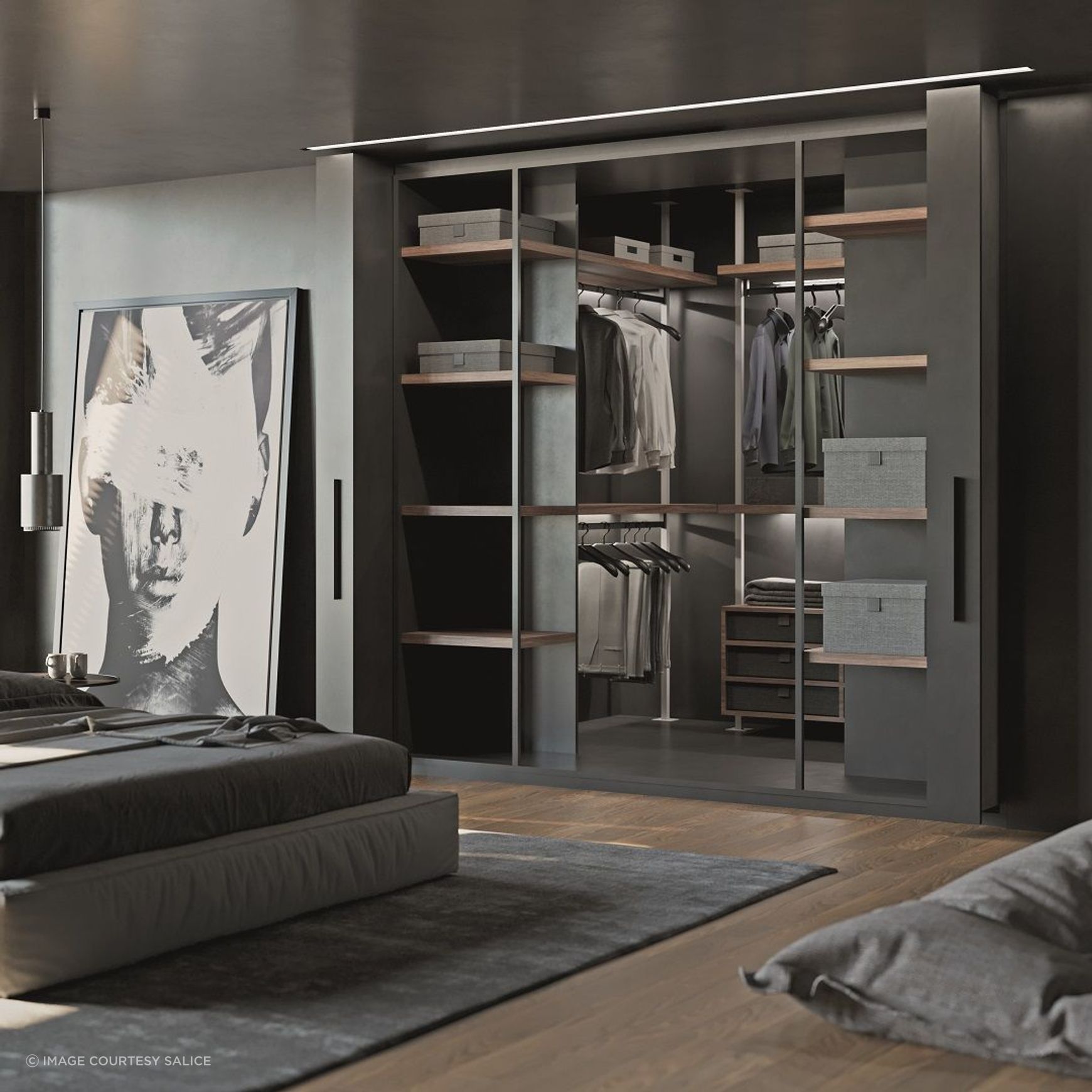

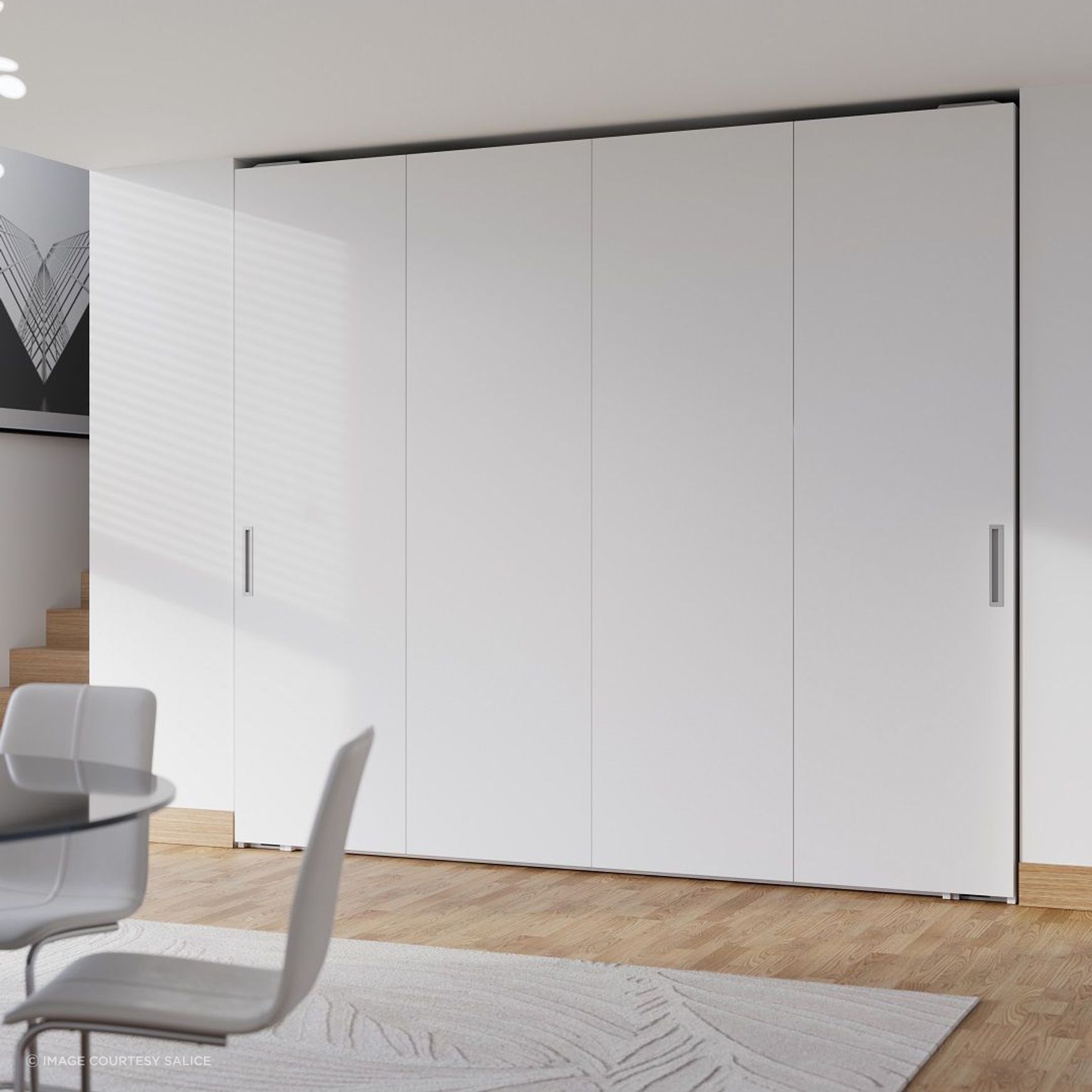

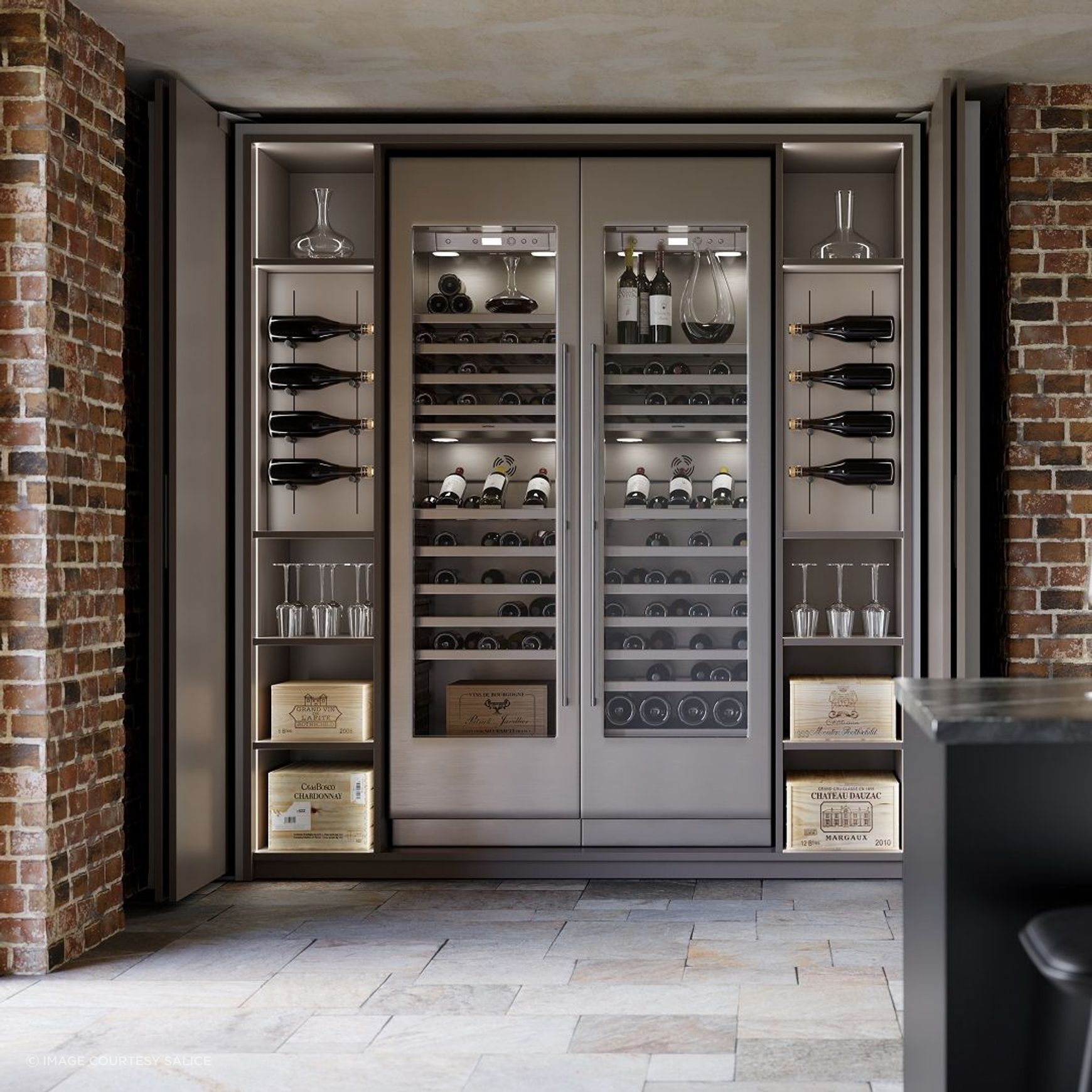

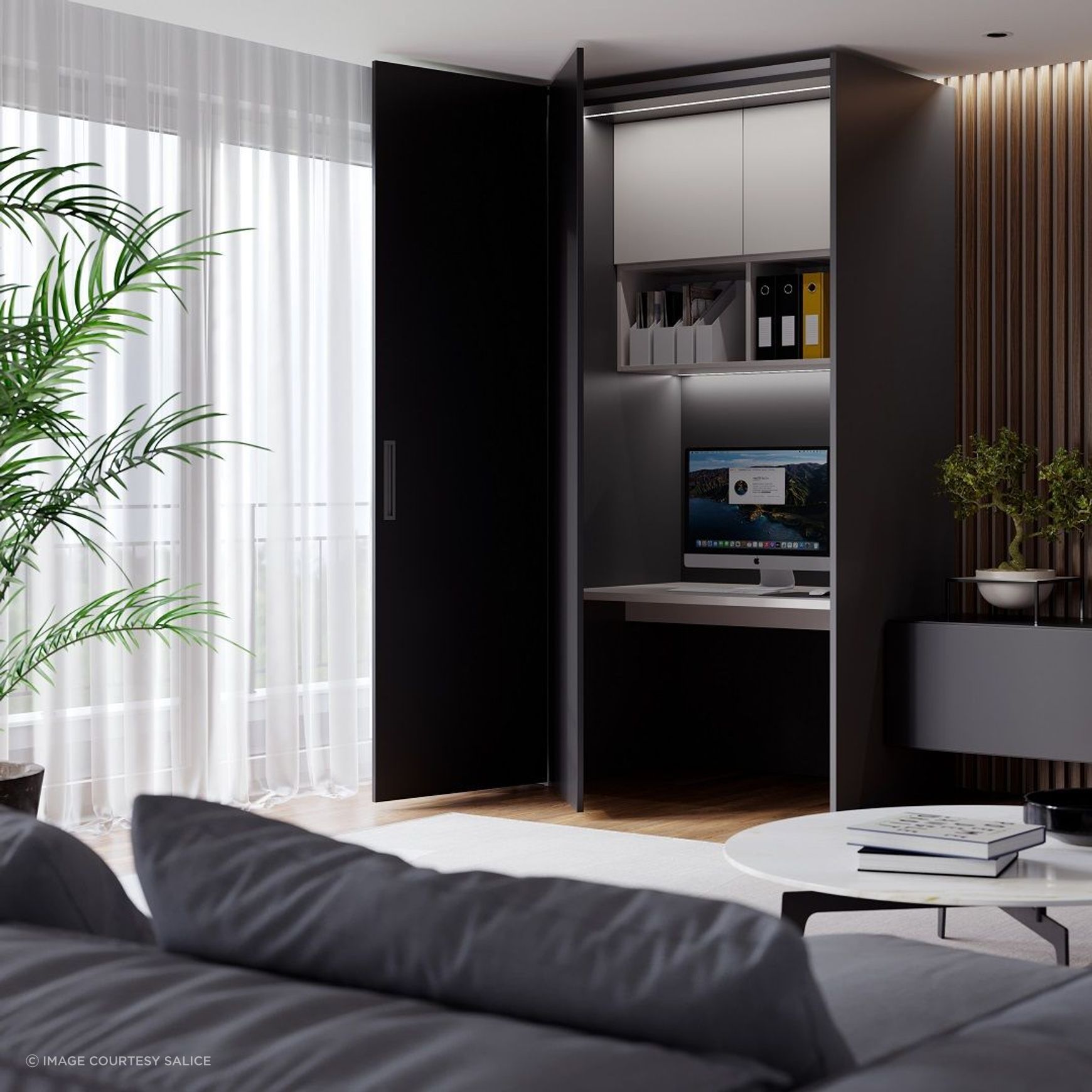

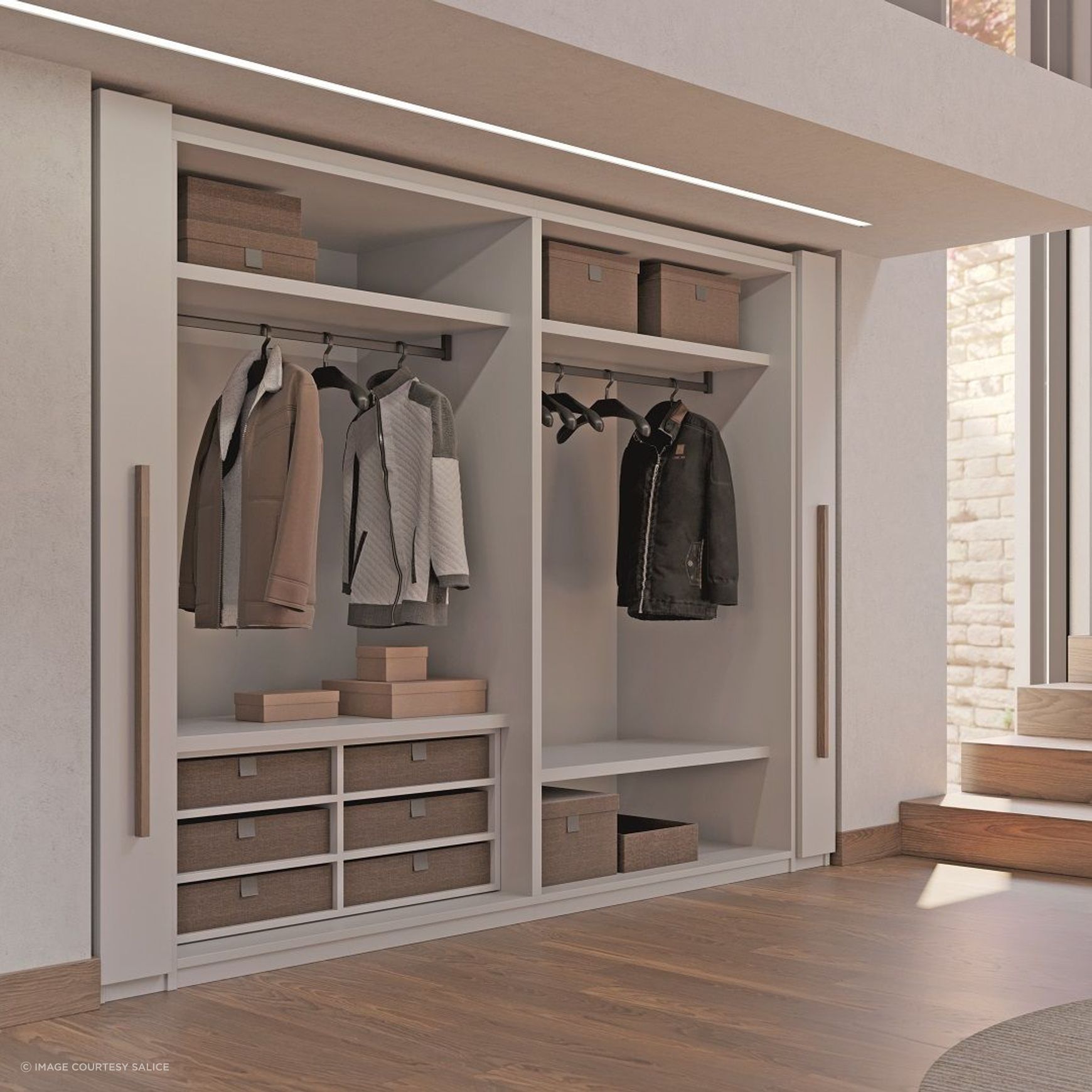

Salice Exedra2 Bifolding Pocket Door

Salice's Exedra 2 Pocket Doors are designed and made in Italy.

Specs

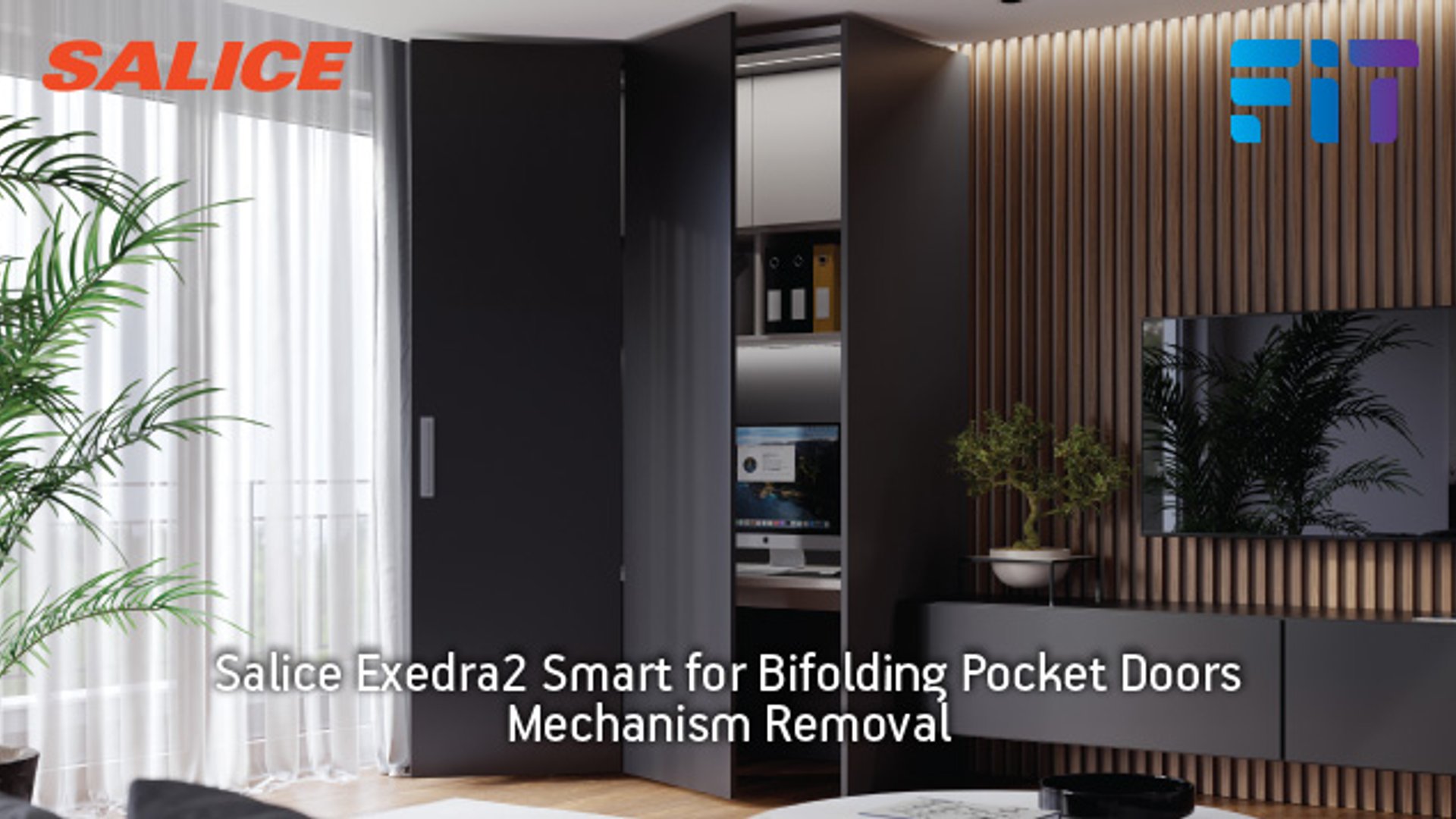

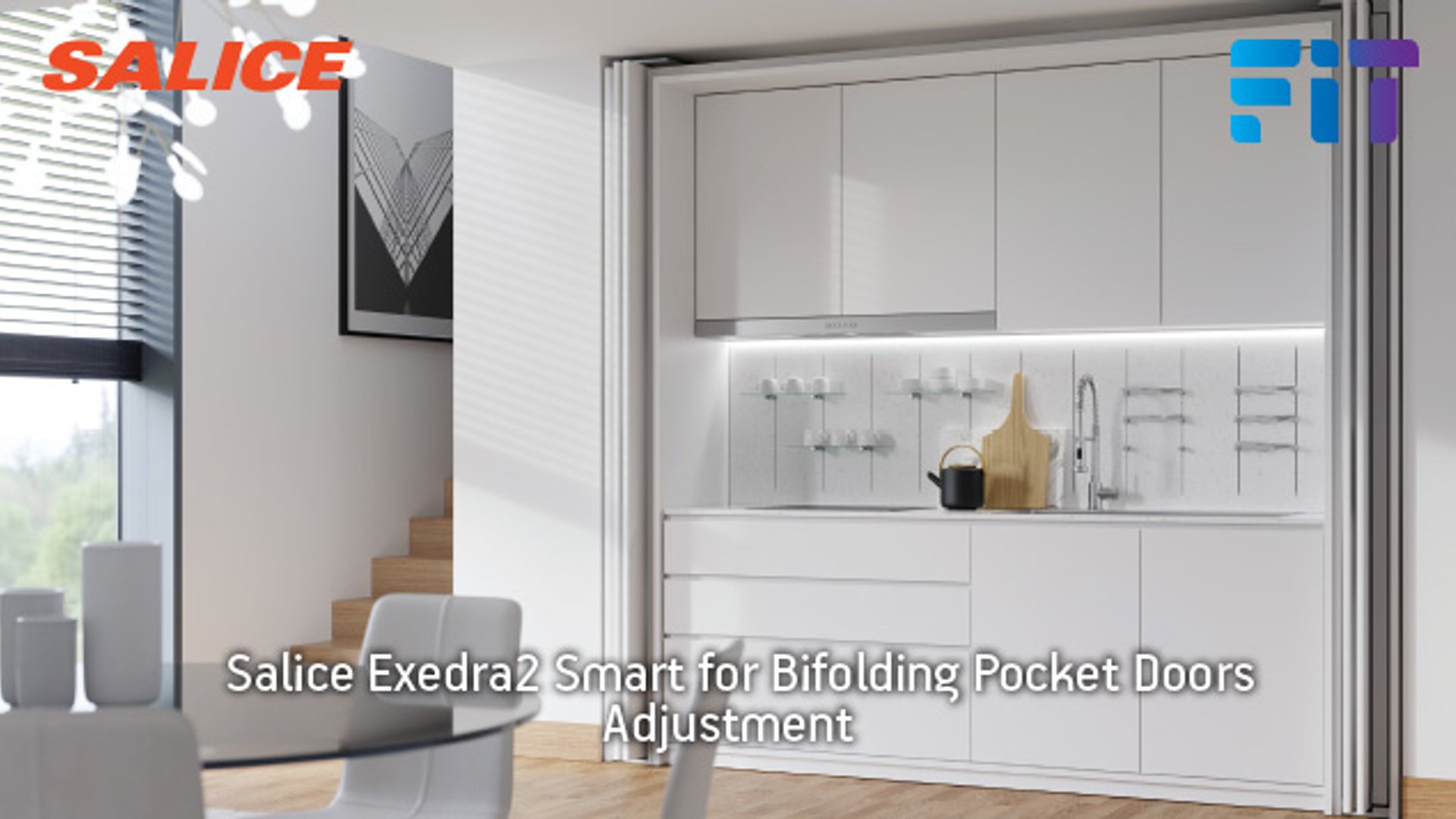

Exedra2 Smart

• Suits doors from 18mm to 25mm thick
• Suits door heights from 1800mm to 2600mm
• Maximum weight per door: 50kg (25kg per door panel)
• Suits doors from 550mm to 850m wide (per panel)
• Minimum cabinet depth: 630mm
• Required internal pocket width: 180mm
• Required door panel gaps: 3mm
• Minimum side panel thickness: 18mm
• Vertical adjustment ± 5 mm
• Horizontal adjustment ± 3.5 mm
• Front adjustment: - upper ± 3 mm and lower ± 2 mm

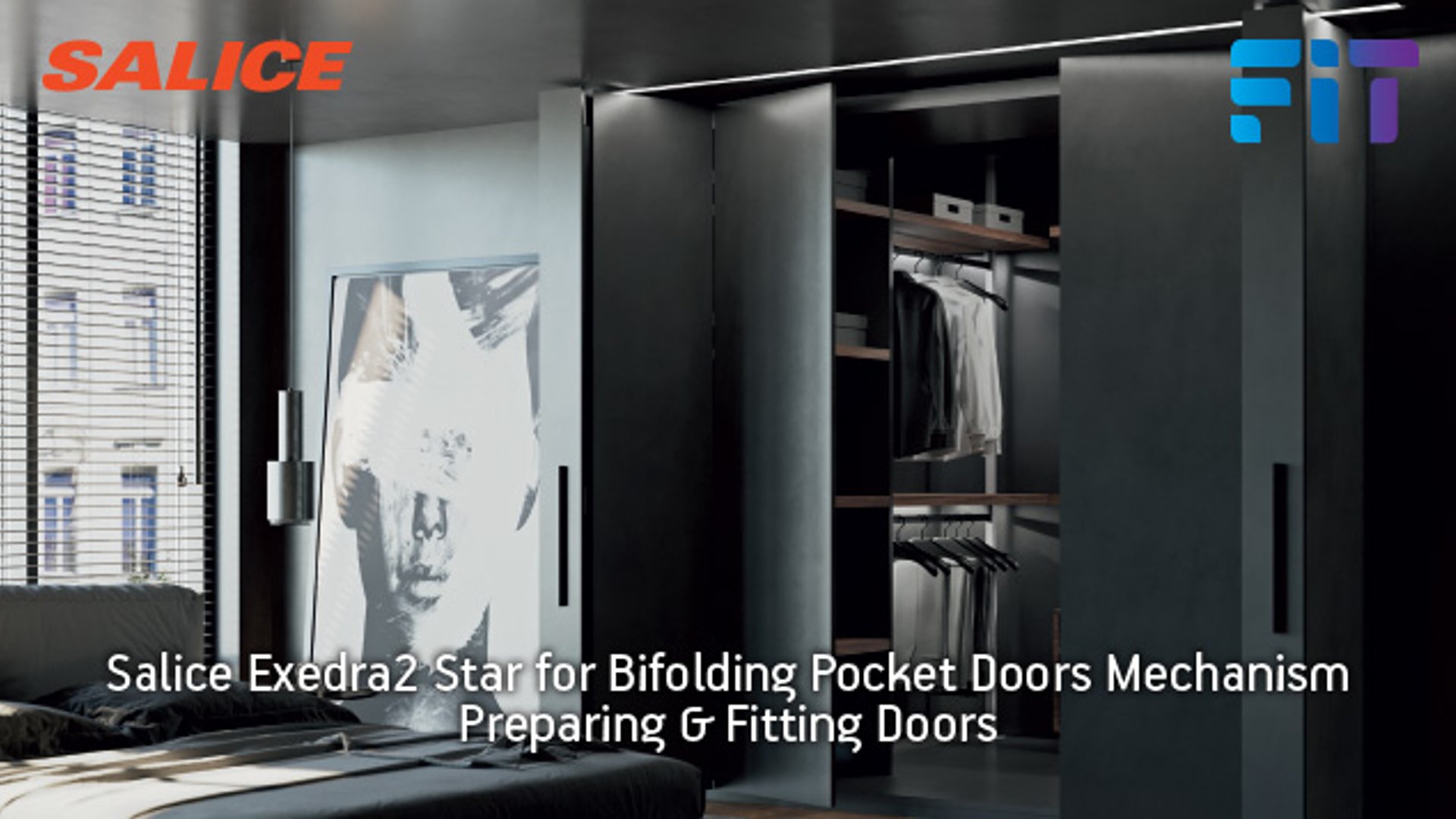

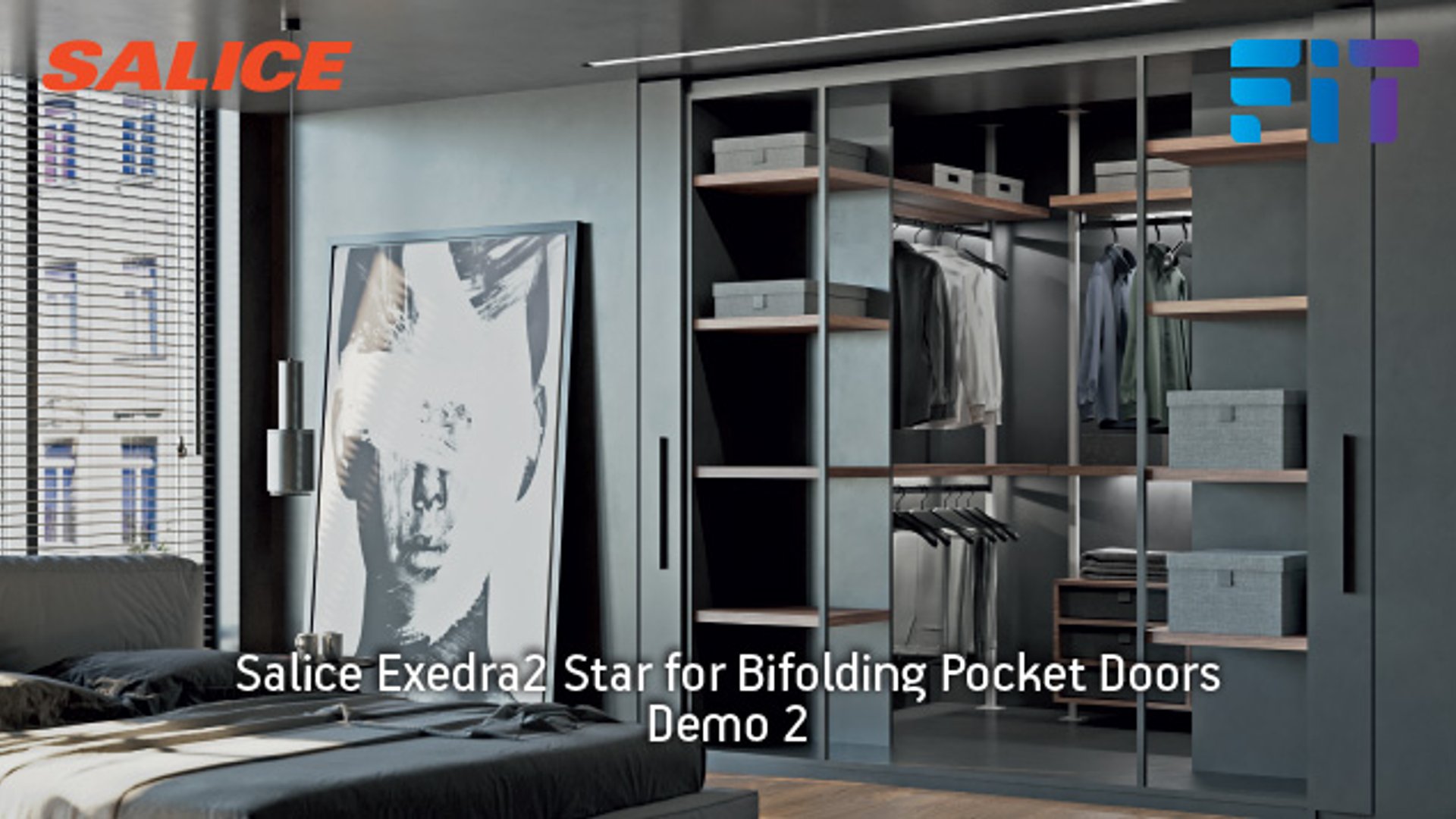

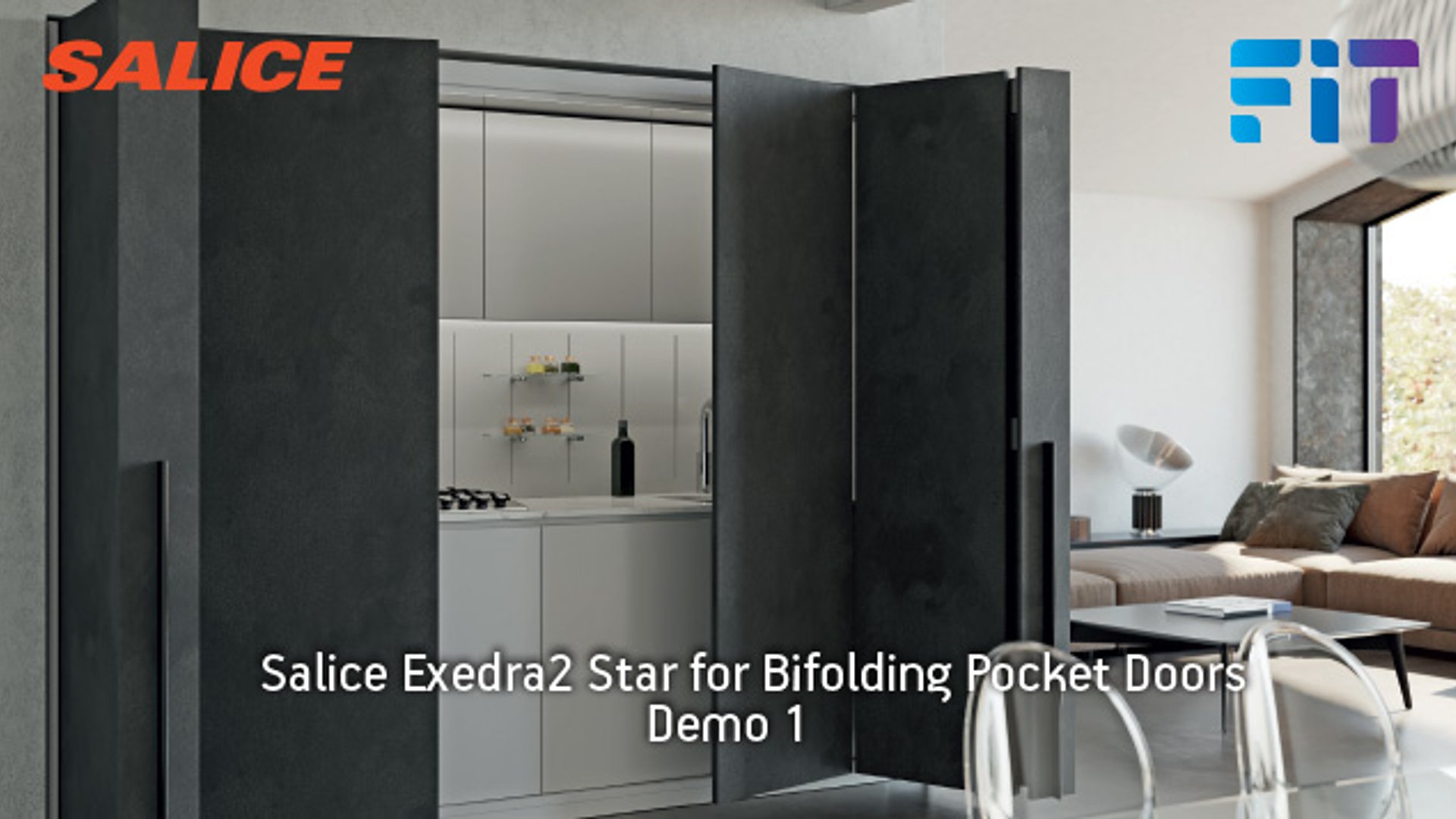

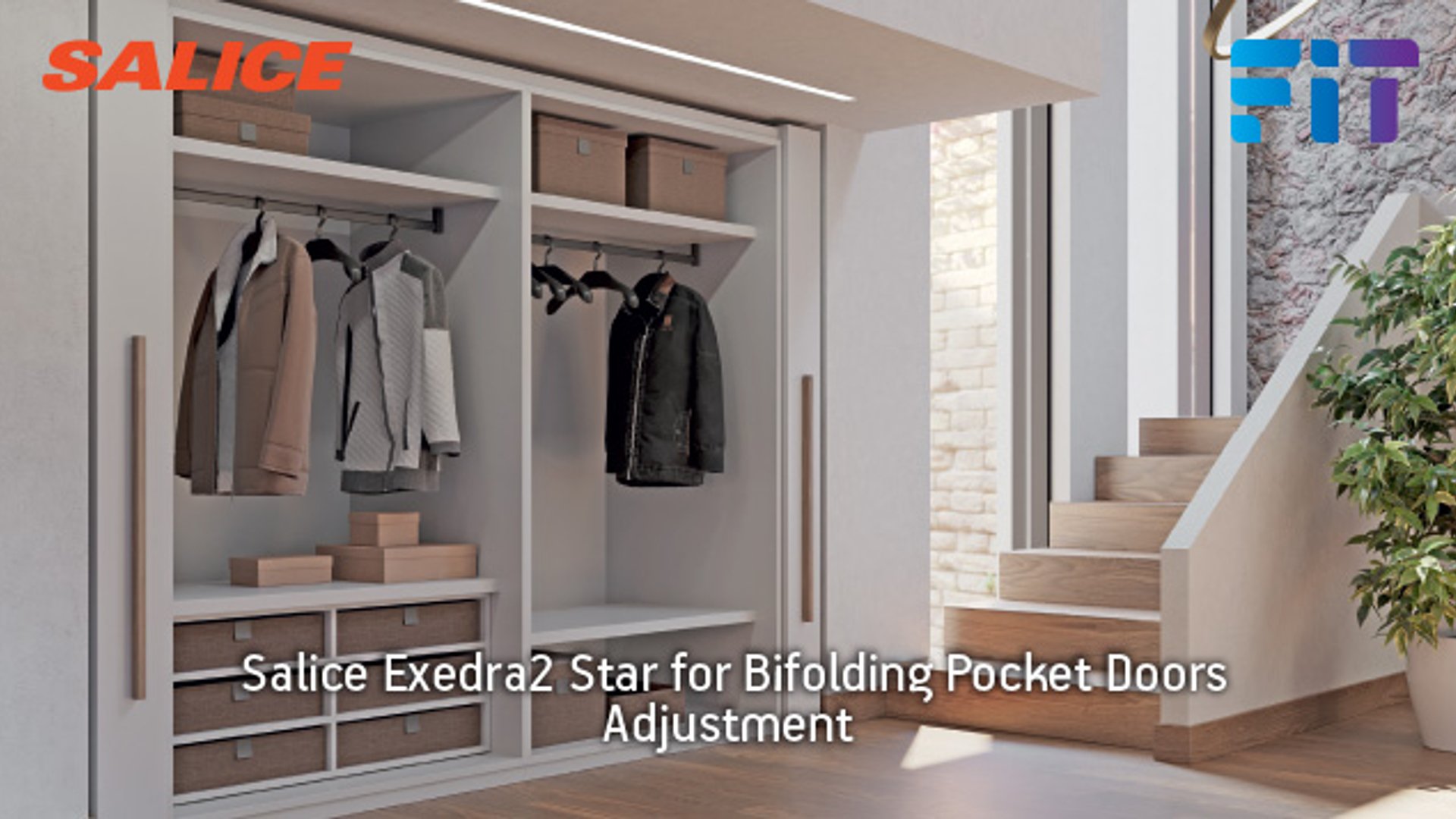

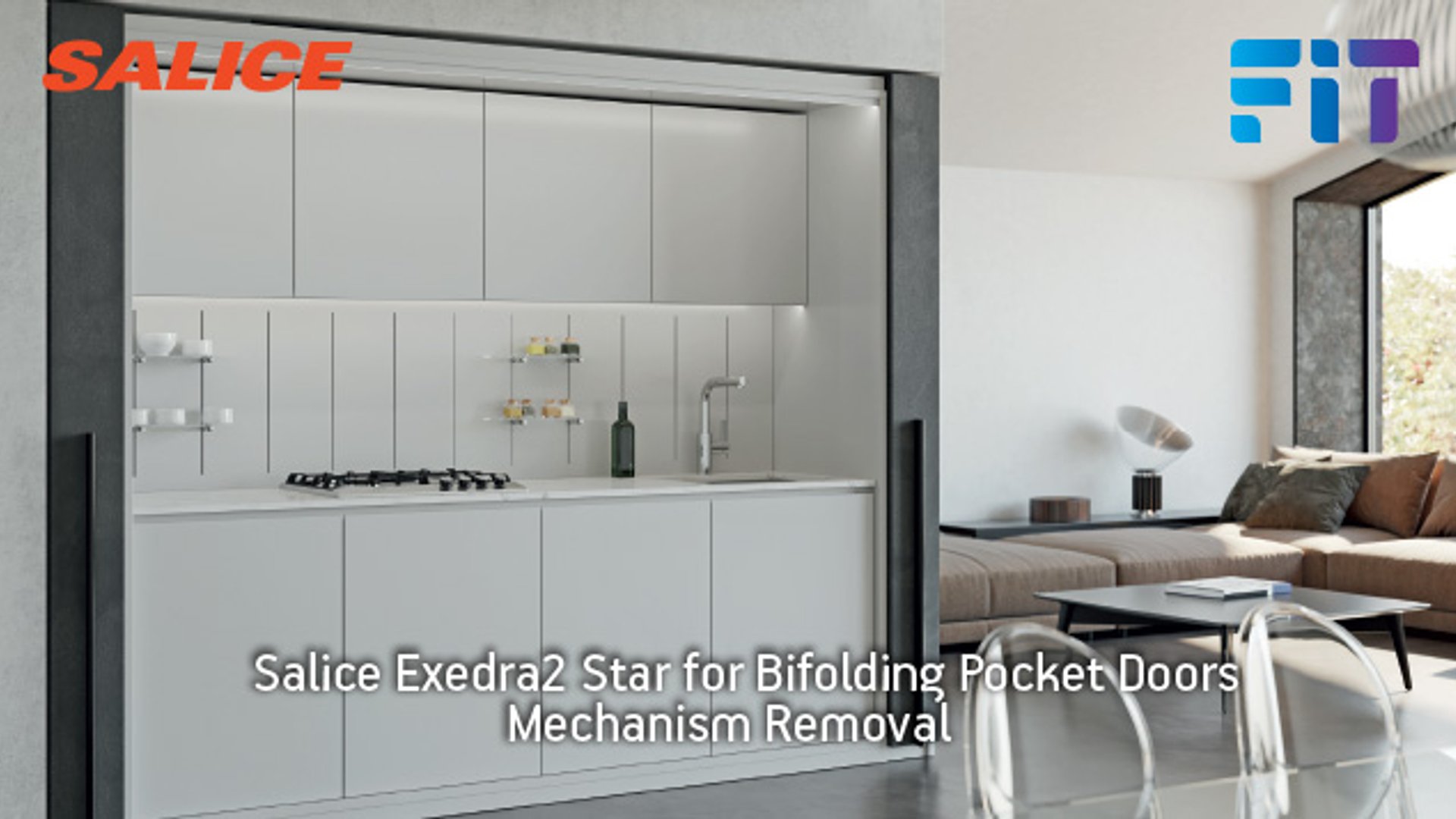

Exedra2 Star

• Suits doors from 18mm to 25mm thick
• Suits door heights from 1800mm to 2600mm
• Maximum weight per door: 50kg (25kg per door panel))
• Suits doors from 450mm to 750m wide (per panel)
• Minimum cabinet depth: 730mm
• Required door panel gaps: 3mm
• Minimum side panel thickness: 18mm
• Vertical adjustment ± 5 mm
• Horizontal adjustment ± 3.5 mm
• Front adjustment: - upper ± 3 mm and lower ± 2 mm

Scope of use

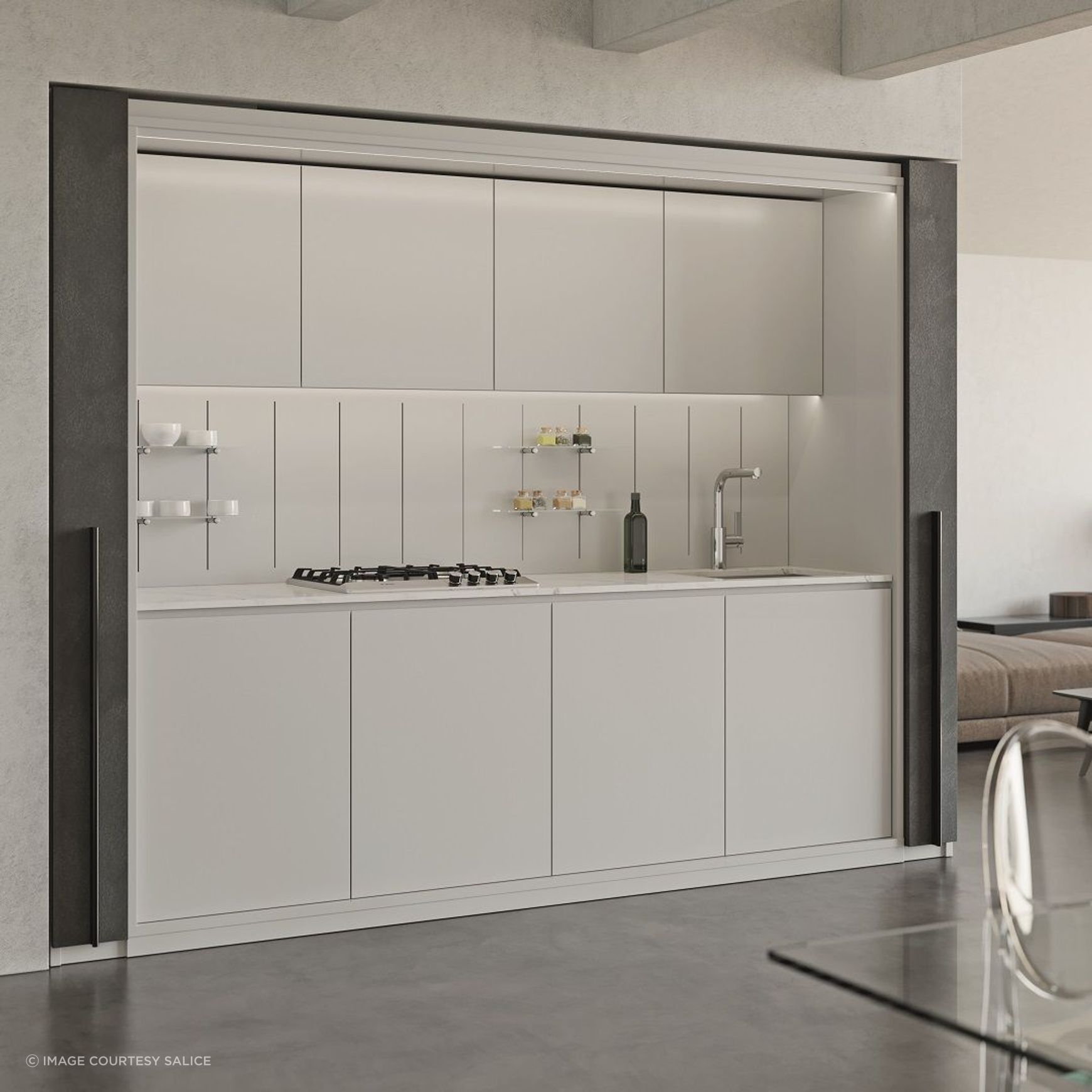

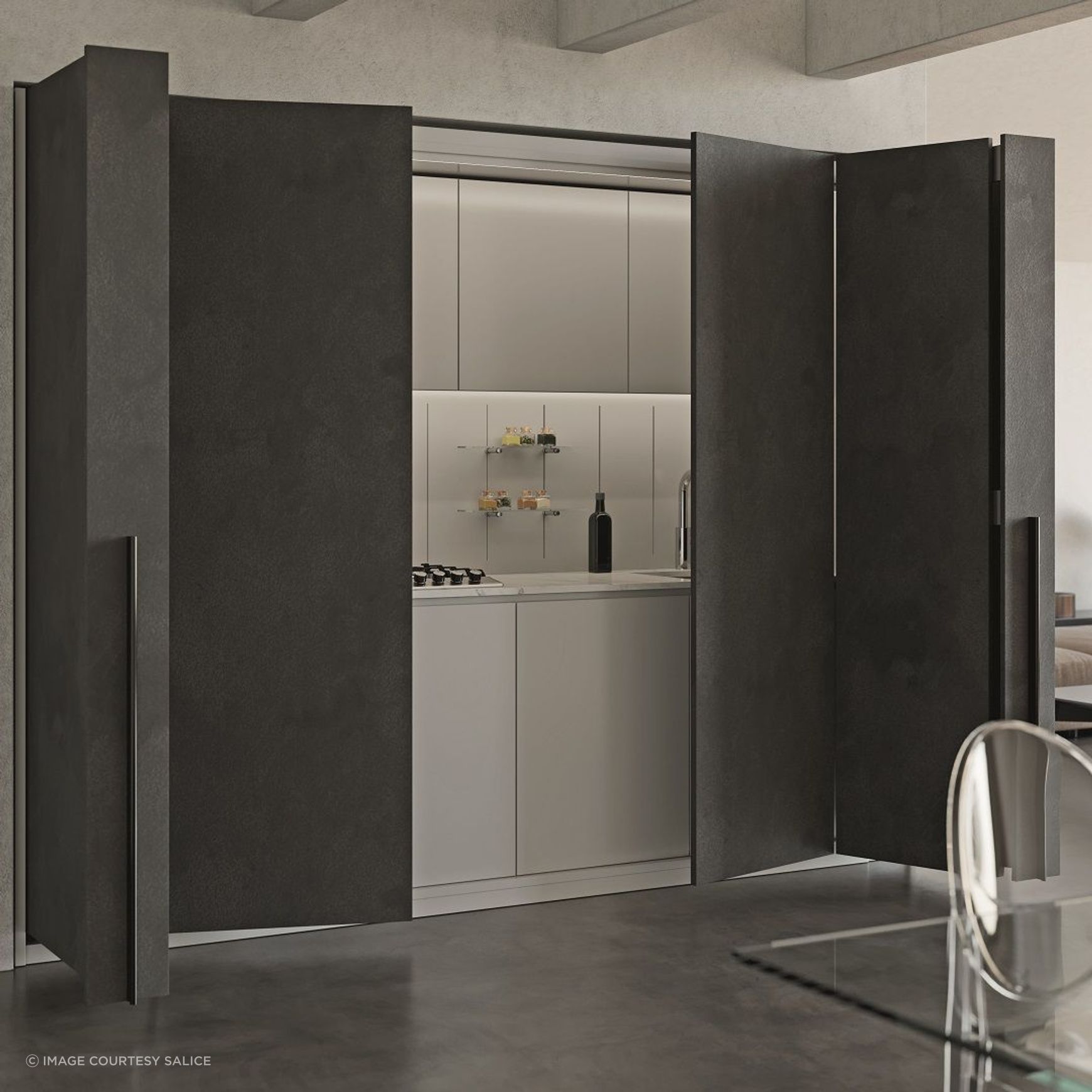

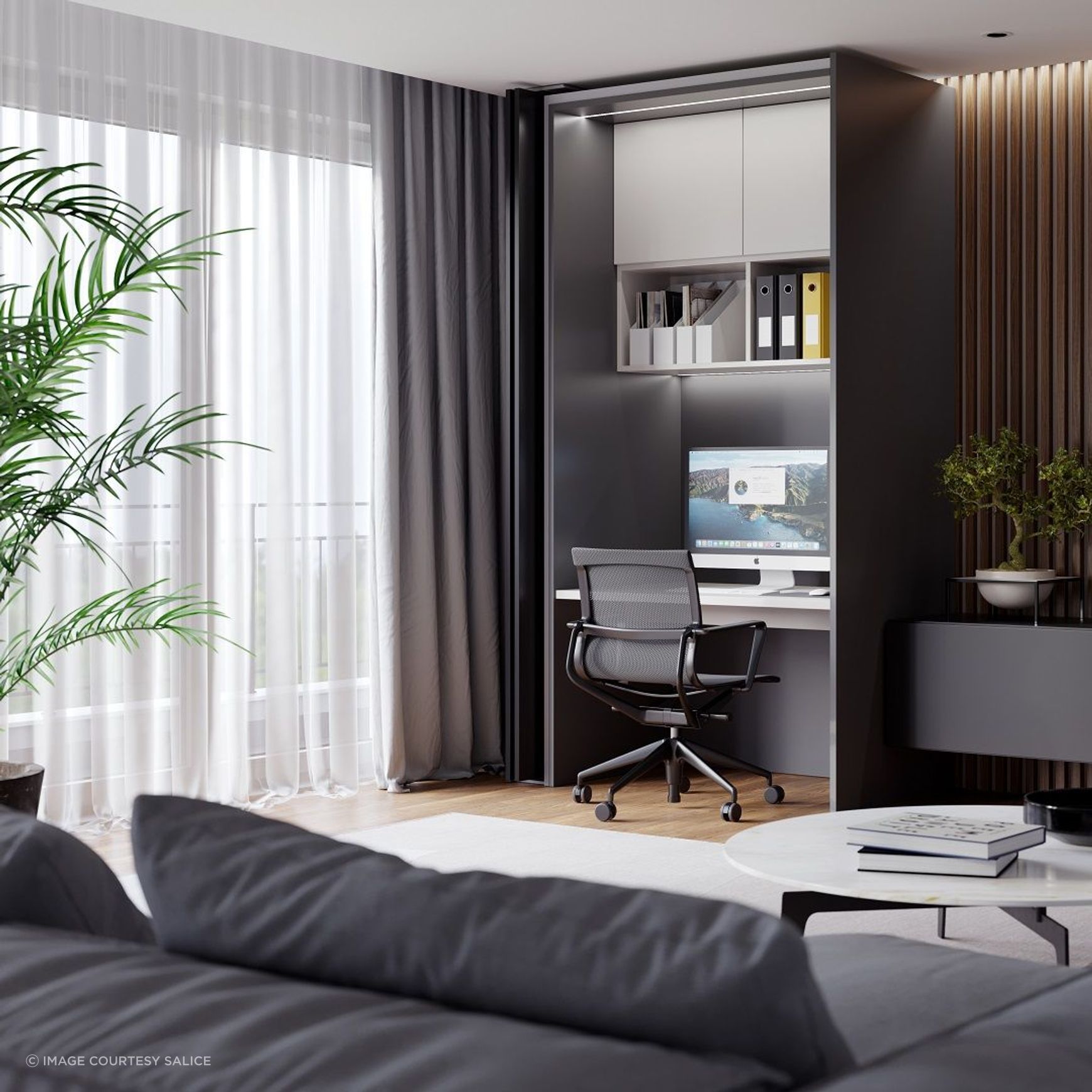

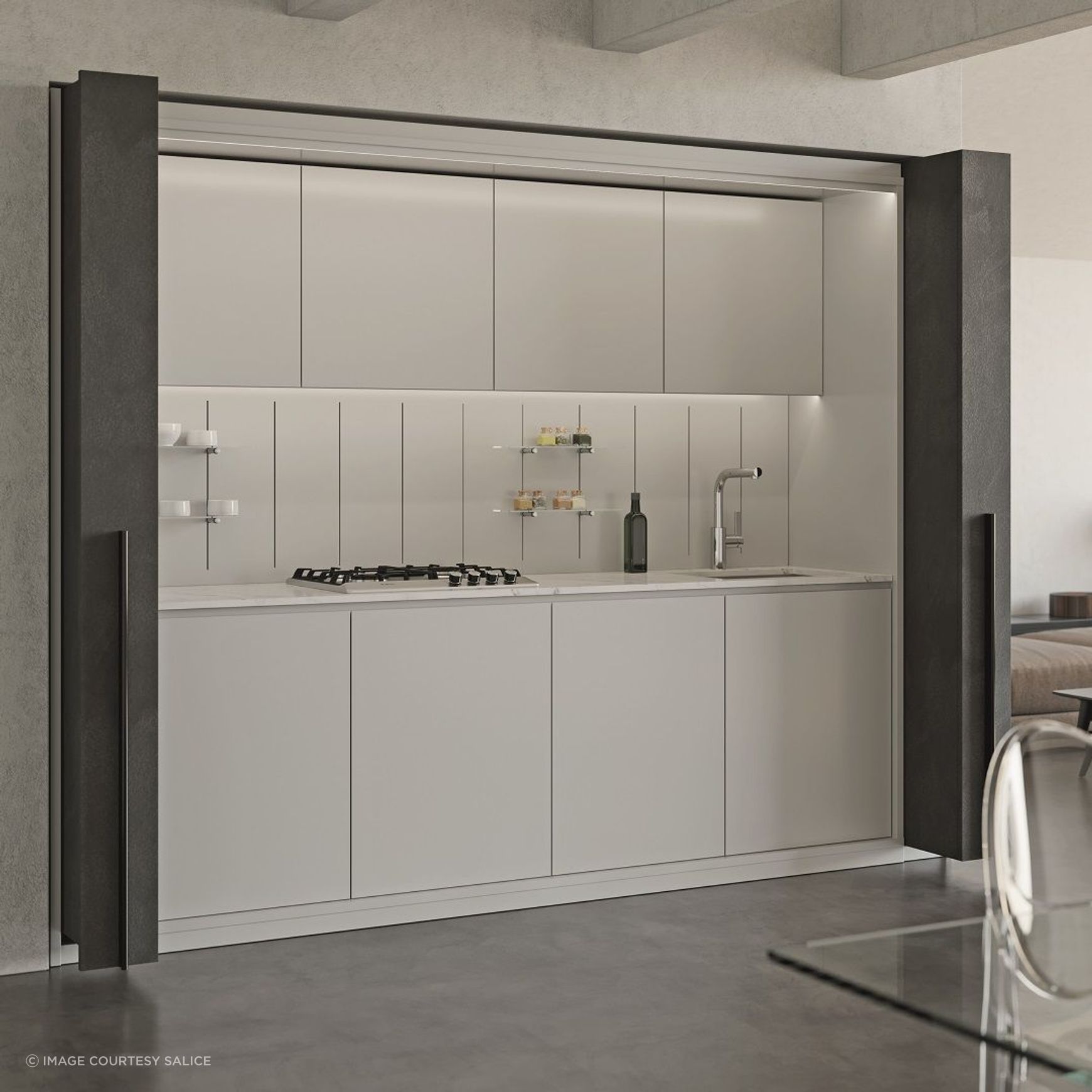

Designed to be installed into cabinetry in domestic kitchen, laundry or similar. Also appropriate for office and light commercial use.

This unit is sold exclusive of cabinet. It is a technical product and is designed to be installed into your cabinet by a kitchen maker, cabinetmaker or joiner.

Salice Exedra 2 Smart and Star pocket doors are custom made for you in Italy, then shipped to FIT. You need to allow plenty of time, but it will be worth the effort of planning!

Features

• Self-supporting mechanism fixes to the side of the cabinet
• No load-bearing frontal profiles on top or bottom of the cabinet, so no need for additional central supports.
• Motion-control system means flush handles can be fixed at the edges of the doors, allowing effortless opening and closing with one hand.
• With the aid of the electric Push kit, it is possible to use both versions on handle-less furniture.

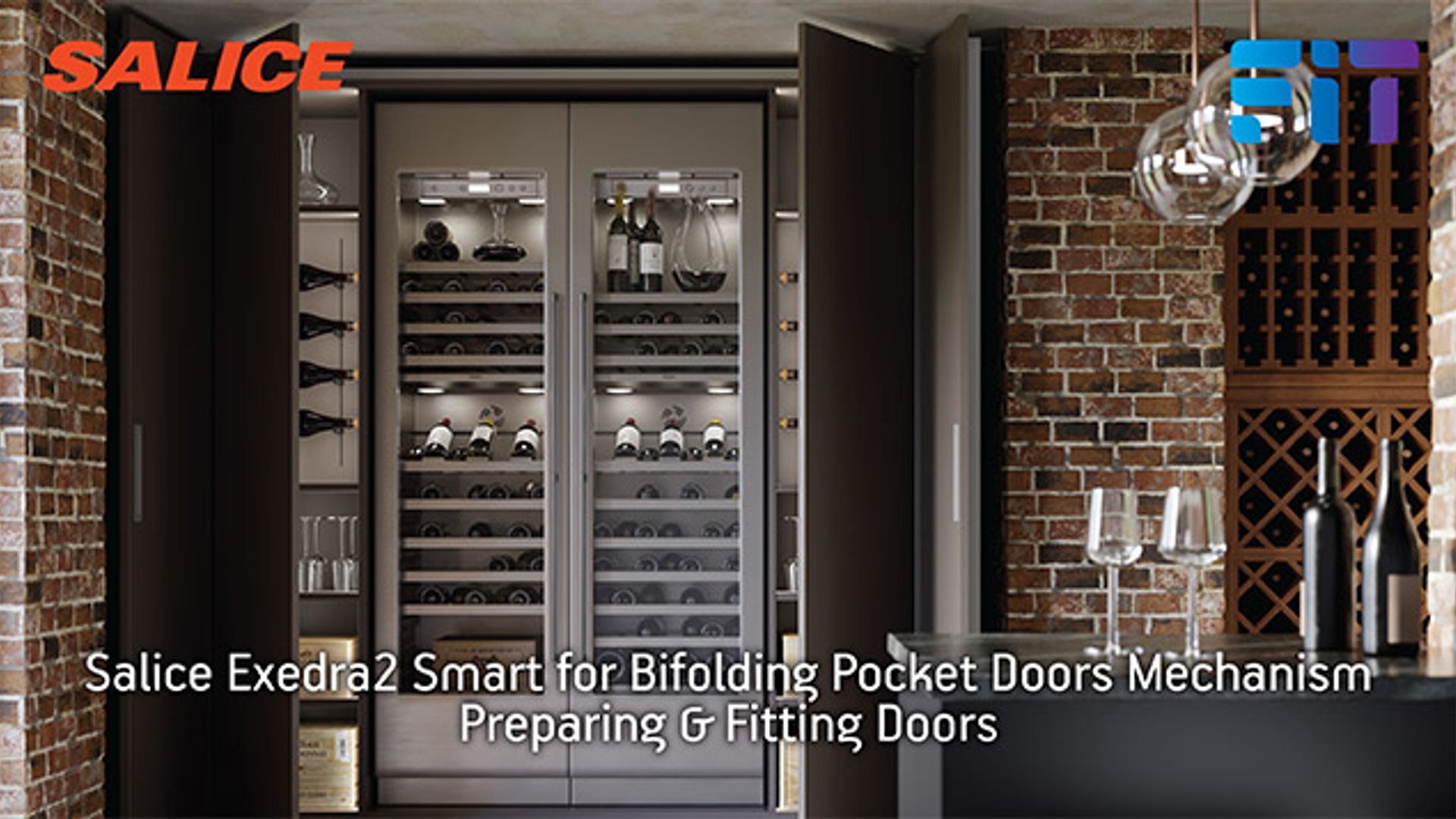

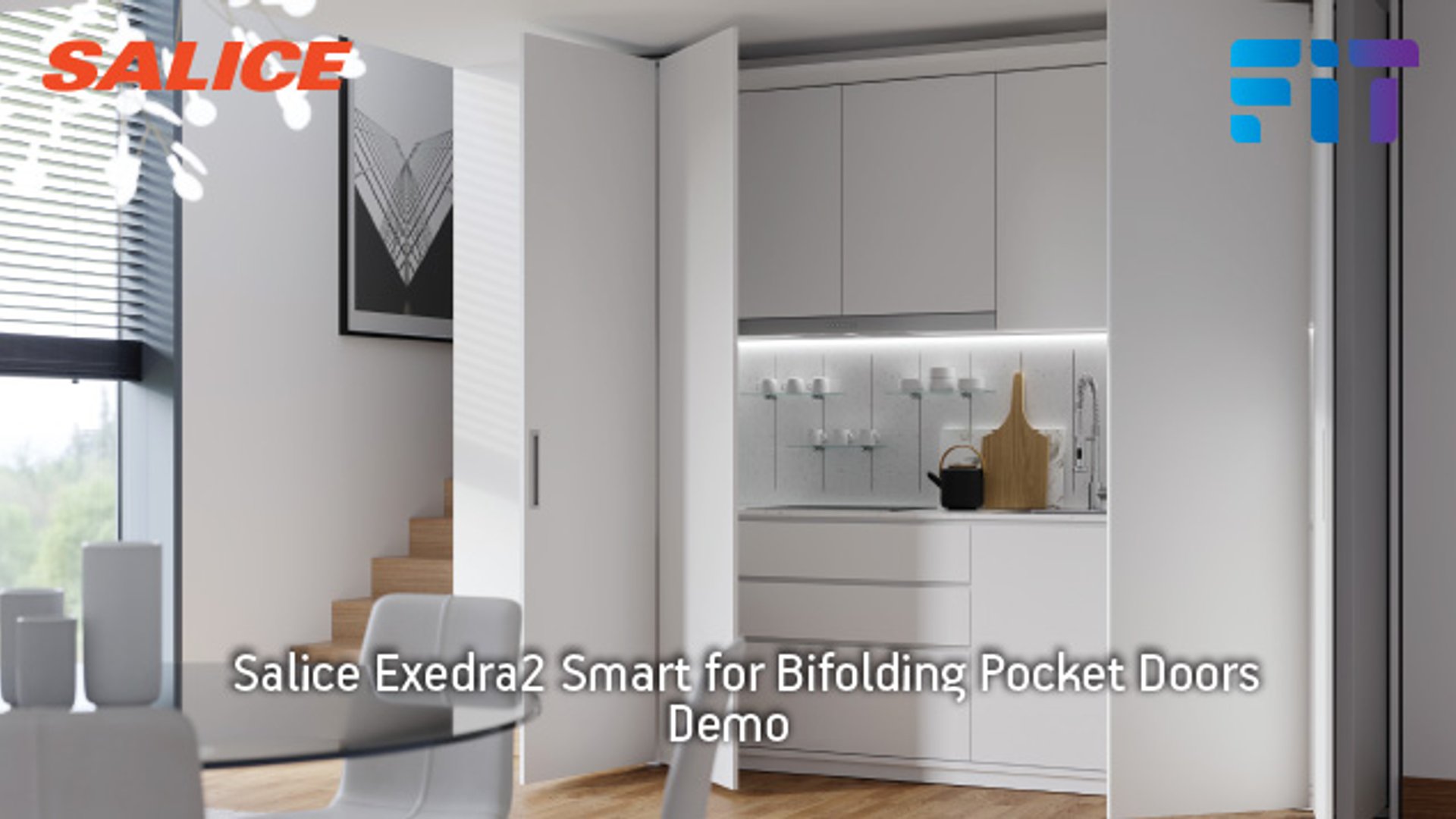

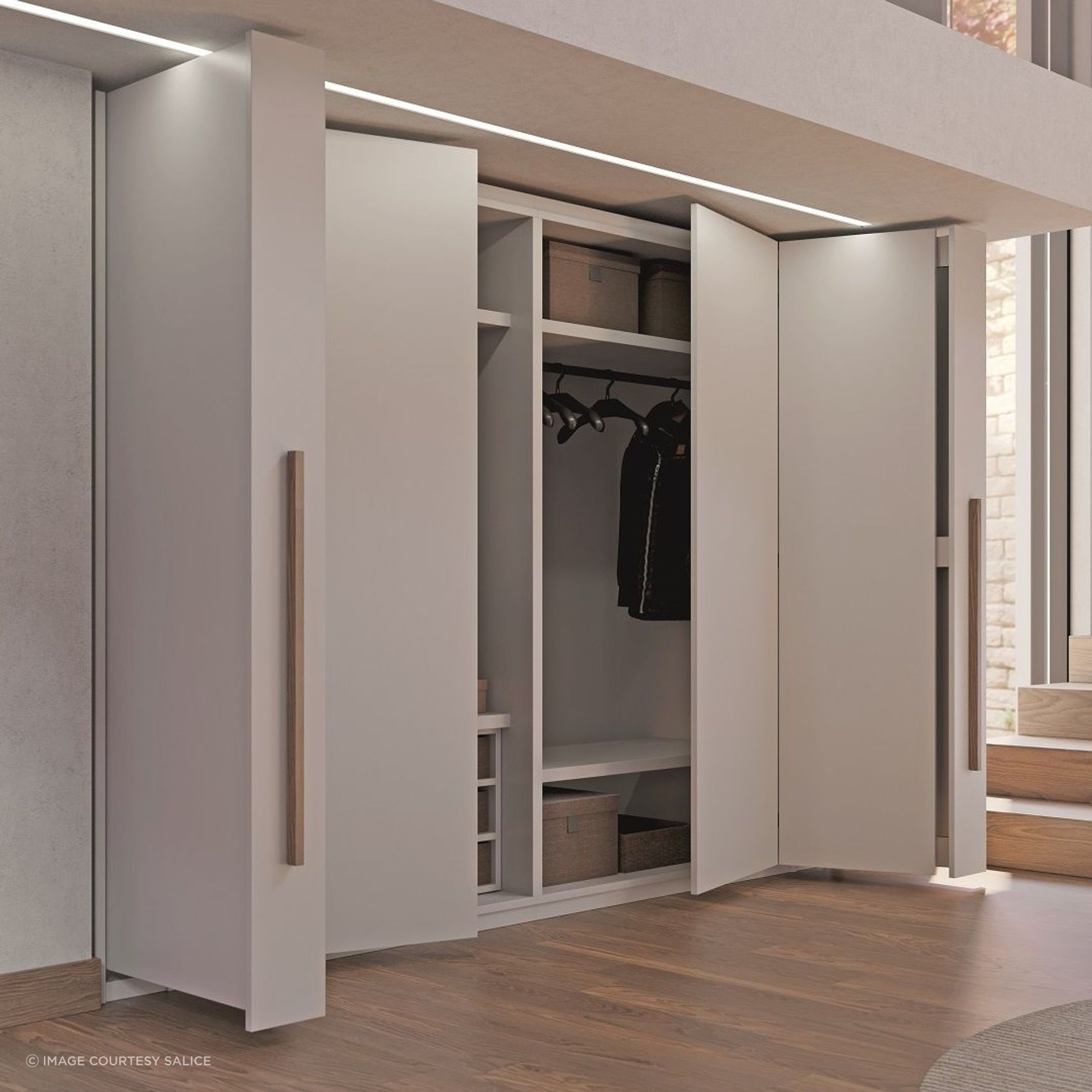

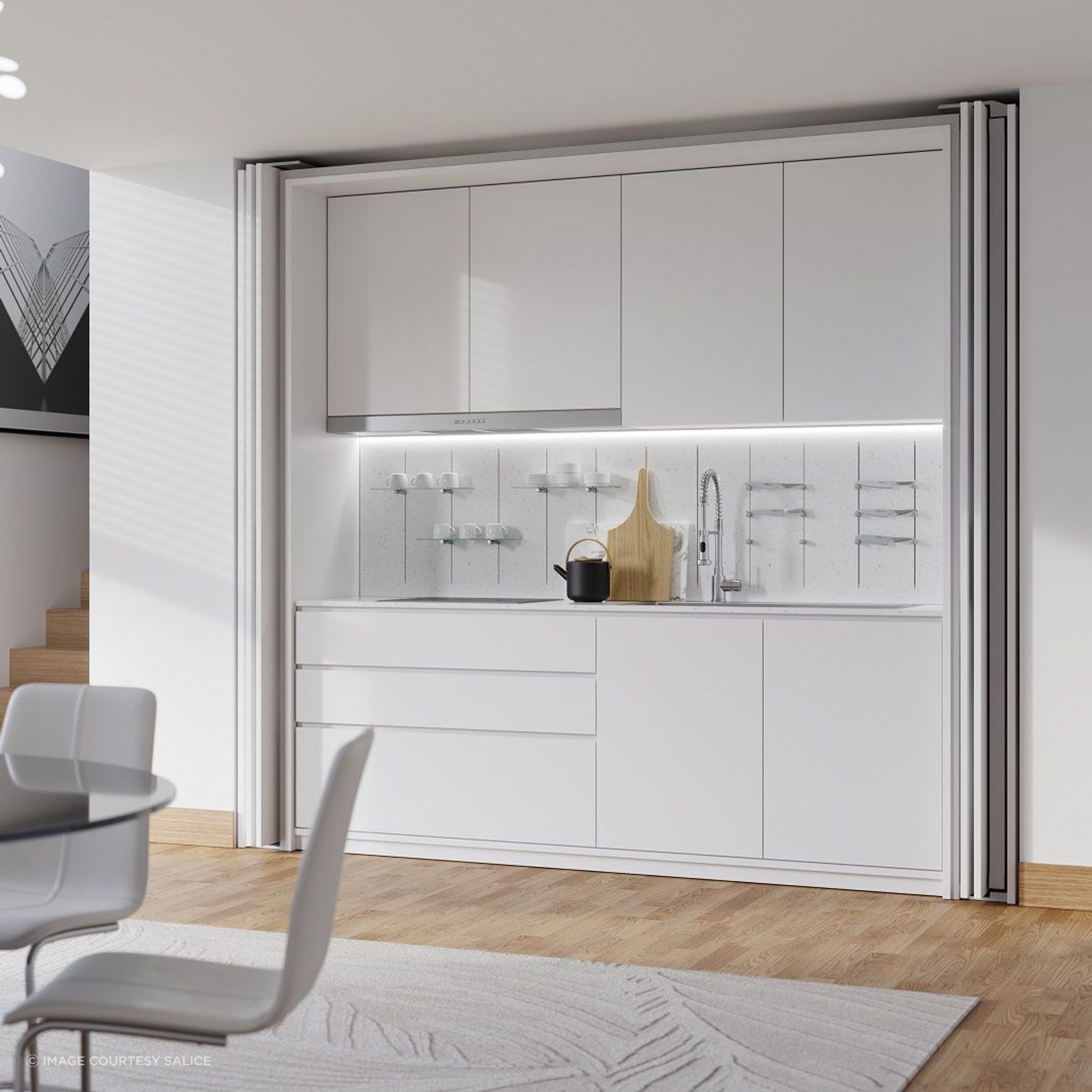

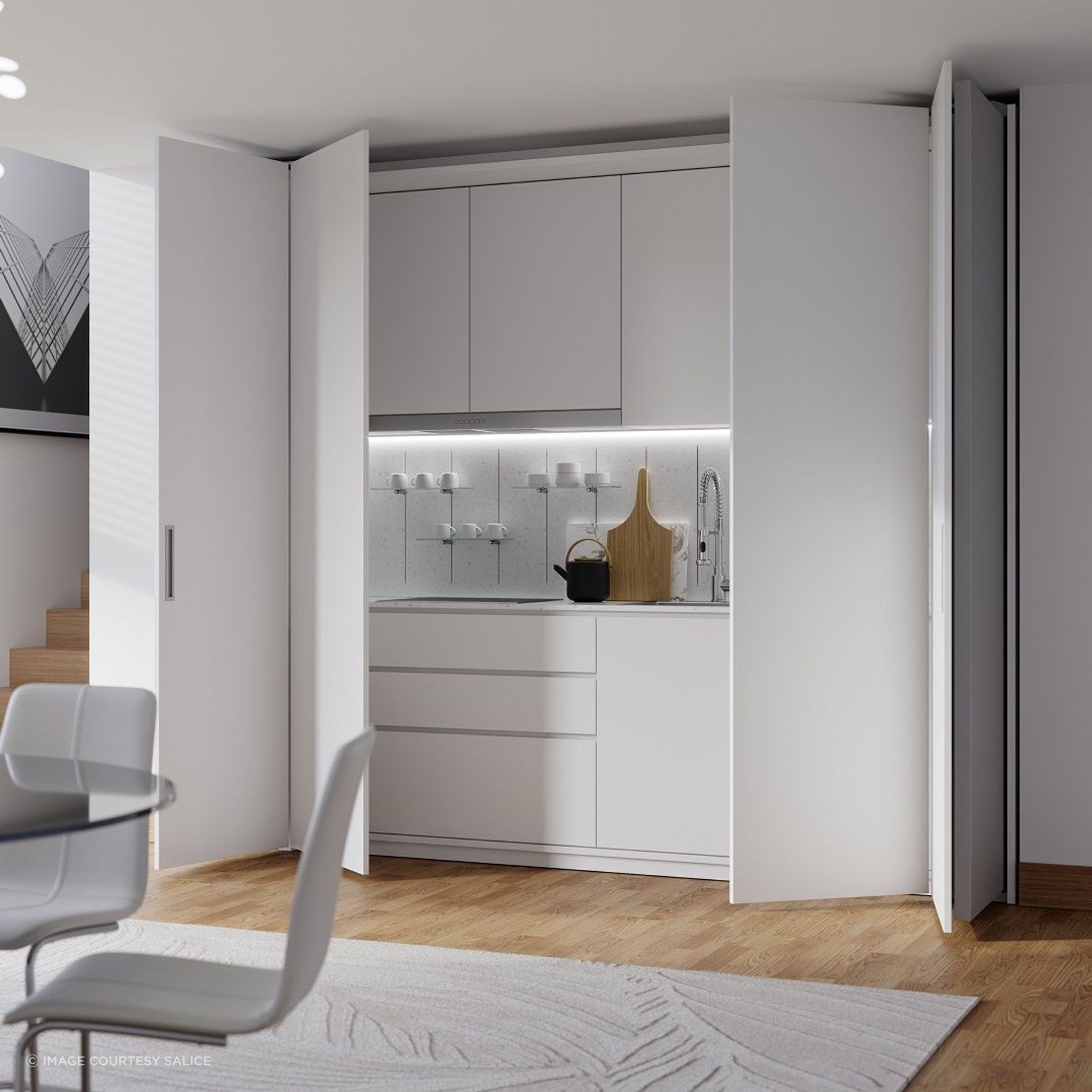

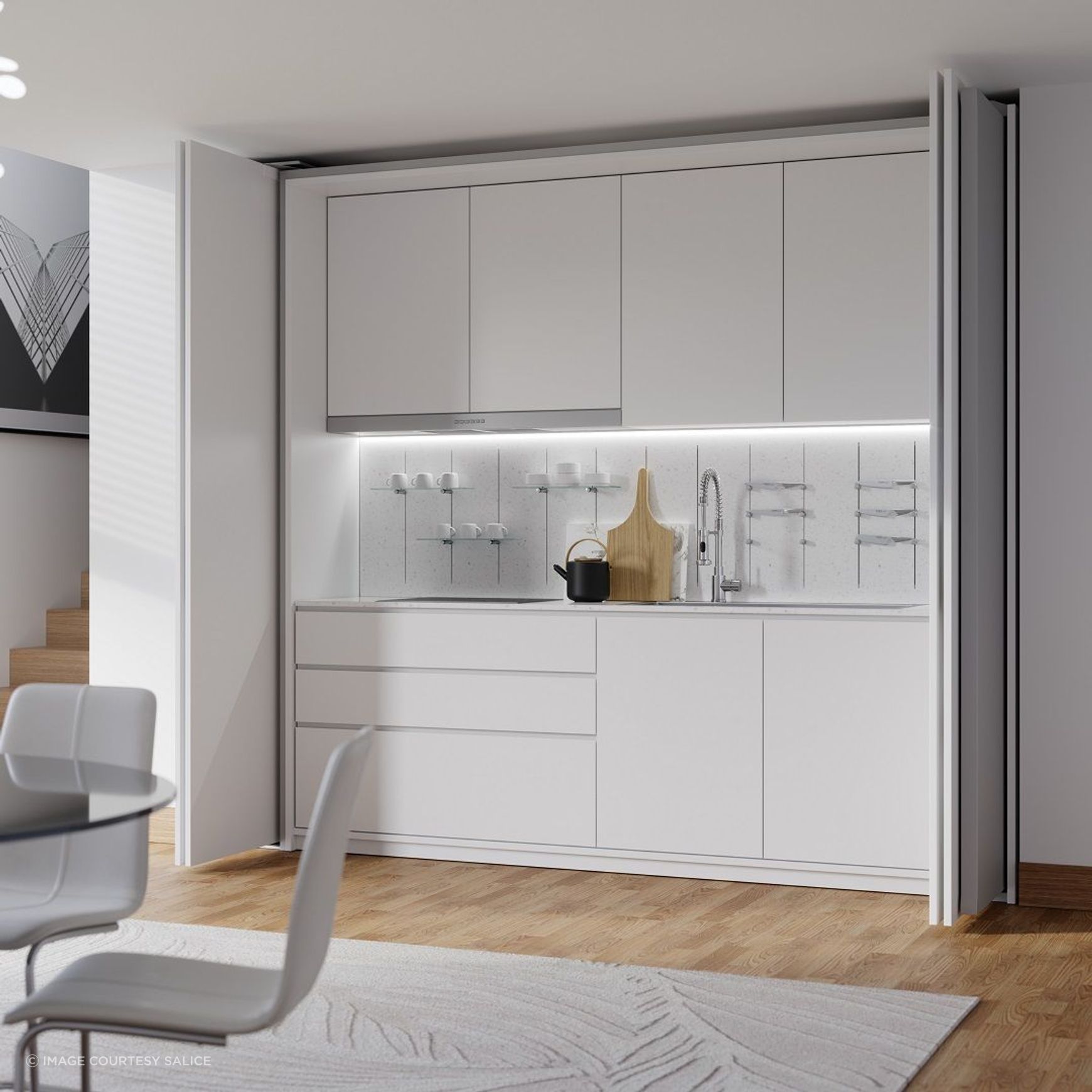

• SMART model - Folds back into cabinet leaving door panel edges visible.
• SMART model - Enables door panel sizes to be consistent and equal across the cabinet face

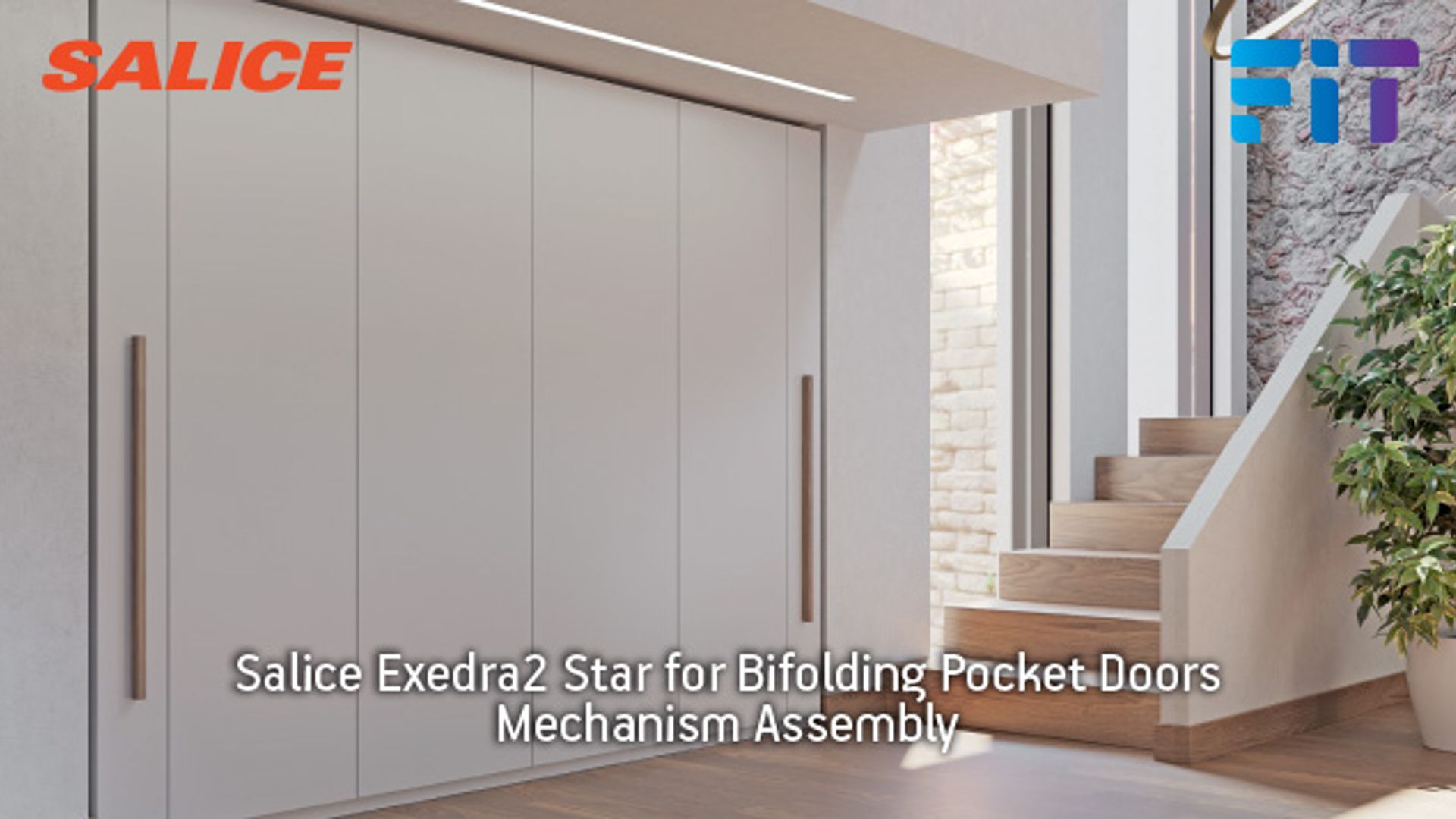

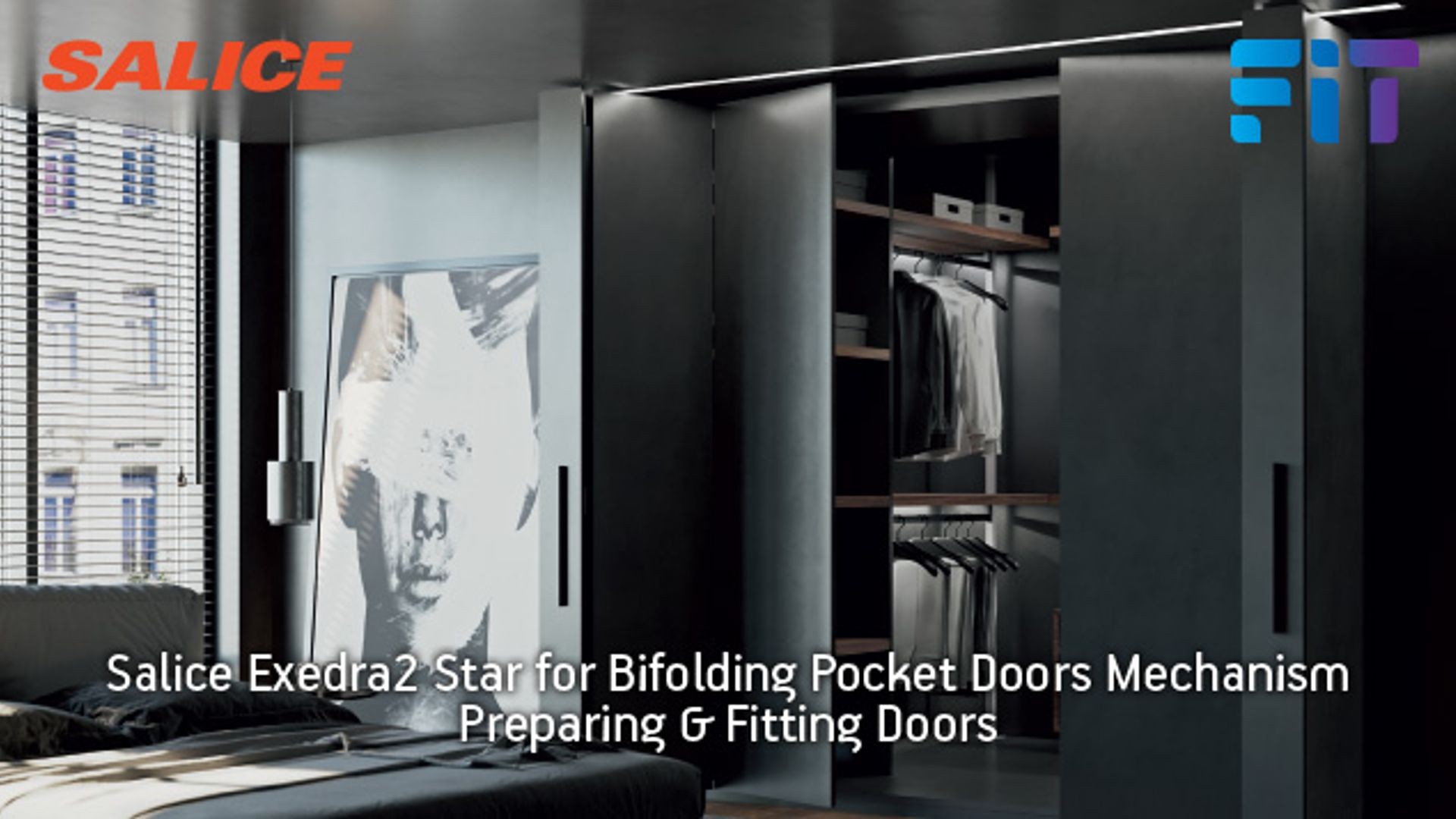

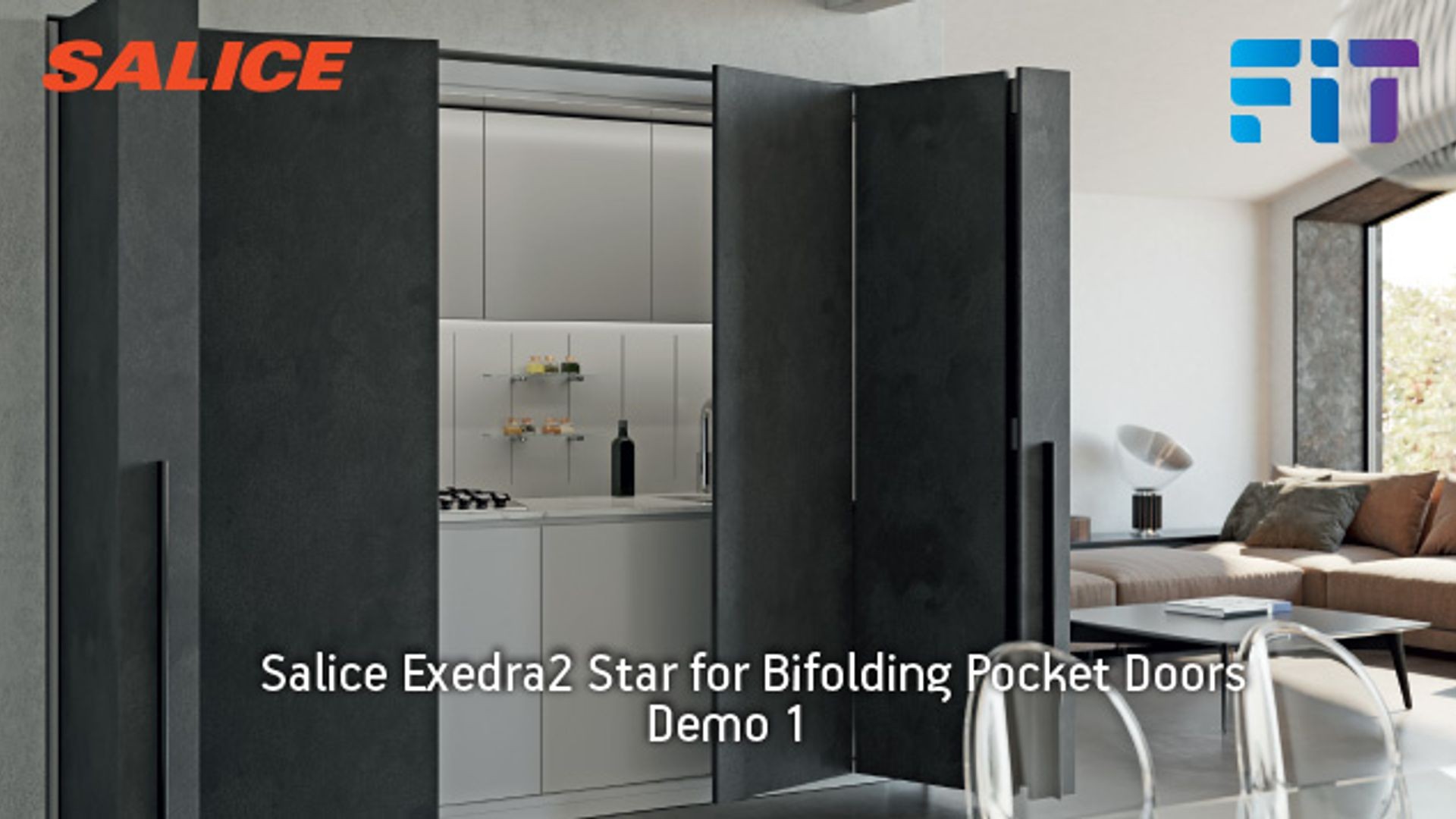

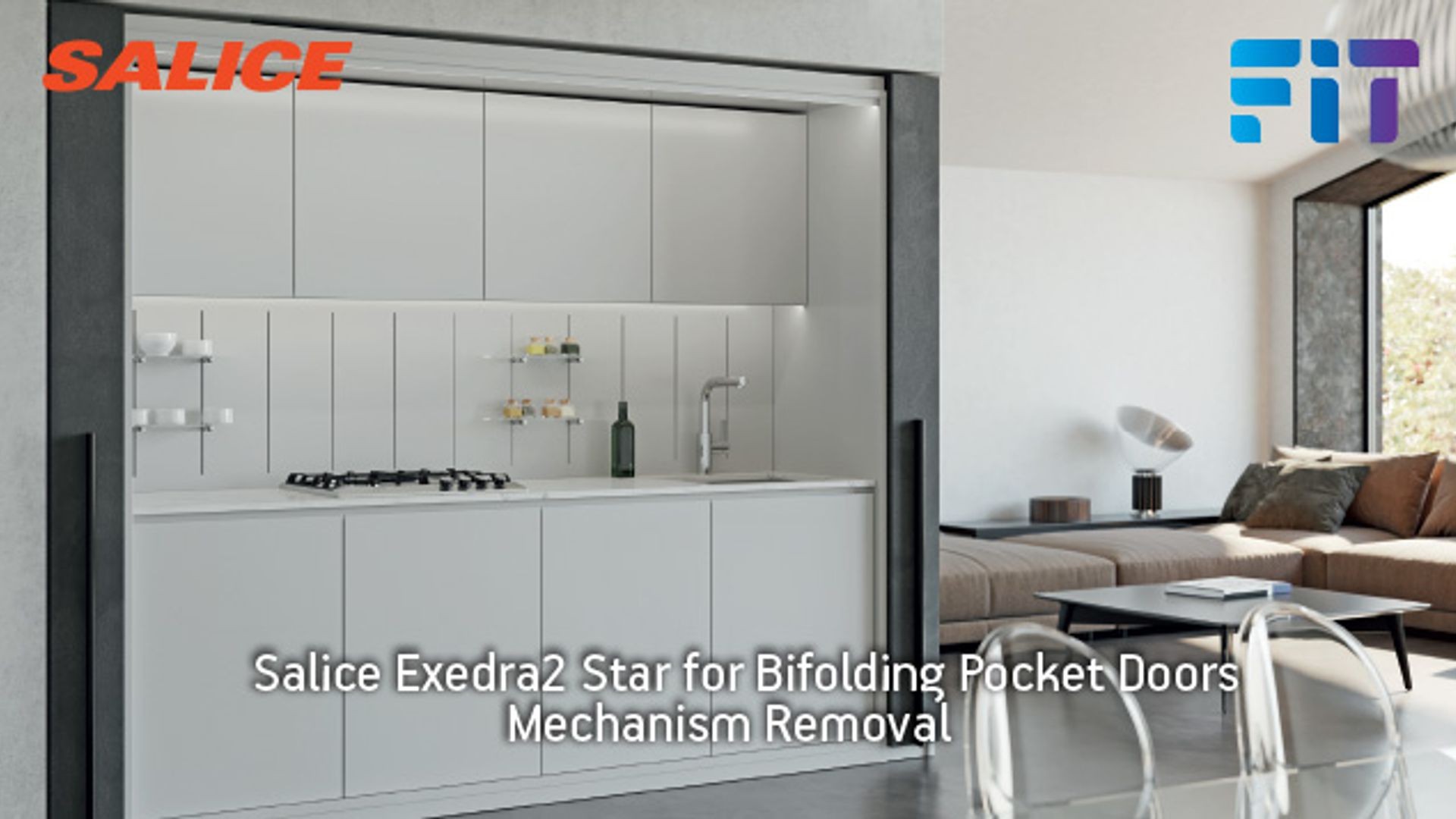

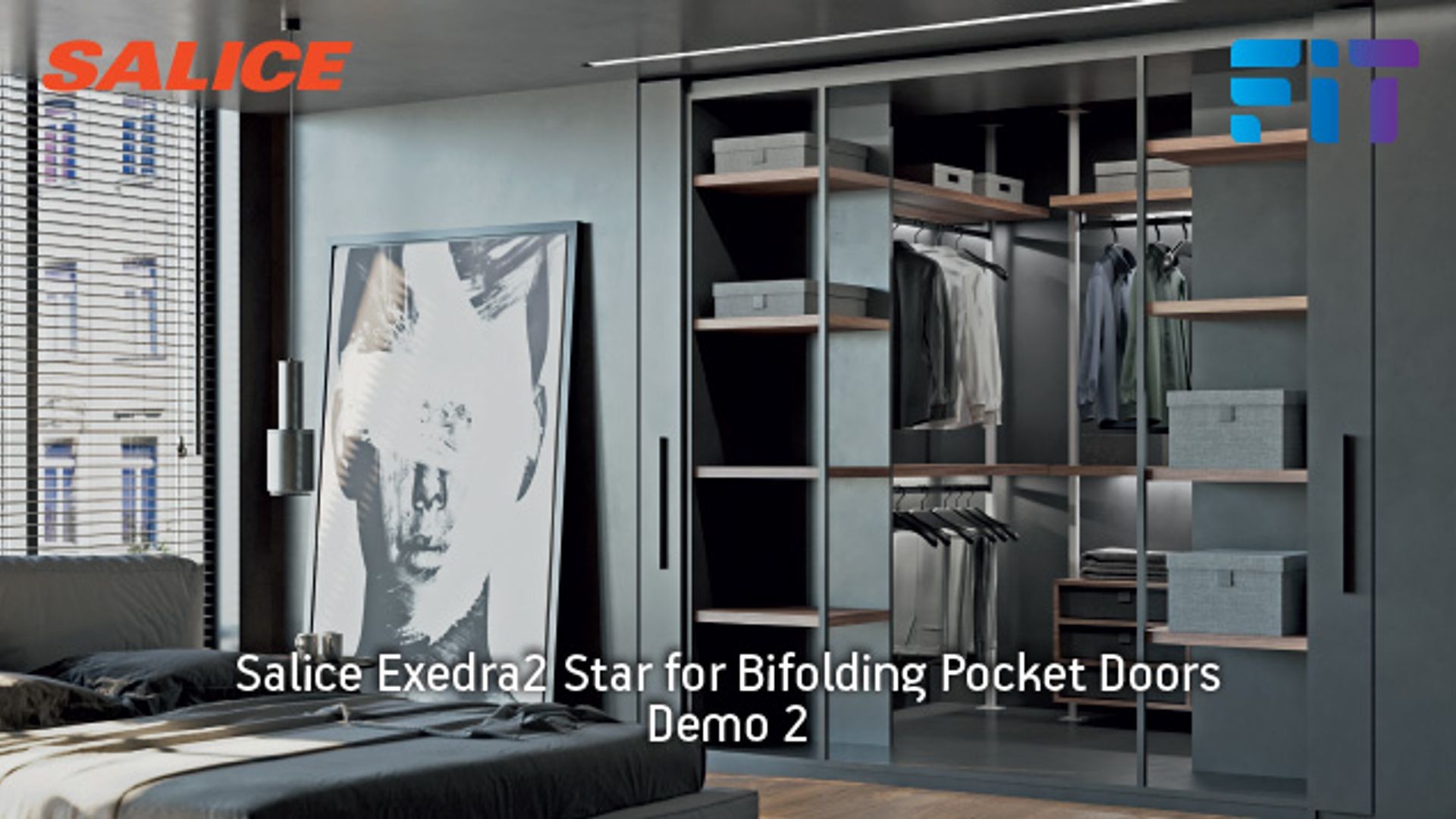

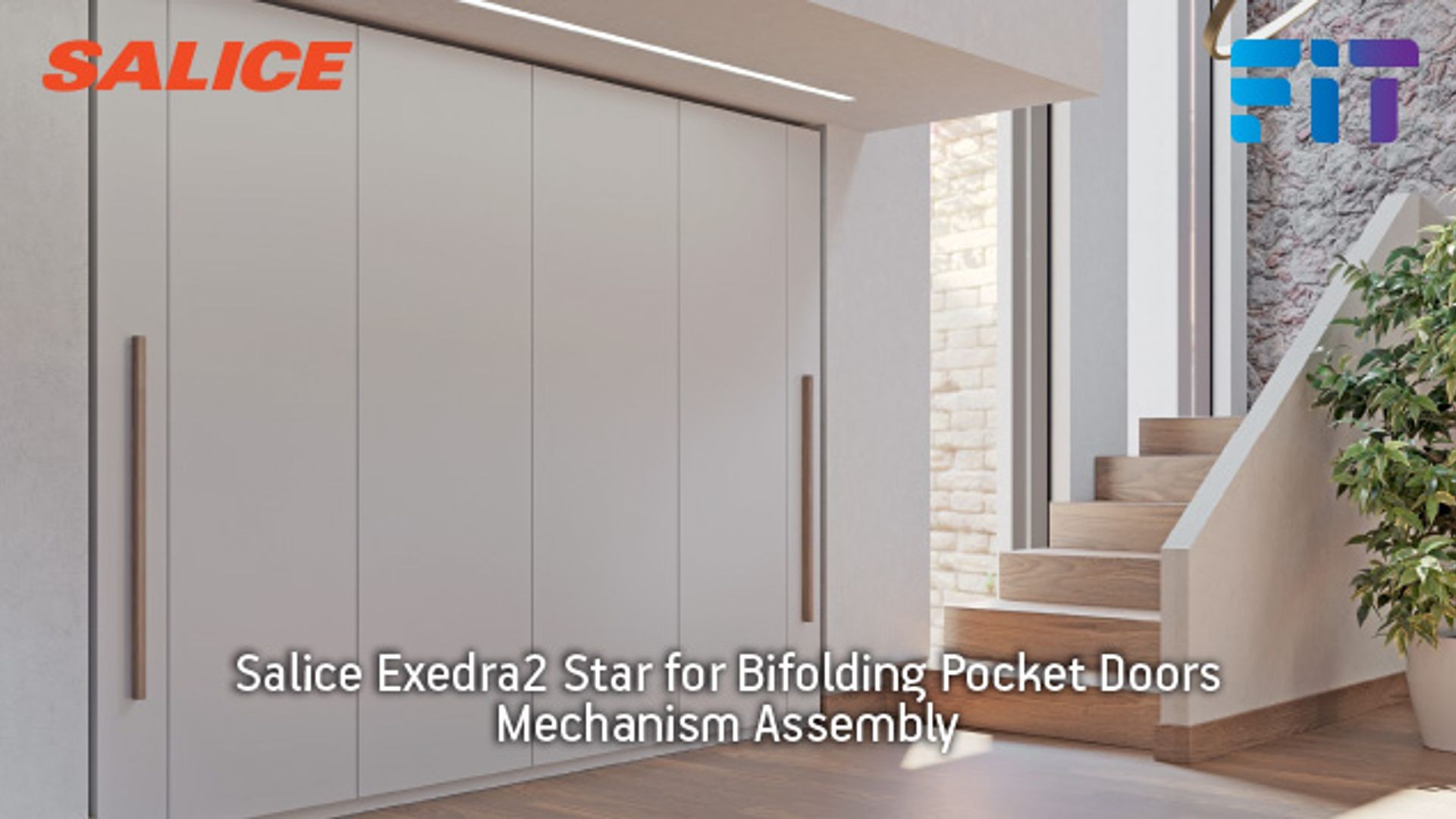

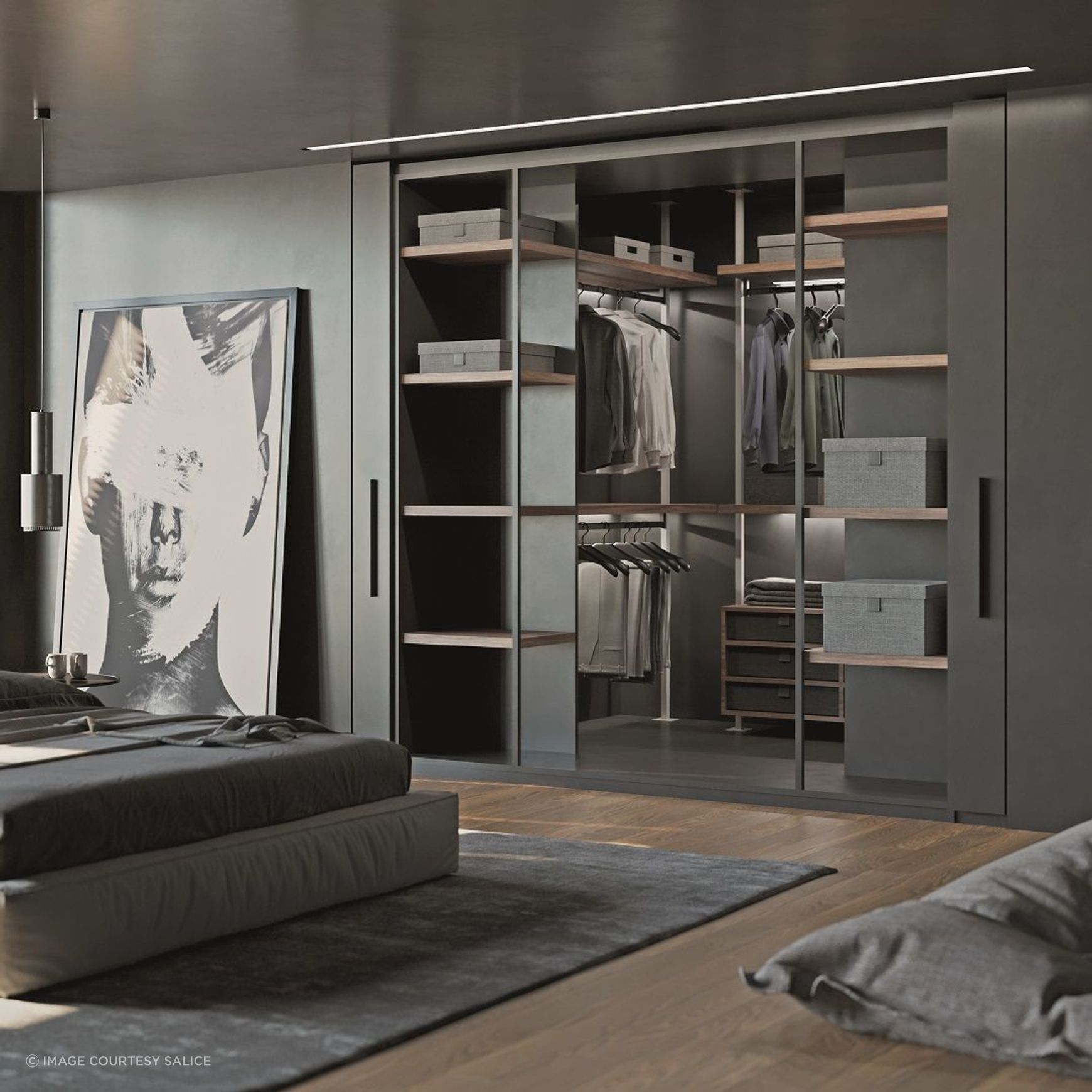

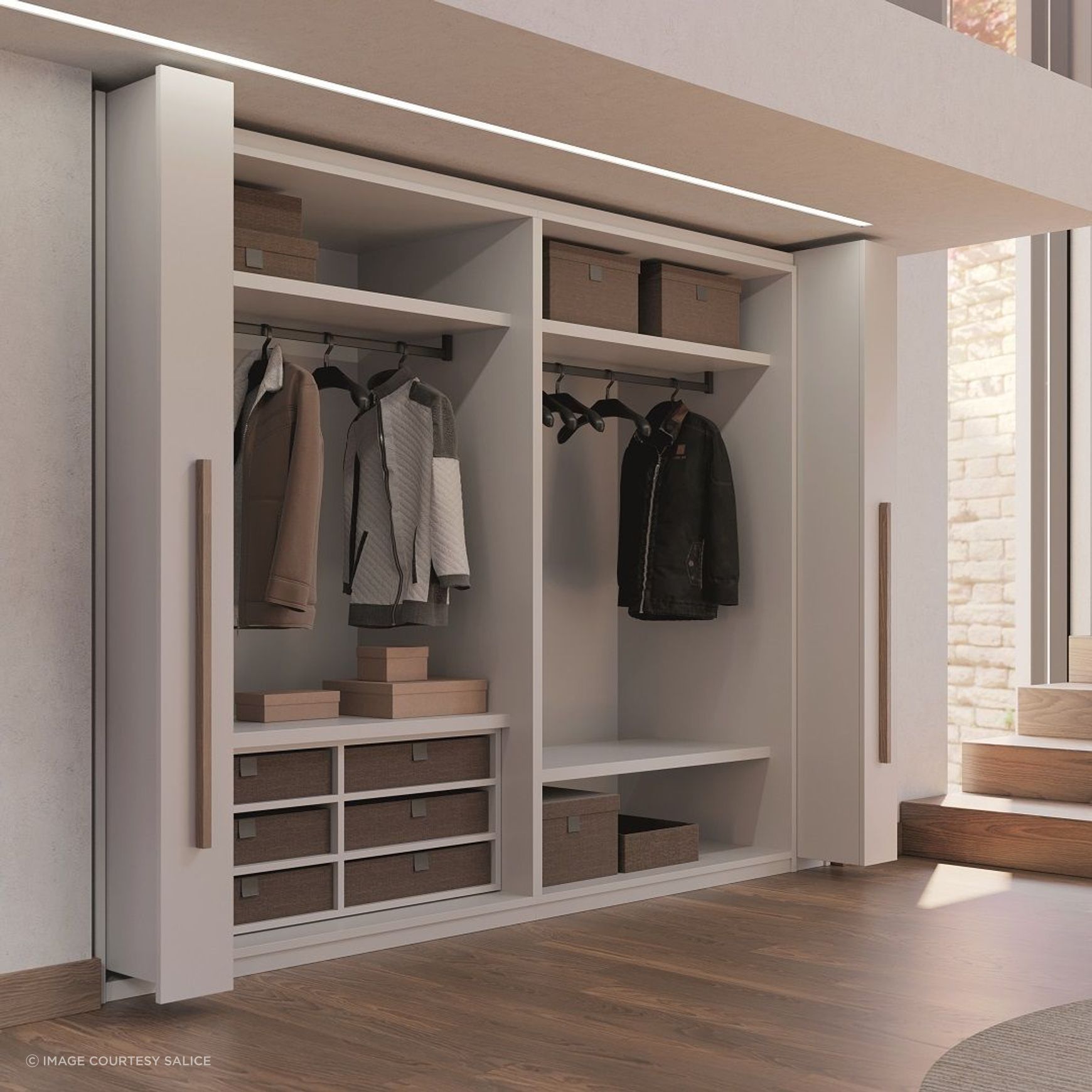

• STAR model - Completely hides door panels behind a cover panel, whether doors are open or closed.

Performance

For warranty details, please refer to the Performance Documents subsection of the Downloads section on this product.
