HB640 Series Narrow Sliding Door Lock – 33mm Backset
Victoria
- 675.8K profile views
- 58 saves
Halliday + Baillie Key Lock Sliding System with 33mm backset and a case depth of 48mm.
The slim proportions of the HB640 Series lock sets make them ideal for narrow style timber and aluminium joinery. The HB649 vairiants are particularly useful on sliding windows that require locking. Cylinders can be ordered separately with confirmation of the door thickness.
Please note that the “HB640 Series” denotes the type of lock body used with various flush pull configurations. The “HB640” set has a key and snib both sides, and is one possible configuration in the series.
Material: Diecast zinc with brass and 316 stainless steel
Product Details
- Product
- HB640 Series Narrow Sliding Door Lock – 33mm Backset
- Category
- Cavity Slider Doors
- Sold by
- Halliday + Baillie
- Designer
- Halliday + Baillie
- Brand
- Halliday + Baillie
- Country of origin
- New Zealand
- Care and cleaning
- Easy maintenance
- Installation
- Professional installation required
- Assembly
- Professional assembly recommended
Product specified by
Halliday + Baillie Key Lock Sliding System with 33mm backset and a case depth of 48mm.
The slim proportions of the HB640 Series lock sets make them ideal for narrow style timber and aluminium joinery. The HB649 vairiants are particularly useful on sliding windows that require locking. Cylinders can be ordered separately with confirmation of the door thickness.
Please note that the “HB640 Series” denotes the type of lock body used with various flush pull configurations. The “HB640” set has a key and snib both sides, and is one possible configuration in the series.
Material: Diecast zinc with brass and 316 stainless steel
- Type of use
- Commercial, Commercial and Residential, Residential
- Features
Configurations available (within the series):

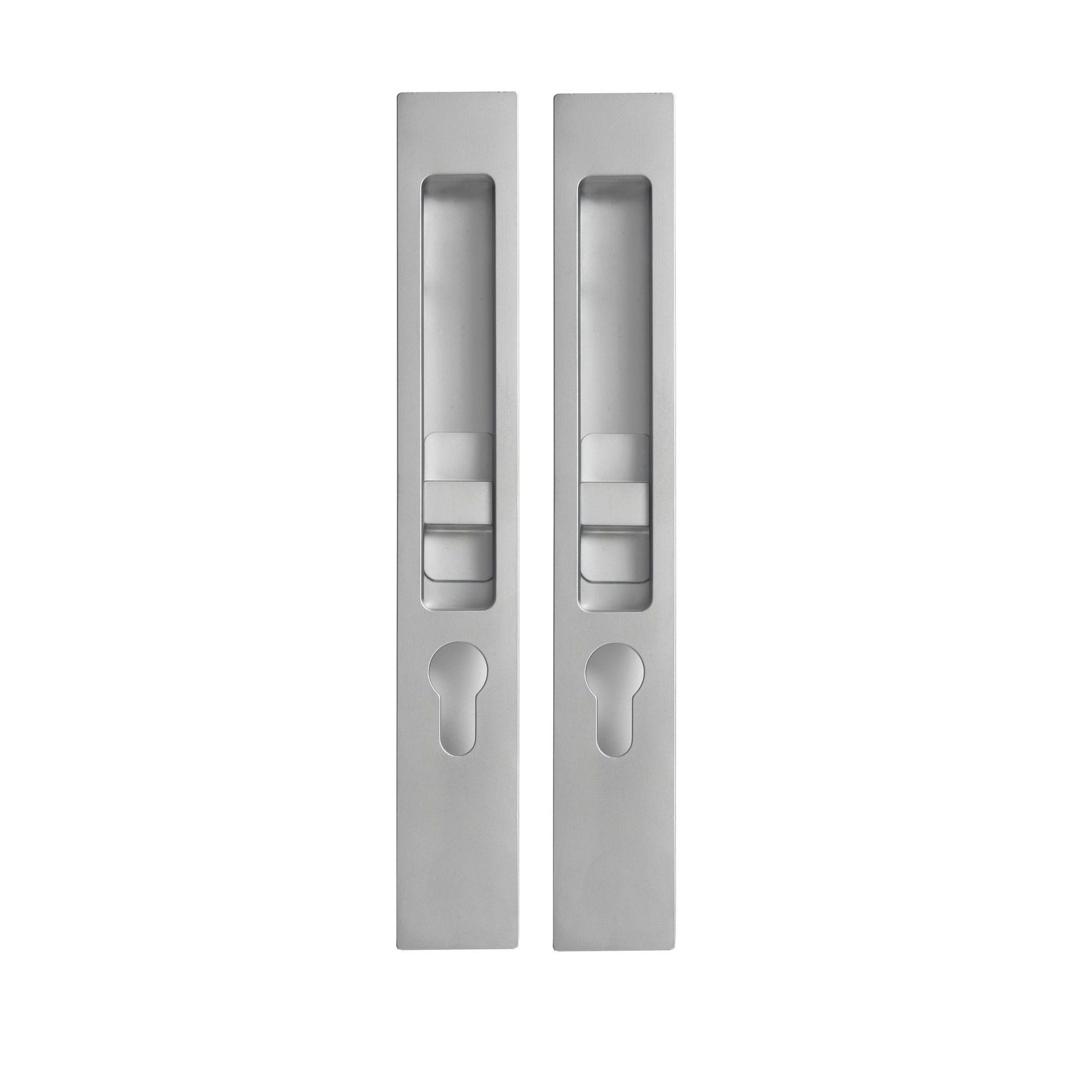

- HB 640 – Key and Snib Both Sides
- HB 642 – Key Snib In, Blank Out
- HB 643 – Key Snib In, No Pull Out
- HB 648 – HB665 Snib, One Side, No Pull Outside
- HB 649 – HB660 Snib One Side, No Pull Outside
- HB 649/2 – HB660 Snib Inside, Blank HB660 Pull Outside
Cylinders are ordered separately, and door thickness must be specified to ensure correct cylinder
- Scope of use

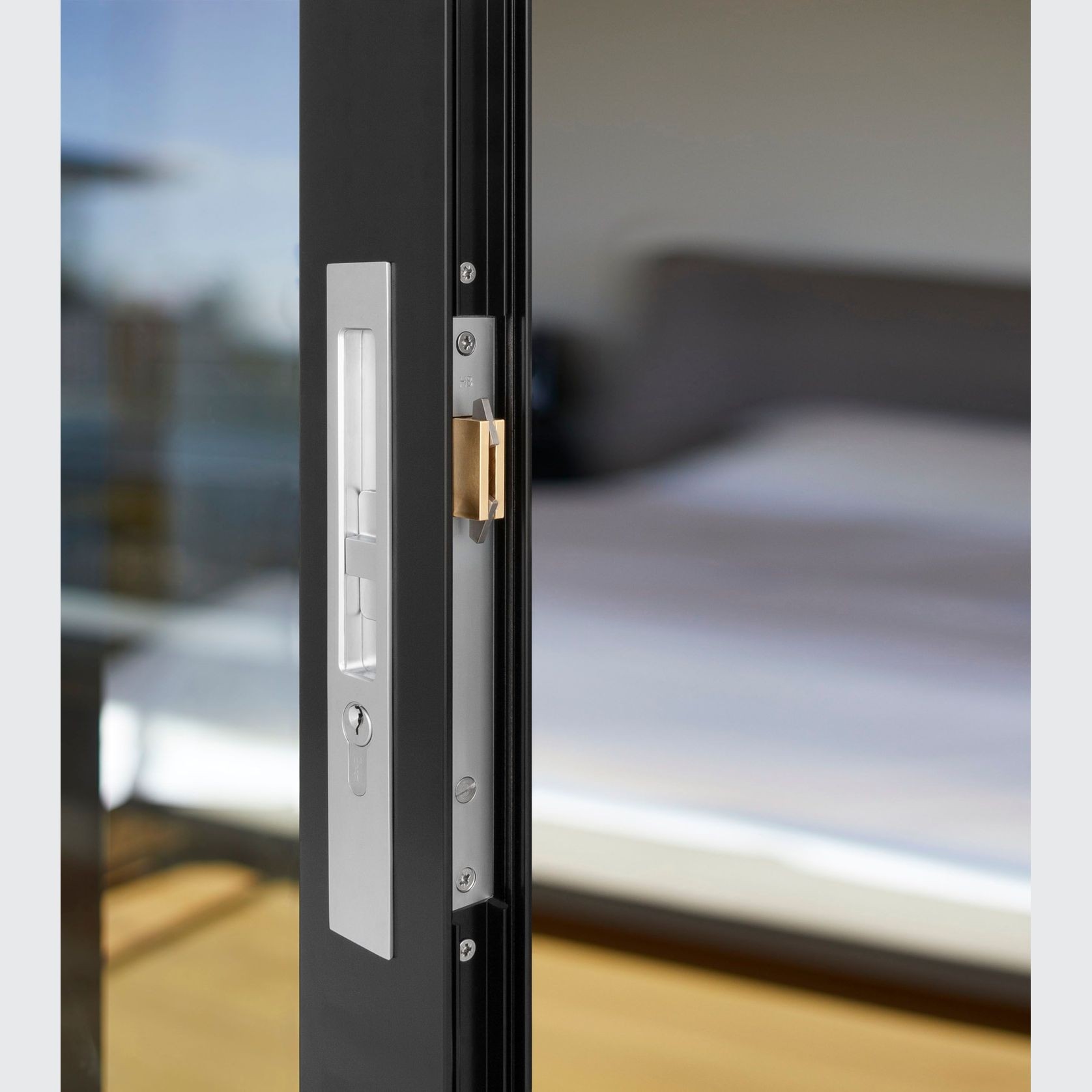

- Designed for sliding cavity doors requiring a keyed locking function.
- Suitable for timber or aluminium doors with narrow stiles and minimum 38mm thickness.
- Ideal for residential and commercial applications needing a secure, flush-mounted sliding door lock.
- Can be paired with Halliday + Baillie flush pulls (e.g. HB668) and matching finishes for a cohesive hardware package.
- Compatible with Euro profile cylinders, allowing flexible keying options.
- Designed for sliding cavity doors requiring a keyed locking function.
- Specs / Details

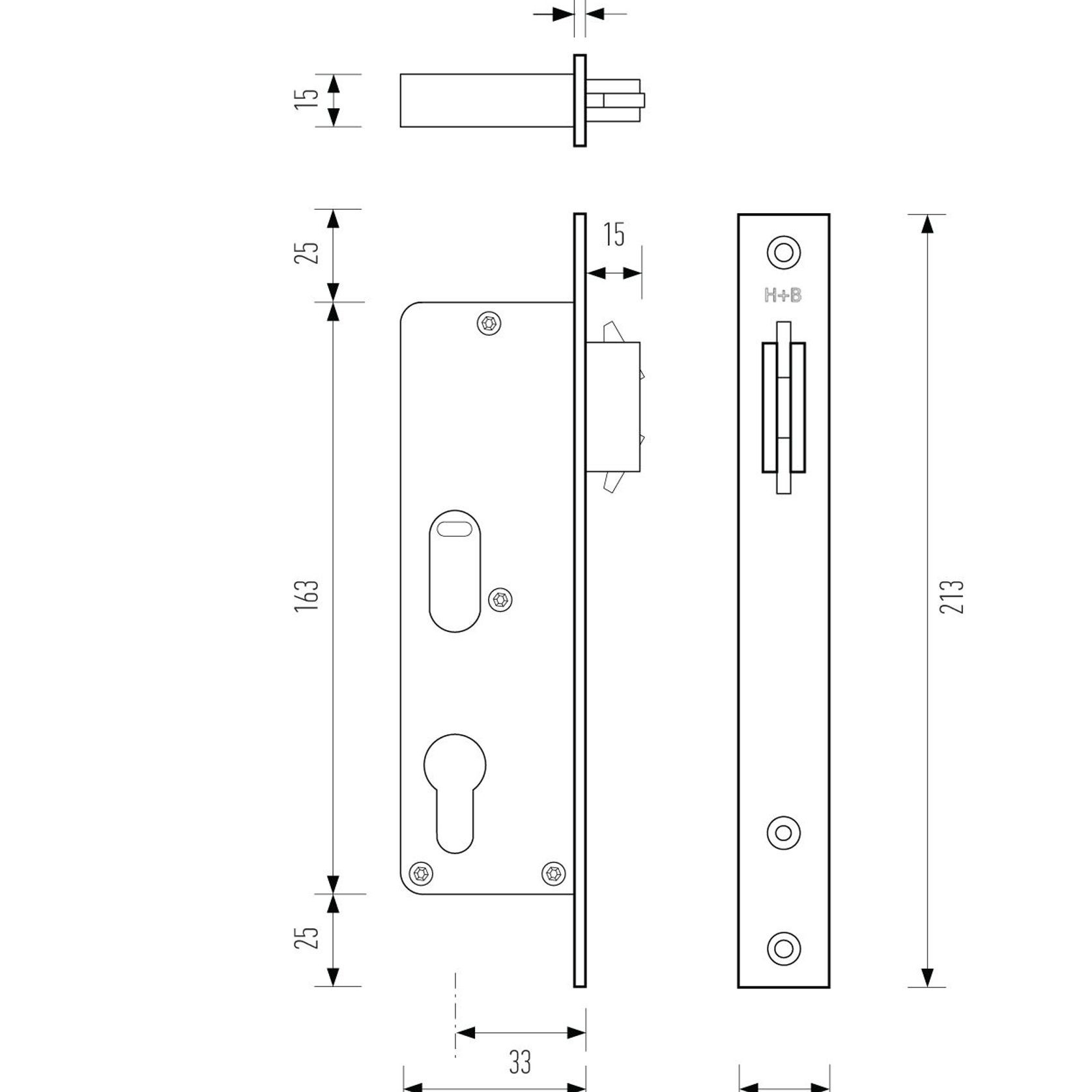

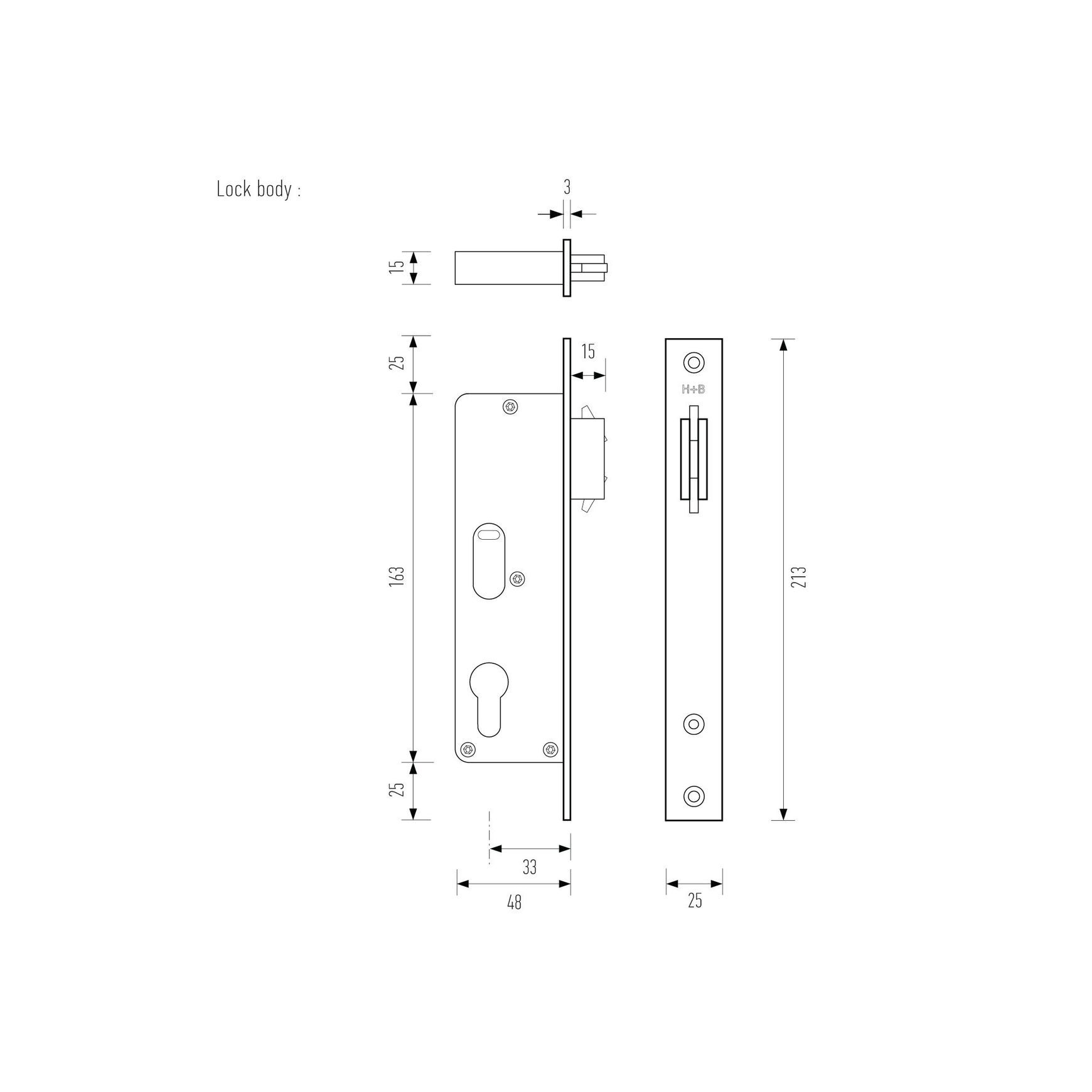

Backset : 33mm
Minimum door thickness : 38mm
Flush pulls : 250mm x 36mm x 13mm
Suitable for timber or aluminium doors with narrow stiles
PLEASE NOTE: In the HB648 and HB649 configurations the lock and flush pulls will be offset slightly along the height of the door and not line up with the top and bottom of the flush pulls.
Downloads
Downloads (4)4 Direct downloads • 5 Available on request
Frequently asked questions about
HB640 Series Narrow Sliding Door Lock – 33mm Backset
The HB640 Series Narrow Sliding Door Lock – 33mm Backset is supplied by Halliday + Baillie. It is also on their website, and you can browse every product Halliday + Baillie lists on ArchiPro.
Halliday + Baillie does not publish a price for the HB640 Series Narrow Sliding Door Lock – 33mm Backset on ArchiPro. for pricing, or visit their website.
Yes. It is part of the Sliding Keyed Lock Sets range from Halliday + Baillie, where you can see every product in the range together.

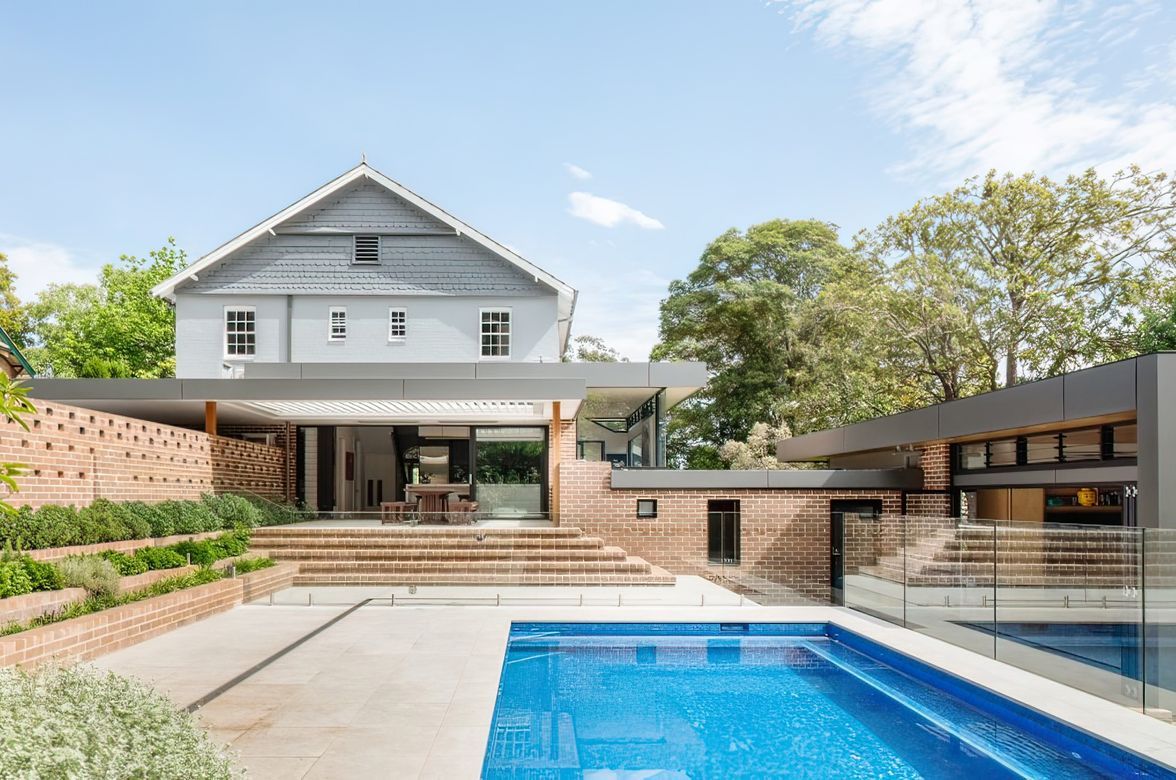

Yes. It has been specified in projects on ArchiPro, including Linfield Garden House by Utz Sanby Architects, Dovecoat by Halliday + Baillie and Mosman House | Project of the Month by TKD Architects. See how it was used in a finished space.
