Glass Balustrade System (Top Fixed)

The Skyrail CG-T Series is the ultimate and premium Top Fixed glass balustrade and fencing system, distinguished by its ability to offer unimpeded views combined with exceptional strength and safety in modern architectural applications.

Available in glass only configuration, using sentry type laminated glass; or with an interlinking handrail using toughened safety glass.

Engineered for versatility, the Skyrail CG-T Series has a number of innovative features:

Its push-pull base design enables glass install and alignment from the inside; negating the requirement for scaffolding.
The base channel can incorporate a fin post at ends to support an interlinking handrail and therefore not need to fix to the building wall.

The Skyrail CG-T has a continuous base channel profile and when powdercoated offers a sleek linear design. This adaptability ensures the system can be seamlessly integrated into a variety of applications, such as balconies and staircases and pool fencing.

Tags

glass balustrades glass fencing aluminium balconies residential balustrades

Product Details

Product: Skyrail CG-T Top Mount Series | Glass Balustrades
Category: Glass Balustrades
Sold by: Altech Systems
Range: Glass Balustrades
Brand: Altech Systems

Product specified by

Skyrail CG-T Top Mount Series | Glass Balustrades

Visit site

Glass Balustrade System (Top Fixed) The Skyrail CG-T Series is the ultimate and premium Top Fixed glass balustrade and fencing system, distinguished by its ability to offer unimpeded views combined with exceptional strength and safety in modern architectural applications. Available in glass only configuration, using sentry type laminated glass; or with an interlinking handrail using toughened safety glass. Engineered for versatility, the Skyrail CG-T Series has a number of innovative features: Its push-pull base design enables glass install and alignment from the inside; negating the requirement for scaffolding. The base channel can incorporate a fin post at ends to support an interlinking handrail and therefore not need to fix to the building wall. The Skyrail CG-T has a continuous base channel profile and when powdercoated offers a sleek linear design. This adaptability ensures the system can be seamlessly integrated into a variety of applications, such as balconies and staircases and pool fencing.

Glass Balustrade System (Top Fixed)

Available in glass only configuration, using sentry type laminated glass; or with an interlinking handrail using toughened safety glass.

Engineered for versatility, the Skyrail CG-T Series has a number of innovative features:

Its push-pull base design enables glass install and alignment from the inside; negating the requirement for scaffolding.
The base channel can incorporate a fin post at ends to support an interlinking handrail and therefore not need to fix to the building wall.

Features

Top fixed

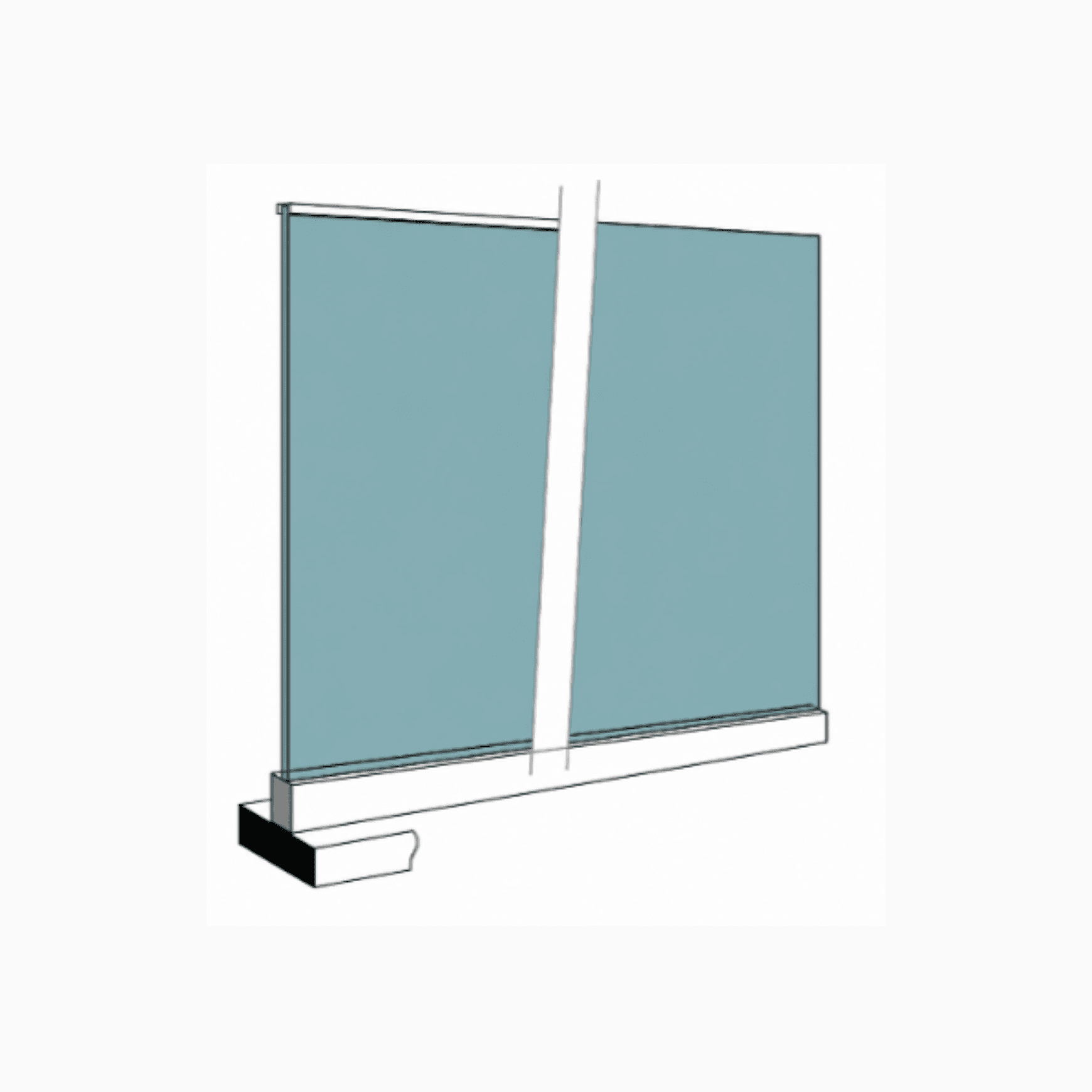

Continuous base channel system with an internal clamp for securing glass panels.
Glass panels do not require drilling or pre-formed holes for installation.
Suitable for 13.52 mm and 15.52 mm SentryGlas with no top rail required.
Compatible with 12 mm and 15 mm toughened glass (a top rail is required for balustrade applications).
Engineered to meet all wind zones up to Extra High (EH).
Designed to comply with live load requirements for residential and equivalent commercial occupancies in accordance with NZS1170, Table 3.3.
Base channel allows for the attachment of a fin post to support a top interlinking rail, eliminating the need for fixing to a building wall where no adjacent structure exists.
Compatible with both waterproof and floating deck systems.
Suitable for installation on timber, concrete, and steel substrates.
Fully interoperable with other Altech balustrade products.
Available in a wide range of durable powder-coated or anodised finishes.
Warranty coverage includes: 5 years on materials (excluding surface coatings), 2 years on workmanship, and 20 years on Dulux Duratec powder coating (other coating warranties apply as per the surface coating applicator)

Scope of use

Skyrail CG-T Series is suitable for a wide range of residential and commercial applications, including:

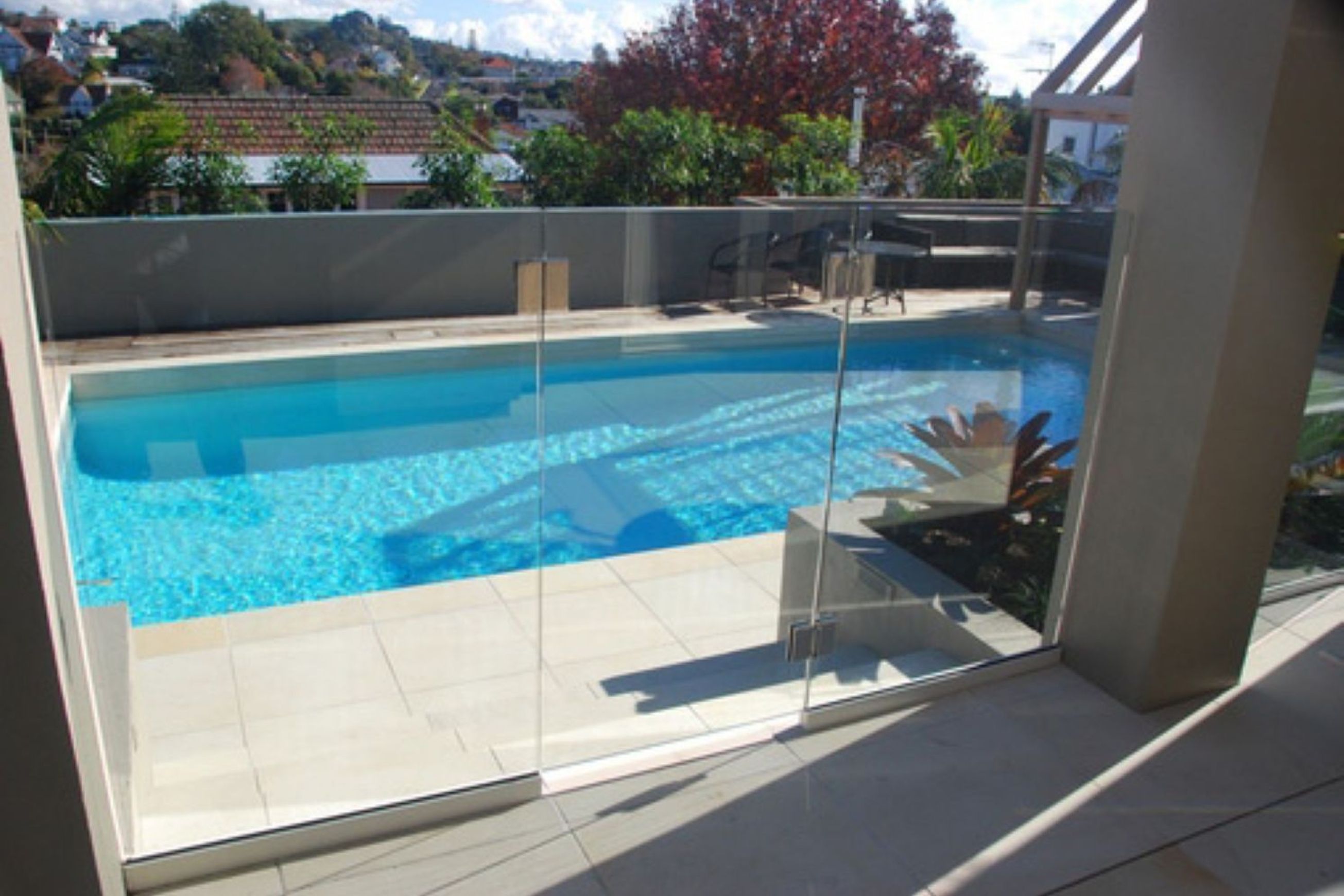

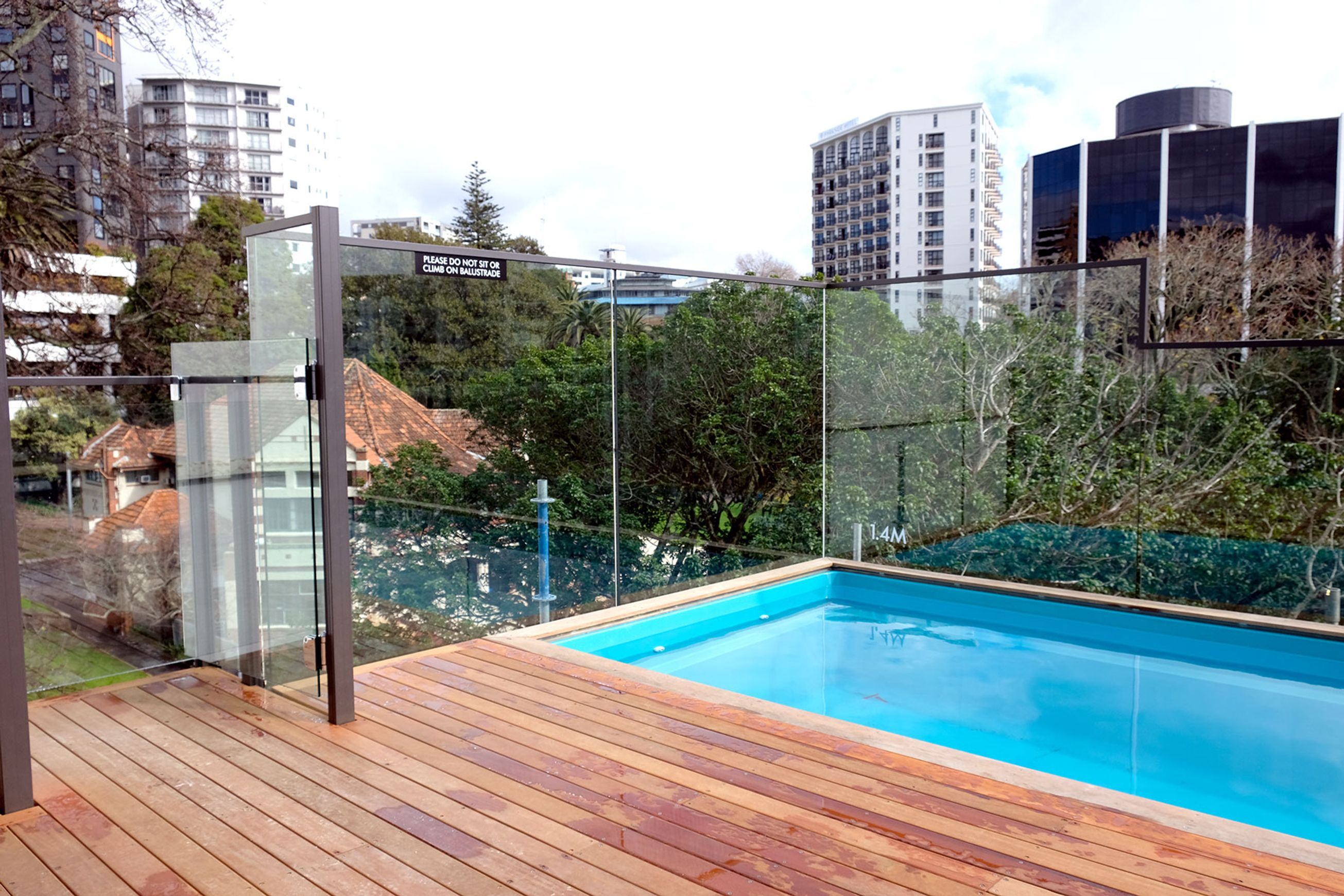

Decks, balconies, ramps, stairs, and pool fencing
Screens in conjunction with balustrading
Occupancies where people congregate

The system is designed to meet the requirements of the following occupancy types in as defined in NZS 1170:

A (Domestic and residential)
A Other (External balconies)
B, E (Offices and workspaces)
C3 (Areas without obstacles)

Skyrail CG-T Series has been engineered to fix to a range of substrates, including timber, concrete, and steel substrates, and is suitable for;

All wind zones including very high and extra high as defined by NZS 3604
Coastal, geothermal, and industrial environments
