Skyrail Af Aluminium Fin Series | Aluminium Balustrades

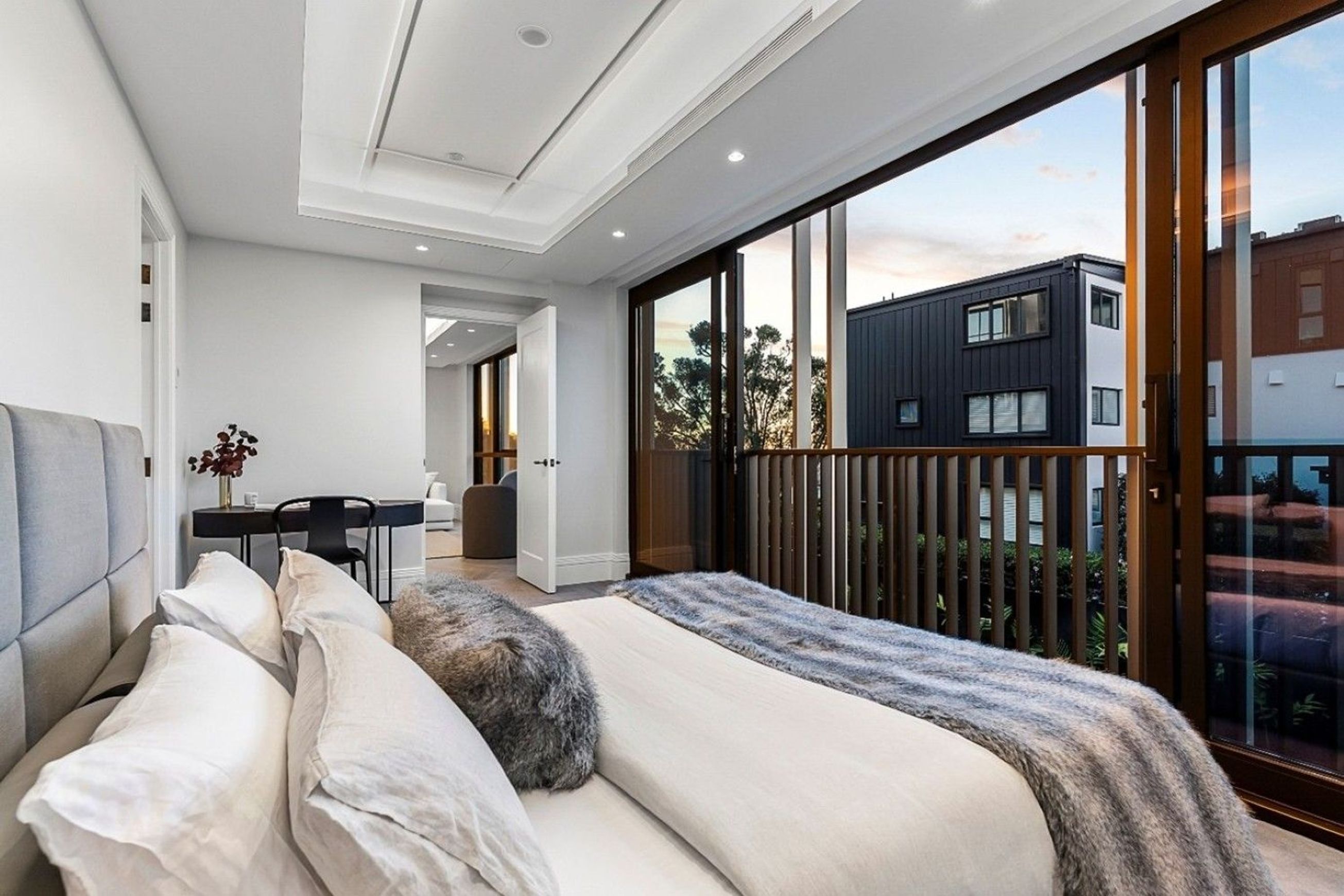

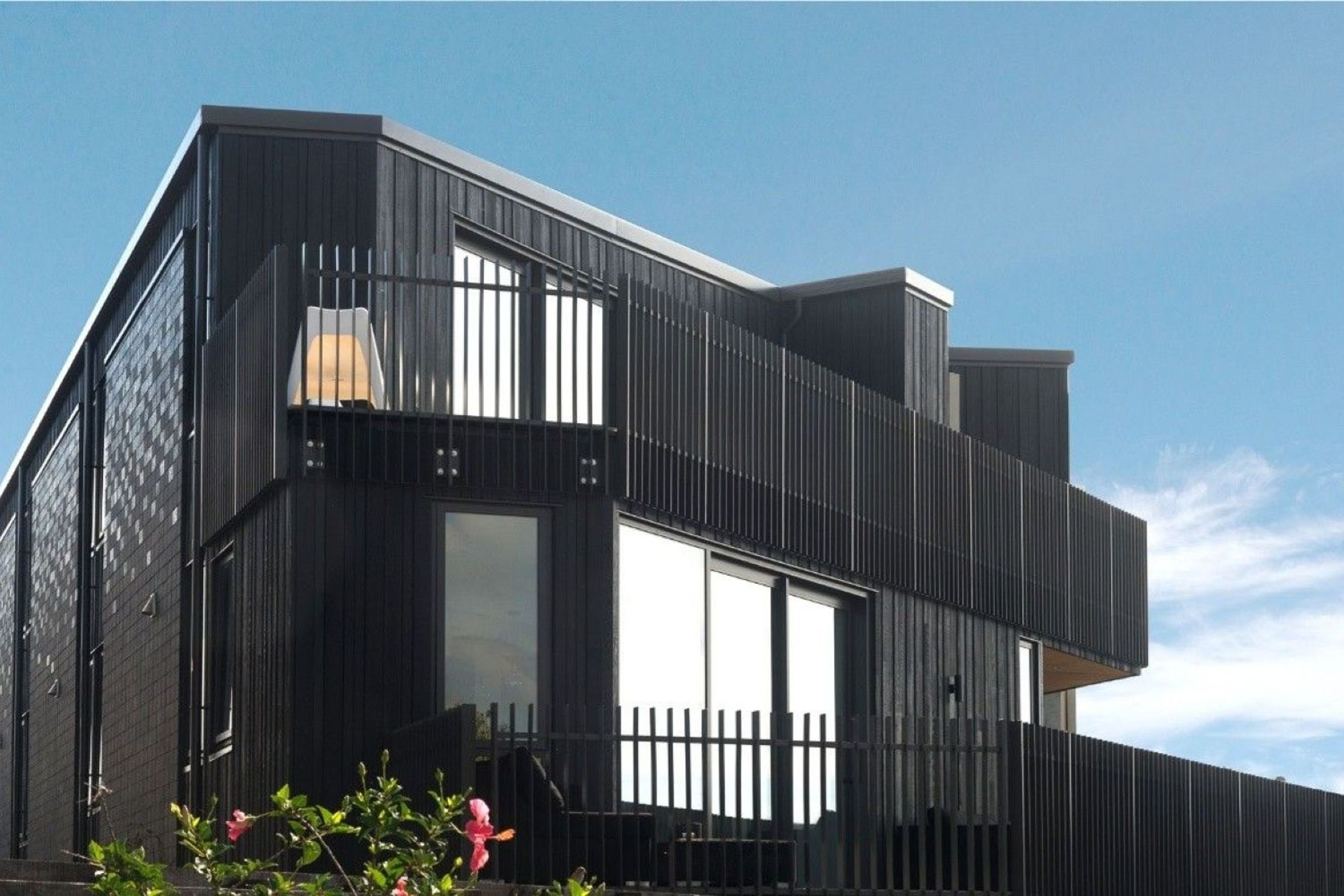

Aluminium Fin Slat Balustrade System The Skyrail Af Series is a premium aluminium balustrade and fencing system that stands out for its distinctive modern design, defined by a refined “fin array” baluster layout.

Features

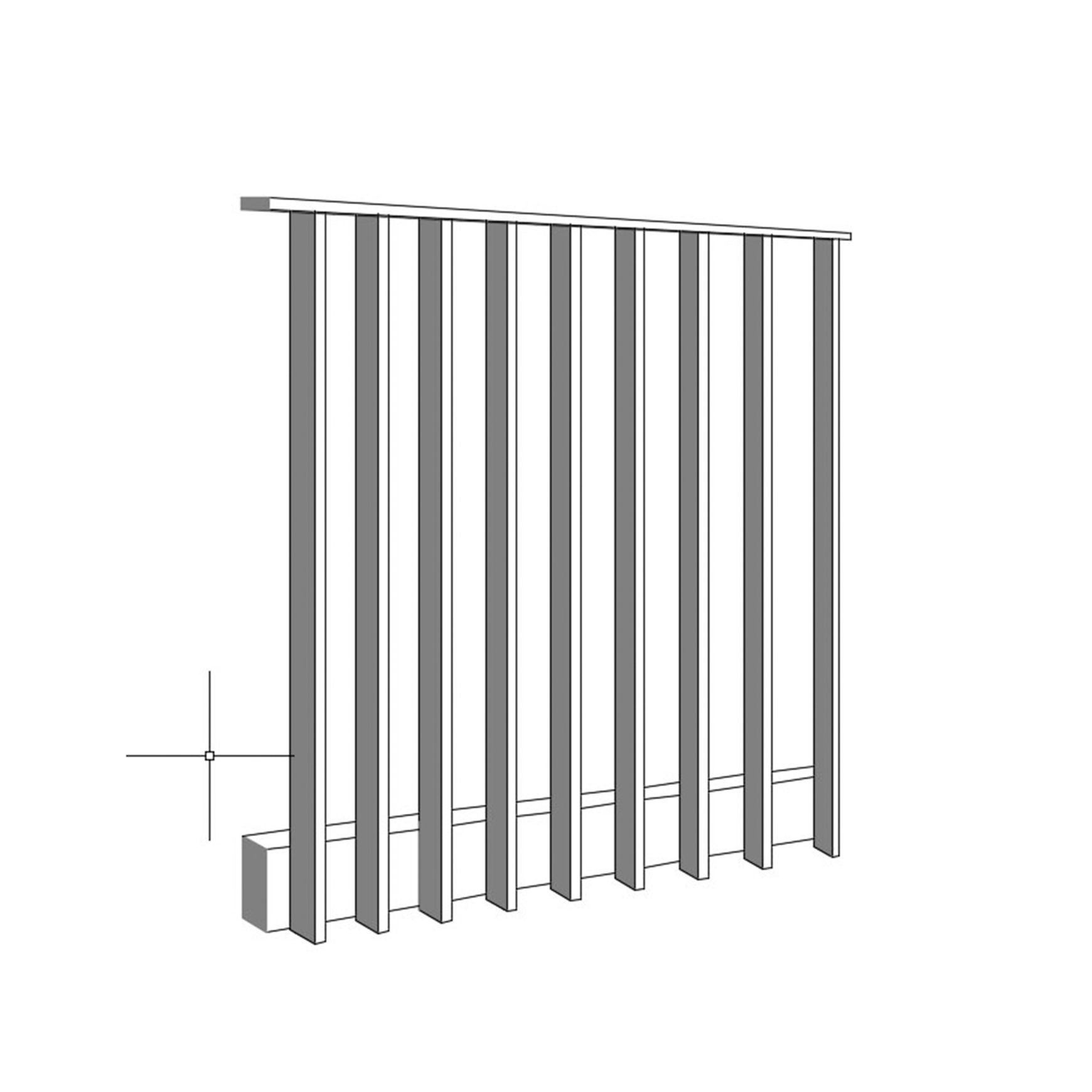

• Continuous aluminium fin balusters, suitable for face-fixed or top-mounted installation which is customizable.
• Post options include a “faux” post or fins mounted in front of the post/rail support structure
• Designed for full compatibility, the system is fully interchangeable with a range of other Altech balustrade products, offering flexibility to customise and integrate into any project requirement
• Available in a wide range of fin widths including 50mm, 75mm, 115mm, with bespoke sizing available
• Skyrail Af series is compatible with both waterproof and floating deck systems
• Suitable for direct fixing to building structures with cavity cladding
• Finished in a durable powder coat with a wide colour selection, or anodised for a premium finish
• Due to the Skyrail Af Series being customizable, options to have an integrated handrail are available
• Can be fixed to a range of substrates, including timber, concrete, and steel

Scope of use

The Skyrail Af Series is suitable for a wide range of residential and commercial applications, including:

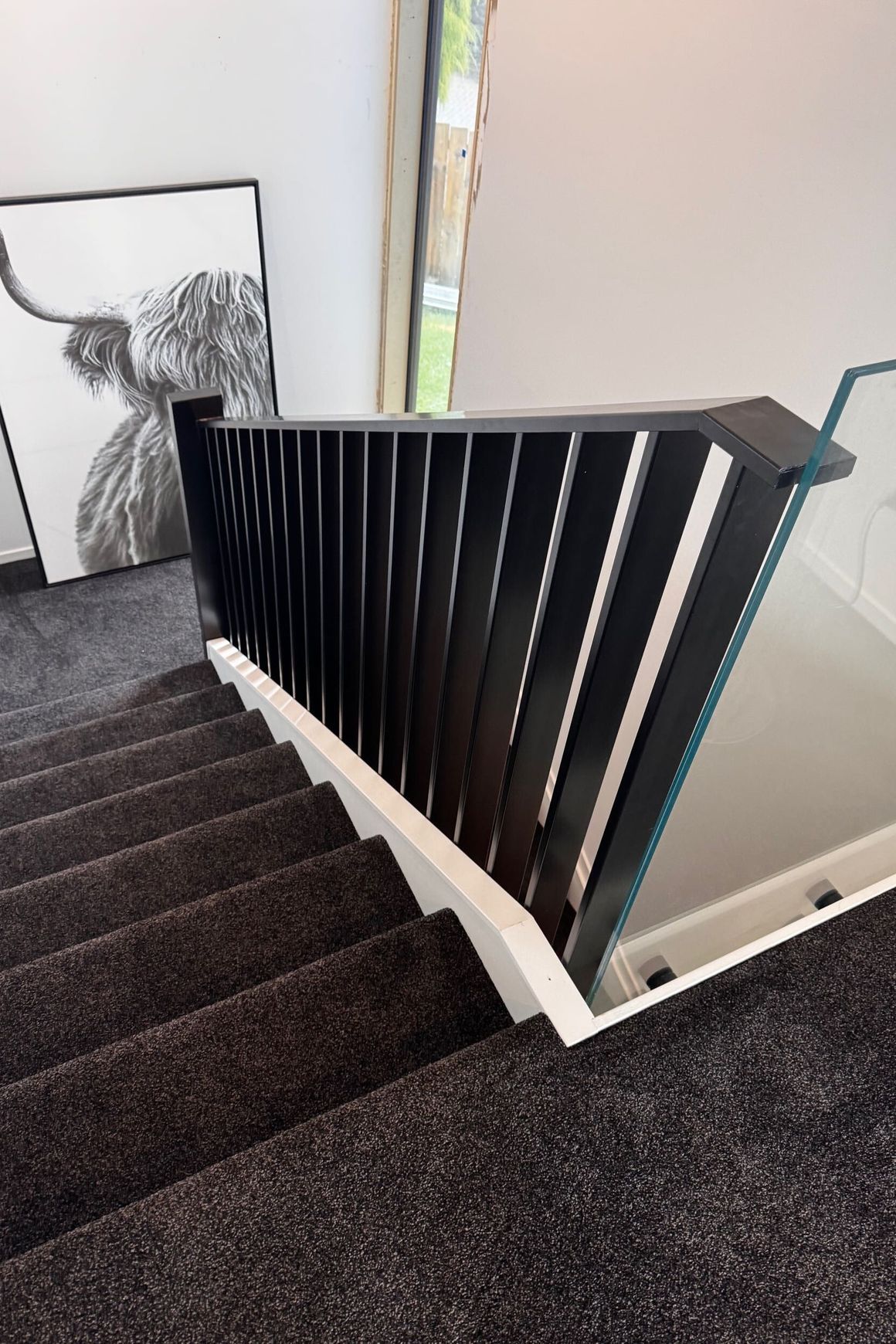

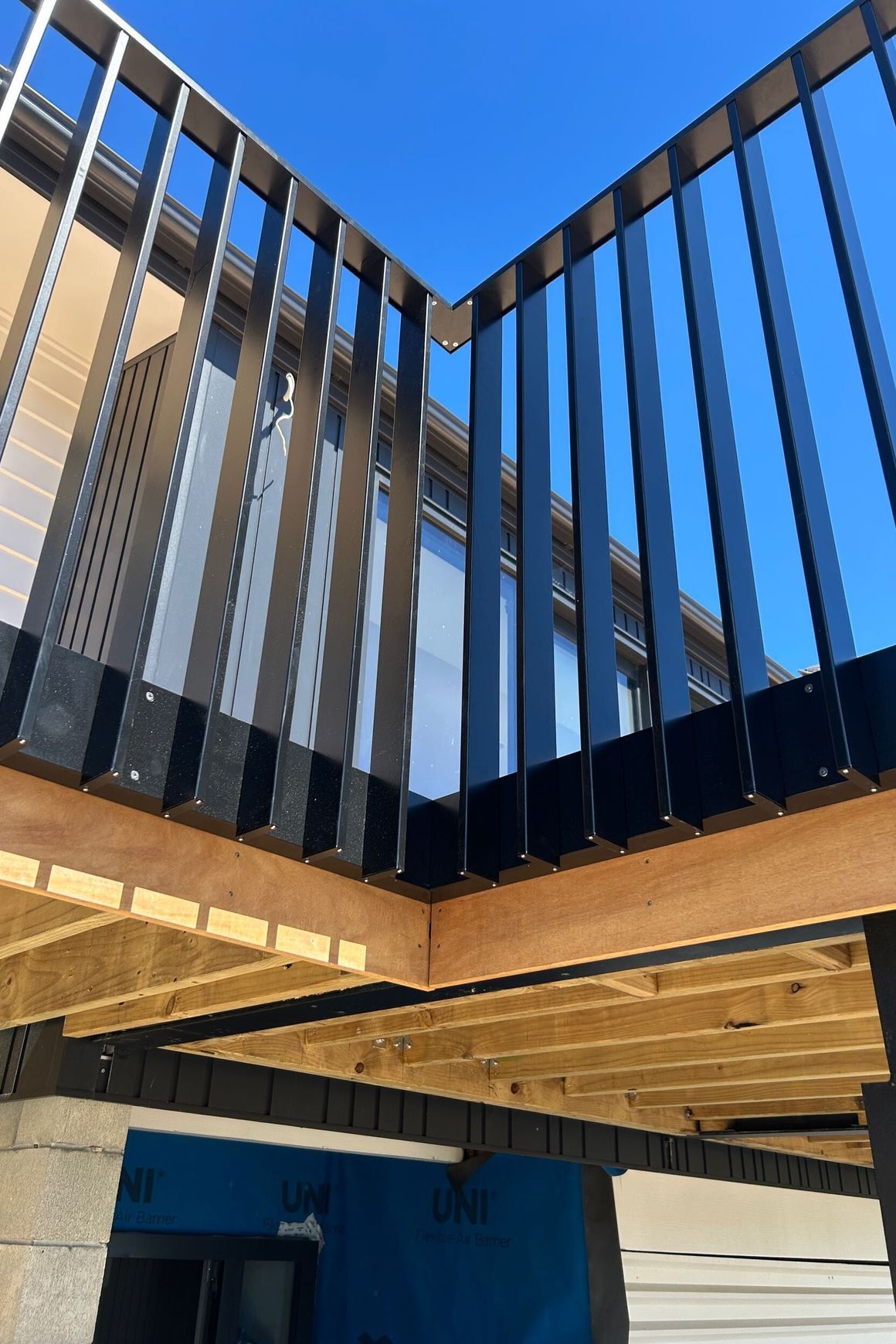

• Decks, balconies, ramps, stairs, pool fencing,
• Gate systems, with a range of compatible design options.

The system is designed to meet the requirements of the following occupancy types as defined in NZS 1170:

• A (Domestic and residential)
• A Other (External balconies)
• B (Offices and workspaces)
• C3 (Areas where people may congregate)
• E (Educational facilities)

Skyrail Af Series has been engineered to fix to a range of substrates, including timber, concrete, and steel substrates, and is suitable for;

• Engineered for performance in all wind zones including very high and extra high as defined by NZS 3604
• Suitable for use in coastal, geothermal, and industrial environments

Technical Downloads

Design confidence starts here.

Unlock the fine details. Whether you’re specifying a balustrade, louvre, screen or canopy, our technical download portal gives you instant access to the drawings and specs you need, so good design never compromises on clarity.

Select a product family below to browse and download technical documents.

• Browse by category, preview with a click, and download individual files or full ZIP sets in one step.
• .DWG files are packaged inside ZIPs for easy access.
• ForSI documentation or tailored support, reach out to our team.

Find all our PDF and DWF drawings and technical specification downloads here.
