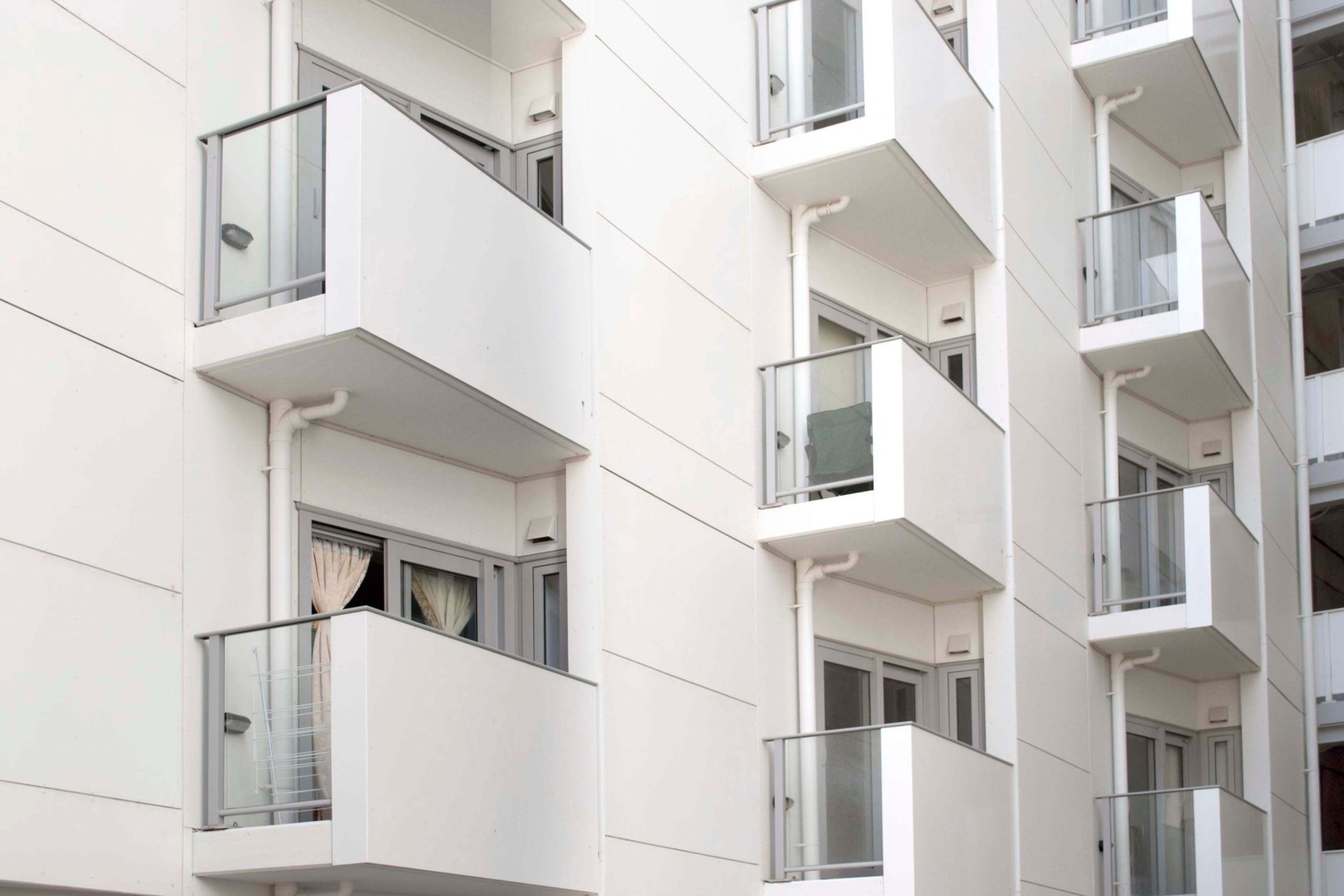

Skyrail Dr Glass Infill Series | Glass Balustrades

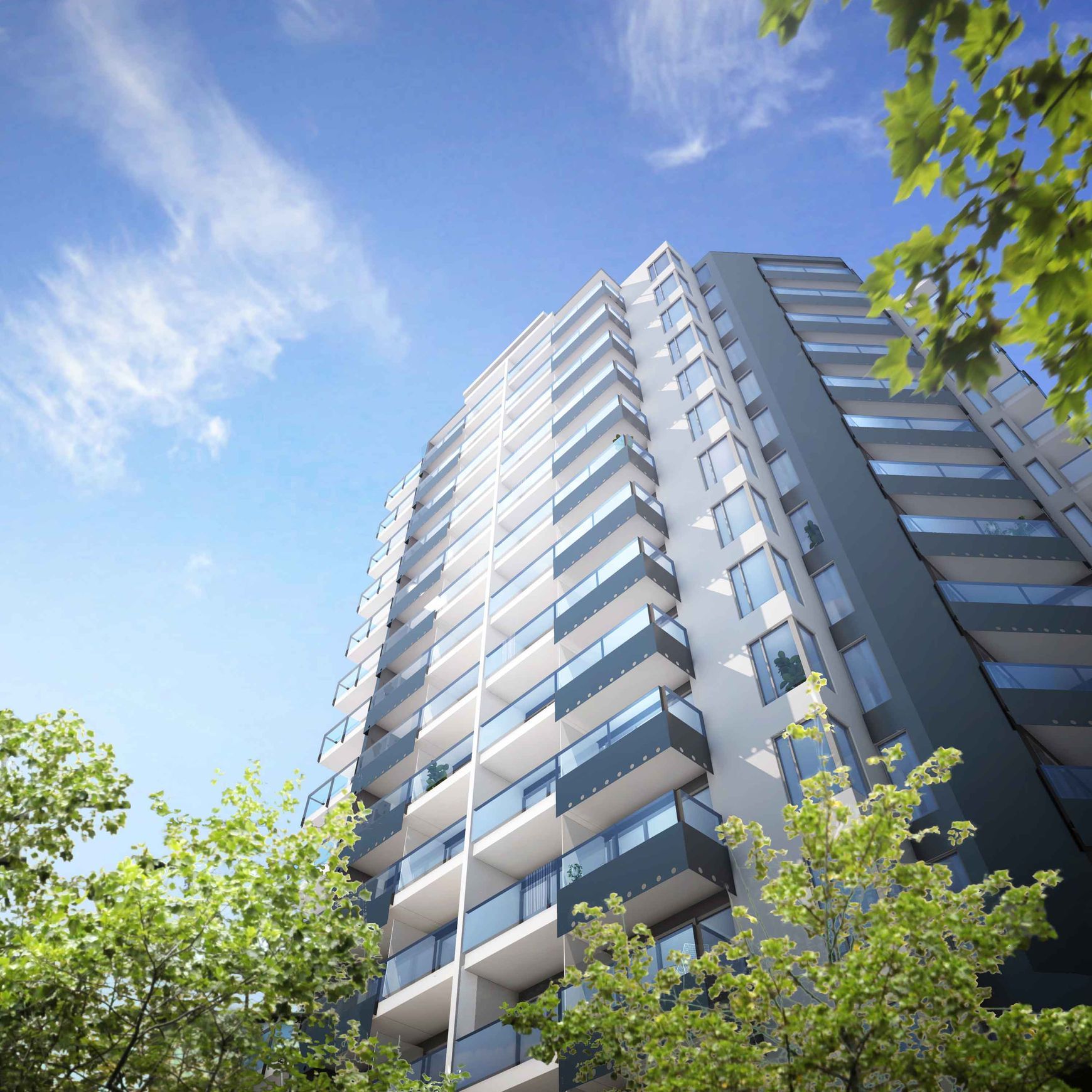

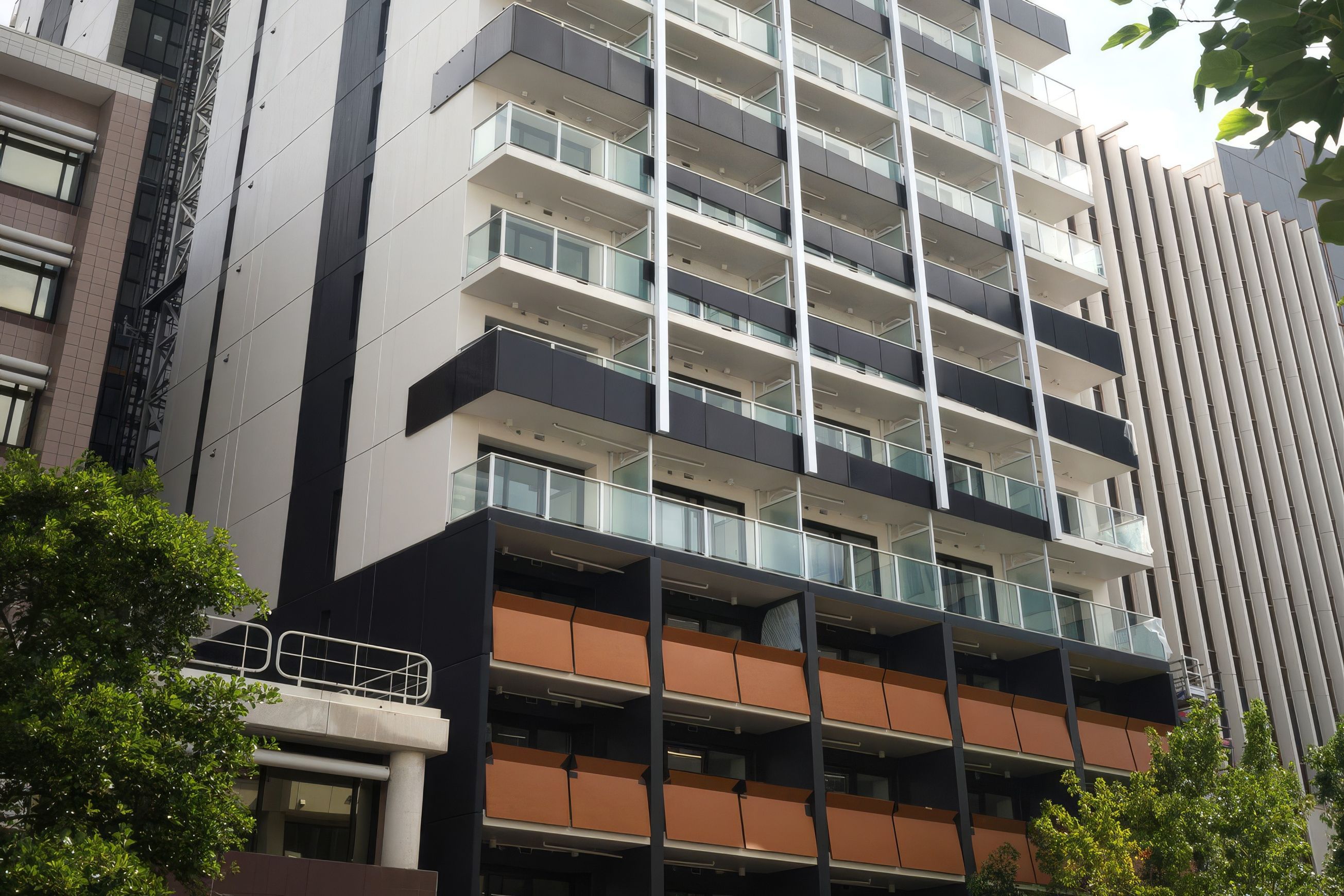

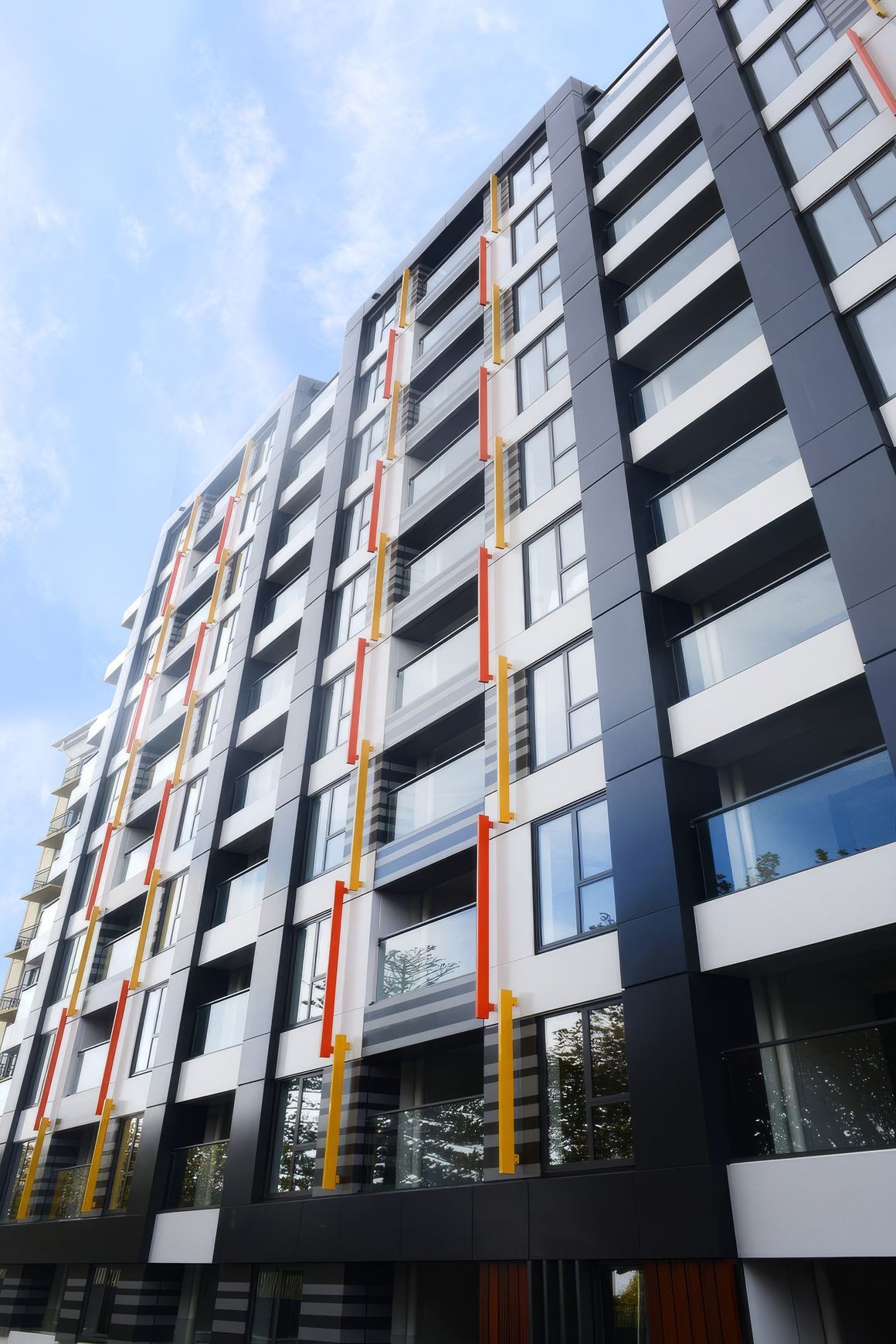

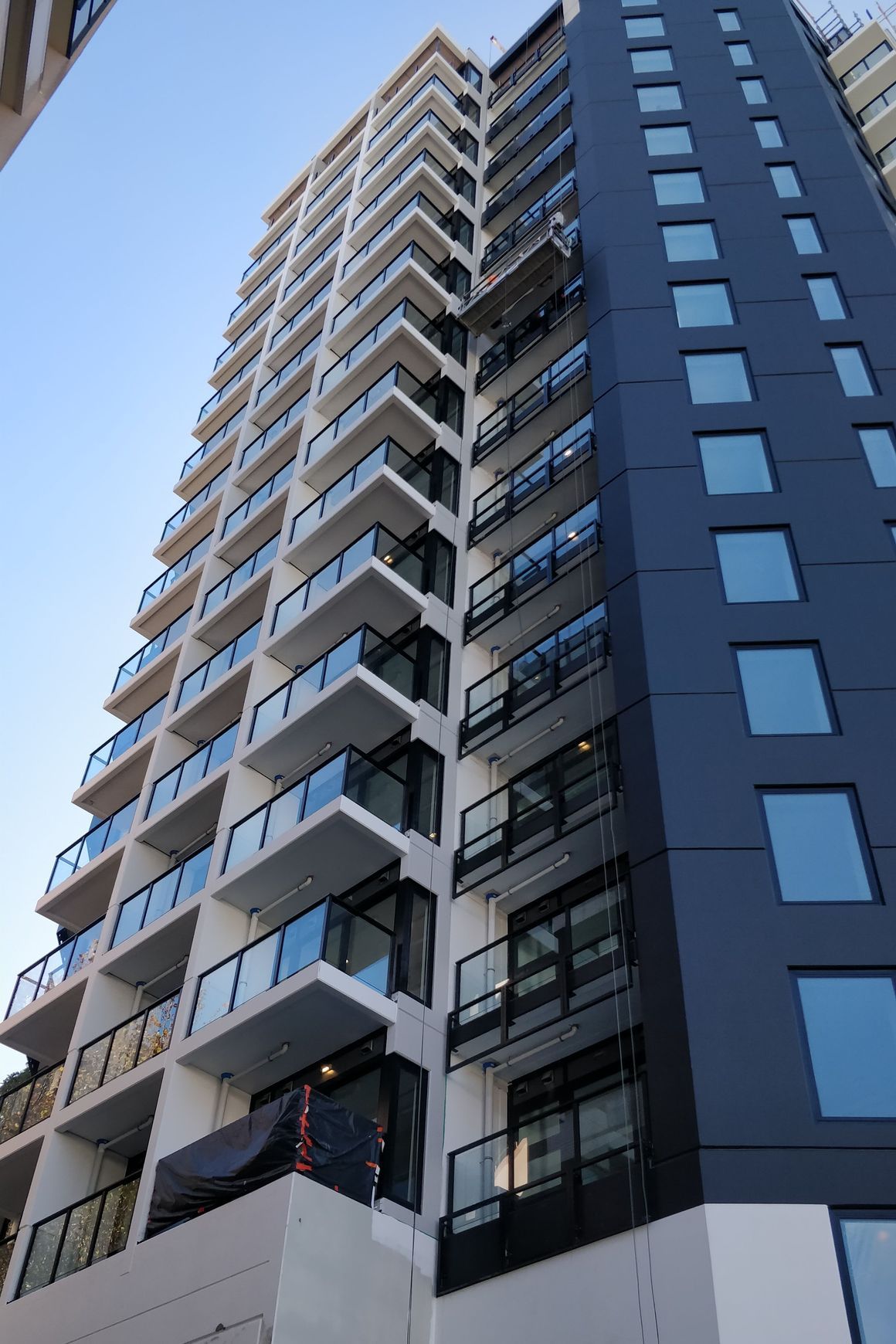

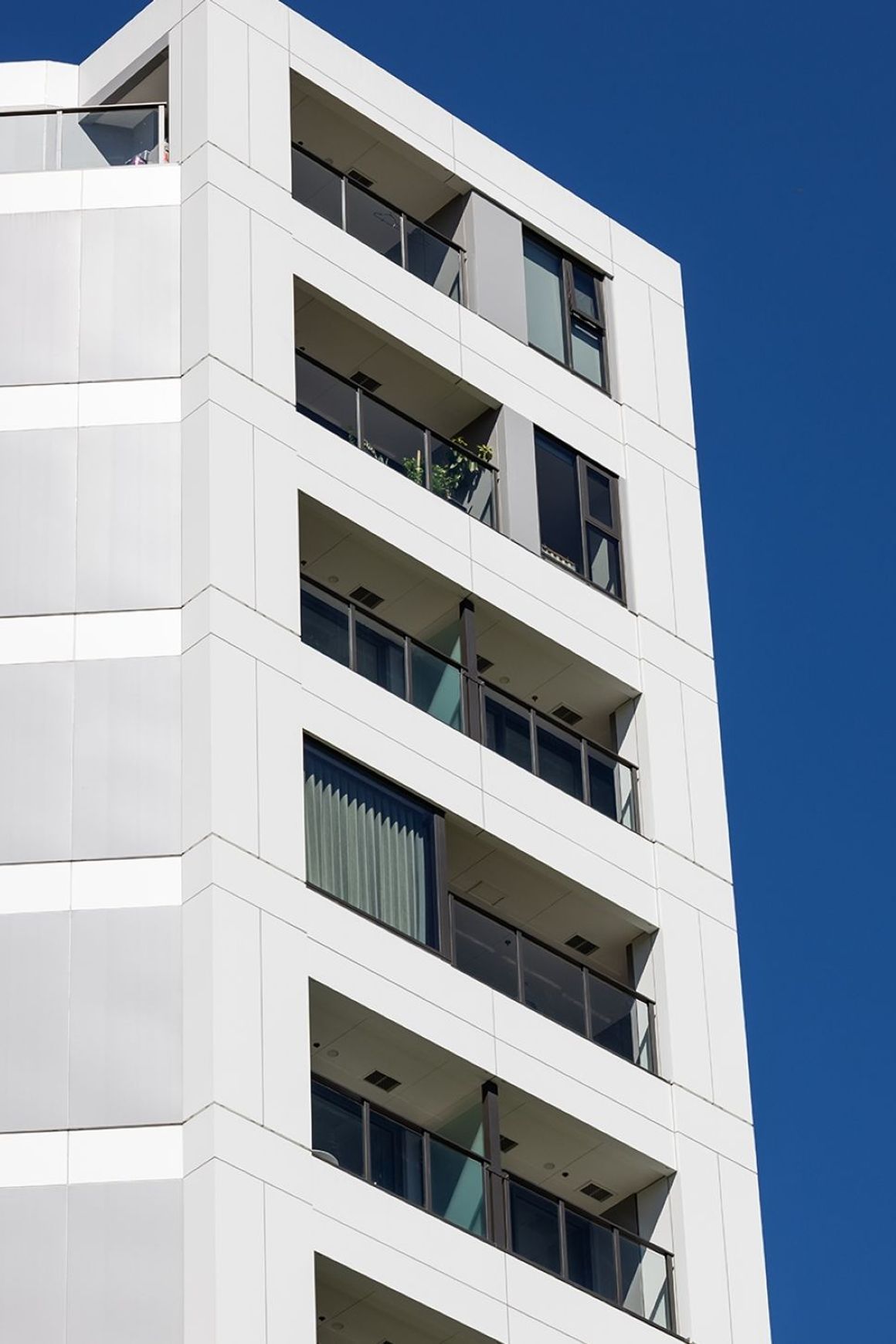

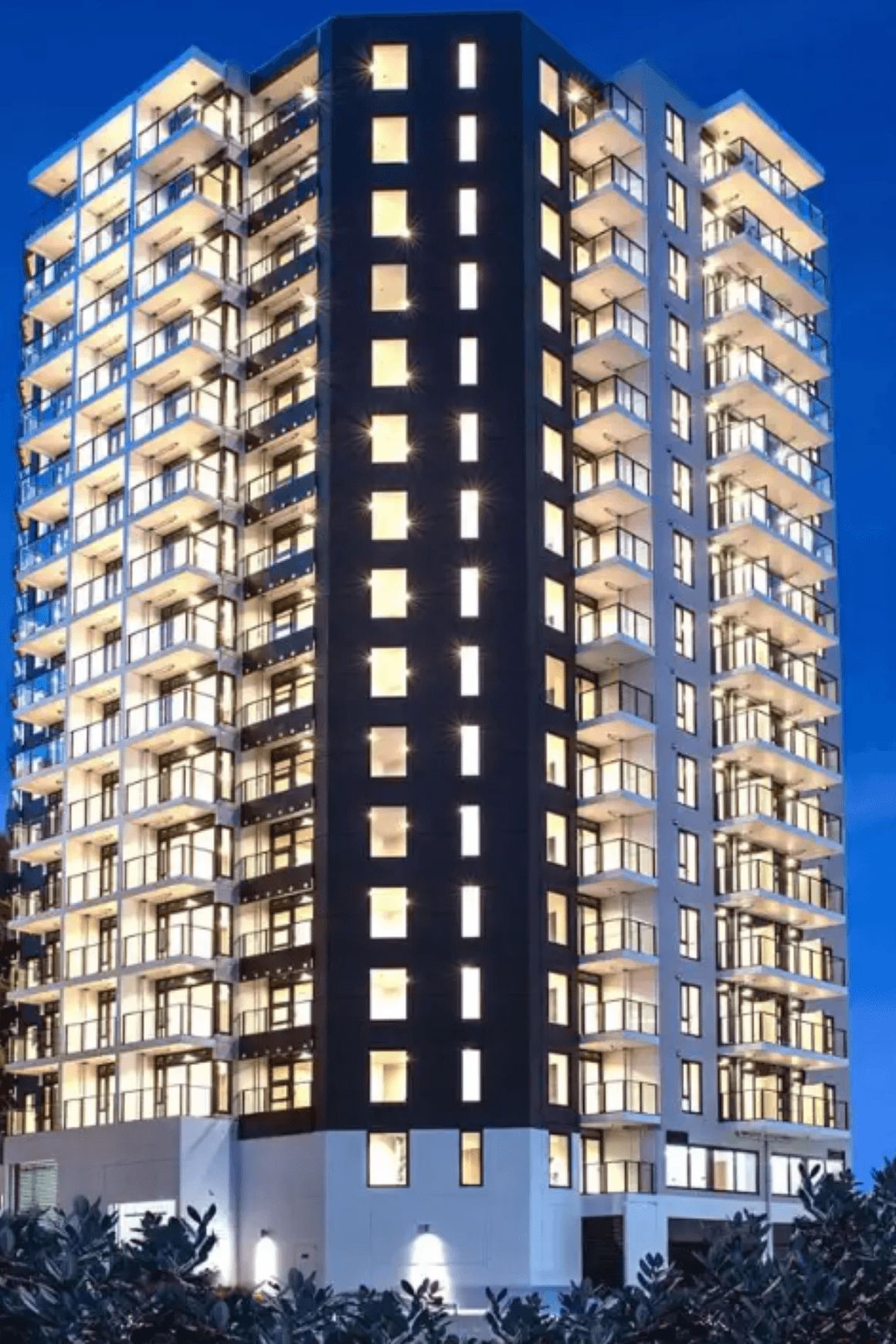

Glass Infill Balustrade System The Skyrail Dr Series is an economical, robust, and durable aluminium and glass balustrade and fencing system, engineered for long-term performance across residential and commercial applications, including high-rise apartments.

Features

• This system is engineered for strength, durability, and cost efficiency.

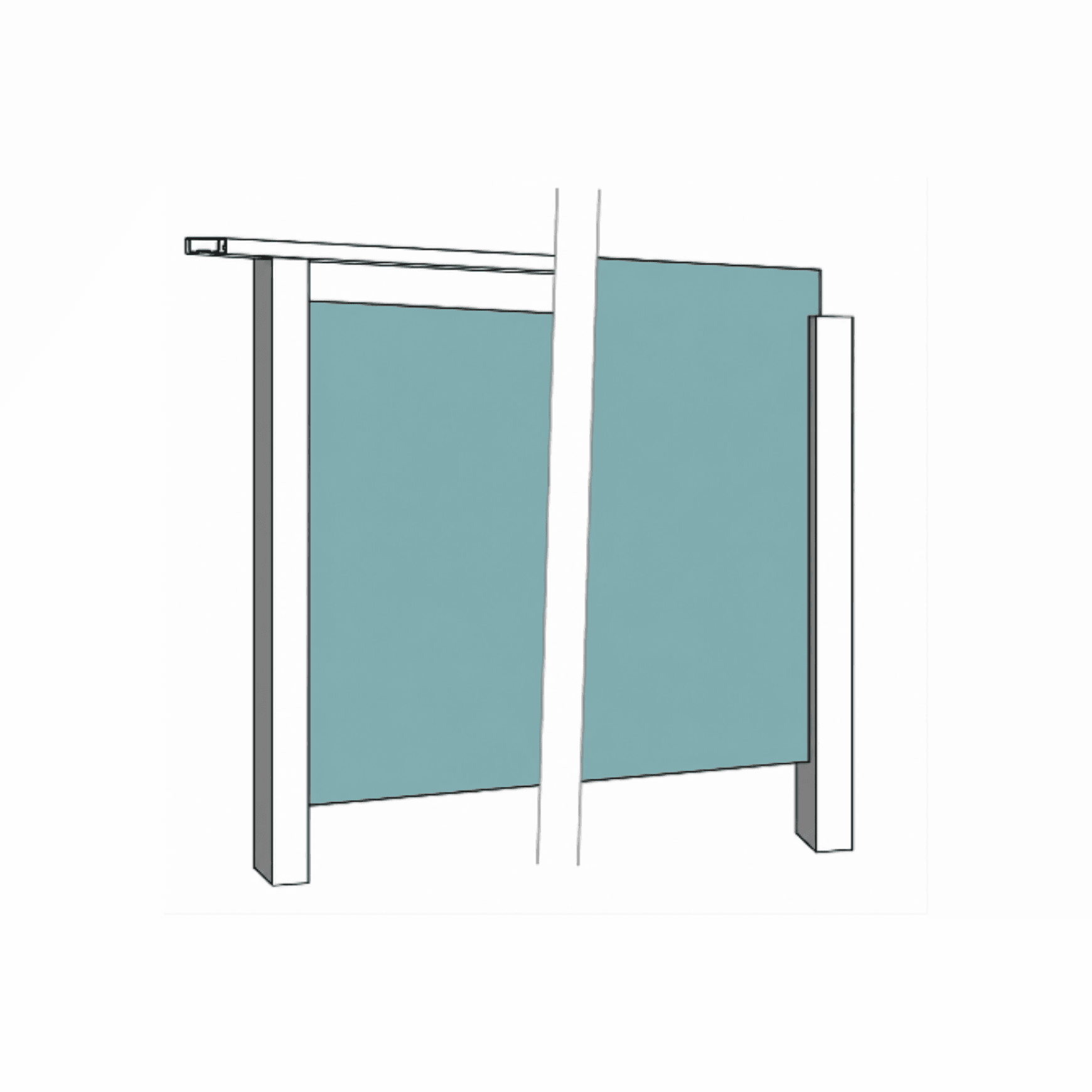

• Available in both fully framed and partially framed configurations.
• Available with a top rail design or a semi-frameless format, presenting a clean glass-only top edge.
• Designed for full compatibility, the system is fully interchangeable with a range of other Altech balustrade products, offering flexibility to customise and integrate into any project requirement.
• Compatible with both waterproof and floating deck systems.

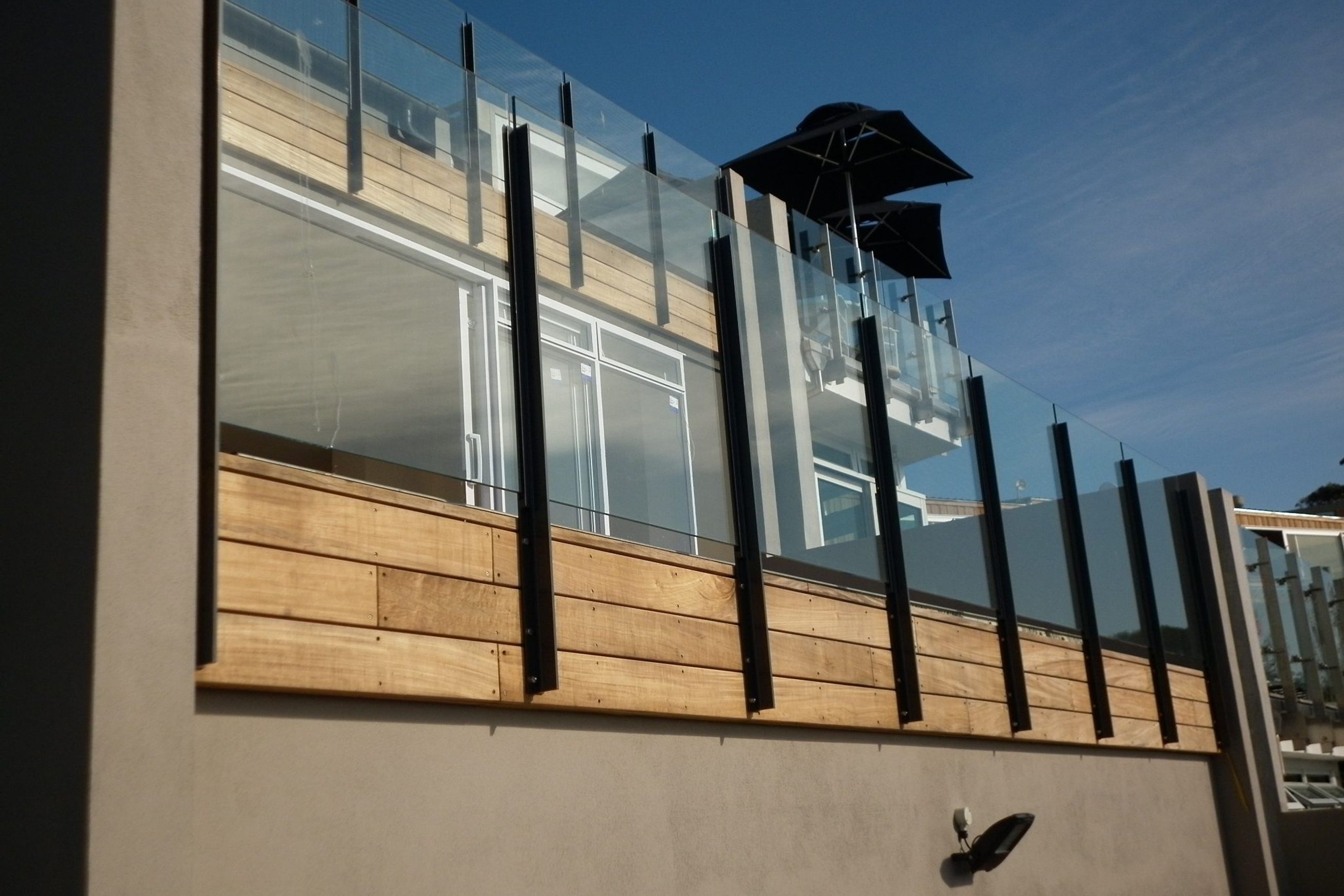

• Suitable for face-fixed or top-mounted installations.
• Engineered for fixing to timber, concrete, and steel substrates.
• Durable powder coat (wide colour selection) or anodised premium finish.
• Design solutions available for cavity-clad building structures.
• Warranty: 5-year on materials (excluding surface coating), 2-year on workmanship, Applicator warranty on powder-coating (eg 10-25 years for Duratec; refer to applicator for other coating warranties).

Scope of use

Skyrail Dr Series is suitable for a wide range of residential and commercial applications, including:

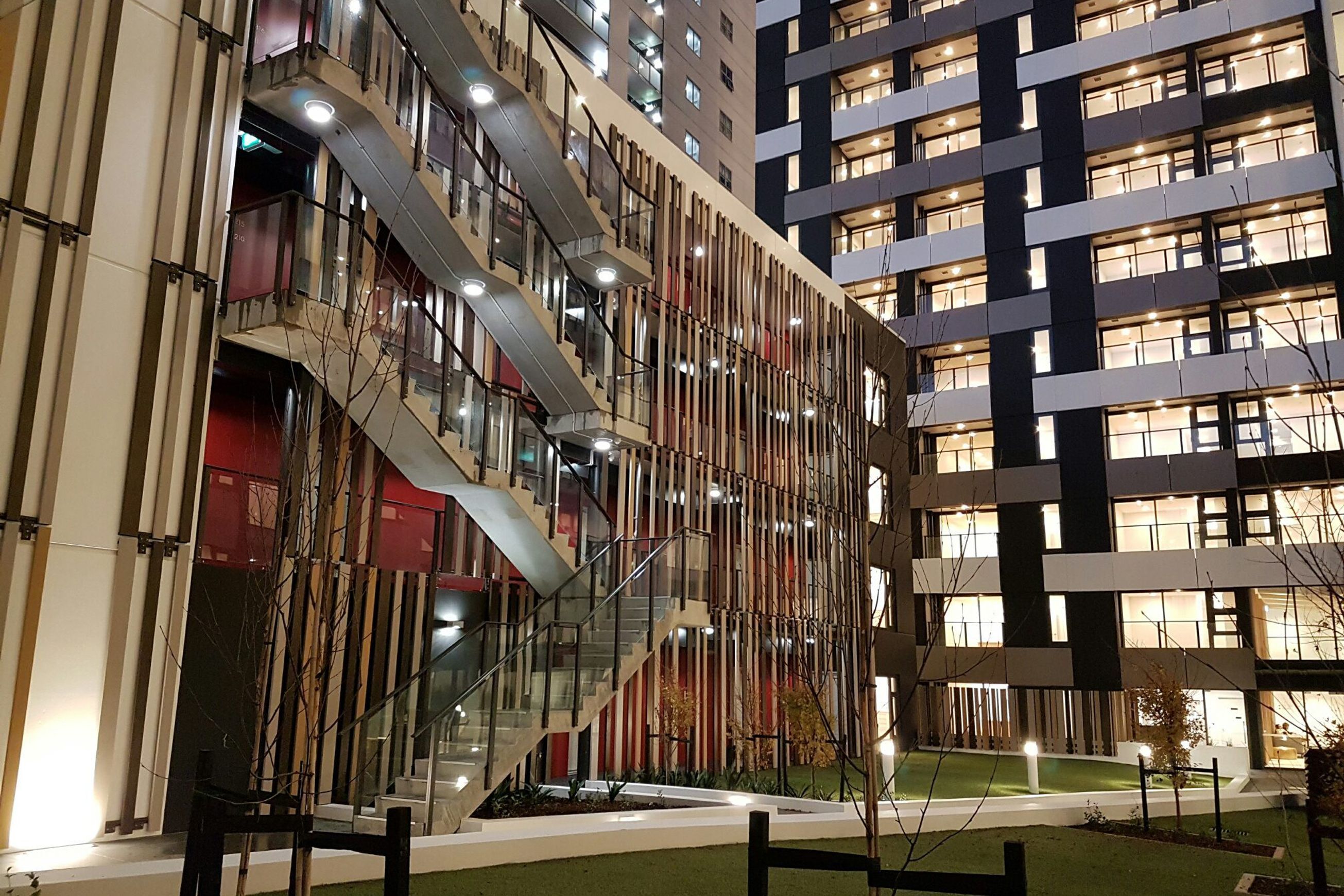

• Decks, balconies, ramps, stairs, and pool fencing
• Screens in conjunction with balustrading
• Occupancies where people congregate
• Residential occupancy

The system is designed to meet the requirements of the following occupancy types in as defined in NZS 1170:

• A (Domestic and residential)
• A Other (External balconies)
• B, E (Offices and workspaces)
• C3 (Areas without obstacles)

Skyrail Dr Series has been engineered to fix to a range of substrates, including timber, concrete, and steel substrates, and is suitable for;

• All wind zones including very high and extra high as defined by NZS 3604
• Coastal, geothermal, and industrial environments
