Profix PXF – a value for money solution that combines all the benefits of the Trespa Meteon panel with a simple system that is easy to install.

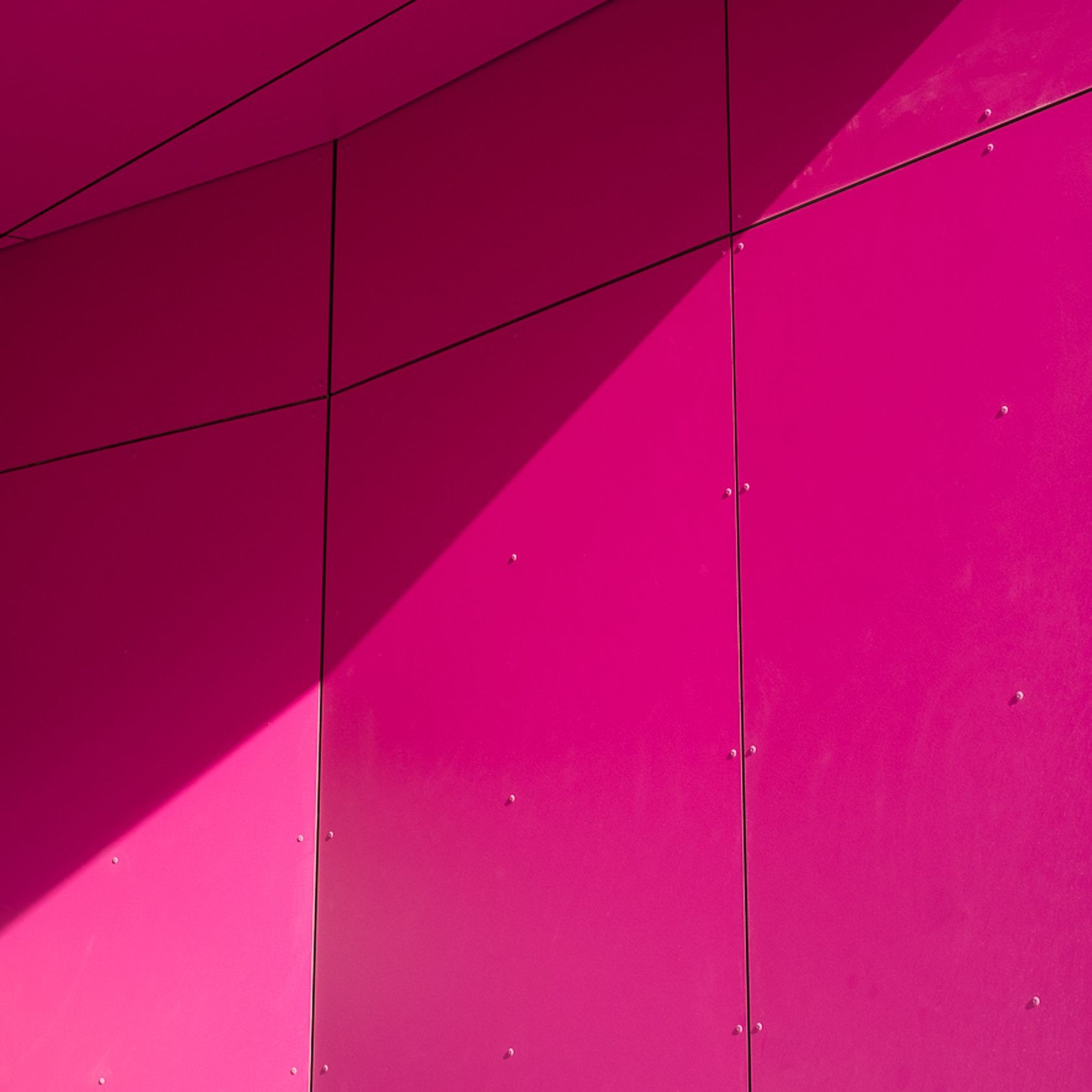

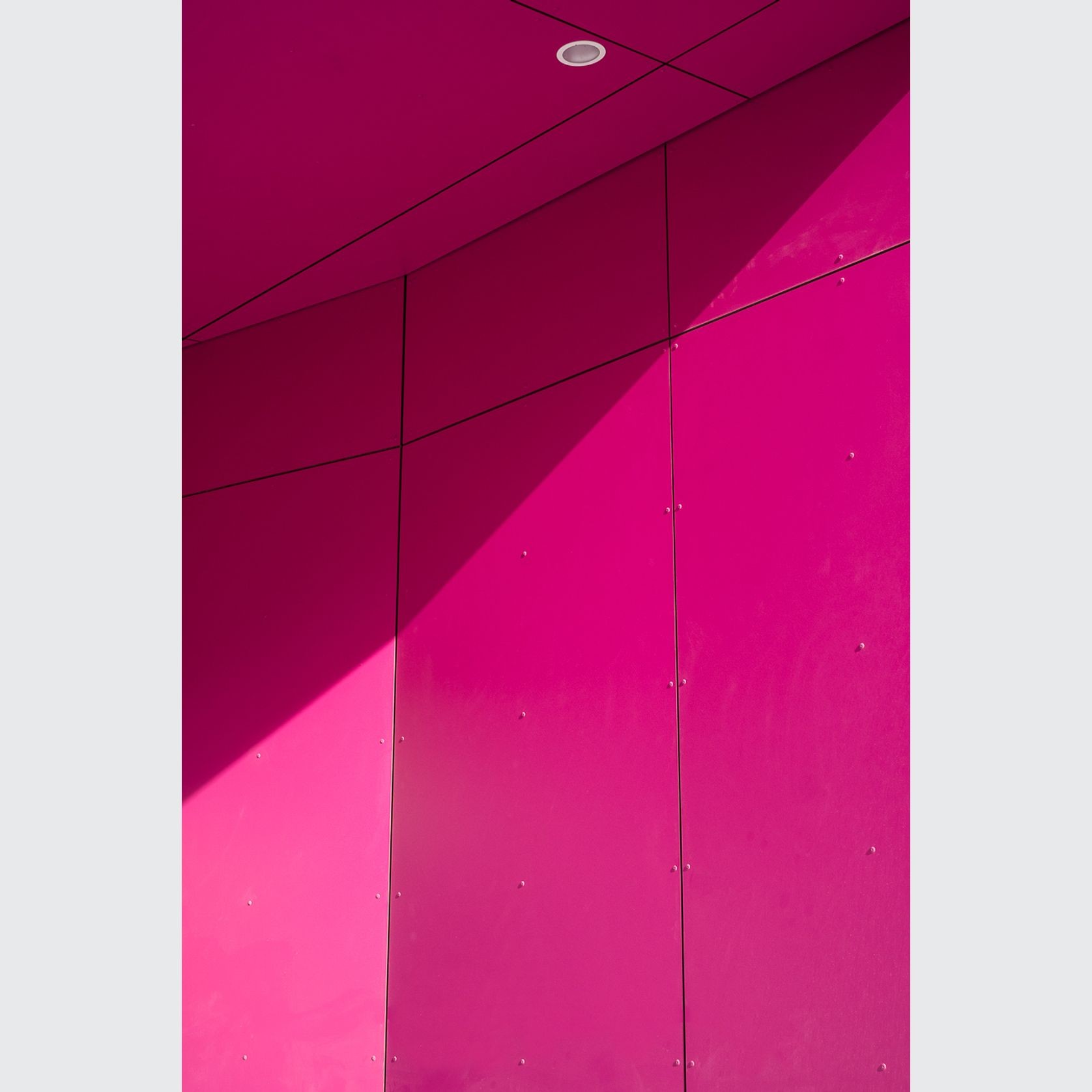

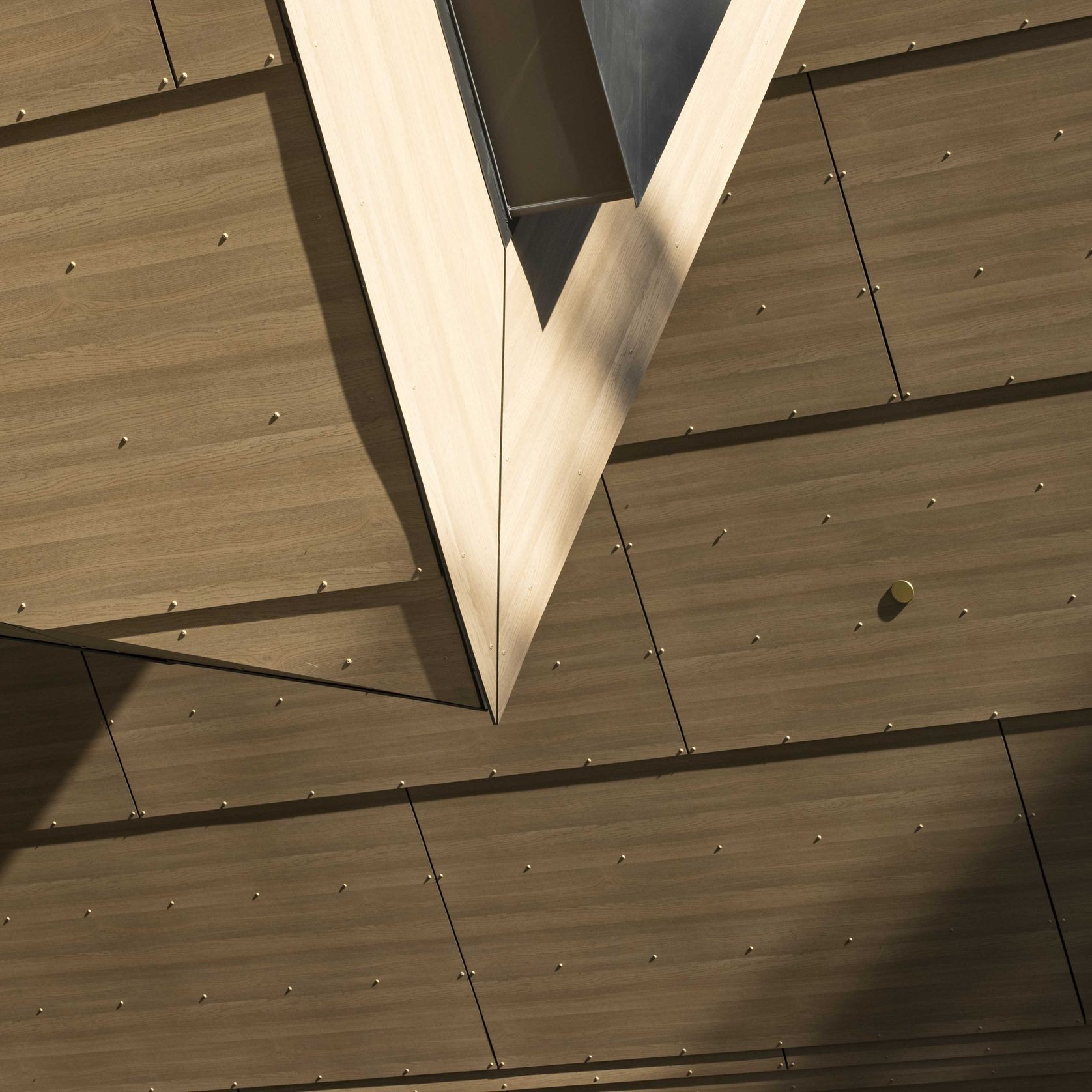

Profix PXF screw fixed flat panel façade system is a 35mm timber cavity batten system specifically designed for use with Trespa Meteon panels. Profix PXF is a tested, compliant cladding solution that offers a fast and cost-effective installation method for Trespa Meteon panels. Fixed with colour matched screws with a vertical set out, Profix PXF provides a traditional value for money solution that allows for the creation of visual and aesthetic effects when combined with Trespa Meteon. The use of structural timber battens fixed to horizontal framing also provides an economical solution for straightening existing structures.
Profix PXF is ideally suited for multi-level applications up to 10m high. The Trespa panels are configured vertically with a 10mm expressed vertical joint. The full Trespa colour and finish range are available allowing for creative use of panel width and colours to enhance even the simplest design. Profix PXF and Trespa Meteon panel make it easy to create stunning, low maintenance facades while ensuring simple installations in a timely manner.
Profix PXF is compliant and tested to meet the requirements of AS/NZS 4284, NZBC E2/AS1/VM1 and B2 respectively.
Product Details
- Product
- Profix PXF - TRESPA® METEON® Facade Support System
- Category
- Cladding & Facades
- Sold by
- Big River Group
- Range
- Big River Panels
- Country of origin
- New Zealand
- Type of use
- Commercial and Residential
- Care and cleaning
- Easy maintenance
Product specified by
Profix PXF – a value for money solution that combines all the benefits of the Trespa Meteon panel with a simple system that is easy to install.
Profix PXF screw fixed flat panel façade system is a 35mm timber cavity batten system specifically designed for use with Trespa Meteon panels. Profix PXF is a tested, compliant cladding solution that offers a fast and cost-effective installation method for Trespa Meteon panels. Fixed with colour matched screws with a vertical set out, Profix PXF provides a traditional value for money solution that allows for the creation of visual and aesthetic effects when combined with Trespa Meteon. The use of structural timber battens fixed to horizontal framing also provides an economical solution for straightening existing structures.
Profix PXF is ideally suited for multi-level applications up to 10m high. The Trespa panels are configured vertically with a 10mm expressed vertical joint. The full Trespa colour and finish range are available allowing for creative use of panel width and colours to enhance even the simplest design. Profix PXF and Trespa Meteon panel make it easy to create stunning, low maintenance facades while ensuring simple installations in a timely manner.
Profix PXF is compliant and tested to meet the requirements of AS/NZS 4284, NZBC E2/AS1/VM1 and B2 respectively.
- Installation
- Professional installation required, Tools required
- Scope of use
• Paired with TRESPA® METEON® Cladding panels
• Suitable for use as a residential or commercial cladding façade up to 3 levels of 10m or less and within the scope of NZBC E2/AS1 and NZS 3604.• Fixed over a Rigid Air Barrier compliant with E2/AS1: 1August 2011
• Approved for use as Wall Cladding in wind zones up to 2.5 kPa ULS wind pressure or 64.5 m/s with reference to AS/NZS 4284

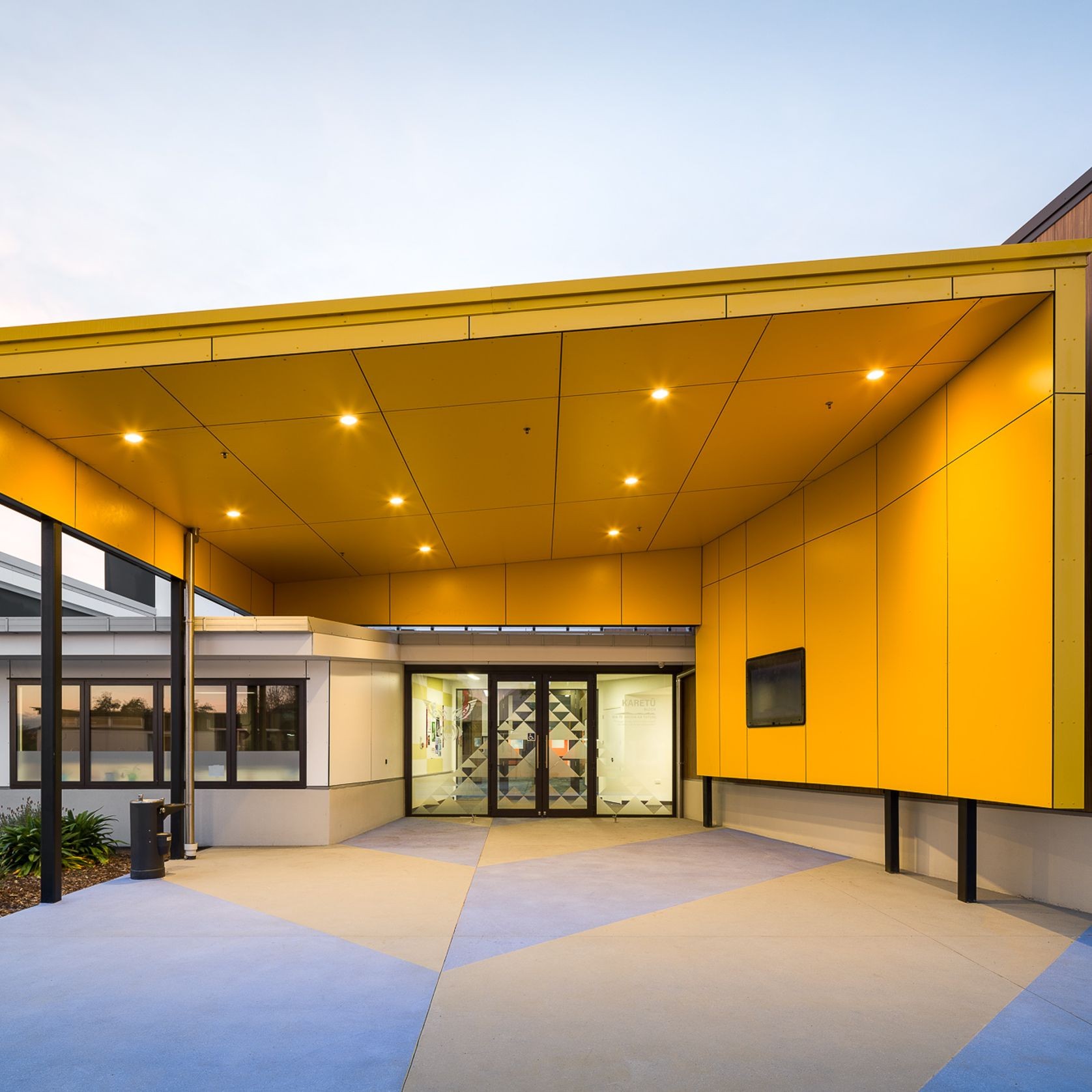

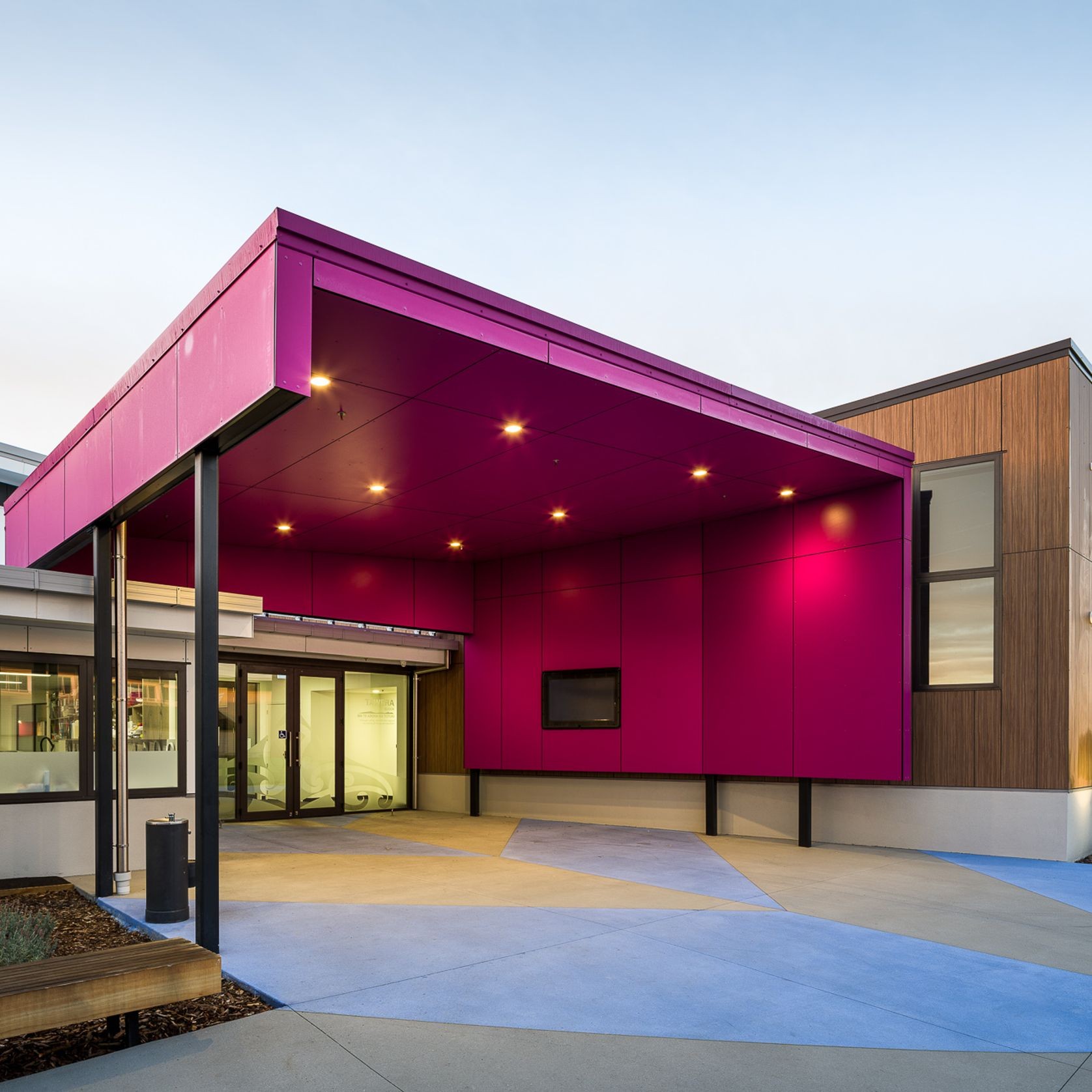

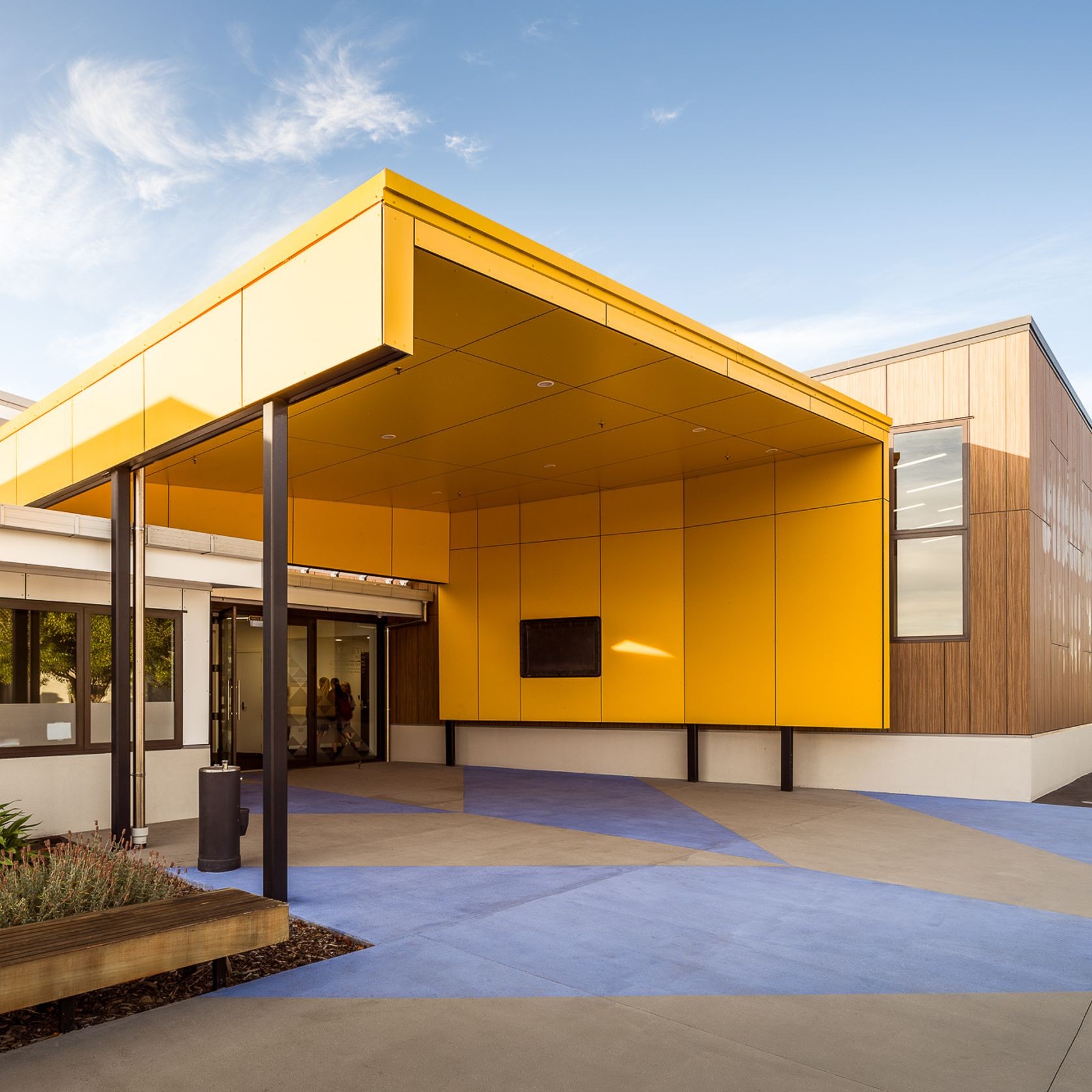

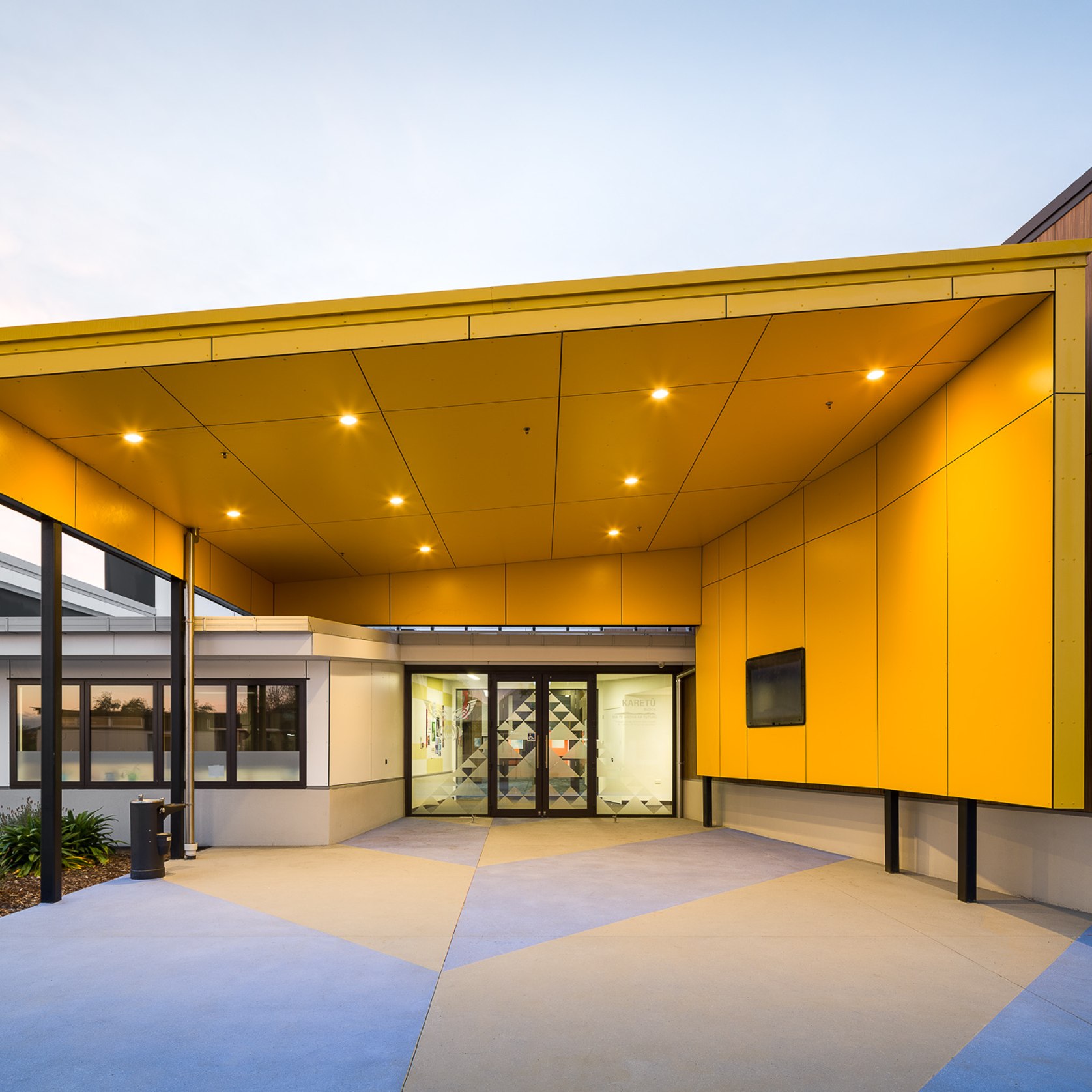

• Approved for use as Soffits in wind zones up to 2.5 kPa ULS wind pressure or 64.5 m/s with reference to AS/NZS 4284
• For wind zones exceeding 2.5kPa wind pressure the system and fixings must be verified by the system suppliers and/or a suitably qualified registered consultant
• Suitable for use in all environments including sea spray and geothermal zones
• Suitable for use as a single level cavity system up to a maximum of 4.6m high with a horizontal cavity break at each mid floor level
• Suitable for use with 8.0mm or 10mm Trespa® Meteon®panels screw fixed vertically with maximum panel sizes of 3.0m x 1.5m or 2.5m x 1.8m
•The use of 6.0mm Trespa® and or panel sizes exceeding those above must be specified as site specific and verified by the system suppliers and/or a suitably qualified registered consultant
Downloads
Downloads (3)3 Direct downloads • 9 Available on request
Frequently asked questions about
Profix PXF - TRESPA® METEON® Facade Support System
The Profix PXF - TRESPA® METEON® Facade Support System is supplied by Big River Group. It is also on their website, and you can browse every product Big River Group lists on ArchiPro.
Big River Group does not publish a price for the Profix PXF - TRESPA® METEON® Facade Support System on ArchiPro. for pricing, or visit their website.
Yes. It is part of the Big River Panels range from Big River Group, where you can see every product in the range together.

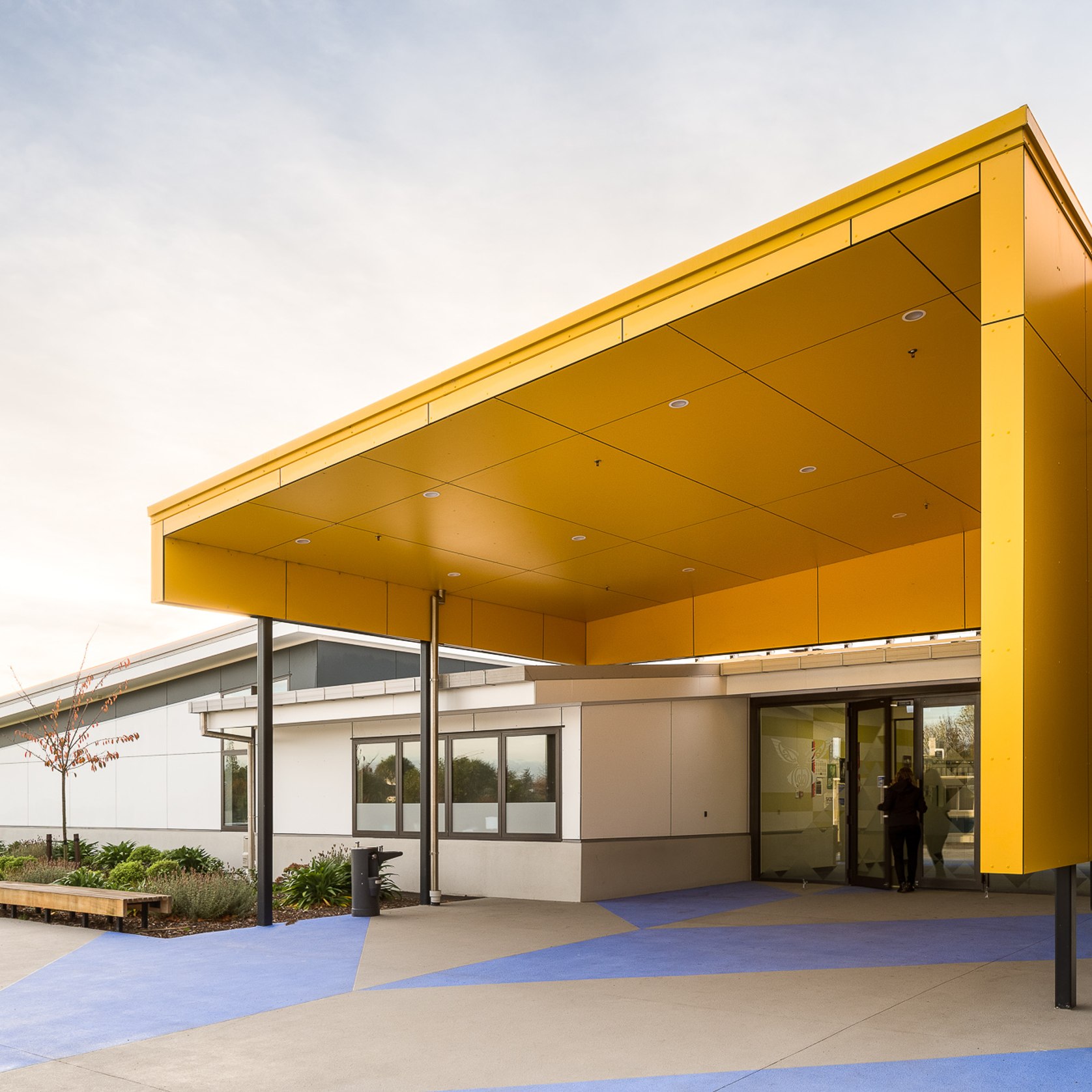

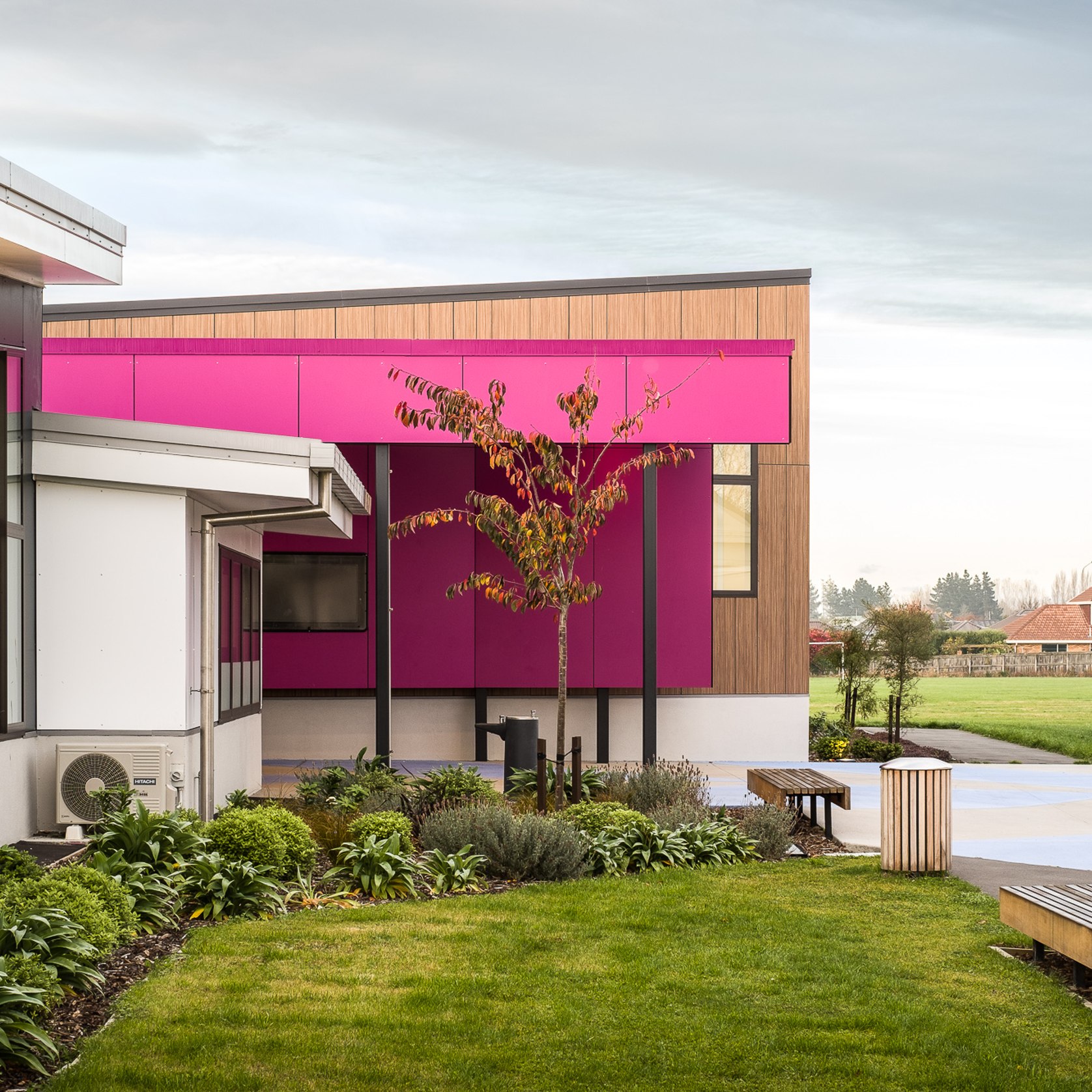

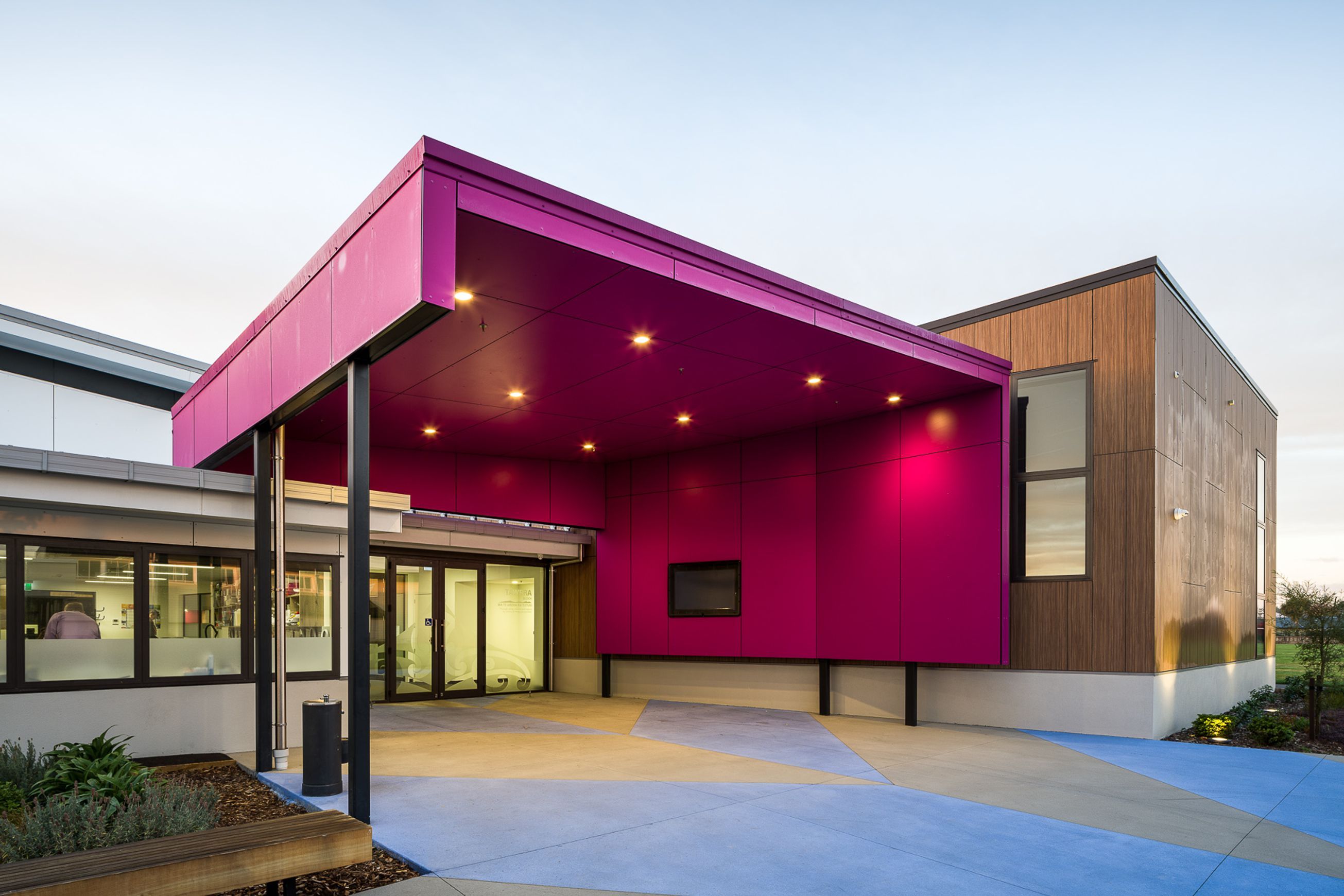

Yes. It has been specified in projects on ArchiPro, including Papanui High School by Big River Group, Te Whatu Ora, Timaru Hospital by DLA Architects and Future Focus Early Learning Centre Papamoa by DLA Architects. See how it was used in a finished space.
