WALSC FACADE WALL SYSTEM

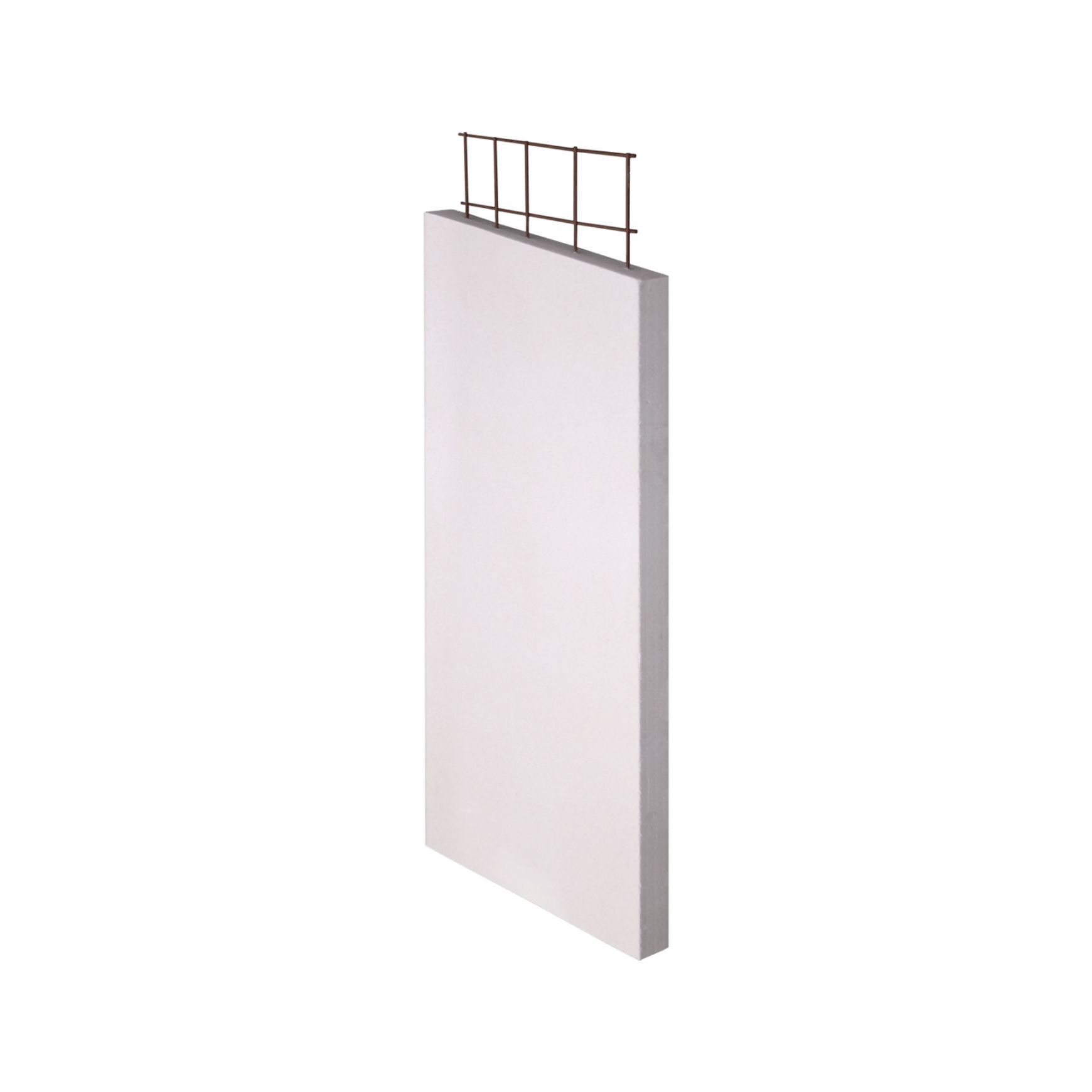

Consists of reinforced Nasahi AAC Panels installed vertically as shown and fixed into continuous horizontal steel top hats that are secured to the structural frame. Walsc AAC Adhesive is applied to the vertical edges where there is an adjoining panel except where vertical control joints are required onto continuous horizontal steel top hats fixed to the structural frame. The faҫade wall is finished using a Walsc approved coating system.
Start visualising the Facade Wall System: https://walsc.com.au/products/walsc-facade-wall-system
Product Details
- Product
- Walsc Facade Wall System
- Category
- Concrete Cladding
- Sold by
- Walsc AAC Panel Systems
- Brand
- Walsc AAC Panel Systems
Walsc AAC Panel Systems is specified by
WALSC FACADE WALL SYSTEM Consists of reinforced Nasahi AAC Panels installed vertically as shown and fixed into continuous horizontal steel top hats that are secured to the structural frame.
Walsc AAC Adhesive is applied to the vertical edges where there is an adjoining panel except where vertical control joints are required onto continuous horizontal steel top hats fixed to the structural frame. The faҫade wall is finished using a Walsc approved coating system.
Start visualising the Facade Wall System: https://walsc.com.au/products/walsc-facade-wall-system
- Features
- FRL -/120/120
- NCC/BCA compliant
- Lightweight and strong
- Non-combustible core: Weatherproofing tested NATA per BCA FV1 (+5.5 / -7.0 kPa ULS)
- Quick to install
- Local technical support team
- Scope of use
For Apartment & Commercial Buildings
- Technical Data
- Panel Thickness: 75 mm
- Panel Width: 600 mm
- Panel Length: Check with Distributor
- Panel Edge Profile: Square Edge
- Dry Density: 525 kg/m³
- Ambient Density: 600 kg/m³
- Density for Design: 650 kg/m³
- Panel Weight per Square Metre: 50 kg/m²
- Characteristic AAC Compressive Strength: 2.9 MPa
- Reinforcement Tensile Yield Stress: 500 MPa
- Reinforcement Characteristic Weld Strength: 3.1 kN
- Ultimate Strength Bending Capacity: 0.7 kNm/m
- Thermal Resistance: R 0.52
- Coefficient of Thermal Expansion: 7.0 × 10⁻⁶/K
- System Components
- Walsc AAC Panel 75mm Commercial
- Walsc AAC Adhesive
- Steel Tophats
- Screw Fixings
- Shelf Angle
- Walsc Anti-corrosion Protection Paint
- Wall Wrap & Tape
- Pressure Equalisation Slot
- Control Joints
- Approved Render Coating System
Learn more about System Components in details.
- System Overview
- Walsc AAC Panel 75mm
- Steel Top Hat
- Structural Frame
- Wall Wrap
- Internal Lining
- Horizontal Control Joint
- Steel Shelf Angle
- Sealing Tape
- Walsc Approved Coating System
- Damp Proof Course / Flashing
Visualize the system overview here.
Downloads
Downloads (5)5 Direct downloads • 7 Available on request
Frequently asked questions about
Walsc Facade Wall System
The Walsc Facade Wall System is supplied by Walsc AAC Panel Systems. It is also on their website, and you can browse every product Walsc AAC Panel Systems lists on ArchiPro.
Walsc AAC Panel Systems does not publish a price for the Walsc Facade Wall System on ArchiPro. for pricing, or visit their website.
Yes. It is part of the Apartment & Commercial Buildings range from Walsc AAC Panel Systems, where you can see every product in the range together.

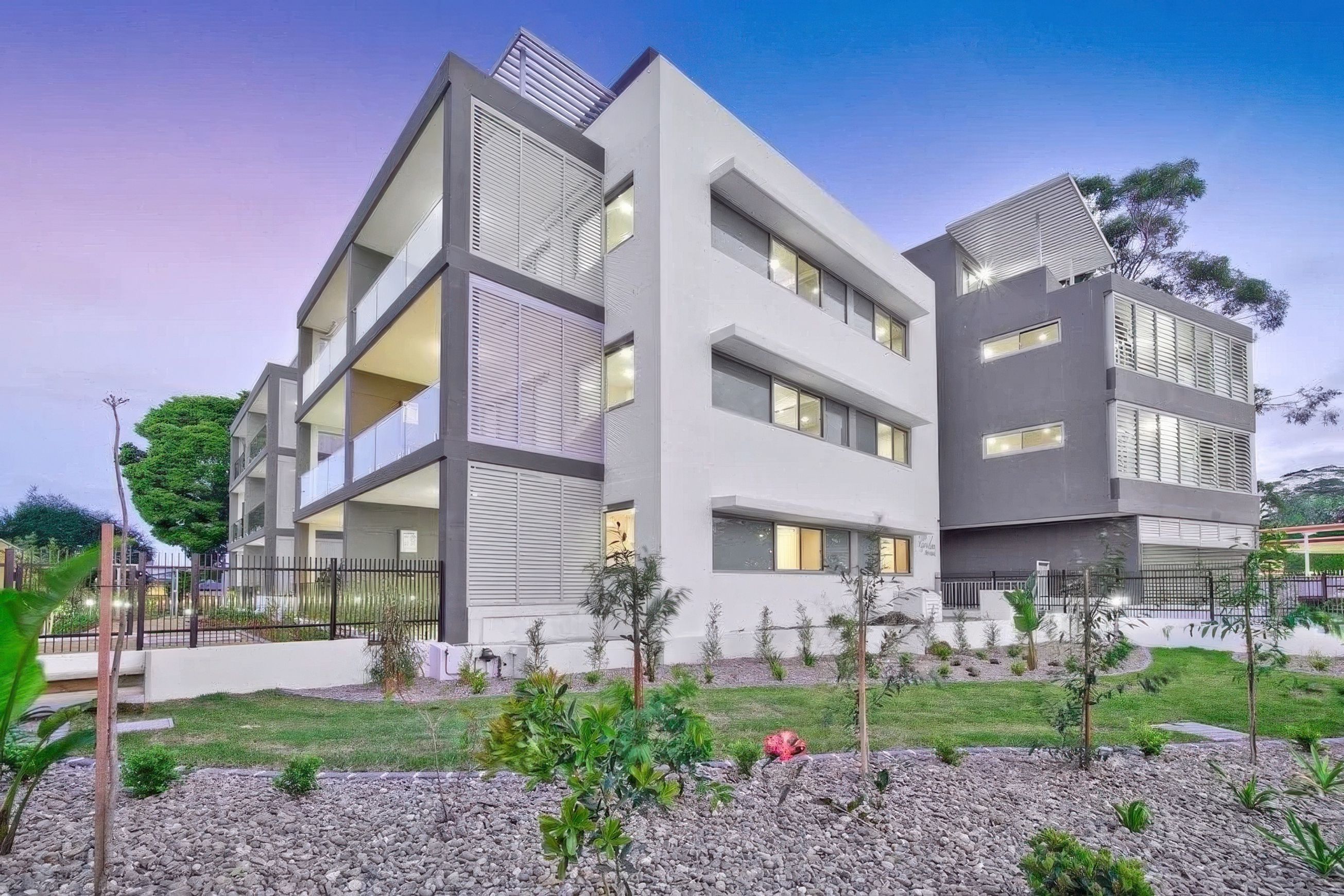

Yes. It has been specified in projects on ArchiPro, including Babylon, Rouse Hill by Walsc AAC Panel Systems, Como Apartments by Walsc AAC Panel Systems and Hope Gardens Apartment by Walsc AAC Panel Systems. See how it was used in a finished space.
