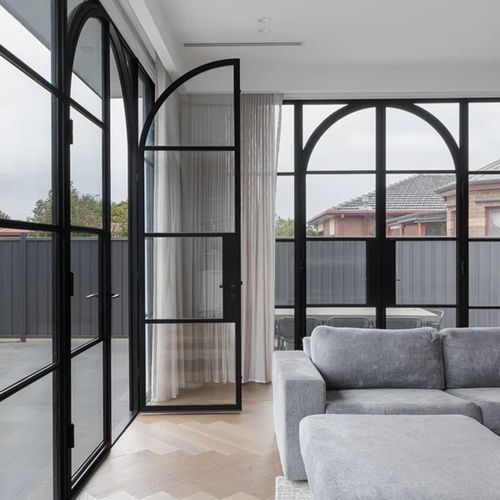

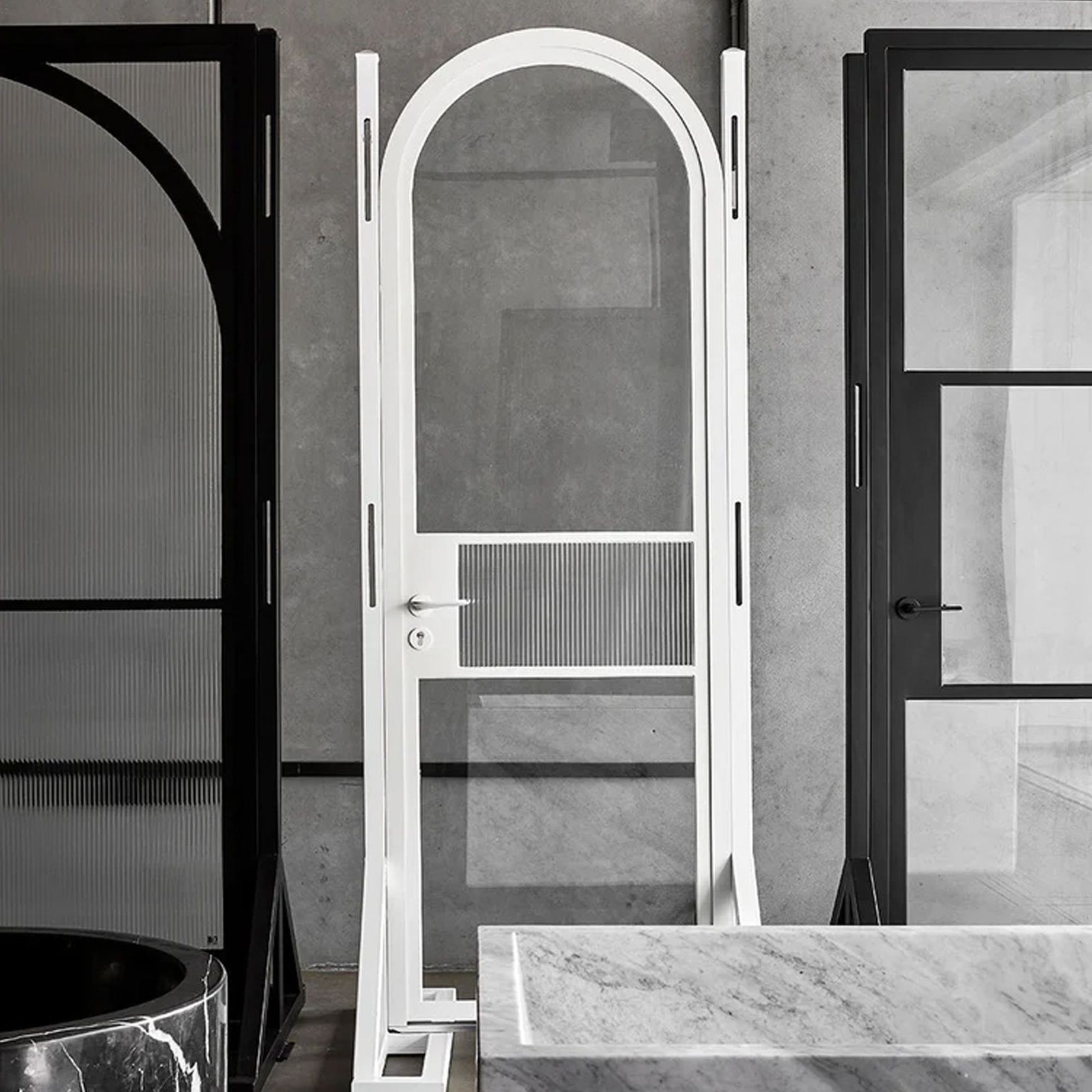

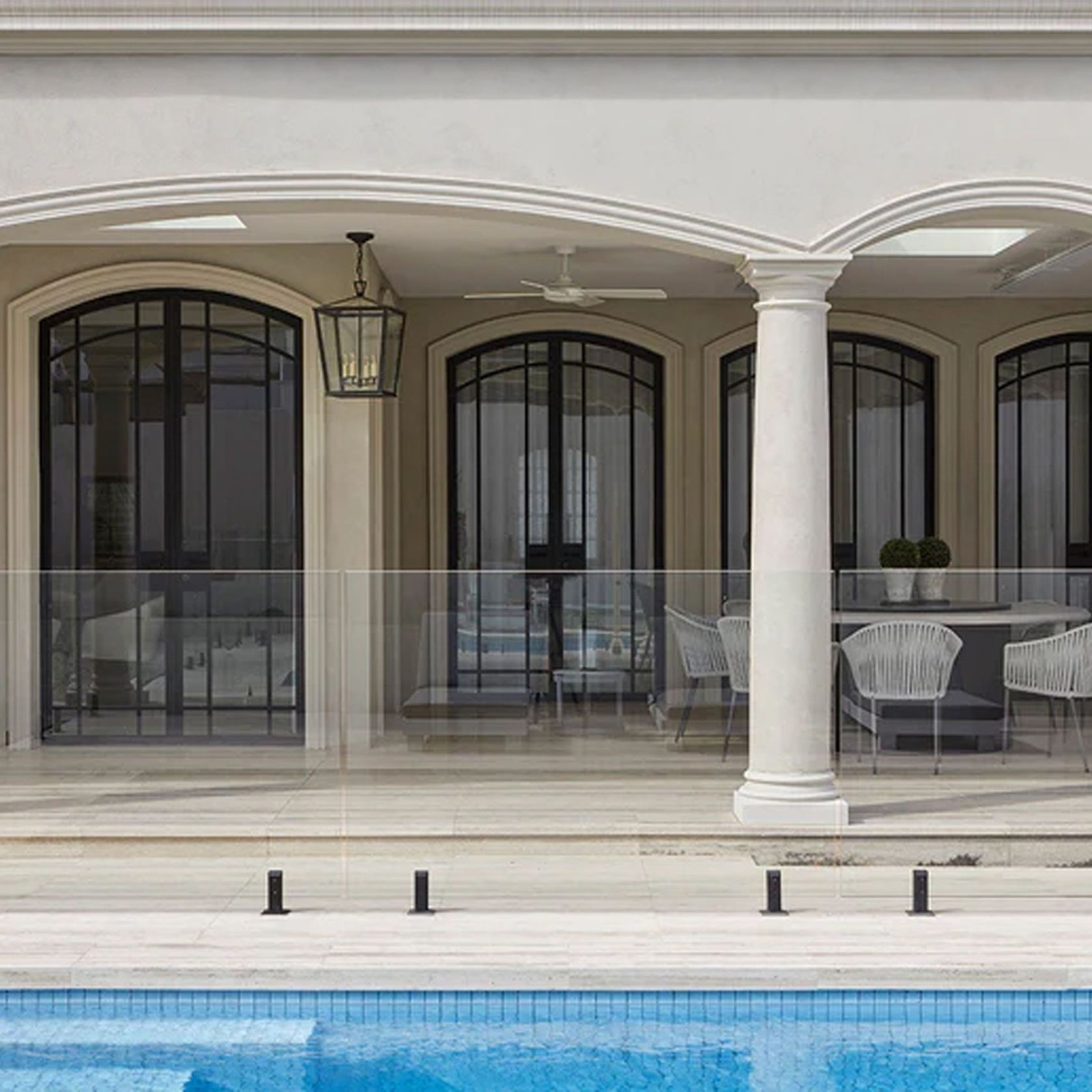

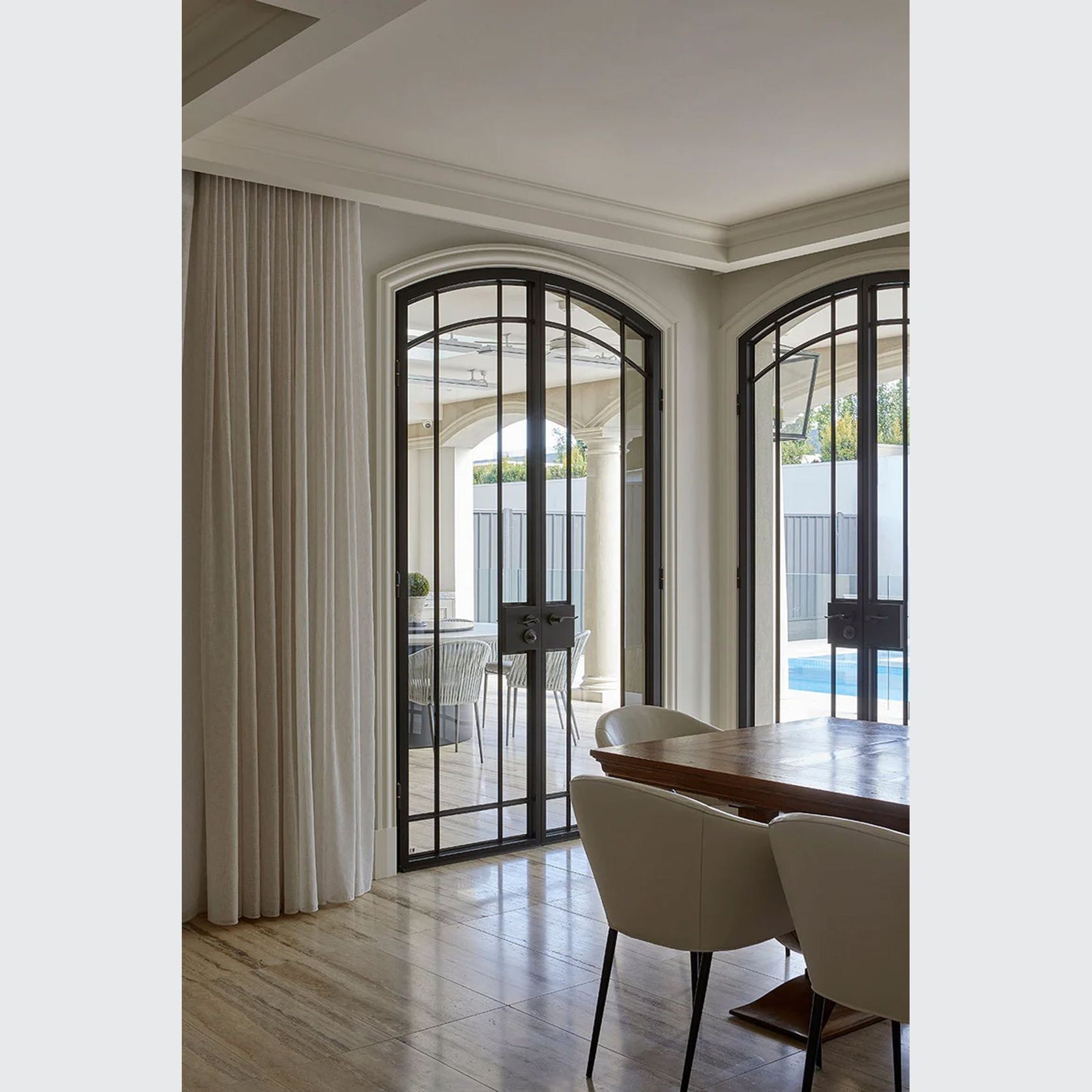

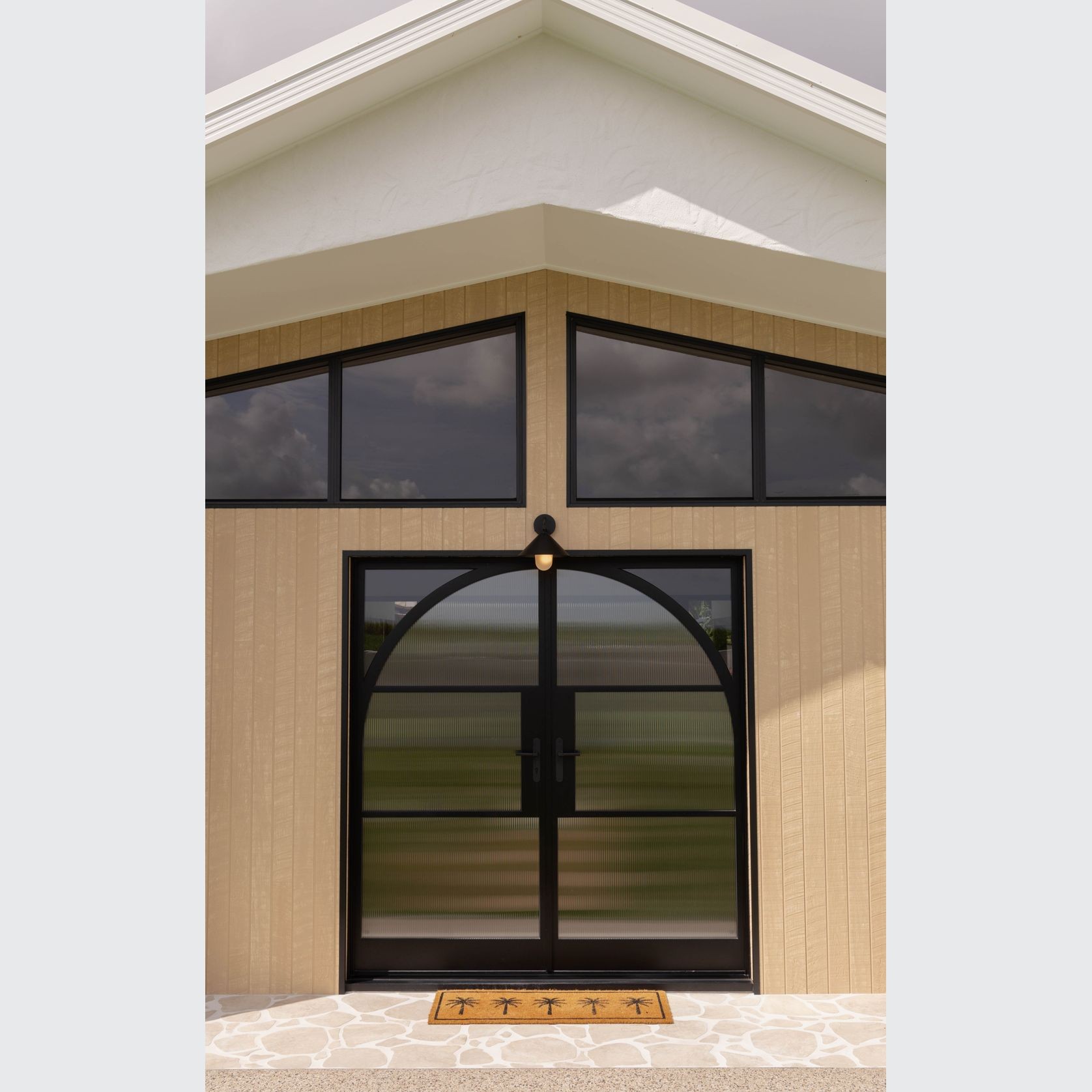

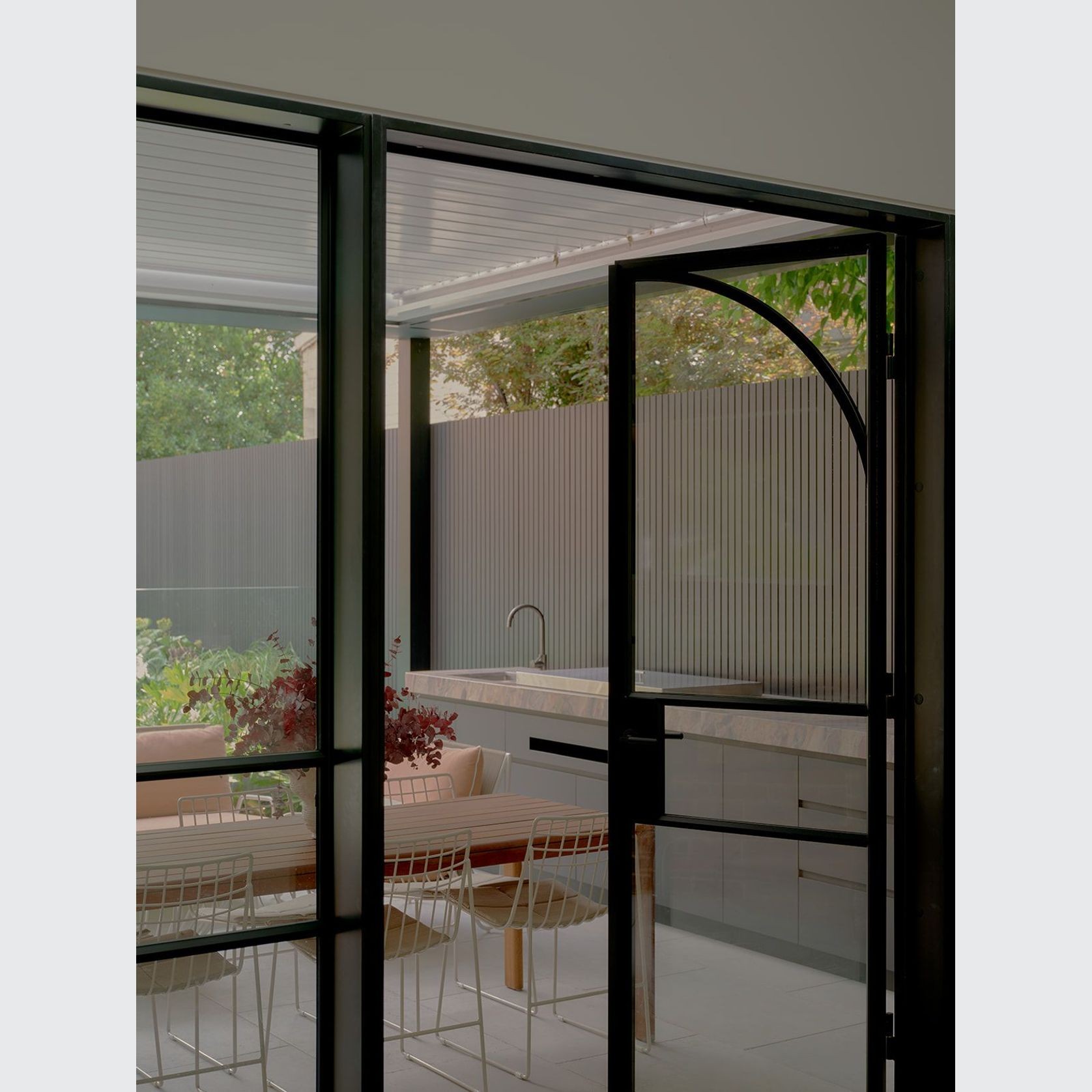

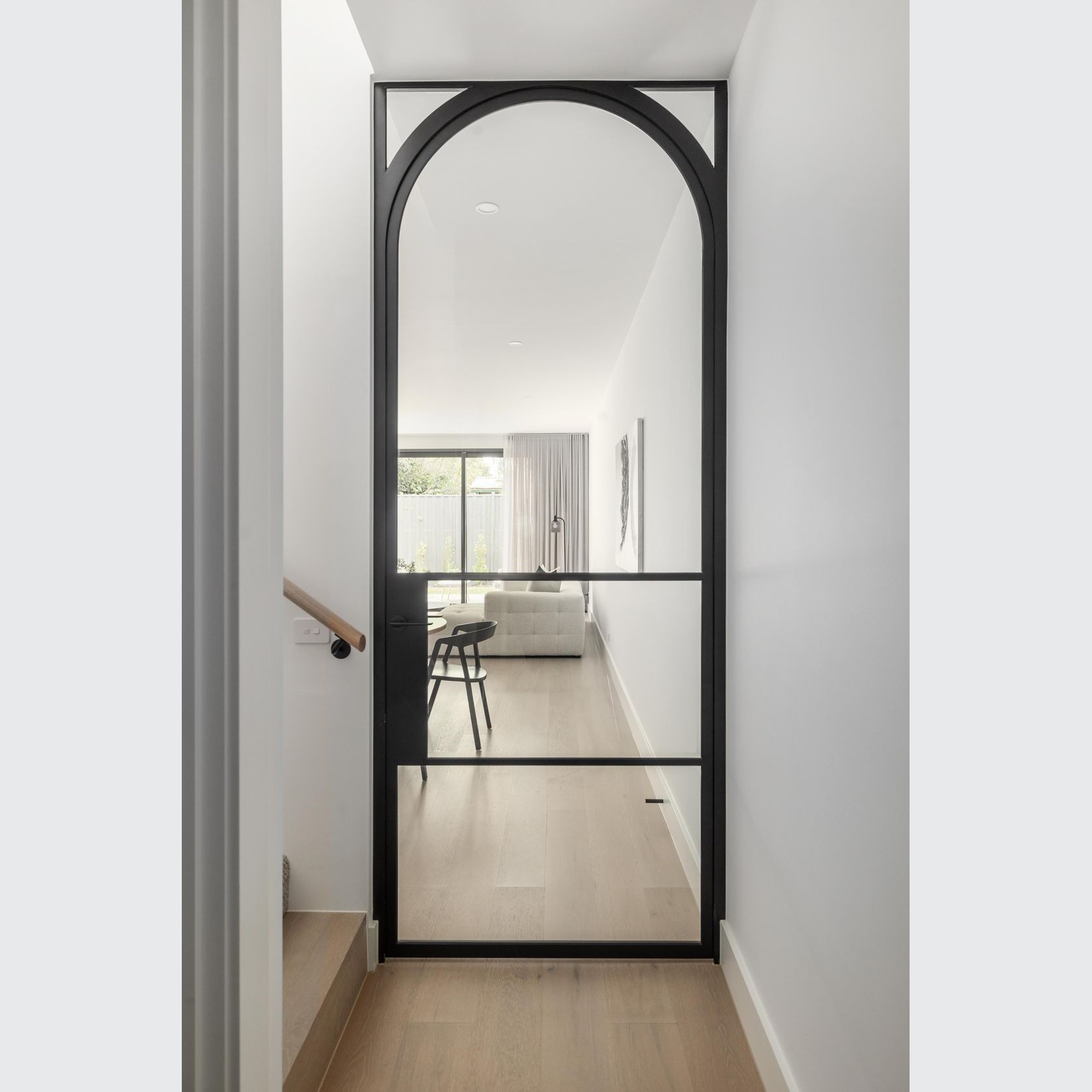

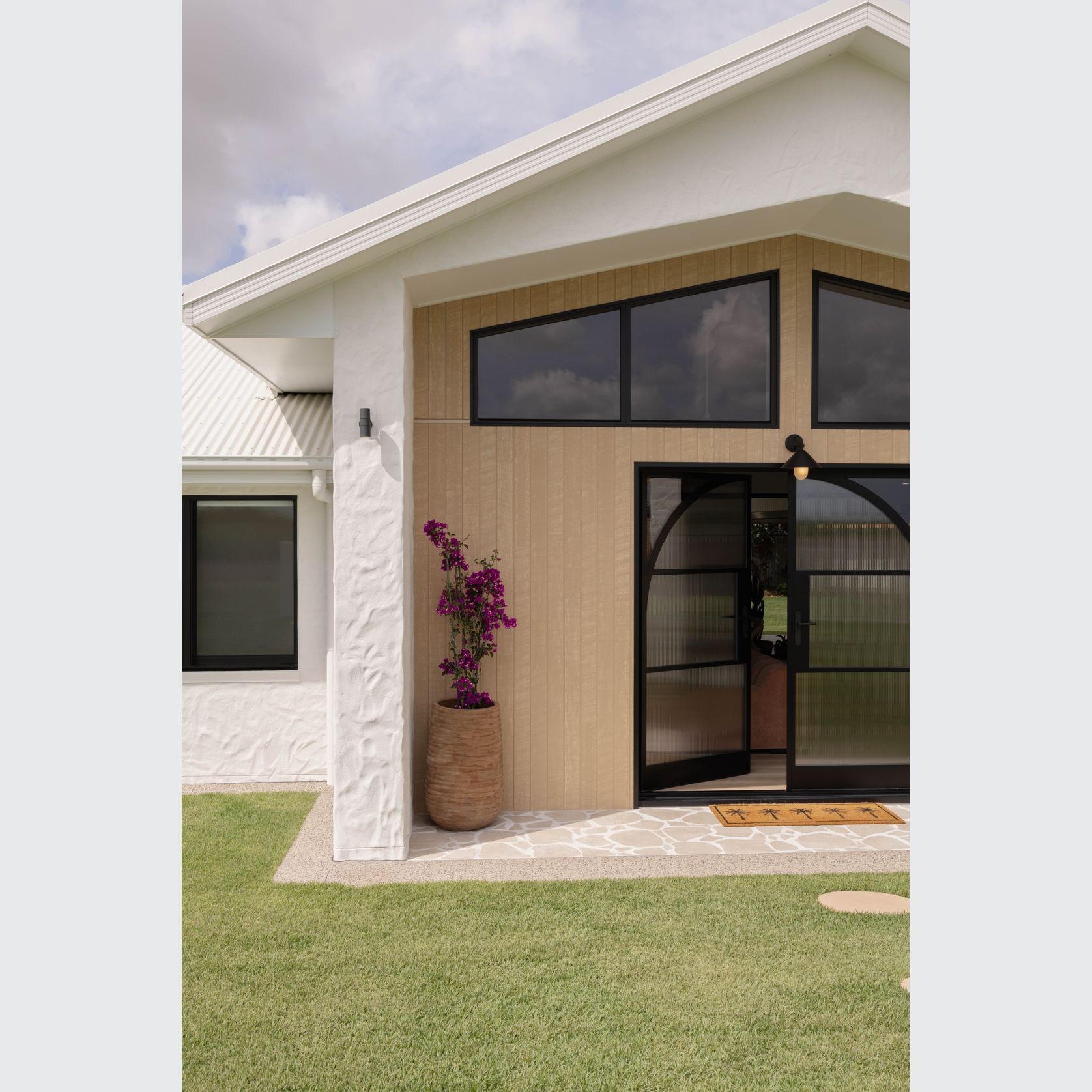

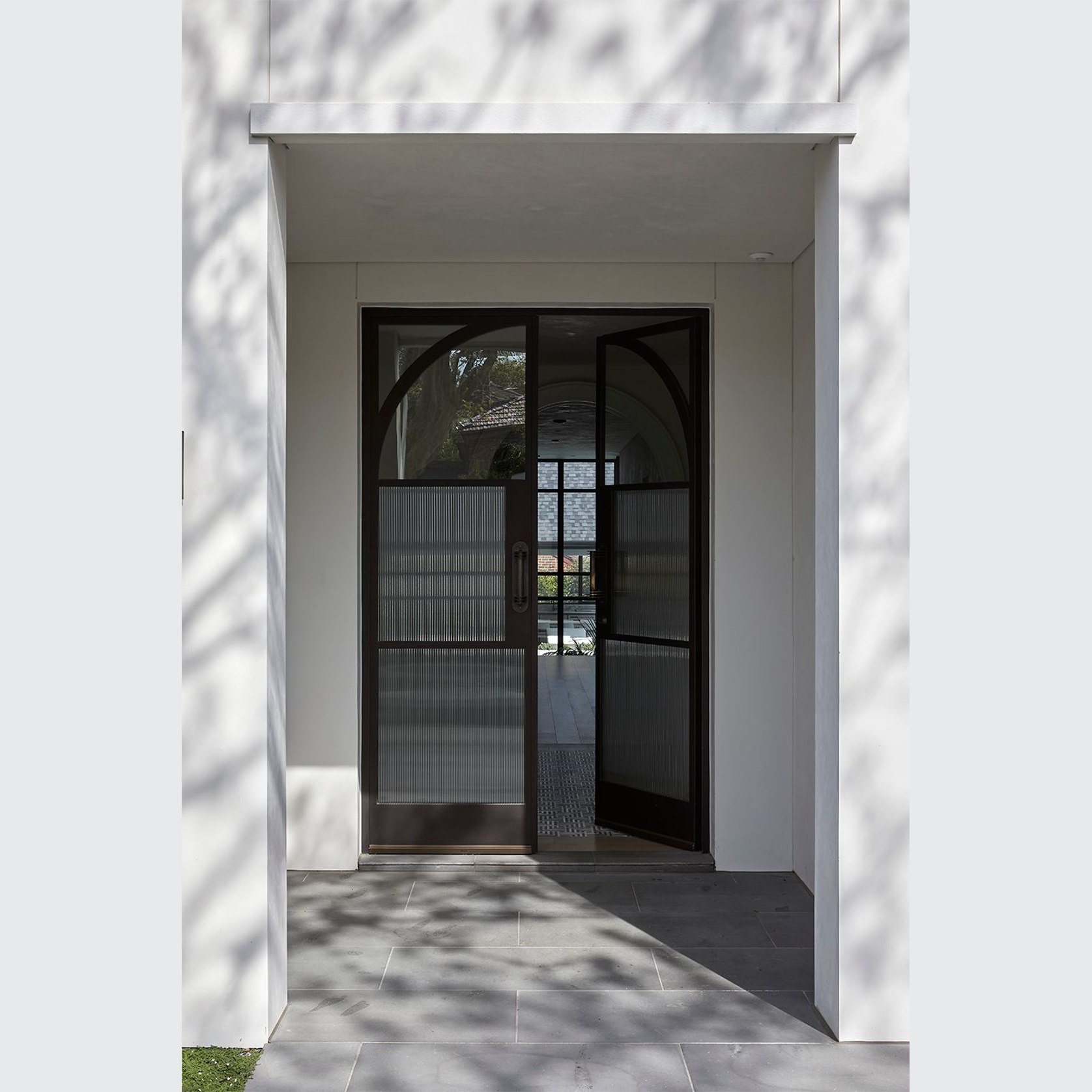

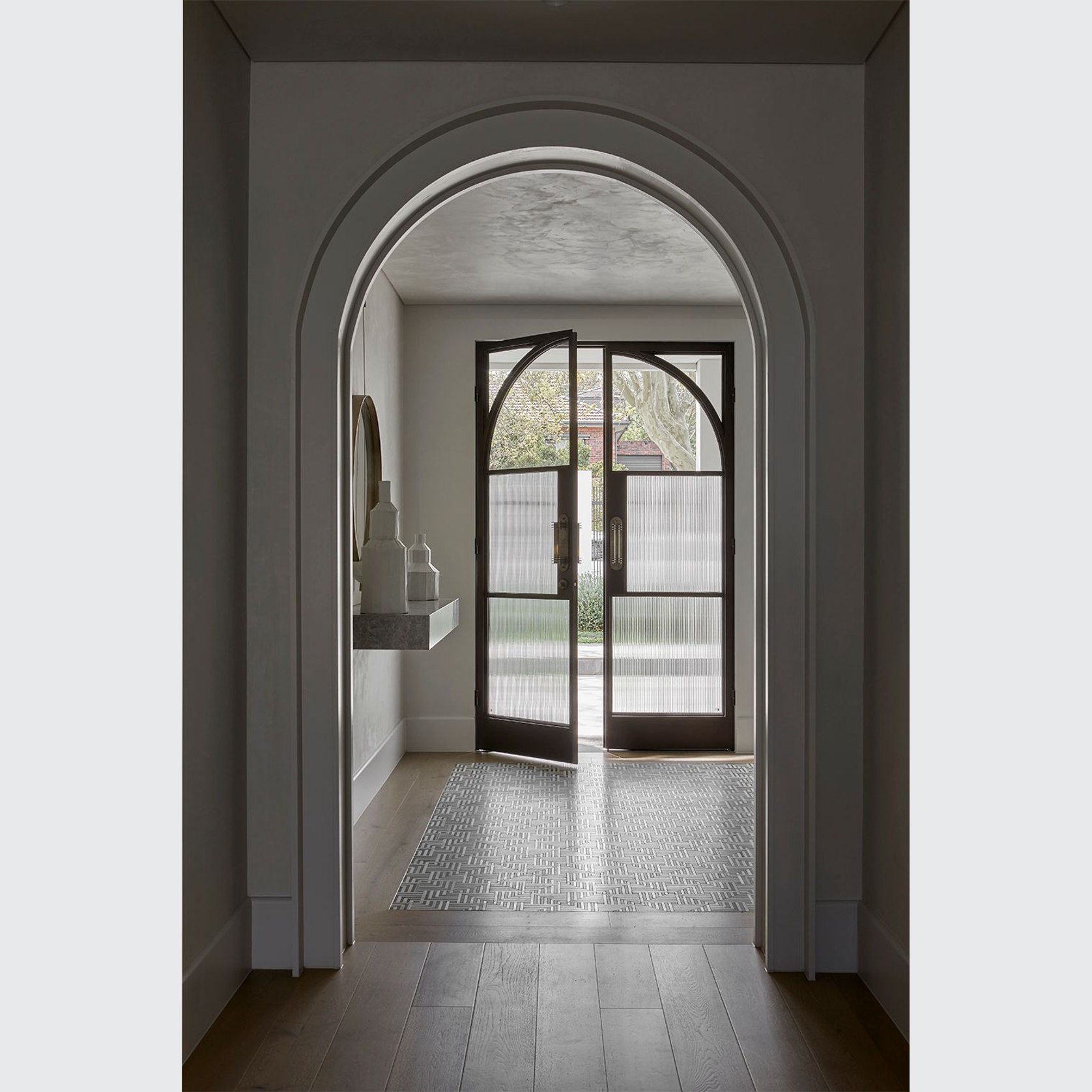

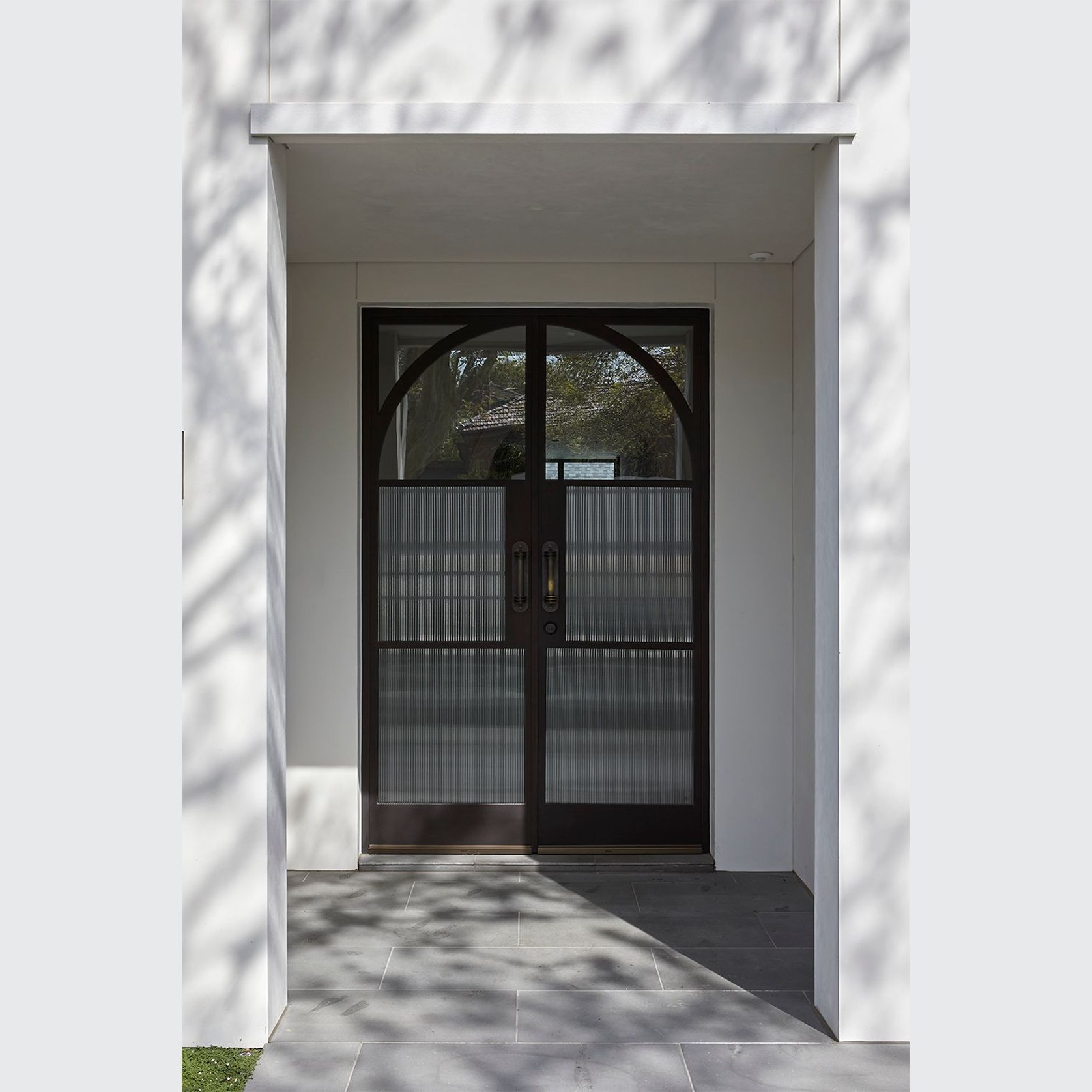

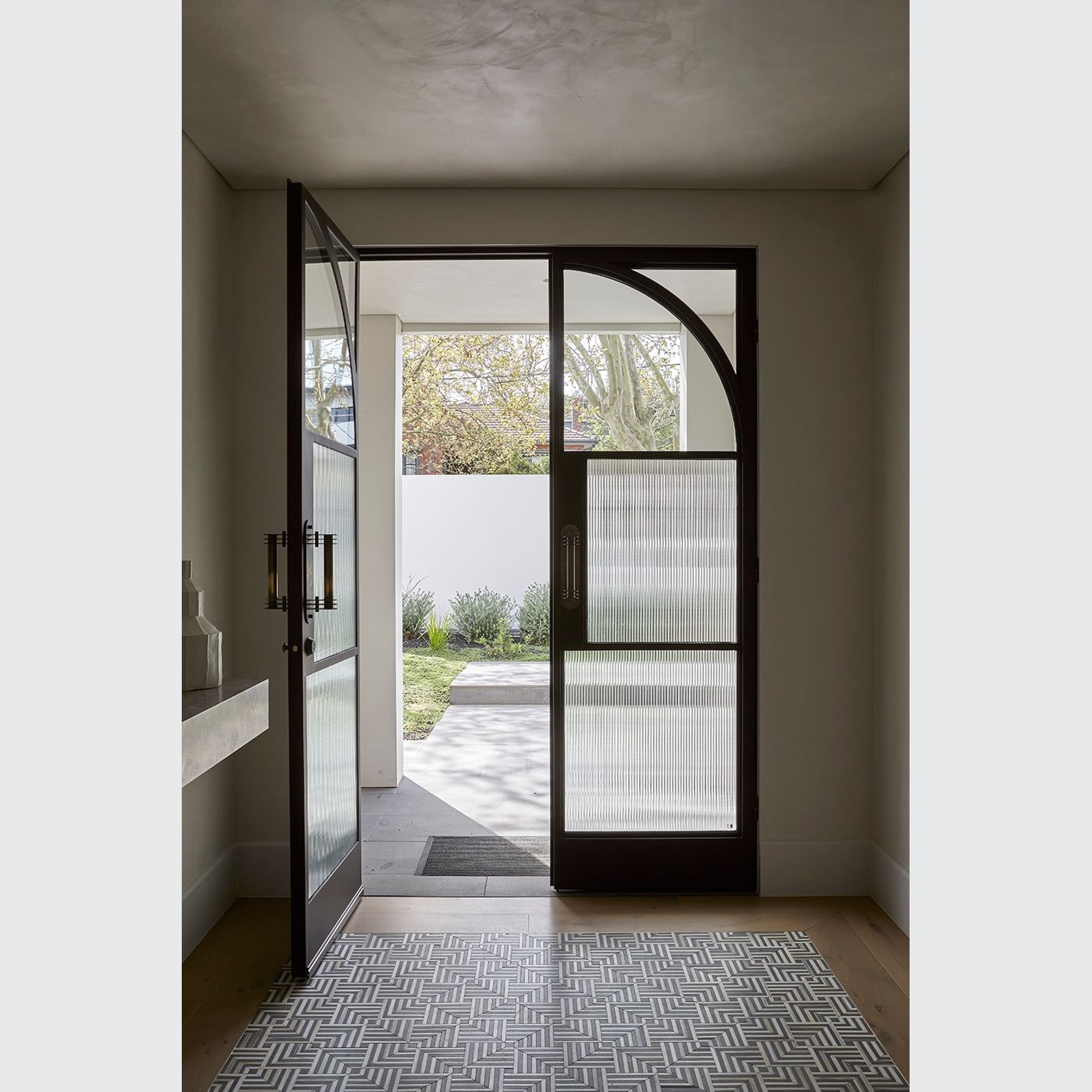

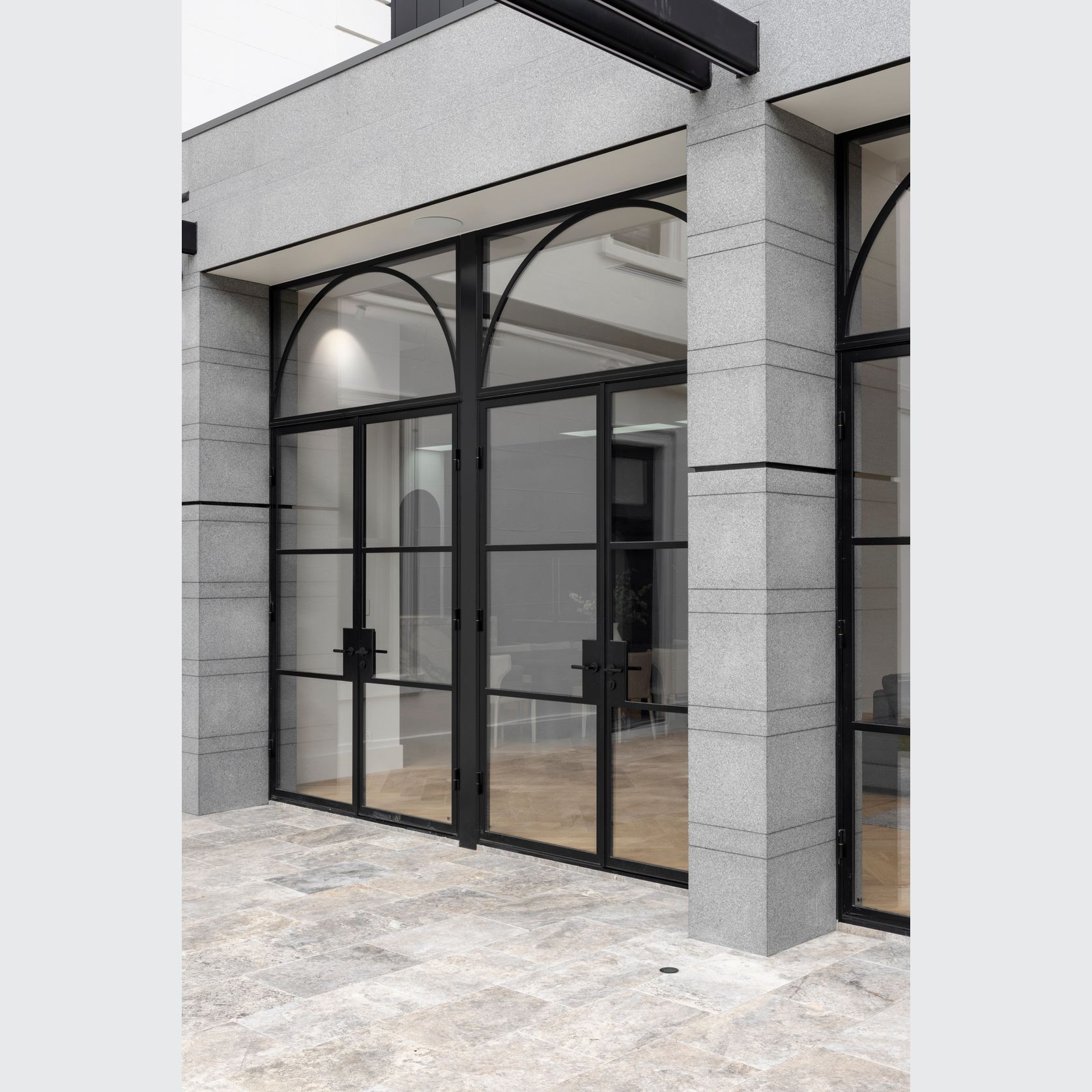

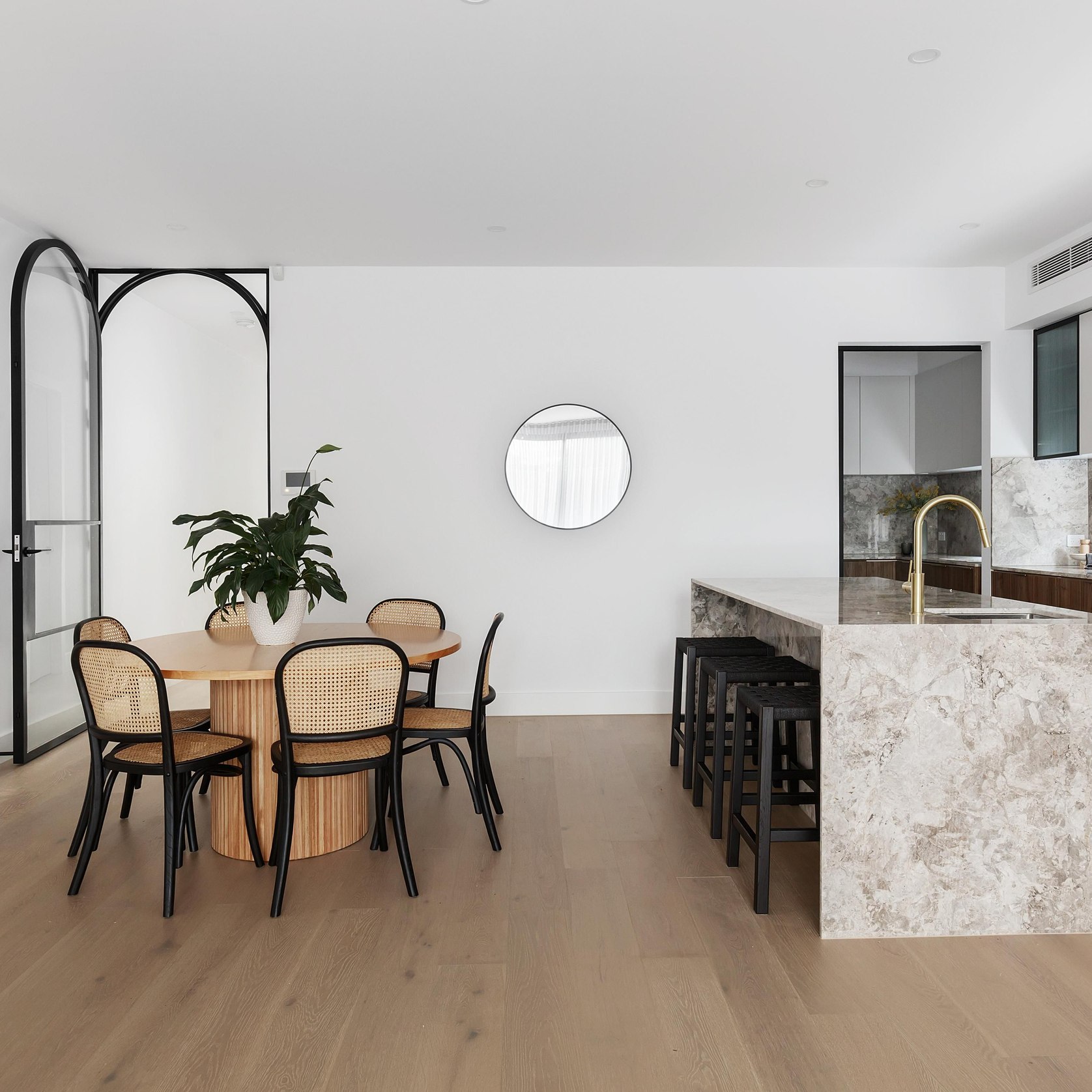

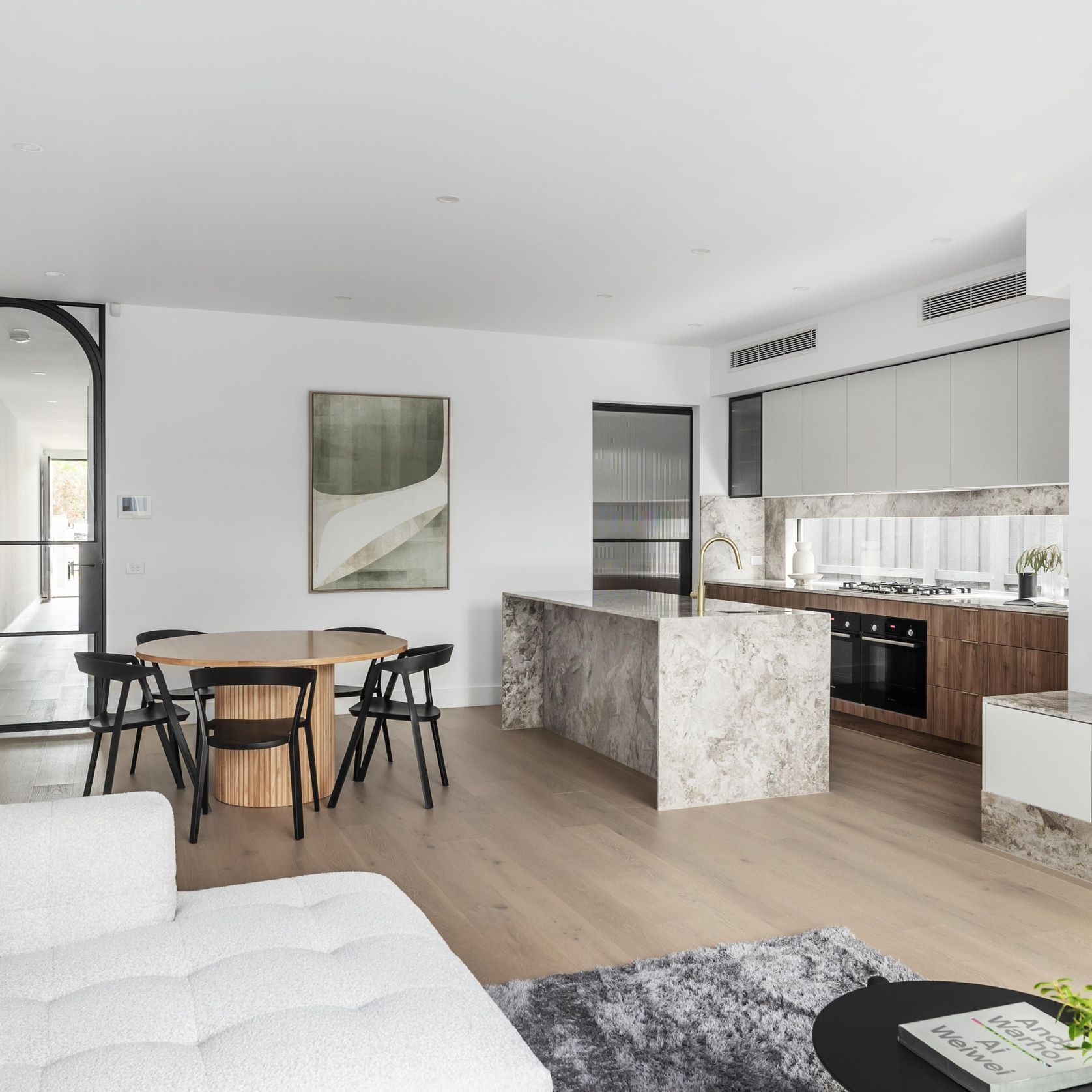

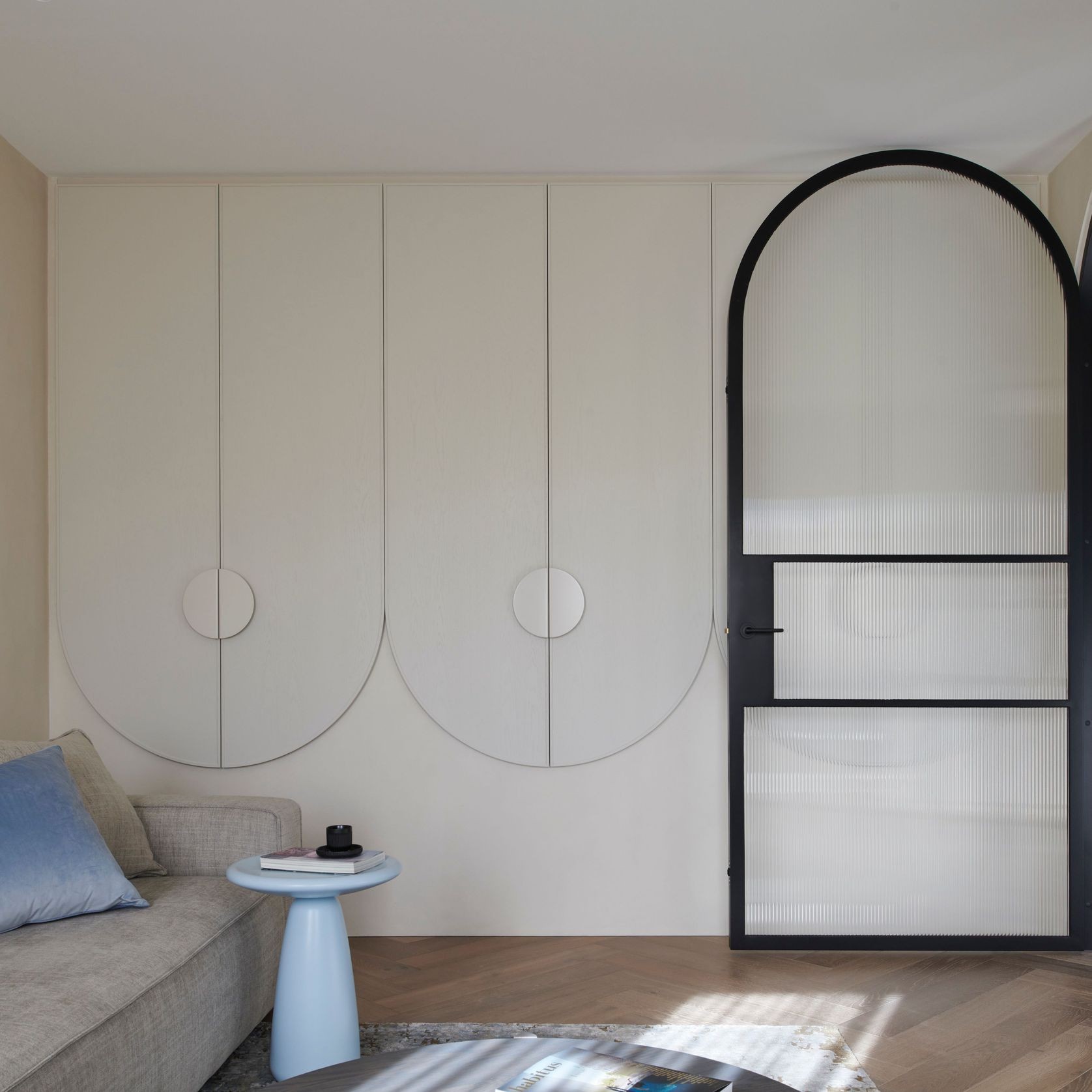

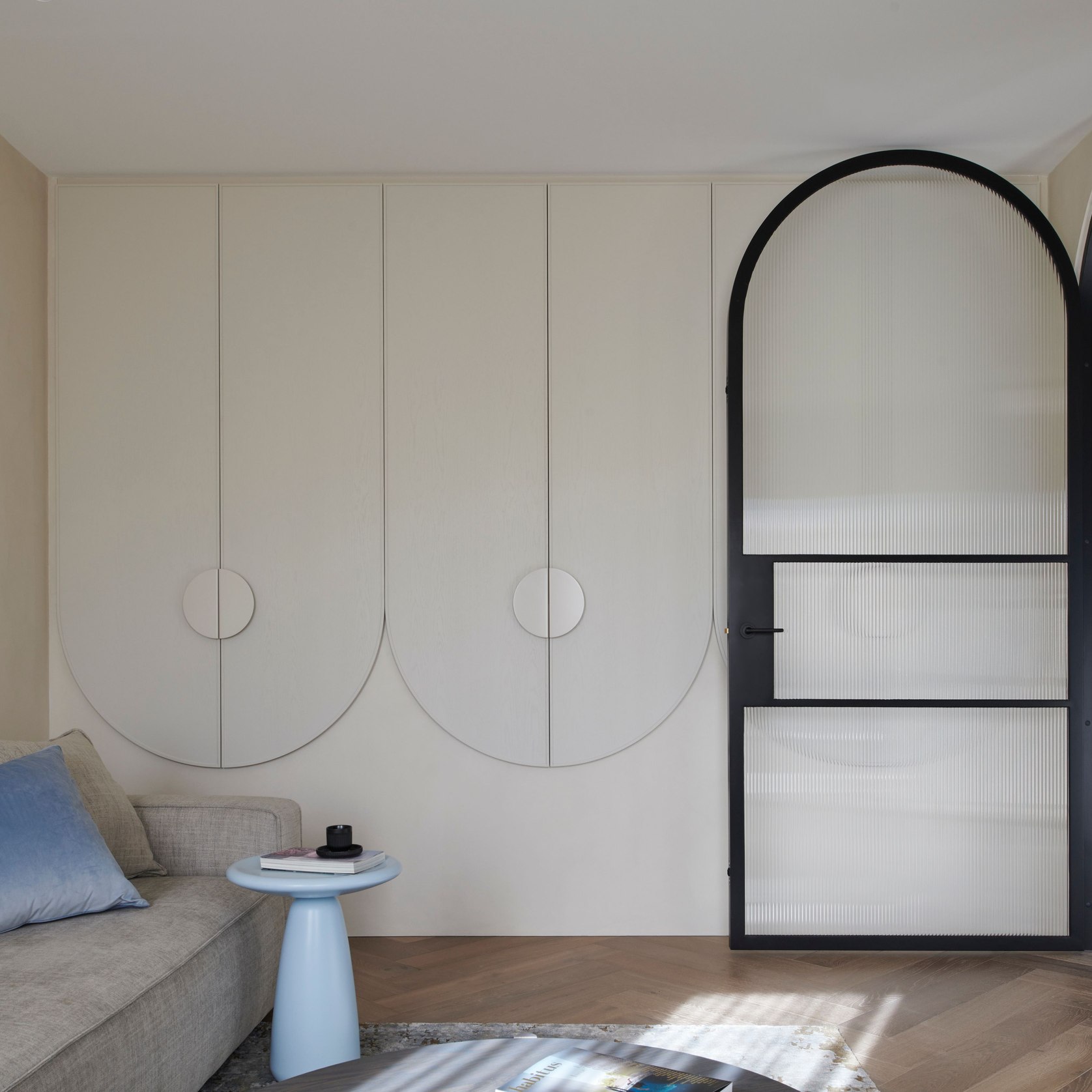

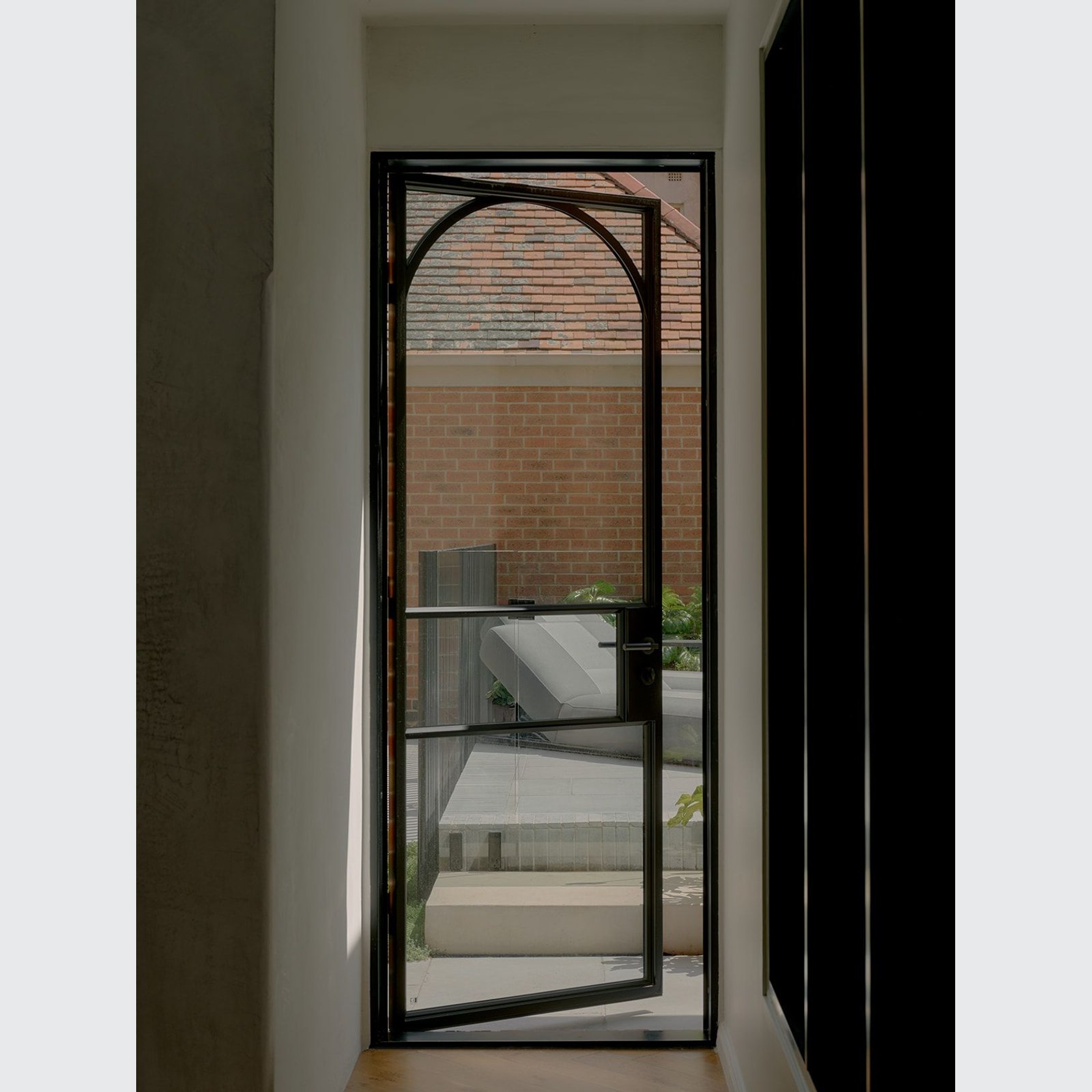

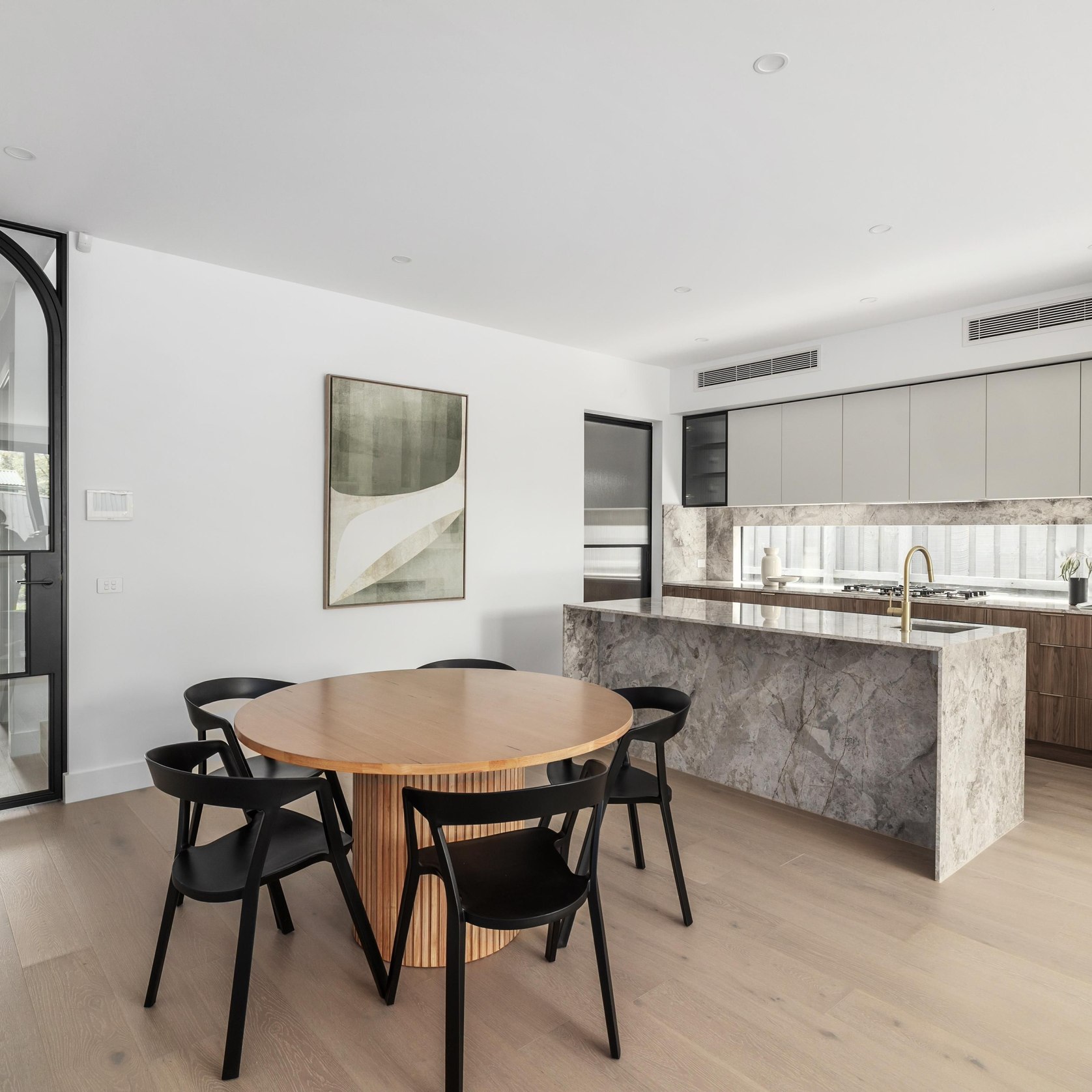

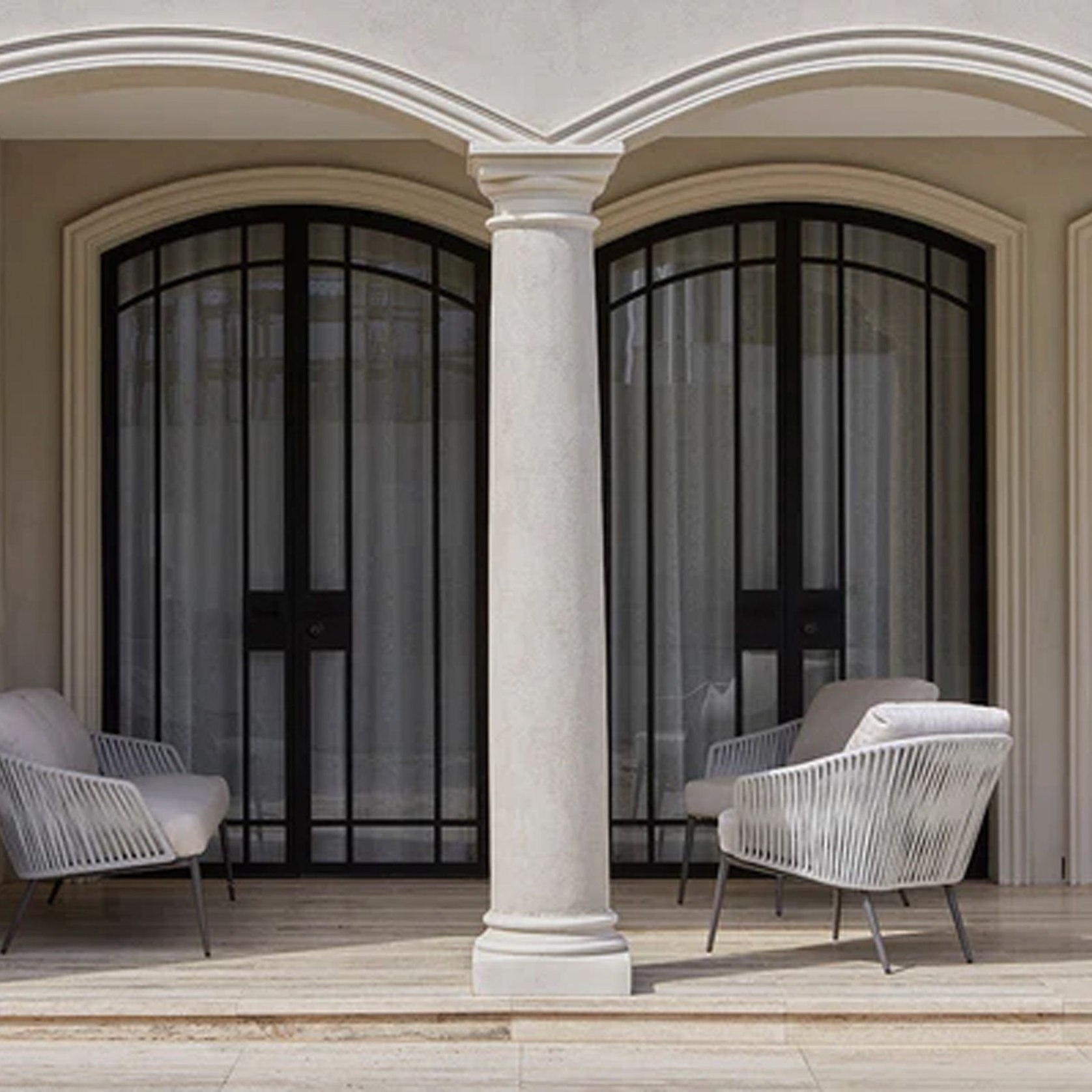

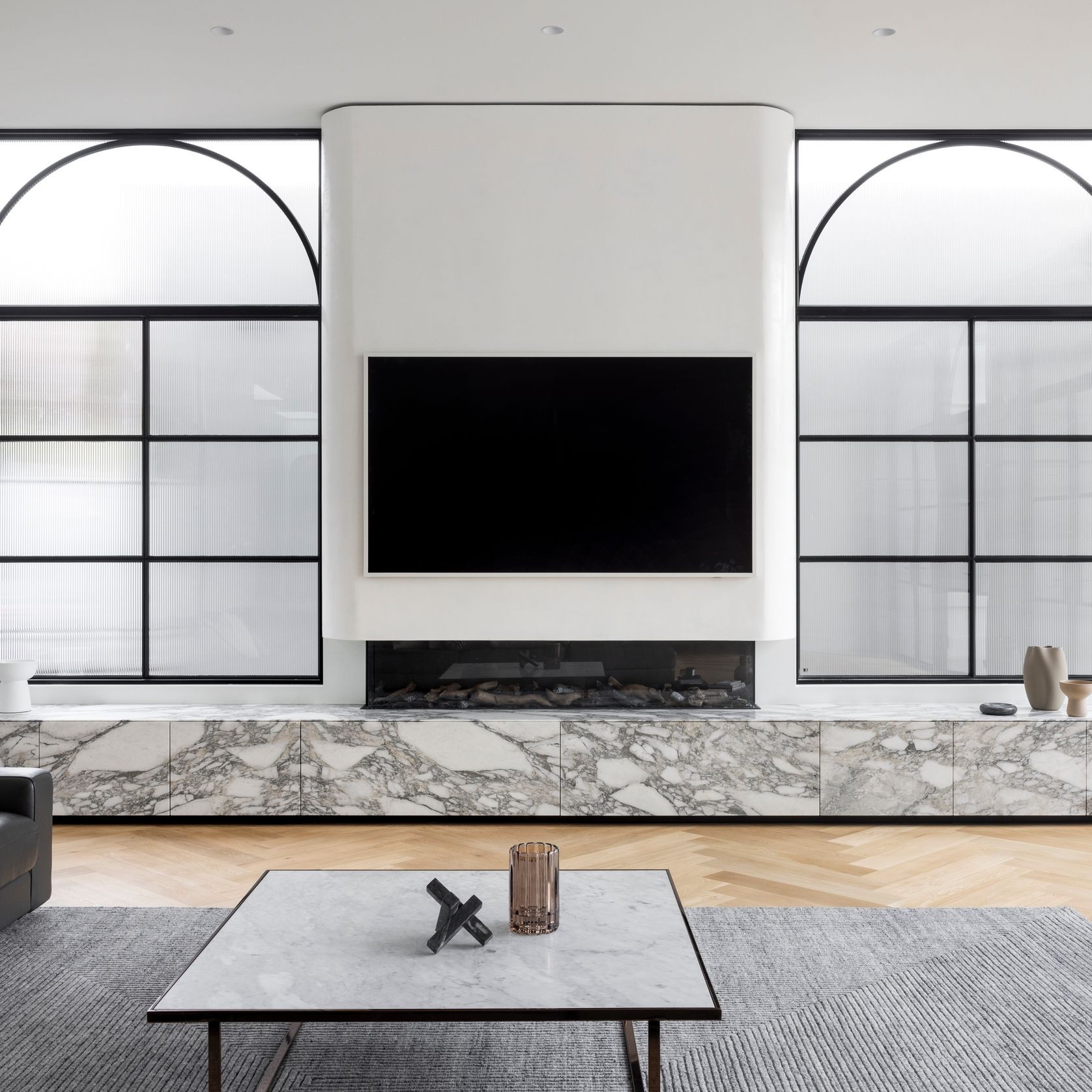

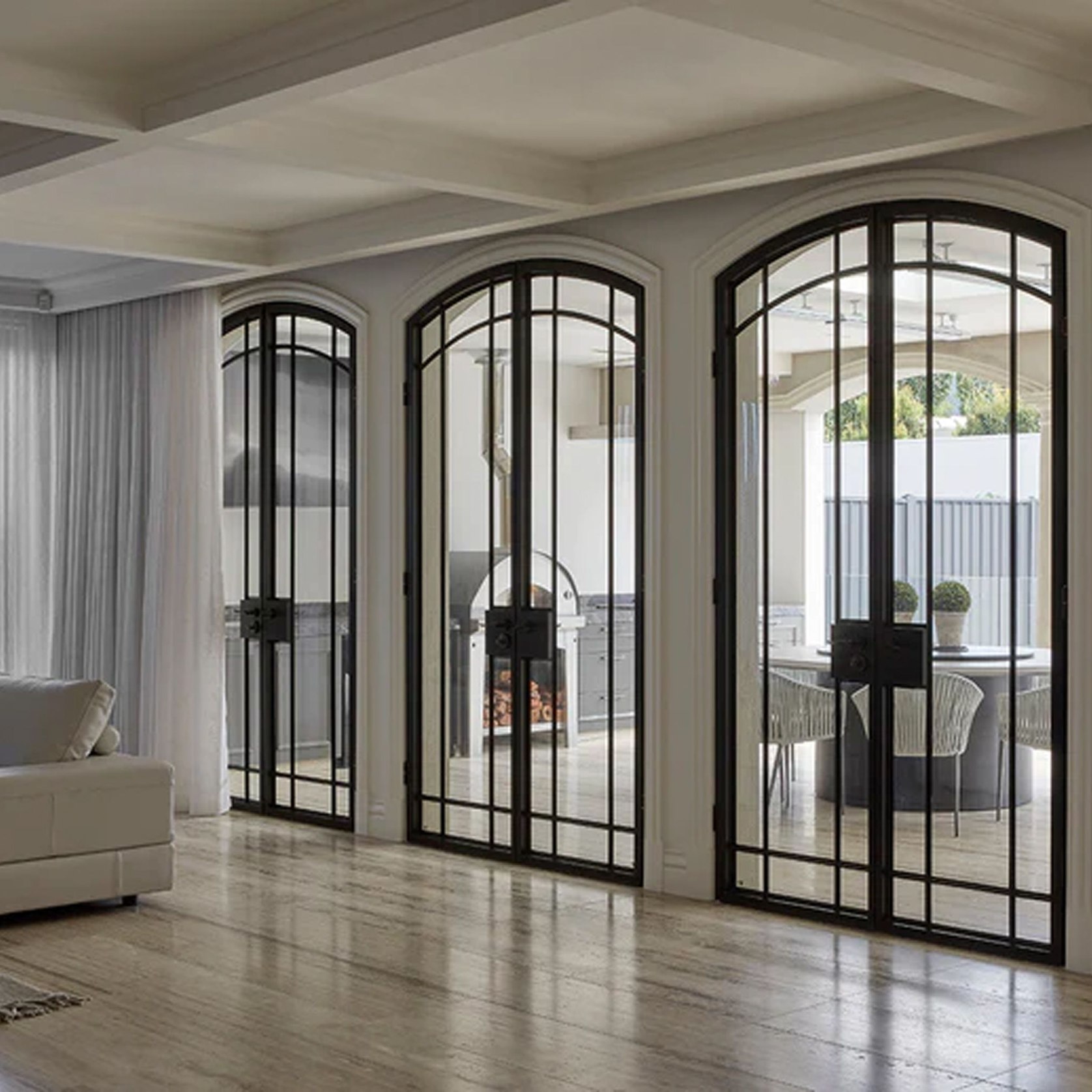

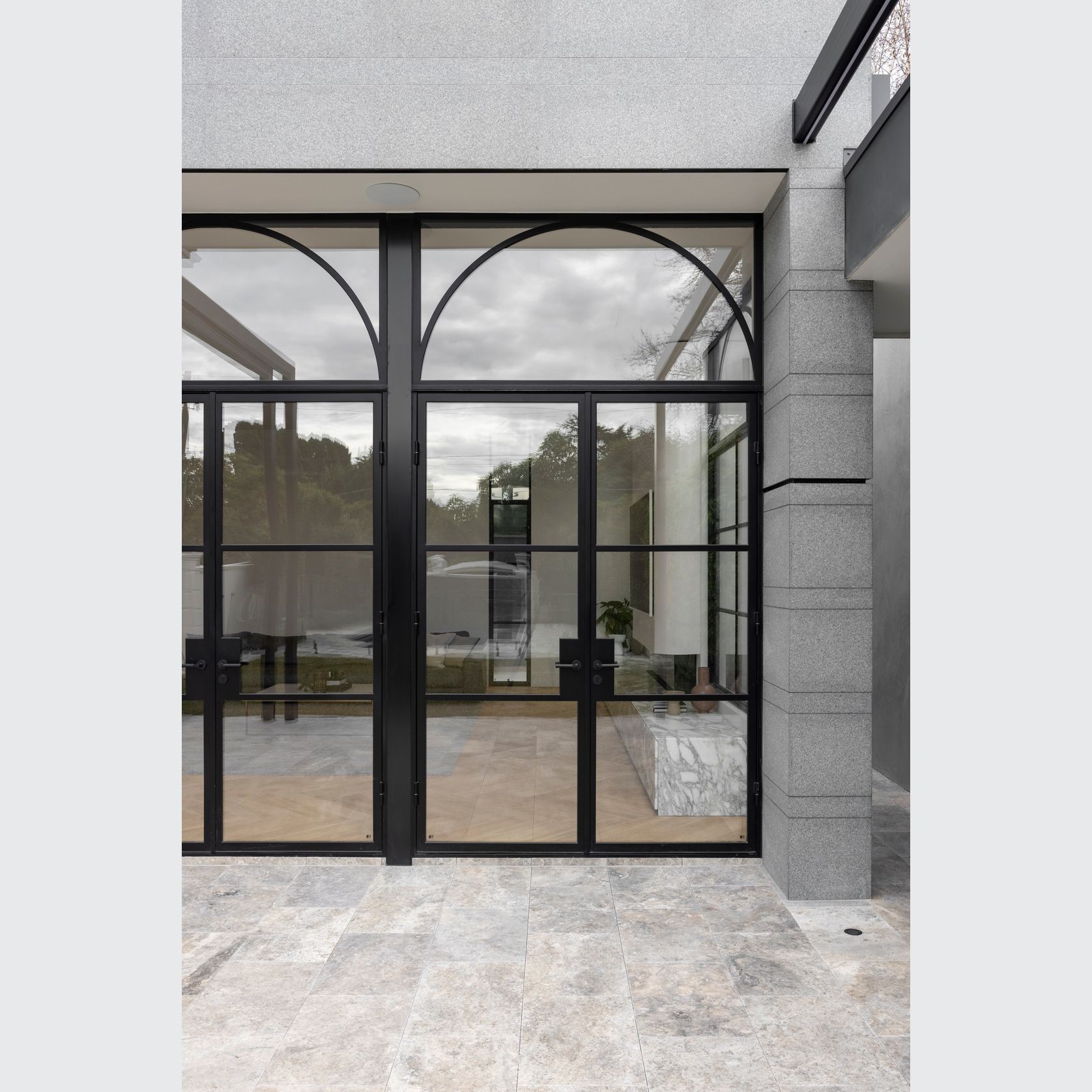

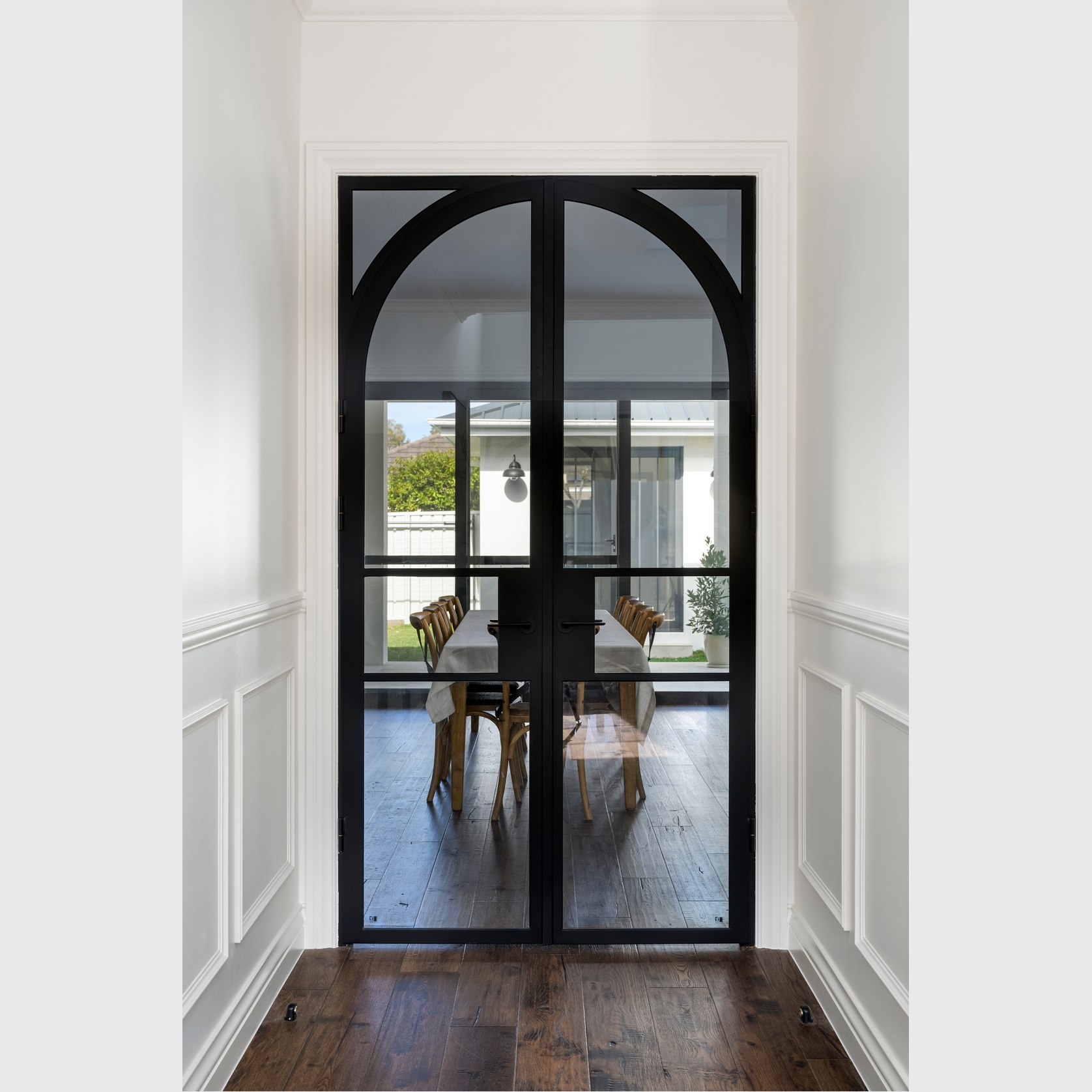

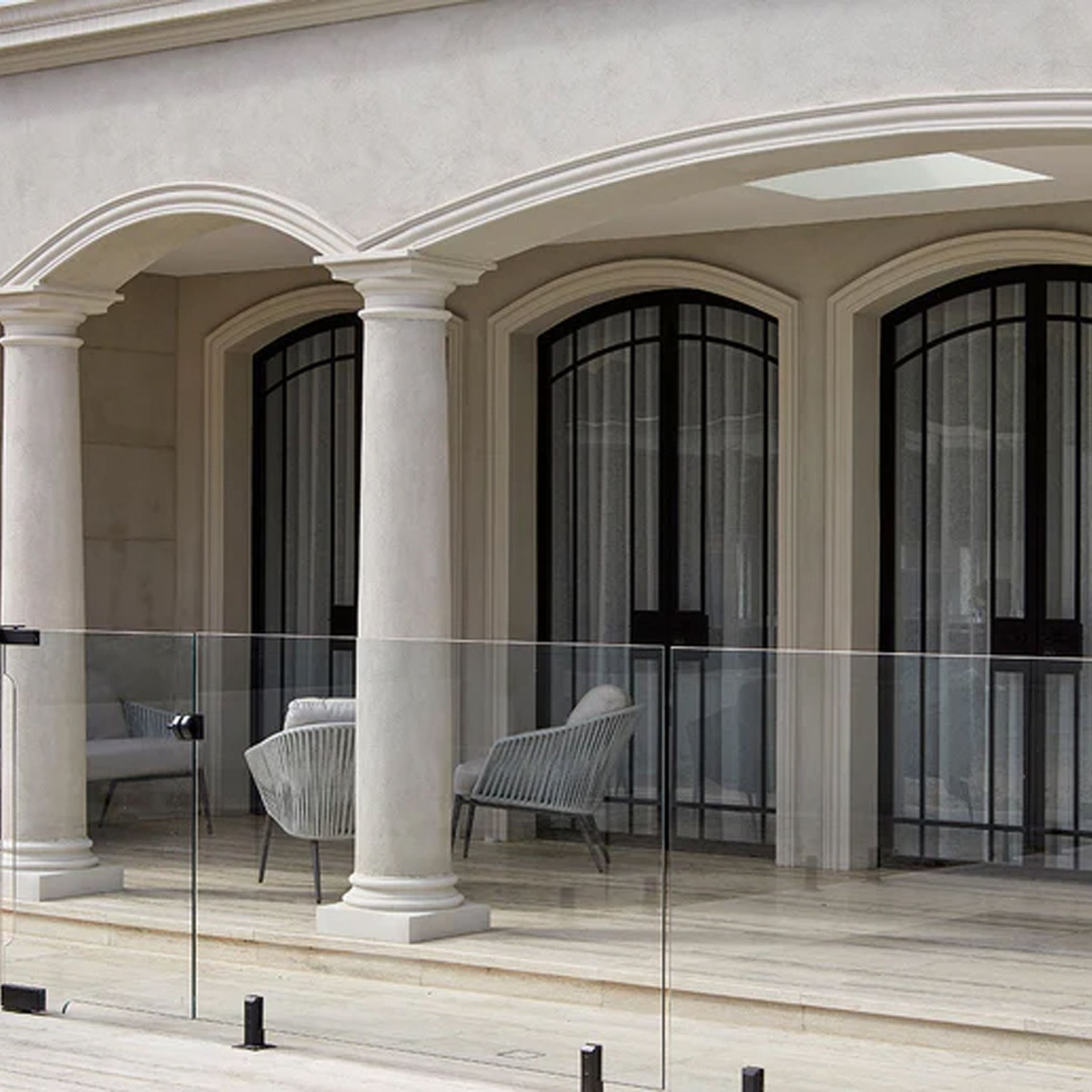

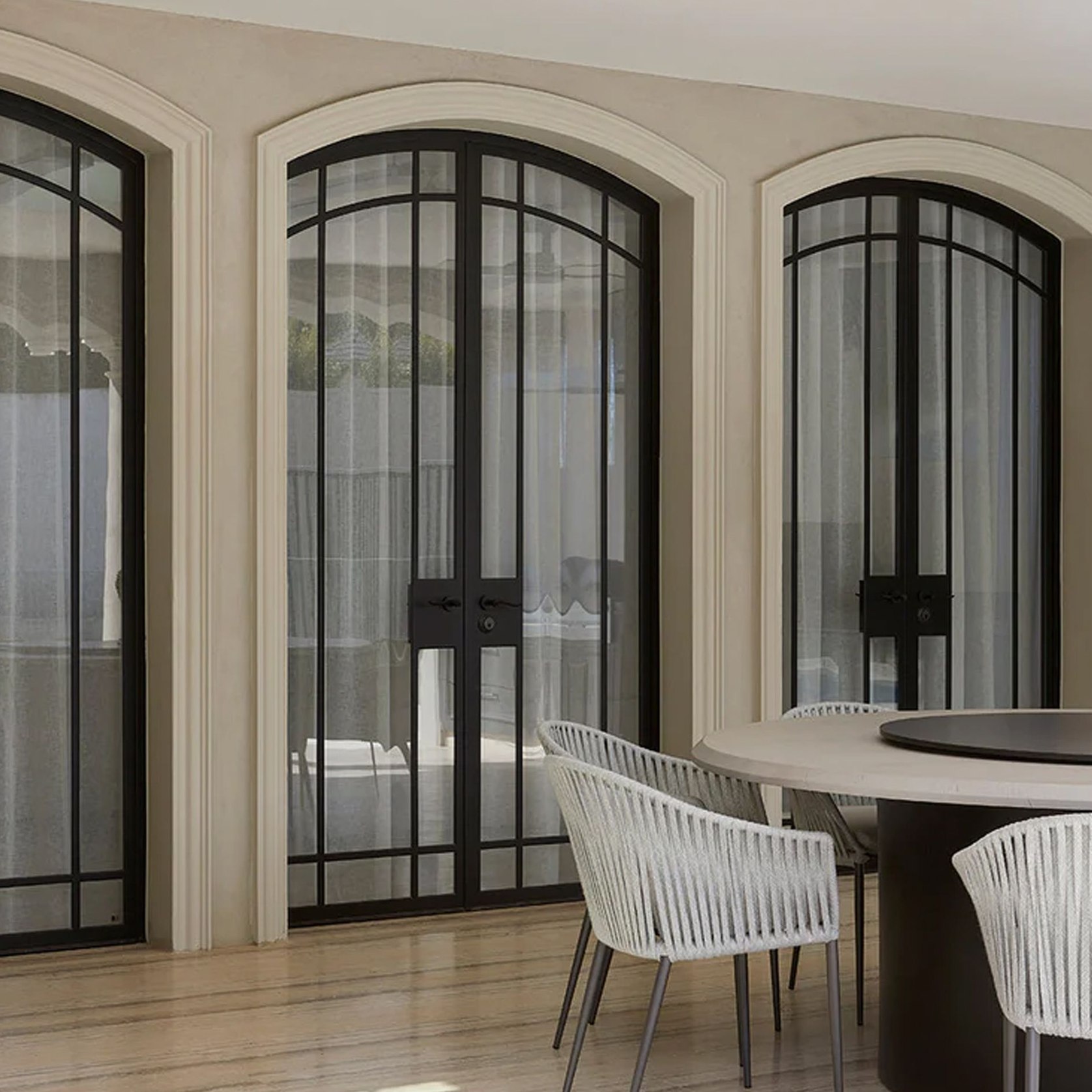

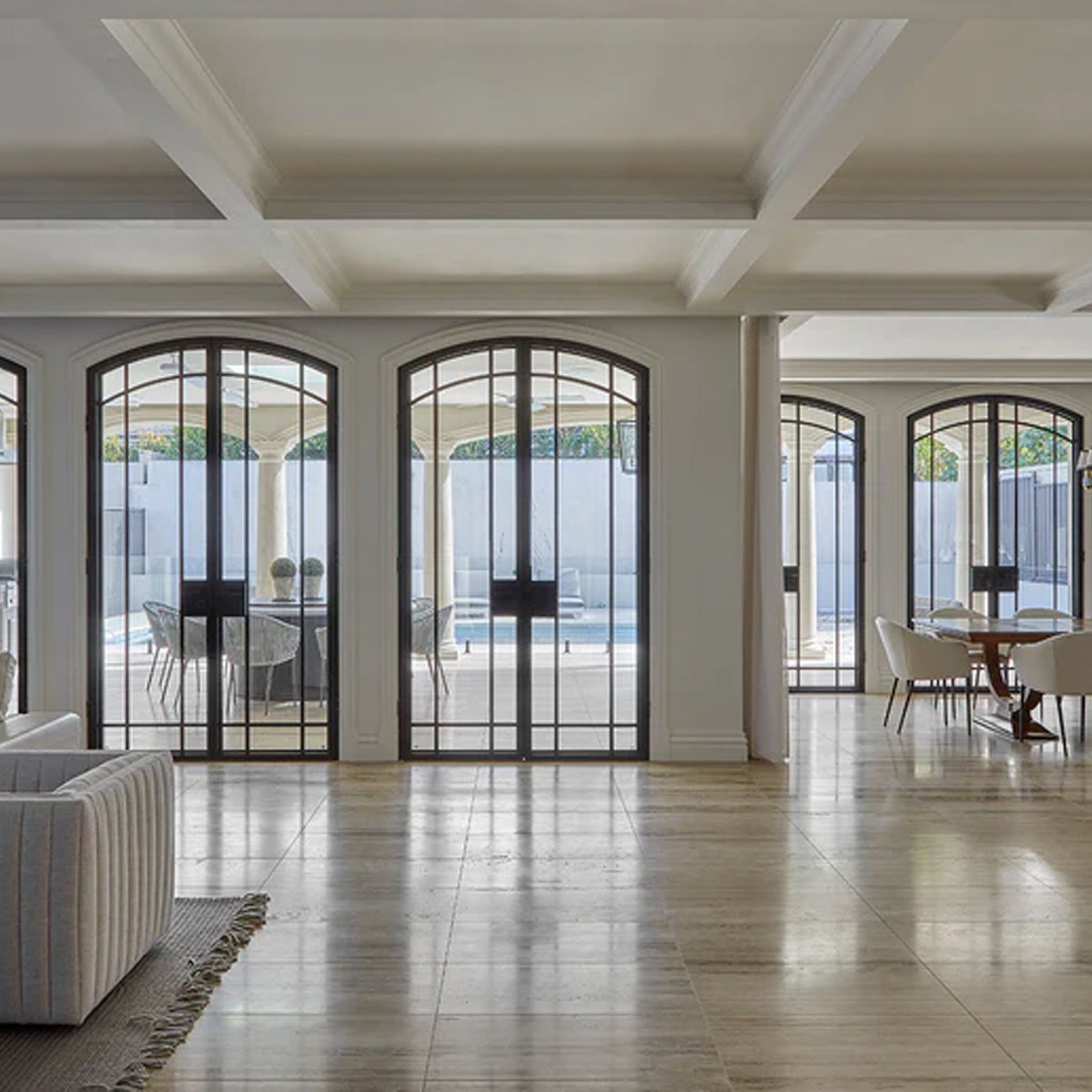

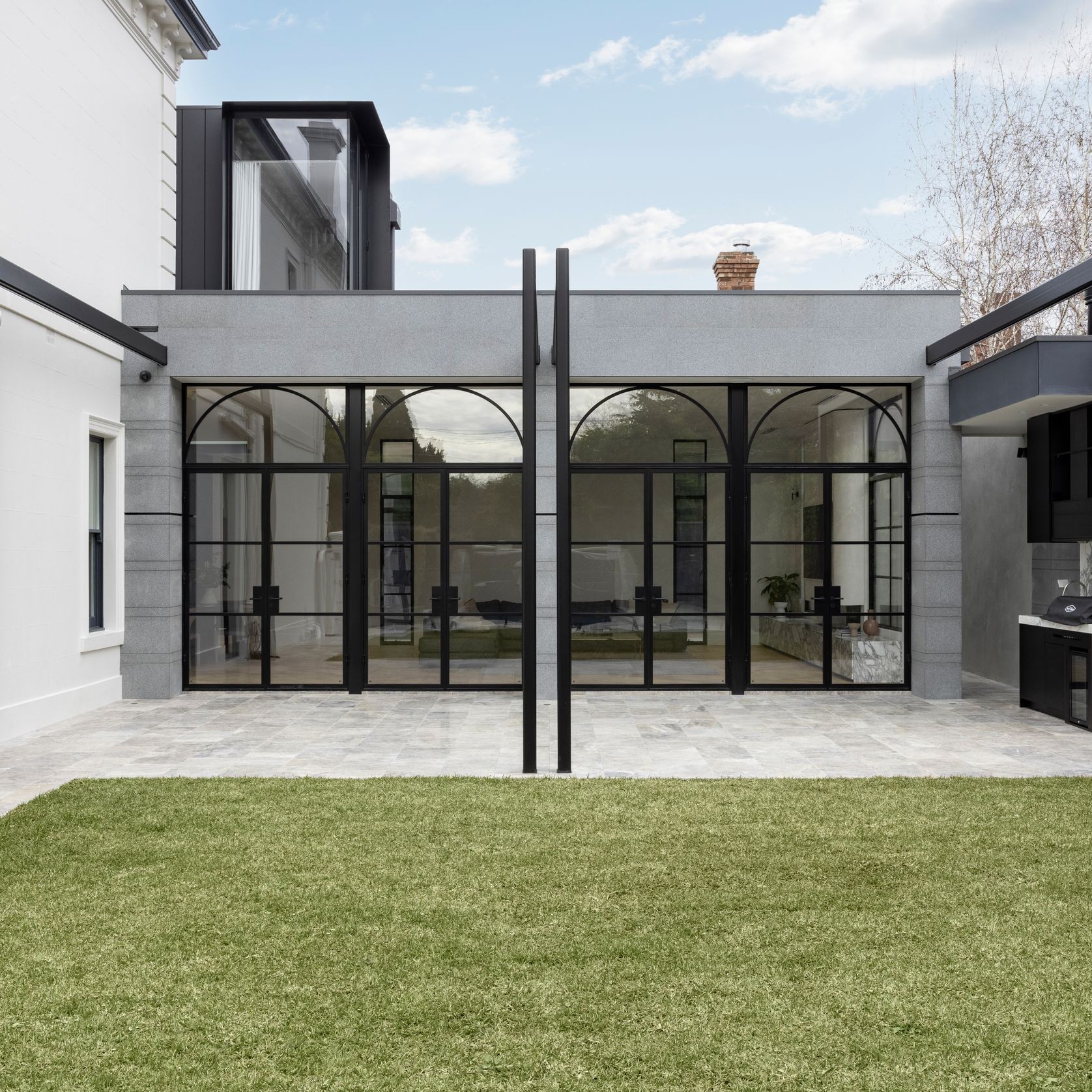

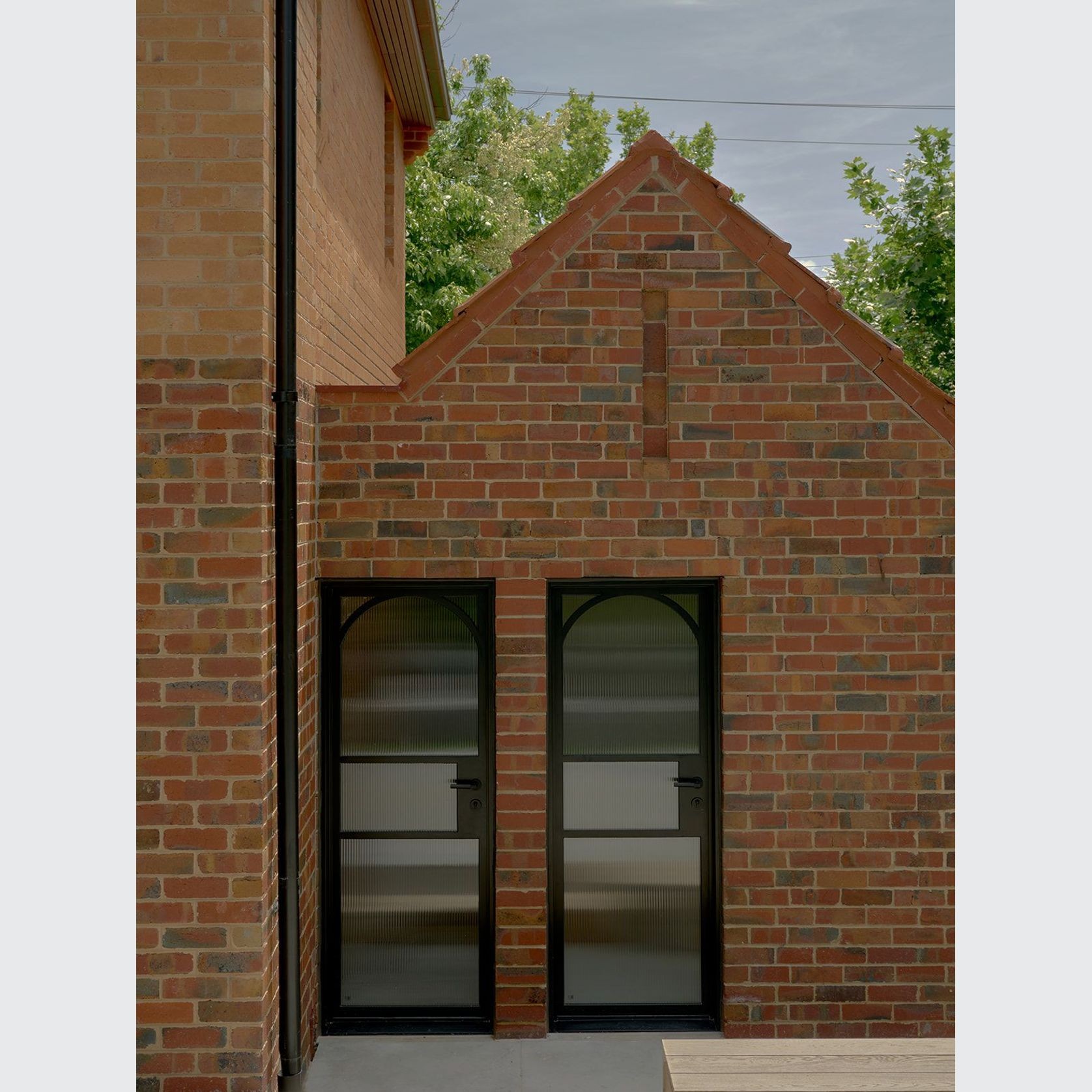

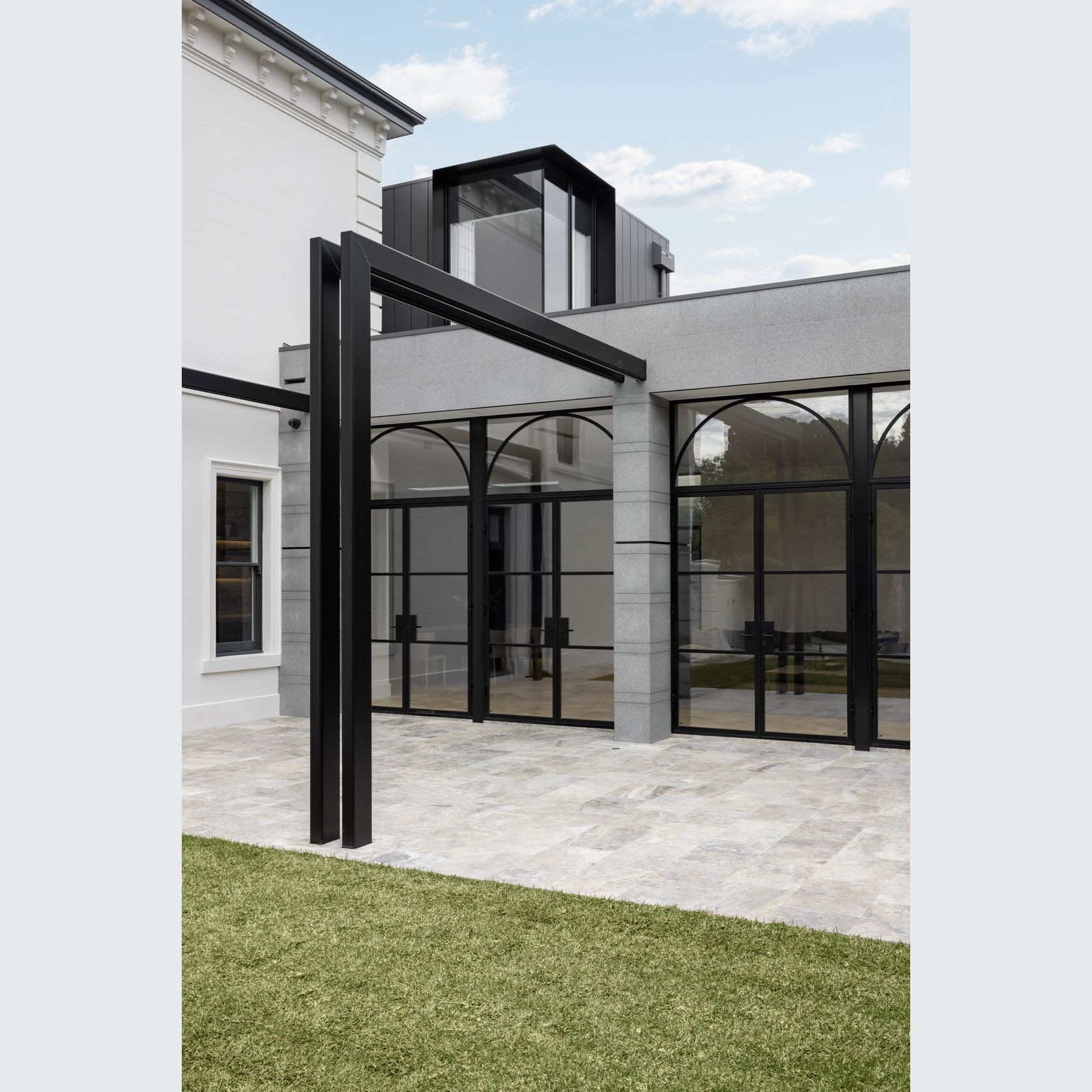

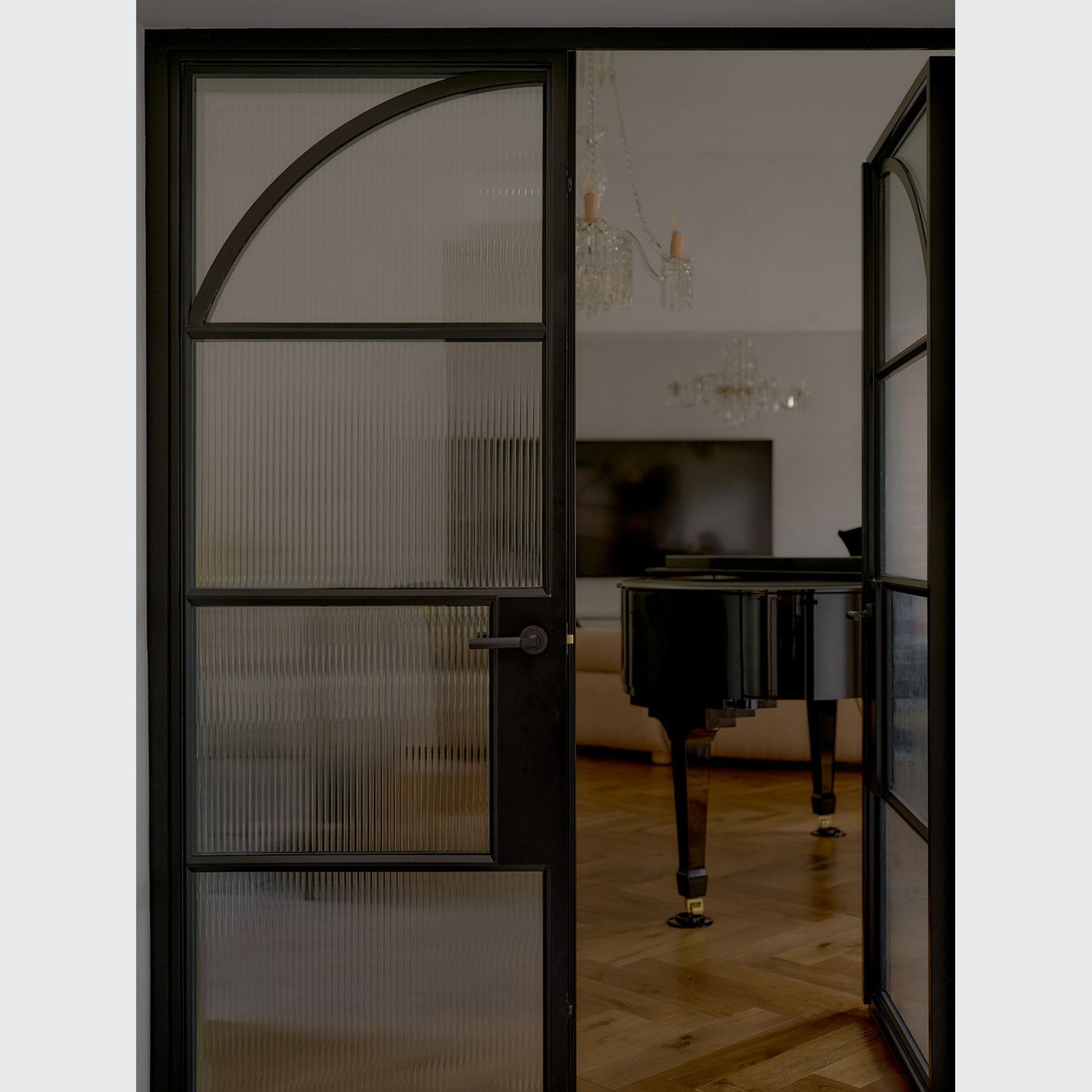

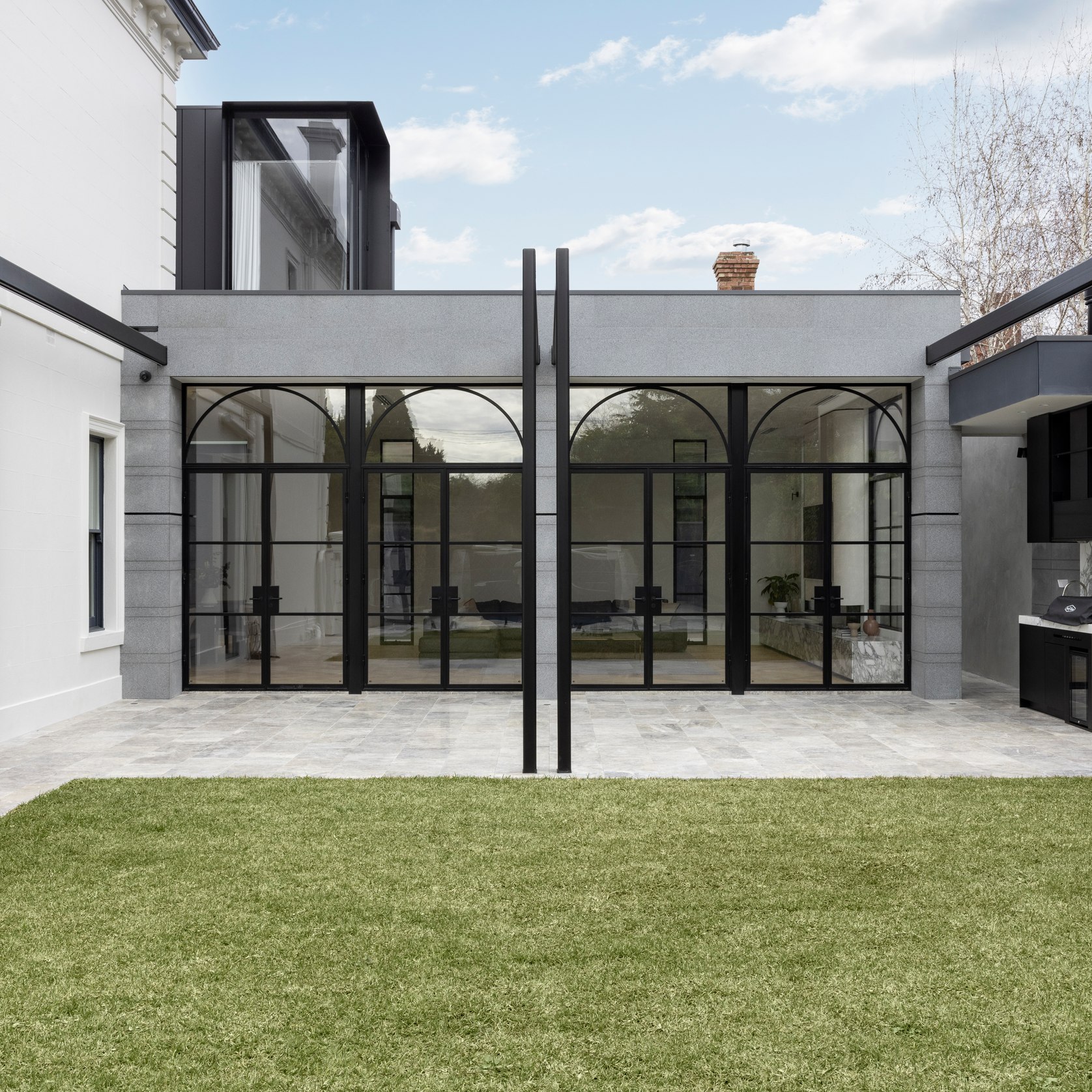

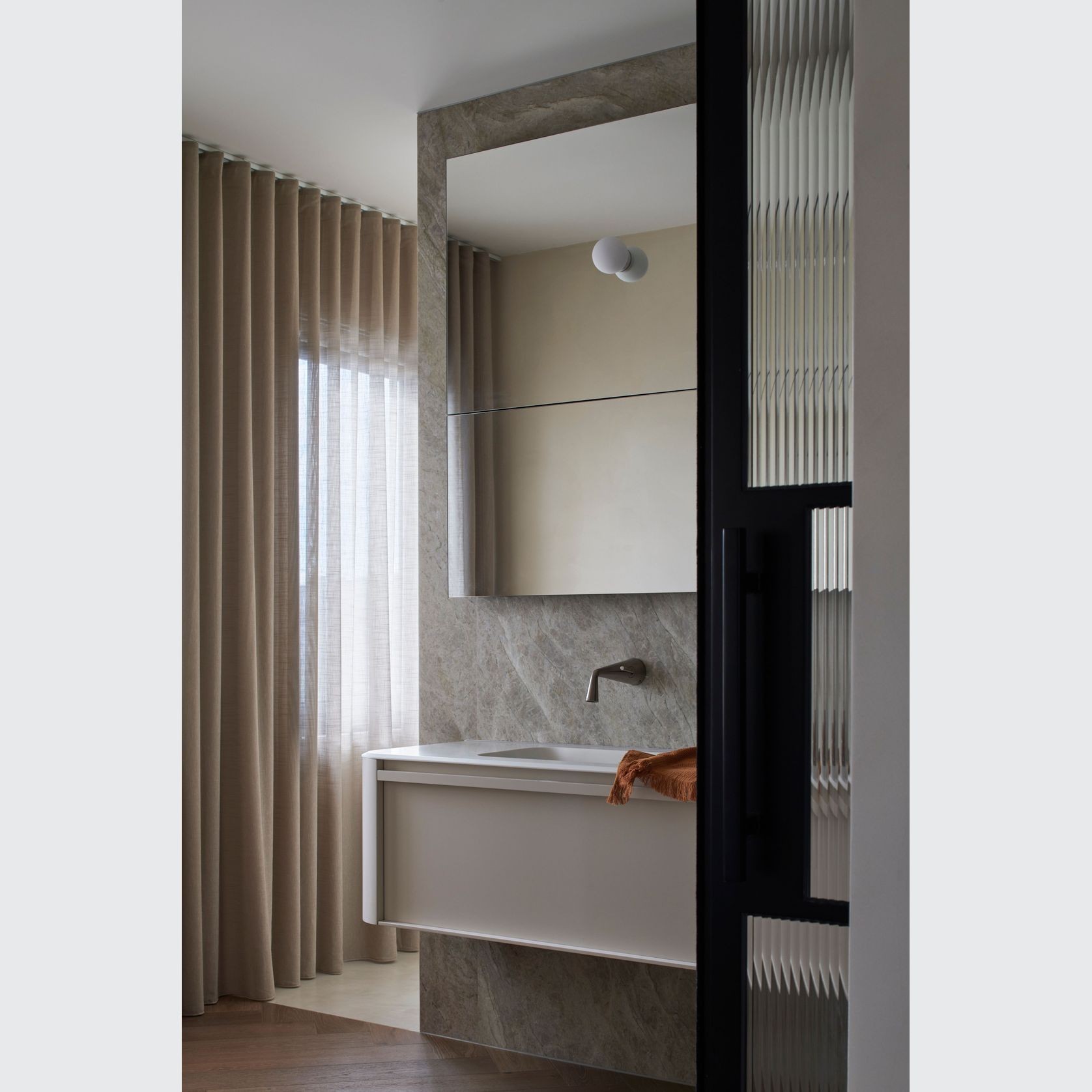

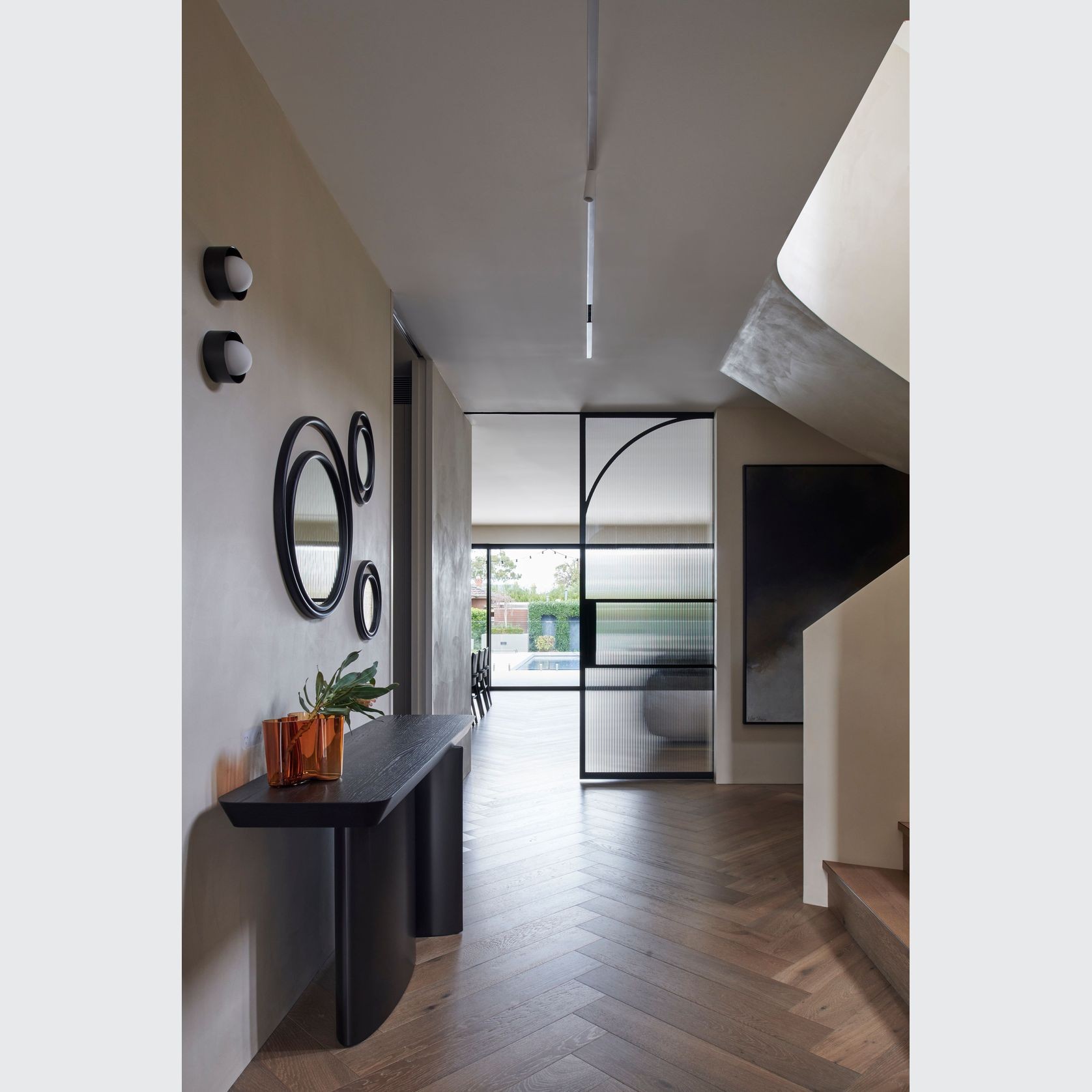

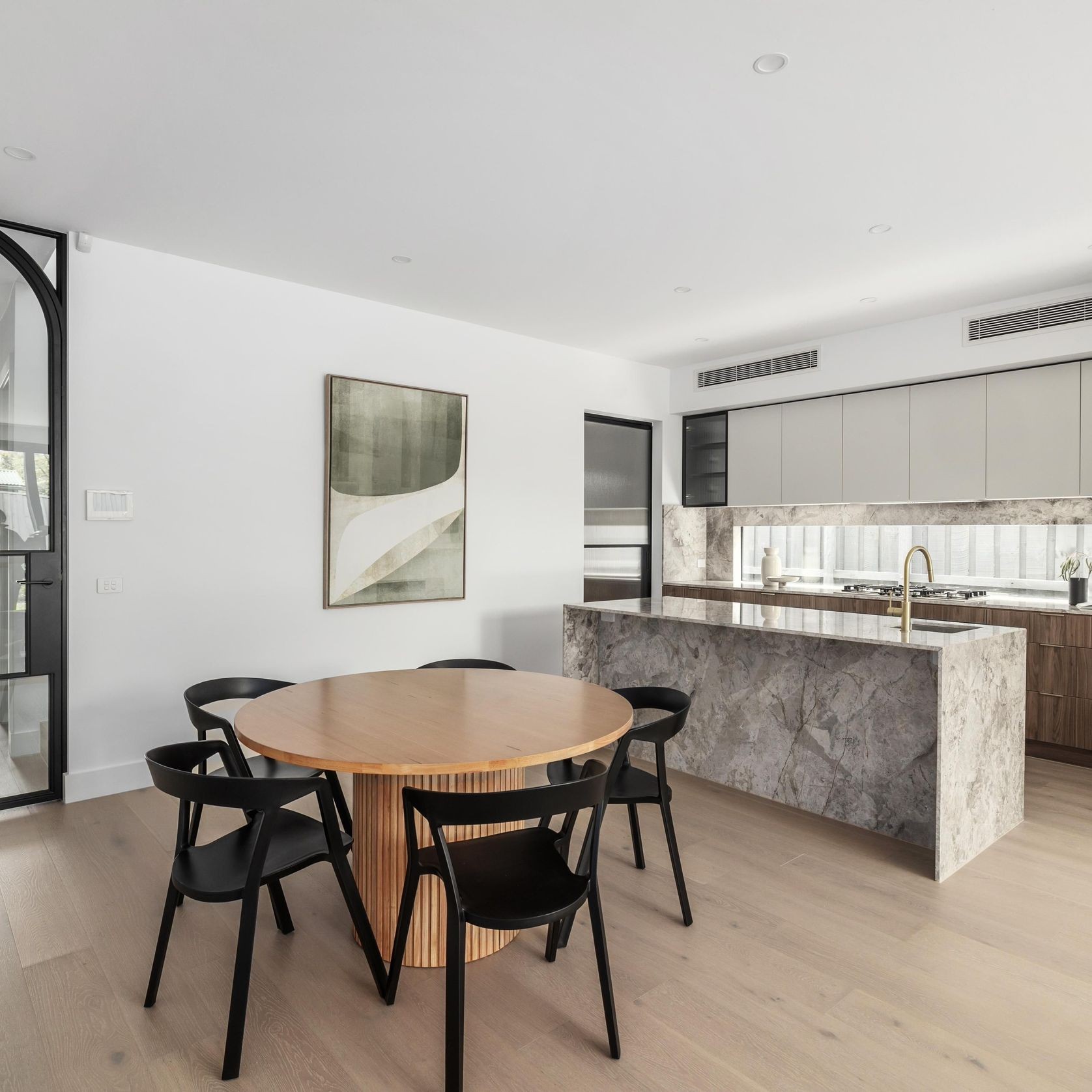

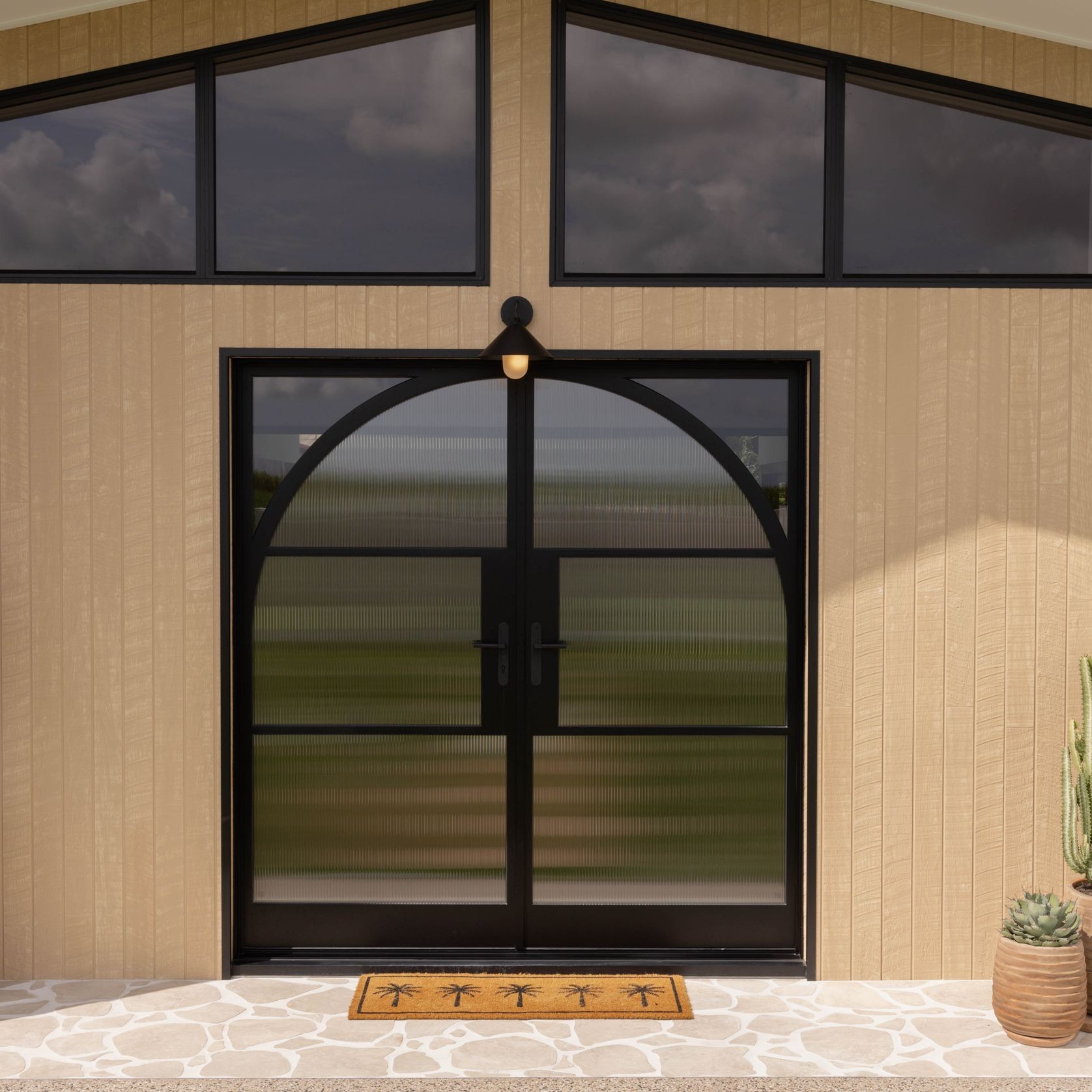

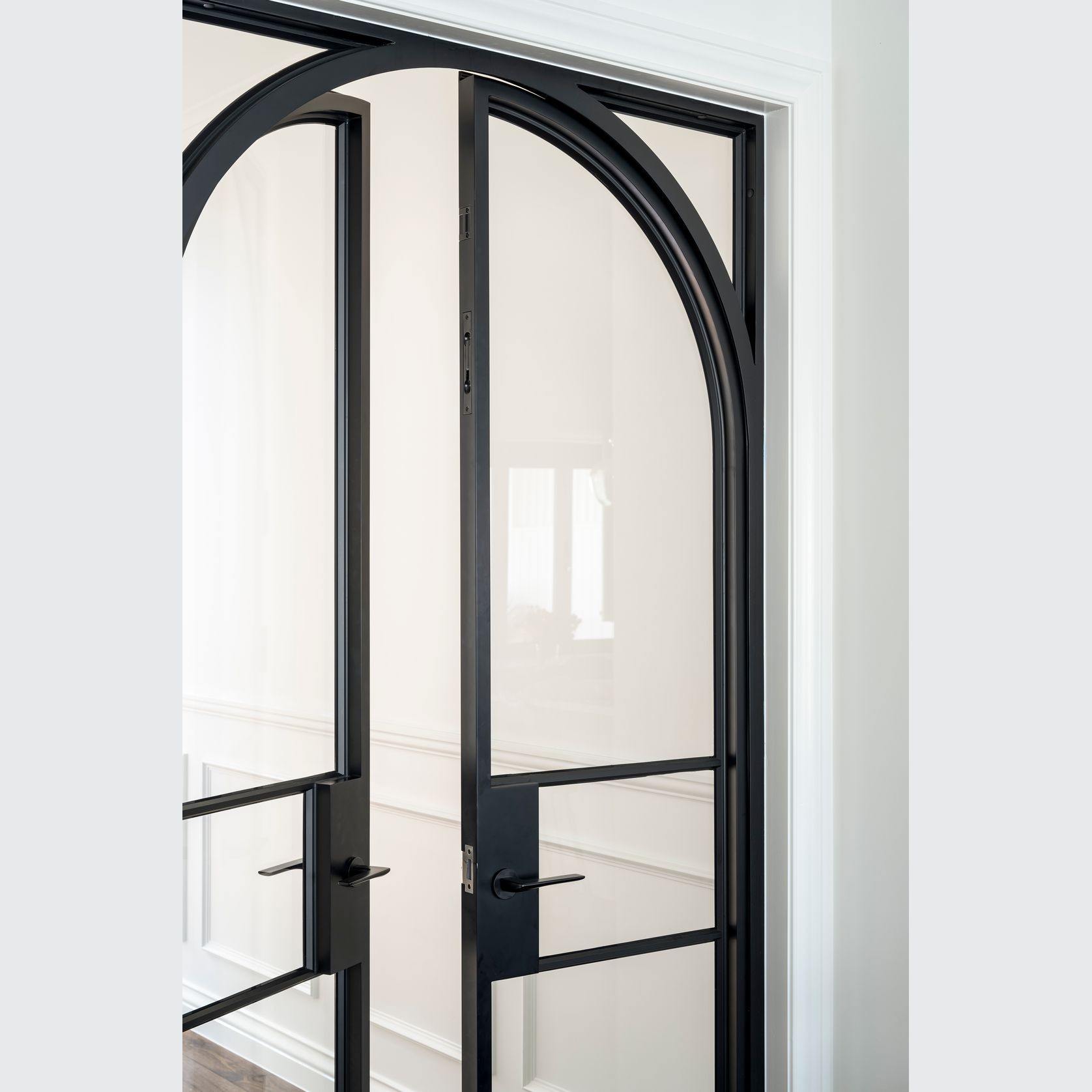

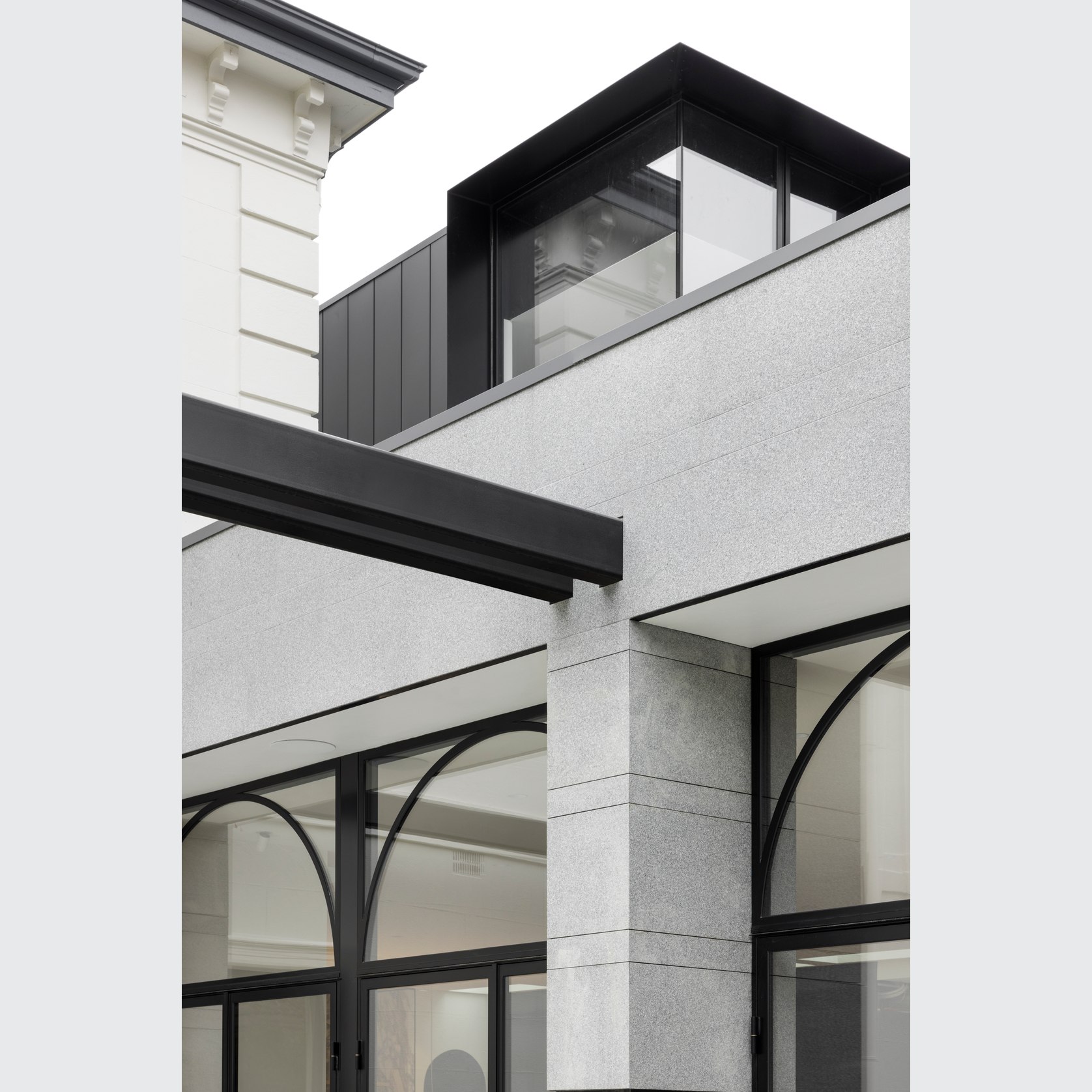

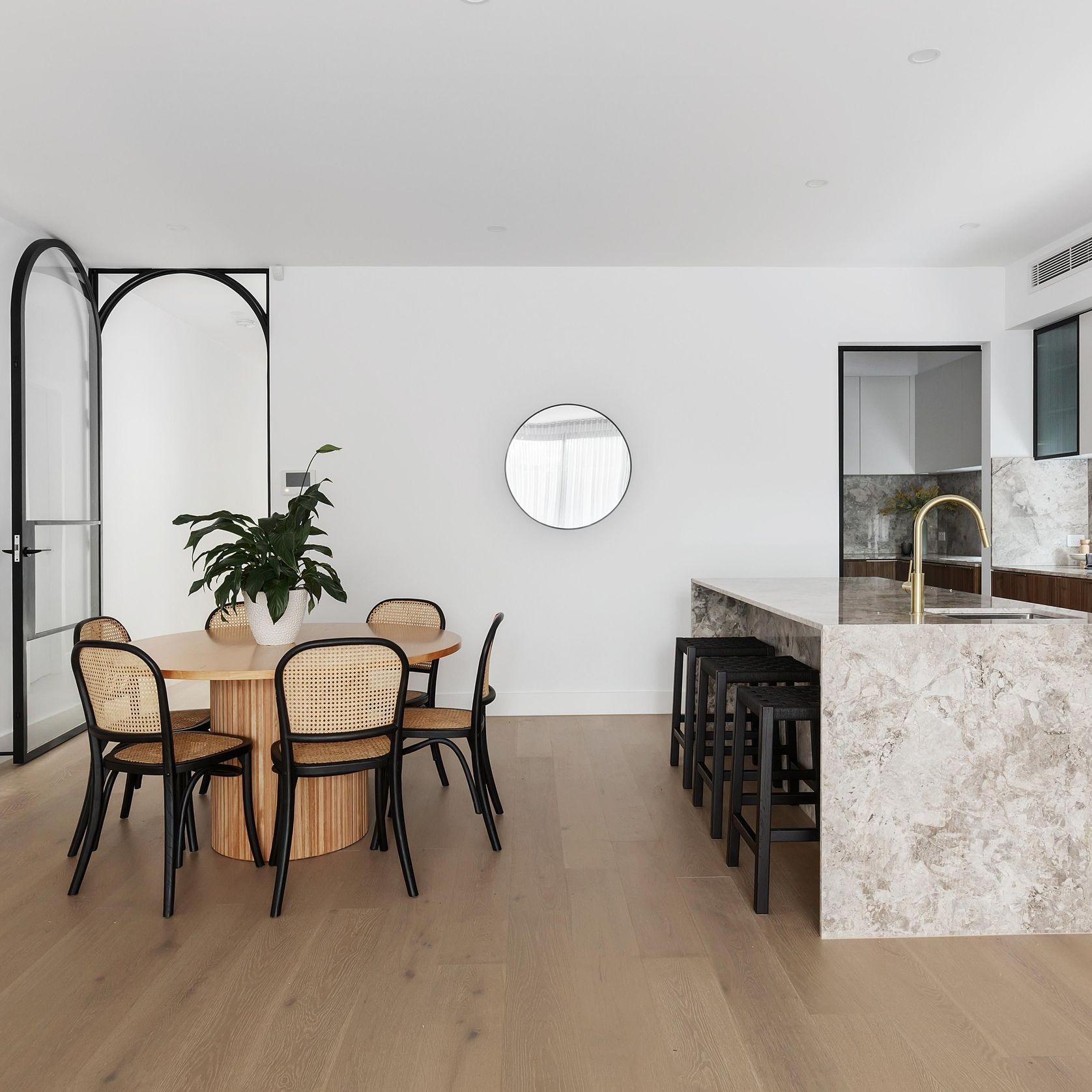

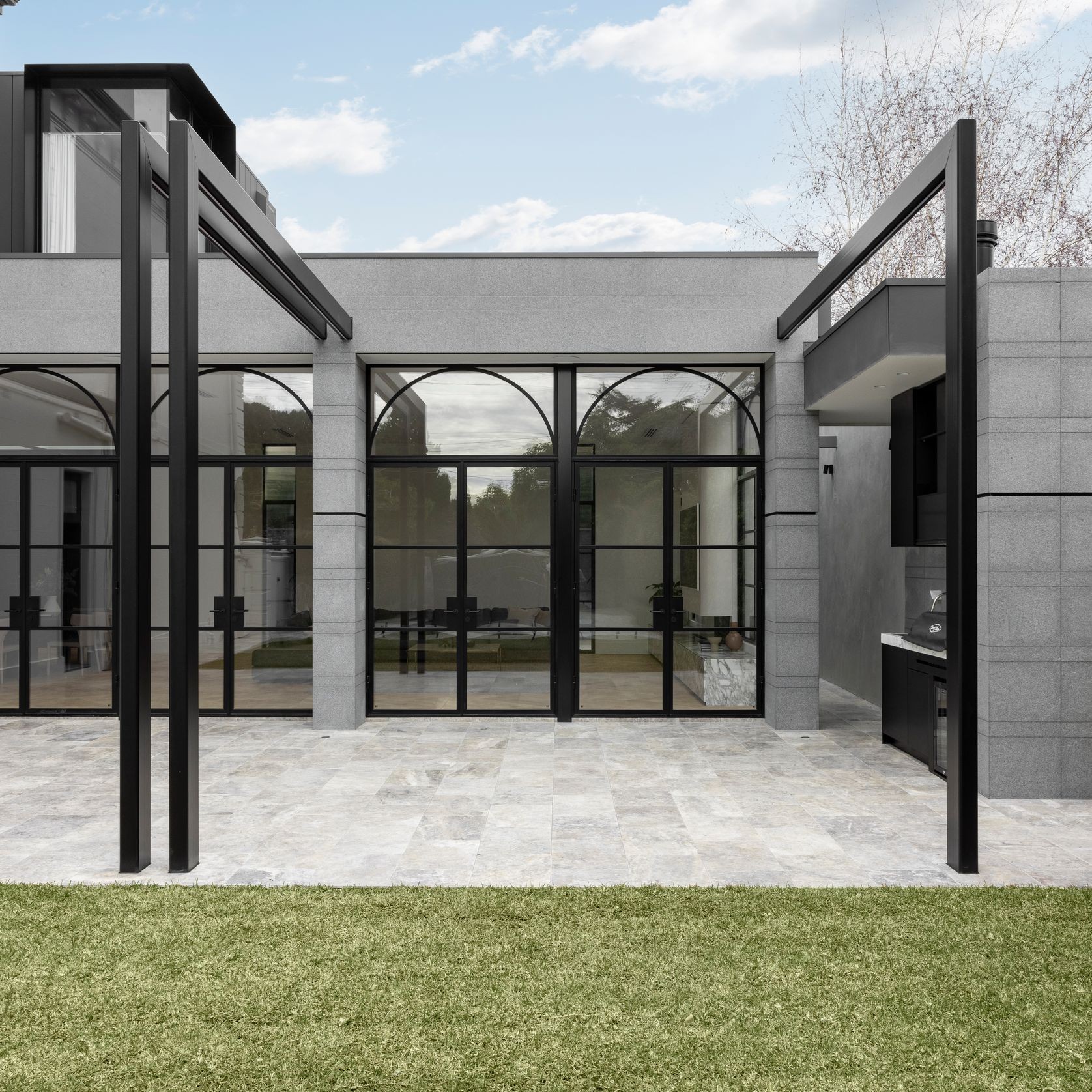

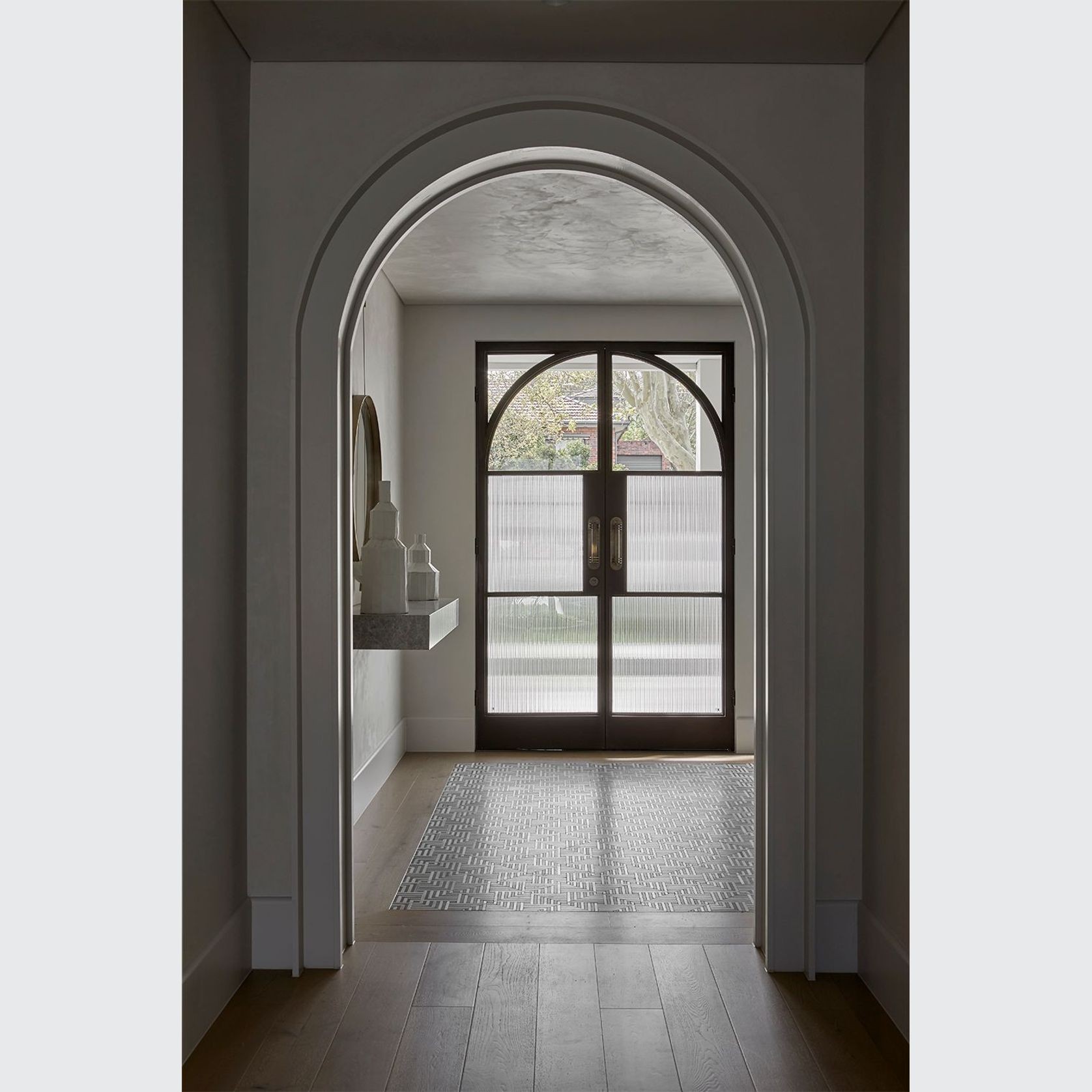

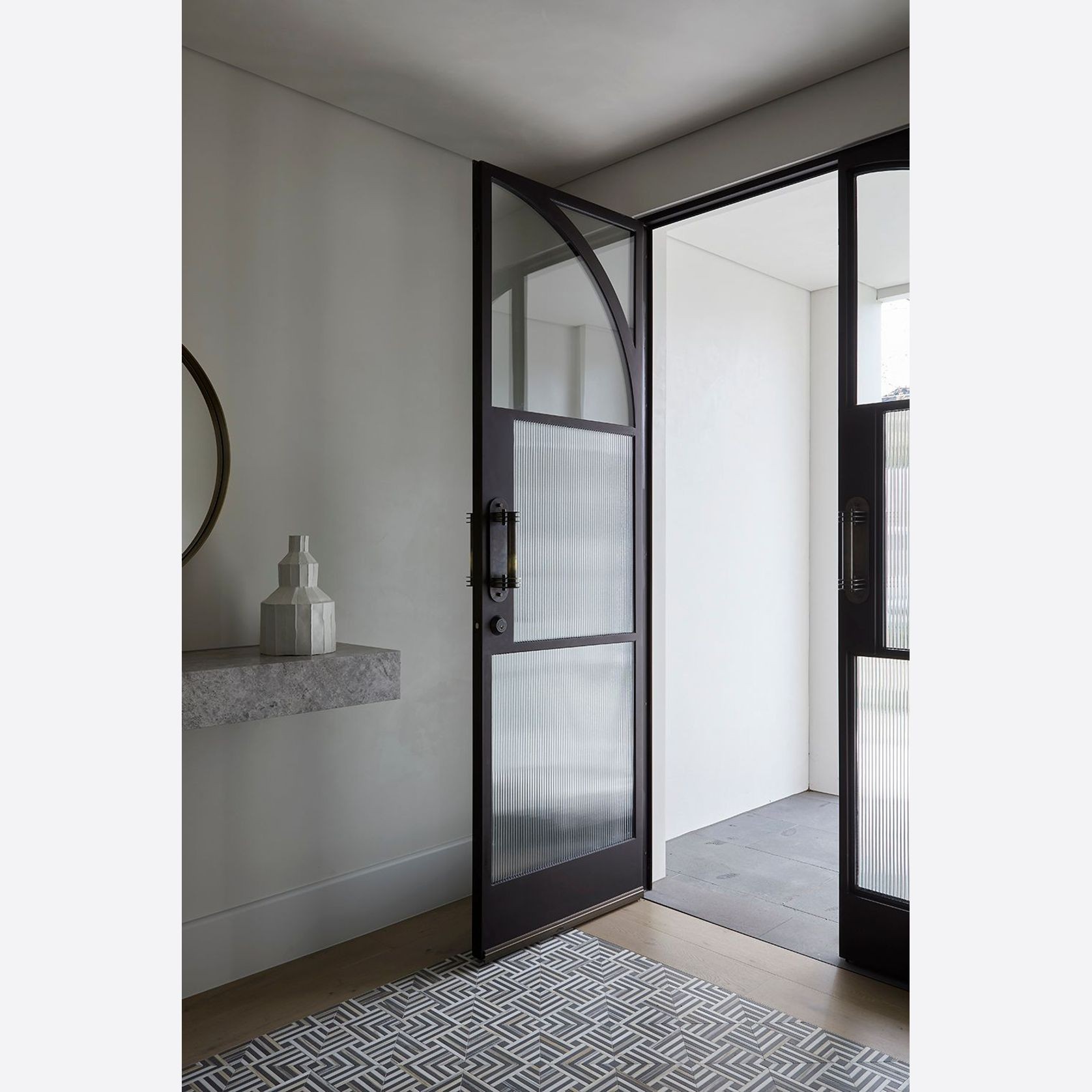

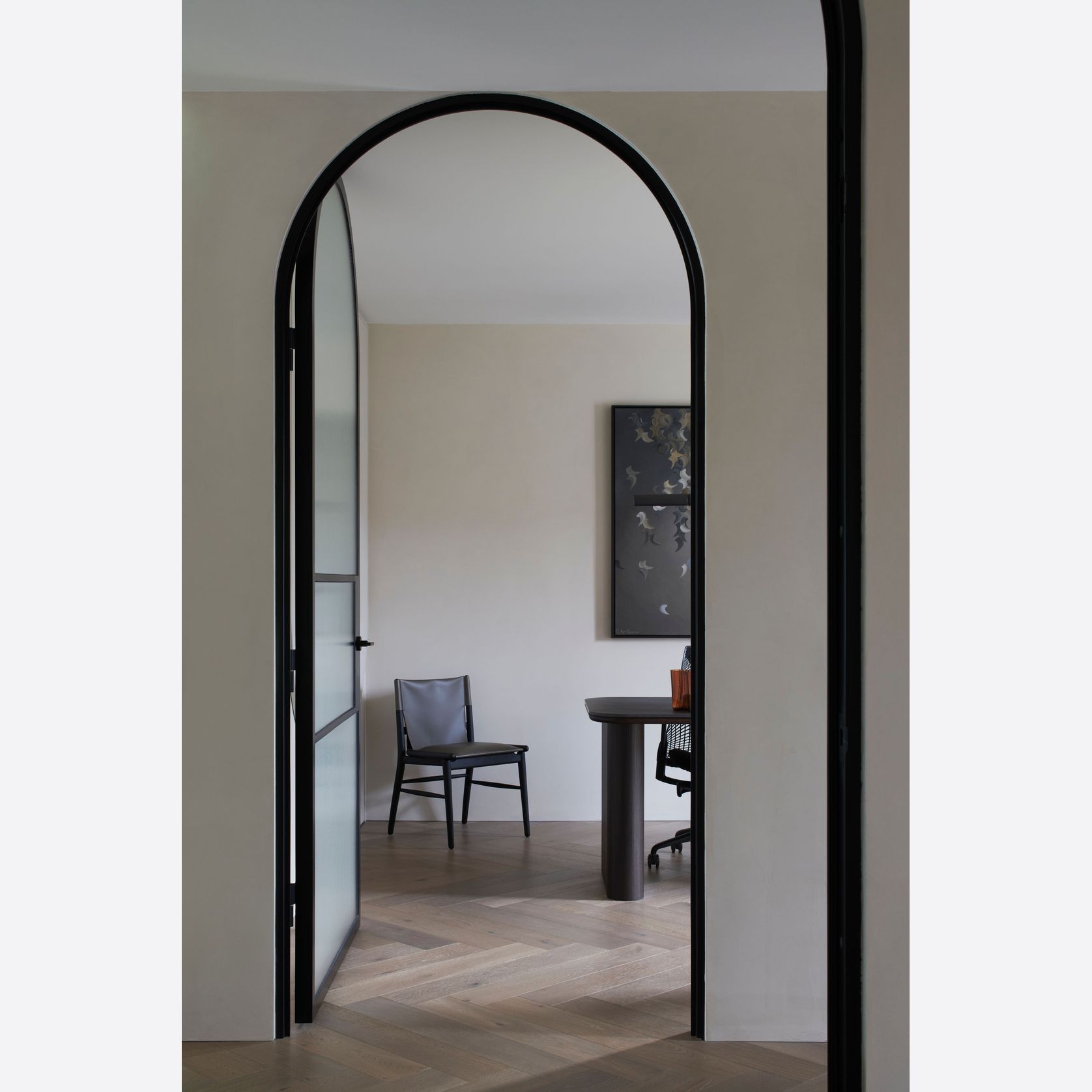

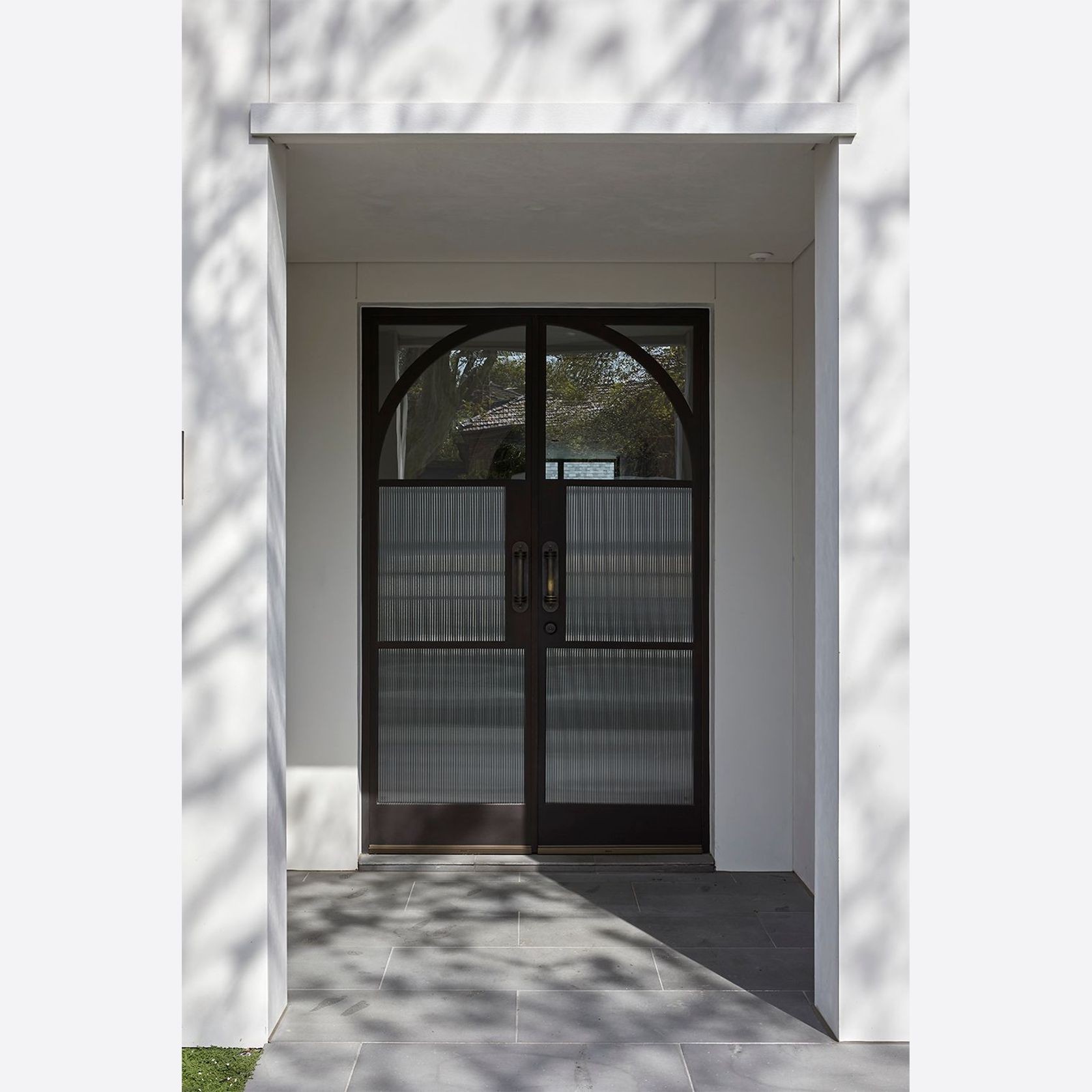

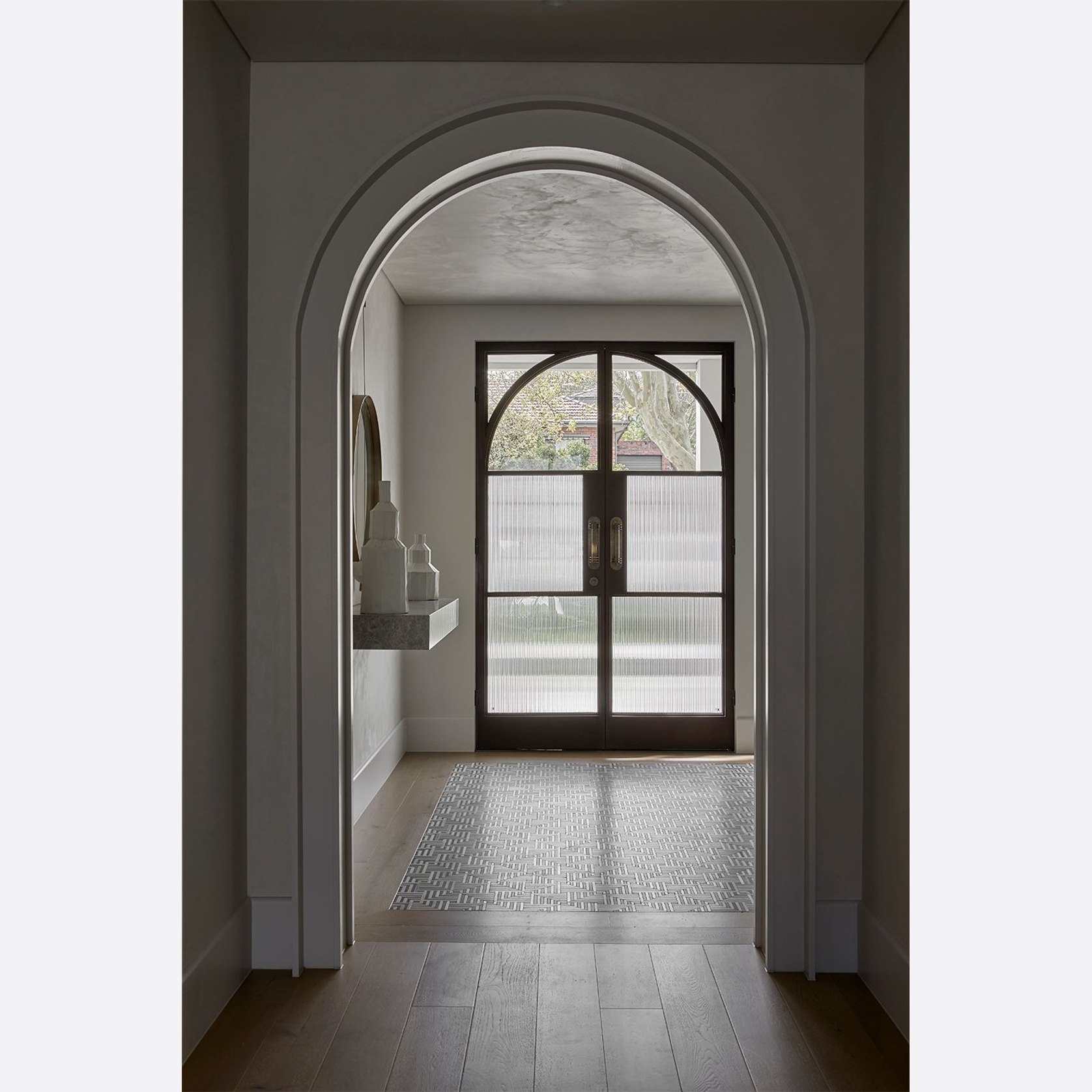

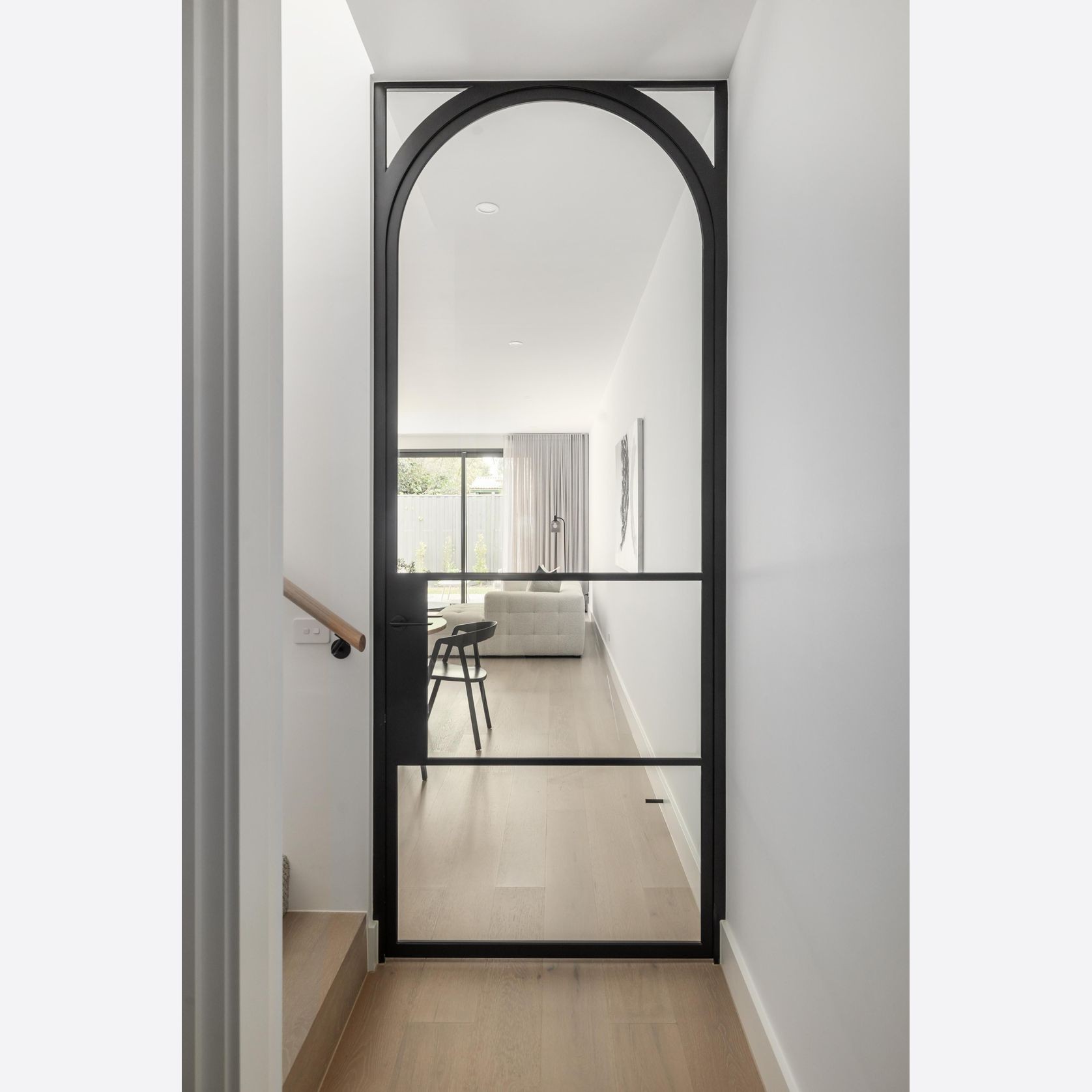

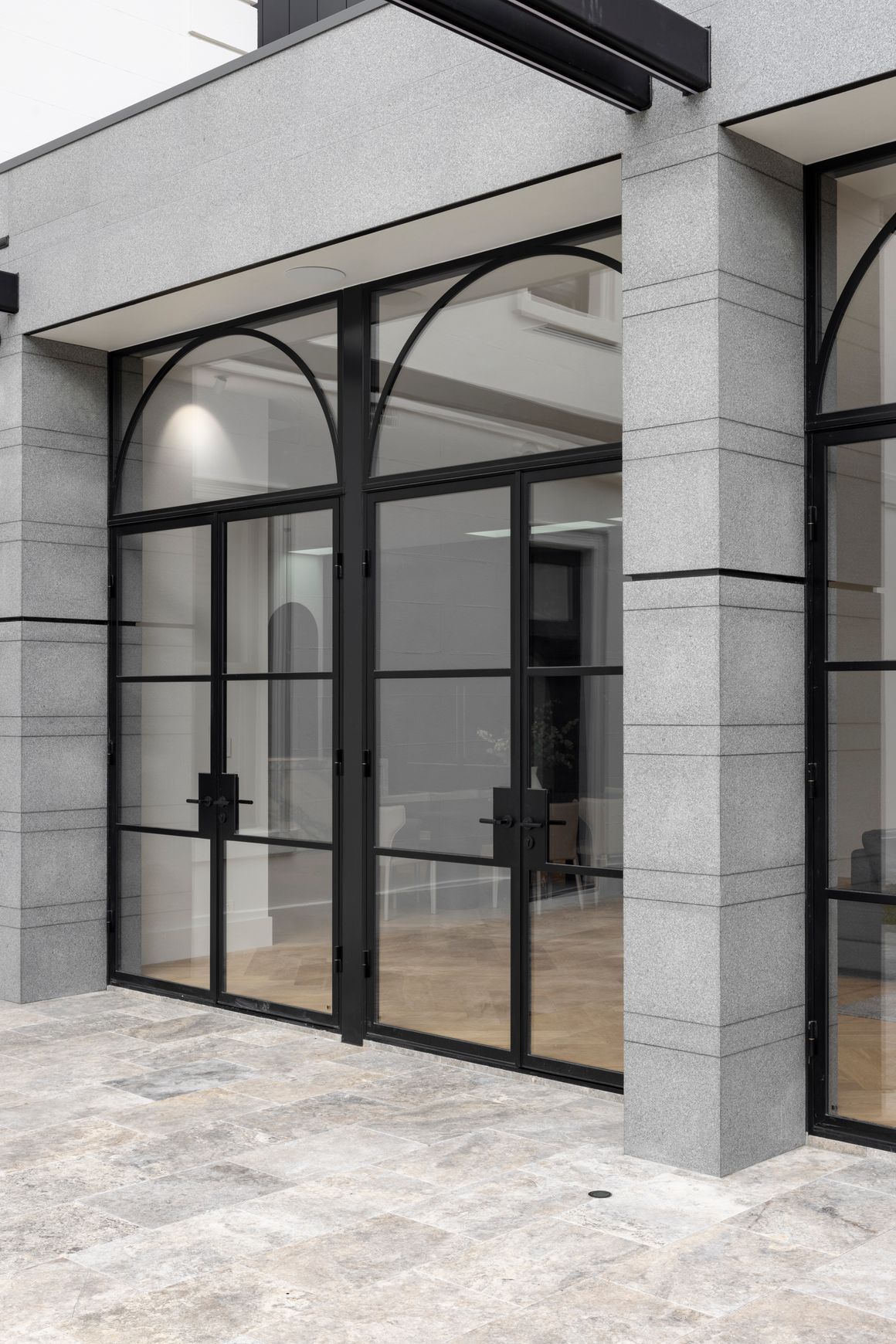

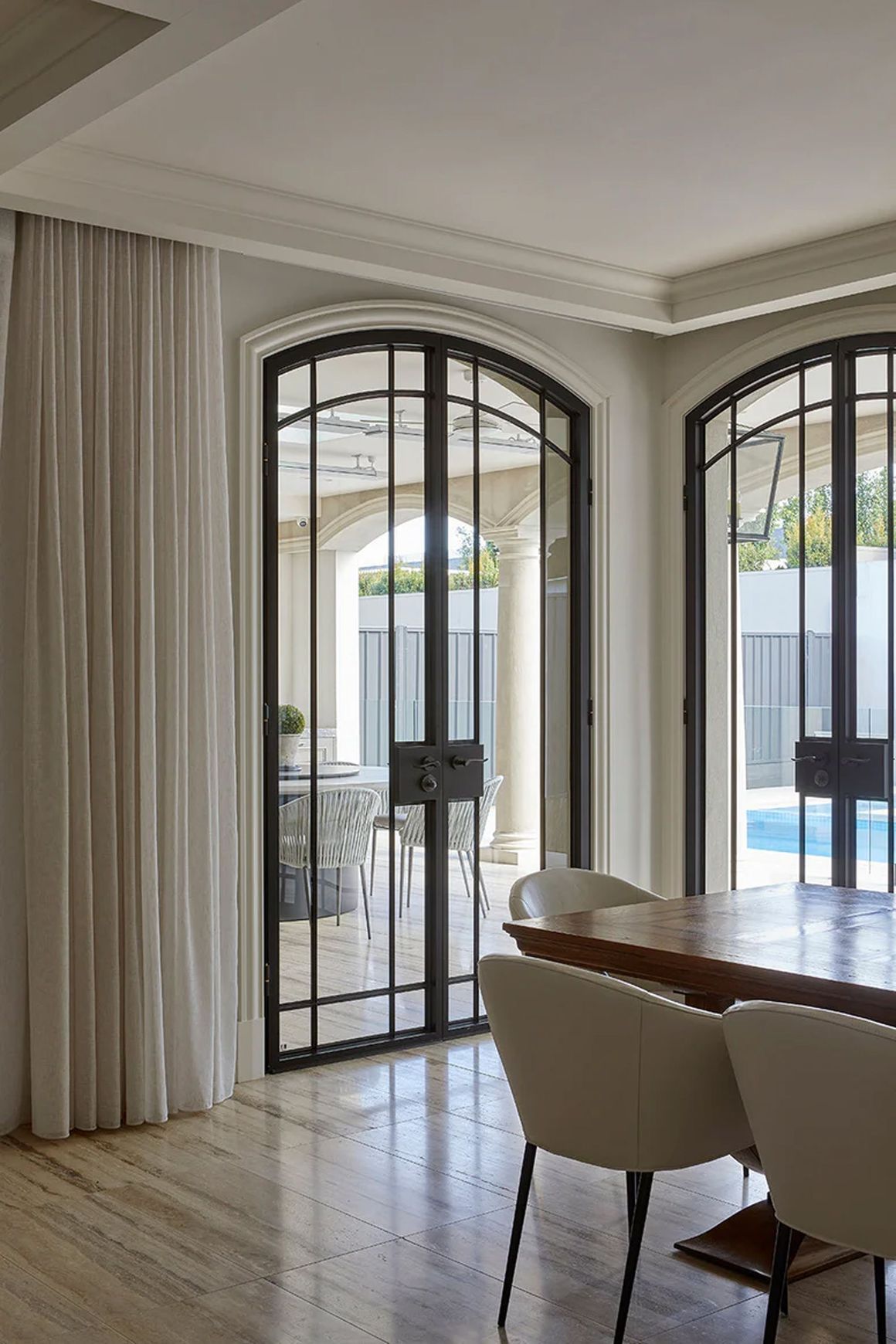

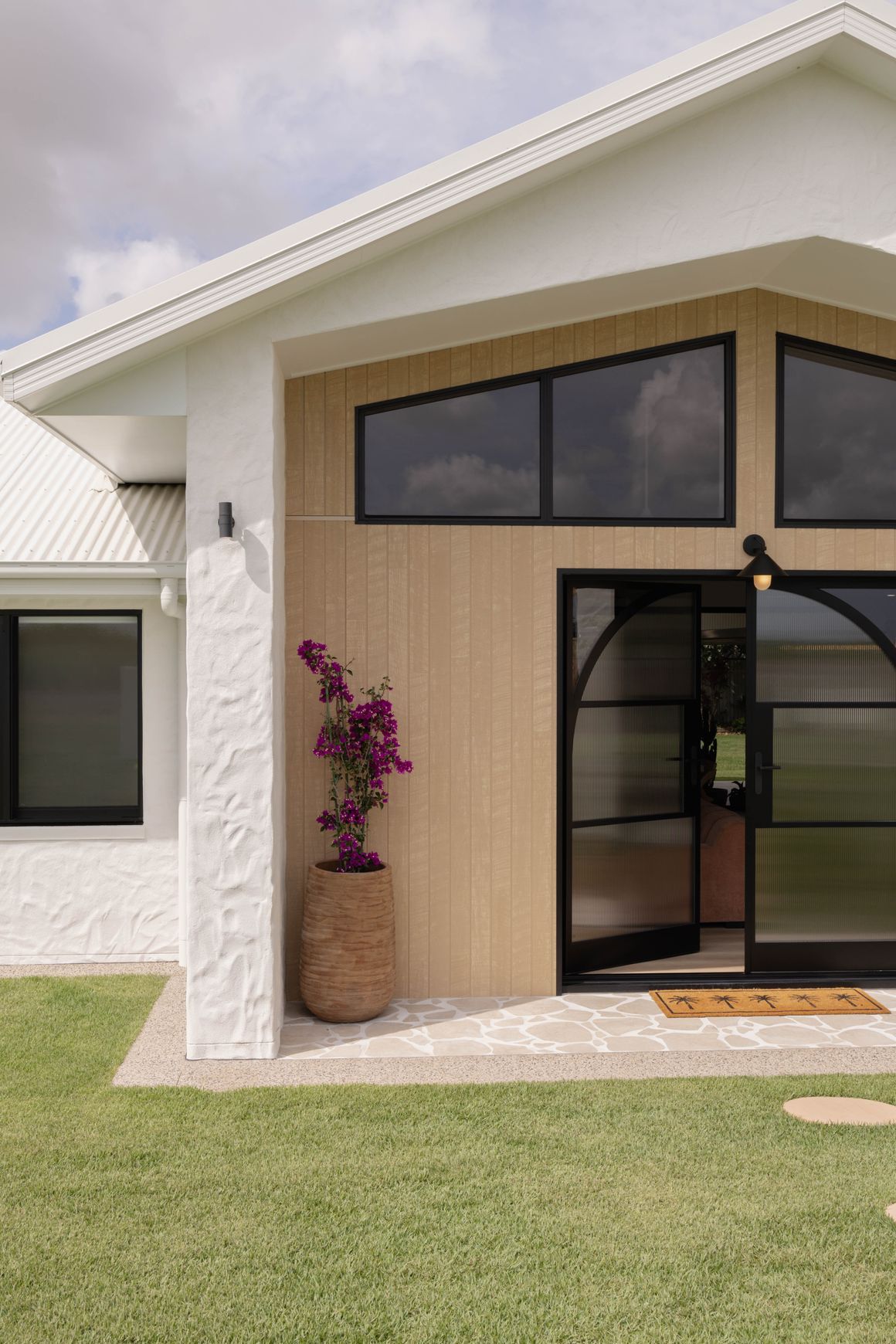

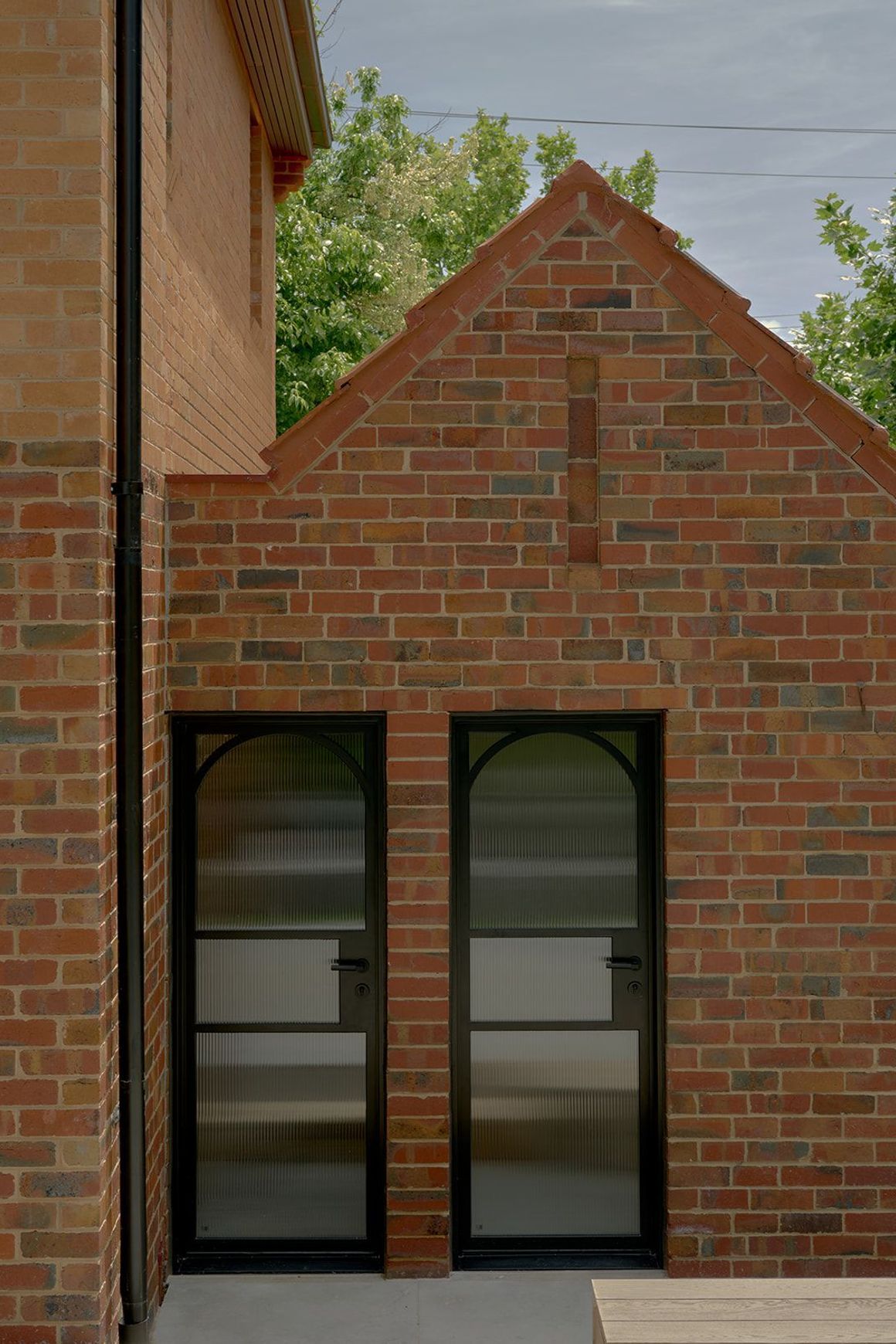

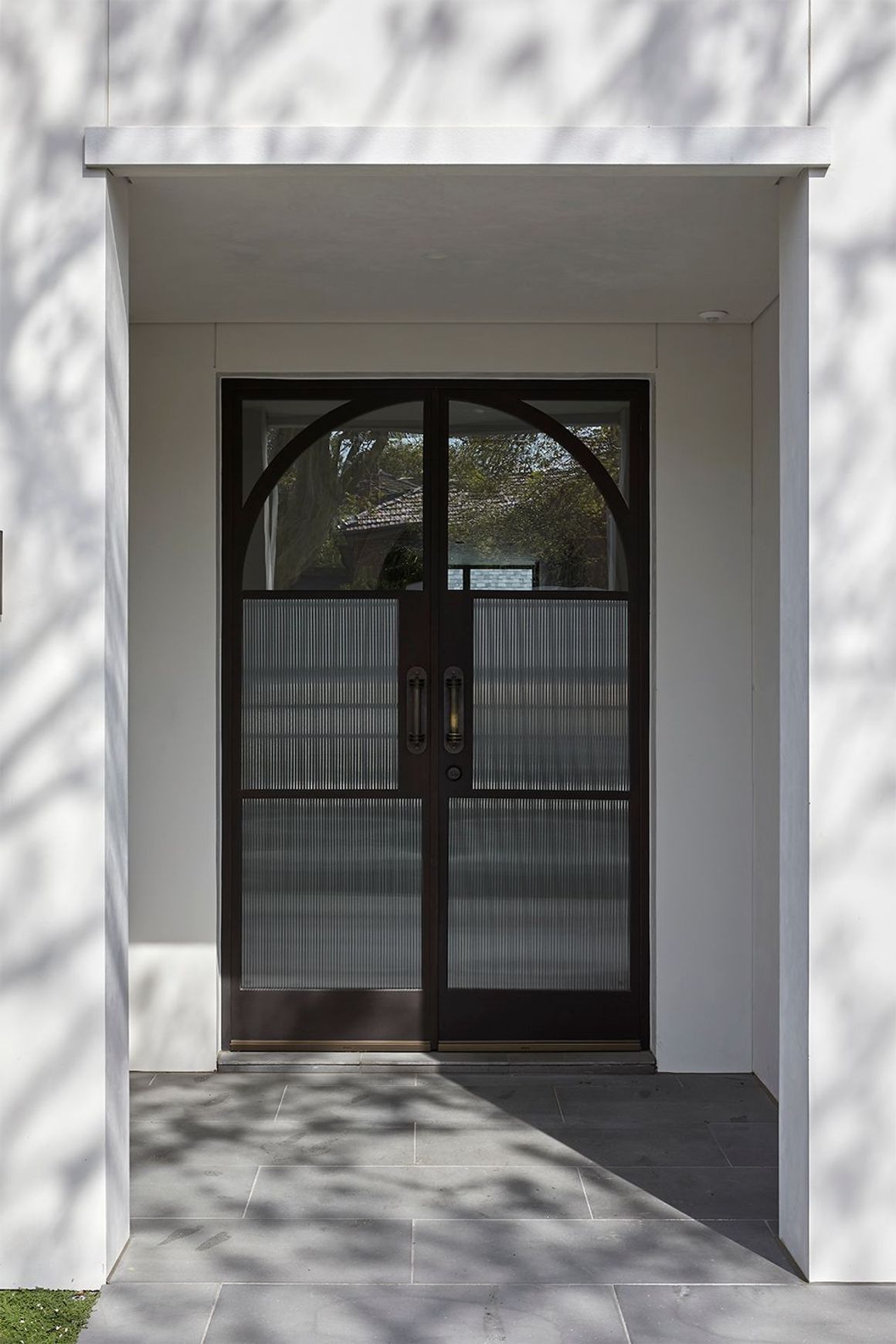

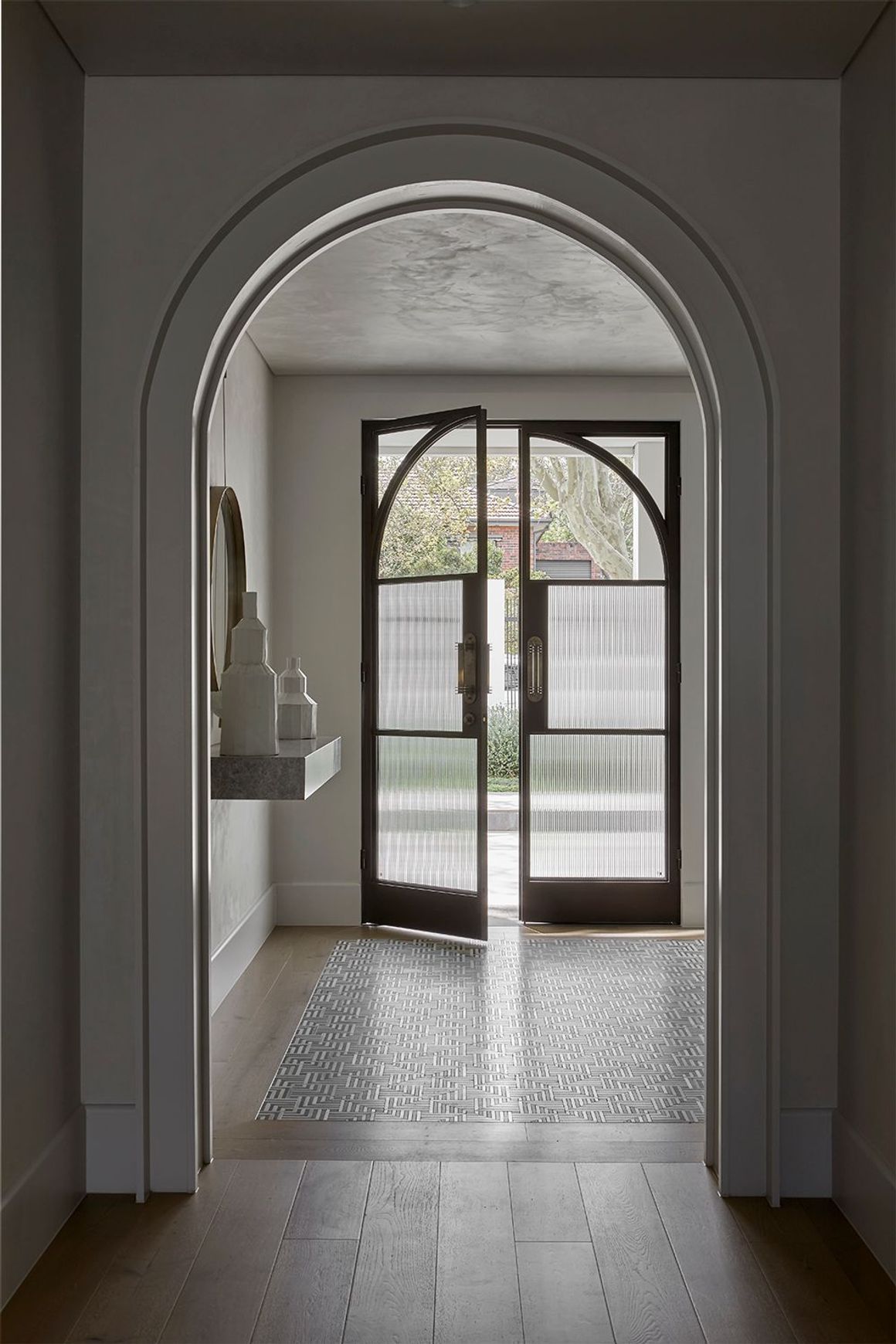

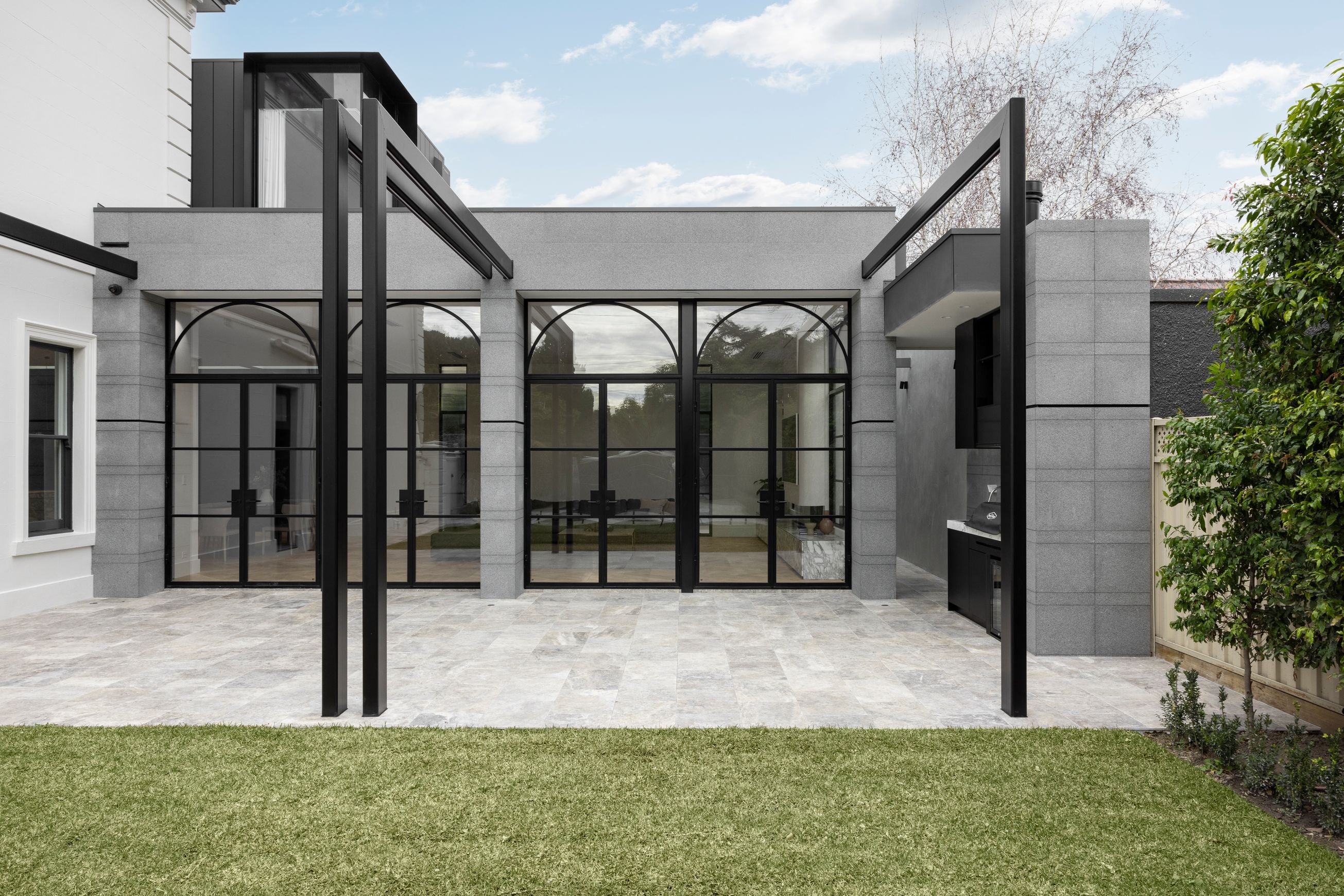

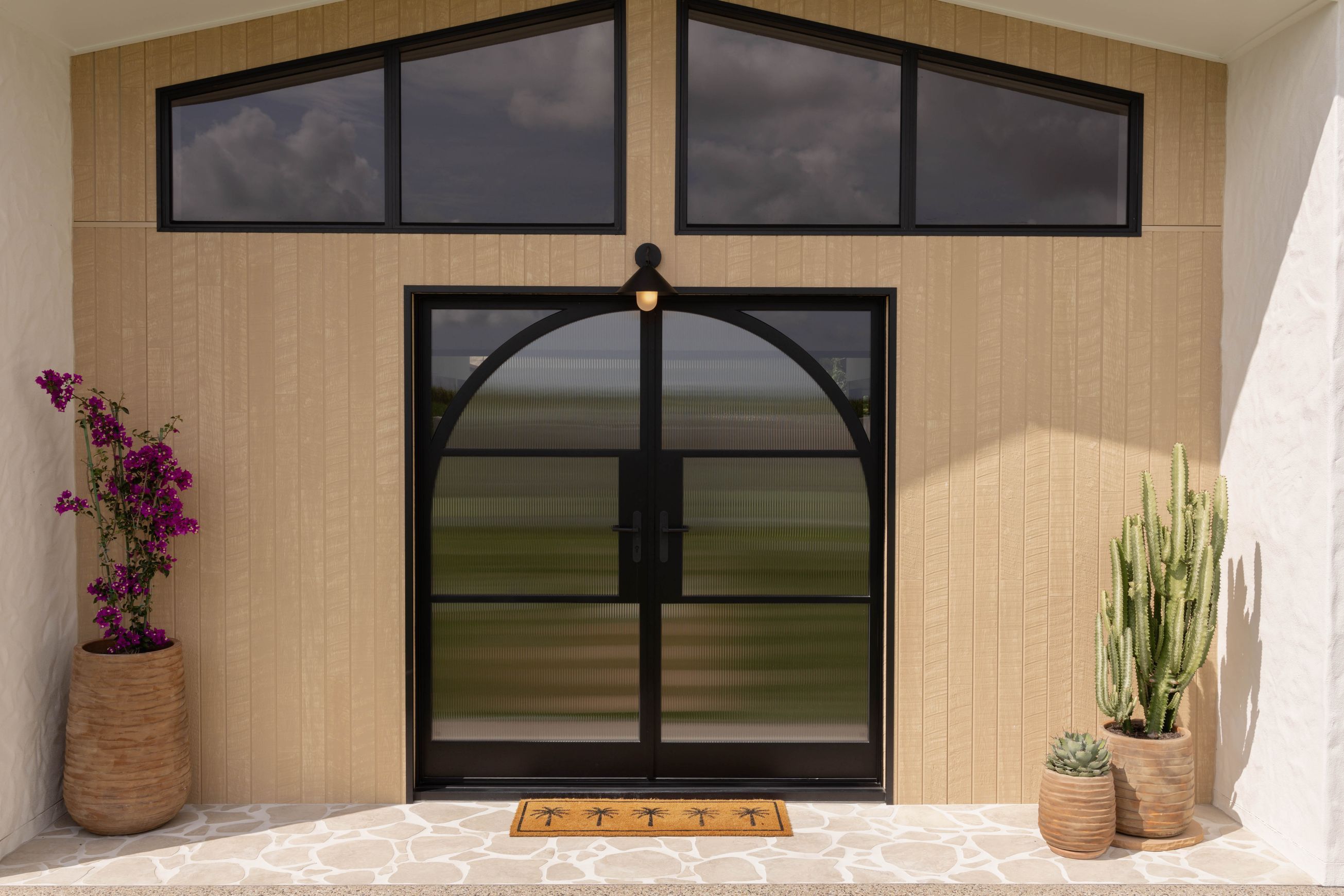

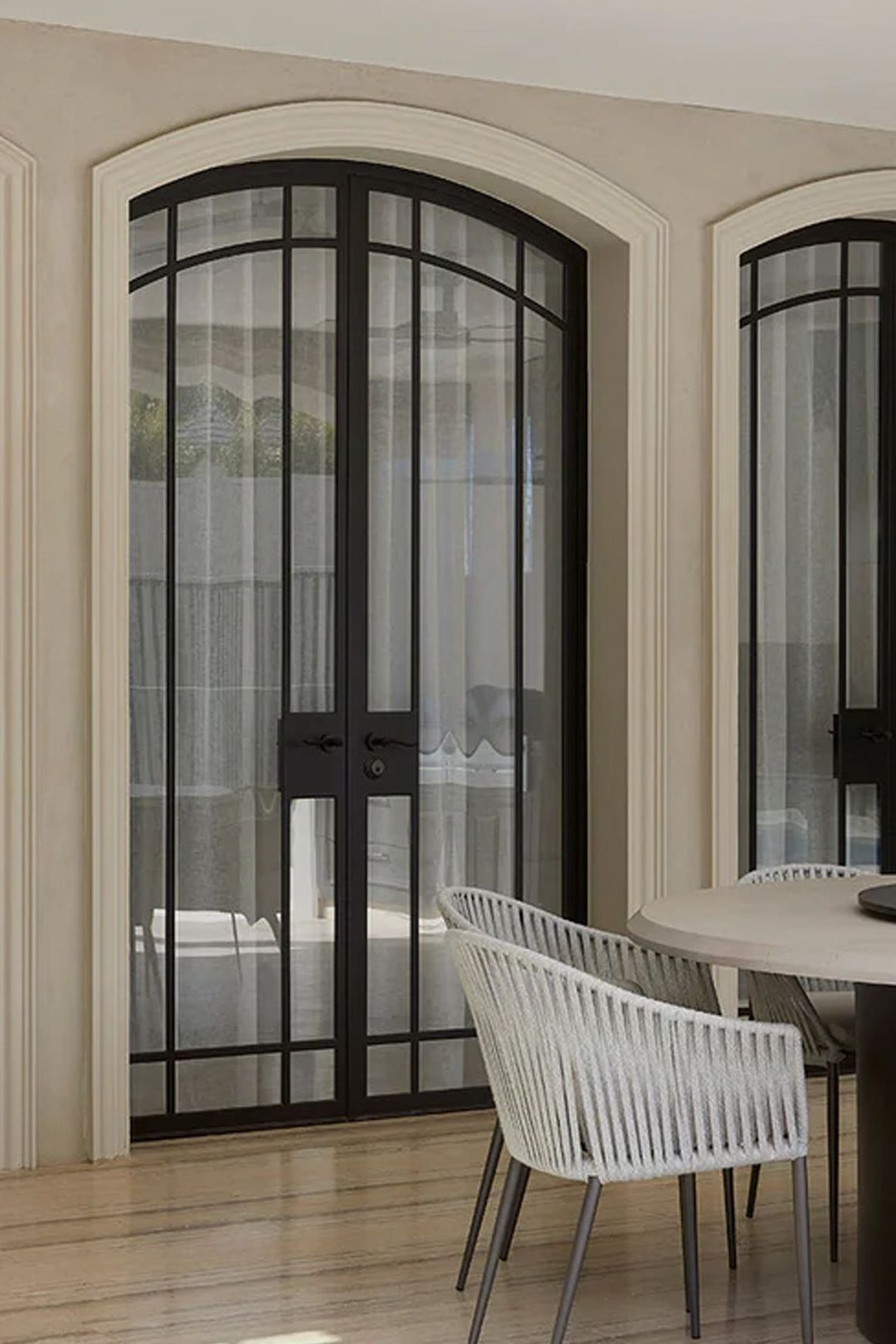

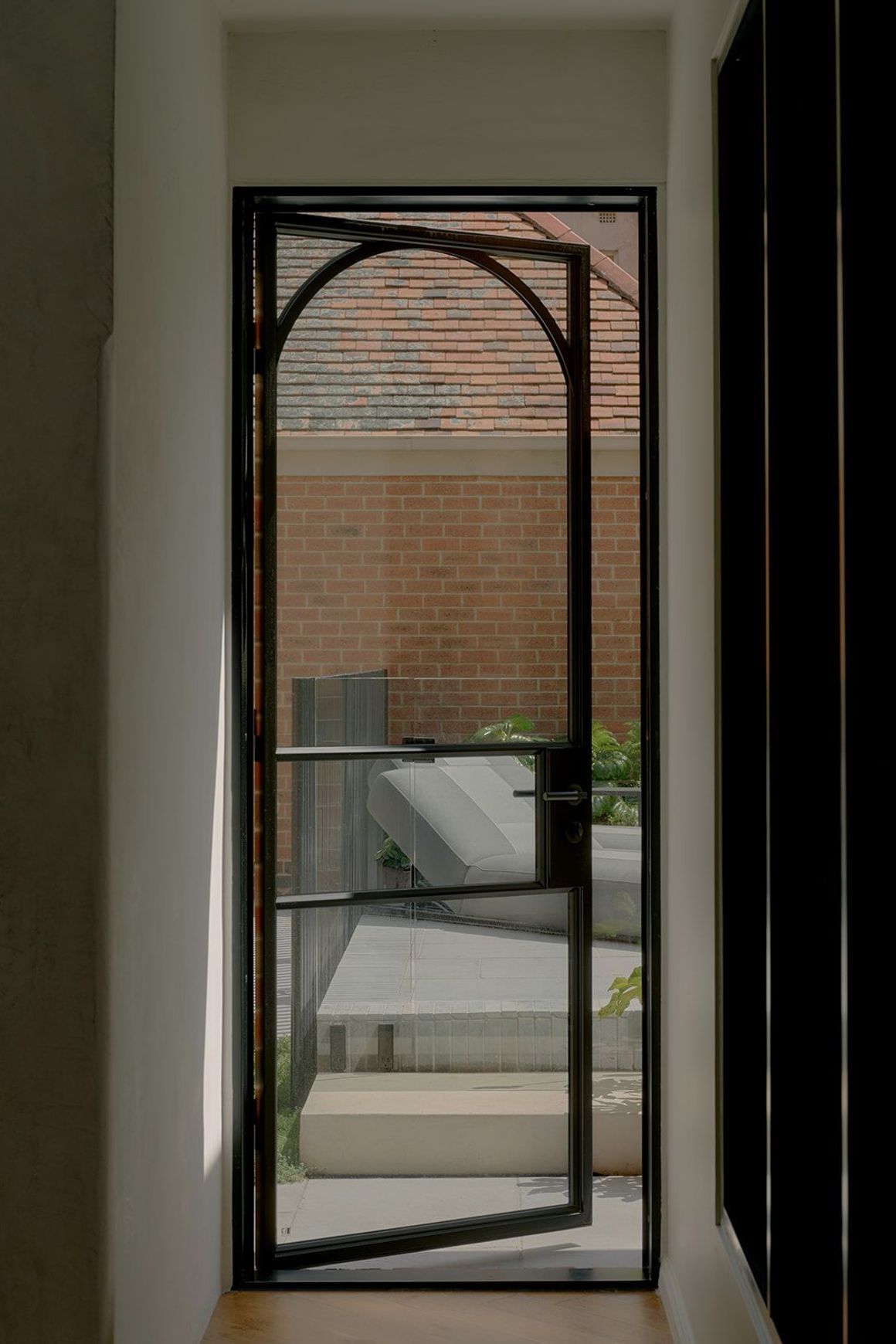

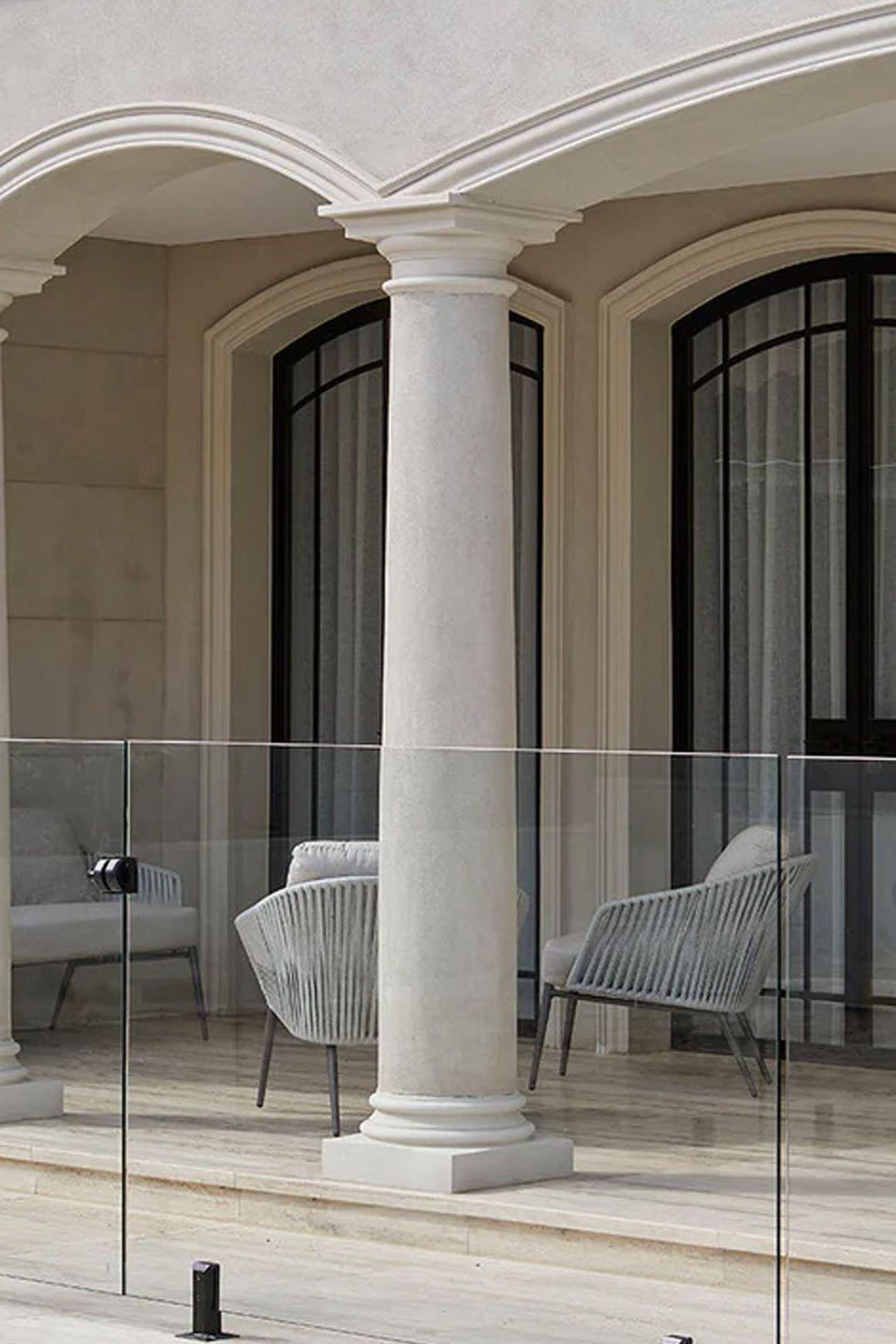

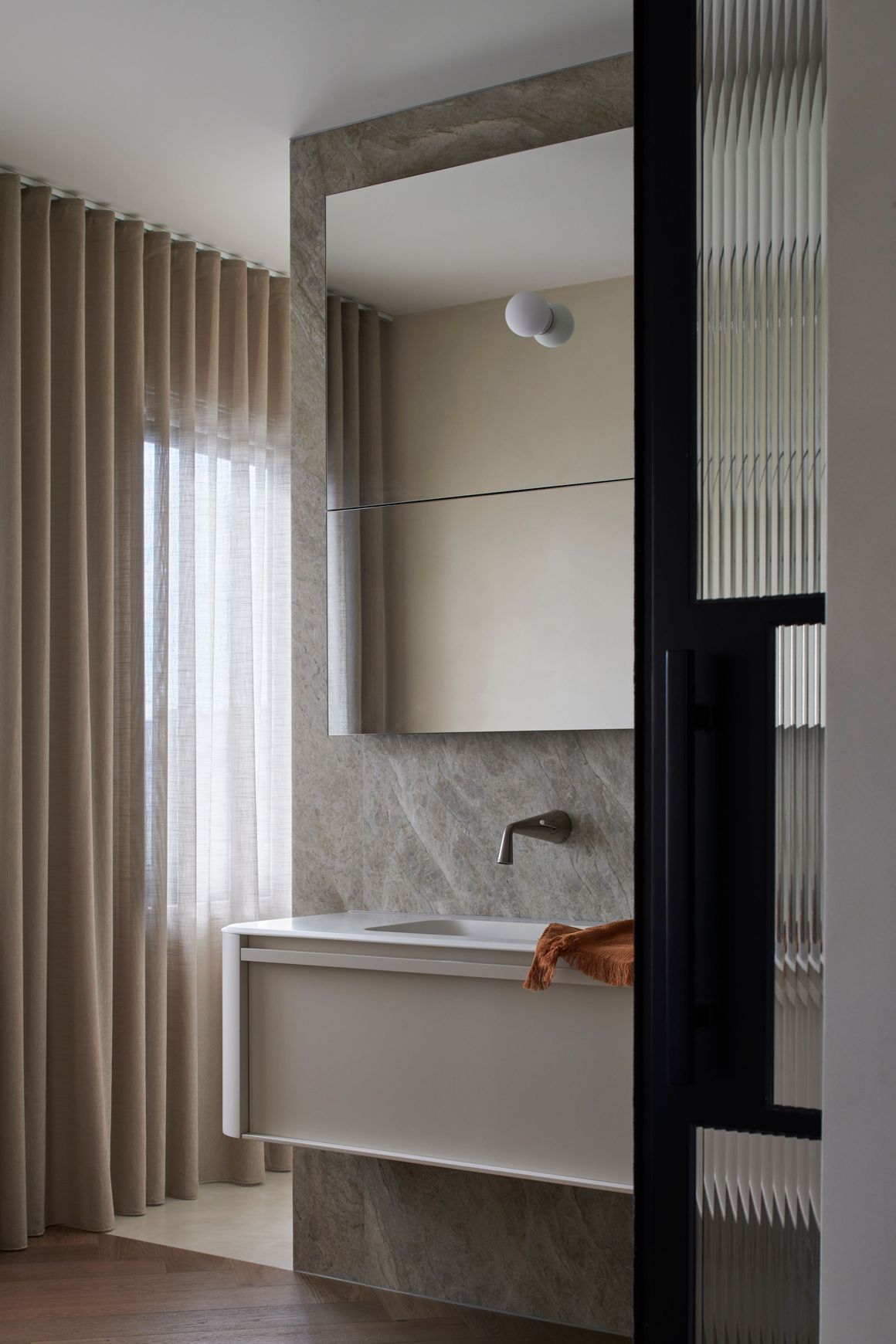

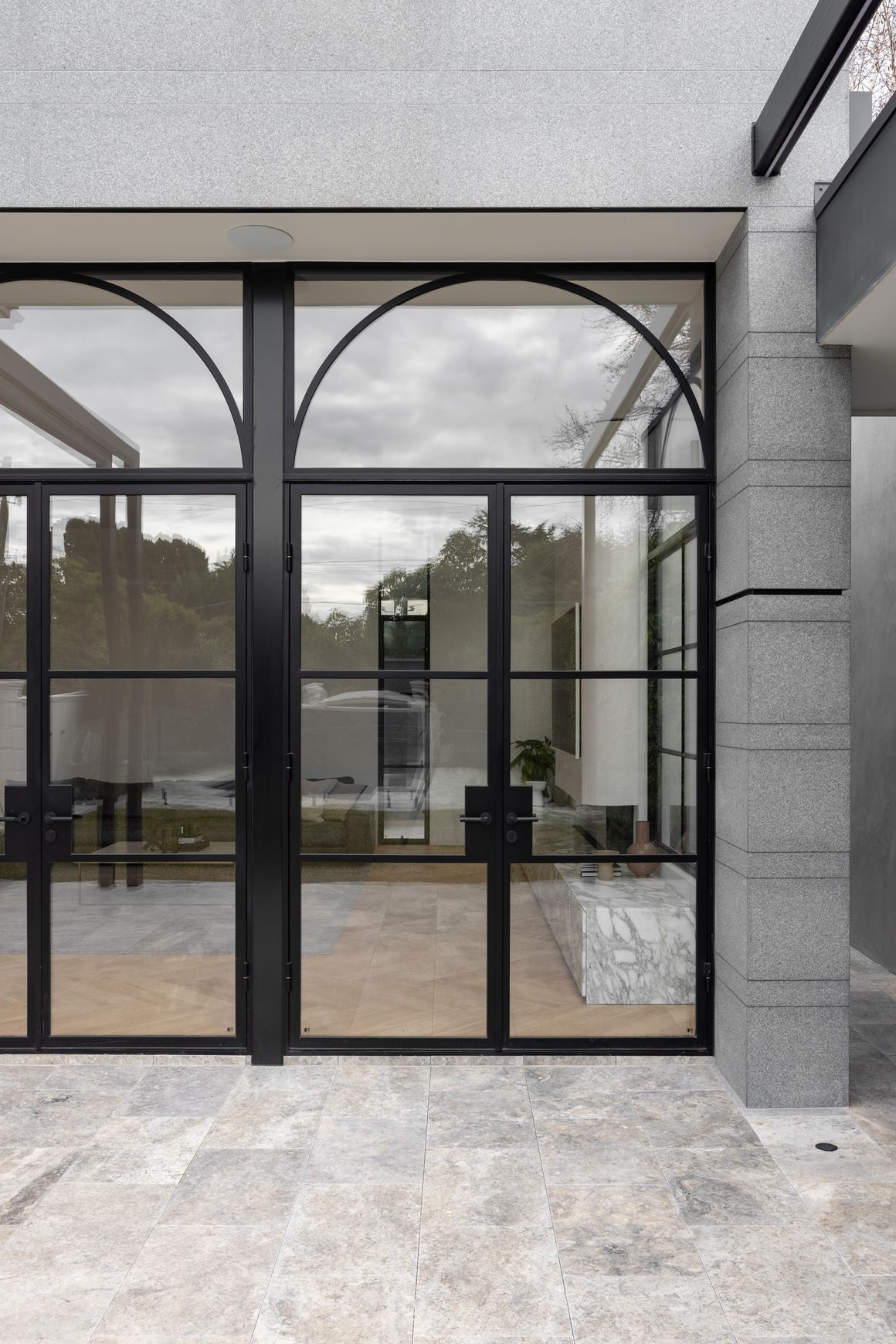

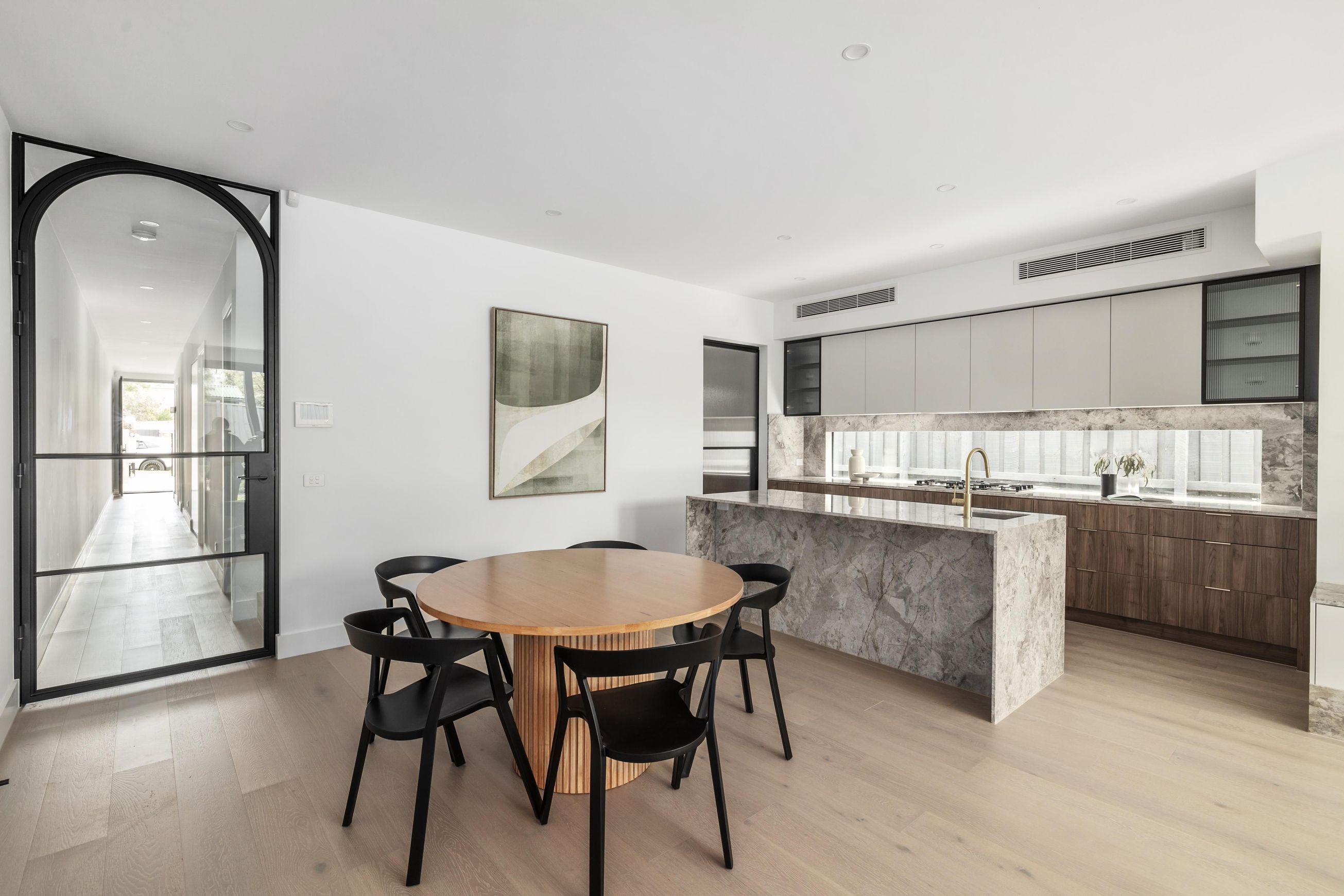

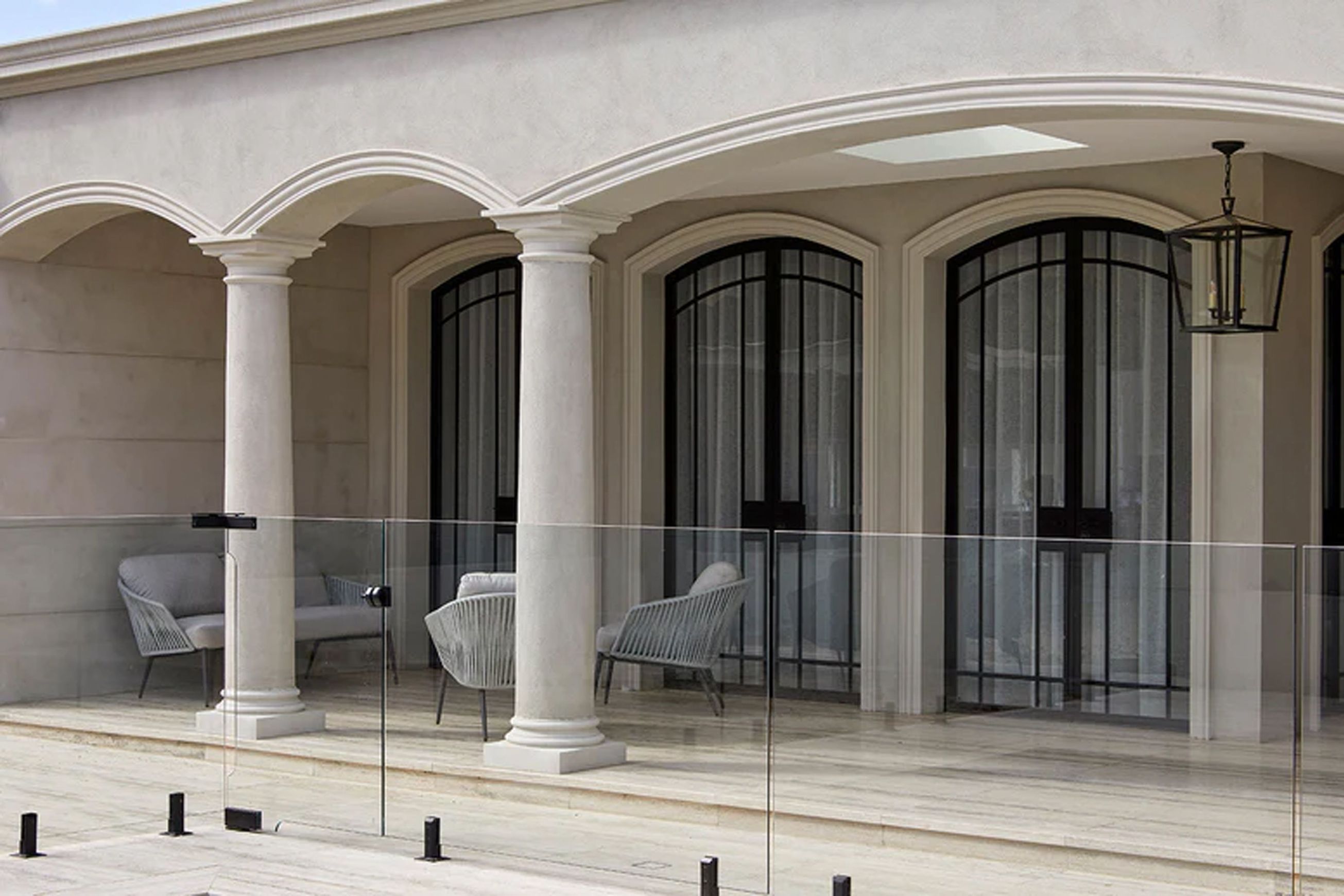

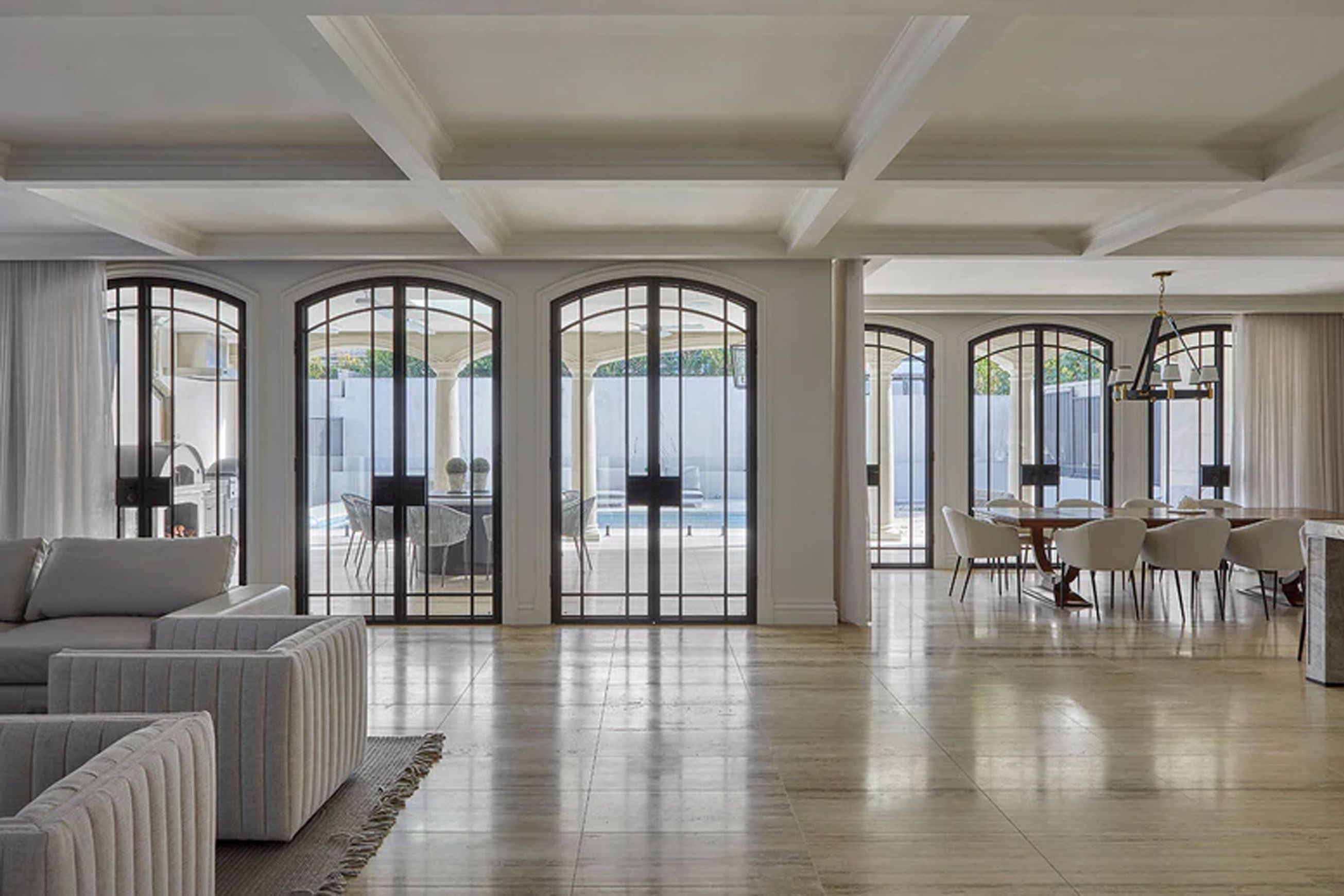

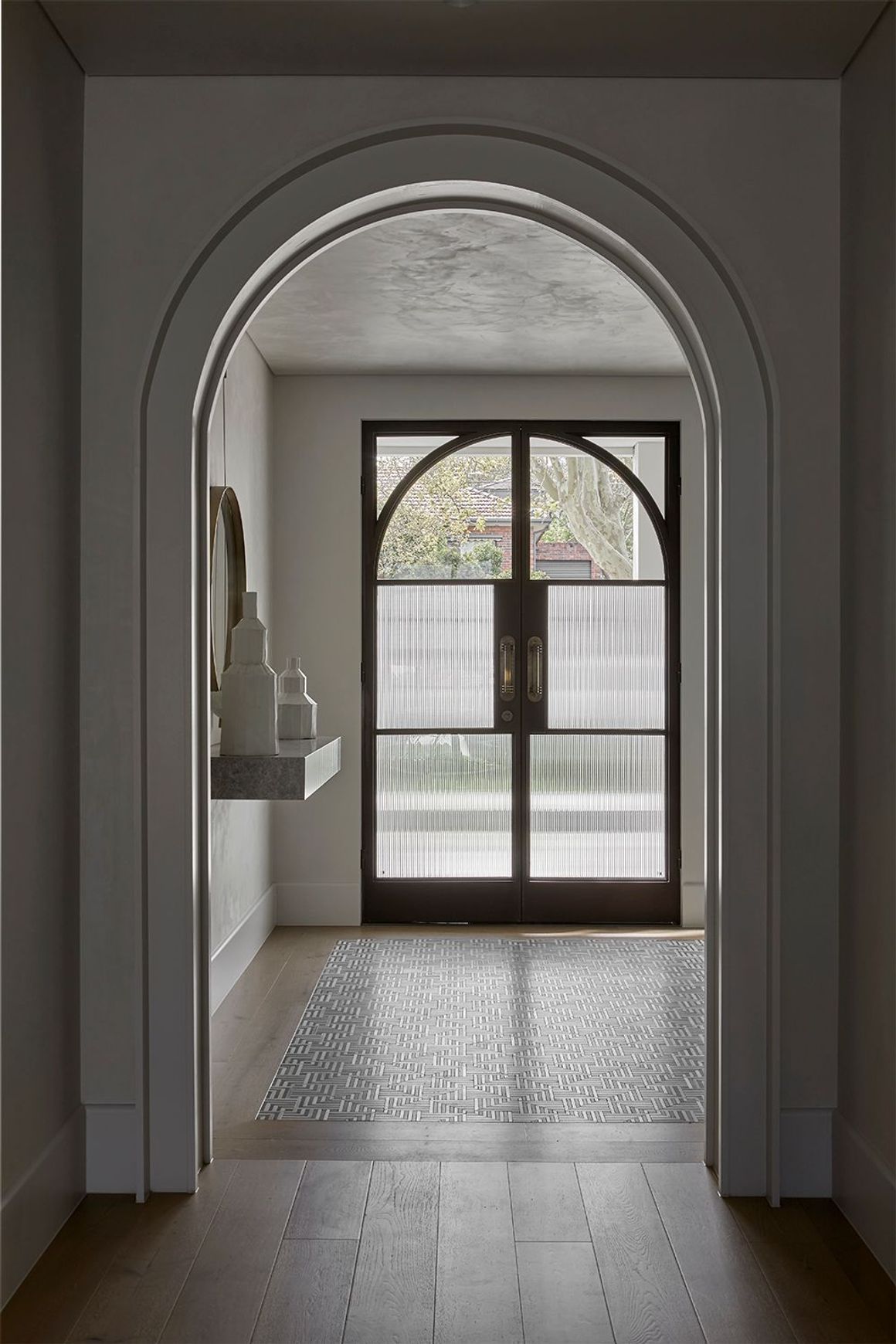

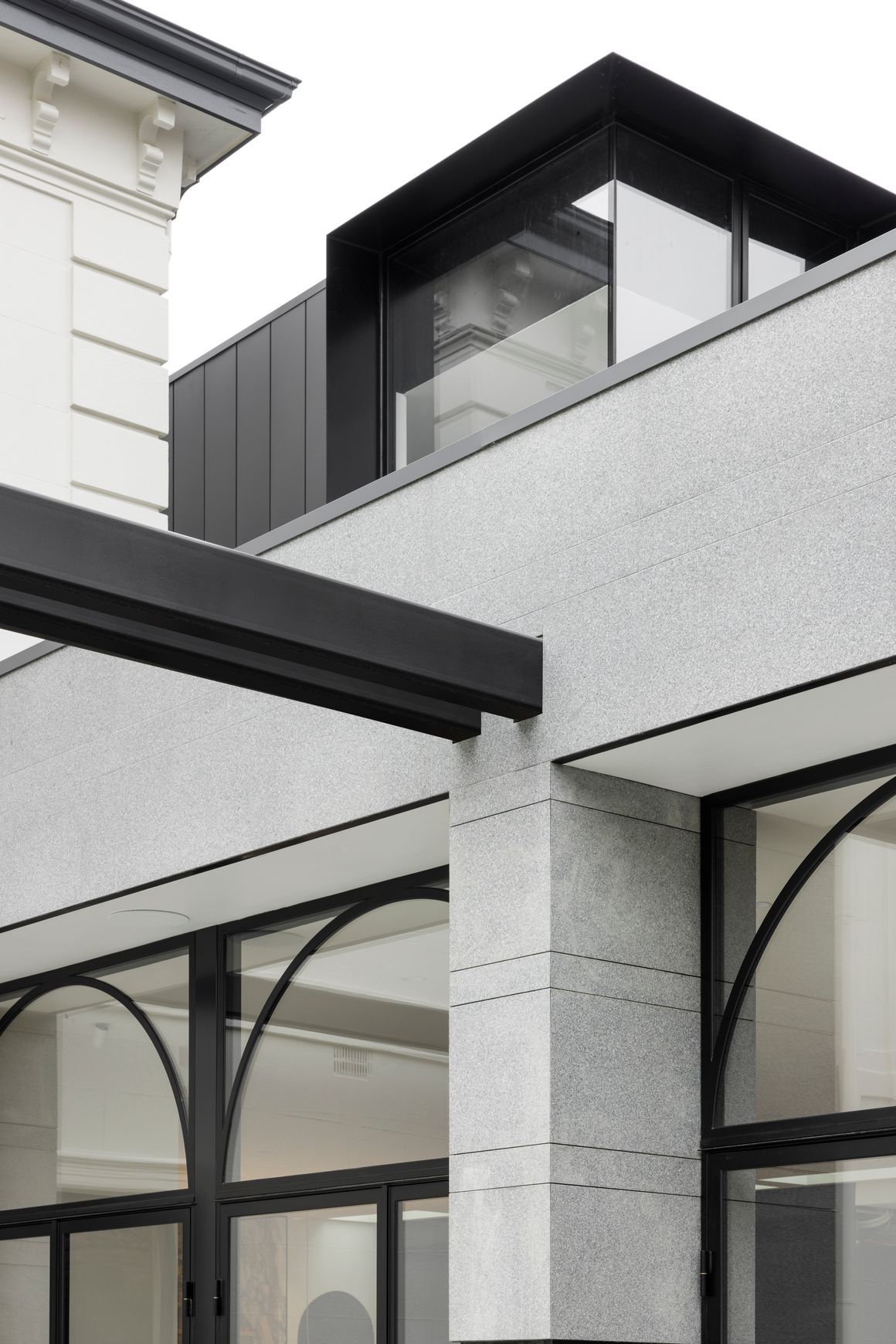

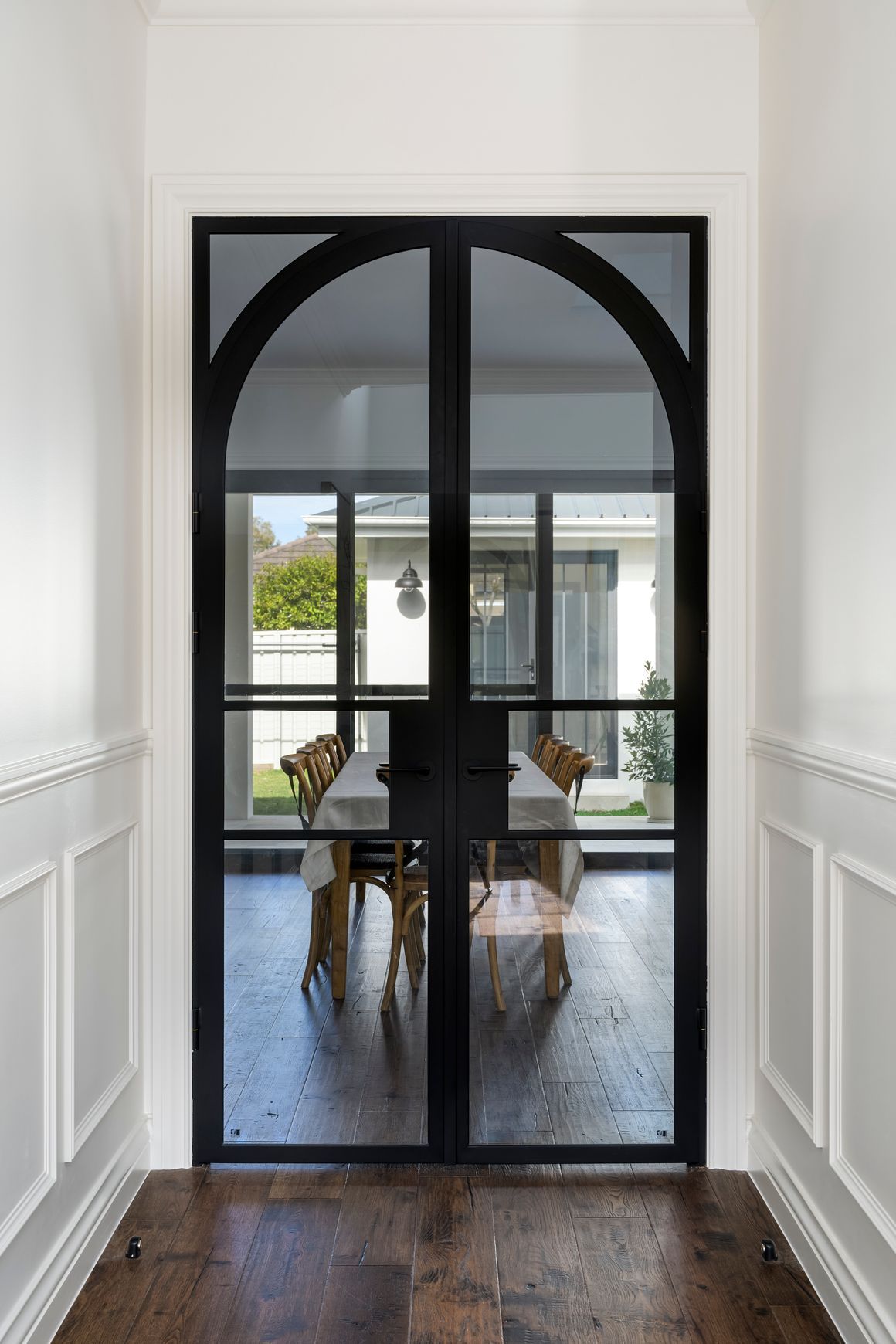

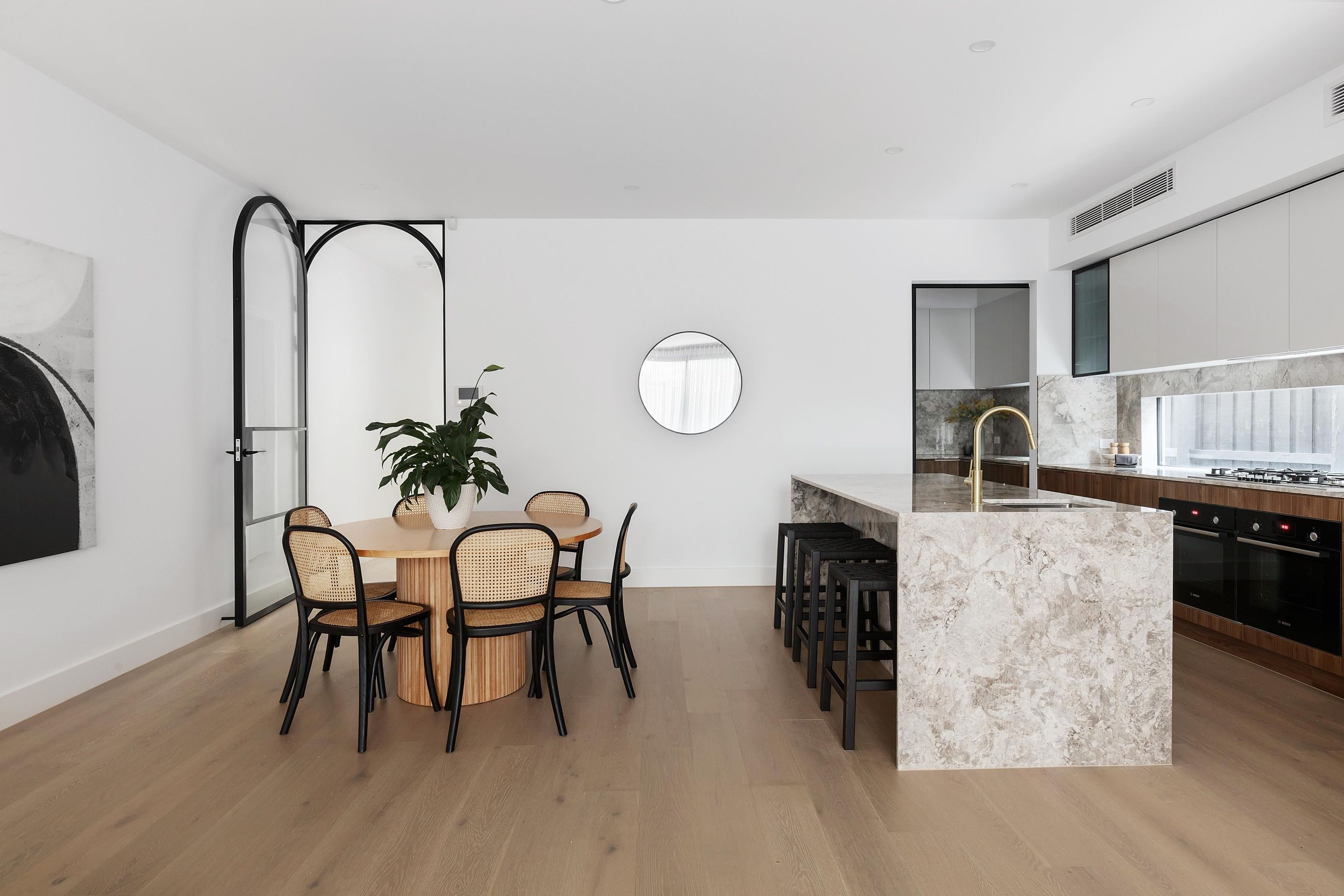

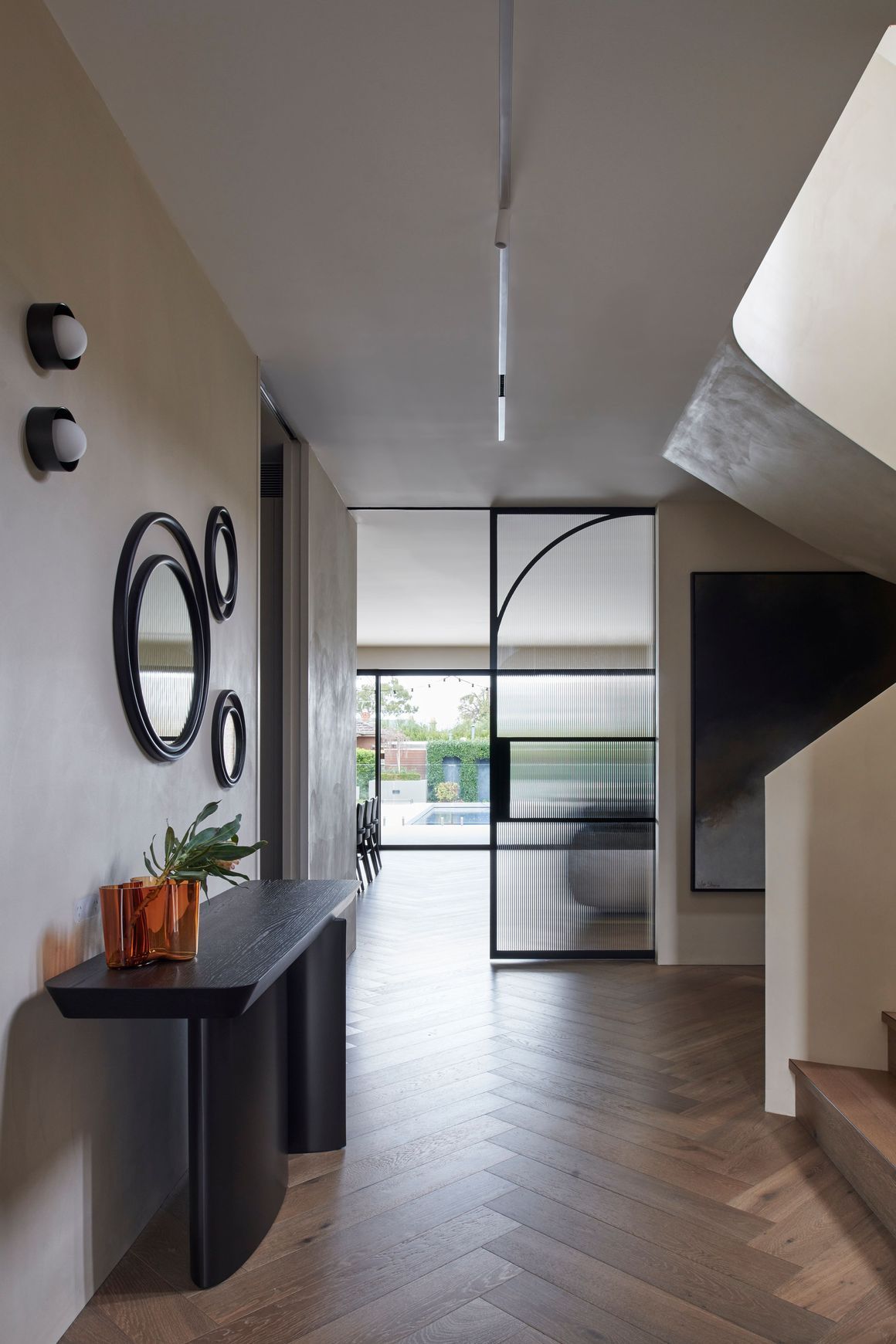

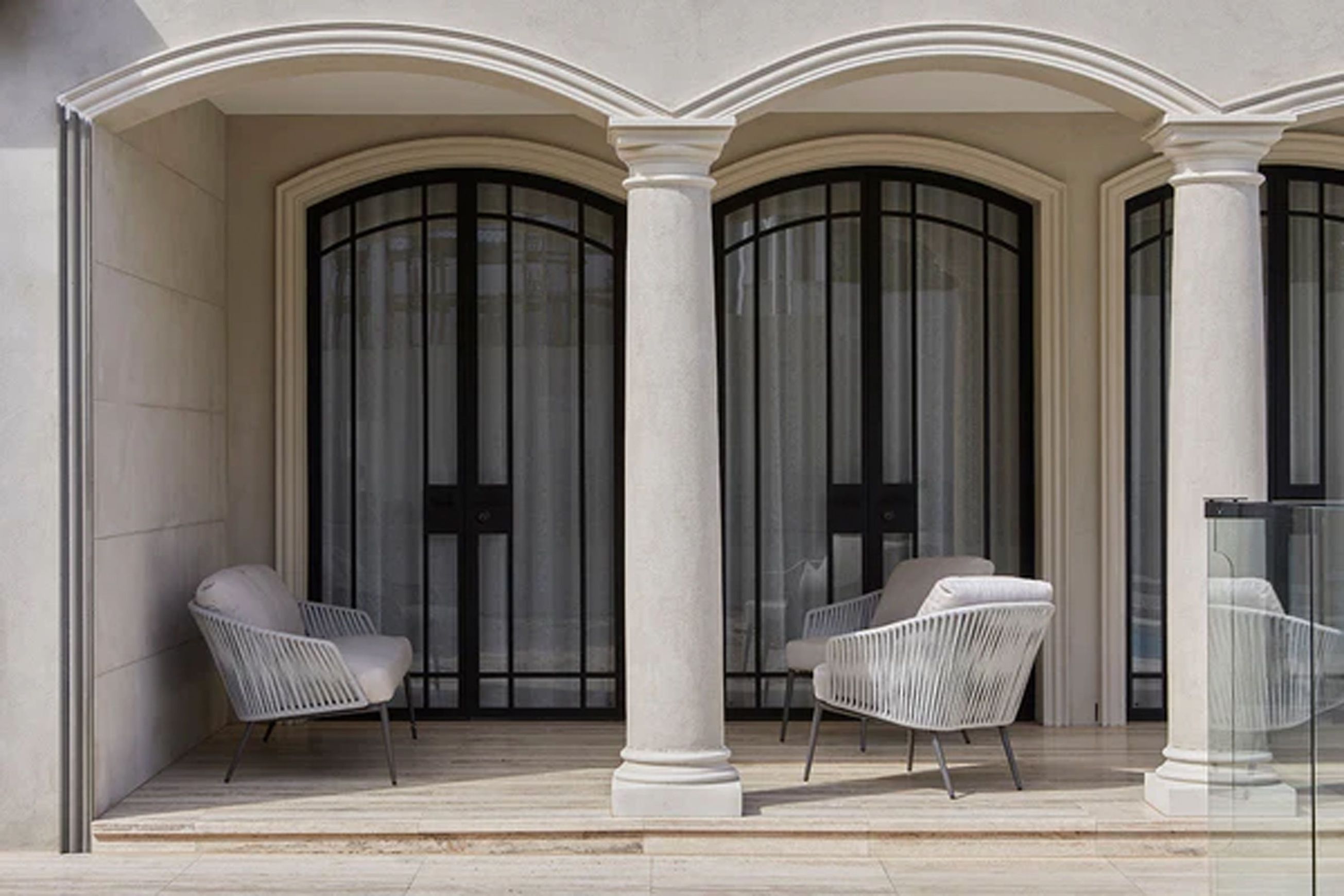

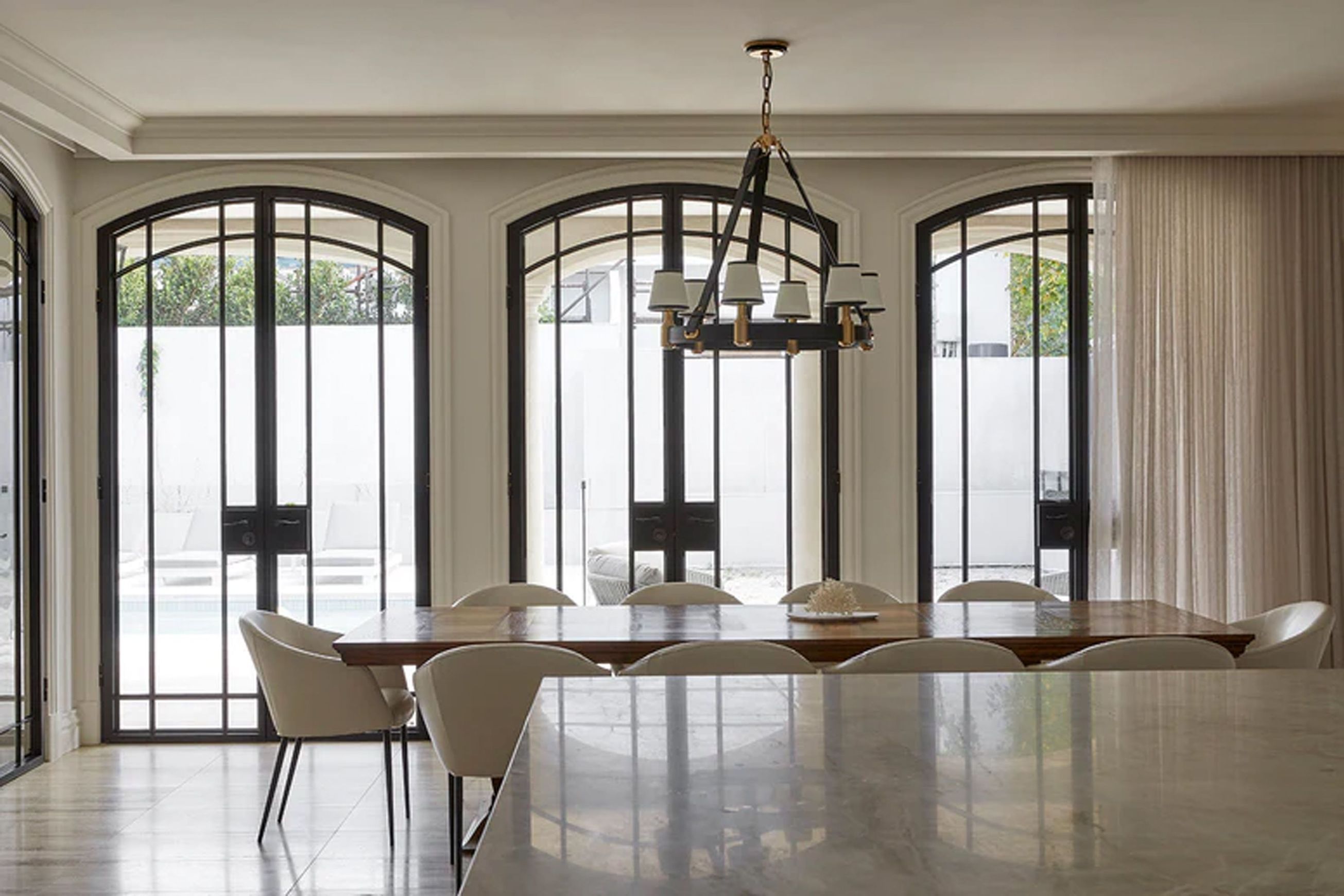

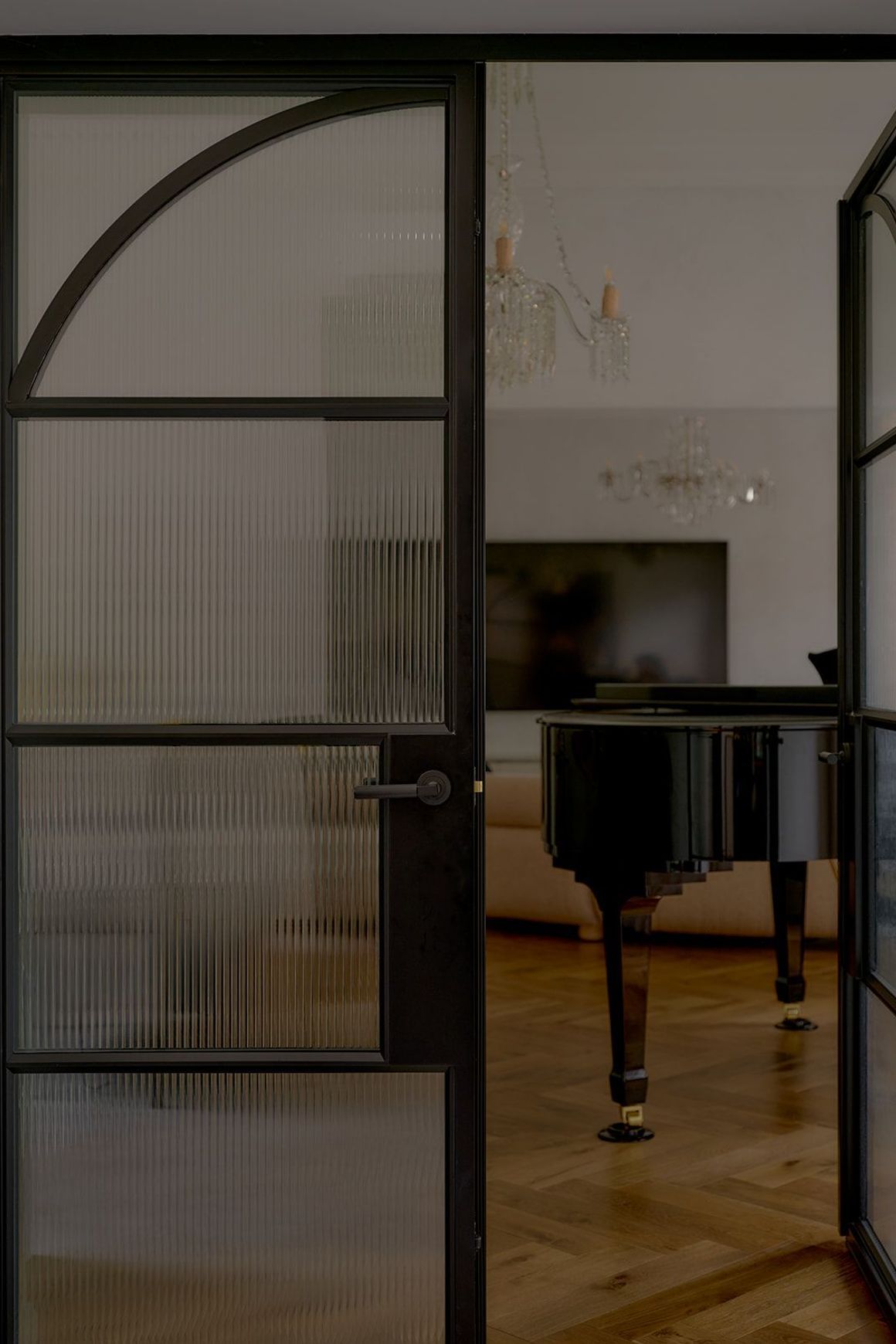

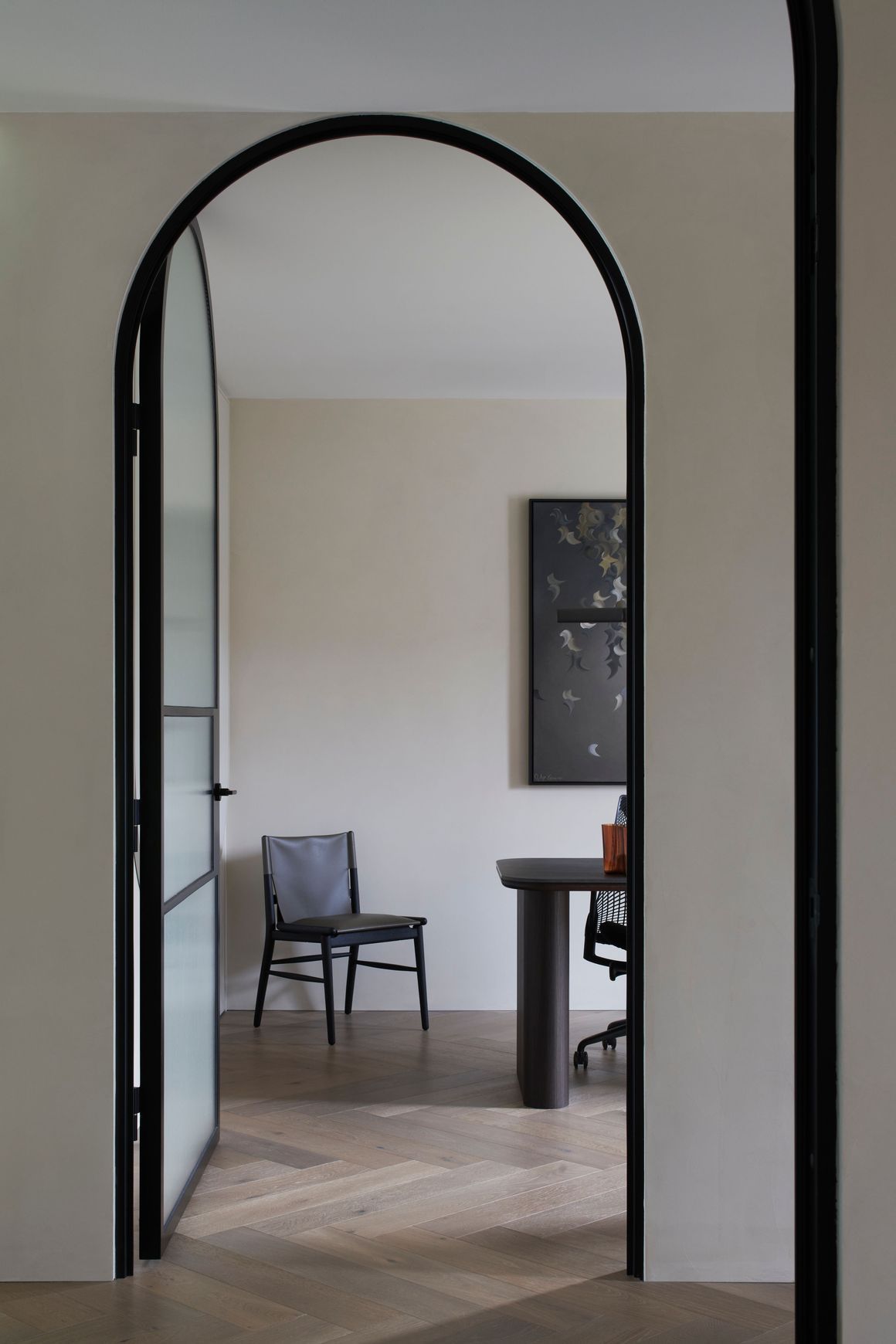

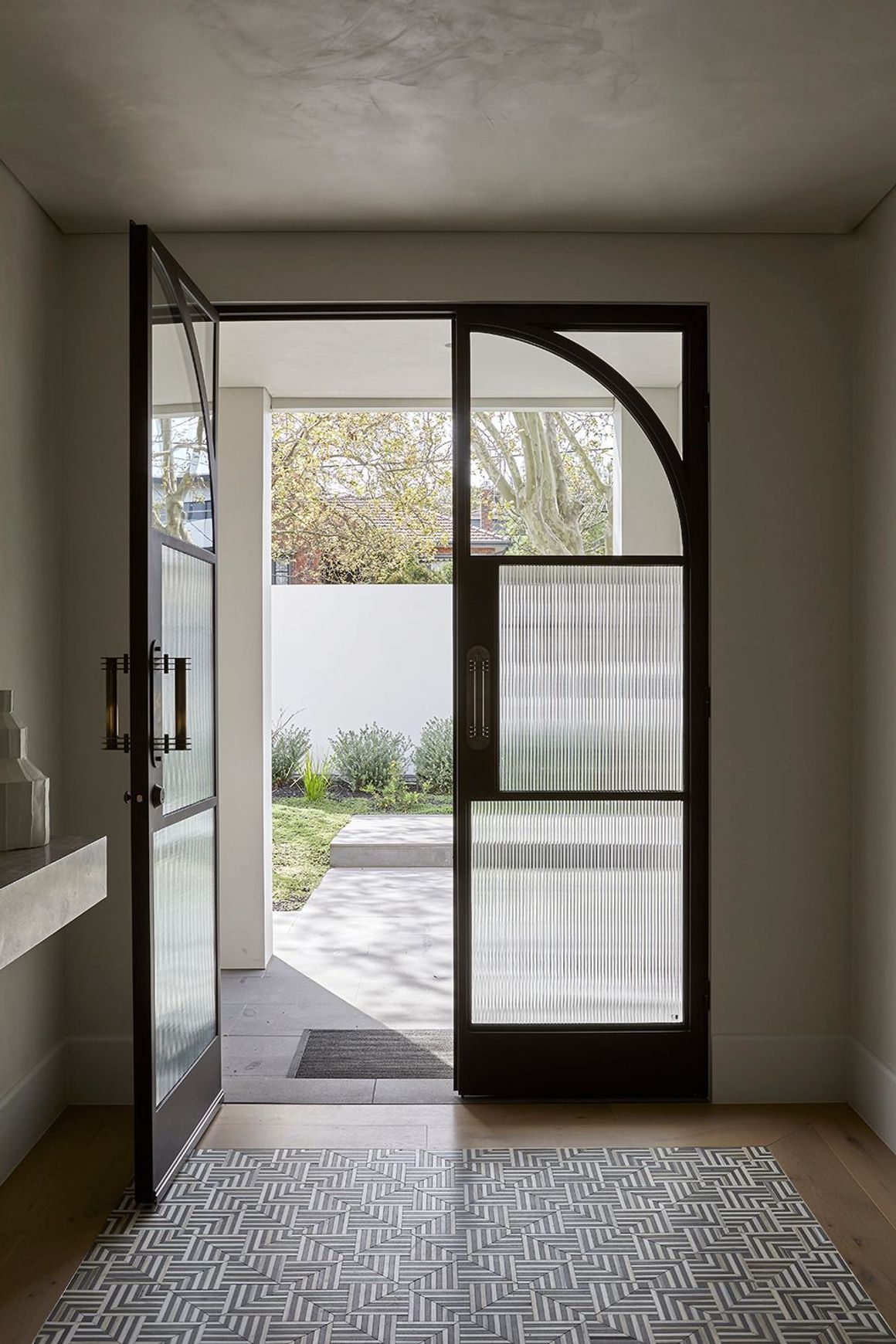

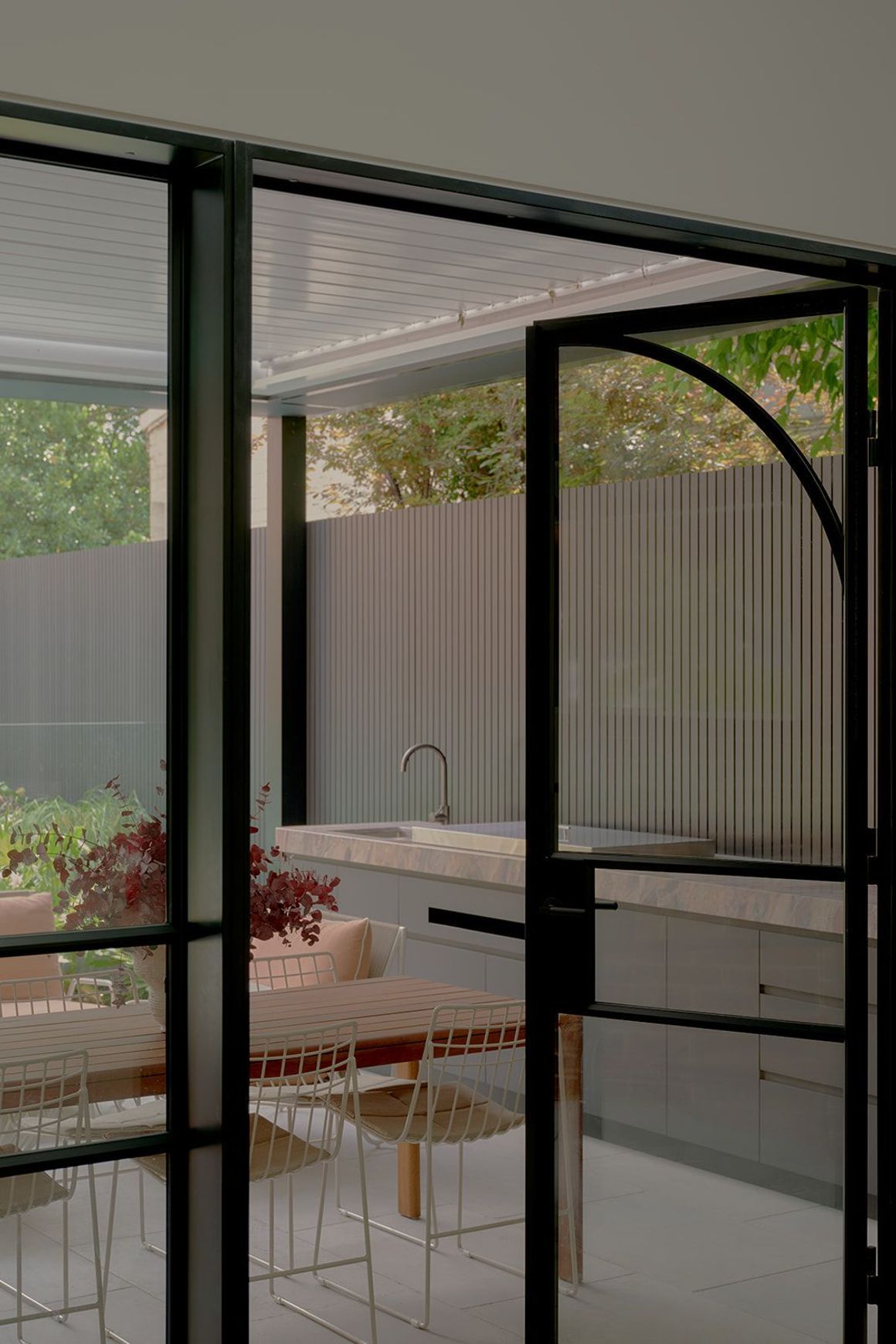

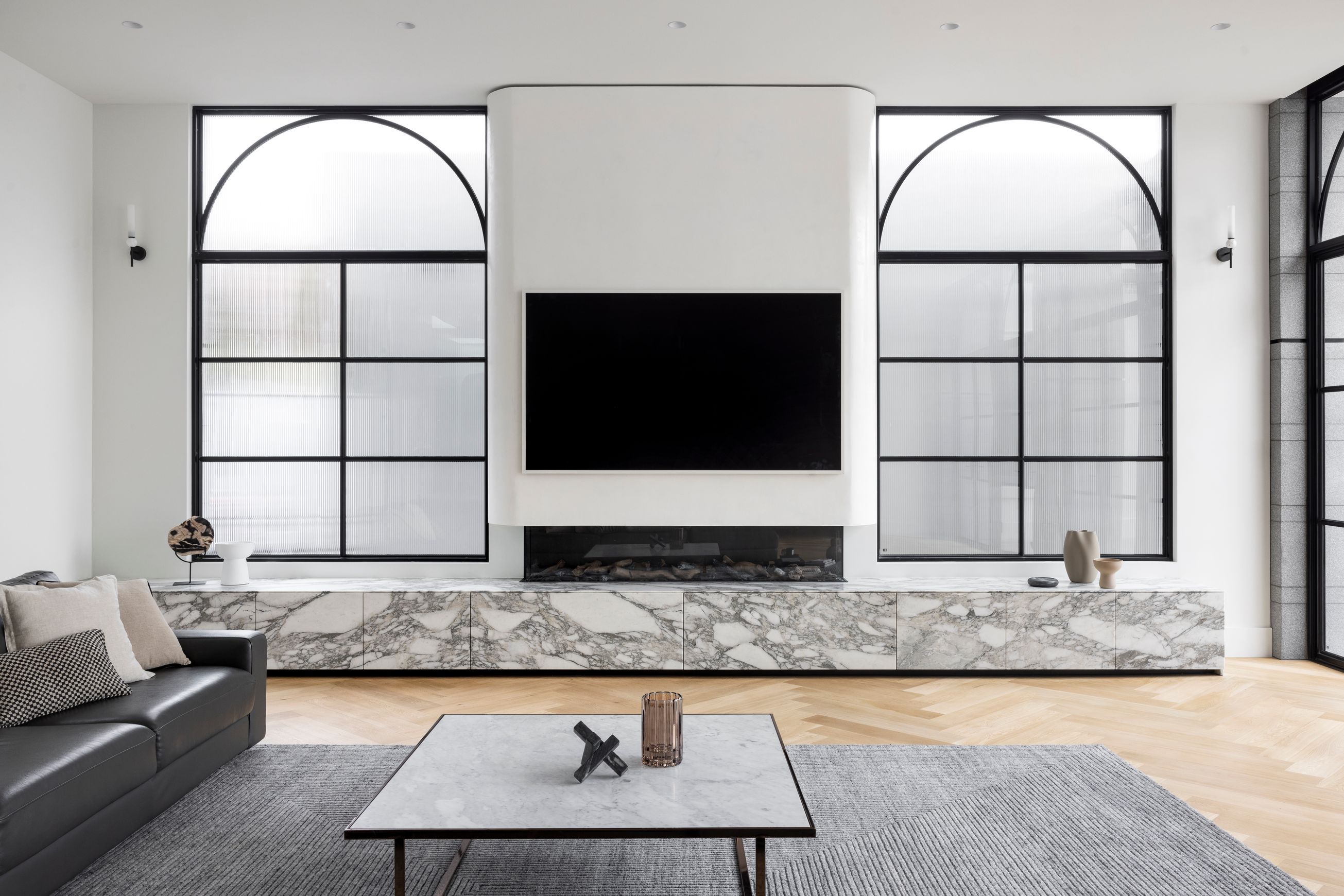

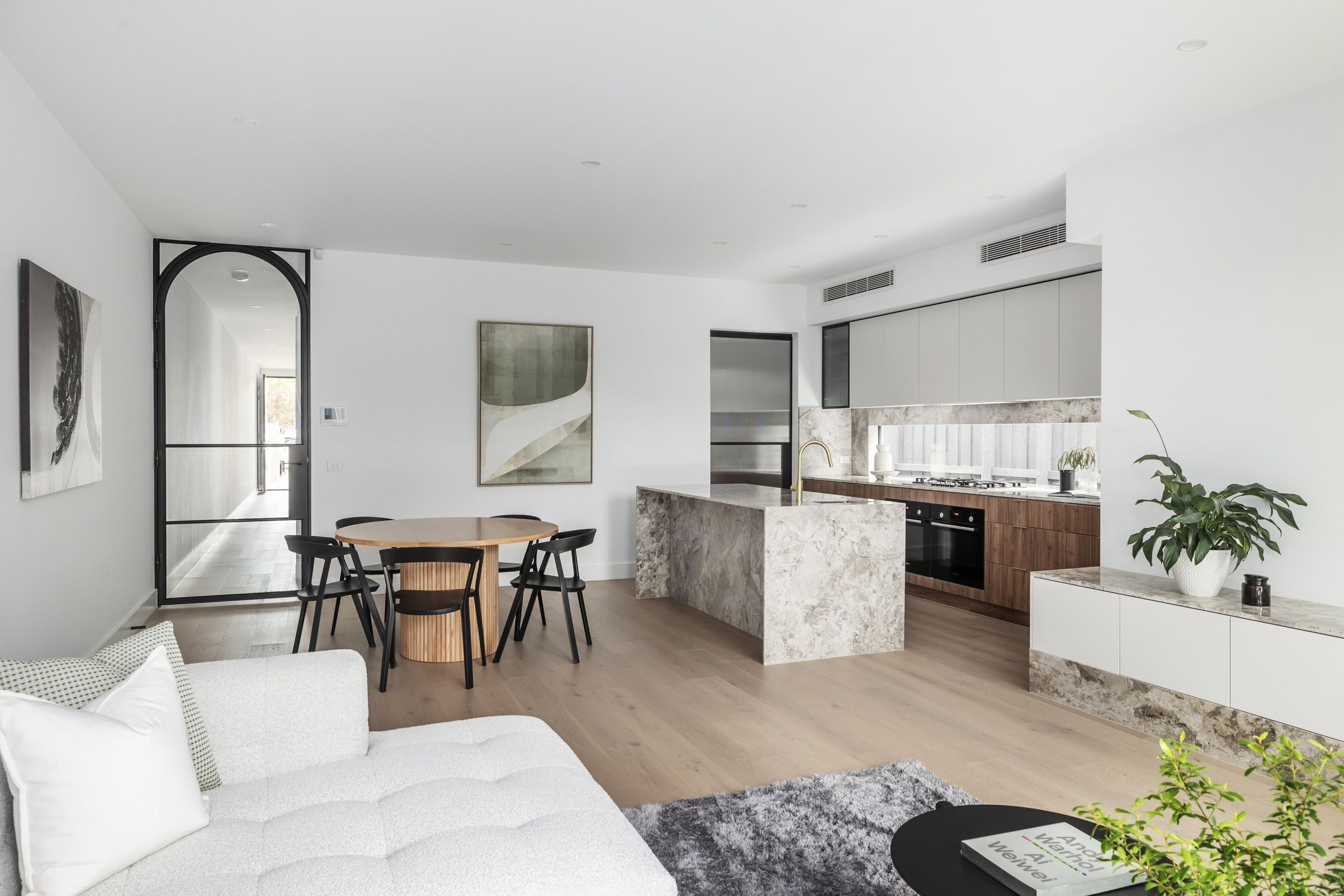

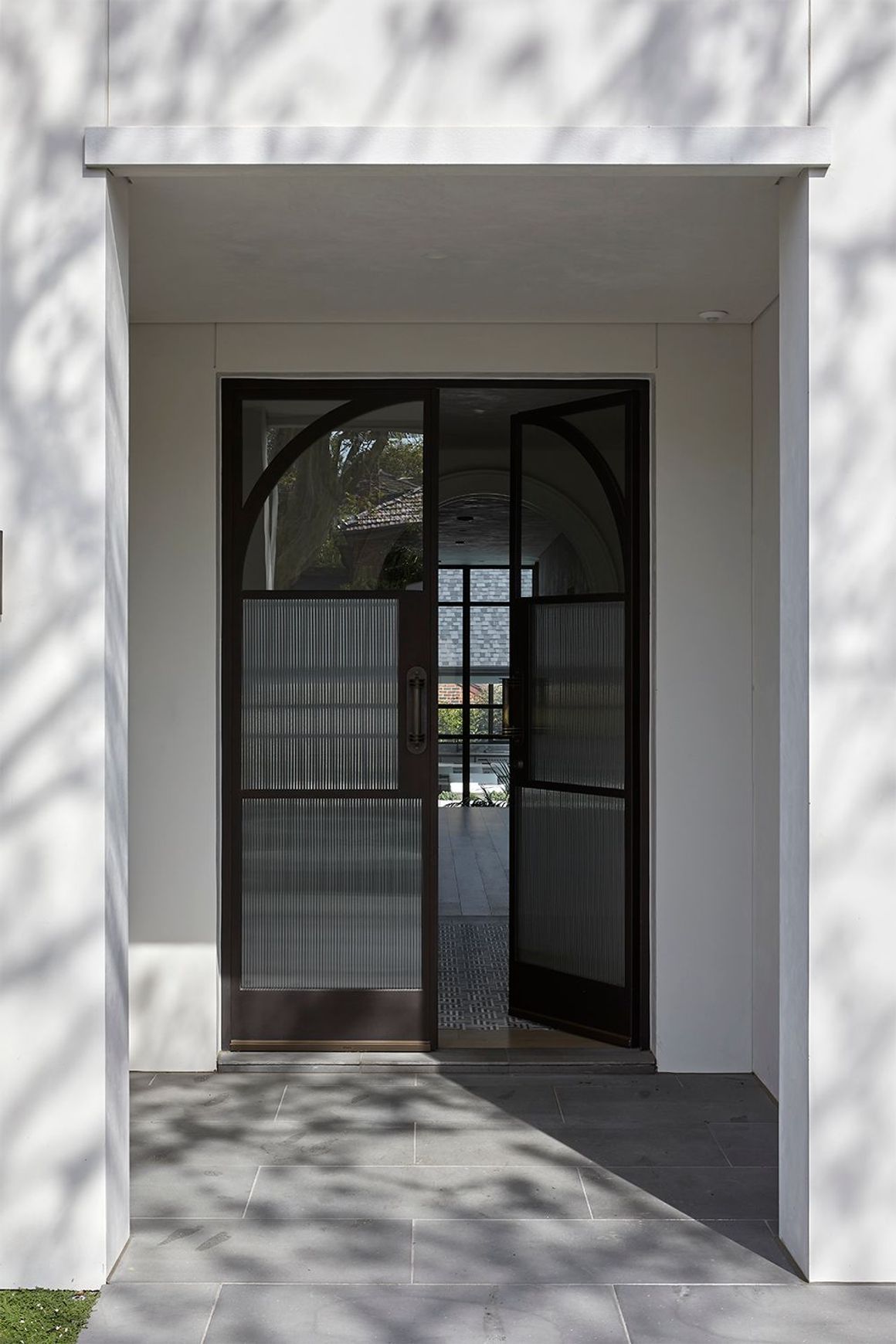

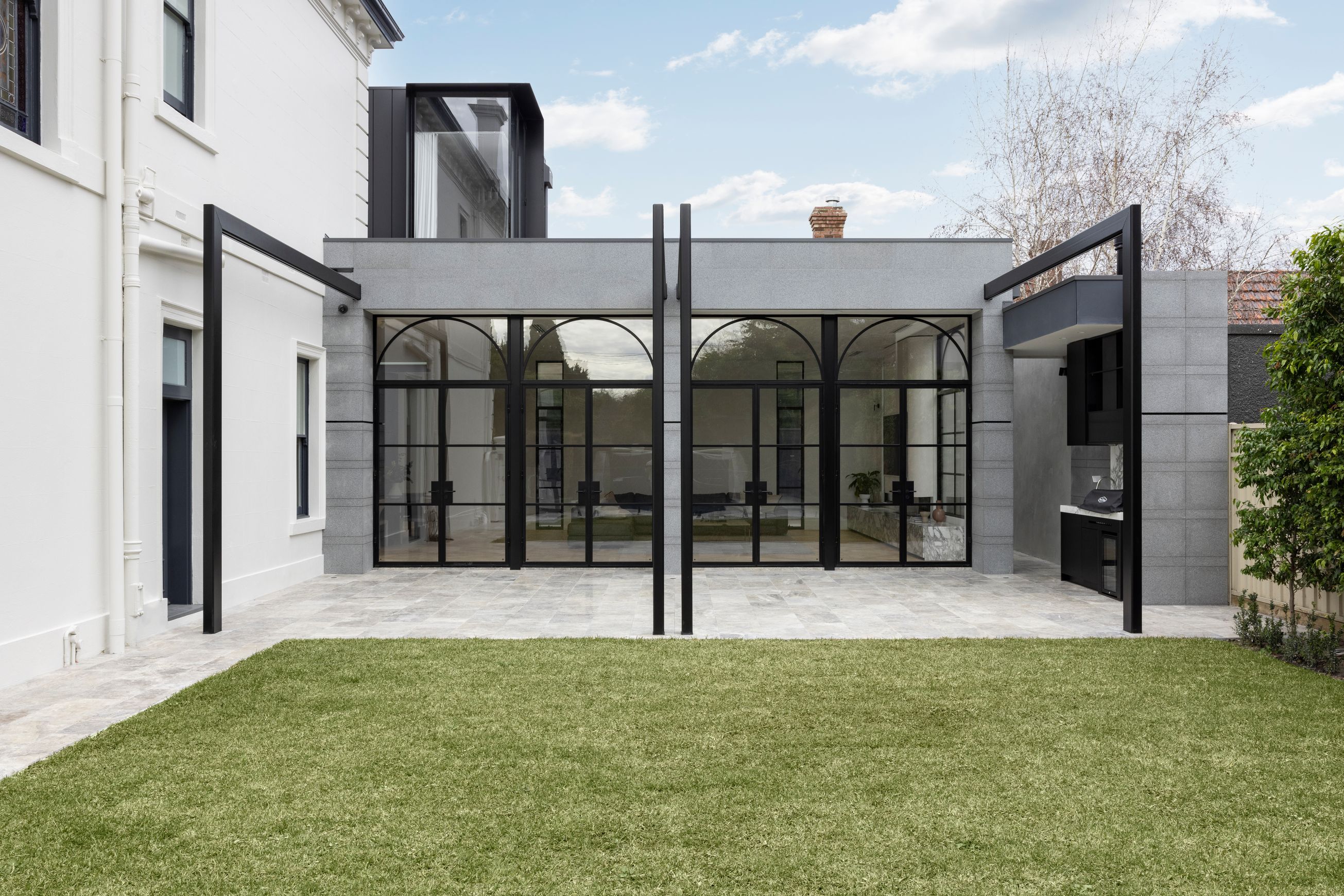

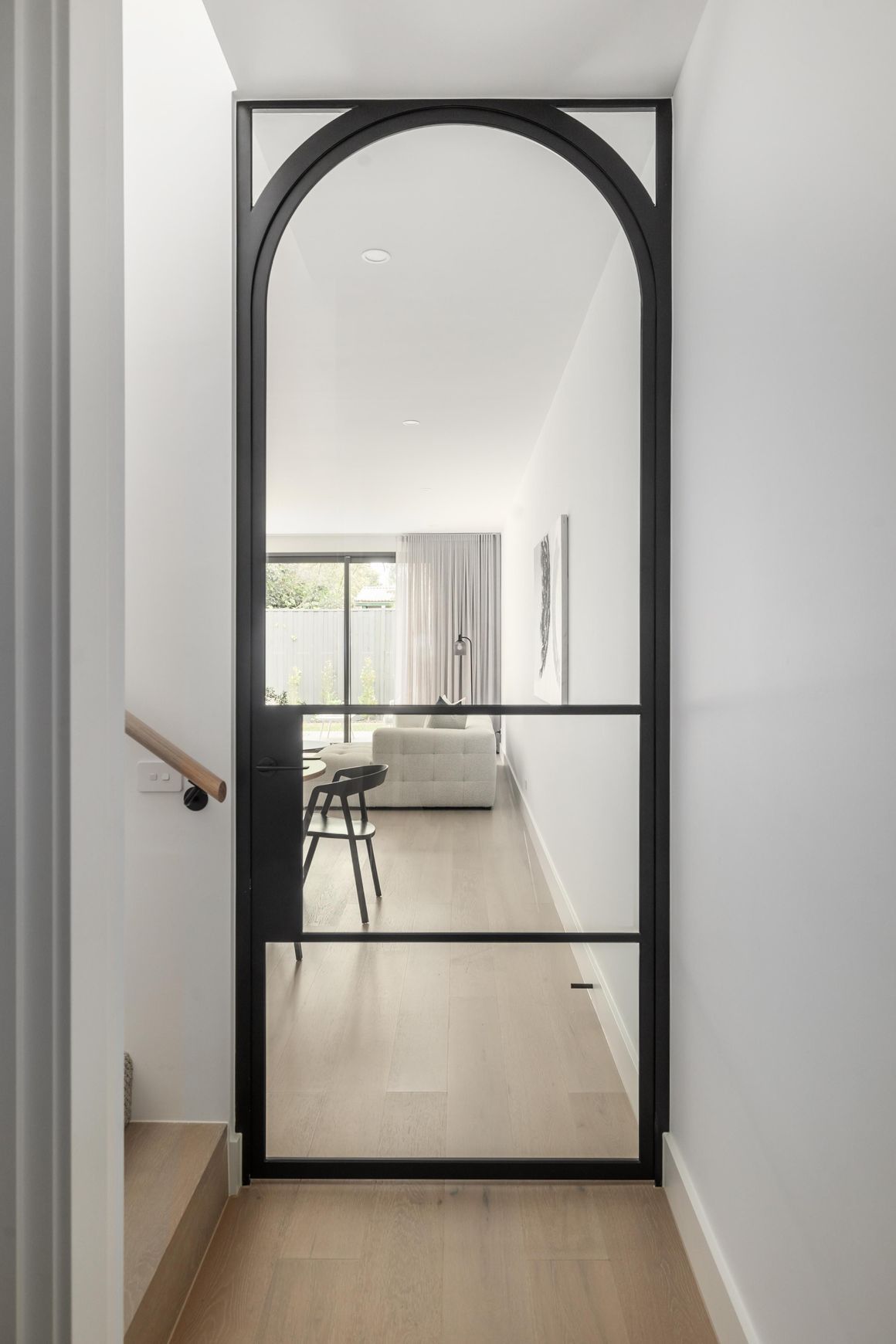

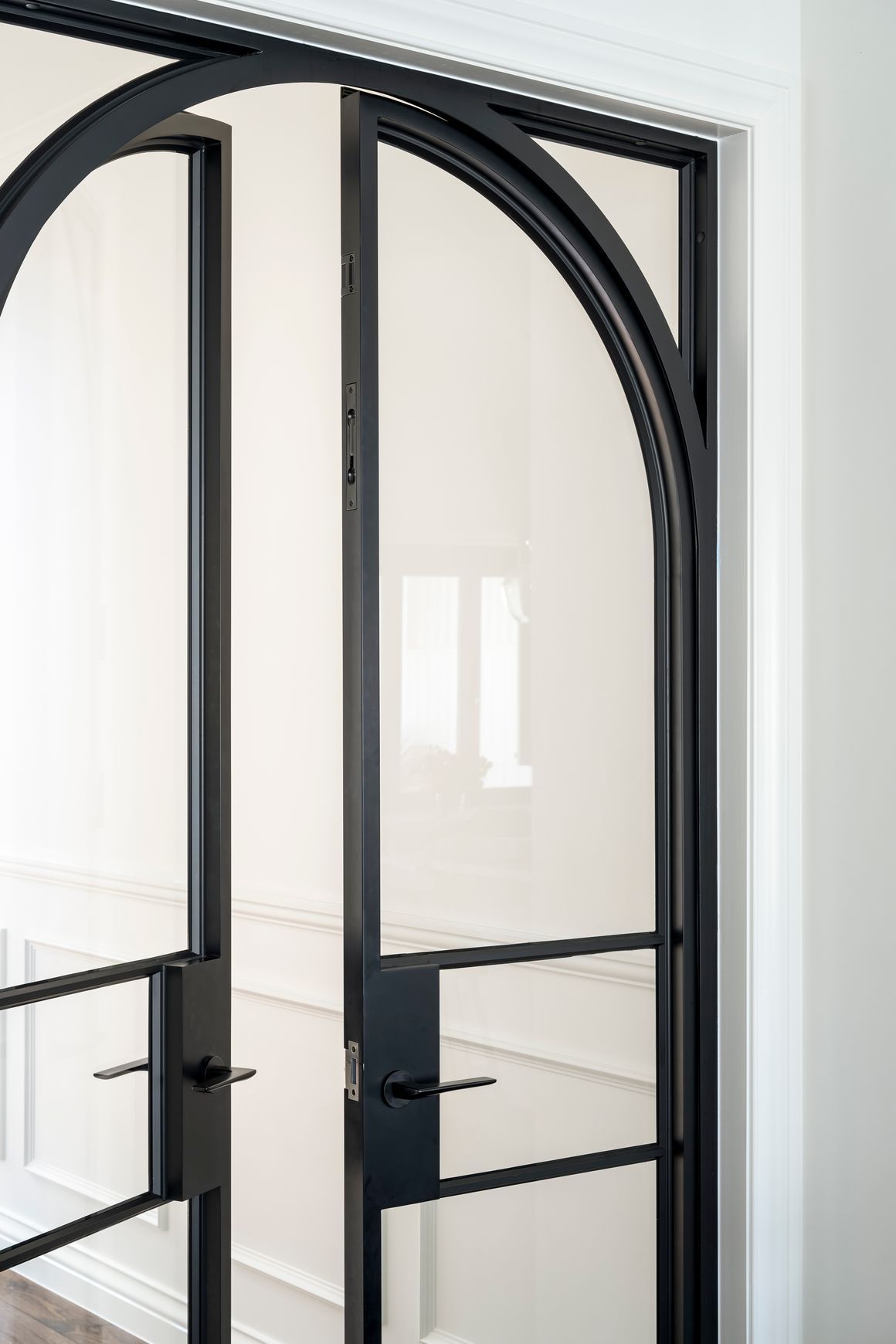

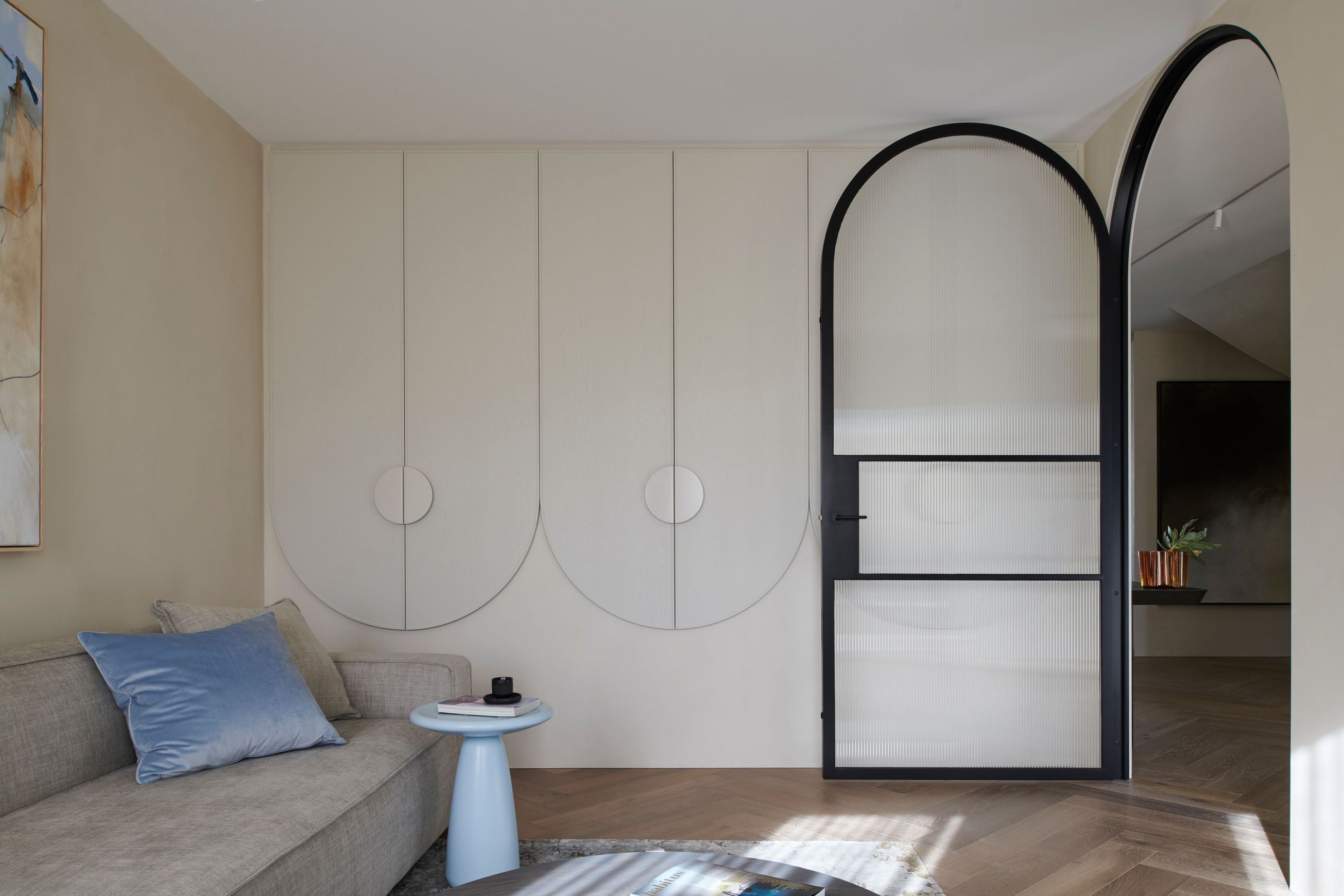

Arch Steel Frame Glass Hinge Doors - Galvanised FPS50

• Zen Arched Steel Hinge Doors & Windows
• Use: Internal or External
• Door Design: Custom

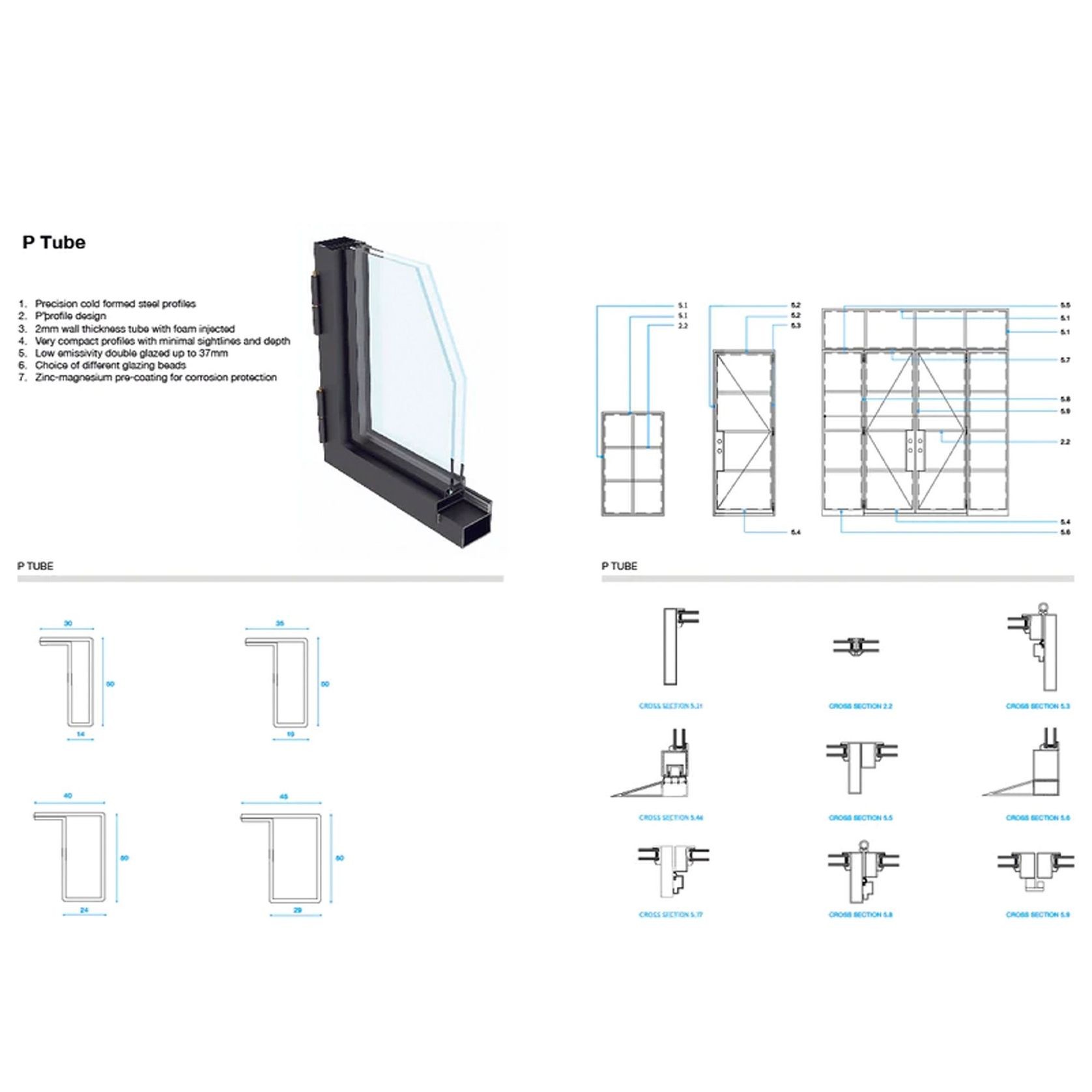

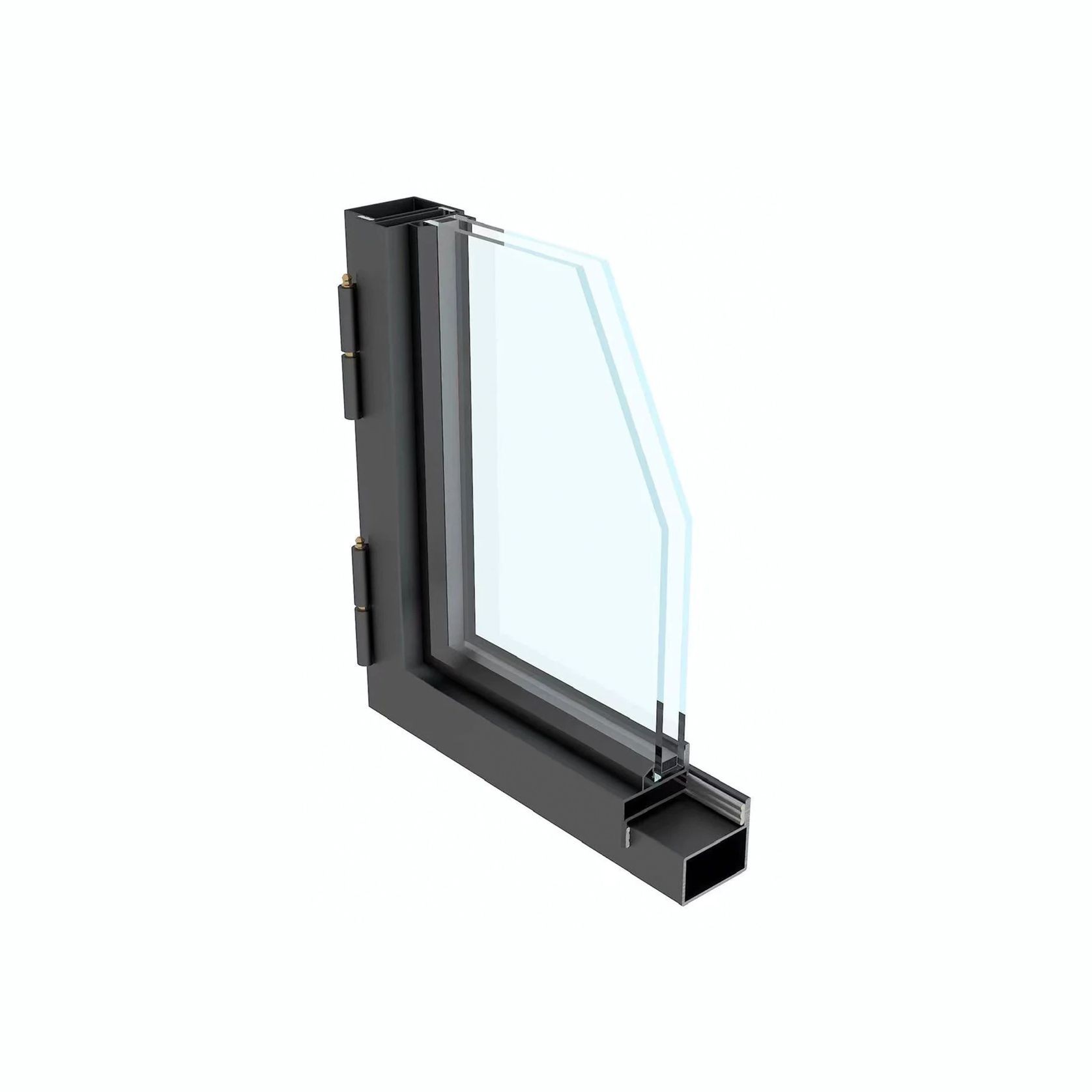

• Material: Precision cold formed galvanised steel profiles - ”P” profile design
• 3.2mm wall thickness tube with foam injected - Very compact profiles with minimal depth and sight-lines
• Surface treatment: Zinc-magnesium pre-coating for corrosion protection
• Gritblasting SA 2.5;
• The 1st layer is a sealing primer
• The 2nd layer is a high-durable top coating;
• Total thickness is at least 150-180 microns according to VMRG quality requirements.
• Paint: 4FC (Fluorocarbon) (DAIKIN of Japan)
• Colour: Standard Finishes or Large Range of RAL Powder Coat colours at extra cost, https://www.ralcolorchart.com/
• Door Jamb: 25/30/40/50mm x 50/75/100mm+
• Door Frame: 30mm x 50mm

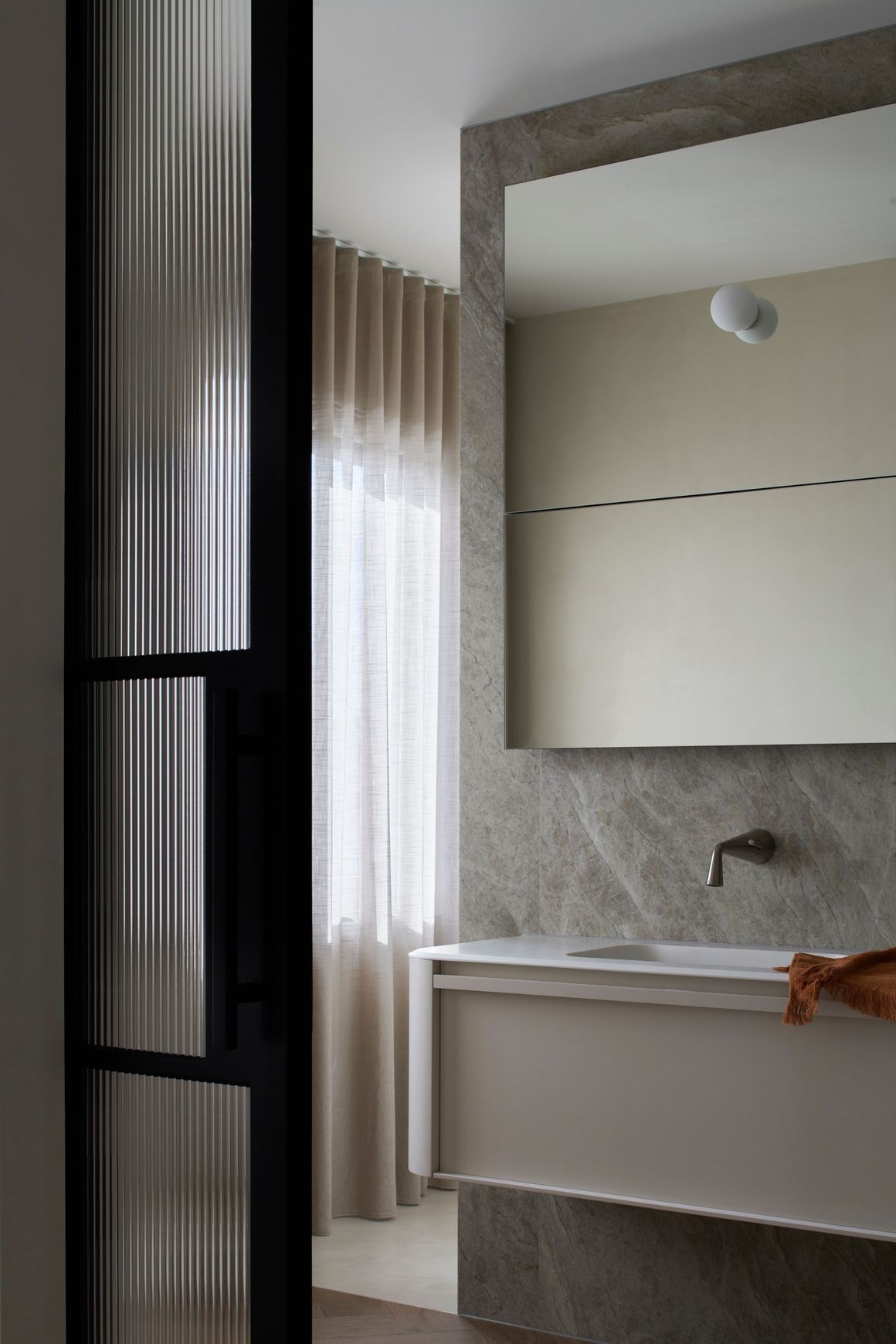

• Glass Type: Clear, Rainstorm, Hammered, Aquatex, Reeded (Fluted), Course Linen, Pinhead, AGC Low-E
• Glass Thickness: 5/8/10mm single glazed toughened safety glass
• TDL: 20T
• Beads: CTM20
• Door Type: Hinge
• Window Type: Fixed, Awning, Casement
• Hinges: Heavy Duty Welded, 180 degree
• Mounting Type: Holes Inside of Jamb or Mounting Tabs Outside of Jamb
• Open way (entering): In-swing or Out-swing left/right

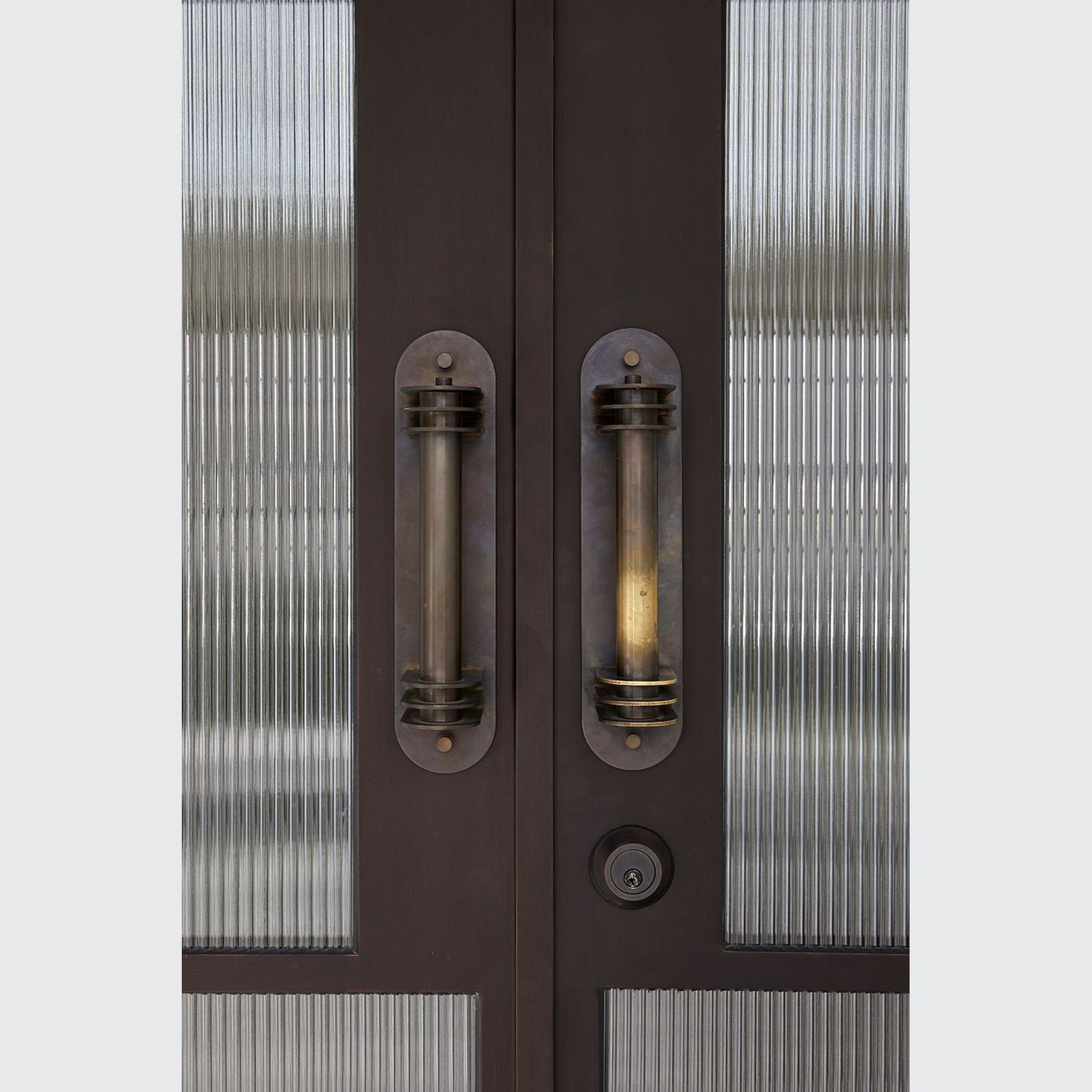

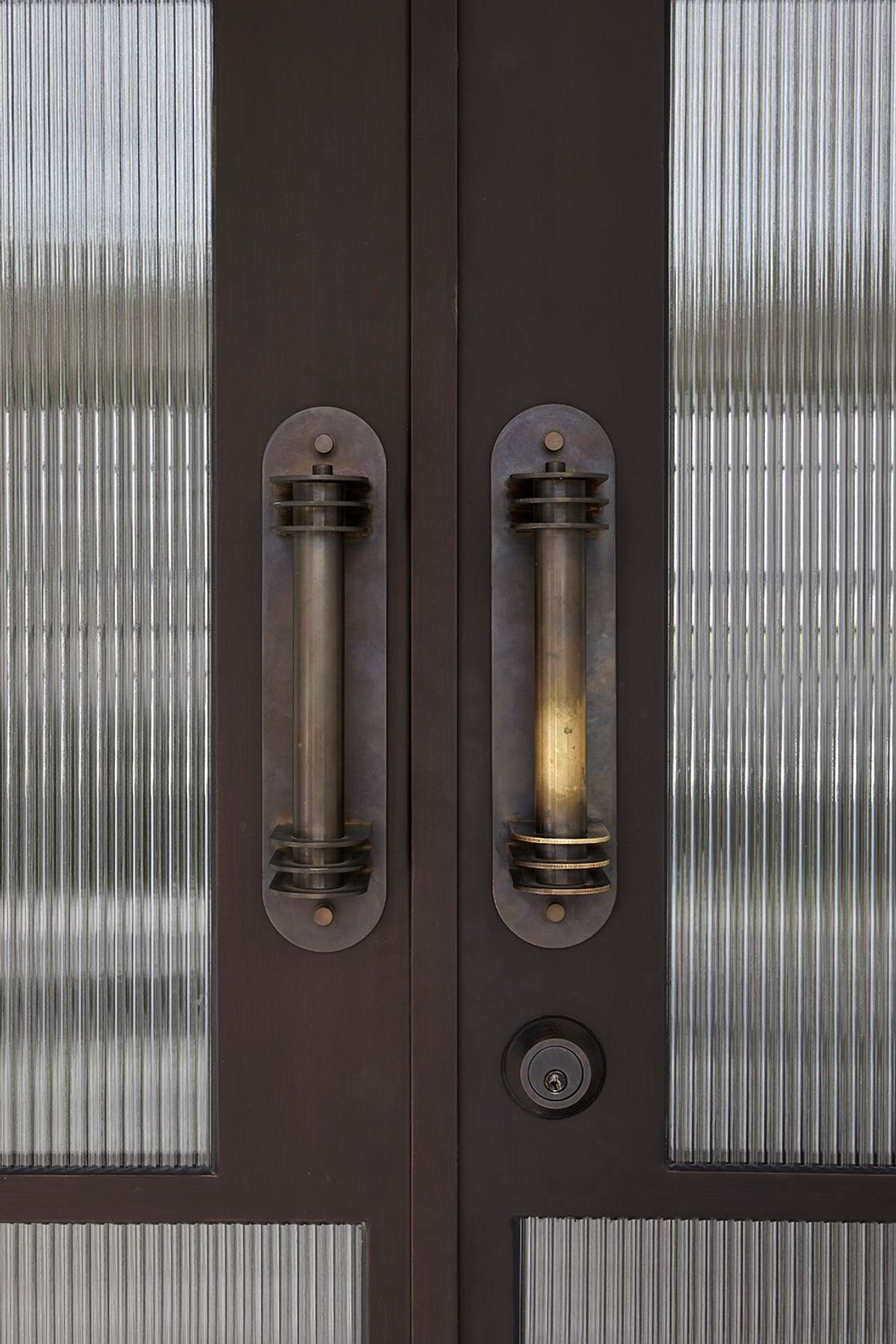

• Handles: SEMAR matt black lever with spring latch or Custom Pull with Roller Catch
• Lock: Yes/No (Standard deadbolt or Mortice Lock extra cost)
• Roller Catch: Yes
• Flushbolt: Yes
• Door Sill: Yes/No
• Rubber Drop Seal: Yes/No
• Package: 5 Layers of packing, plastic film, soft foam sheet, corrugated paper board, bubble wrap and Wooded Sealed Box
• CAD Design Drawing: Yes

NOTE: Total Door Frame and Sidelight Windows can be custom made to any size you need, please contact us if you require highlight/sidelight windows and need a more customised estimate.

NOTE: External Doors and Windows can be supplied glazed or un-glazed depending on your building surveyor/certifier.

Zen Doors Steel Frame Hinge Doors are Tested & Accredited to AS2047-2014 Windows and External Glazed Doors in Buildings. This makes them suitable for installation in both internal and external residential and commercial applications.

• Tested & Accredited to AS2047-2014 Windows and External Glazed Doors in Buildings
• Modern Architectural Design
• Custom Hand Made Construction for Durable Functionality
• Built from High Quality Galvanised Steel Tube Profile
• Fluorocarbon Coating better than Powdercoating
• Steel Door Jamb Included for Extra Strength and Longevity
• Single Glazed Toughened Safety Glass included in price ( Clear, Rainstorm, Hammered, Aquatex, Reeded (Fluted), Course Linen, Pinhead, AGC Low-E)
• High Quality Lever Handles with Spring Latch or Custom Steel Pull Handles with Roller Catches Included in price
• Flush bolts for double doors included
• Weather seals included
• Designed to Impress and Built to Last
• Orders Made from June 2023 - *5 Year Warranty - Must comply with our installation requirements.
