Fire & Smoke Protection Rated Doors

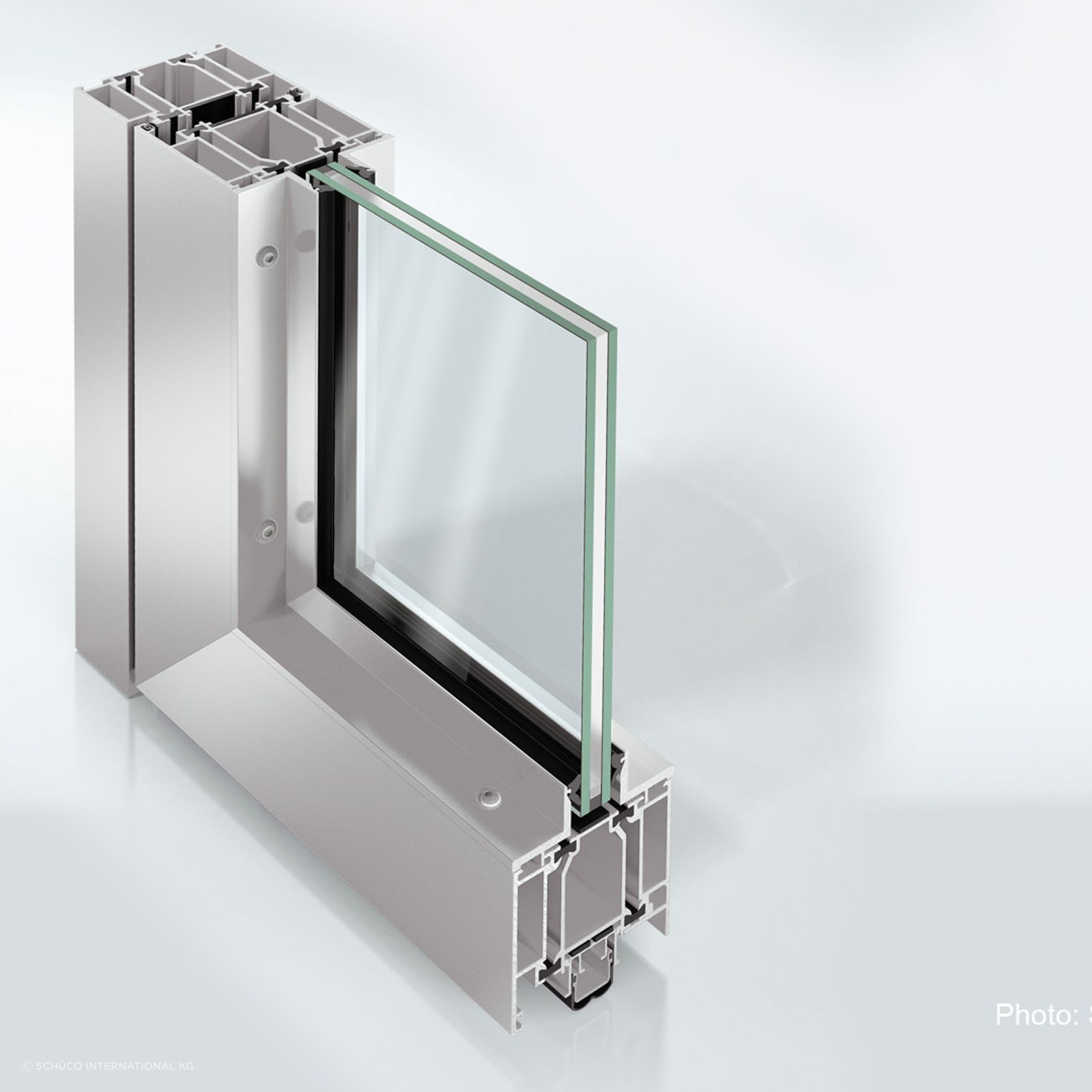

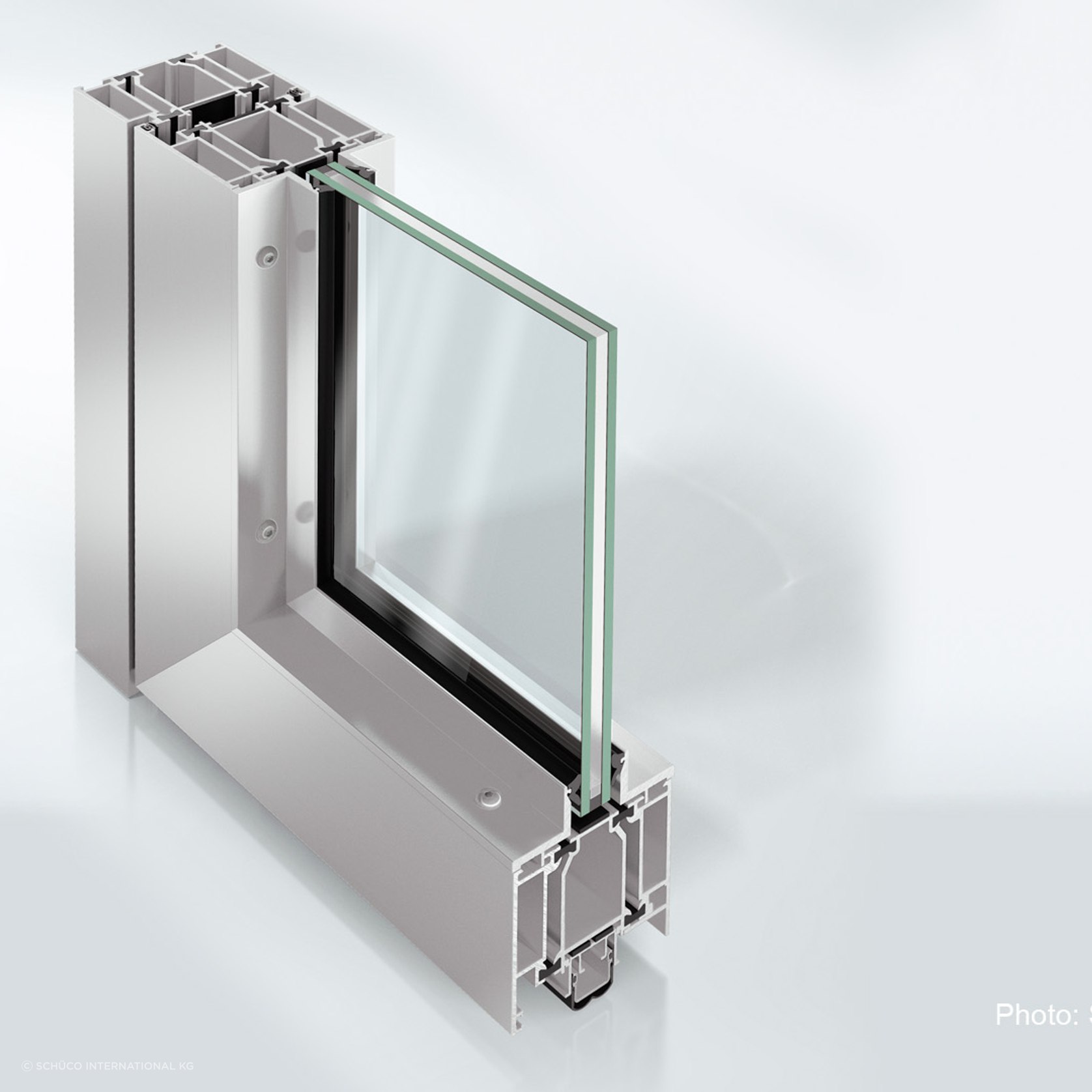

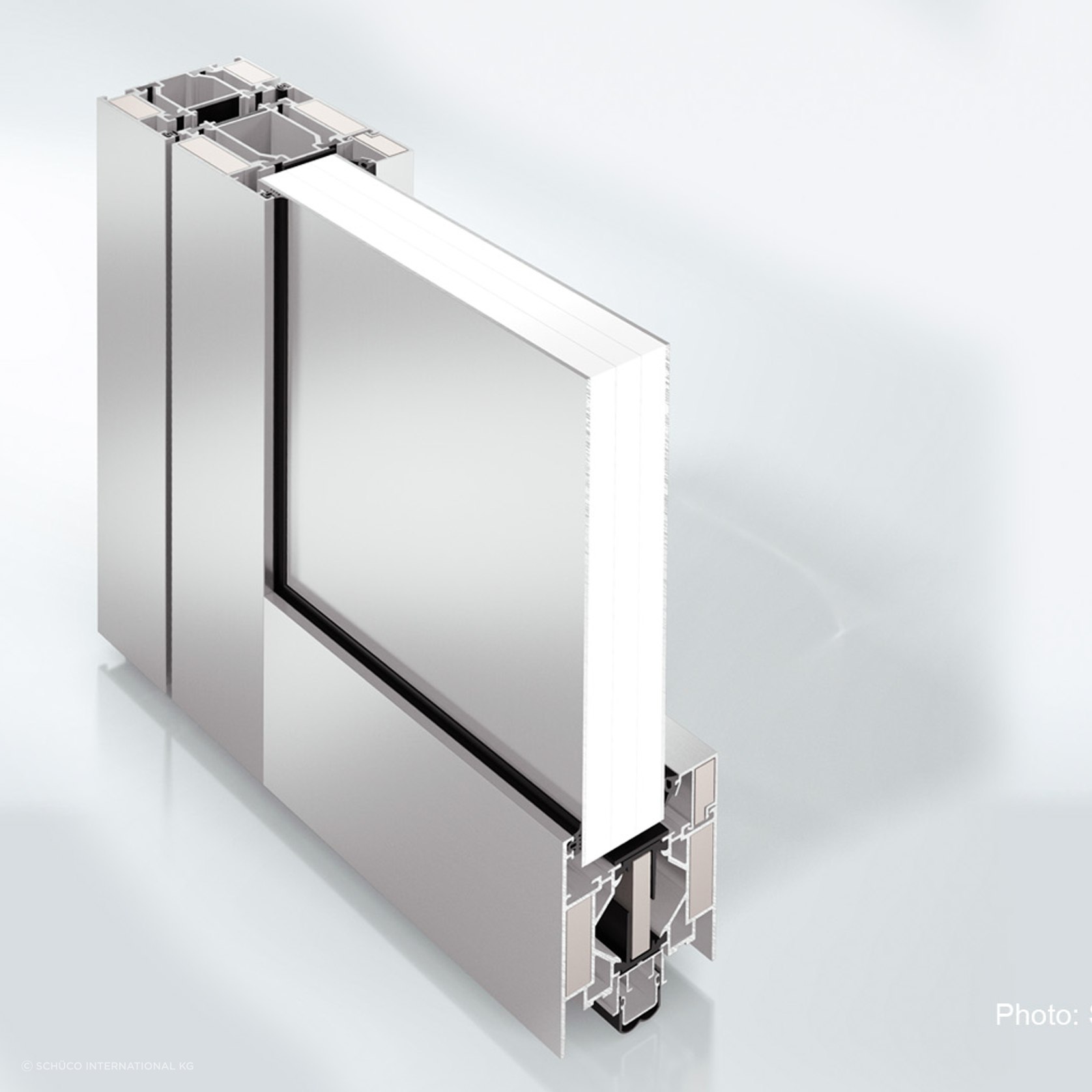

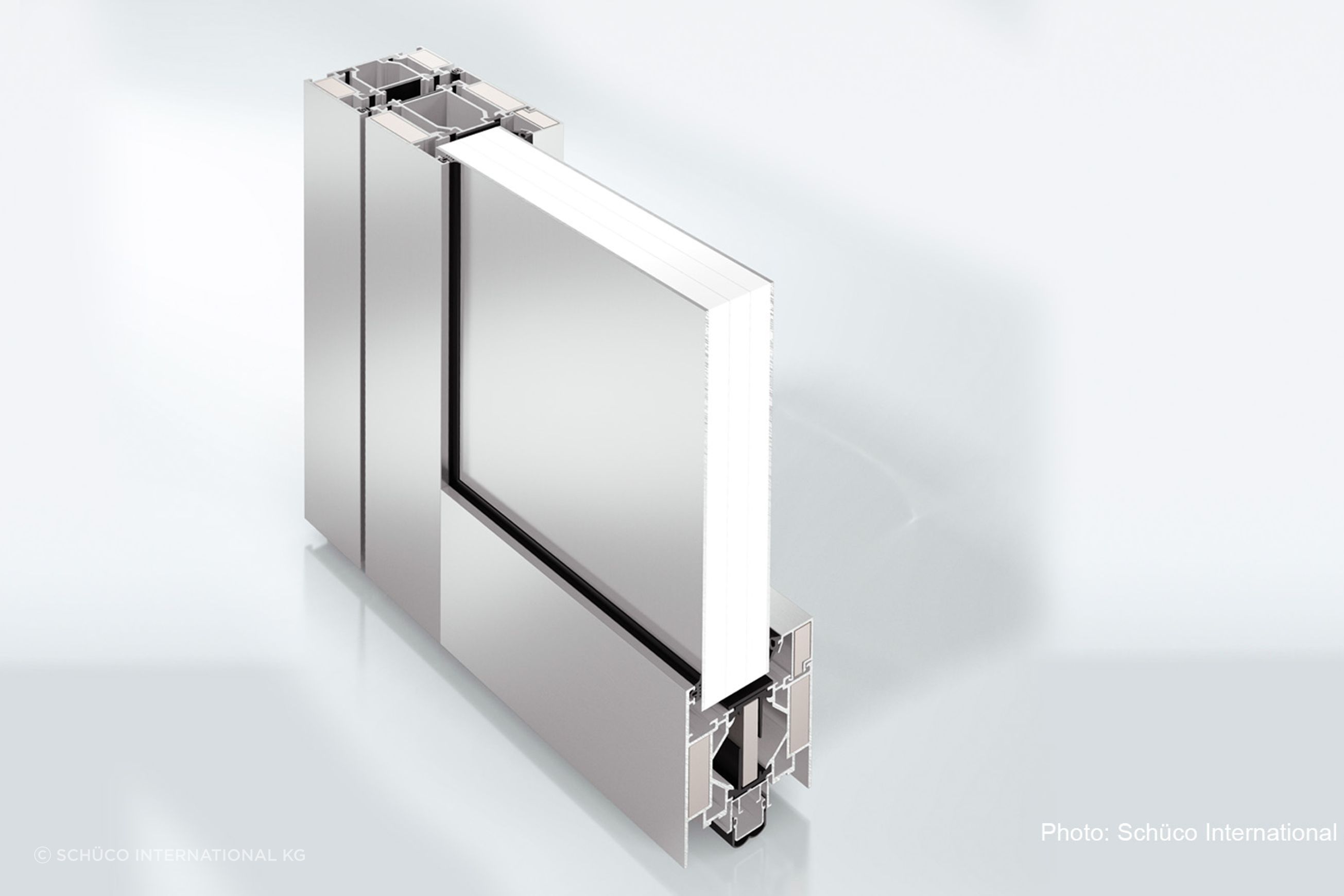

High performance Schüco ADS 80 fire and smoke resistant door systems for residential, multi-residential and commercial use. The doors feature an 80mm deep, highly stable 5-chamber hollow profile design with either a glazed or solid panel. It is certified for fire protection rating (FRR) up to 60 minutes integrity and 30 minutes insulation (-/60/30) with an option for (-/30/30) and can be used as both a door and a wall unit.

The Schüco ADS 80 fire & smoke doors are fabricated locally in NZ by Thermosash, backed by our well-established local expertise and support. Thermosash are able to bring this product to the NZ market through our exclusive NZ partnership with German based company Schüco.

The only locally tested aluminium fire door system in New Zealand.

• Tested locally in accordance with AS 1530.4:2014 (methods for fire tests on building materials) and NZS 4520:2010 (fire resistance testing of doorsets including hardware items) carried out by BRANZ
• Single and double-leaf doors certified with CE marking for external use according to EN 16034/EN 14351-1 with compliance pathway reports available to NZTS 4211 to satisfy NZBC E2
• Durability resistance to repeated opening and closing certified according to EN 12400, class 8 with 1 million cycles
• Mechanical strength to resistance according to EN 1192, class 4, with the highest protection against vandalism and frequent excessive use of force
• Burglar resistance certified according to DIN EN 1627 with and without panic function

For enhanced security and automation, the aluminum system can be upgraded to a multifunctional door, supporting burglar resistance, panic functions, sound reduction, and access control.

Contact us to discuss your project's fire rated door requirements.
