Mechanical Air Louvres
by Thermosash
Auckland, New Zealand
- 273.2K profile views
- 30 saves
Section Sizes
Mechanical Air Louvre range:
- MAL-40S : Single-bank - 40mm section sizes
- MAL-100S : Single bank - 100mm section sizes
- MAL-100D: Double bank - 100mm section sizes.
- MAL-156T: Triple bank - 156mm section sizes.
Performance / Testing
- BS EN 13030:2001
Maximum Spanning Ability
The spanning ability will vary depending on span required, structural system, and environmental loads (e.g. wind). Thermosash specifically engineers the best design options for your project.
Variation to basic design
- Extended sill
- Insulated backpan for plenum attachment
- Hinged frame
- Front and rear security bars
- Filter racks
- A variety of vermin / bird / insect screens to all louvre types
Integrated Elements
Thermosash Mechanical Air Louvres integrate into the Thermosash range of curtainwall and Commercial window and doors systems.
Low-Carbon Aluminium
Thermosash partners with a local NZ-owned extruder achieving a lower carbon footprint than the global average - offering reduced upfront carbon emissions. (find out more about our Sustainable Aluminium).
Aluminium is 100% recyclable and all aluminium from refurbished sites and from our manufacturing process is environmentally managed back to our key suppliers and processed back into raw billet form.
Product Details
- Product
- Mechanical Air Louvres
- Category
- Mechanical Ventilation Systems
- Sold by
- Thermosash
- Type of use
- Commercial
- Installation
- Professional installation required
Product Variants
- Material
Thermosash is specified by
CCM ArchitectsArchitects
Pacific Environments ArchitectsArchitects
Moller ArchitectsArchitects
Woods BagotArchitects
+MAP ArchitectsArchitects
Tennent Brown ArchitectsArchitects
YokeArchitects
Chow:Hill ArchitectsArchitects
Studio Pacific ArchitectureArchitects
Anna-Marie Chin ArchitectsArchitects
JasmaxArchitects
Ignite ArchitectsArchitects
ArchimediaArchitects
ArchitectusArchitects
Arthouse ArchitectsArchitects
Sheppard & Rout ArchitectsArchitects
Wilson & Hill ArchitectsArchitects
Designgroup Stapleton ElliottArchitects
AW ArchitectsArchitects
Four Walls ArchitectureArchitects
RBJBuilders
MetWood®Manufacturers and Suppliers
Space StudioInterior Designers
Triple Star ManagementBuilders
Accumen ShapesManufacturers and Suppliers
Queenstown Plumbing & GasPlumbers & Gas Fitters
Home ProjectsBuilders
Big River GroupManufacturers and Suppliers
Cadpro3D Rendering
Mark Scowen PhotographyPhotographers
RCPProject Managers
HawkinsConstruction
LT McGuinness Ltd.Construction
Woods GlassManufacturers and Suppliers
Haydn & RollettCarpenters & Cabinetmakers
EllisCoManufacturers and Suppliers
Bath CoManufacturers and Suppliers
Equus IndustriesManufacturers and Suppliers
Metropolitan DesignArchitectural Designers
TRENZSEATERManufacturers and Suppliers
Wakefield MetalsManufacturers and Suppliers
Alabaster WorkshopManufacturers and Suppliers
Steel & TubeManufacturers and Suppliers
eCubedEnvironmental Engineers
KwantoQuantity Surveyors
Section Sizes Mechanical Air Louvre range: MAL-40S : Single-bank - 40mm section sizes MAL-100S : Single bank - 100mm section sizes MAL-100D: Double bank - 100mm section sizes.
Performance / Testing
- BS EN 13030:2001
Maximum Spanning Ability
The spanning ability will vary depending on span required, structural system, and environmental loads (e.g. wind). Thermosash specifically engineers the best design options for your project.
Variation to basic design
- Extended sill
- Insulated backpan for plenum attachment
- Hinged frame
- Front and rear security bars
- Filter racks
- A variety of vermin / bird / insect screens to all louvre types
Integrated Elements
Thermosash Mechanical Air Louvres integrate into the Thermosash range of curtainwall and Commercial window and doors systems.
Low-Carbon Aluminium
Thermosash partners with a local NZ-owned extruder achieving a lower carbon footprint than the global average - offering reduced upfront carbon emissions. (find out more about our Sustainable Aluminium).
Aluminium is 100% recyclable and all aluminium from refurbished sites and from our manufacturing process is environmentally managed back to our key suppliers and processed back into raw billet form.
- Specs
Due to the potential unique and high performance design requirements, a bespoke specification will be created by a mechanical or facade engineer consultant.
When integrated with Thermosash suites and referencing the inclusion we recommend using Masterpec 4211TS Curtainwalls and 4521TS Commercial Windows.
Please call us to discuss your project early in conceptual development.
NB: Specify Double or triple bank - when a greater degree of weathering proofing is required.
- Features
- Performance Classification BS EN 13030:2001
- High performance frame system with drainable frame, collects and removes water
- Architecturally styled hidden mullions allowing continuous line appearance, span varies based on site wind load and blade selection.
- Aluminium powdercoated / anodised construction for low maintenance and high corrosion resistance
- Seamless integration with Thermosash systems
- Scope of use

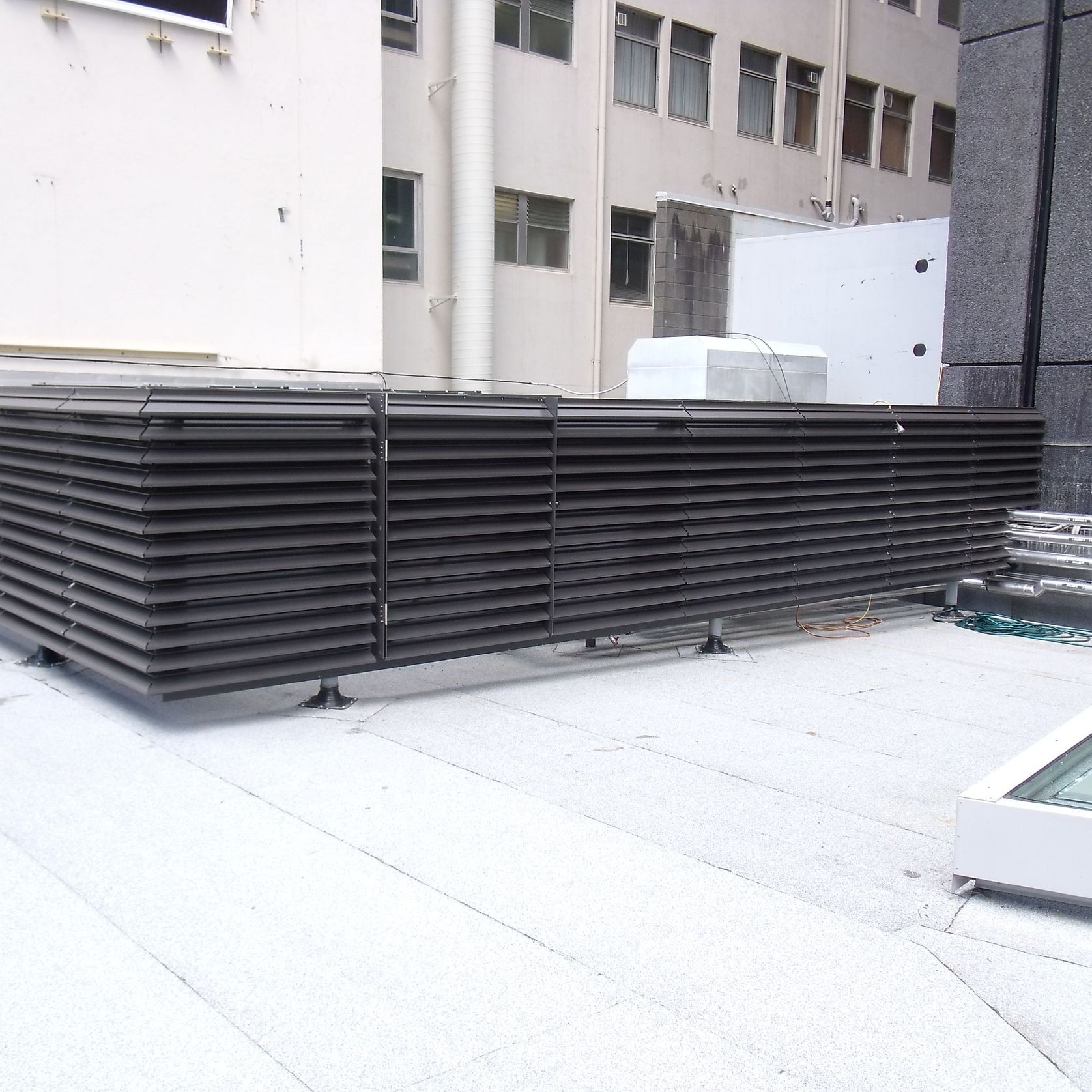

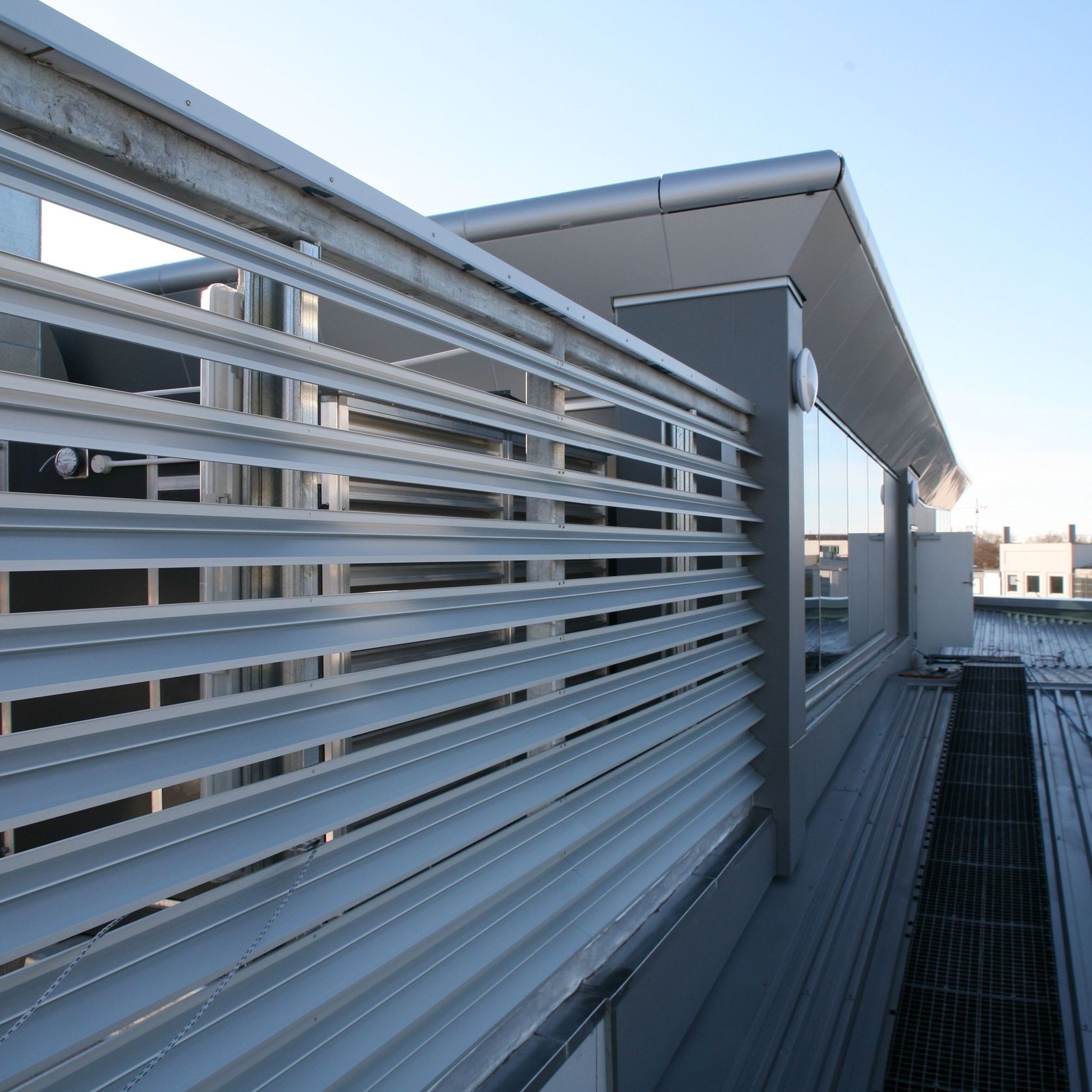

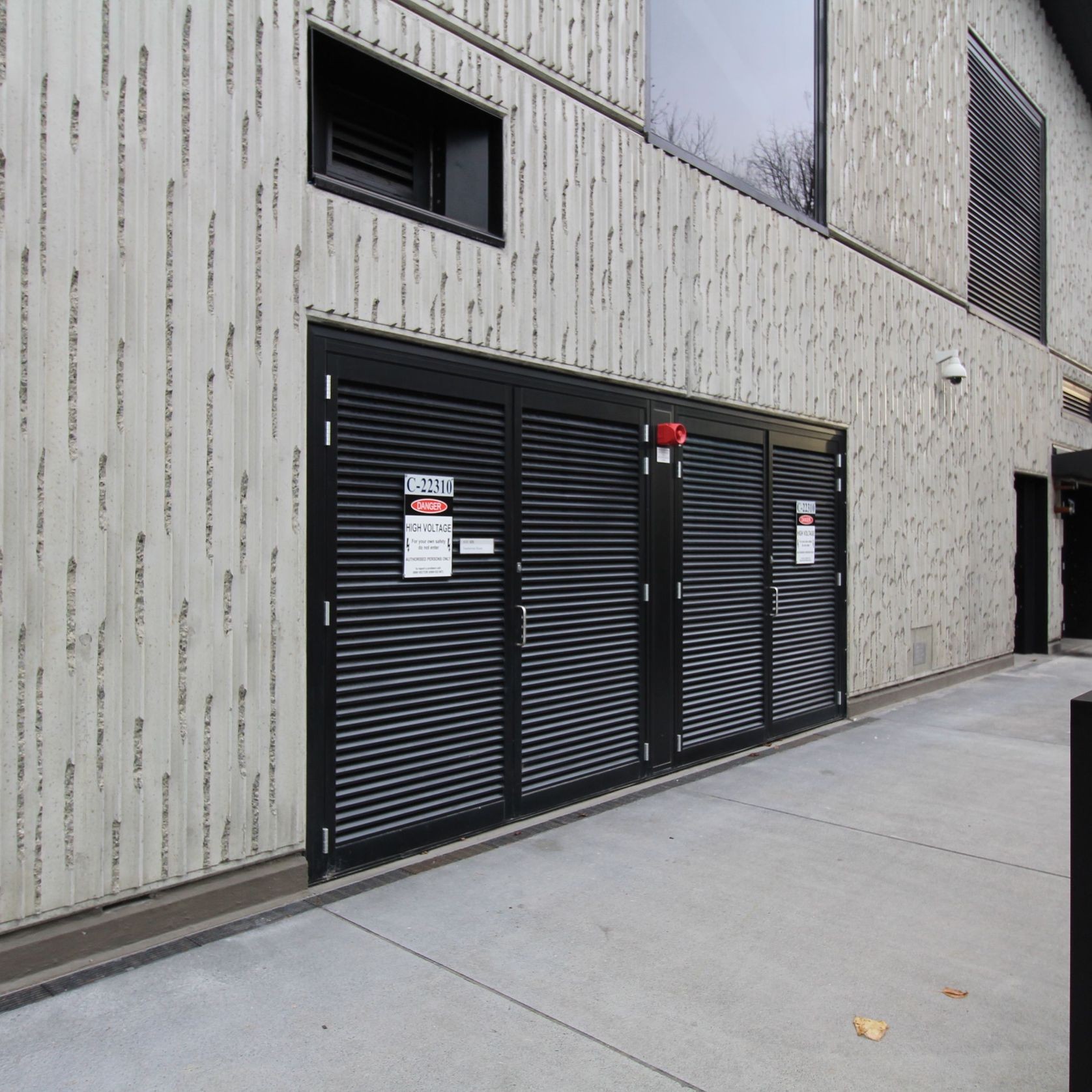

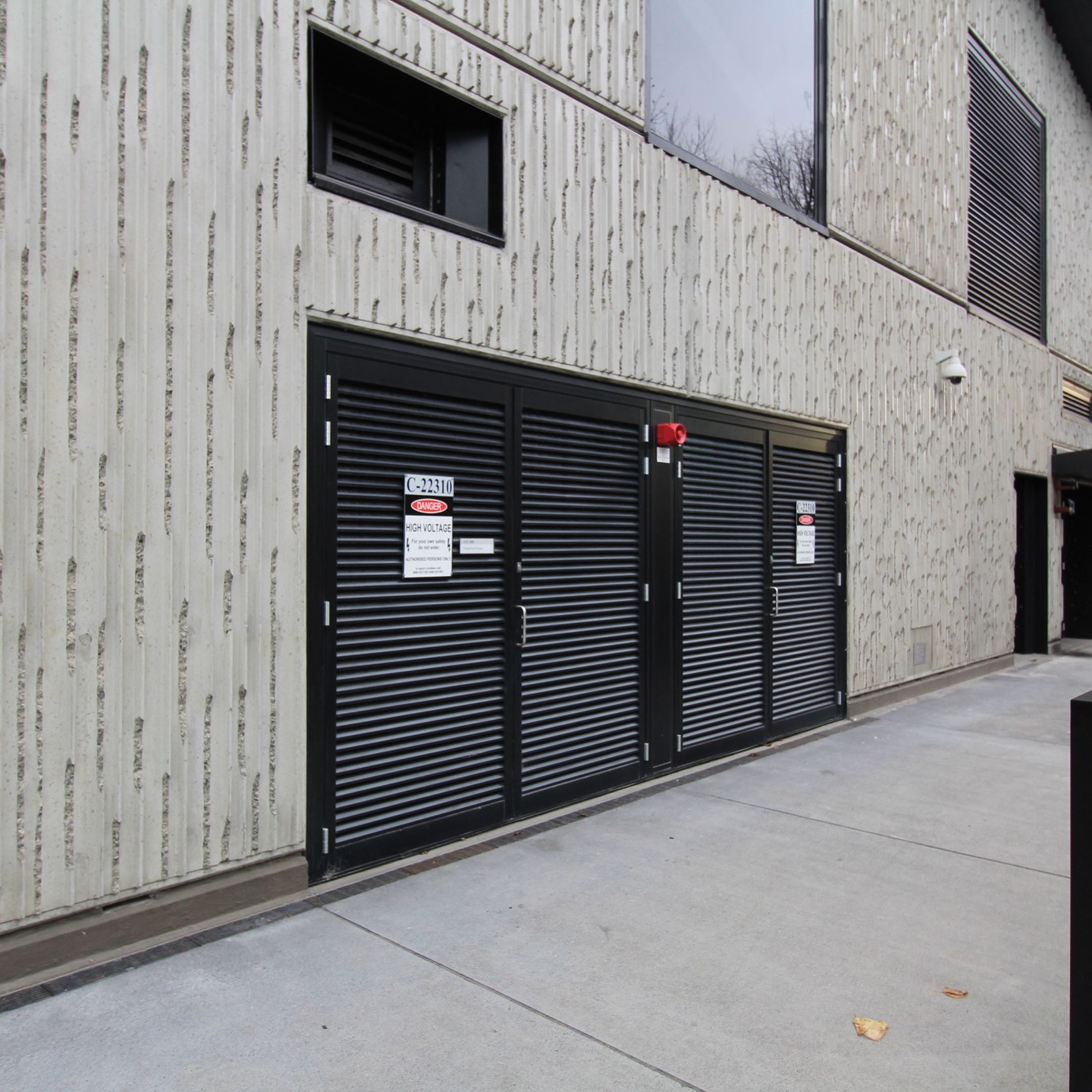

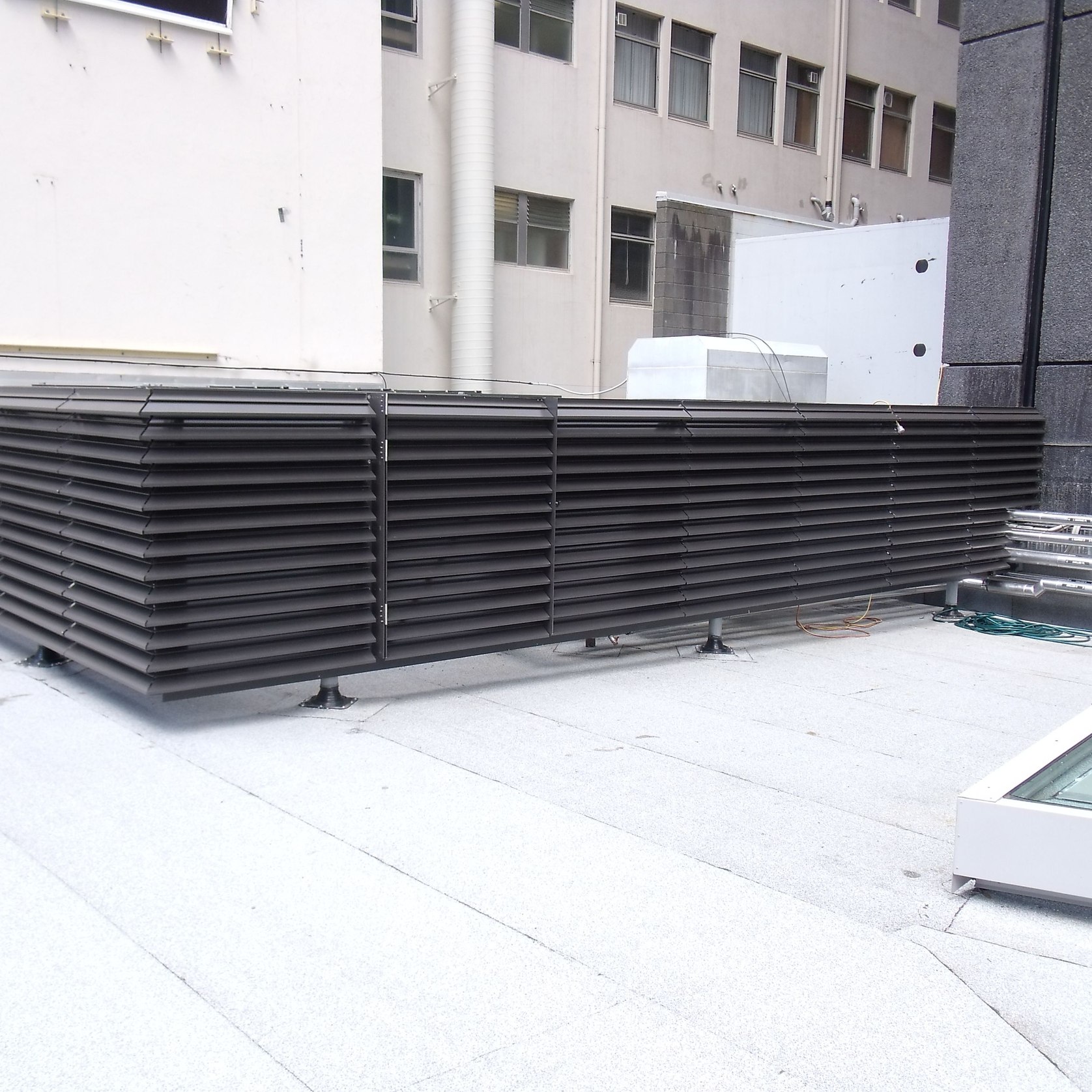

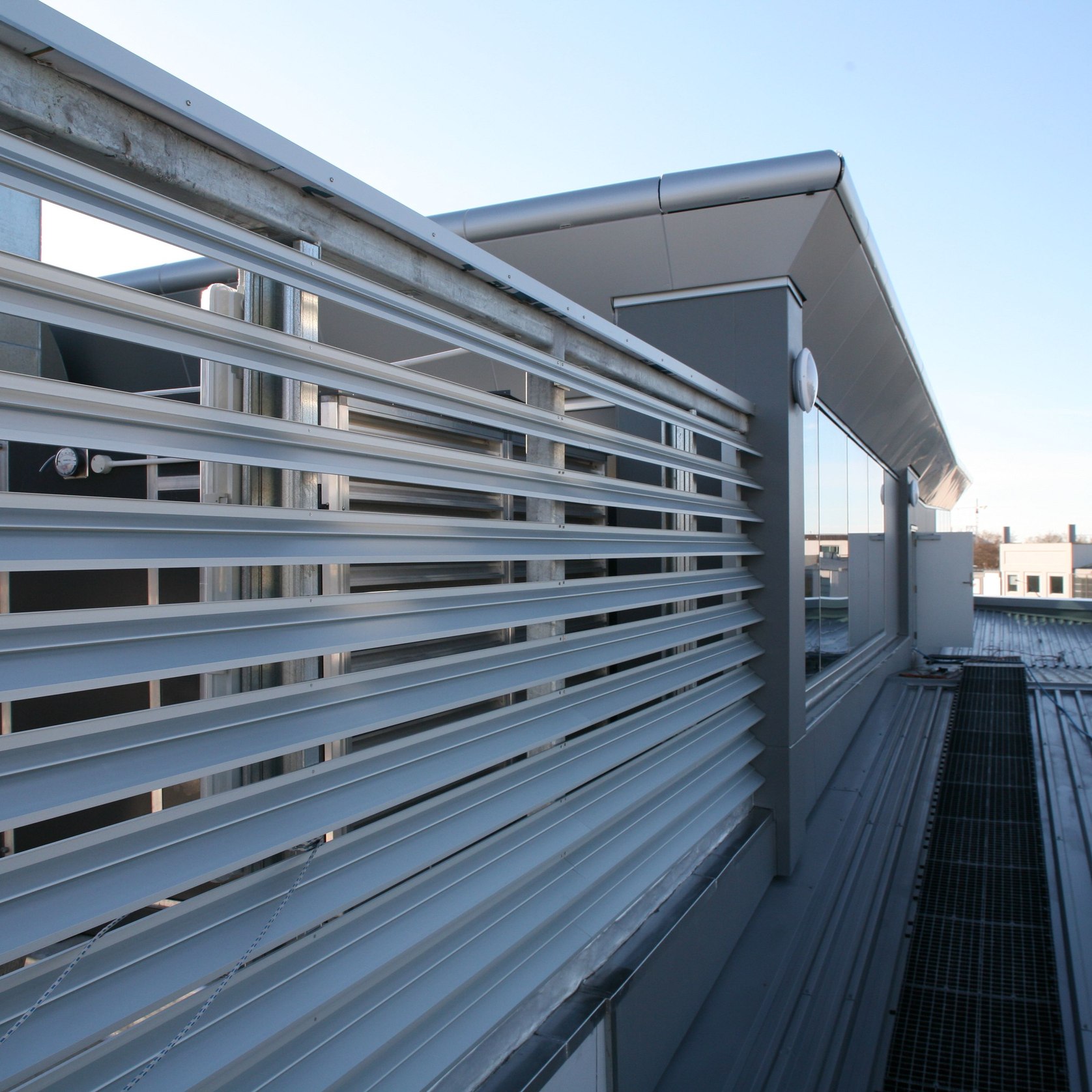

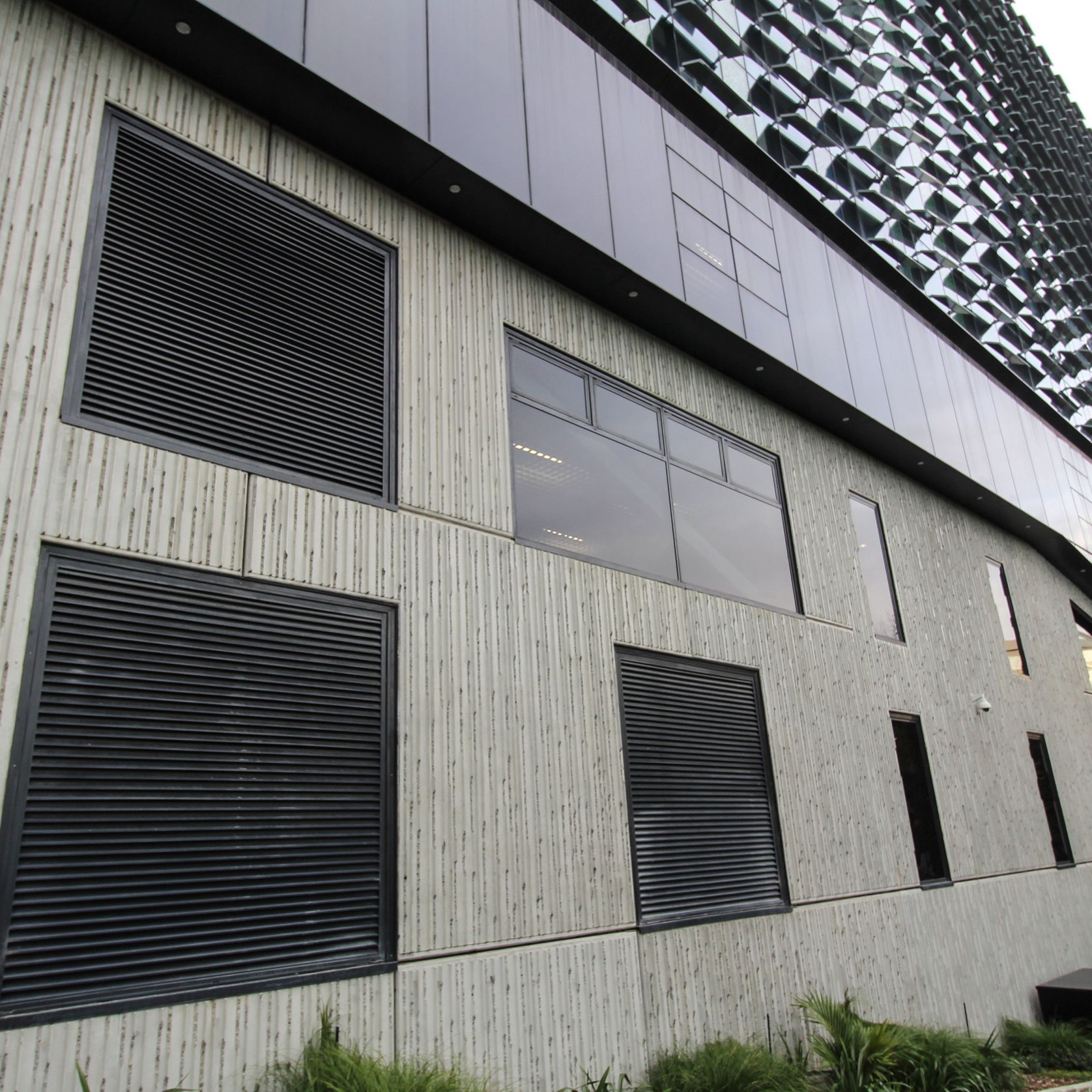

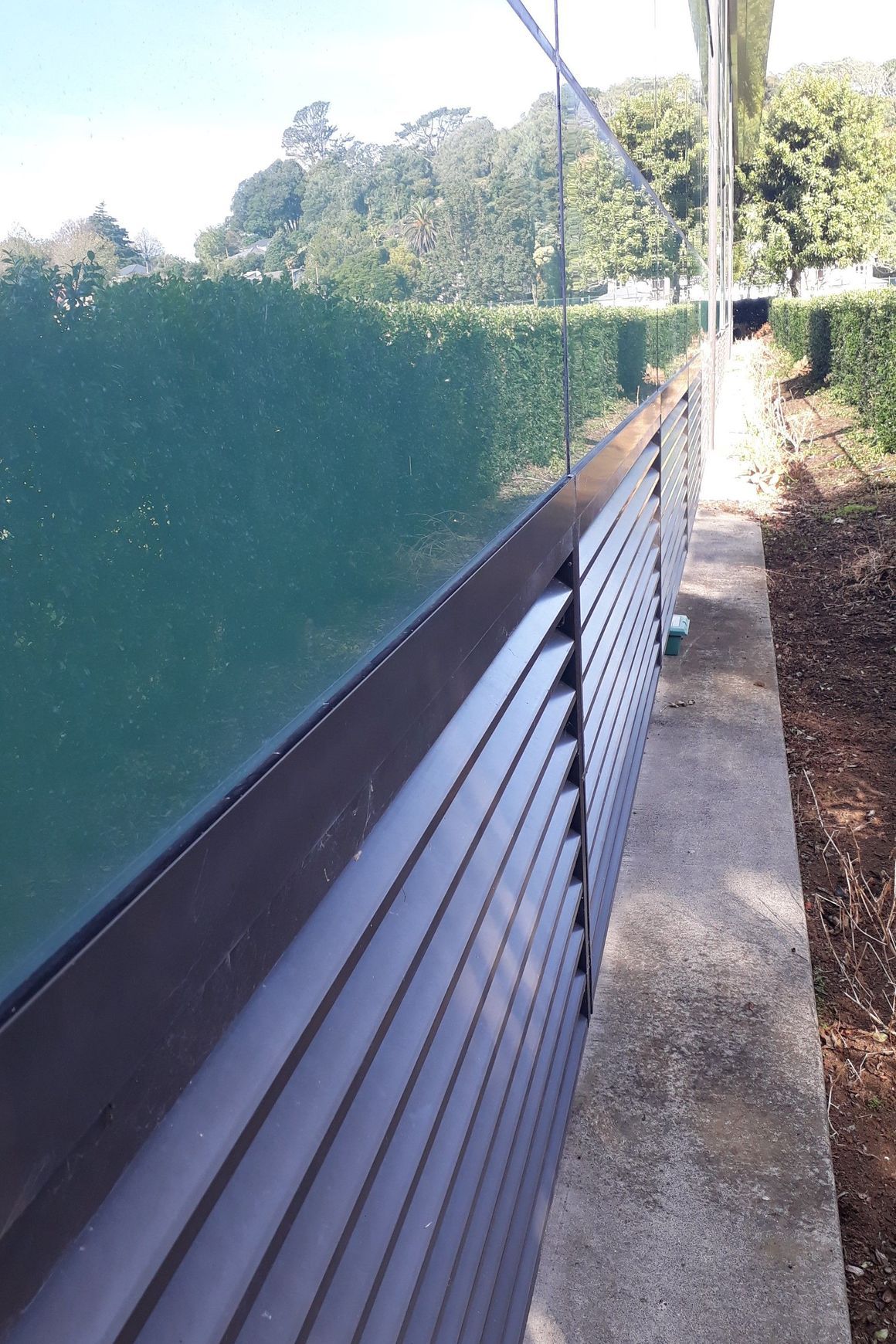

These louvres are commonly specified as fresh air inlets for mechanical plant and mechanical plant screening.

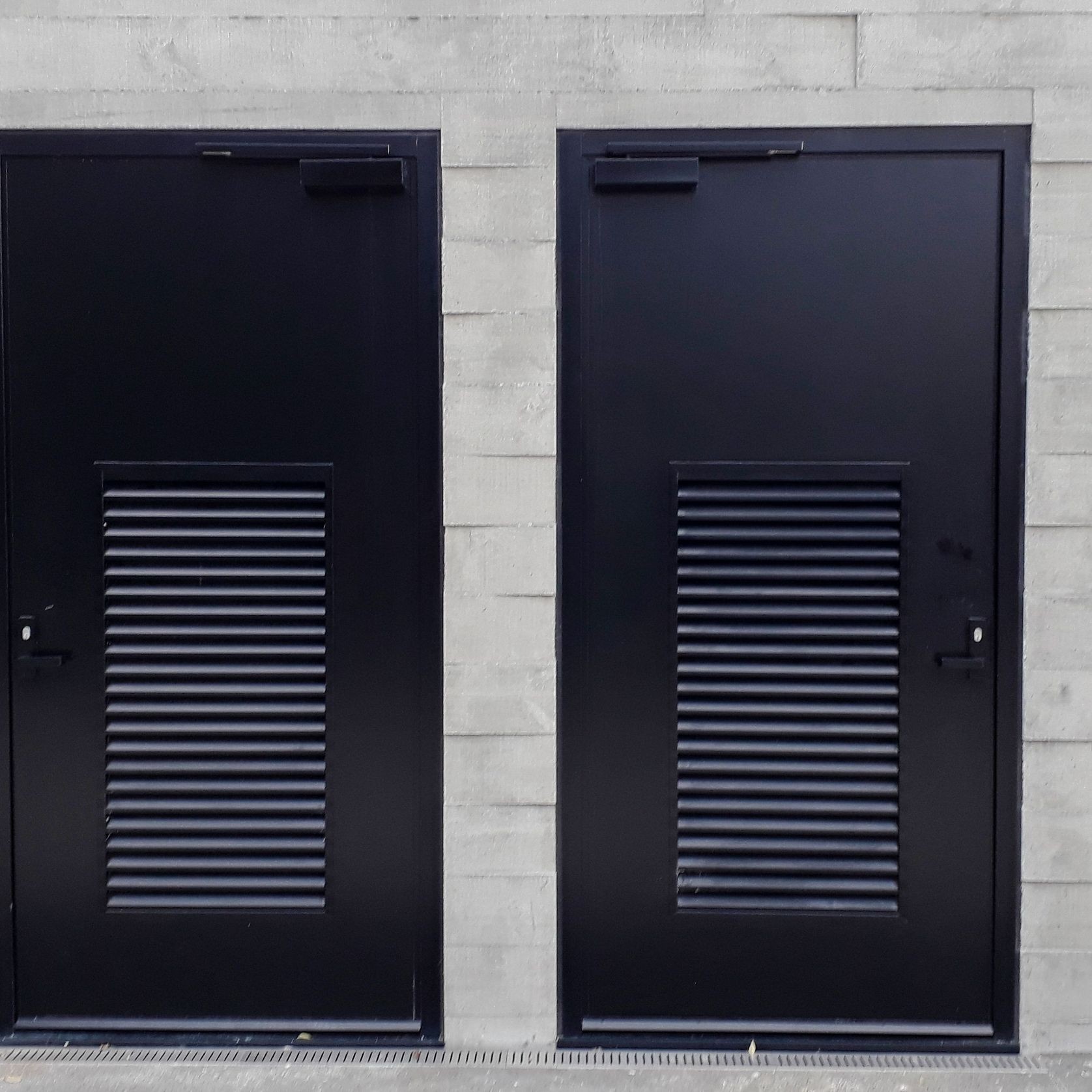

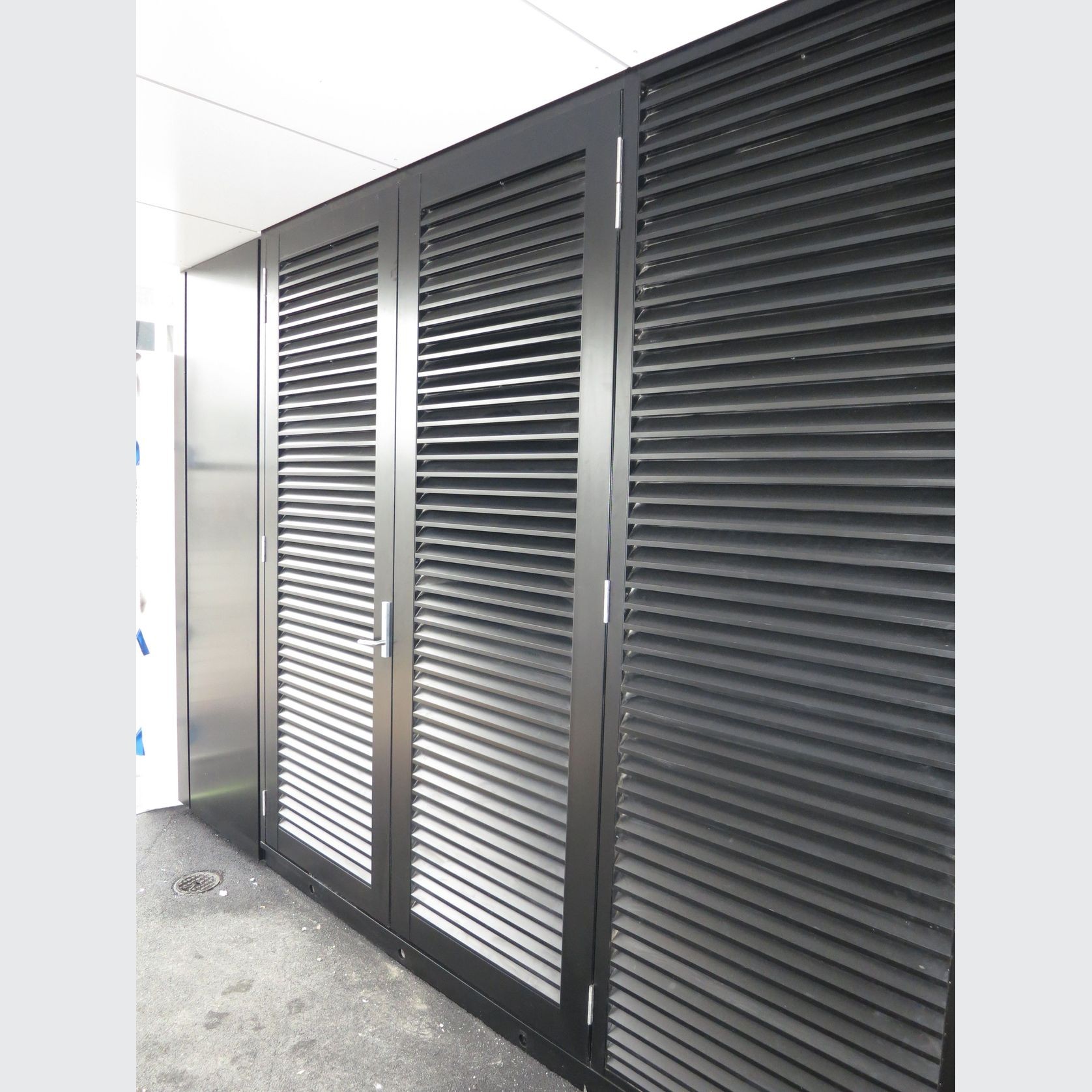

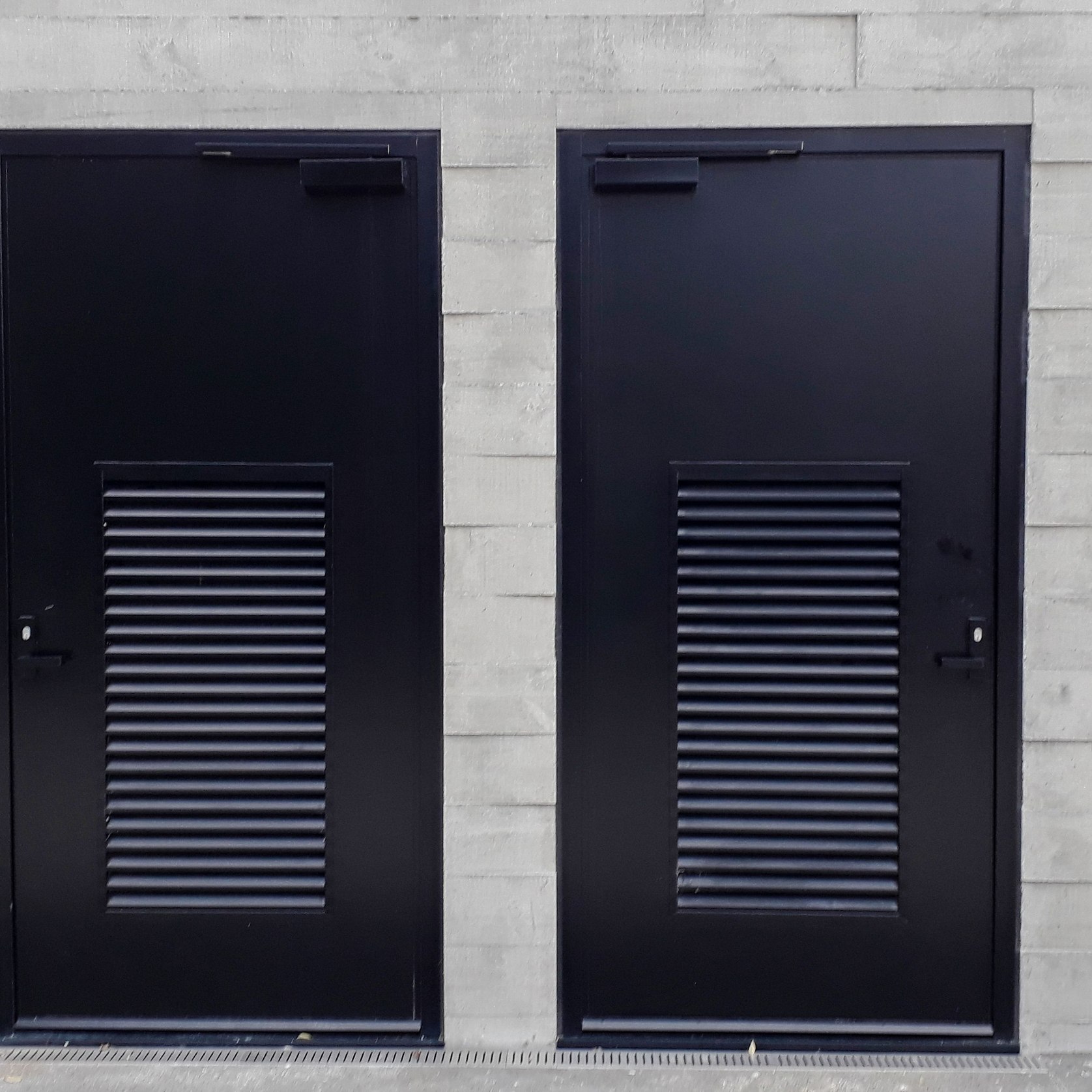

40mm Single Bank - integrated into doors. Single banks are not waterproof, and when outdoors, will not offer a dry environment within the clad space.
100mm Single Bank - These louvres are commonly specified as fresh air inlets for mechanical plant and mechanical plant screening. Single banks are not waterproof and will not offer a dry environment within the clad space.
100mm Double Bank - These louvres are commonly specified as fresh air inlets for mechanical plant and mechanical plant screening. Double banks will offer a greater degree of weather proofing than single banks.
156mm Triple Bank - These louvres are commonly specified as fresh air inlets for mechanical plant and mechanical plant screening. A Triple bank will offer a greater degree of weather proofing than single bank.
- Warranty
10 years from the date of practical completion.
Min 5 years for design, engineering, quality of materials, fabrication, installation and performance.
Warranty is provided in the form of a site-specific producer statement (PS3 Construction).Warranty commences from the date of practical completion of the contract works.
All warranties are subject to service and maintenance requirements.- Maintenance
A full maintenance manual is provided on completion of a project for all the elements integrated within a project.
Compliance to a maintenance schedule is essential to maintaining the quality of the installed product over time. Using Thermosash-approved facade maintenance contractor/personnel ensures the highest standards are met.
