FramelessGlass Cavity Slider
Auckland, New Zealand
- 590.5K profile views
- 125 saves

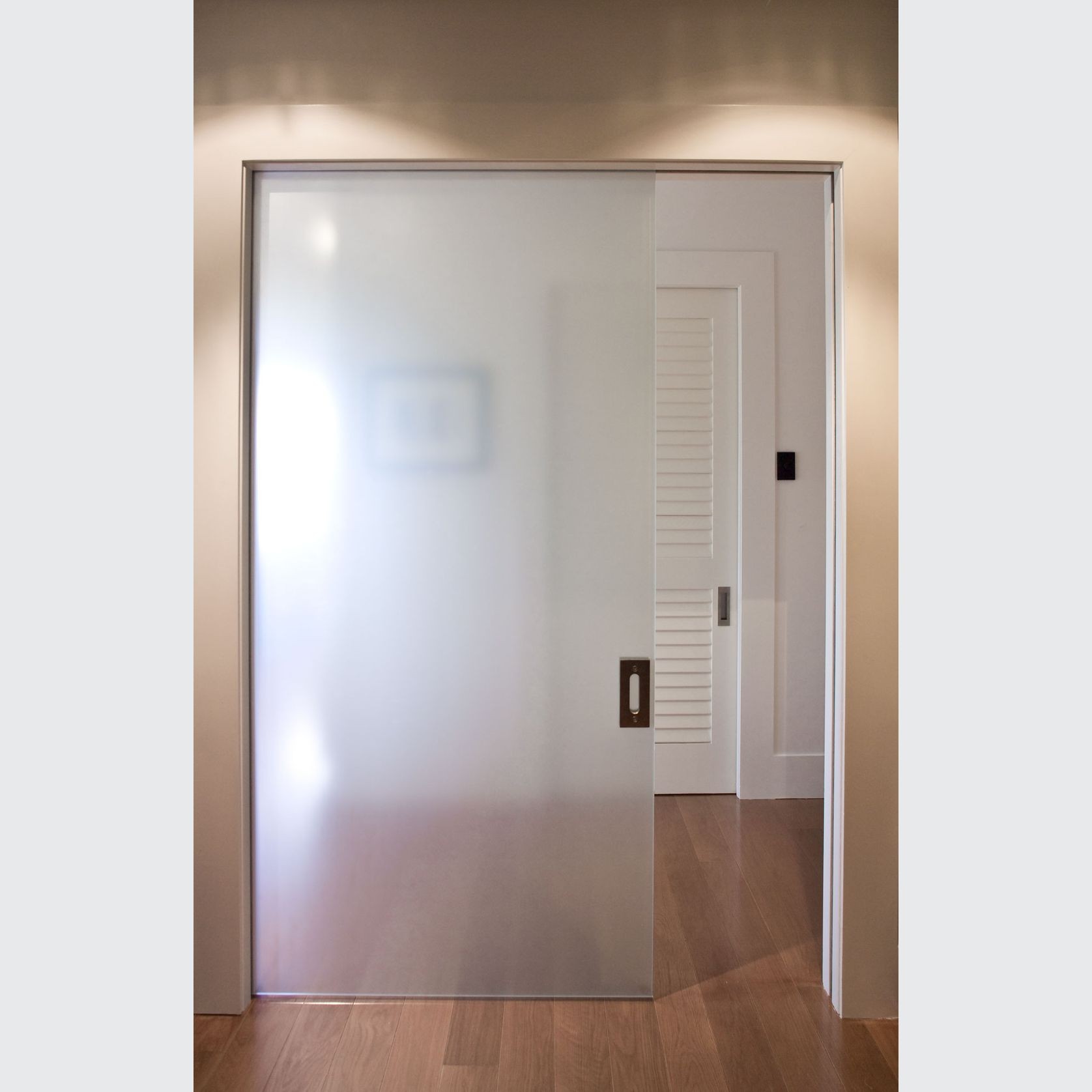

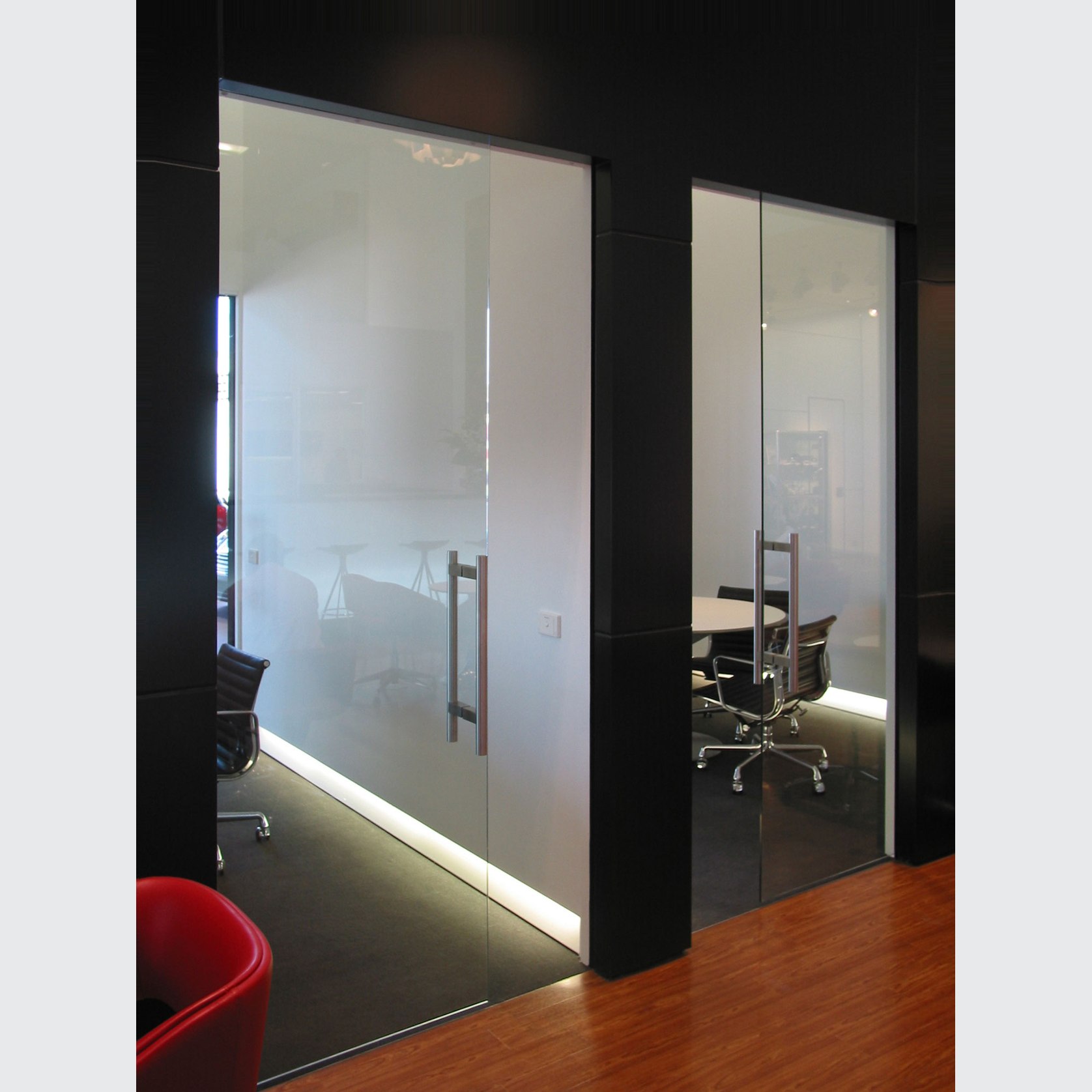

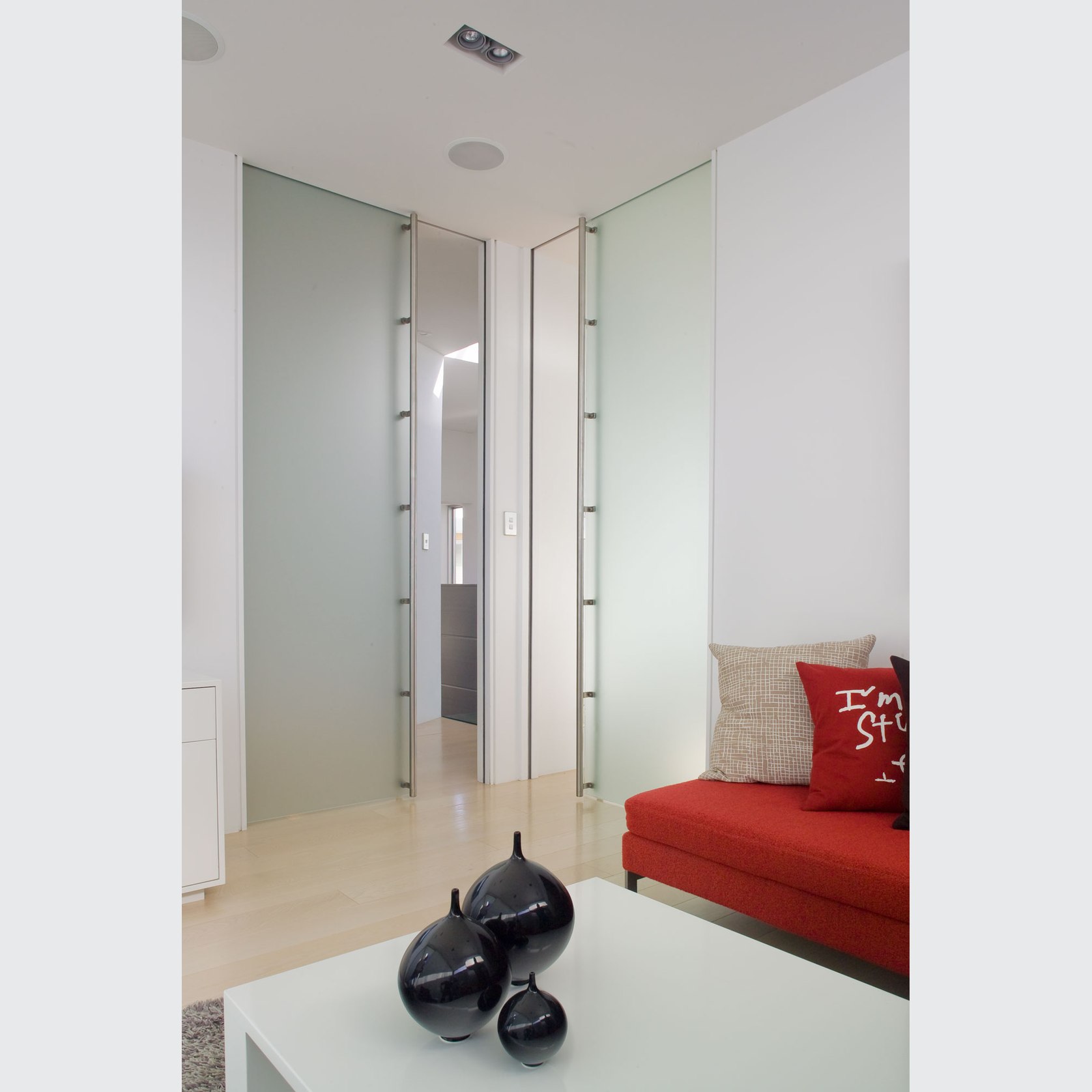

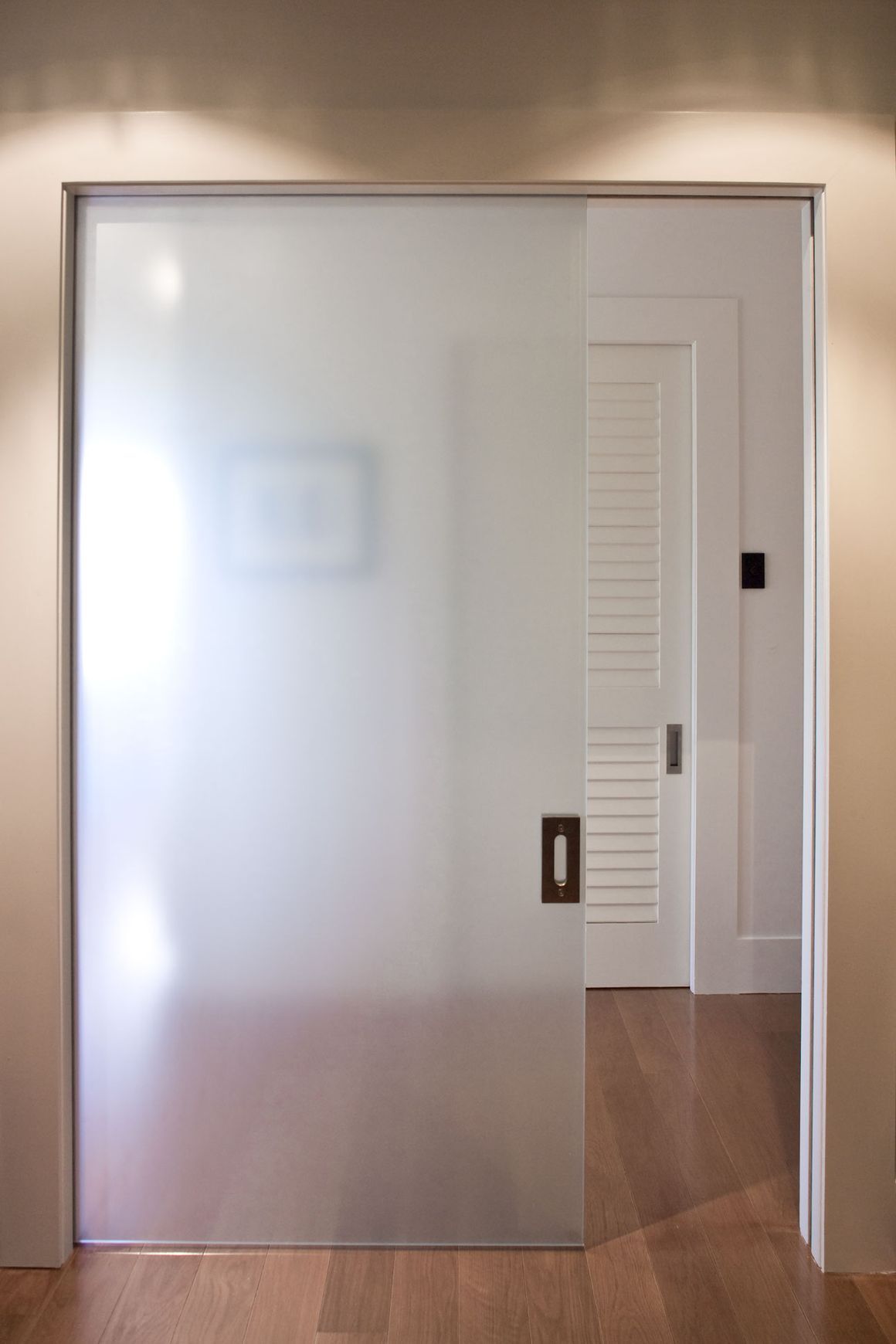

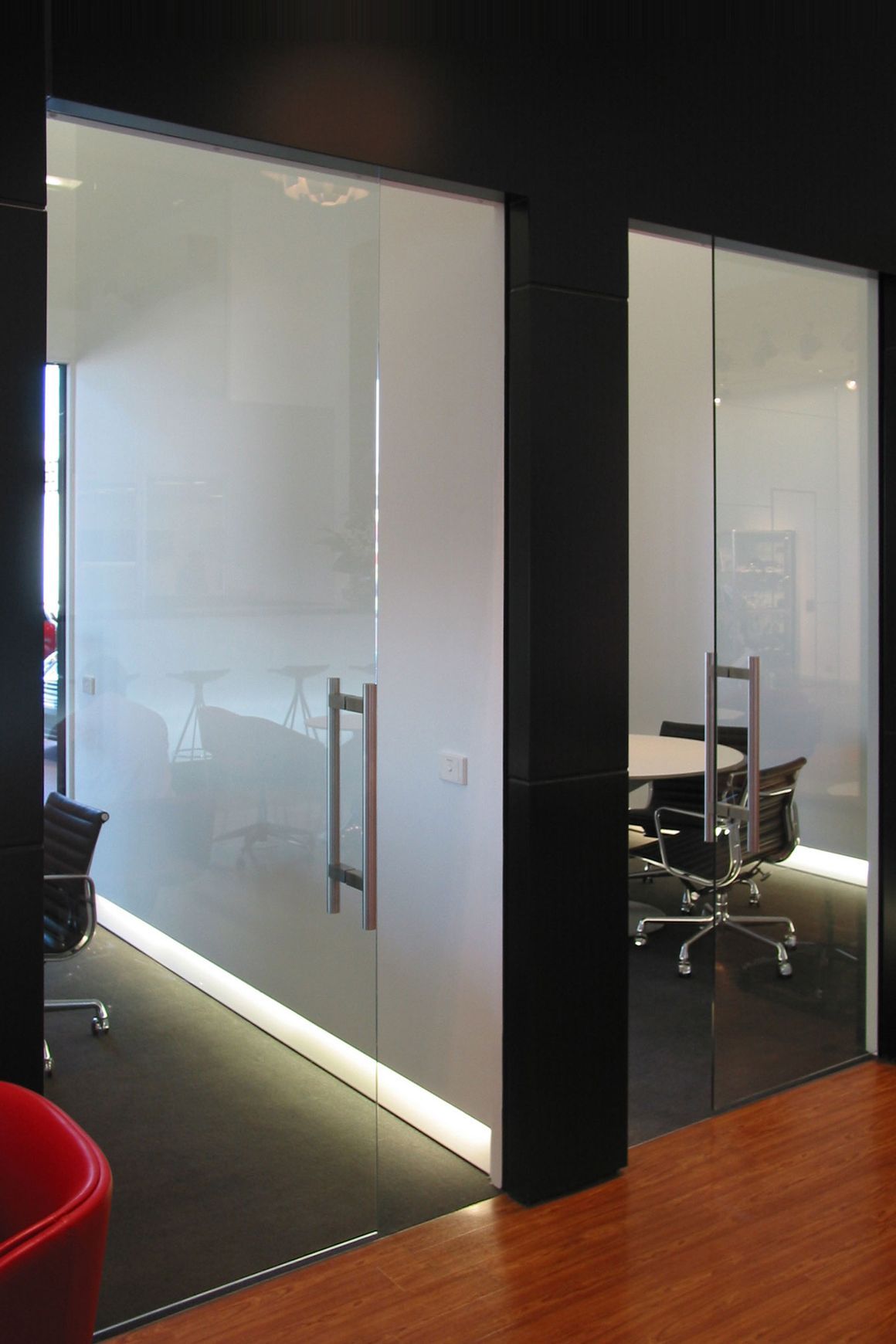

CS FramelessGlass units incorporate a toughened frameless glass panel as the door leaf, creating a light and uninterrupted space - even with the door closed. Units are supplied with a clamp bracket that may be either exposed or hidden above the head jambs depending on option selected at time of order.
Frosted glass and other finishes including "branded options" are available. 10mm or 12mm safety glass must be specified with these units.
Made to specification up to 2400mm high x 2000mm wide. Larger sizes available by special request.
Available with SofStop® Soft open/close for doors up to 100kg.
Features
- Patented cavity frame is fully tested and guaranteed. It is engineered from high quality heavy duty extruded aluminium
- Available as Single or Bi-Parting (double) units
- Door cannot jump off the track
- Fits into a standard thickness wall (90 x 45 framing)
- Supplied fully assembled for on-site installation
- No visible floor guides
Product Details
- Product
- FramelessGlass Cavity Slider
- Category
- Cavity Slider Doors
- Sold by
- CS Cavity Sliders
- Range
- CS Cavity Sliders
- Designer
- CS Cavity Sliders
- Brand
- CS Cavity Sliders
- Year
- 2023
- Country of origin
- New Zealand
- Type of use
- Commercial and Residential
- Installation
- Professional installation required
- Warranty
- 10 years
Product specified by
CS FramelessGlass units incorporate a toughened frameless glass panel as the door leaf, creating a light and uninterrupted space - even with the door closed.
Units are supplied with a clamp bracket that may be either exposed or hidden above the head jambs depending on option selected at time of order.
Frosted glass and other finishes including "branded options" are available. 10mm or 12mm safety glass must be specified with these units.
Made to specification up to 2400mm high x 2000mm wide. Larger sizes available by special request.
Available with SofStop® Soft open/close for doors up to 100kg.
Features
- Patented cavity frame is fully tested and guaranteed. It is engineered from high quality heavy duty extruded aluminium
- Available as Single or Bi-Parting (double) units
- Door cannot jump off the track
- Fits into a standard thickness wall (90 x 45 framing)
- Supplied fully assembled for on-site installation
- No visible floor guides
- Specs / Details
- Max. size: Custom sizes up to 2400h x 2000 w
- Max. Door Weight (Standard): 120kg
- Max. Door Weight (SofStop): 100kg
- Wall Framing: 90mm
- Wall Linings: 10 or 13mm
- Door Thickness: 10 or 12mm toughened glass
Downloads
Downloads (2)2 Direct downloads • 10 Available on request
Frequently asked questions about
FramelessGlass Cavity Slider
The FramelessGlass Cavity Slider is supplied by CS Cavity Sliders. It is also on their website, and you can browse every product CS Cavity Sliders lists on ArchiPro.
CS Cavity Sliders does not publish a price for the FramelessGlass Cavity Slider on ArchiPro. for pricing, or visit their website.
Yes. It is part of the CS Cavity Sliders range from CS Cavity Sliders, where you can see every product in the range together.

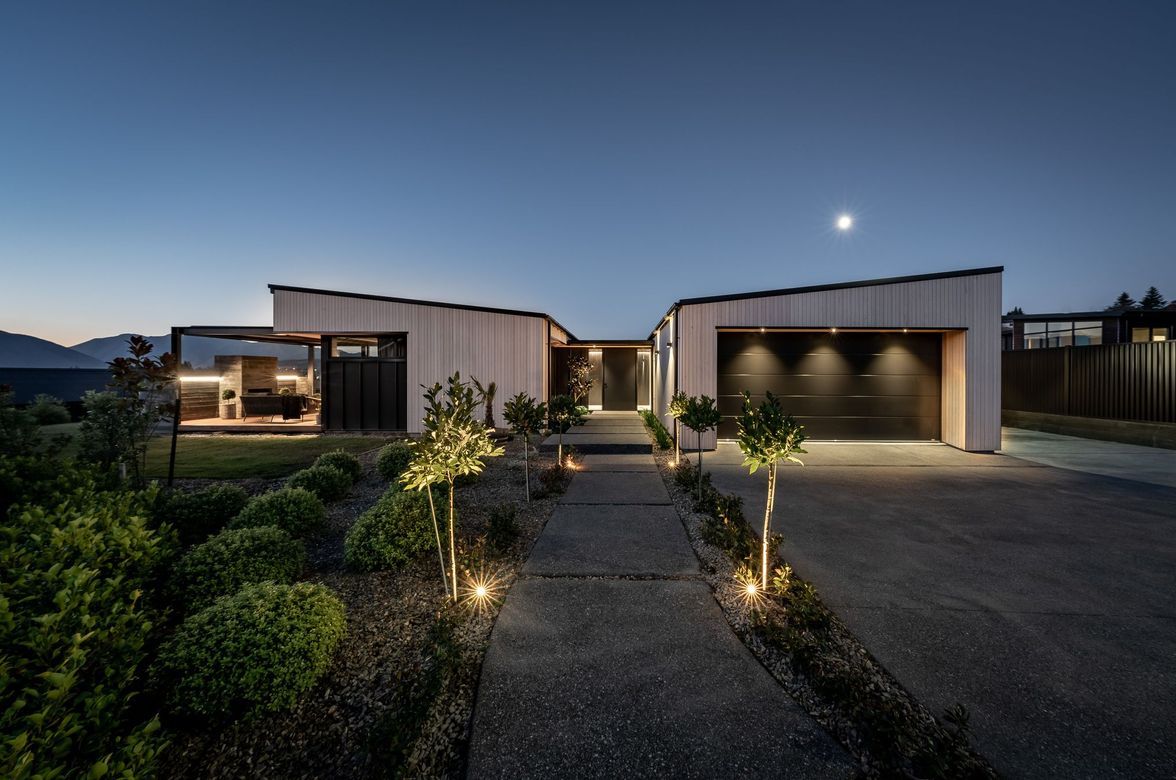

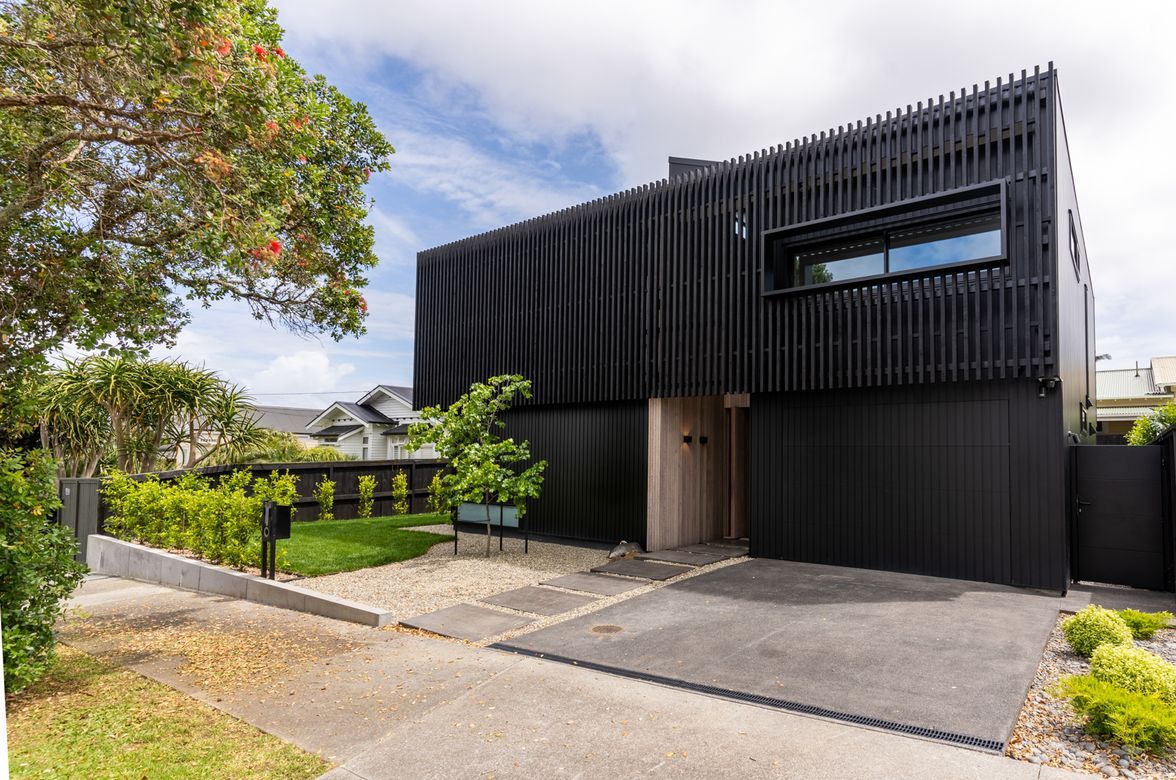

Yes. It has been specified in projects on ArchiPro, including Bold and Beautiful - Sandringham by Warren Adolph Homes, Little Alpha by Open Architecture and Sylvia Park Accessible Toilets by CS Cavity Sliders. See how it was used in a finished space.
