HB1040 Round Frameless Extraction Grill
Victoria
- 680.3K profile views
- 58 saves

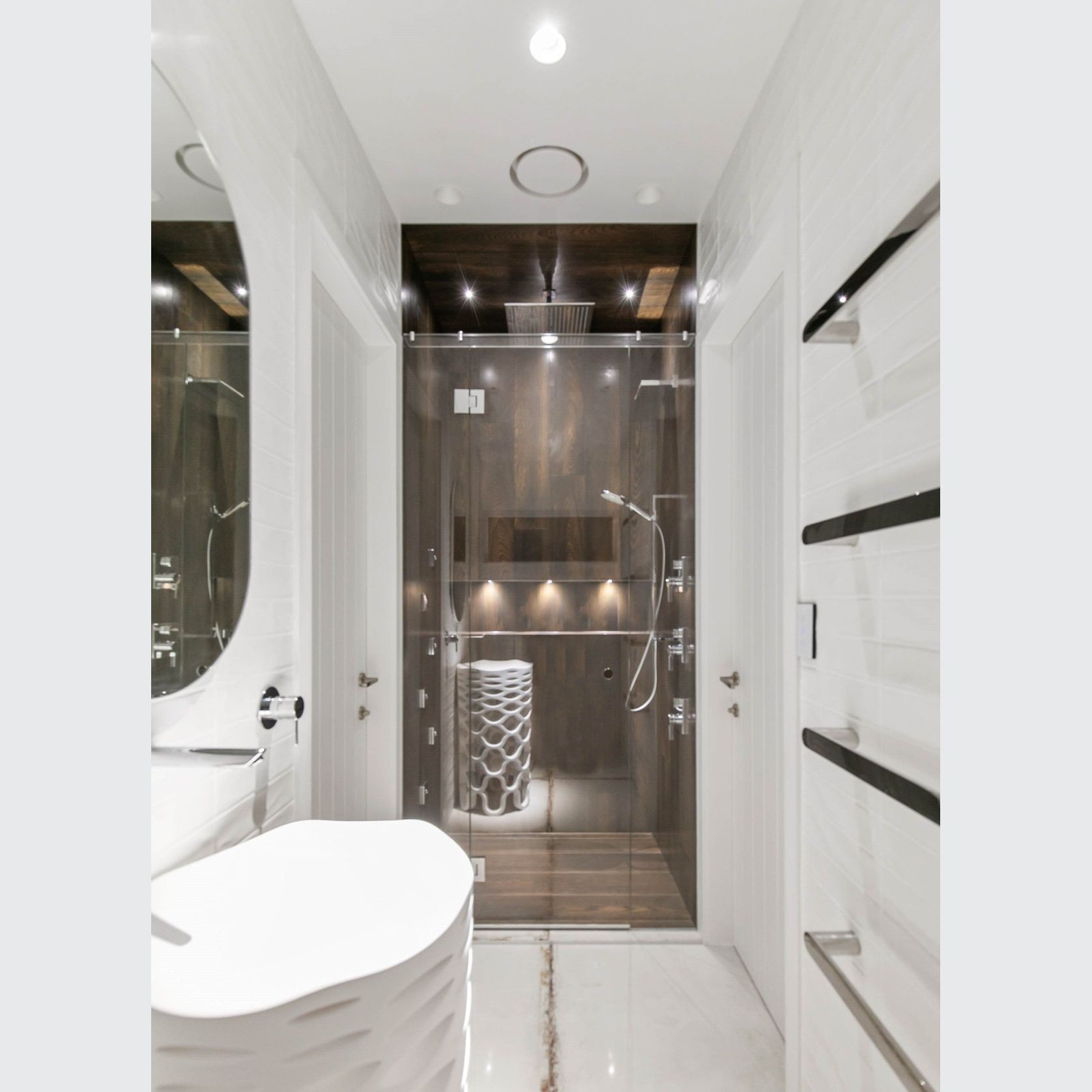

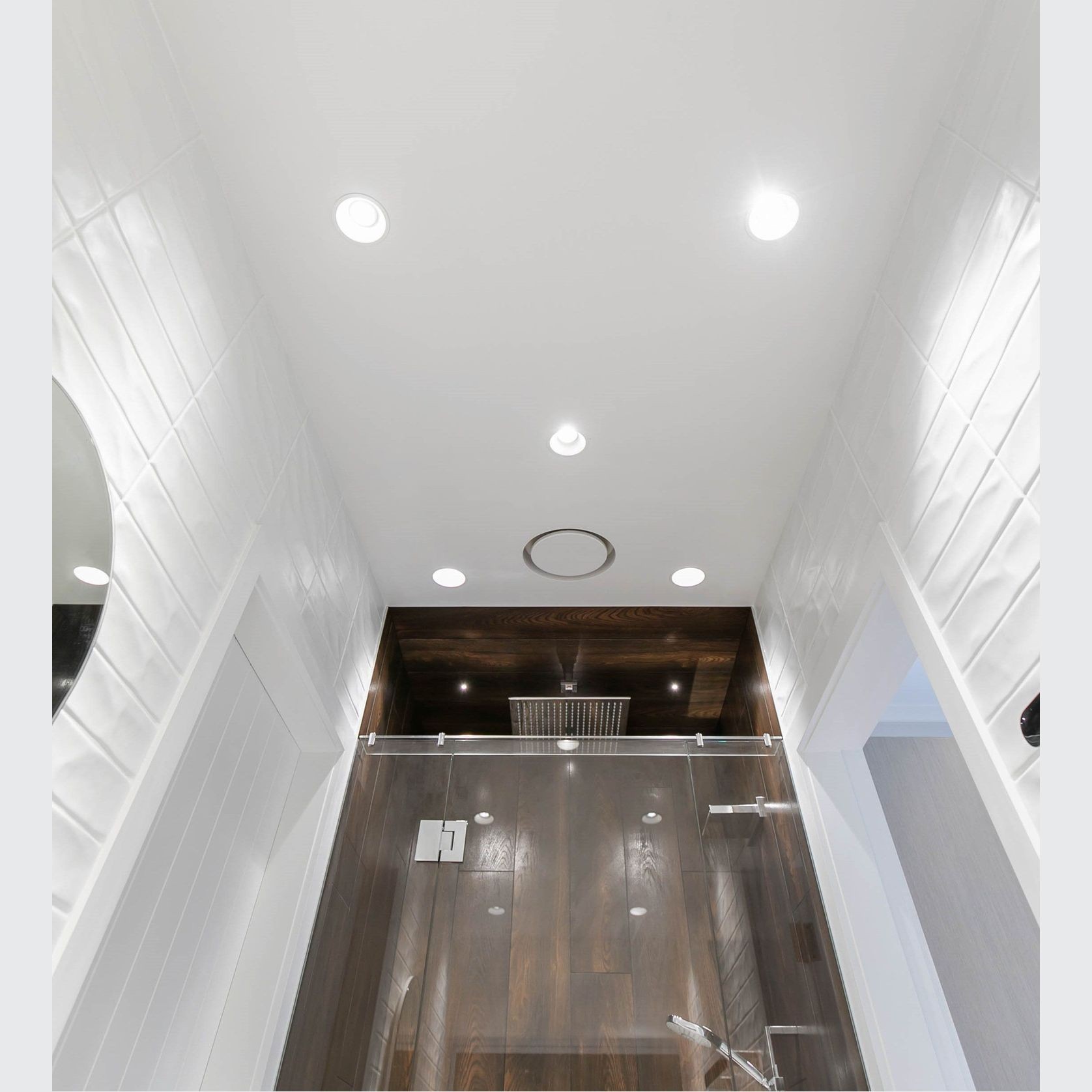

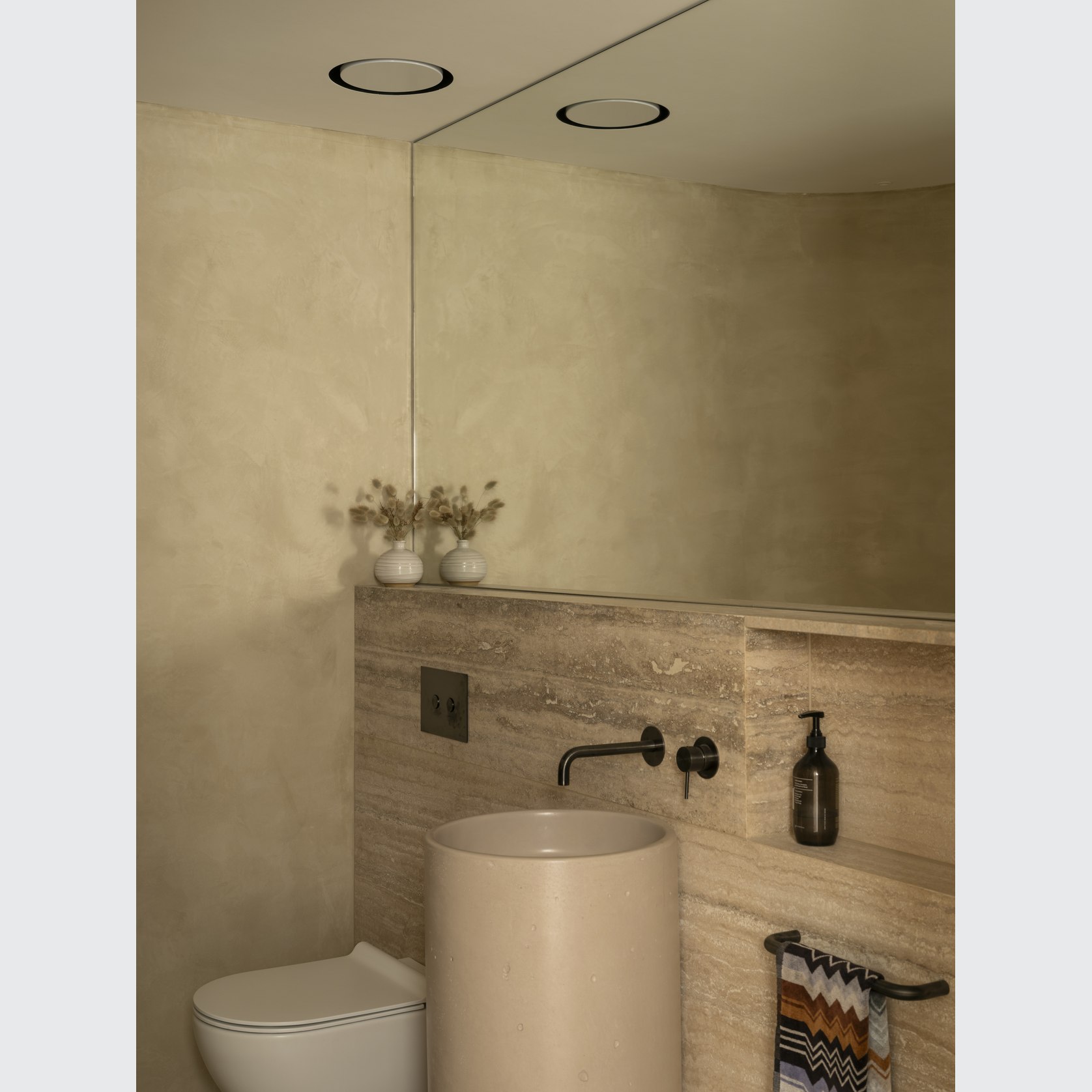

Frameless Round Extract Grill, ceiling or side wall mounted. For bathrooms, showers, laundries and kitchens, with plaster board ceilings and walls. A minimalist grill showing only a circular negative detail ideal for a robust, elegant solution to fan covers in wet areas. The framework is square stopped into the ceiling/wall and central plaque fixings are not seen.

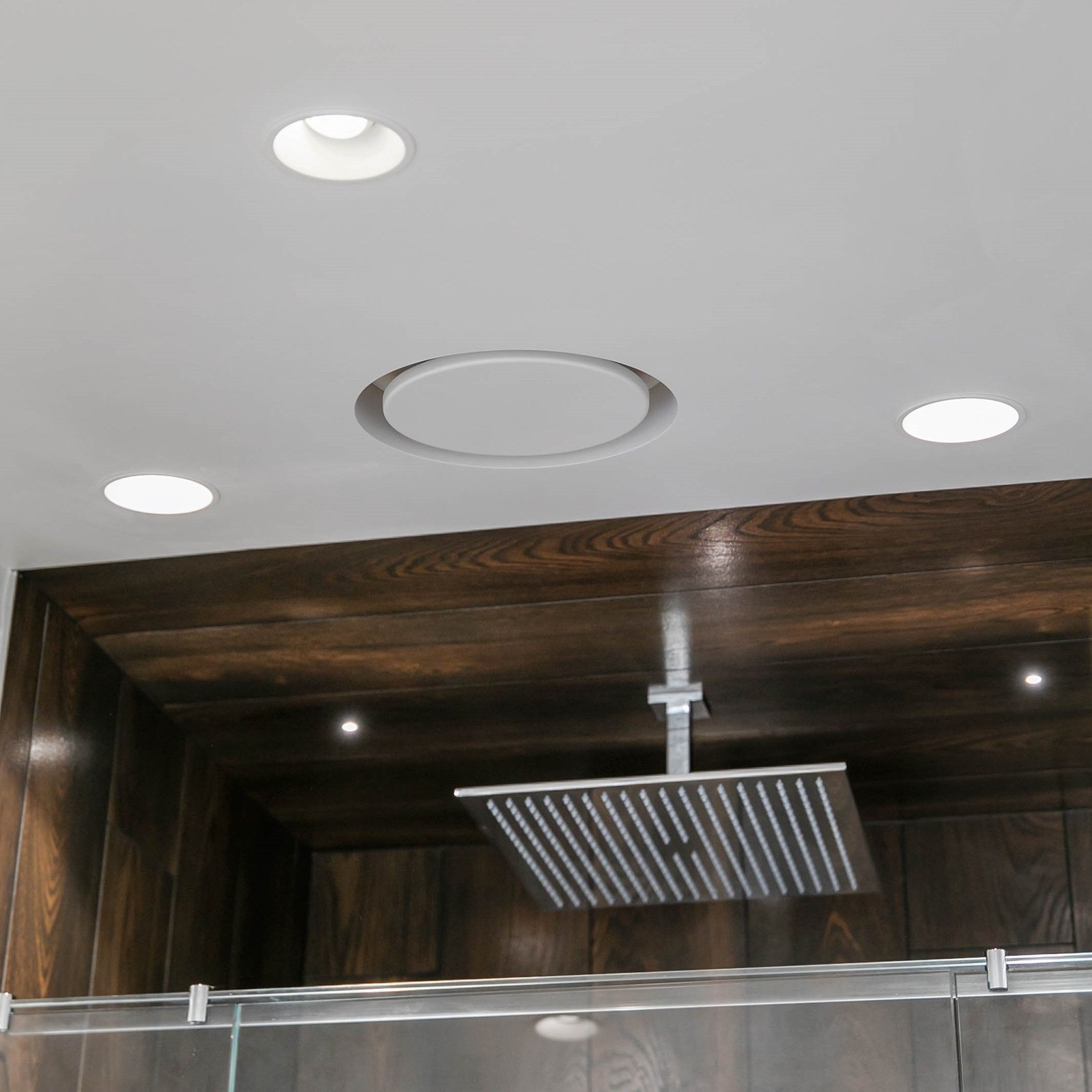

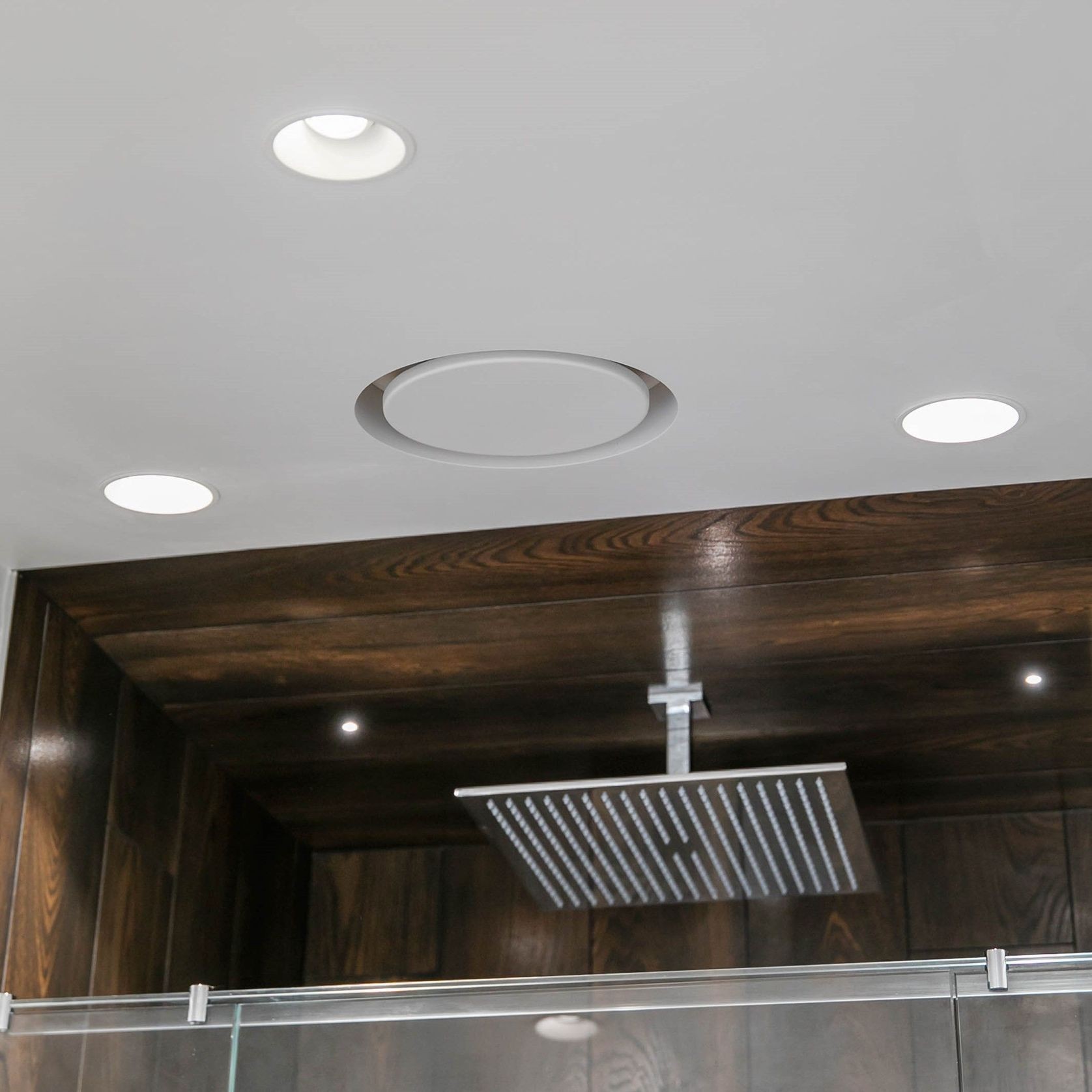

Once the unit is plastered in place the flexible duct is pulled down through the hidden frame and attached to the spigot at the back of the central plaque. The white powder coated surface of the plaque is level with the ceiling and can be lightly sanded and repainted to match the ceiling colour if required.
Product Details
- Product
- HB1040 Round Frameless Extraction Grill
- Category
- Bathroom Extractor Fans
- Sold by
- Halliday + Baillie
- Range
- Ventilation Grills
- Designer
- Halliday + Baillie
- Brand
- Halliday + Baillie
Halliday + Baillie is specified by
TKD ArchitectsArchitects
MHNDUArchitects
Studio IlkArchitects
Abe McCarthy ArchitectsArchitects
Smyth & SmythArchitects
Anderson ArchitectureArchitects
Woods BagotArchitects
Utz Sanby ArchitectsArchitects
Cadence & CoArchitects
Bryant Alsop ArchitectsArchitects
DX ArchitectsArchitects
Shade FactorManufacturers and Suppliers
Frameless Round Extract Grill, ceiling or side wall mounted.
For bathrooms, showers, laundries and kitchens, with plaster board ceilings and walls. A minimalist grill showing only a circular negative detail ideal for a robust, elegant solution to fan covers in wet areas. The framework is square stopped into the ceiling/wall and central plaque fixings are not seen.
Once the unit is plastered in place the flexible duct is pulled down through the hidden frame and attached to the spigot at the back of the central plaque. The white powder coated surface of the plaque is level with the ceiling and can be lightly sanded and repainted to match the ceiling colour if required.
- Features
- Overall size: 270mm (inner frame)
- Spigot / conduit size: fits standard 150 mm ducting.
- Flow rate: ~ 60-70 litres per second.
- Pressure drop: approx 26 Pa.
- Flush-mounted design for ceiling plasterboard (10 mm or 13 mm thickness) with “frameless” appearance.
- Centre panel: powder-coated metal in Appliance White as standard, can be lightly sanded / repainted to match ceiling. Internal housing: black powder-coated.
- Body: Zinc coated steel body with plaster-in edge strip.
- Suitable for bathrooms, laundries or any ceiling application requiring extract/vent grill.
- Supplied as grill set only — ducting and fan systems are not included.
- Overall size: 270mm (inner frame)
- Scope of use
- Designed for flush-mounted installation into ceiling plasterboard (10 or 13 mm) where extract ventilation is required (e.g., bathrooms, laundries) providing a clean, minimalist, architecturally integrated look.
- Suitable for standard 150 mm duct connection for the fan/extract system.
- The visible surface sits flush with the ceiling for a “frameless” aesthetic, with minimal visual interruption.
- Ideal for residential and light‐commercial wet-area ventilation specification projects where a designer finish is required beyond standard plastic grille covers.
- Designed for flush-mounted installation into ceiling plasterboard (10 or 13 mm) where extract ventilation is required (e.g., bathrooms, laundries) providing a clean, minimalist, architecturally integrated look.

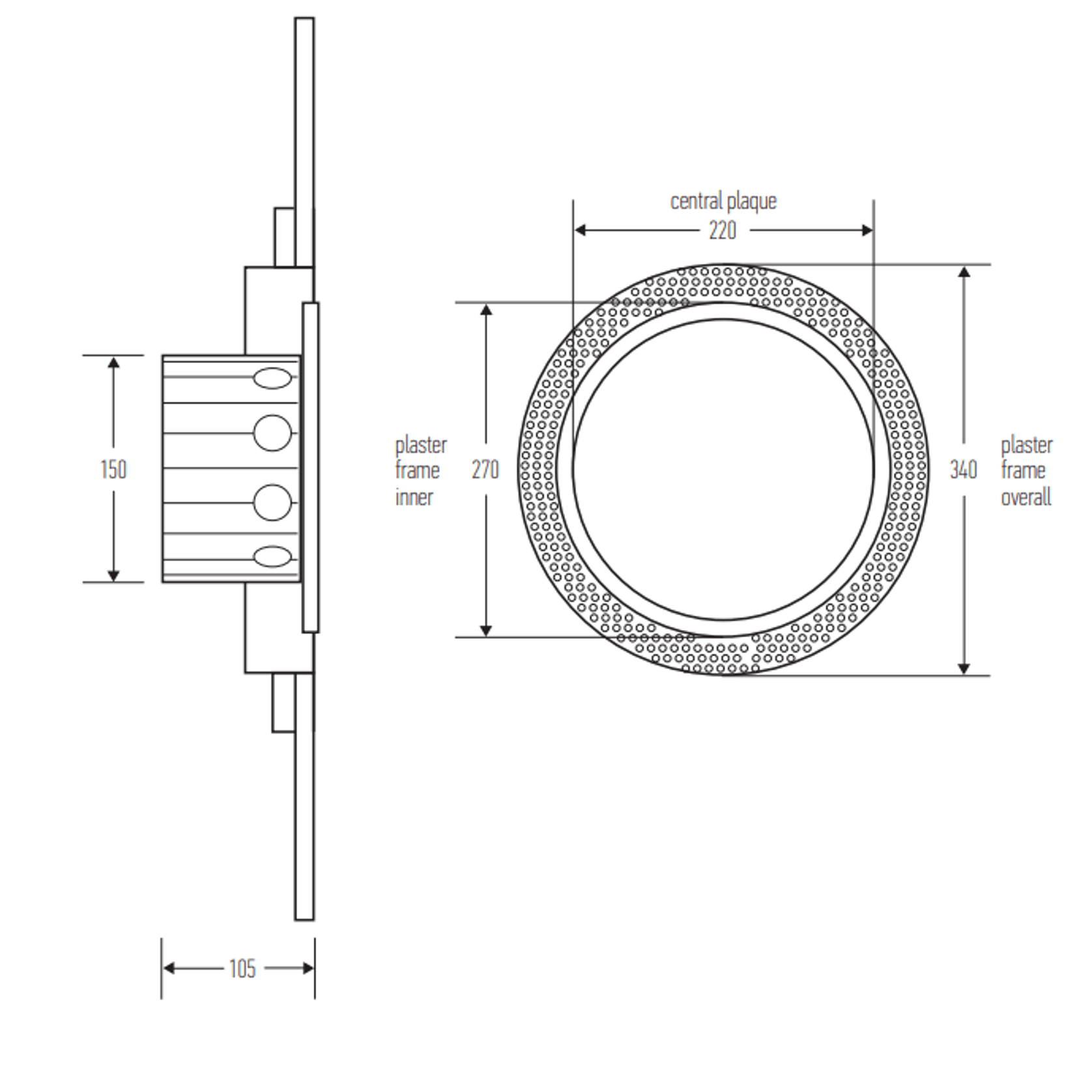

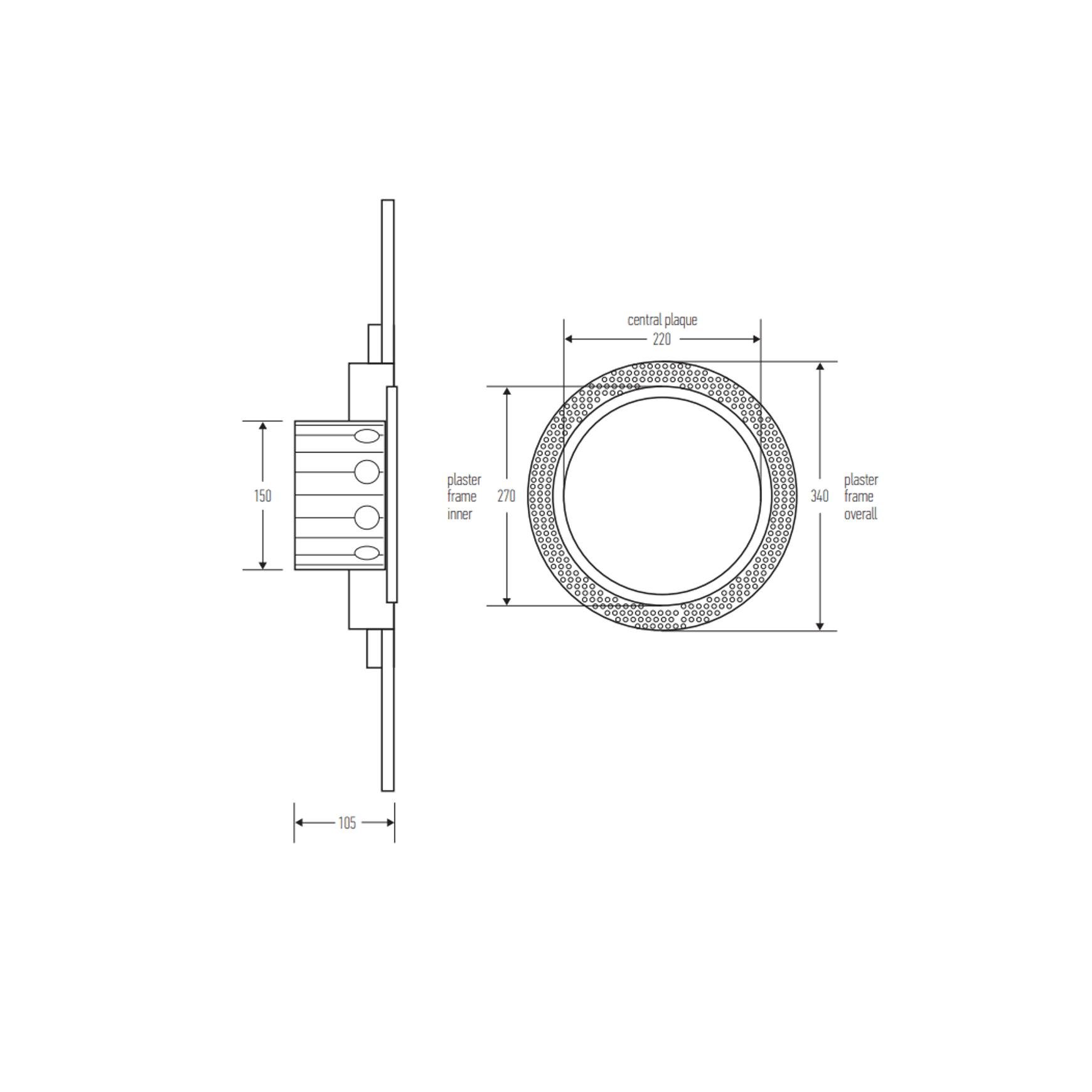

- Specs / Details
Dimensions : 270mm (inner frame)
Plaque size : 220mm
Standard top exit spigot : 150mm
Powder coated steel body and plaque.
Body colour : satin black powder coat
Plaque colour : appliance white powder coat
