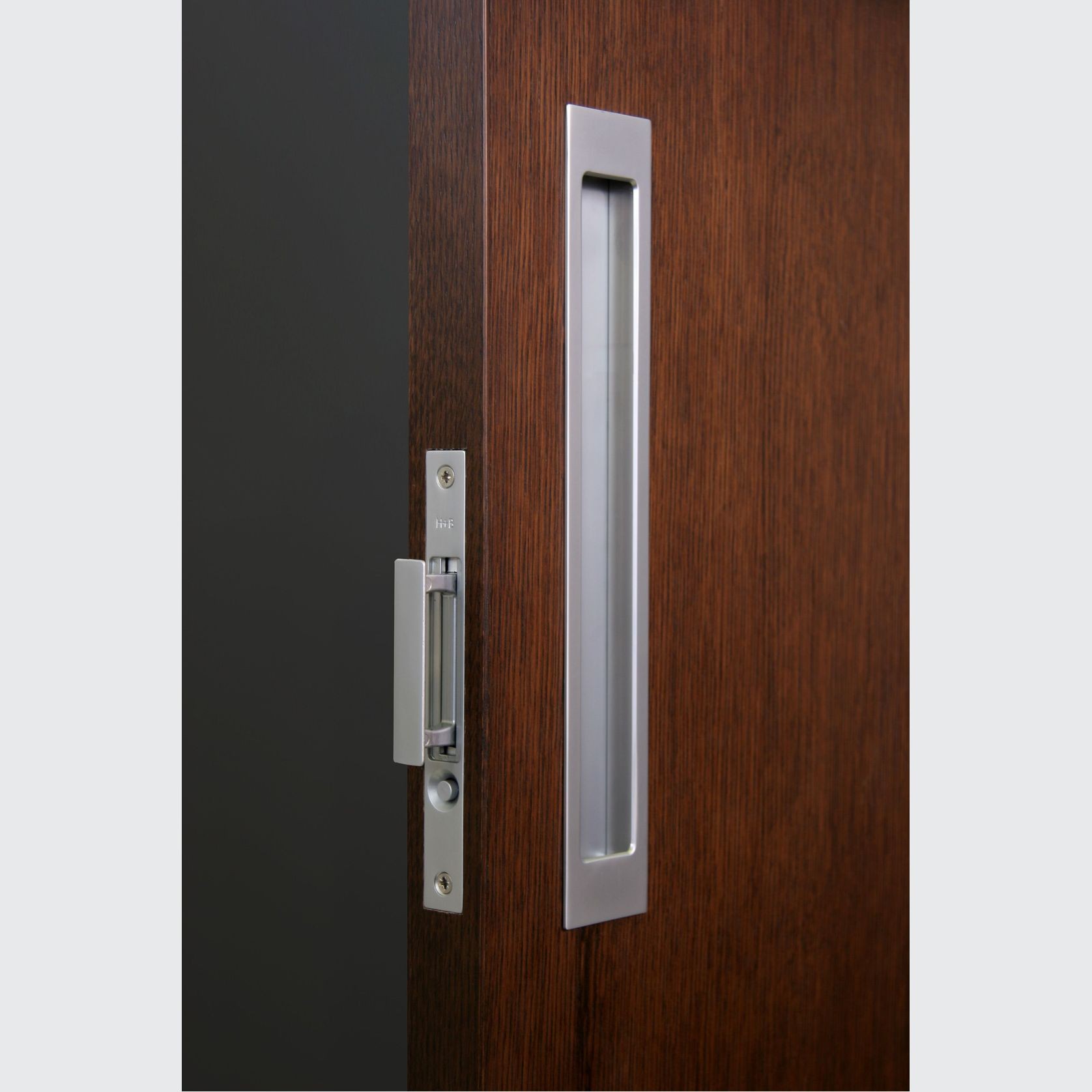

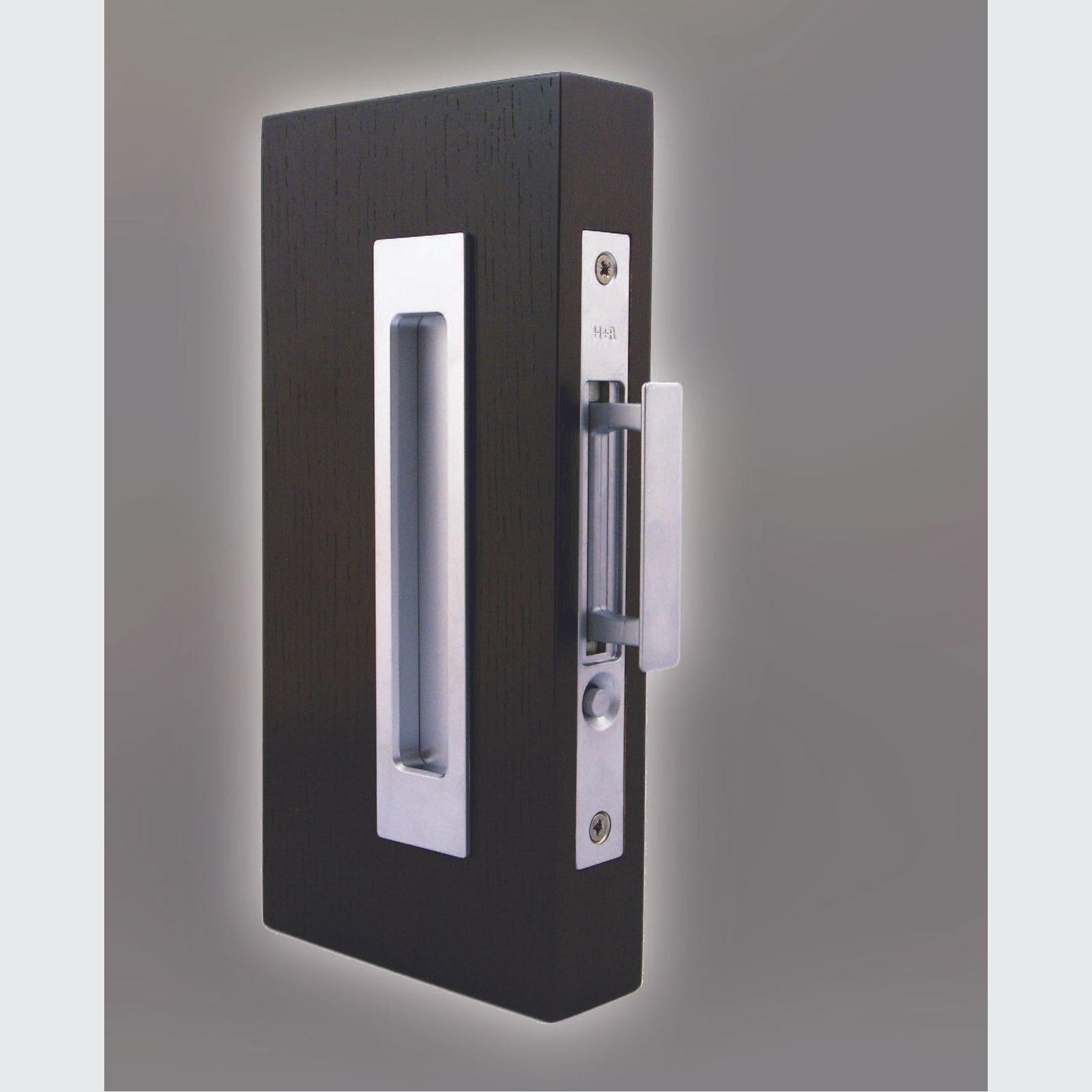

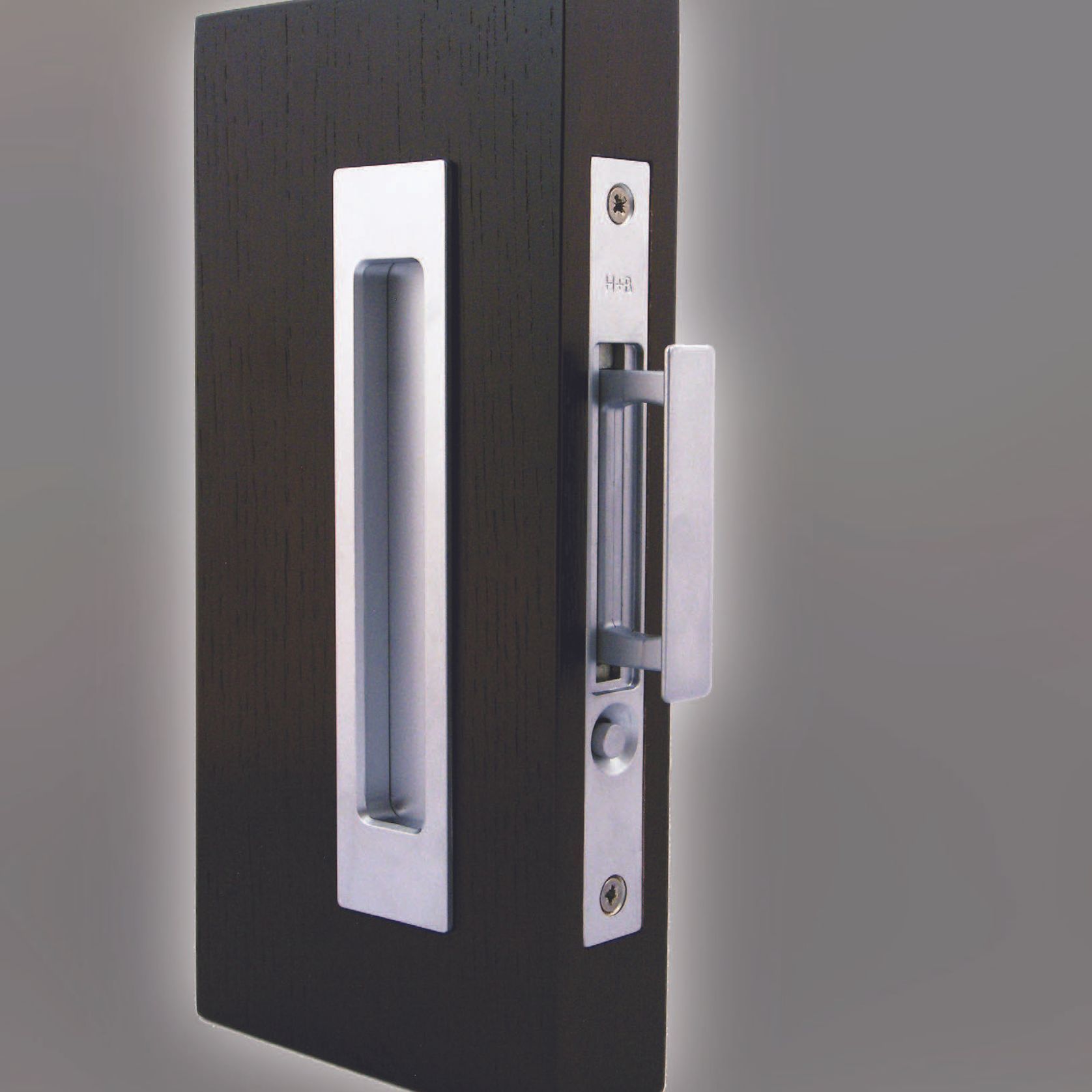

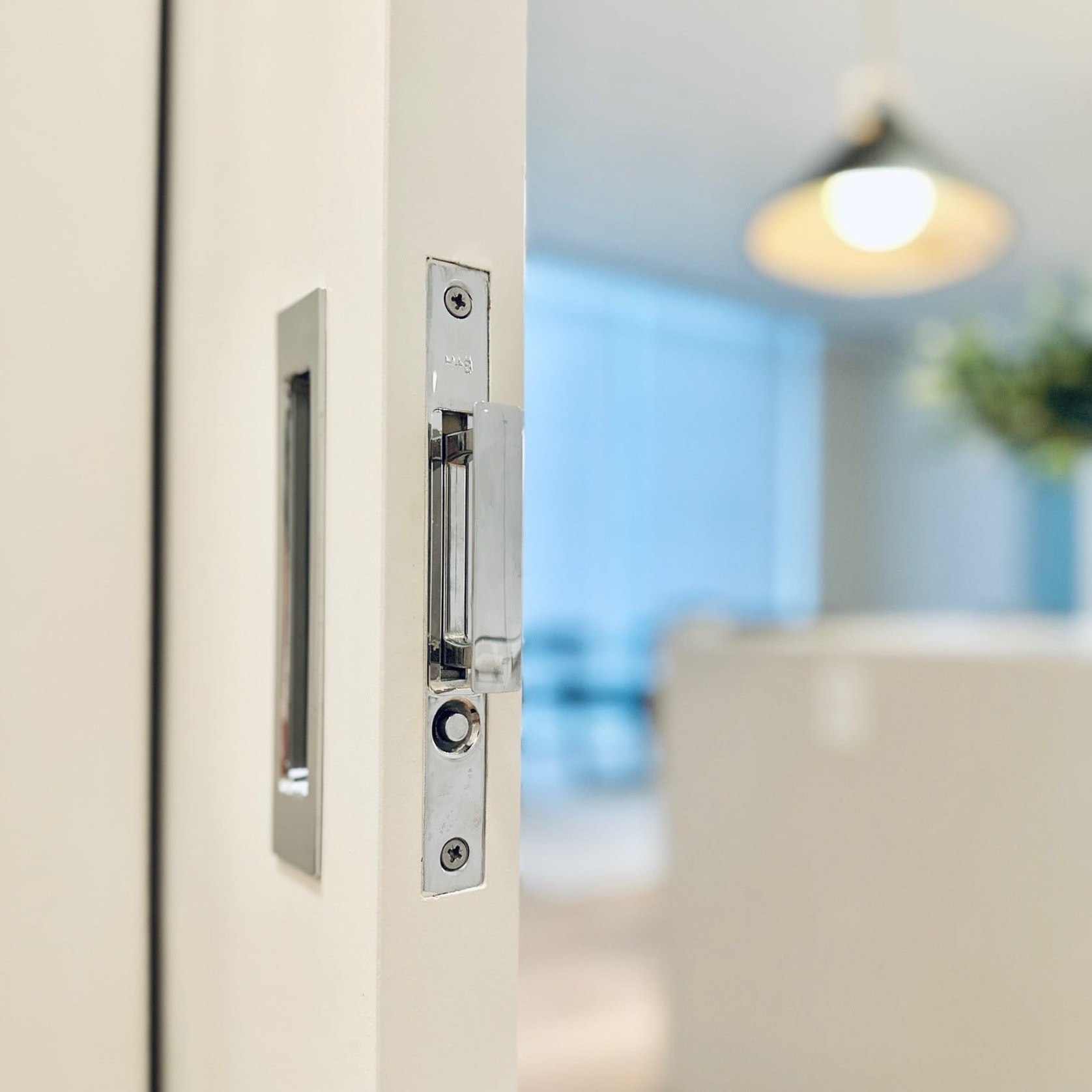

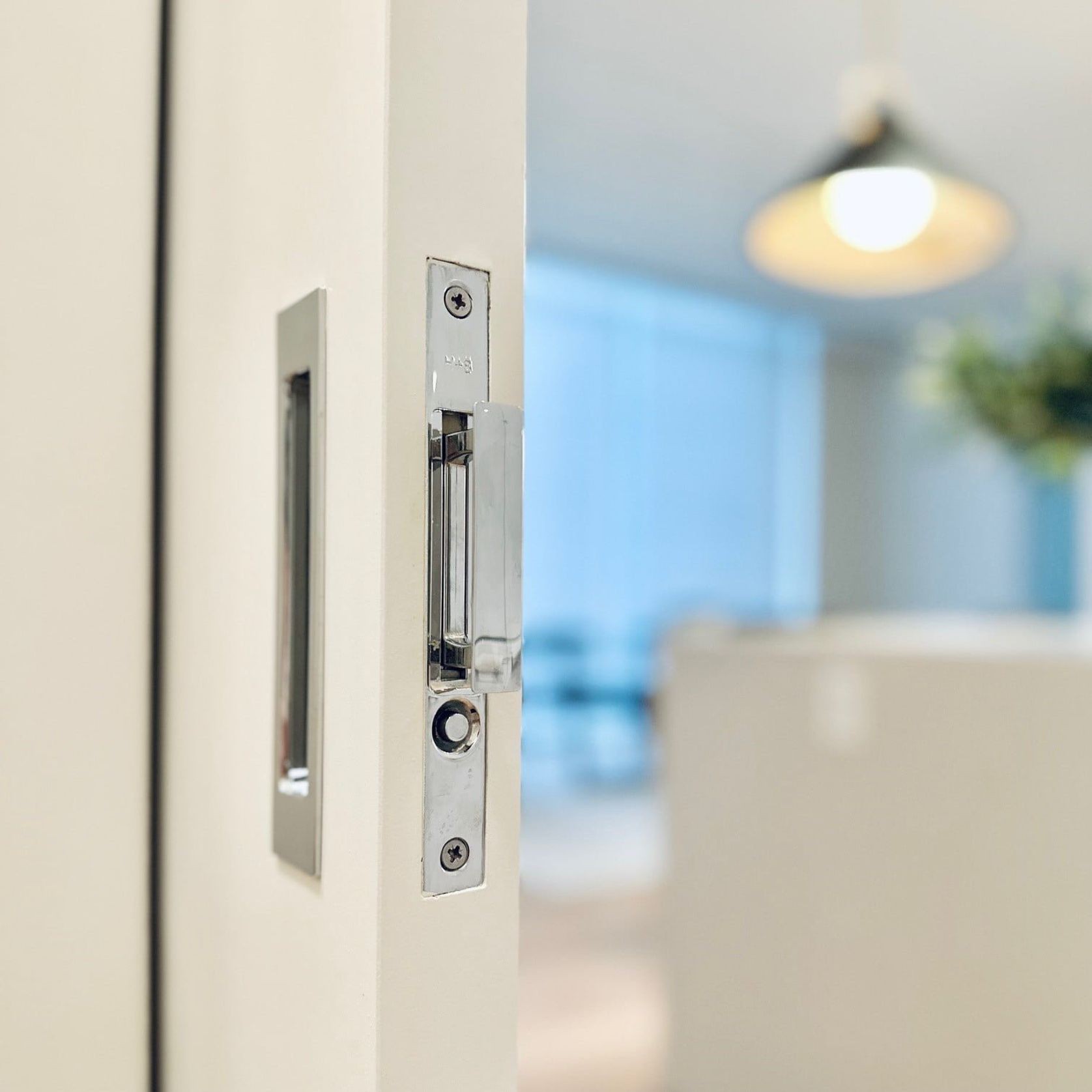

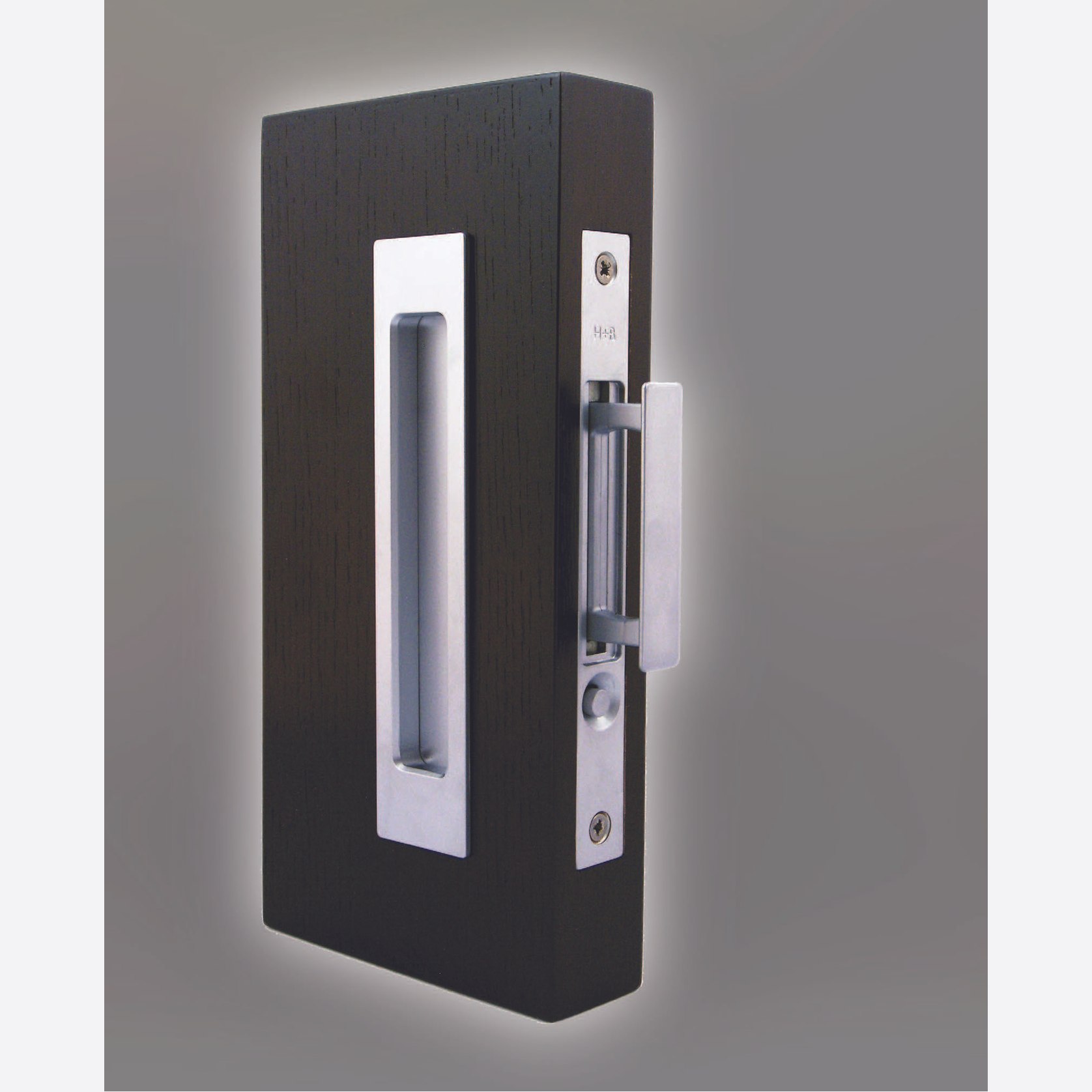

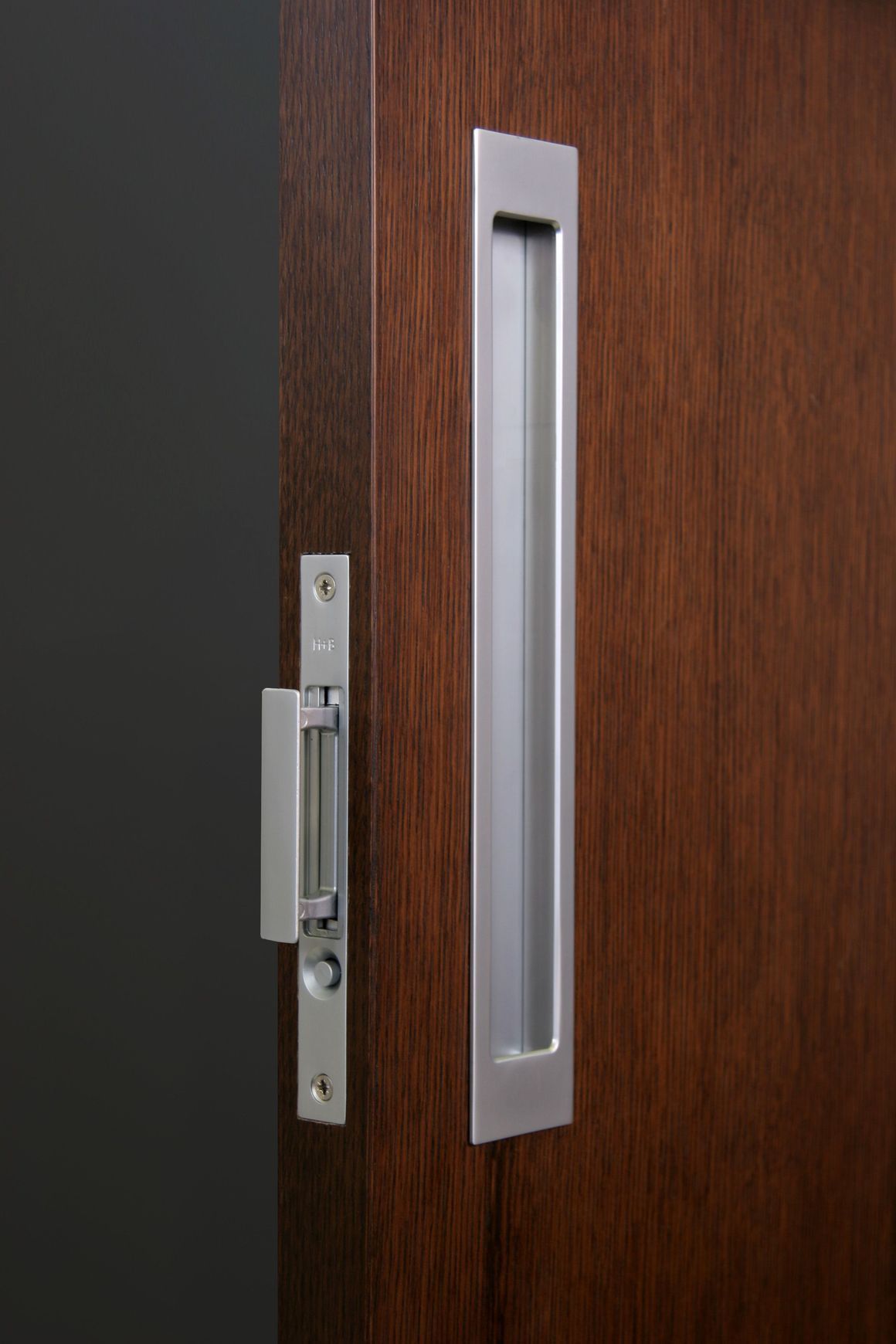

HB680 Cavity Slider Edge/End Pull
Victoria
- 674.9K profile views
- 58 saves
The Halliday + Baillie HB 680 Push Button- Activated Edge Pull for pocket doors has been designed to match the 170mm height of the HB 660 Flush Pull
The slim faceplate, smooth push-button release, and narrow 48mm body depth make the HB680 suitable for all sliding wood passage doors, including narrow stile timber and aluminium pocket doors.
Product Details
- Product
- HB680 Cavity Slider Edge/End Pull
- Category
- Cavity Slider Doors
- Sold by
- Halliday + Baillie
- Range
- End Pulls
- Designer
- Halliday + Baillie
- Brand
- Halliday + Baillie
- Country of origin
- New Zealand
- Type of use
- Commercial and Residential
- Care and cleaning
- Easy maintenance
- Installation
- Professional installation recommended
- Assembly
- Professional assembly recommended
Halliday + Baillie is specified by
TKD ArchitectsArchitects
MHNDUArchitects
Studio IlkArchitects
Abe McCarthy ArchitectsArchitects
Smyth & SmythArchitects
Anderson ArchitectureArchitects
Woods BagotArchitects
Utz Sanby ArchitectsArchitects
Cadence & CoArchitects
Bryant Alsop ArchitectsArchitects
DX ArchitectsArchitects
Shade FactorManufacturers and Suppliers
The Halliday + Baillie HB 680 Push Button- Activated Edge Pull for pocket doors has been designed to match the 170mm height of the HB 660 Flush Pull
The slim faceplate, smooth push-button release, and narrow 48mm body depth make the HB680 suitable for all sliding wood passage doors, including narrow stile timber and aluminium pocket doors.
- Features
For finish options please see our current finishes sheet. Please check with your local Halliday + Baillie representative as not all finishes are available in all regions.
Glue, epoxy, silicone products etc are not required or recommended for installation, and may void warrantee.
- Scope of use
- Ideal for cavity sliding doors where an edge-pull is preferred (for example when the door slides completely into a pocket and you need access from the door edge).
- Works well in both residential and commercial contexts, especially when the stile is narrow and you want minimal faceplate width.
- Suitable for timber or aluminium sliding doors with sufficient thickness and appropriate mortice preparation.
- Matches the height of other components (e.g., HB660 flush pull) — useful in projects seeking coordinated hardware across sliding door systems.
- Ideal for cavity sliding doors where an edge-pull is preferred (for example when the door slides completely into a pocket and you need access from the door edge).

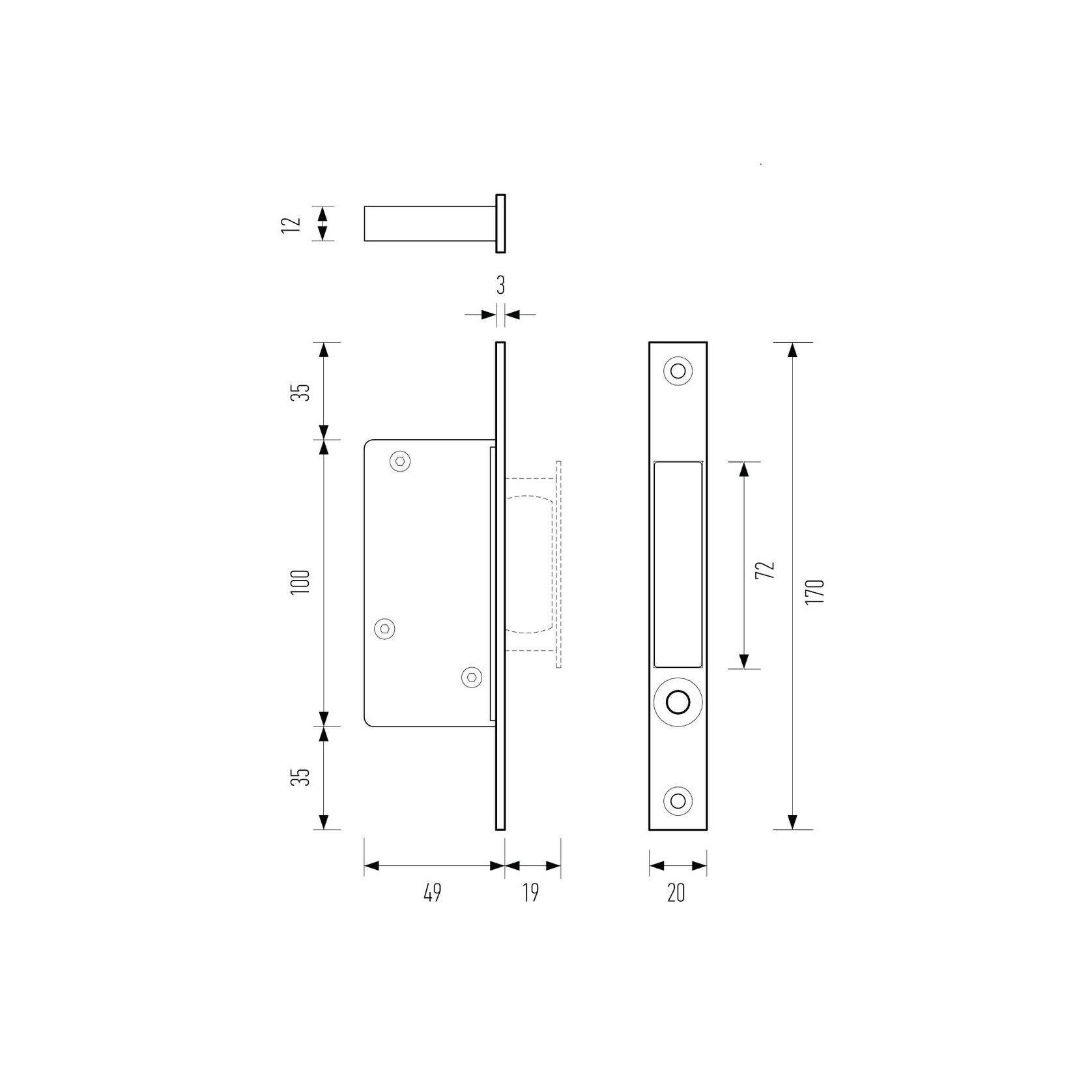

- Specs / Details
- Height: 170 mm (matches other door hardware in the same series)
- Faceplate width: approx 20 mm
- Case (to be morticed) dimensions: 100 mm × 49 mm × 12 mm
- Body depth / overall width: approx 49 mm (some references use 48 mm)
- Handle projection above door face: approx 19 mm
- Material : diecast zinc and brass
Downloads
Downloads (4)4 Direct downloads • 5 Available on request
Frequently asked questions about
HB680 Cavity Slider Edge/End Pull
The HB680 Cavity Slider Edge/End Pull is supplied by Halliday + Baillie. It is also on their website, and you can browse every product Halliday + Baillie lists on ArchiPro.
Halliday + Baillie does not publish a price for the HB680 Cavity Slider Edge/End Pull on ArchiPro. for pricing, or visit their website.
Yes. It is part of the End Pulls range from Halliday + Baillie, where you can see every product in the range together.
Yes. It has been specified in projects on ArchiPro, including Dovecoat by Halliday + Baillie. See how it was used in a finished space.
from this page, see their contact details on ArchiPro, or visit their website. The Halliday + Baillie profile on ArchiPro has the rest of their products.
