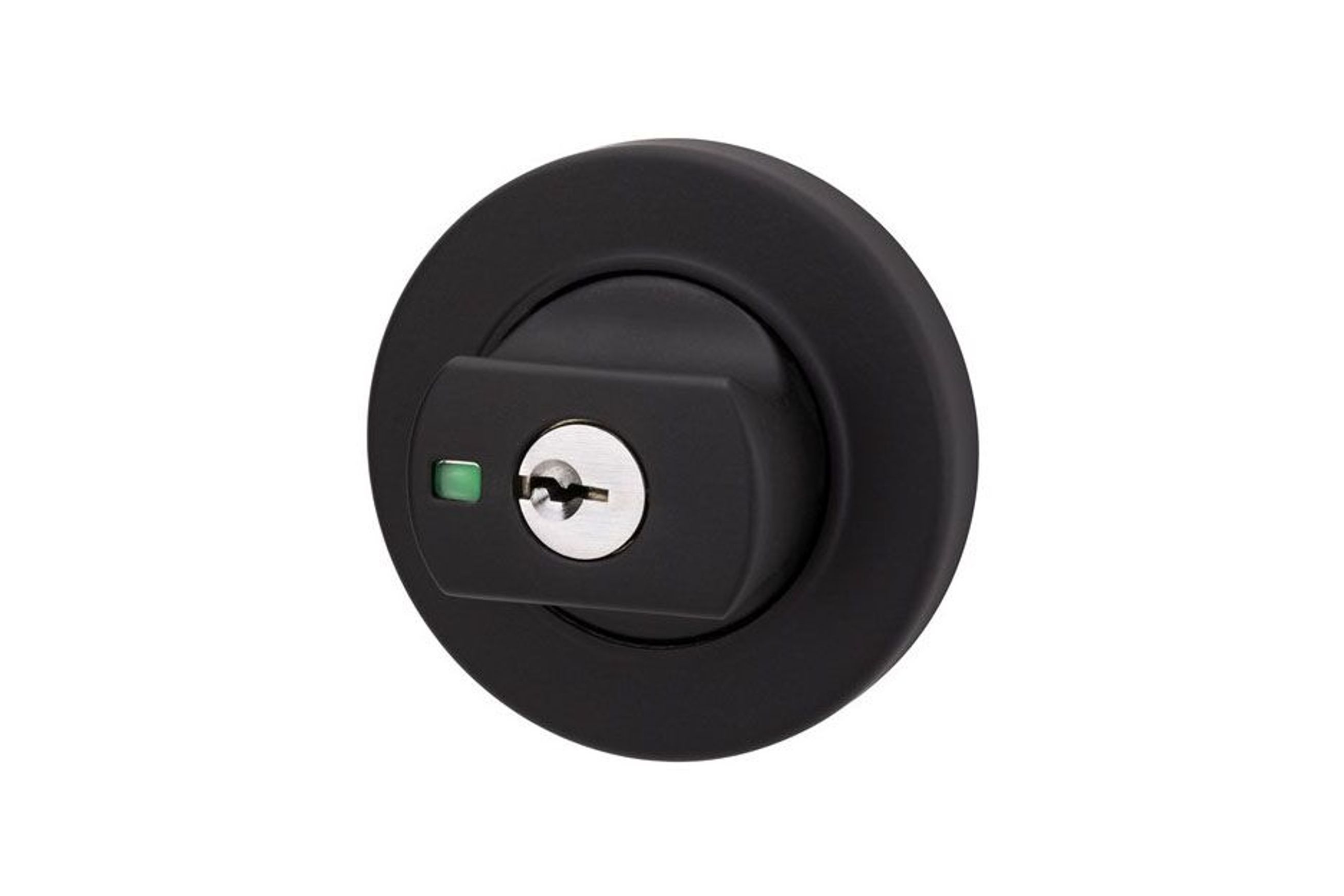

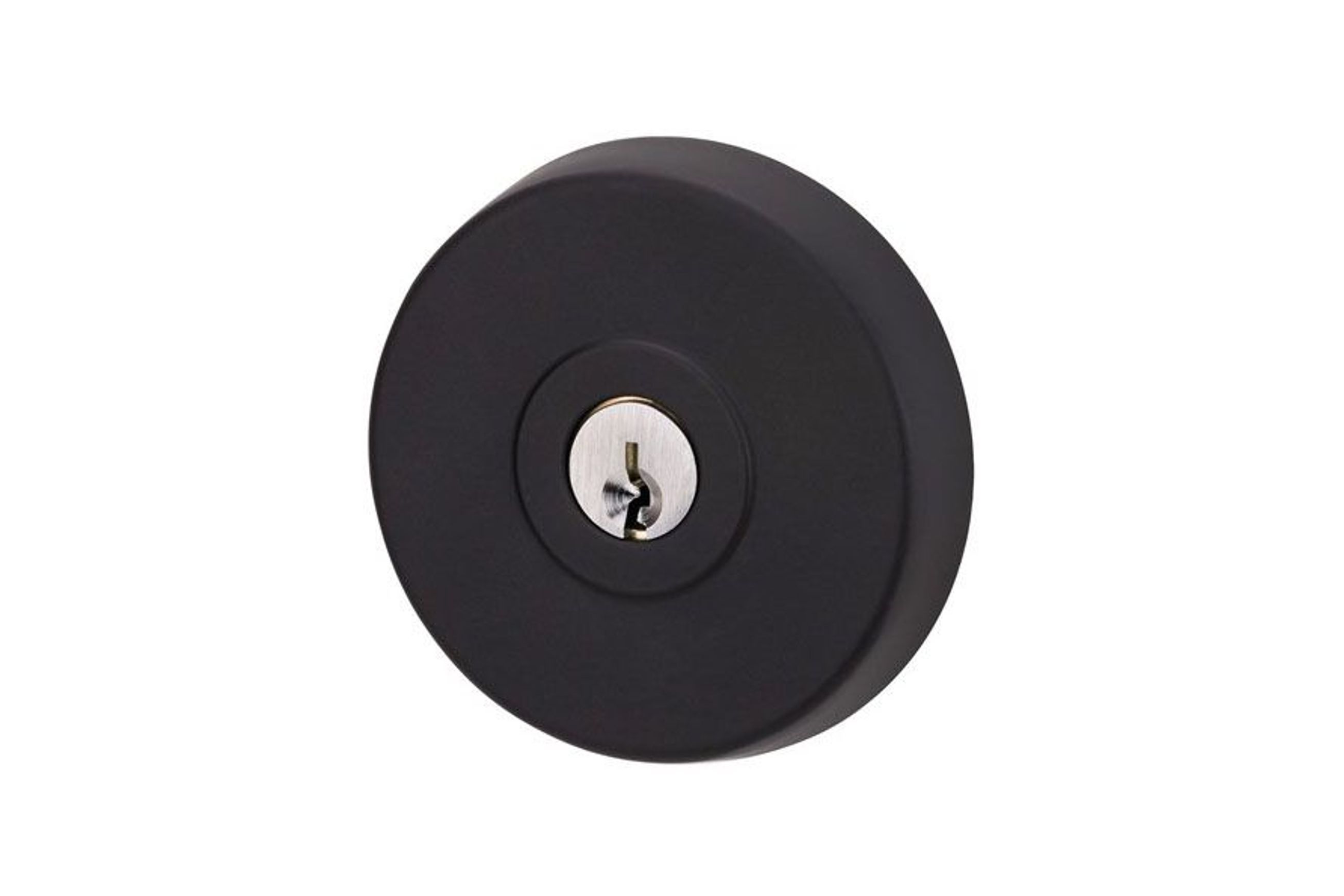

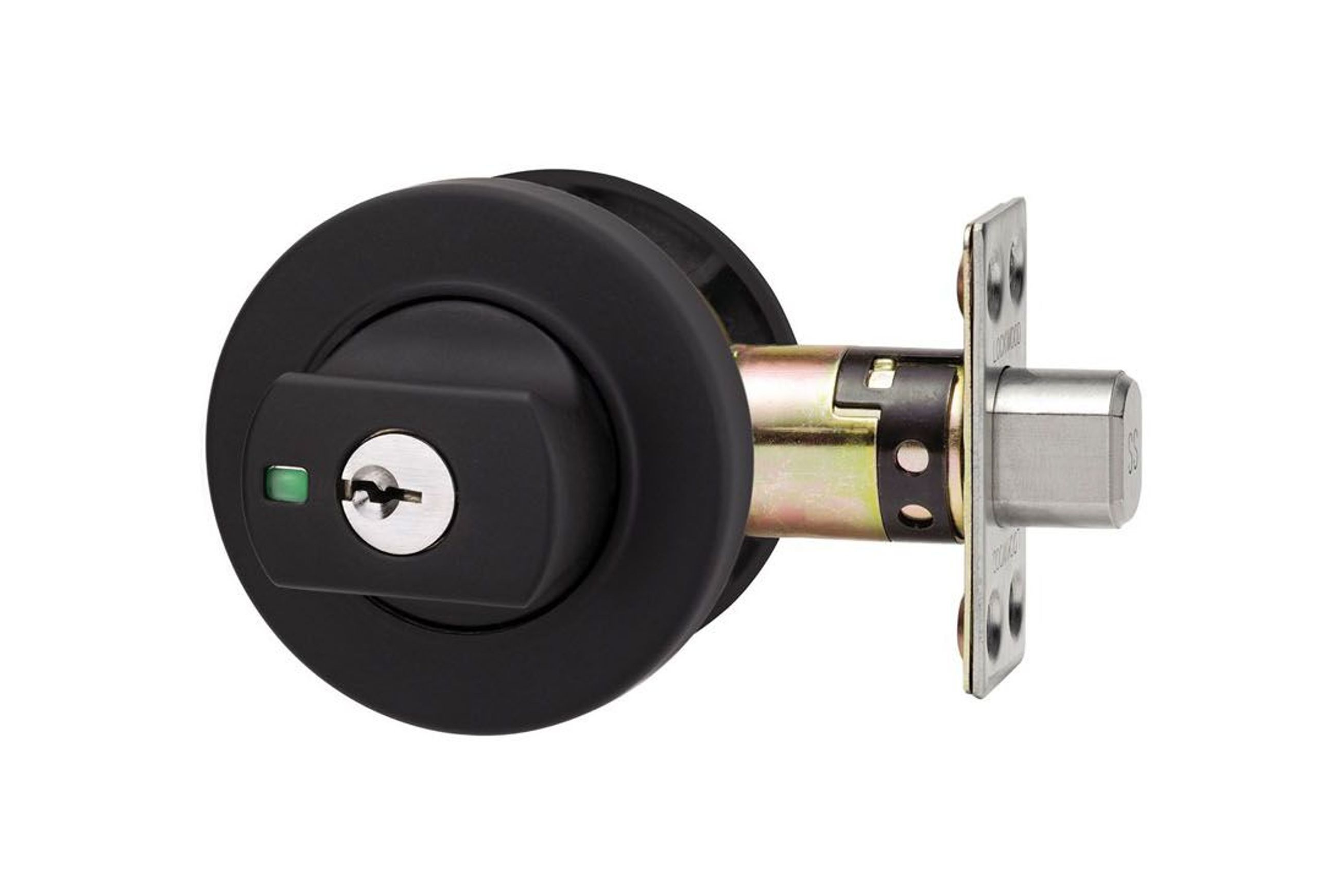

Lockwood Paradigm 005 Double Cylinder Deadbolt

Designed in Australia, the Paradigm® 005 Double Cylinder Deadbolt represents the pinnacle in deadbolt security products.

Scope of use

Incorporating innovative safety features including Safety Release™, LockAlert® and DualSelect®, the Paradigm 005 Double Cylinder Deadbolt is ideal for residential and architectural applications.

Specs / Details

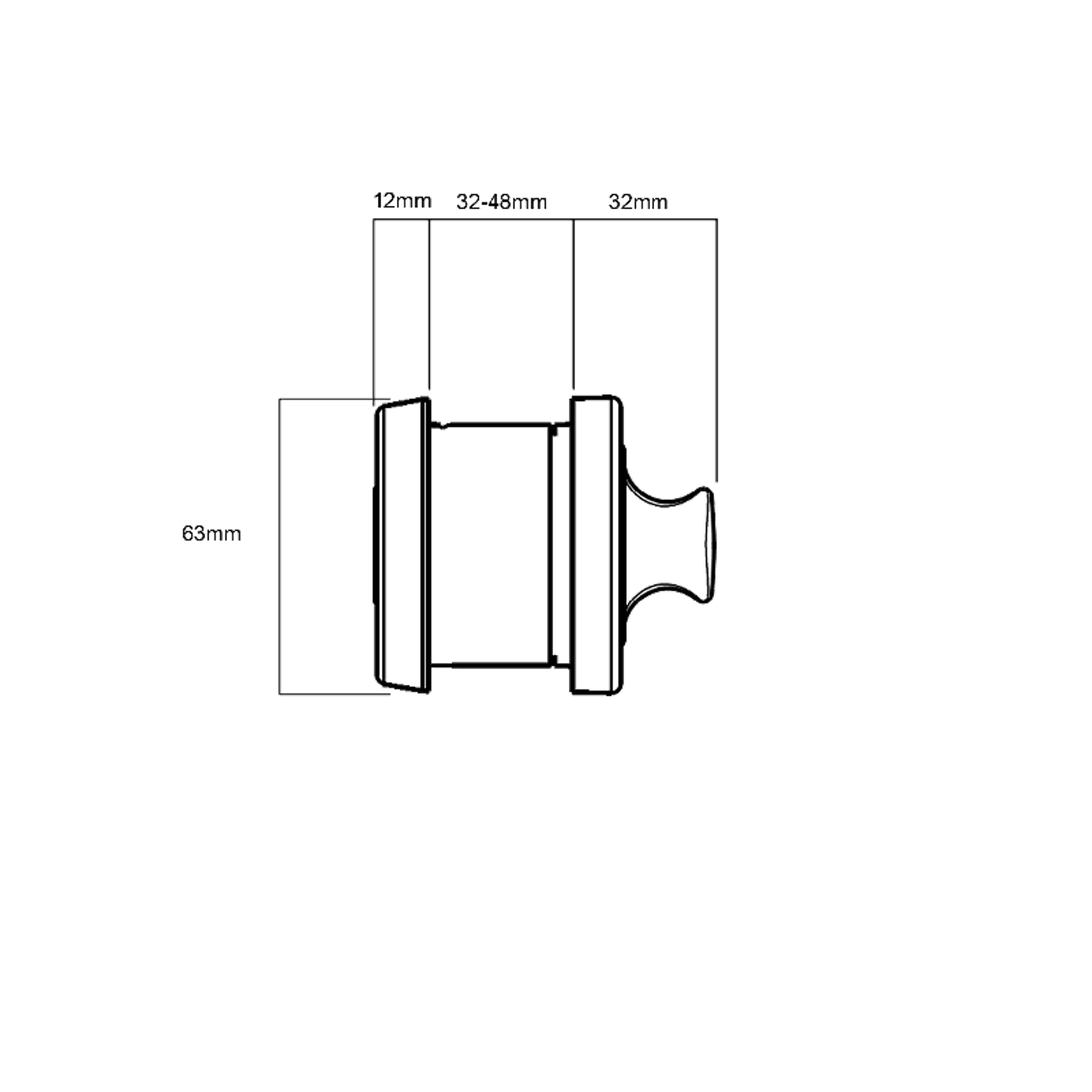

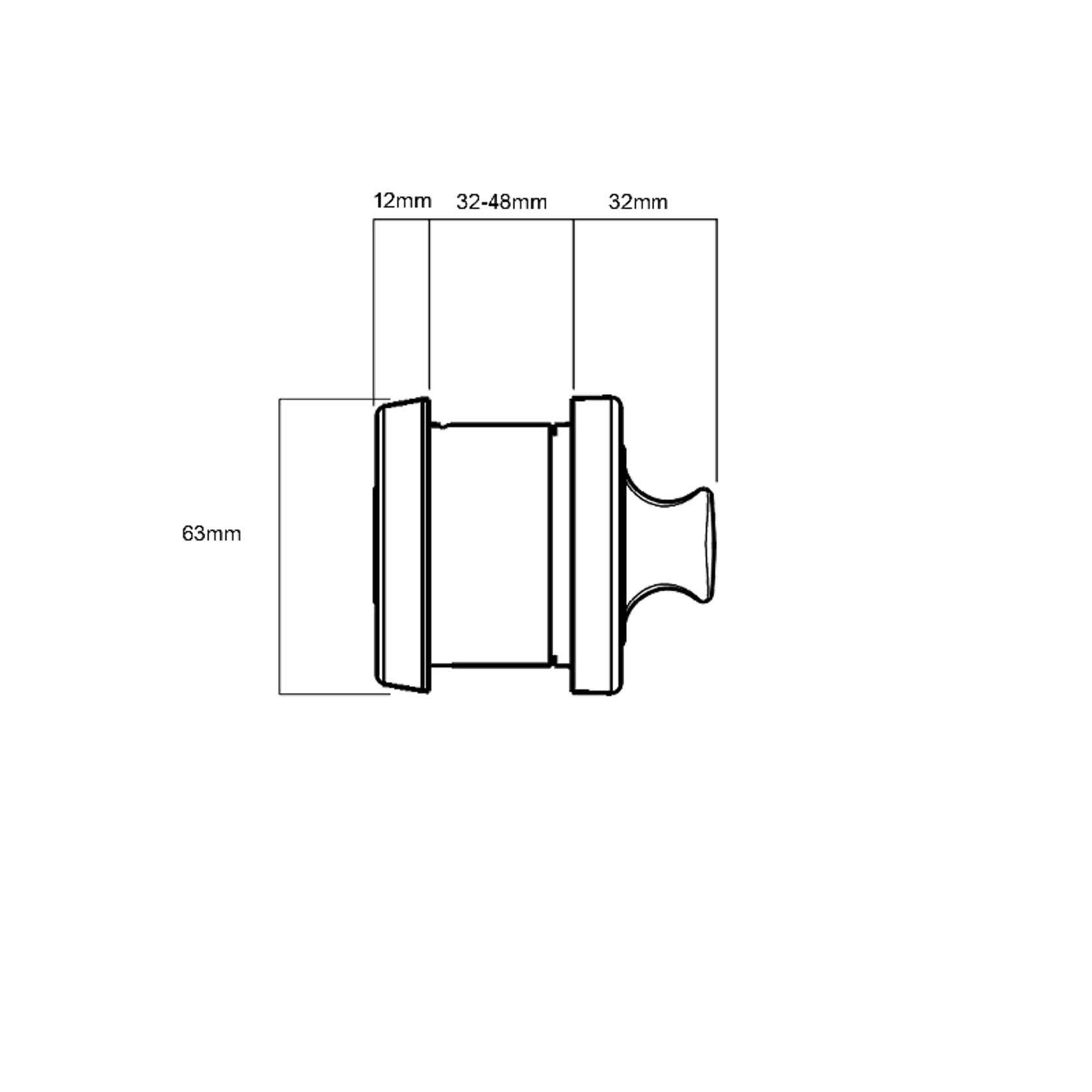

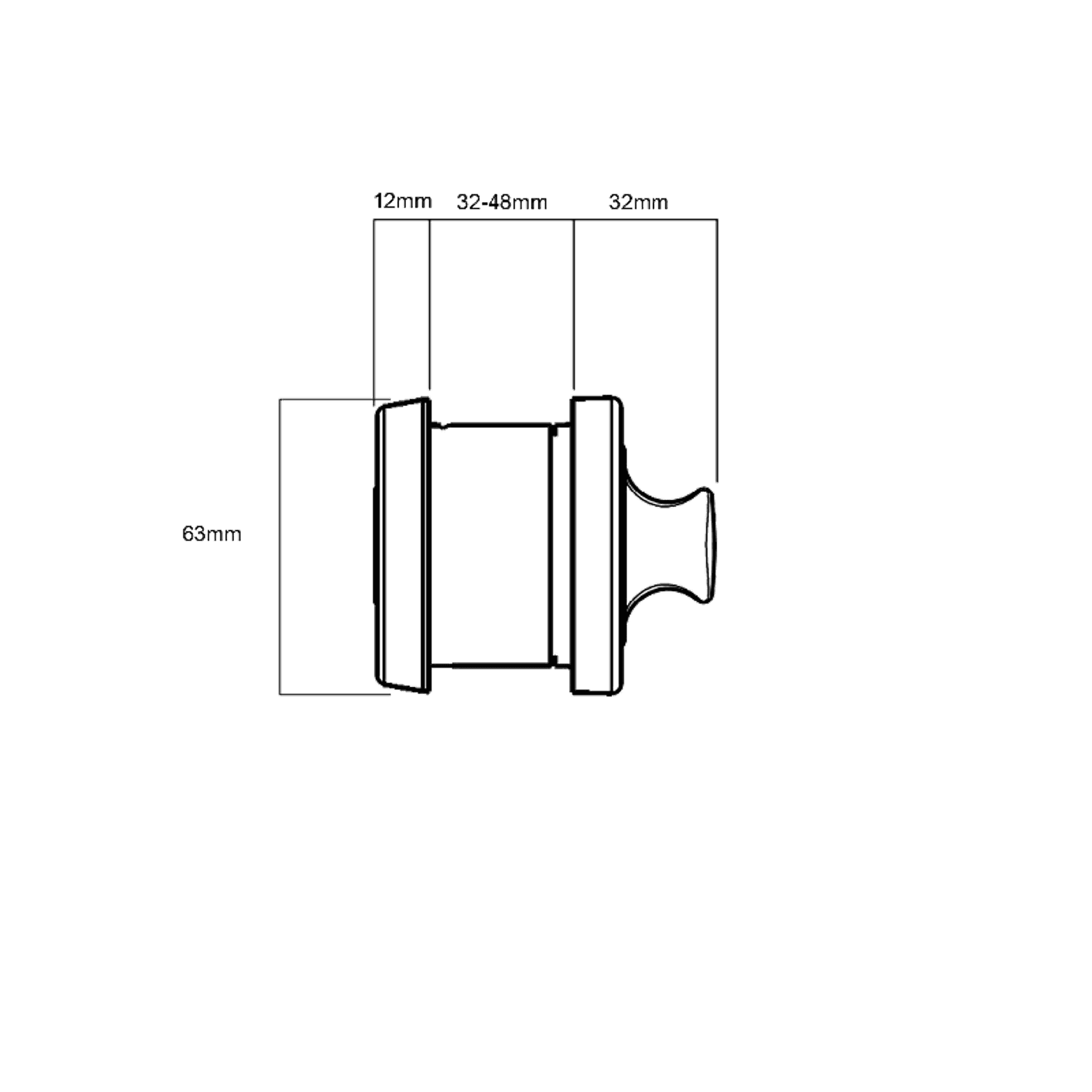

Backset  60-70mm adjustable

Materials  High purity zinc alloy

Door Thickness  32 to 48mm

Finishes  Matt Black

Bolt  High security cut resistant stainless steel bolt

Strike  Box strike with concealed crossgrain door frame strengthening screw

Cylinder

• Internal and External
• 5 pin tumbler mechanism
• Brass cylinder and barrel

Standards and Compliance

• Security - Australian Lock Standard AS4145.2-2008
• Durability - Australian Lock Standard AS4145.2-2008
• Corrosion - Australian Lock Standard AS4145.2-2008

Keying

Standard Keying

• Supplied individually keyed with two keys per lock
• 78,000 key combinations
• Key blank KB2015P
• AS 4145.2-2008 K5

Restricted Special Keying

Lockwood locks can be keyed to a number of controlled and/or specially keyed systems.

These range from legally protected keys to protect against unauthorised duplication, which can also include specially designed key systems such as master key systems, which allow for different levels of mechanical access control.

Performance

• Multi-mode slimline deadbolt providing safety, security and convenience
• SafetyRelease™ automatically unlocks internal turn knob upon key entry from outside
• Conforms to the security and durability requirements of Australian Standard AS4145.2-2008 | SL8D8C6K5
• High security cut resistant stainless steel bolt
• Counterbalance bolt distributes load between door and door frame
• Simple to install, retrofits existing deadbolt door preparations

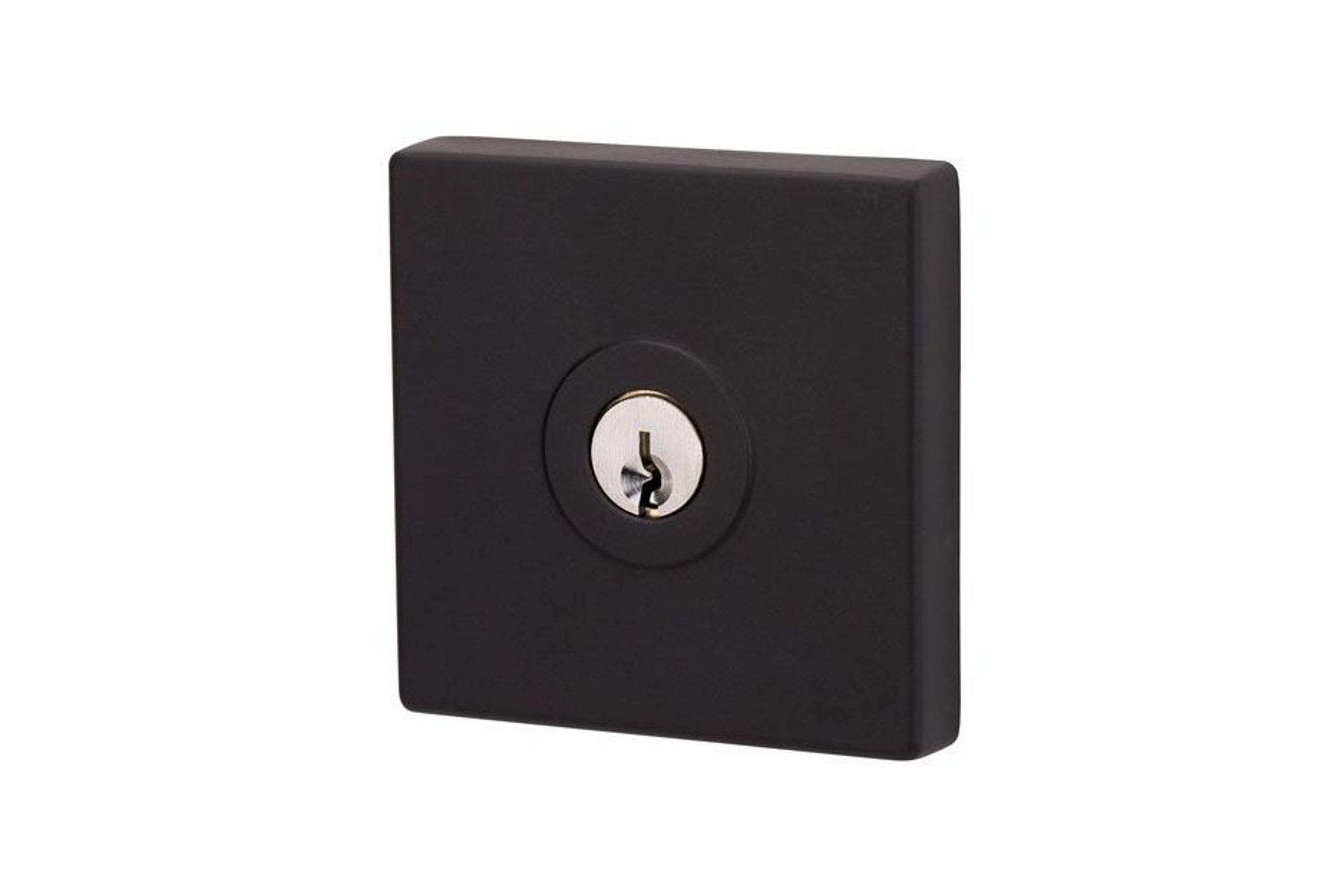

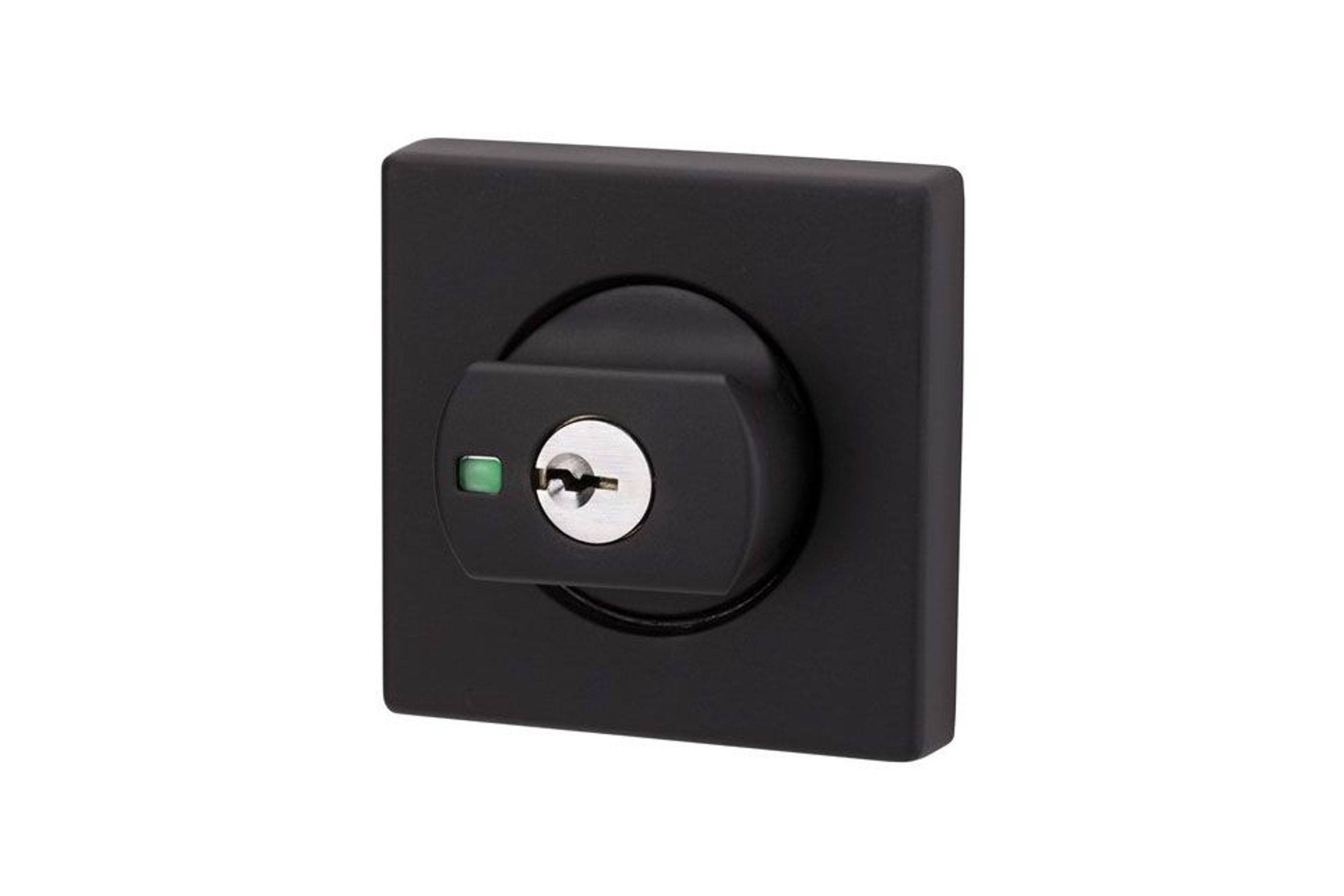

• Available in round or square designs
