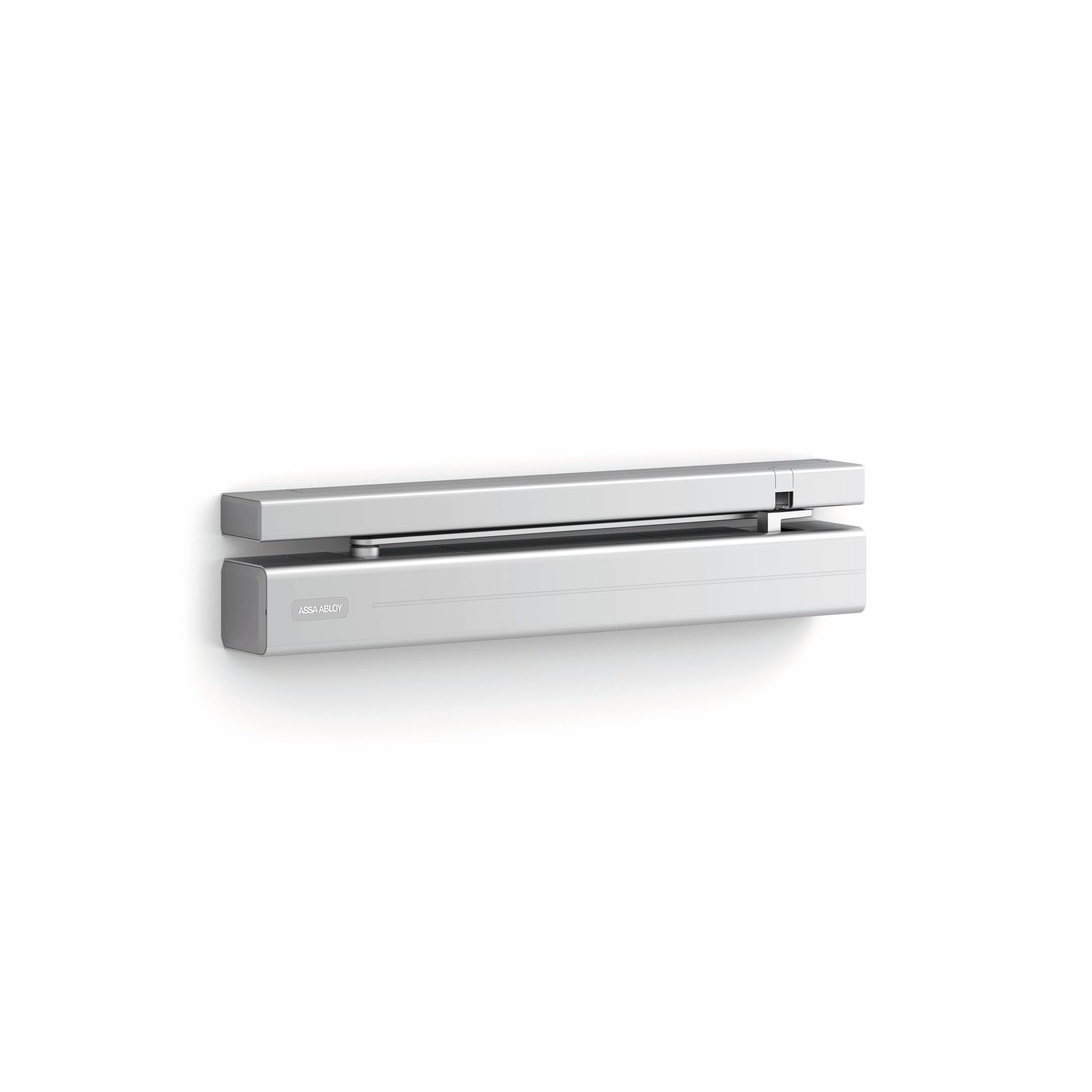

DC700G-CM Close Motion Door Closer

The DC700G-CM Close-Motion door closer is innovative door control technology, allowing doors to close silently, reliably and securely.

Specs

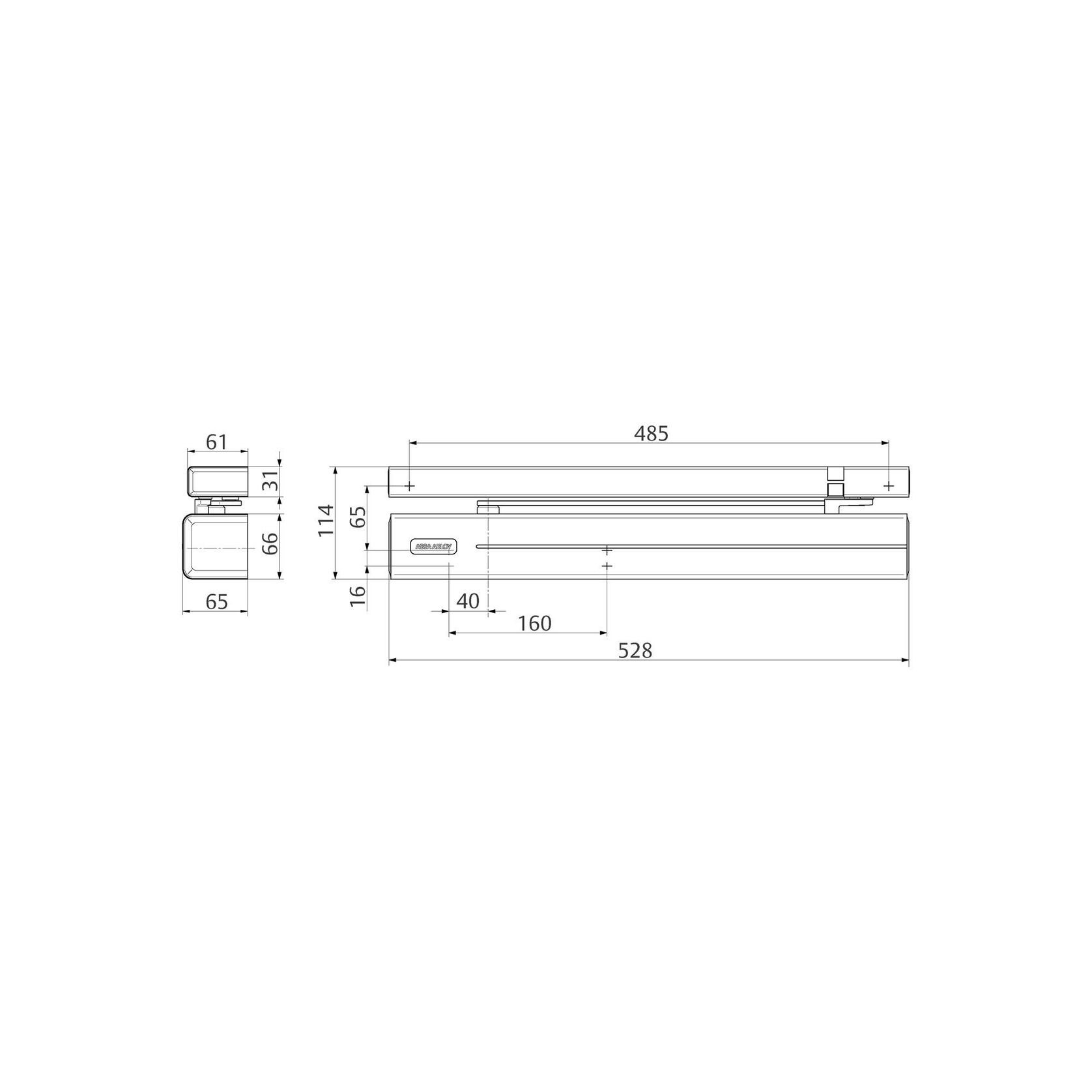

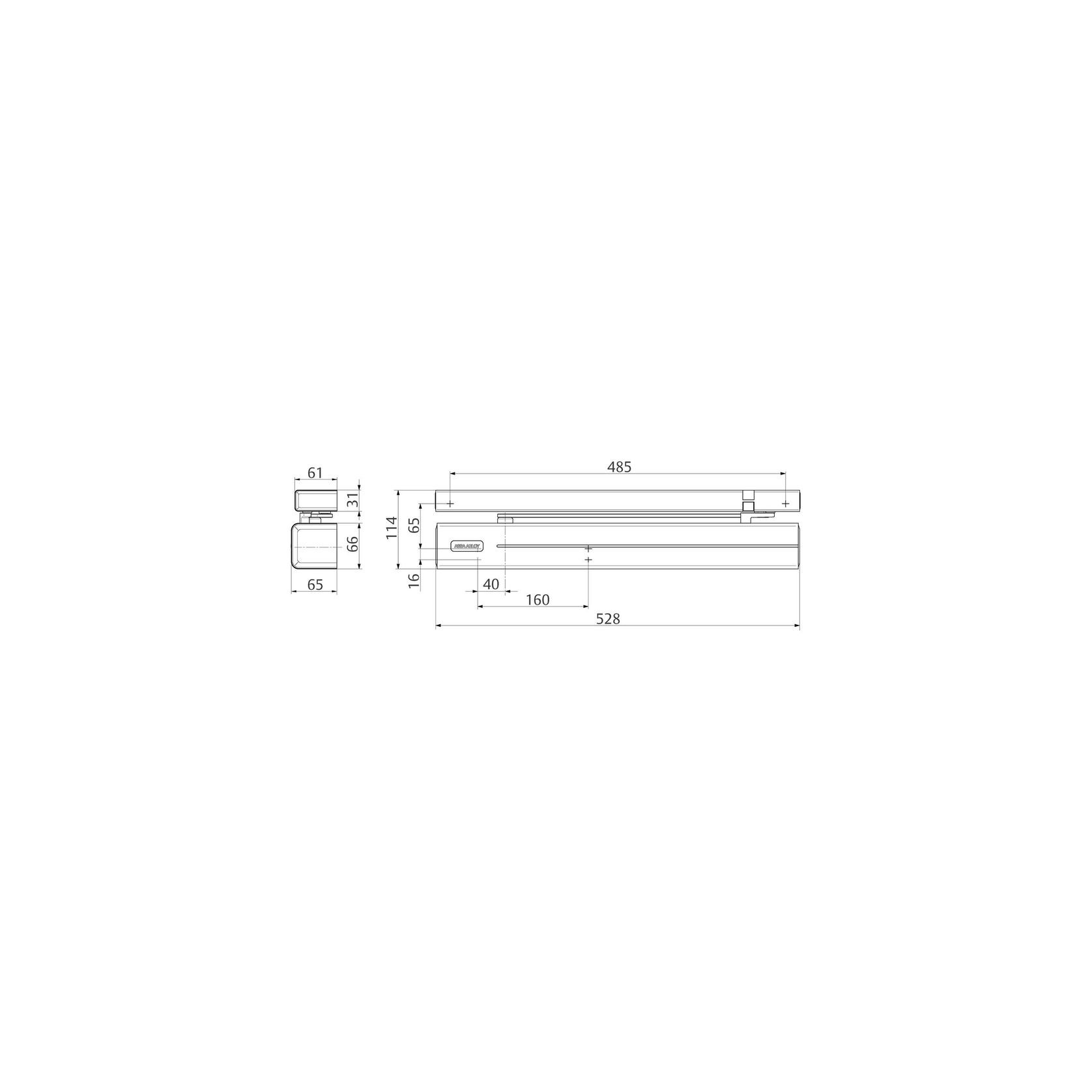

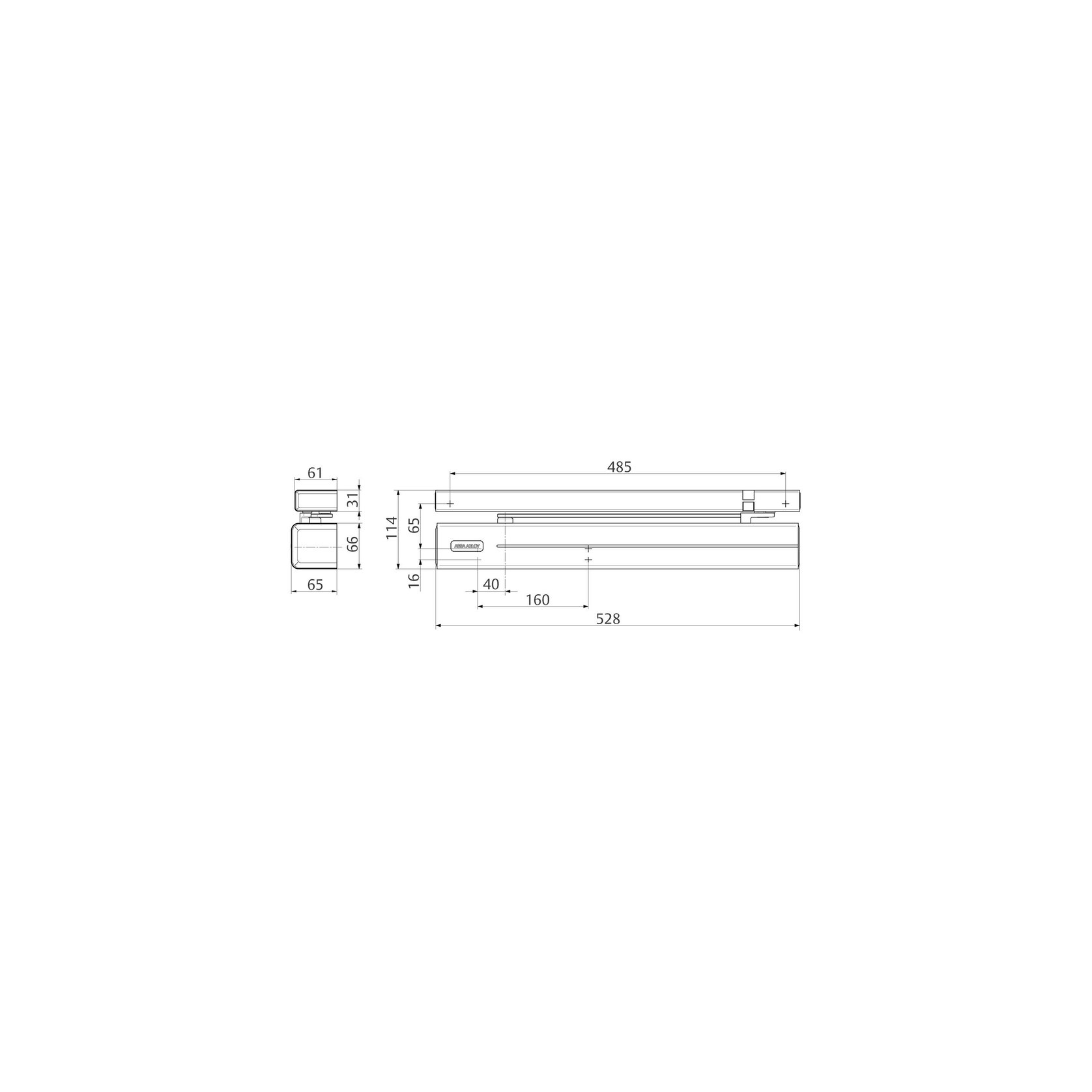

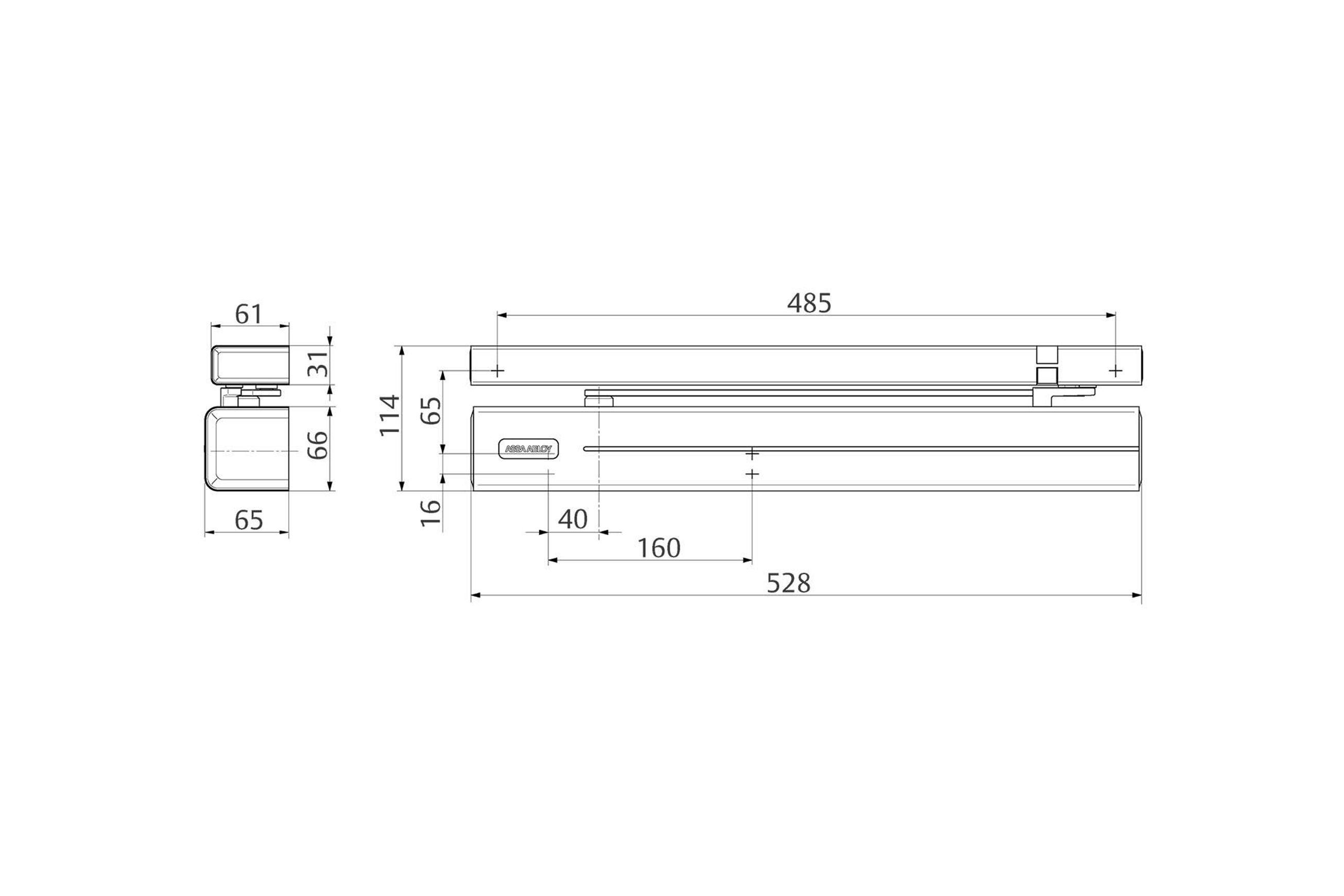

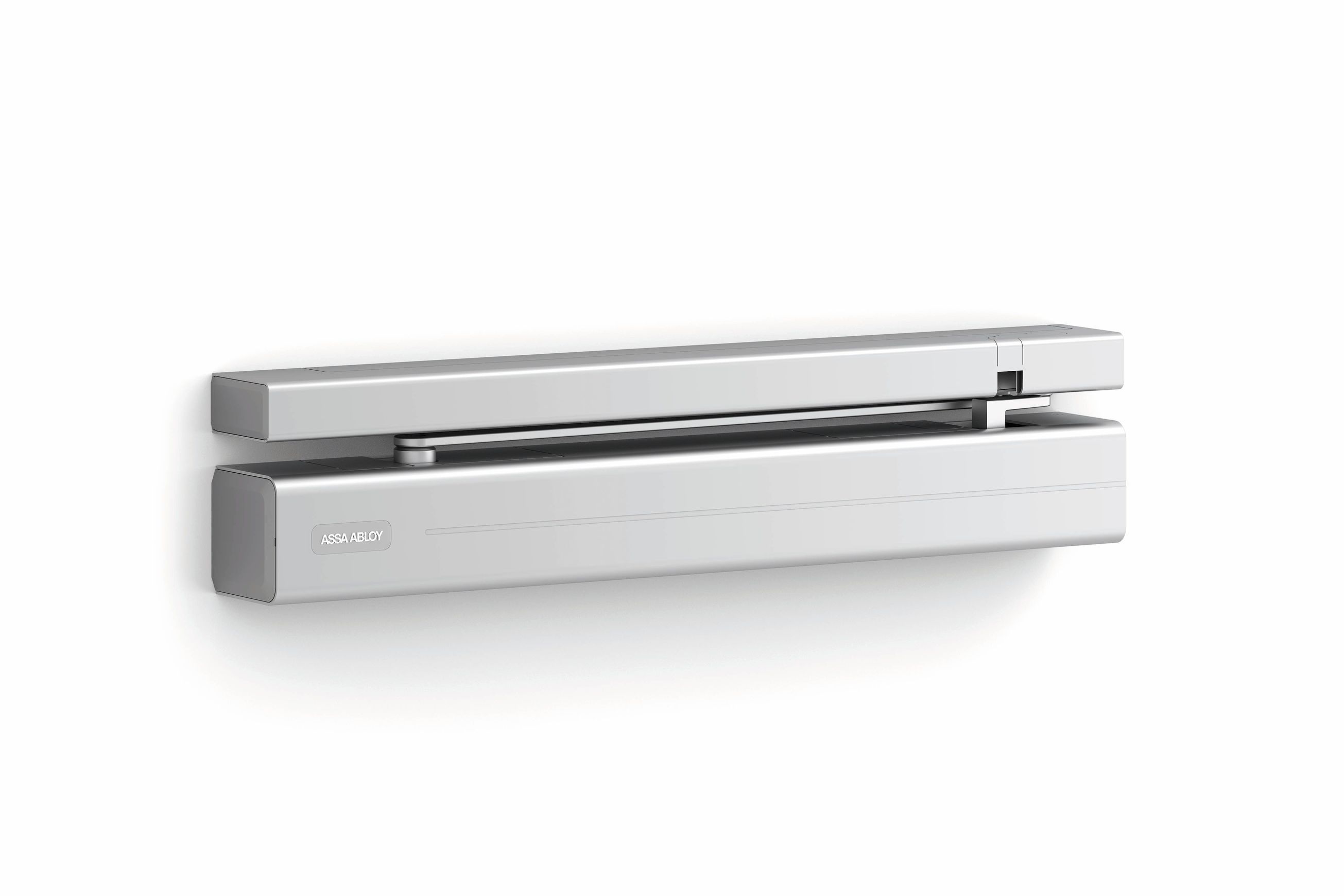

The DC700G-CM Close-Motion uses a standard DC700 Cam-Motion door closer mounted on an extended back-plate which also houses the additional damping mechanism. The DC700G-CM Close-Motion has successfully passed EN1154 at Exova UK, and is CE marked accordingly.

• ASSA ABLOY door closer with Cam-Motion® technology, extended mounting plate and integrated Close-Motion® element; guide rail with Close-Motion® control curve
• Closing power adjustable, EN size 3-6, for doors up to 1400 mm wide
• Door closer DC700 tested in accordance with DIN EN 1154, with CE mark
• Closing speed, latching speed and backcheck continuously adjustable
• 14 mm height adjustable arm system for ease of fitting
• Suitable for fire and smoke protection doors*
• Suitable for left and right handed doors
• Close-Motion® element horizontal (± 6mm) and vertical (± 3.5 mm) adjustable
• Colour: Silver EV1

* Check with the fire door manufacture

Scope of use

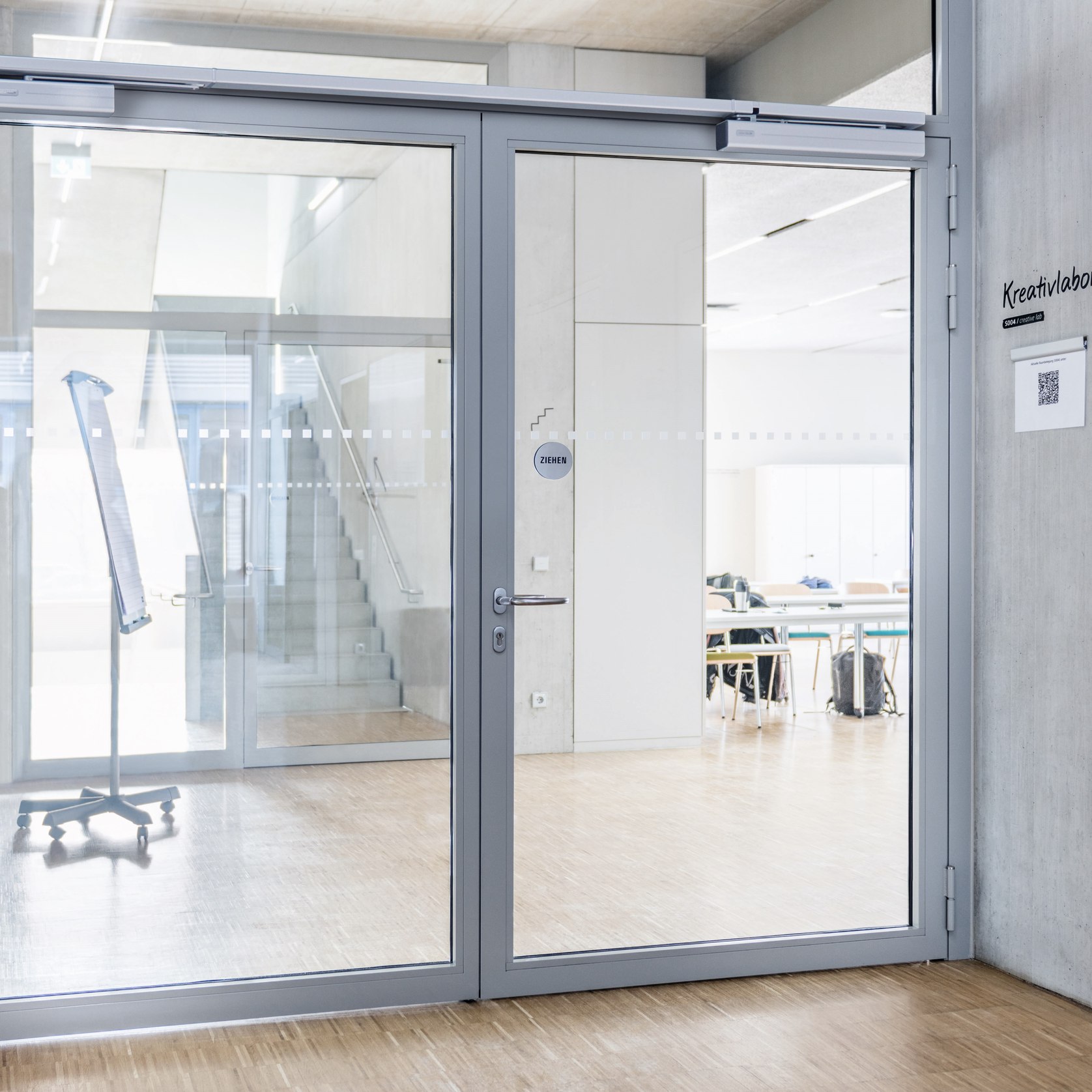

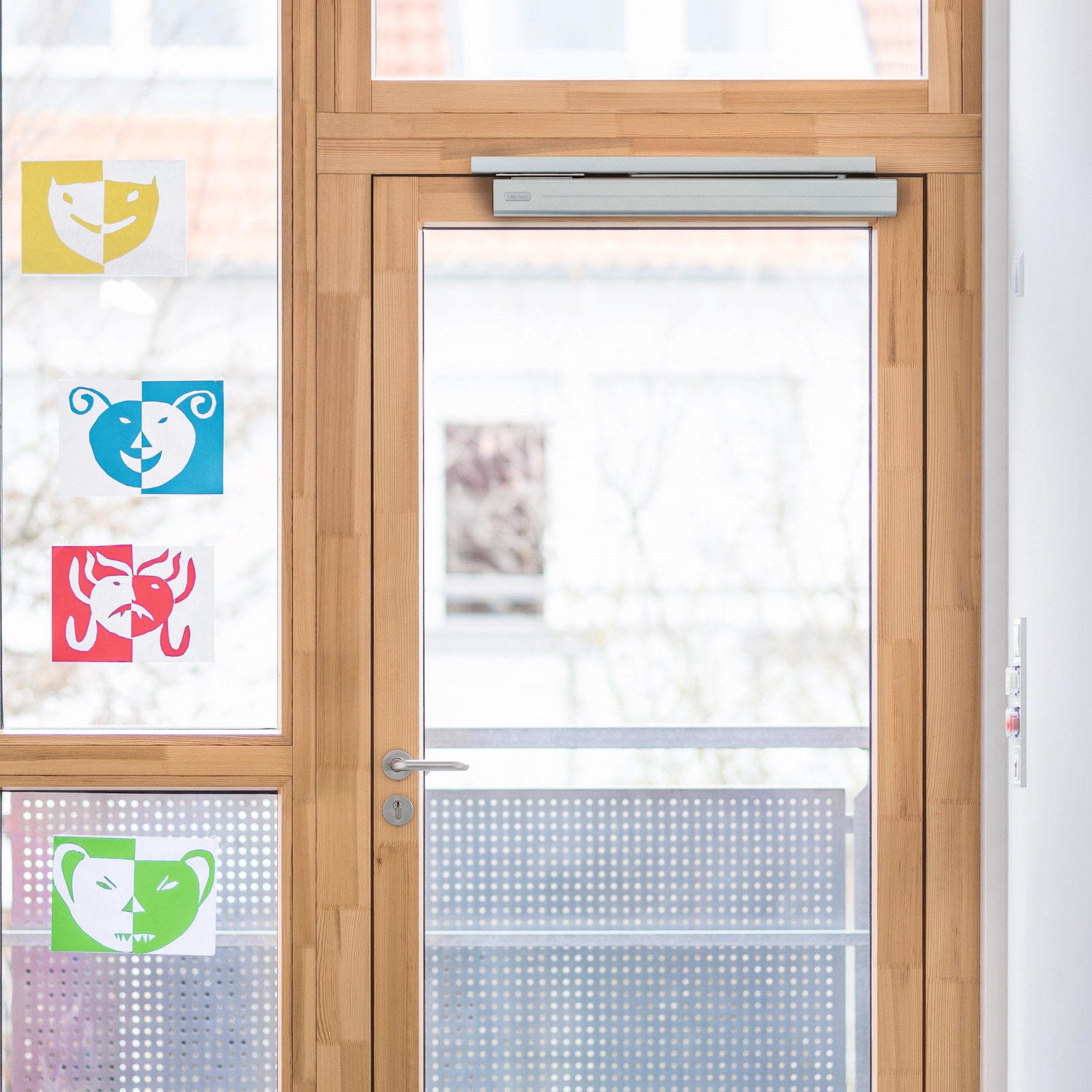

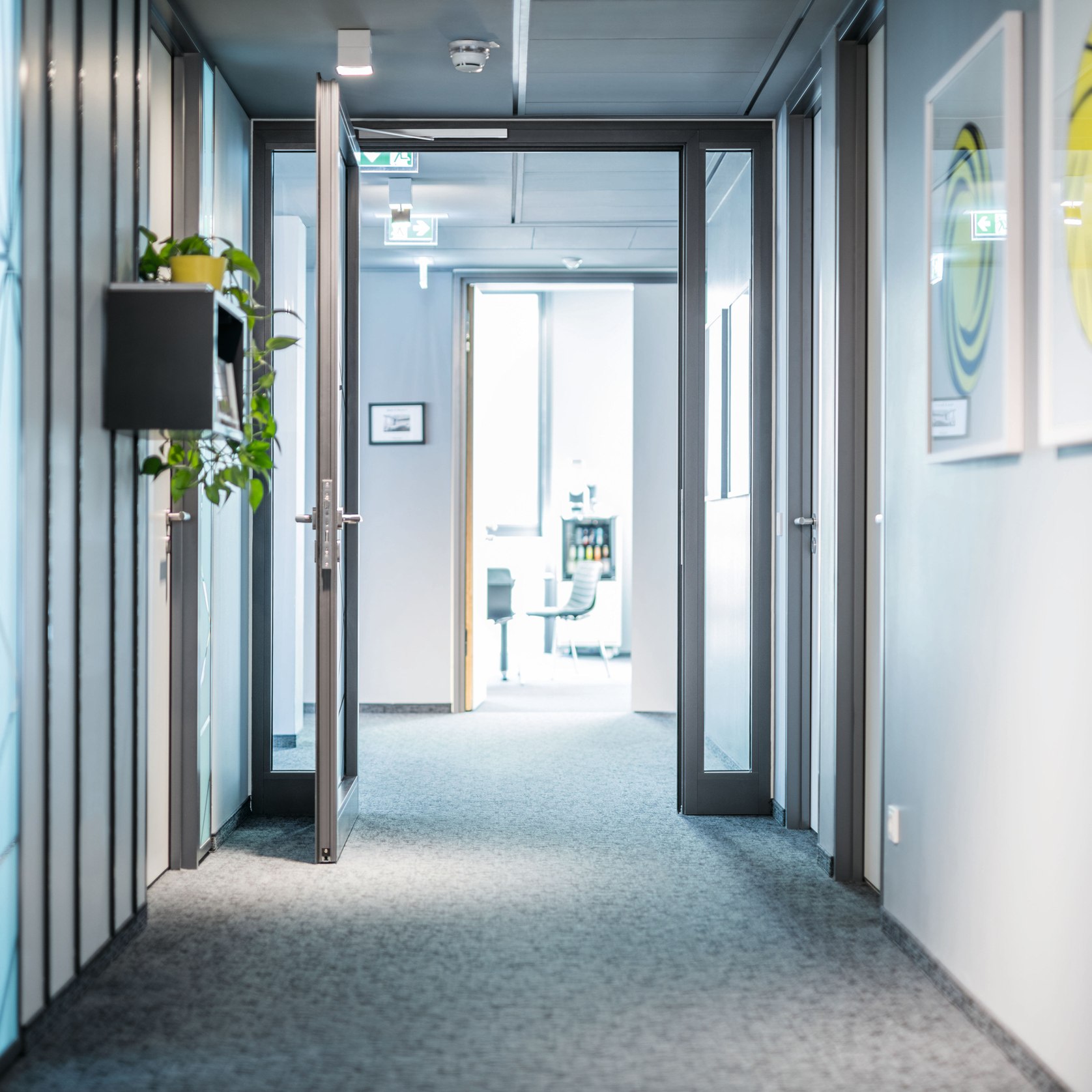

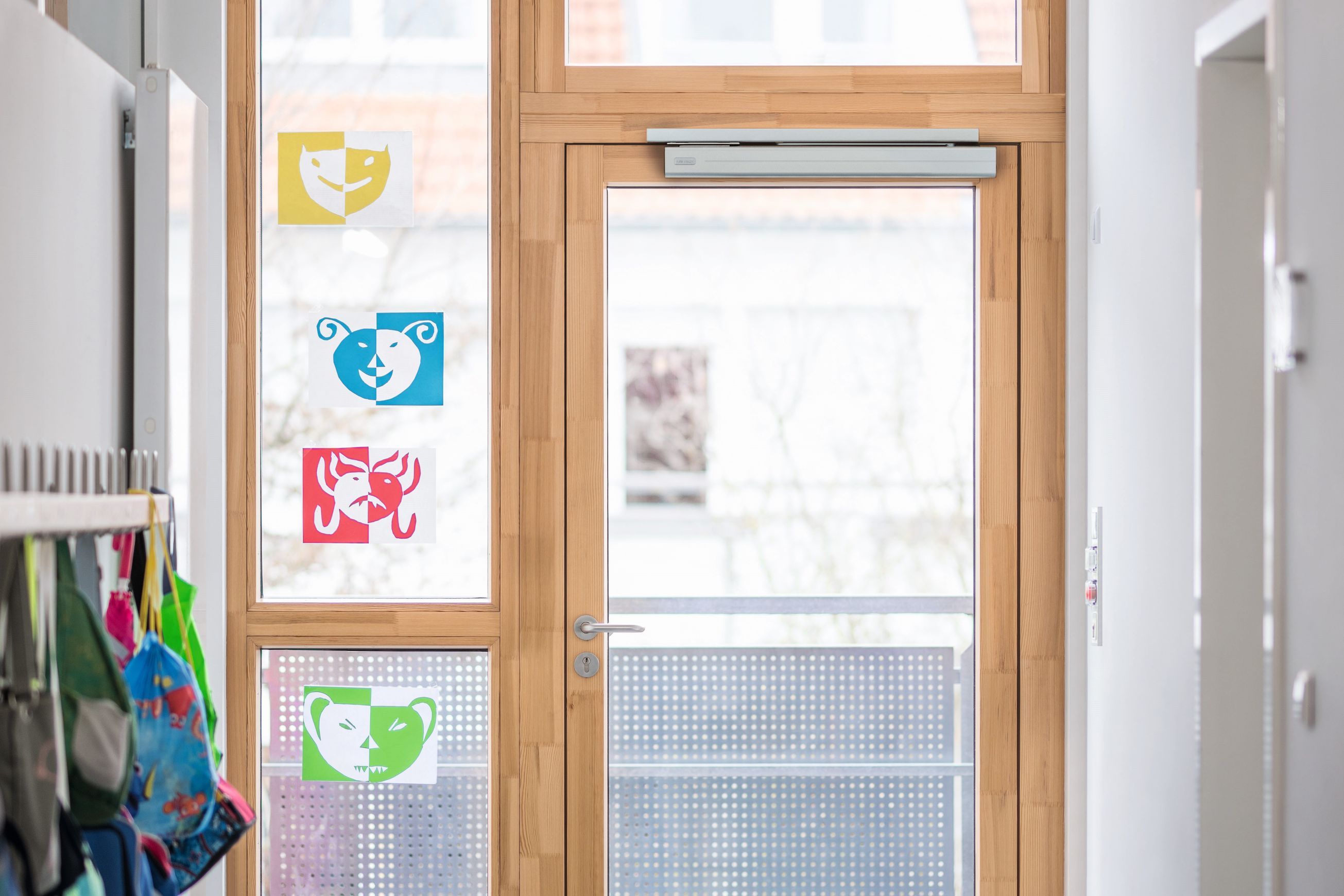

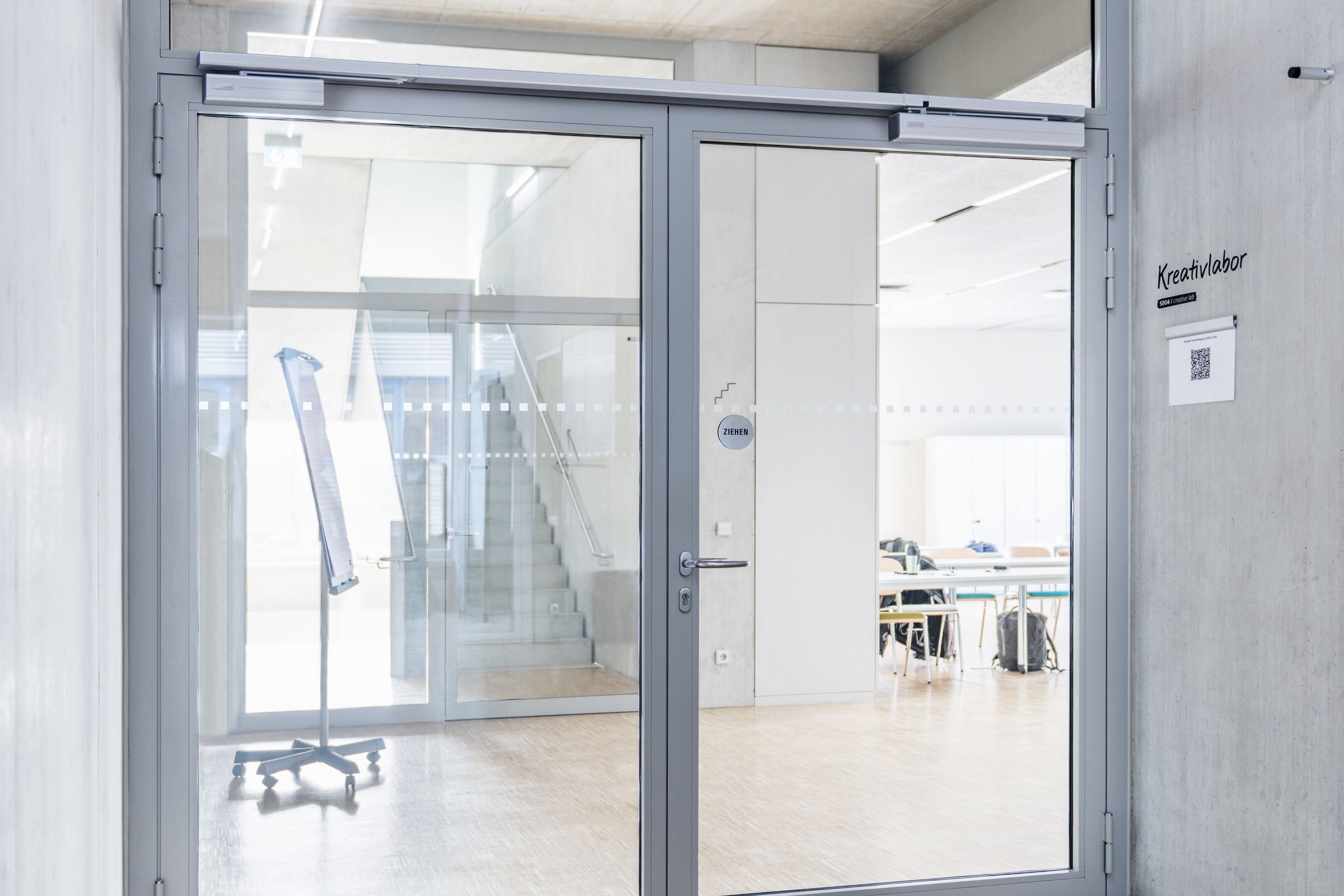

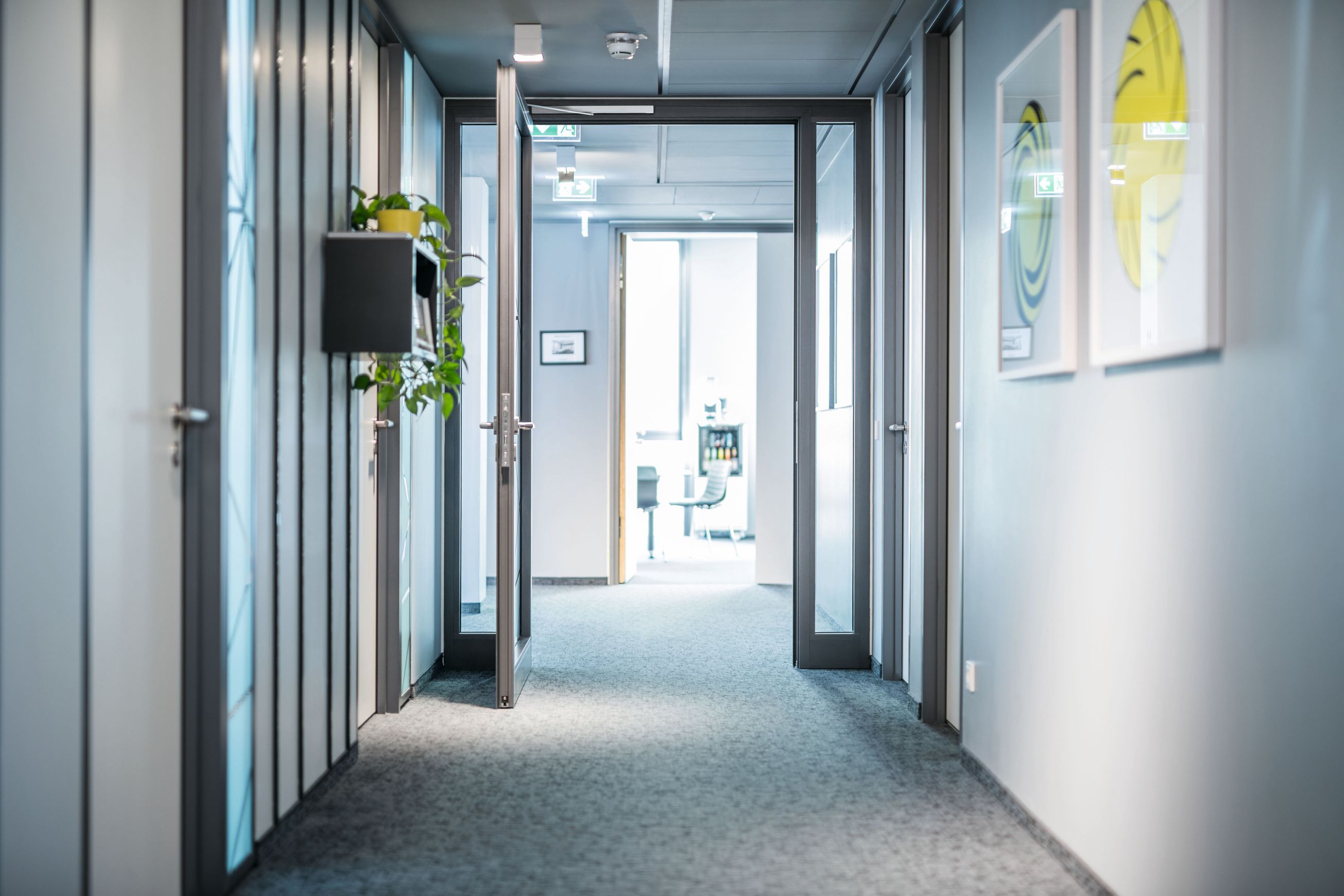

The DC700G-CM Door Closer is suitable for a variety of applications such as hospitality, education, and commercial buildings. It also works with security and access control applications and is suitable for use on internal and external doors.

Cam-Motion Technology

Innovative Cam-Motion® technology combines with an integrated damping device to close doors quietly, safely and securely at the speed you want.

The door is pulled quietly and securely into the frame, allowing the locking system to latch the door into position. Close-Motion® minimises problems from draughts and differences in air pressure. No noise. No fuss.

Close-Motion® can be safely set to faster closing speeds as the unique damping feature preserves safety and silence by controllably slowing the door during the last few degrees of closing.

With safety, noise, accessibility and security covered, Close-Motion® is ideal for environments ranging from hospitality to healthcare and encompassing education and commercial or government buildings.

Easy to install by design, it is simple to adjust the standard closing and backcheck controls.

Performance

• Safe, secure, silent closing
• Anti-slam, anti-abuse
• Optimal damping of the door even with faster closing speeds
• Reliable closing due to pressure differentials, external doors, etc.
• Appealing, uniform design with same-size door closer body & guide rail
• Suitable for single and double-leaf doors
• No regular adjustments required
• Slower, controlled closing minimizes the danger of finger traps
• Simple, quick and easy to retrofit or upgrade
