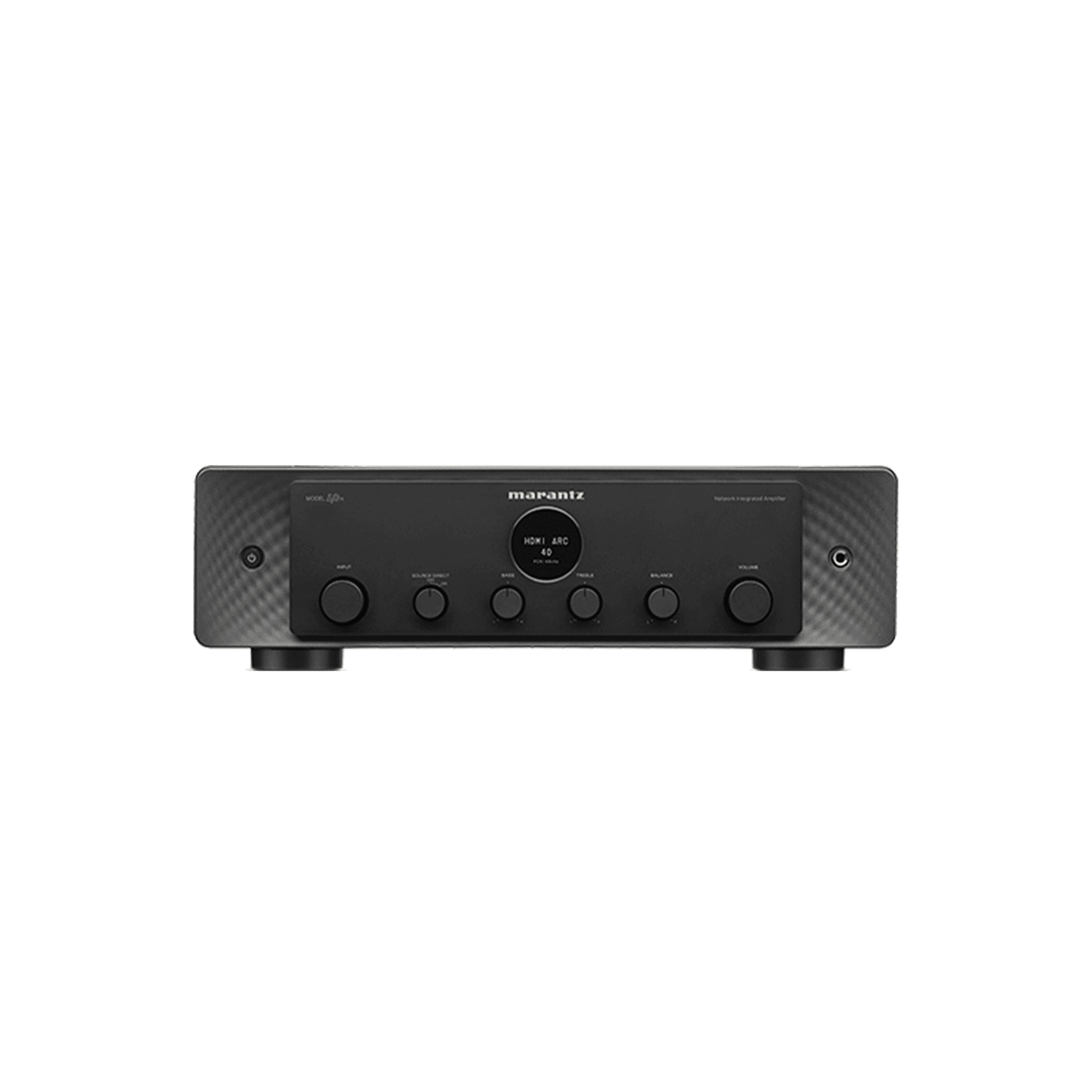

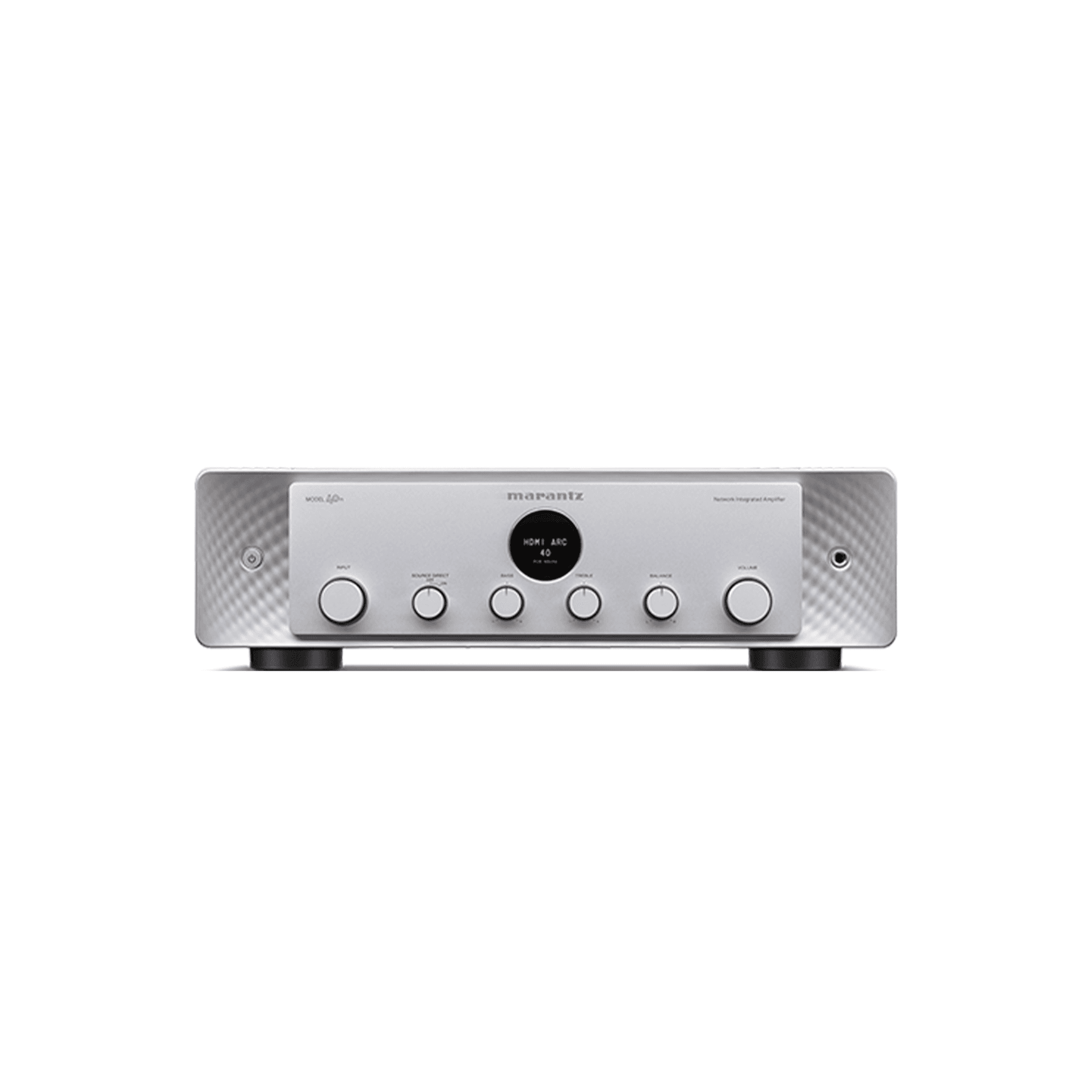

Marantz Model 40n Integrated Stereo Amplifier

Output Power

Rated Output Power70W + 70W (8ohm) & 100W + 100W (4ohm)

Features

• Power Amplifier Circuit: HDAM-SA3
• Power Transformer: Double Shielded Toroidal
• Volume: Electric
• Bass / Treble / Balance Control
• Source Direct: Yes
• Frequency response: 5Hz - 50kHz
• Total Harmonic Distortion: 0.02% (20Hz - 20kHz, 8Ω)
• Damping Factor: 100
• Input Sensitivity: Phono input: 2 mV / 47 kohm
• Input Sensitivity: CD/LINE/RECORDER: 220 mV / 20 kohm
• Input Sensitivity: Power Amplifier input: 1.6 V / 15 kohm
• SN Ratio: PHONO (MM): 87dBCD: 106dB

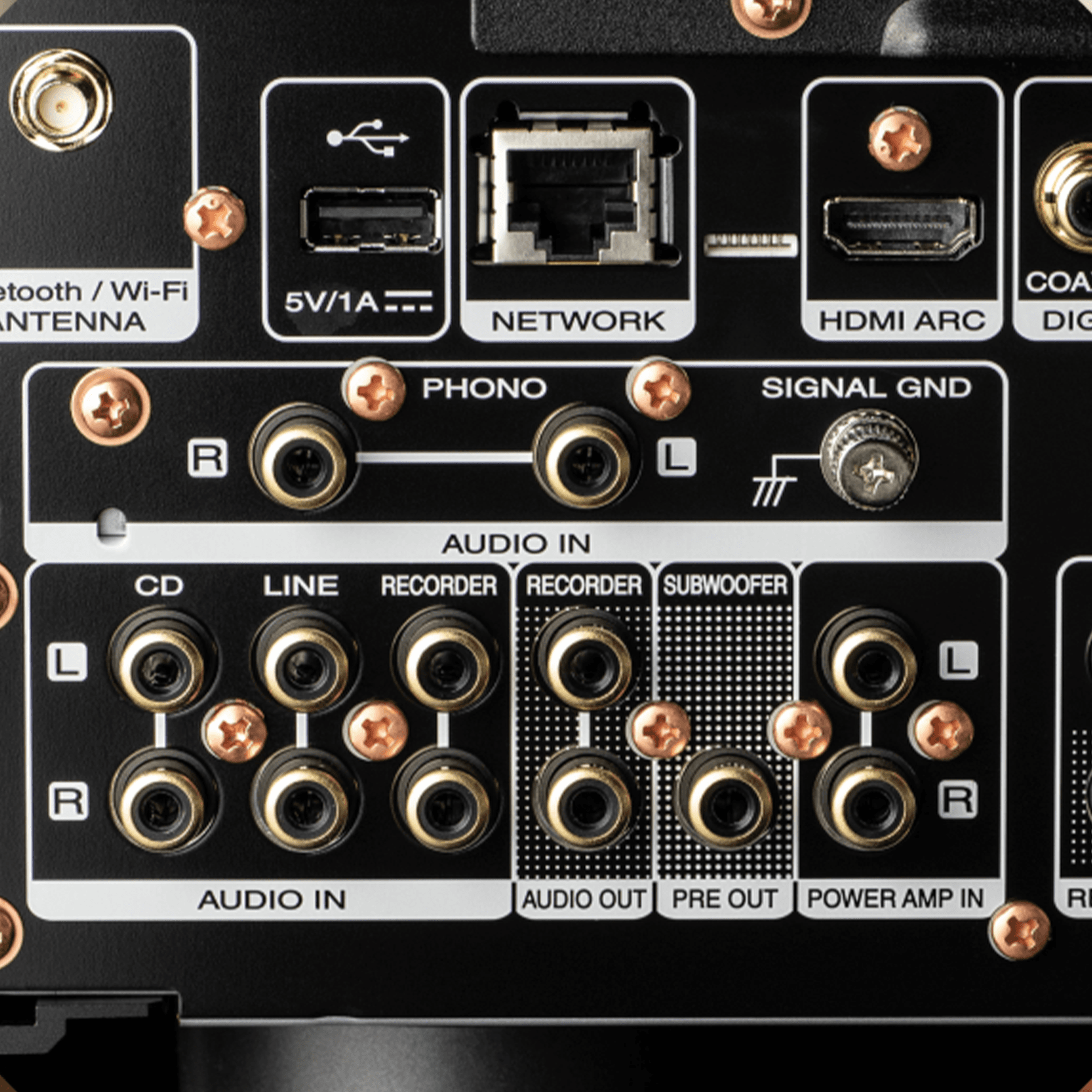

Terminal

• Phono Input: Yes (MM) - Marantz Musical Phono EQ
• Ext. Pre Input (Power Amp Direct): Yes
• Preout: No
• Analog Input (include Phono) / REC Out (RCA): 4 (PHONO, CD, LINE,RECORDER) / 1 (RECORDER)
• Optical input: 1
• Coaxial input: 1
• HDMI: 1 / 0 (ARC) PCM only
• USB A: 1 (Rear), Mass Storage Class5V/1A
• Speaker Terminal: SPKT-1+
• Remote Control Bus TerminalYes: (RC-5 In / Out)


Control

• App: HEOS App
• Remote Controller: System Remote & Features (Amp and CD Player Control)

Others

• Packaging Dimensions (W x H x D mm): 21" x 10" x 20.6"
• Power Consumption: 220W, 0.3W (Standby)
• AC Inlet: Yes
• Quick Start Guide: Included

Cosmetic

• Panel Color: SG / BK
• Front Center Panel: Aluminum
• Top cover: Steel
• Edge-lighting: Yes (Dimmer)
• Volume Knob: Aluminum
• Input Selector: Aluminum
• Bass/Treble/Balance/ REC Out Sel knobs: Aluminum
• Power button: Aluminum
• Chassis Material: SECC\
• Bottom Layer: Thicker double layer

Most Musical Sound From Any Source

A full complement of analogue and digital inputs plus built-in streaming and HDMI make listening enjoyable and easy regardless of source.

Stream Millions Of Hi-Resolution Songs

Stream from Spotify, Amazon Music HD, Tidal (where available), and more or enjoy your own music file libraries. Works with Alexa, Google, and Siri.

Whole Home Hi-Fi

Create a multi-room musical experience with the MODEL 40n as your home’s music hub.

HDMI Input Adds AV Connectivity

HDMI ARC (Audio Return Channel) adds uncommon flexibility to this stereo amplifier by enabling TV sound through your stereo.

High-Resolution - Digital Streaming Built-In

Effortlessly connect via Bluetooth, Apple Airplay 2, or directly from the HEOS app to play all your favorites from hundreds of streaming services.

High-Resolution Digital Streaming Built-In

MODEL 40n is for those whose music collection is infinite and online. Connect to your network with Wi-Fi or ethernet. With HEOS® Built-in, you won’t need extra equipment to stream your favorite tunes. MODEL 40n supports Spotify, Airplay 2, Bluetooth, Tidal, TuneIn, and more services—plus, playback of your own collection via USB-A input or on compatible home servers.

The Marantz Musical PhoNo EQ

The joy of vinyl playback is both audible and tactile yet requires highly specialized electronics for high performance. The Marantz Musical PhoNo EQ is built in so you can connect a turntable with MM cartridge directly to MODEL 40n. You’ll enjoy your favorite records and discover new ones, all without the burden of additional electronics.

Precise Tone Control

Your sound preferences at your fingertips. Adjust bass and treble to suit your sound or bypass with source direct mode for the purest sound possible.

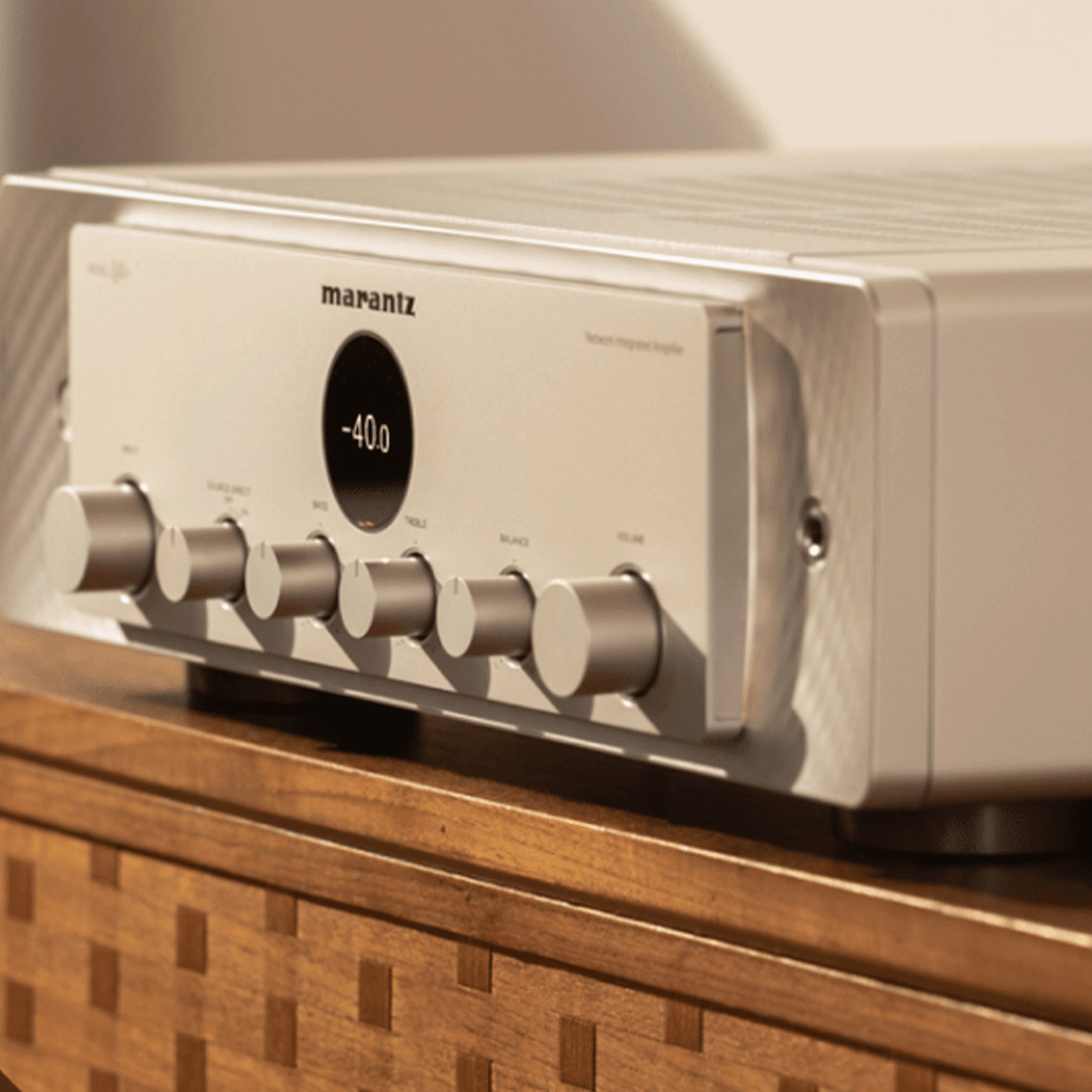

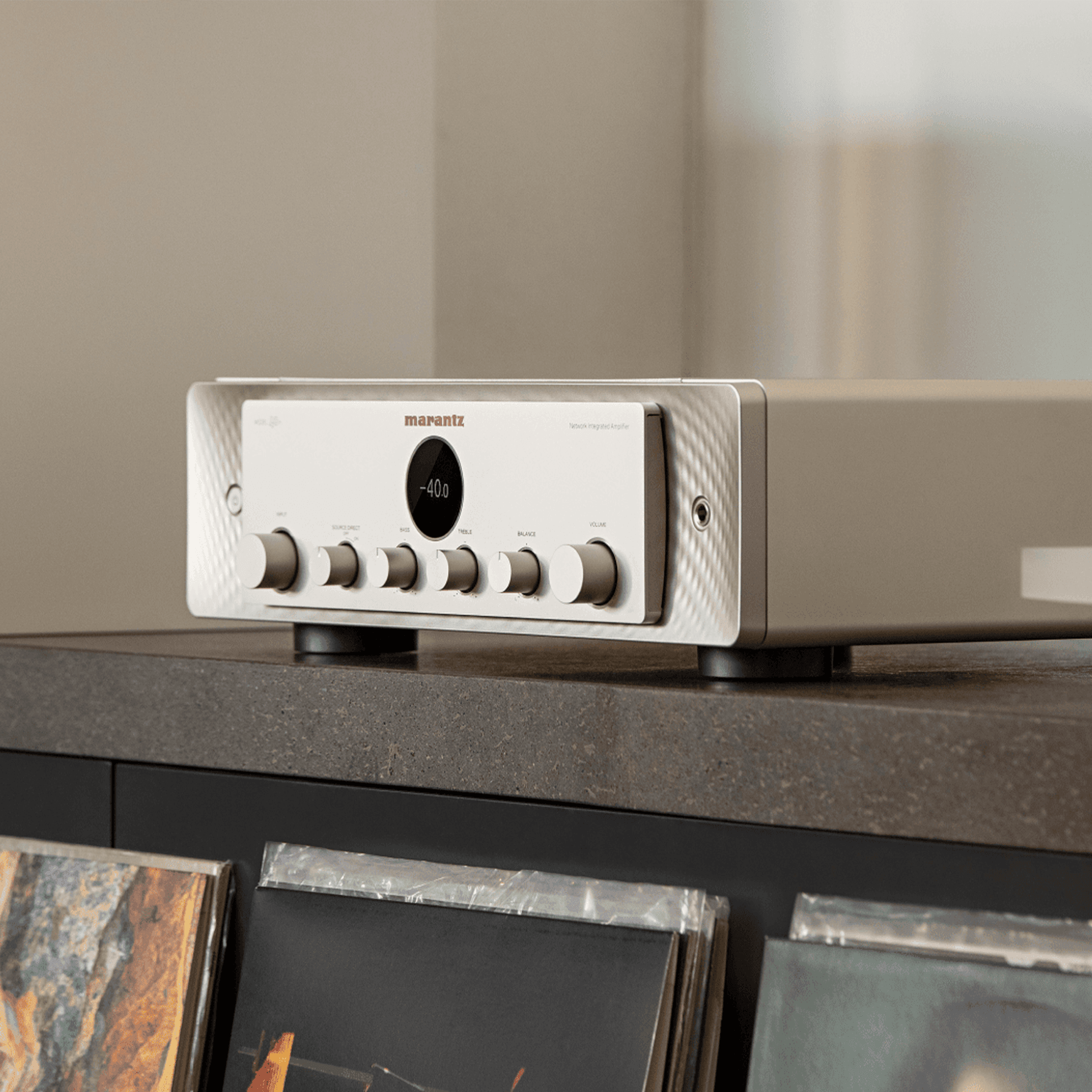

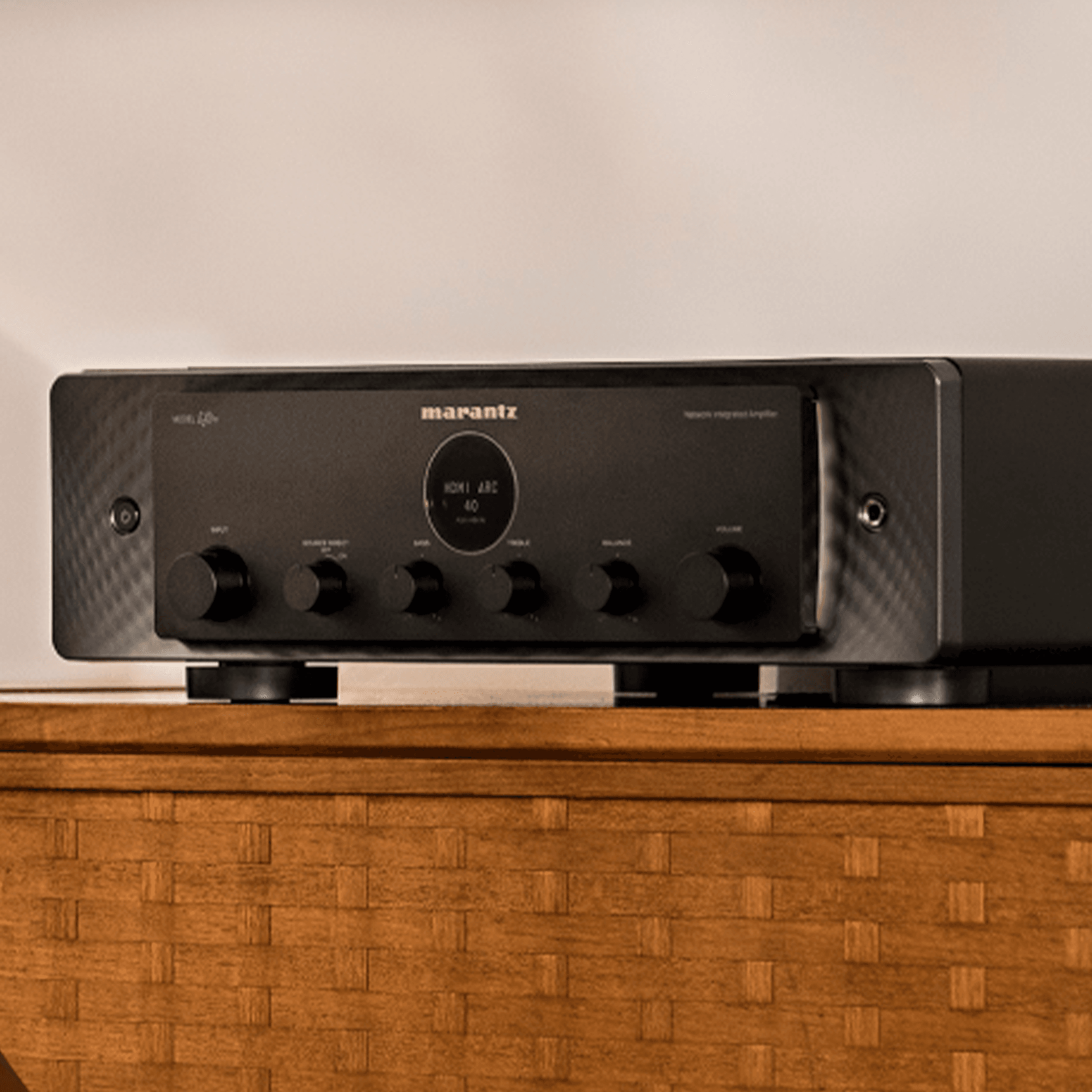

Luxurious Look and Feel

MODEL 40n follows a long line of historic Marantz pieces Notable for their exquisite design. Every aspect is considered—from premium materials, symmetry, classic porthole display, and even smooth operation of the volume control. Your stereo doesn’t need to look like lab equipment. Marantz MODEL 40n begs to be heard, seen, and touched.

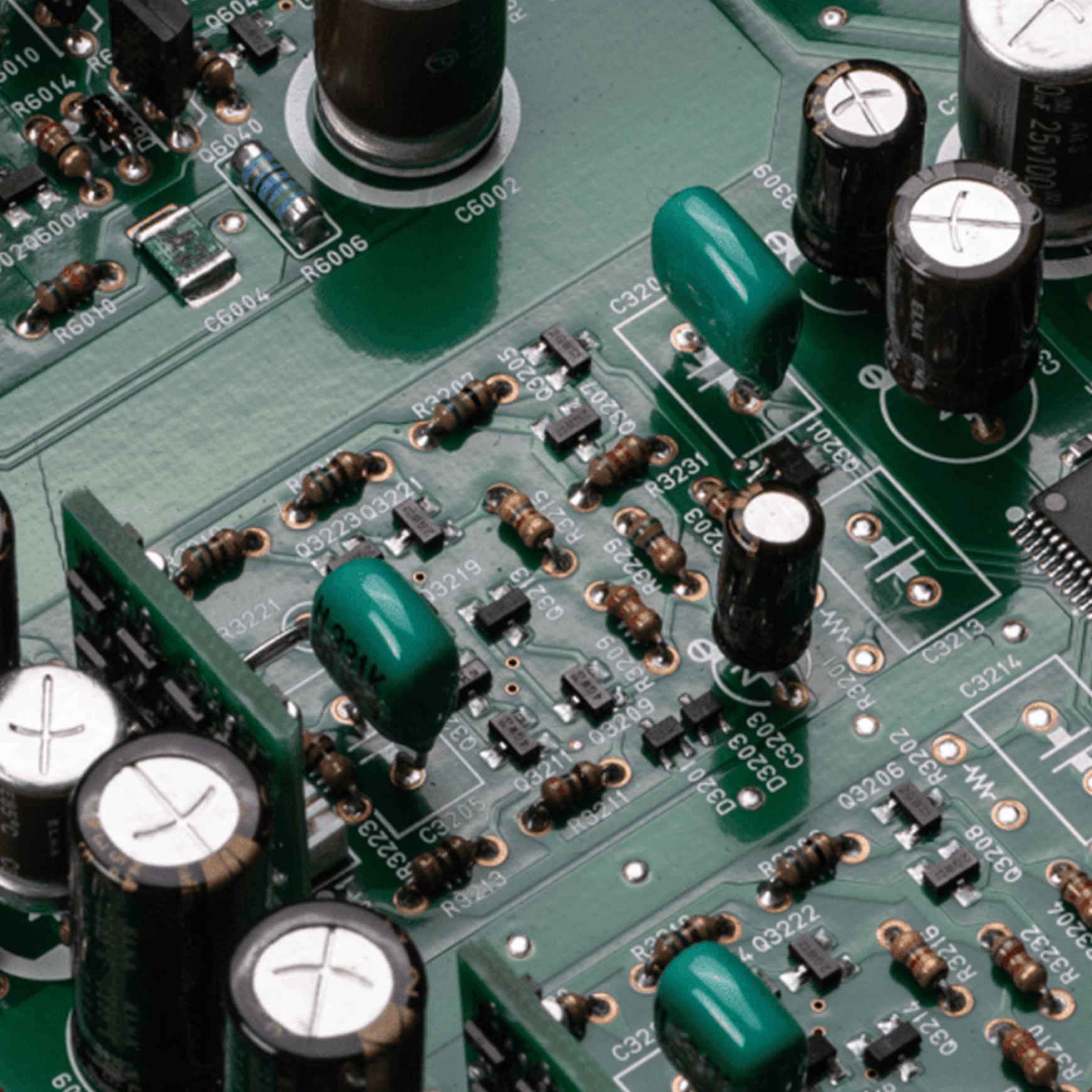

Hyper Dynamic Amplifier Modules

To preserve the detail, nuance and essence of the music you love, Marantz developed HDAM (Hyper Dynamic Amplifier Modules) which are superior in their speed and response to off-the-shelf ICs found in other products. MODEL 40n leverages this unique Marantz inNovation to ensure whatever you’re listening to is always the most musical.

Subwoofer Output

Deep bass is a visceral and exciting sensation. When partnered with equally excellent speakers, MODEL 40n produces impressive bass. If you want more, add a subwoofer using the dedicated subwoofer output and dial in the lowfrequency crossover settings and level for precise integration with your main loudspeakers.
