Rotel RA-1592 MK II Integrated Amplifier
Whether a seasoned audiophile or casual listener, the time has never been better to be a music lover. A near limitless supply of music is at our fingertips accessible via streaming, digital mediums, classic vinyl and more.
Rotel has been designing and manufacturing high fidelity, high quality, high performance audio products for over 60 years accurately rendering audio with exceptional detail and stunning clarity. The RA-1592MKII proudly continues in the tradition and heritage of this iconic brand.
- CategoryAmplifiers
- RangeRotel
- BrandRotel
CONTINUOUS POWER OUTPUT
200W/Ch (All channels driven, 8Ω)
TOTAL HARMONIC DISTORTION (THD)
(20Hz–20kHz) < 0.008%
FREQUENCY RESPONSE
- Line Level Inputs: 10Hz - 100kHz ±0.5dB
- Digital Inputs: 10Hz - 90kHz ±2dB
- PhoNo Input: 20Hz - 20kHz ±0.5dB
S/N RATIO (IHF "A" Weighted)
- Line Level Inputs: 103dB
- Digital Inputs: 102dB
- PhoNo Input: 80dB
DAMPING FACTOR
600
INPUT SENSITIVITY
- Line Level Inputs (RCA): 340mV
- Line Level Inputs (XLR): 540mV
- PhoNo Input (MM): 5.2mV
INPUT IMPEDANCE
- Line Level Inputs (RCA): 100kΩ
- Line Level Inputs (XLR): 100kΩ
- Digital Inputs: 75Ω
- PhoNo Input (MM): 47kΩ
INPUT OVERLOAD
- Line Level Inputs (RCA): 3.5V
- Line Level Inputs (XLR): 5.5V
- PhoNo Input: 52mV
PREOUT LEVEL
1.9V
OUTPUT IMPEDANCE
100Ω
TONE CONTROLS
±12dB at 100Hz / 10kHz
COAX/OPTICAL DIGITAL INPUT SIGNALS
LPCM (Up to 24-bit/192kHz)
PC-USB
- USB Audio Class 1 (up to 24-bit /96 k Hz)
- USB Audio Class 2 (up to 32-bit/384 k Hz)
- DSD and DoP support
- MQA and MQA Studio (up to 24-bit / 384k Hz )
DIMENSIONS (W × H × D)
- 431 × 144 × 425mm
- 17" × 5.7" × 16"
FRONT PANEL HEIGHT
3U / 132.6mm (5.25")
POWER REQUIREMENTS
230V, 50Hz POWER CONSUMPTION
500W
STANDBY POWER CONSUMPTION
<0.5W
NET WEIGHT
17.63kg (37lbs.)
BTU RATING
1239 BTU/h
The RA-1592MKII Integrated Amplifier includes circuit design inNovations, optimisation of audio signal paths and updates to critical power supply components delivering a breathtaking performance with dynamic rhythm and timing.
Utilising Rotel’s best-in-class preamplifier topology and award-winning power amplifier techNology, the RA-1592MKII is a No-compromise, size-efficient, all-in-one integrated audio product. The RA-1592MKII delivers 200 Watts per channel into 8 ohms powered by Rotel’s in-house manufactured toroidal transformer feeding an array of slit-foil capacitors for rich, deep, controlled, bass energy.
The RA-1592MKII supports your favourite sources including Analogue, XLR, Digital, aptX™ and AAC wireless Bluetooth, PC-USB supporting MQA and 32-bit/384kHz PCM, and Moving Magnet PhoNo stage. Digital to Analog conversion utilises a Texas Instruments premium DAC with precisely tuned output filter circuits delivering unprecedented acoustic detail, wide sound stage and exacting positioning.
The RA-1592KII is certified Roon Tested delivering the best experience using Roon software so you can just enjoy the music.

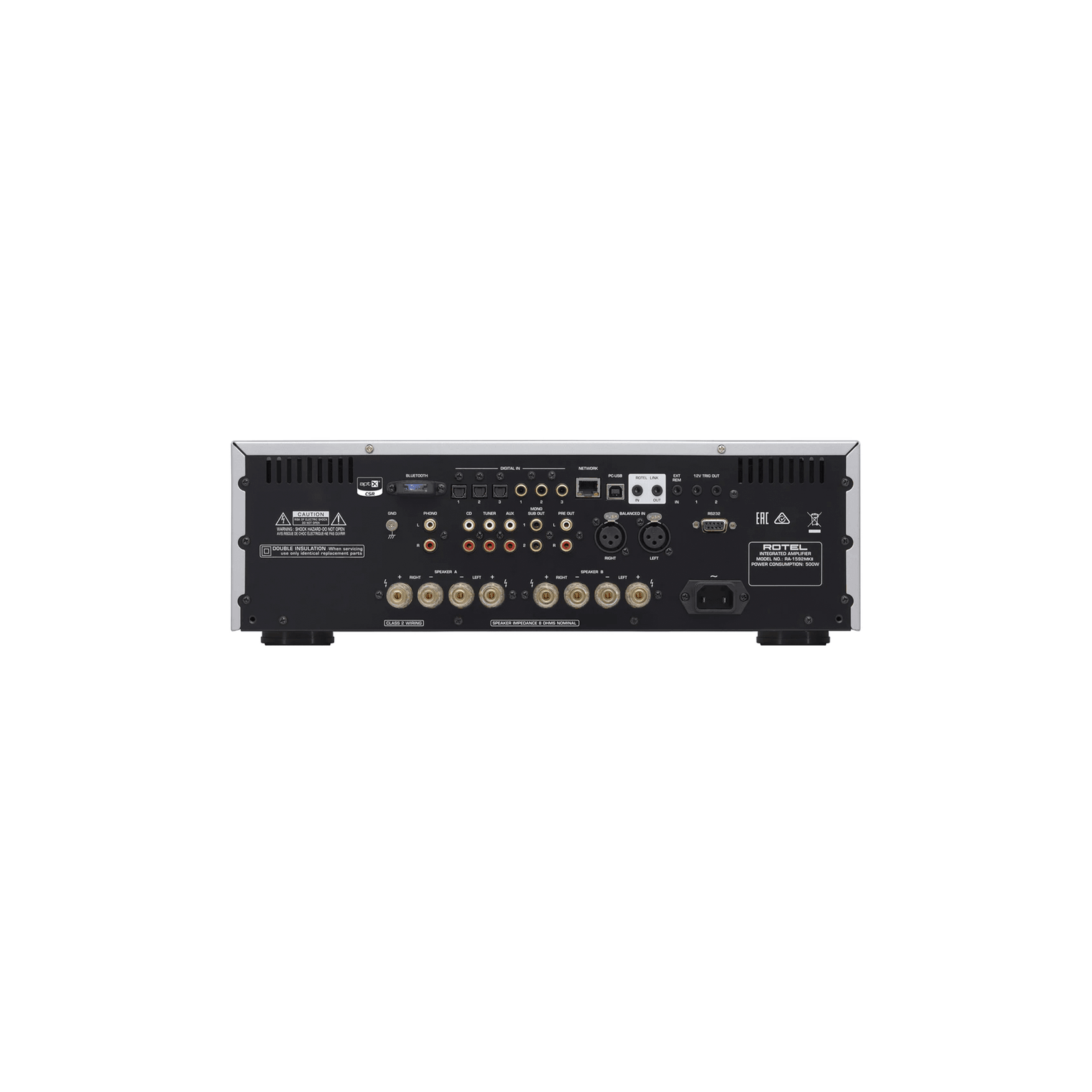

Selectable A-B speaker outputs, RS232, Ethernet and 12V triggers ensure seamless integration with control systems.
Convenience, performance and value - the RA-1592MKII delivers.
