Project by
Year of completion
2023

University of Auckland (B201) Social Sciences building situated on Symonds Street achieves a 6 Green Star NZGBC design rating.  The existing concrete clad building was reclad with a low-carbon high performance Thermosash PW1000 Unitised Curtainwall system, providing an insulated and airtight envelope which contributes to the low energy use of the building over its lifespan.

Jaxmax designed the UOA B201 building to reflect and acknowledge the historic trading Pā of Waipapa and the waka that were used for trading from the shore of Te Tōangaroa (Auckland's CBD eastern waterfront area).

“To reduce the embodied carbon of the new façade we considered design options with minimal amounts of low carbon materials. The design of the curtain wall system utilised aluminium extrusions sourced in Aotearoa made from 85% recycled content and 60% less carbon emissions than international aluminium. Due to the inherent strength of these lightweight extrusions, we could further reduce the quantity of material required.” Jasmax Principal and design lead, Chris Scott. Building 201: Reuse of University of Auckland building slashes carbon (nzgbc.org.nz)

Thermosash building envelope solutions include:

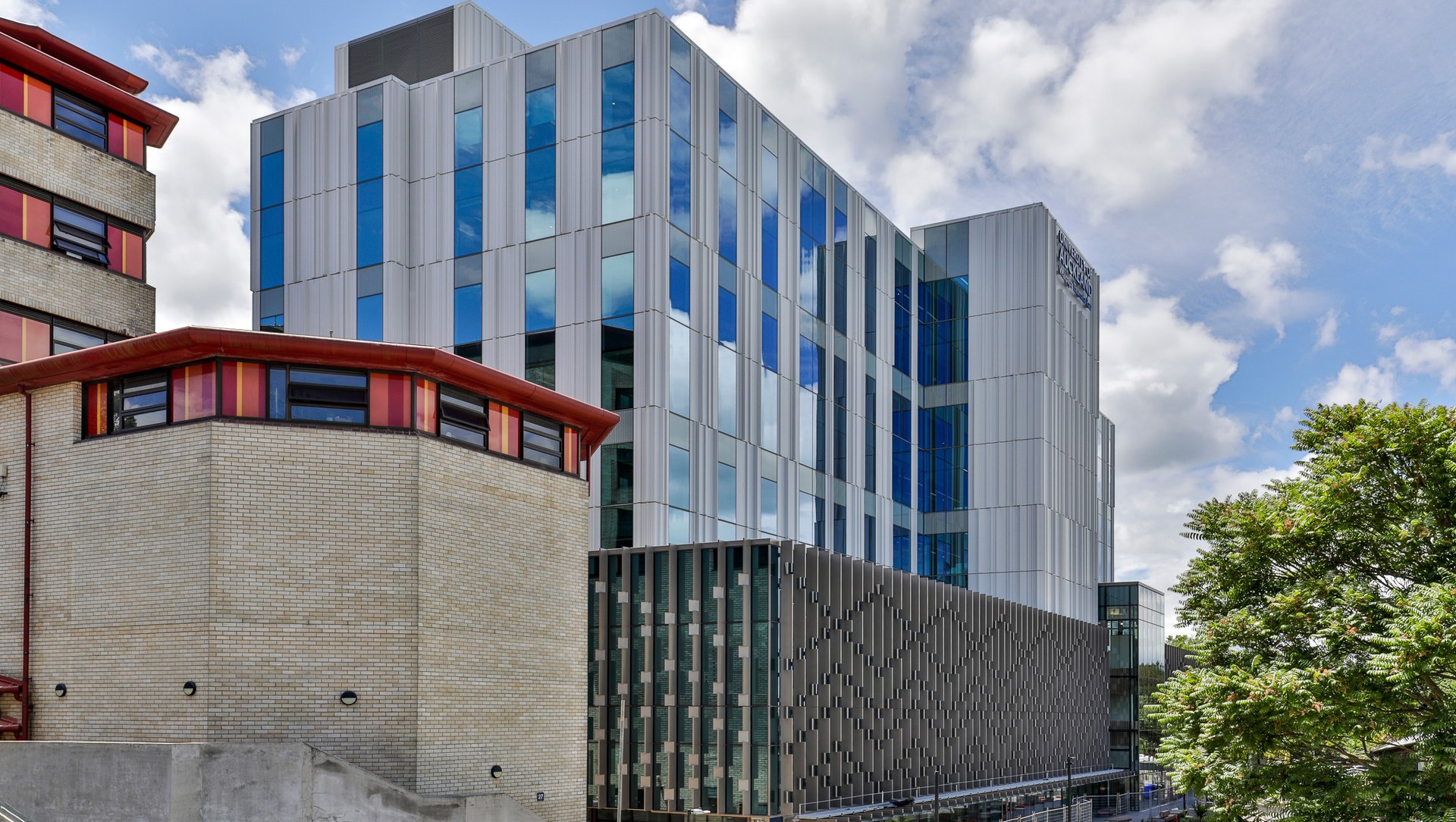

NORTH TOWER AND EAST TOWER (L4 - L10)

  • PW1000 Curtainwall with IGU glazing and Aluminium Planks
  • Plantrooms - PW1000 Curtainwall with Louvres
  • Rooftop Louvre Screens
  • External Single Access Doors to Roofs
  • Internal Auto Door and Side Lights at Corridors and Lift Lobbies
  • Vertical and Horizontal Seismic Joint between Towers

PODIUM OF THE EAST TOWER (L1 - L3)

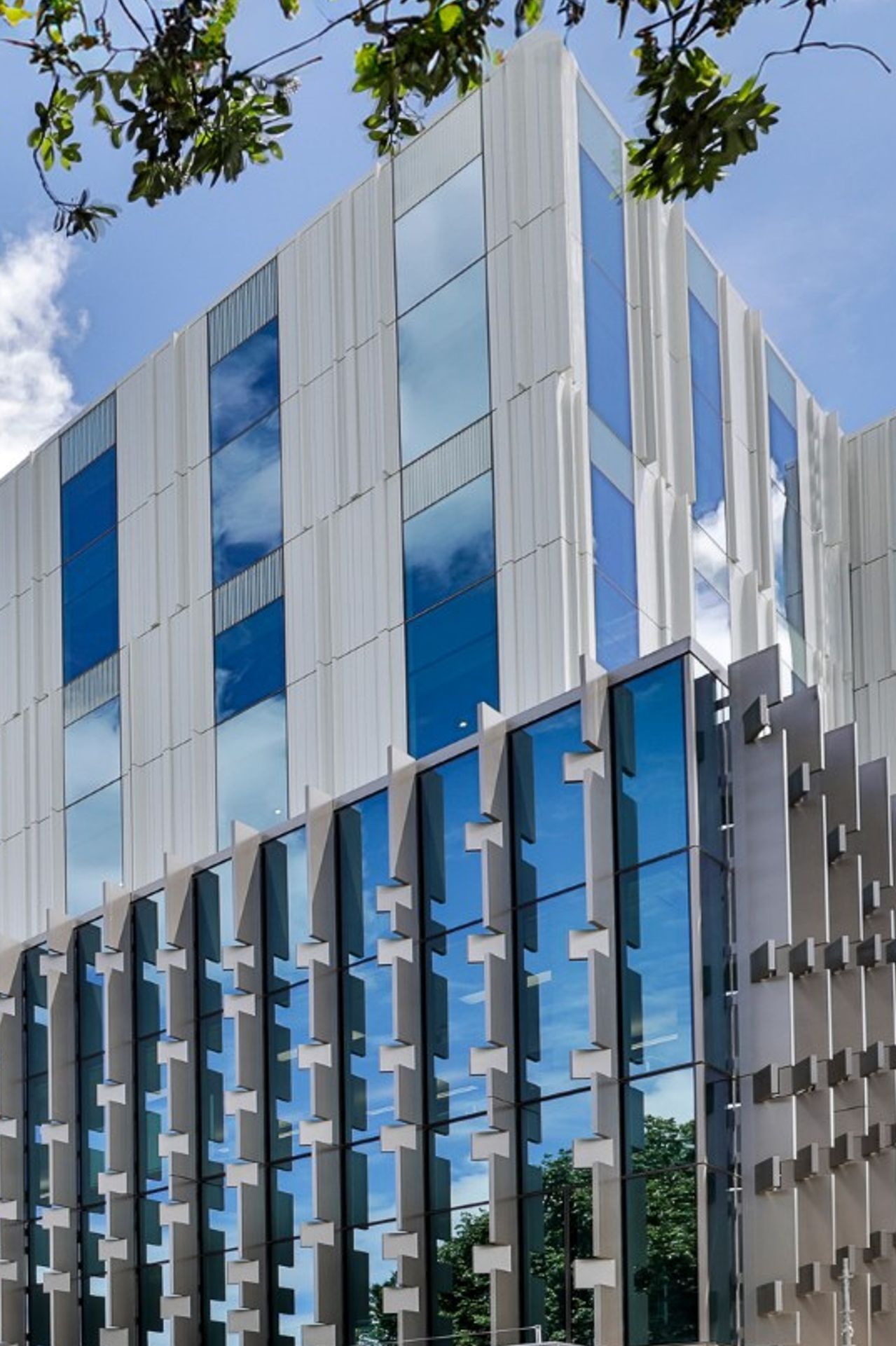

  • PW1000 Curtainwall with IGU Glazing and External Vertical Fins L2 - L3
  • PW1000 Curtainwall Shopfront L1
  • Single and Double Doors
  • At air Intake, PW1000 Curtainwall with Louvres
  • Wind Lobby with Auto Doors and Aluminium Panel Soffits/Fascias at Wynyard St.
  • Canopy with Extrusions / Glass / Steel Cleats along Wynyard St.
  • Internal Auto Doors and Side Lites at Corridors and Lift Lobbies

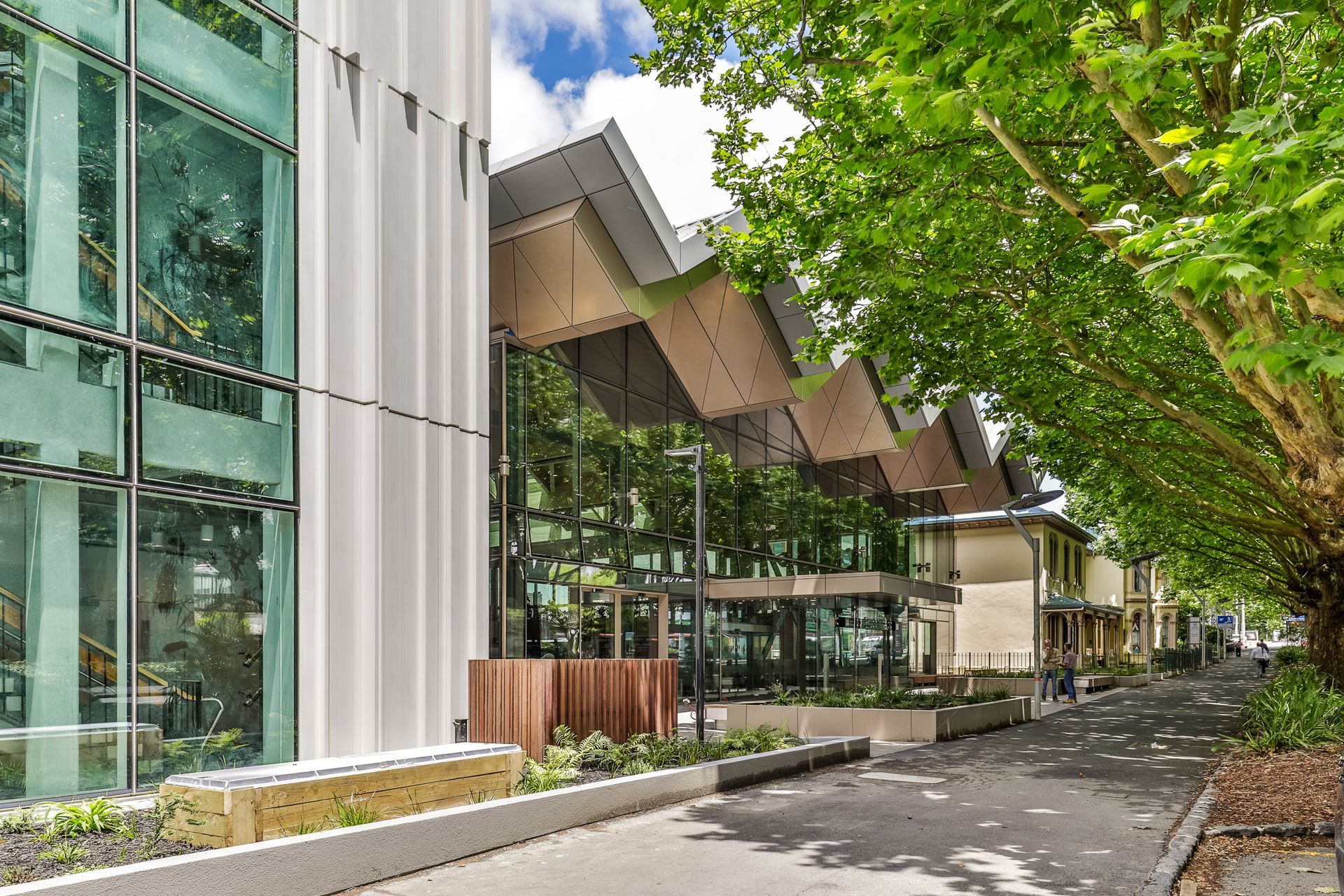

ATRIUM (L1 - L4)

  • PW1000 Curtainwall with IGU Glazing
  • Punched Openings with Delta Window Suite in Lower Levels
  • Bird Mesh Screens
  • 3 Wind Lobbies with Auto Doors at L3 and L4, along with Aluminium Soffit / Fascias
  • Symonds street Wind Lobby - Structural Glazing / Glass Fins
  • 3 Bays of IGU Skylights with EPDM and Pressings around Perimeter
  • Horizontal and Vertical Seismic Joints with EPDM
  • Large Soffit and Fascia Panels at Atrium High Level

Contact us to discuss your commercial project aspirations and requirements.
