Dorma EN1-5 Door Closer Push Side Kit TS93G15GNRFAB
Wetherill Park, Australia
- 992.3K profile views
- 51 saves
Dorma Door Closer
TS93G EN1-5 SIL
Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.
Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.
Features:
- Mounted on push side of door
- Adjustable closing force size EN1-5
- Suitable for standard doors up to 1250mm wide
- For External doors up to 1250mm
- Suits fire and smoke check doors
- Slide channel arm assembly
- Closing force variable by means of adjustment screw
- Closing speed adjustable by valve
- Latching speed adjustable at valve
- Backcheck (BC/OD) adjustable at valve
- Delayed action (DC/SV) adjustable at valve
Product Details
- Product
- Dorma EN1-5 Door Closer Push Side Kit TS93G15GNRFAB
- Category
- Door Closers
- Sold by
- Keeler Hardware
- Size
- 275mm
- Range
- Dormakaba
- Brand
- Dormakaba
- Country of origin
- Australia
- Type of use
- Commercial and Residential
- Package type
- Fragile - handle with care
- Care and cleaning
- Easy maintenance
- Installation
- Minor installation required
- Assembly
- Minor assembly required
Product Variants
- Colours
- Material
Keeler Hardware is specified by
Ha ArchitectureArchitects
Ironbark ArchitectureArchitects
JOST ArchitectsArchitects
Dieppe DesignArchitects
Alexander &CO.Architects
De Moyer ArchitectureArchitects
Bryant Alsop ArchitectsArchitects
Anderson ArchitectureArchitects
mcmahon and nerlichArchitects
R ARCHITECTUREArchitects
Cadence & CoArchitects
Bones StudioArchitects
Invilla ArchitectureArchitects
TDDP ArchitectsArchitects
Habitat Studio ArchitectsArchitects
Hive ArchitectureArchitects
Bijl ArchitectureArchitects
Scale ArchitectureArchitects
J Mammone ArchitectureArchitects
David Baillie ArchitectArchitects
Ian Moore ArchitectsArchitects
New SpacesBuilders
Kate NixonInterior Designers
APC BuildBuilders
Matic by DesignInterior Designers
Dasch AssociatesInterior Designers
Ilm InteriorsJoiners
X + OInterior Designers
Brianda ProjectsBuilders
Susie Miles DesignInterior Designers
IverManufacturers and Suppliers
STUDIO GAXAInterior Designers
Rise Architectural BuildersBuilders
ASSA ABLOY Door Locks & Security SolutionsManufacturers and Suppliers
TrueBuild HomesDesign & Build
Schemes & SpacesInterior Designers
Jumble & StackInterior Designers
CastellaManufacturers and Suppliers
Dorma Door CloserTS93G EN1-5 SIL Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.
Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.
Features:
- Mounted on push side of door
- Adjustable closing force size EN1-5
- Suitable for standard doors up to 1250mm wide
- For External doors up to 1250mm
- Suits fire and smoke check doors
- Slide channel arm assembly
- Closing force variable by means of adjustment screw
- Closing speed adjustable by valve
- Latching speed adjustable at valve
- Backcheck (BC/OD) adjustable at valve
- Delayed action (DC/SV) adjustable at valve
- Specs
Specifications:
- Length: 275mm
- Depth: 53mm
- Height: 60mm
- Weight: 3.5kg
- Finish: Silver
Rapidly Decreasing Opening Force:
- Unlike rack and pinion slide-channel door closers, the DORMA TS93 system with its the linear drive mechanism and heartshaped cam ensures that the resistance encountered when opening the door decreases almost instantly with the opening action. So even children, the elderly and handicapped people have no problem in opening the door.
- What's in the box

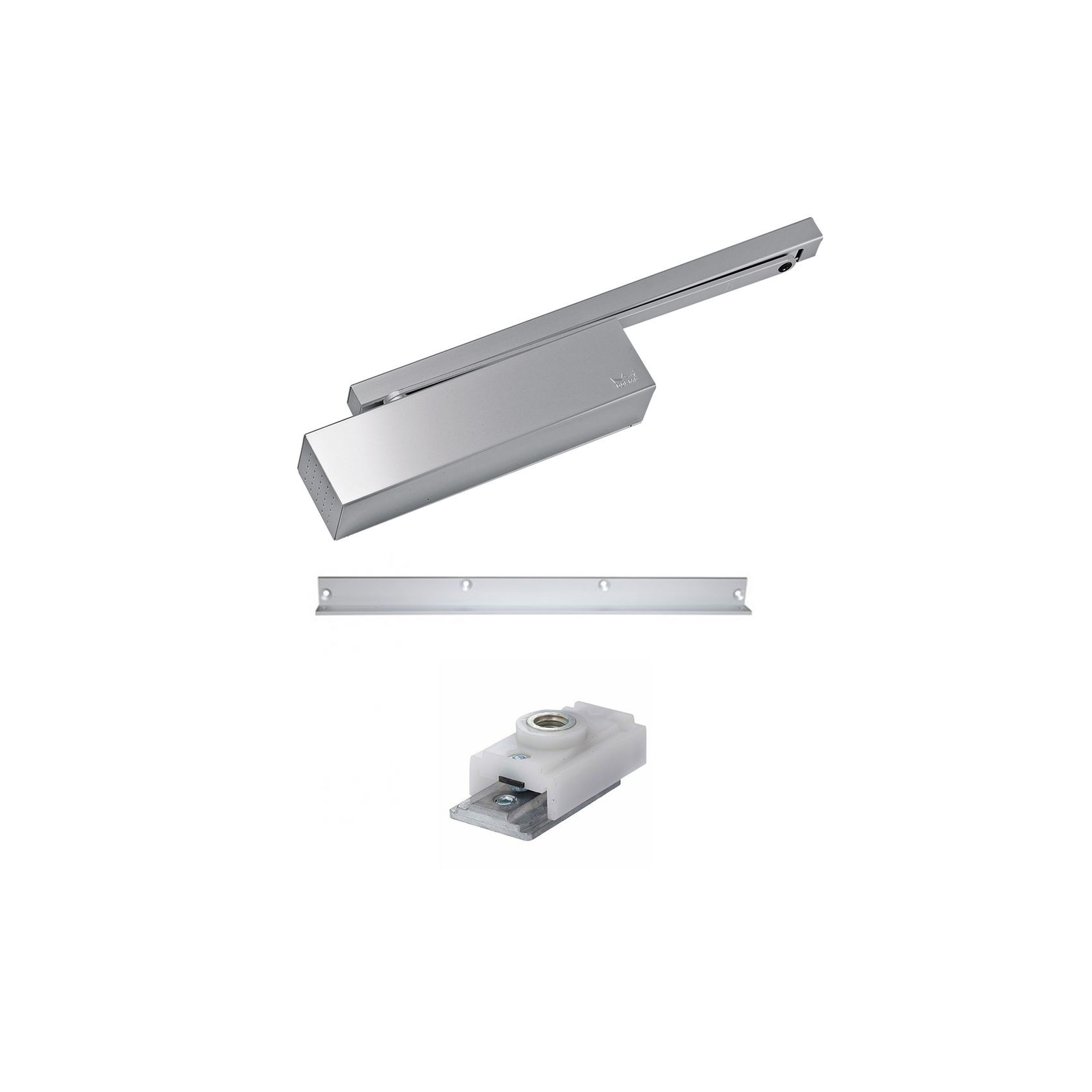

Includes:
- 1 x Dorma Door Closer TS93G EN1-5 Push Side Silver (43100501)
- 1 x Dorma 93GN Slide Arm and Channel Silver (64010001)
- 1 x Dorma Hold Open Device (18570000)
- 1 x Dorma TS92AB Angle Bracket Suits G92/G93 N/RF Silver (64430001)
