Dorma RTS85T EN4 Transom Closer Set Non Hold Open

By Keeler Hardware
Website
Stainless Steel

Dorma Transom Closer For Timber Door Set Non Hold Open
RTS85T

Transom Closer allows a single or double action aluminium door or doors to be closed with precision.

Transom Closer Function - Above the door, a concealed in the aluminium transom profile ensures that the door closes after usage.

Dorma RTS85 EN4 Transom Closer
85321101

Features:

  • For single and double action doors
  • Backcheck function as standard
  • Wide range of accessories for almost every configuration
  • Concealed in the door frame

Dorma RTS85W Transom Coverplate
10000051A

Specifications:

  • Satin Stainless Steel Cover plate
  • Suits Dorma TS85 transom closers
  • To suit steel and wooden door frames

Dorma 8550 Transom Closer Pivot Timber
65310300

Features:

  • The Dorma RTS85 floor pivot suits side-load installation
  • Used on timber doors, floor portion is fitted directly to the floor

Dorma Transom Closer Arm w/ Bracket
85210005

Features:

  • The arm is fully adjustable allowing lateral adjustment through the hinge style.
  • It also has hole and centre lines in the channel for easy location of the pivot point.
Details
  • Category
    Door Closers
  • Range
    Dormakaba
  • Brand
    Dormakaba
  • Warranty
    N/A
General
  • Country of origin
    Australia
  • Type of use
    Commercial
  • Package type
    Fragile - handle with care
  • Care and cleaning
    Easy maintenance
  • Installation
    Minor installation required
  • Assembly
    Minor assembly required
Specifications

Dorma RTS85 EN4 Transom Closer
85321101

Specifications:

  • Closing Force: EN4
  • Internal doors up to and external doors: up to 1100mm
  • Closing speed variable by valve adjustment: Yes
  • Final closing speed variable by valve adjustment: Yes
  • Backcheck: Yes
  • Length: 323mm
  • Width: 90mm
  • Height: 38mm
  • Weigth: 4.8kg

Dorma RTS85W Transom Coverplate
10000051A

Specifications:

  • Satin Stainless Steel Cover plate
  • Suits Dorma TS85 transom closers
  • To suit steel and wooden door frames

Dorma 8550 Transom Closer Pivot Timber
65310300

  • Suits: Bottom Rails with Channel
  • Depth: 18-20mm
  • Height: 27mm

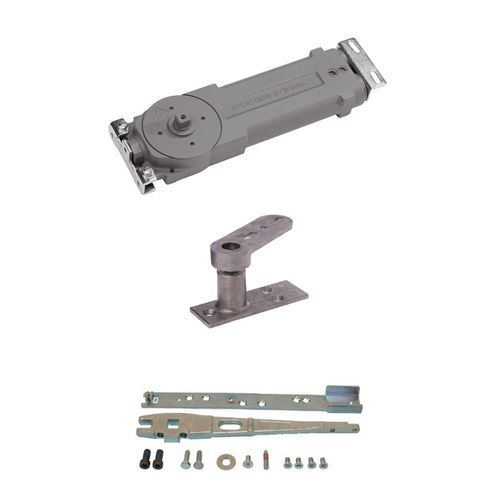

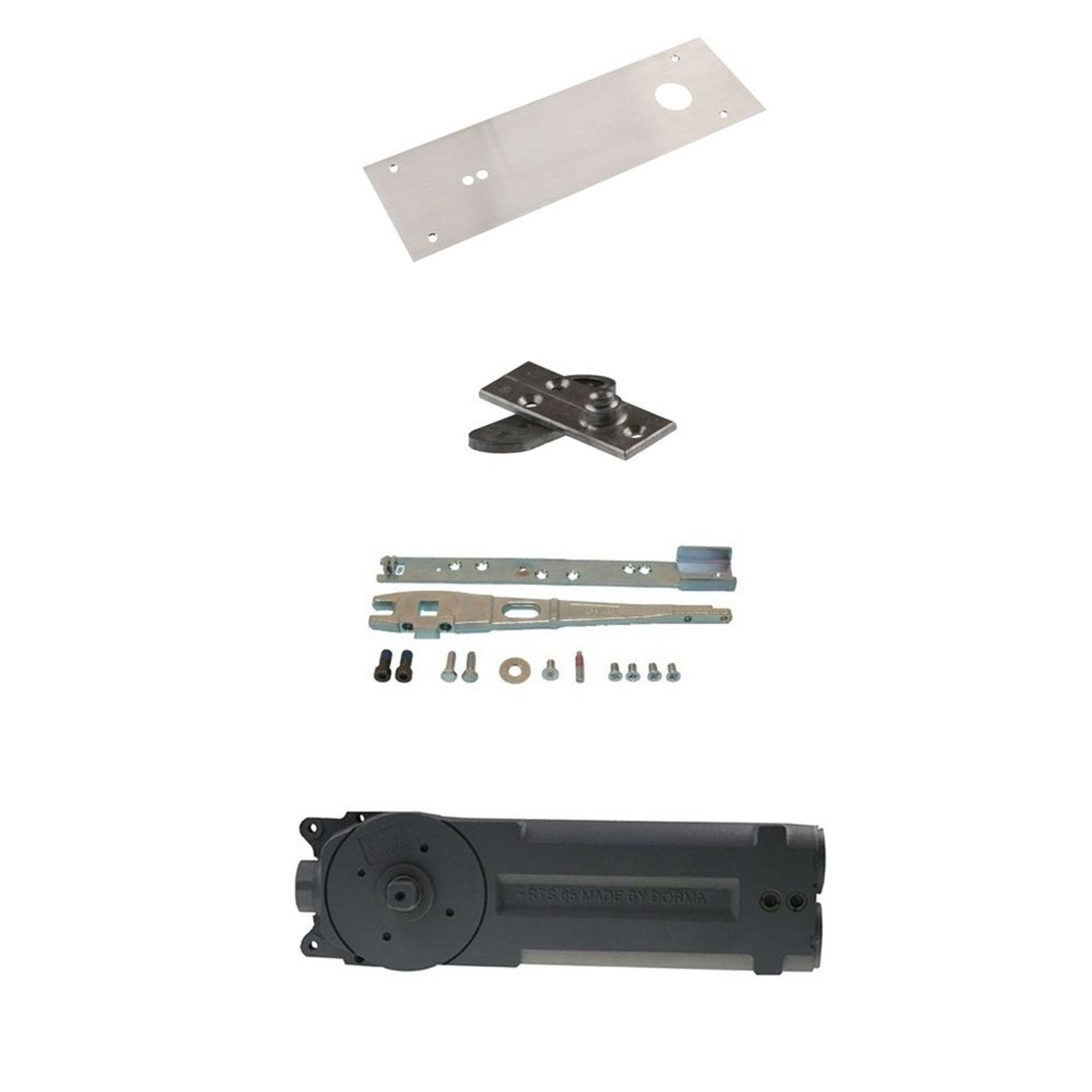

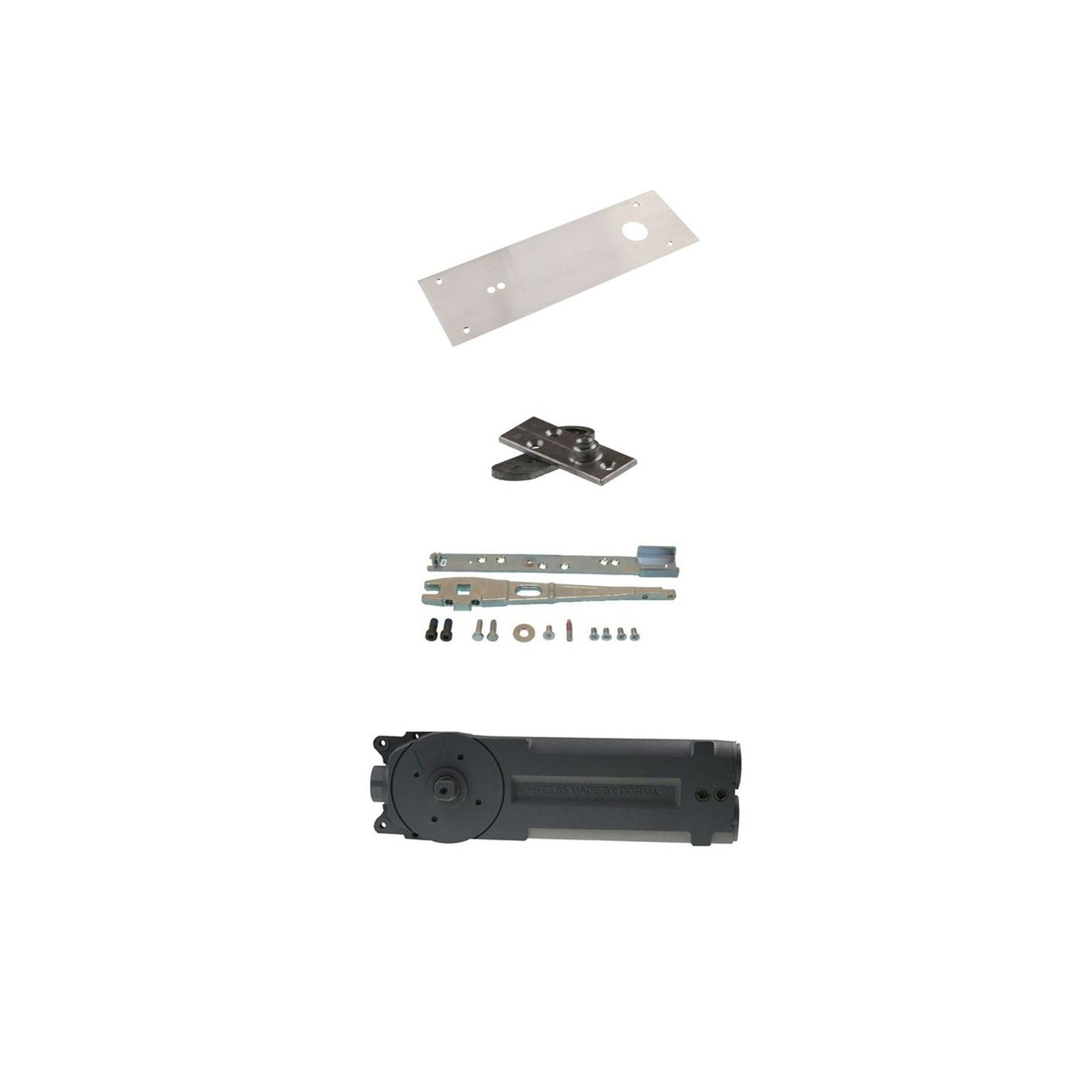

What's in the box

Includes:

  • 1 x Dorma 85W Cover plate to suit steel and wooden door frames - satin stainless steel (10000051A)
  • 1 x Dorma Transom Door Closer Body RTS 85 EN4 (85321101)
  • 1 x Dorma Bottom Pivot 8550 (85210005)
  • 1 x Dorma Closer Arm 8530 (65310300)
SKU: DORMRTS854T
