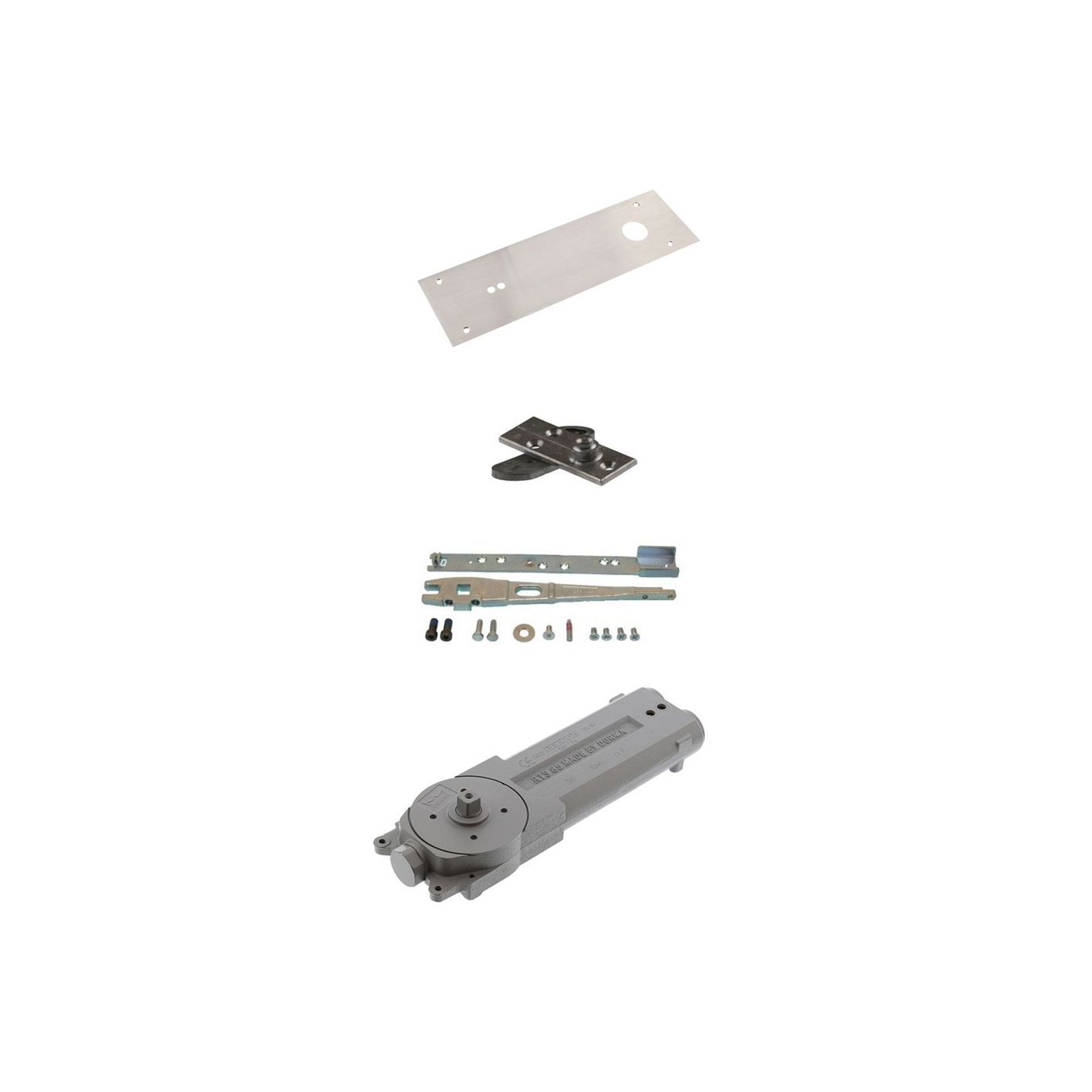

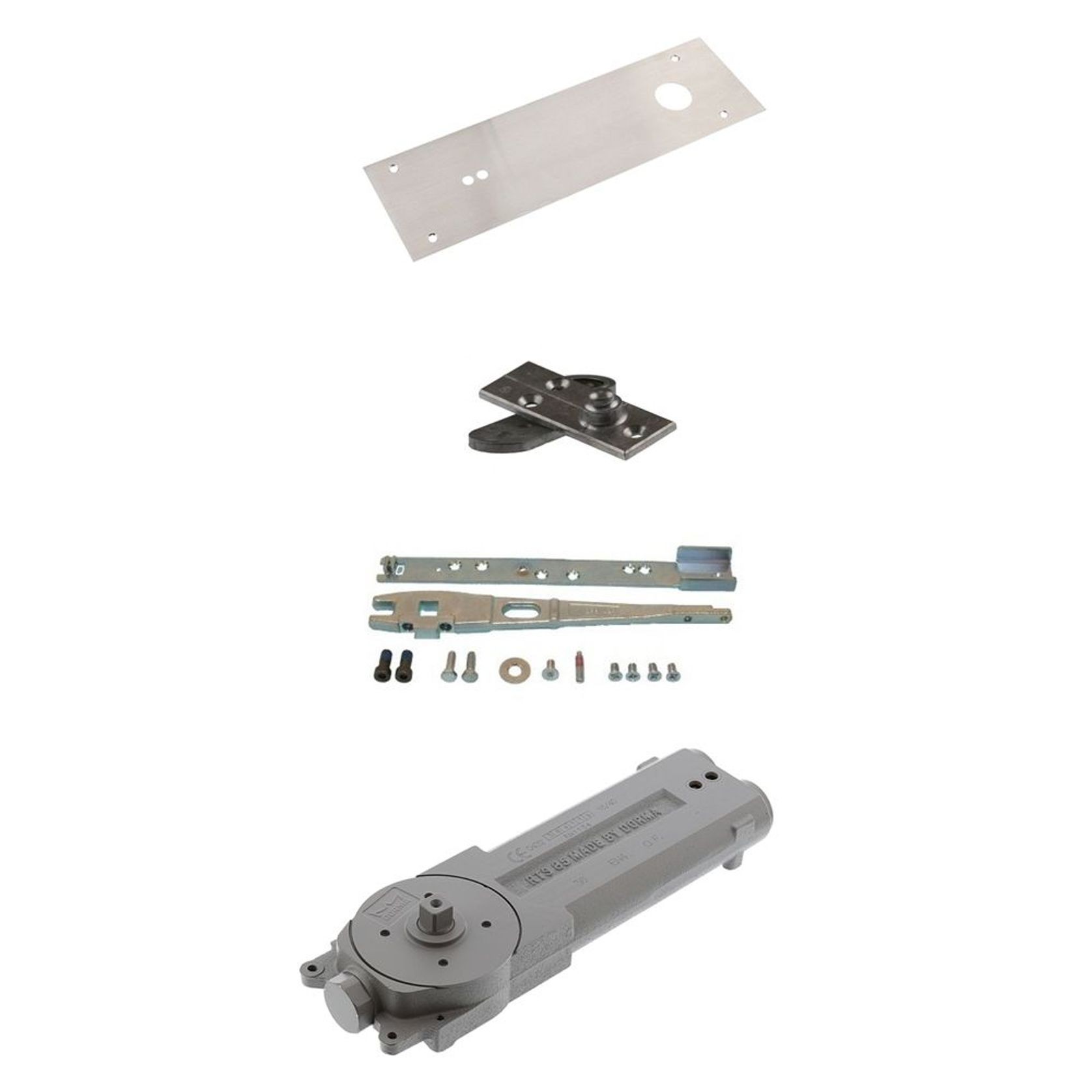

Dorma RTS85T EN4 Transom Closer Set Combi pack RTS85T

Dorma Transom Closer EN4 90 degree Hold Open Timber Combi Pack
RTS85T

Transom Closer allows a single or double action aluminium door or doors to be closed with precision.

Transom Closer Function - Above the door, a concealed in the aluminium transom profile ensures that the door closes after usage.

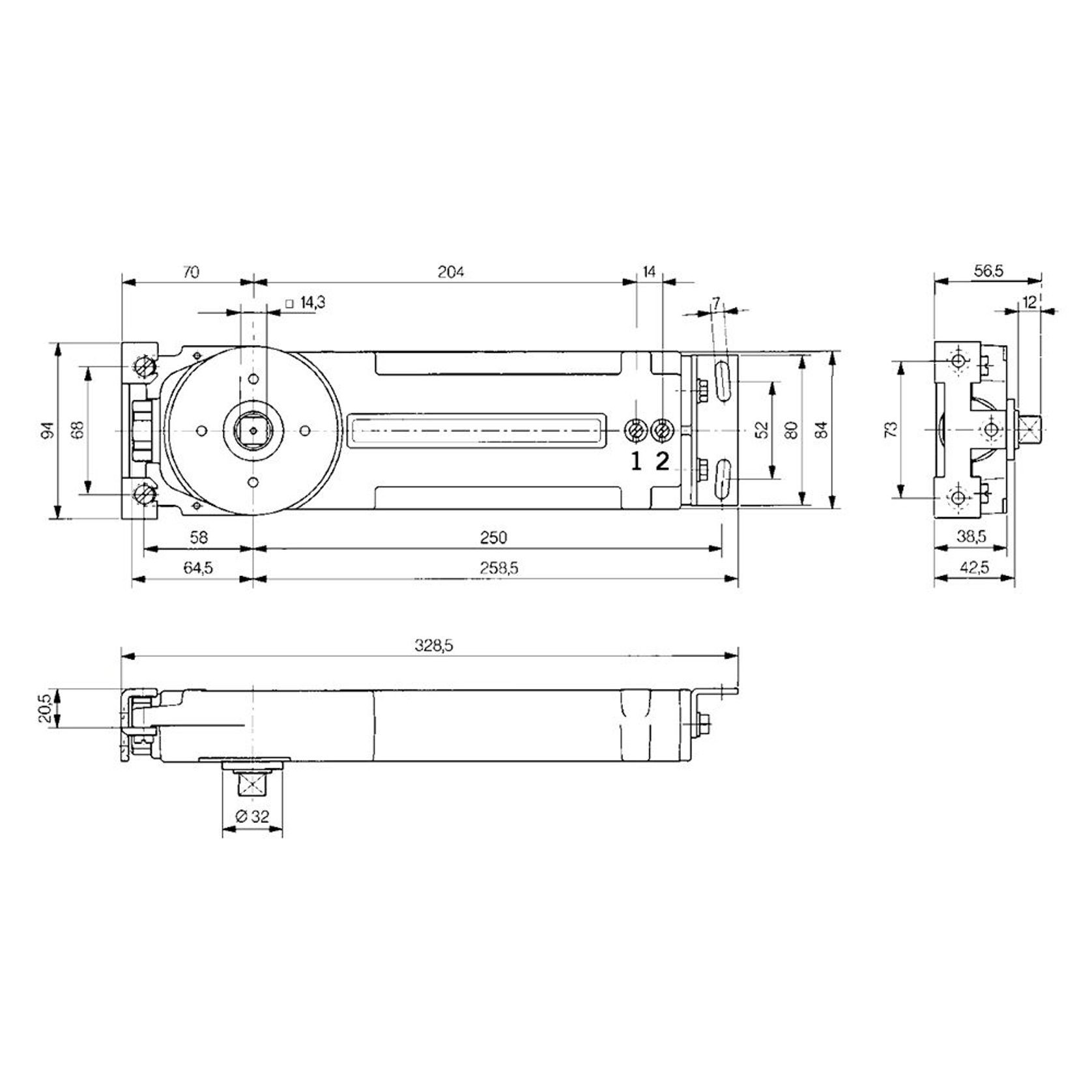

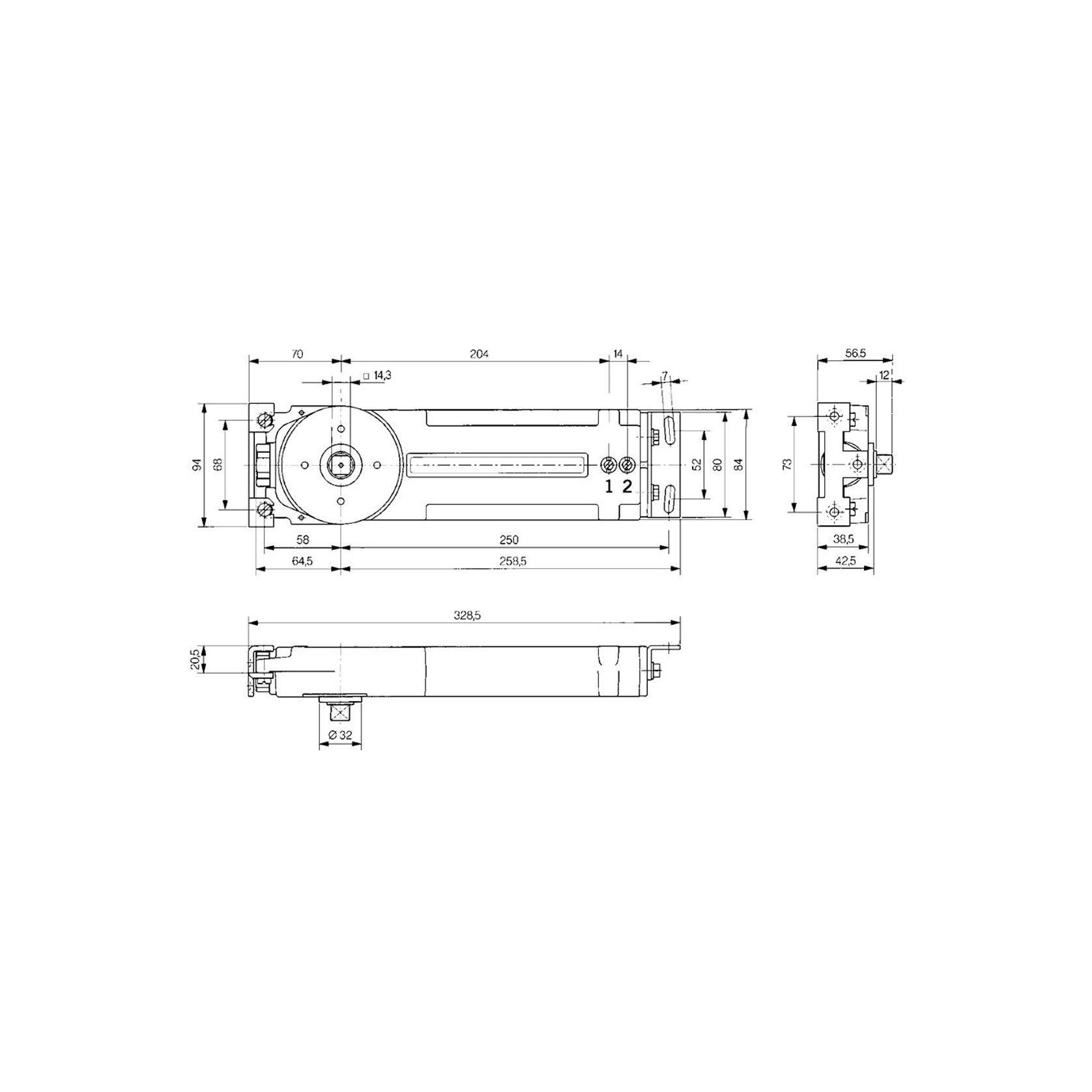

Dorma RTS85 EN4 Transom Closer
85322101

Features:

• For single and double action doors
• Backcheck function as standard
• Wide range of accessories for almost every configuration
• Concealed in the door frame

Dorma 8550 Transom Closer Pivot Timber
65310300

Features:

• The Dorma RTS85 floor pivot suits side-load installation
• Used on timber doors, floor portion is fitted directly to the floor

Dorma 8550 Transom Closer Pivot Timber
65310300

Features:

• The Dorma RTS85 floor pivot suits side-load installation
• Used on timber doors, floor portion is fitted directly to the floor

Dorma RTS85W Transom Coverplate
10000051A

Features:

• To suit steel and wooden door frames

Dorma Transom Closer Arm w/ Bracket
85210005

Features:

• A standard side load top arm for use with Dorma concealed transom door closers. The arm is fully adjustable allowing lateral adjustment through the hinge style. It also has hole and centre lines in the channel for easy location of the pivot point.
• For top rails with min. 15mm channel depth and 38mm width.
