Dorma TS93G EN1-5 Door Closer Pull Side Kit TS93B15GNRF

By Keeler Hardware
Visit Website
Silver Matt
Stainless Steel

Dorma Door Closer
TS93B15GNRF

Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.

Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.

Features:

  • Suitable for fire and smoke check doors where the cushioned limit stay is also used
  • Suitable for single and double doors installation up to 1250mm
  • Standard model for pull-side door leaf fixing/push-side transom fixing
  • Cam action mechanism
  • Adjustable back-check, closing & latching speeds
Details
  • Category
    Door Closers
  • Range
    Dormakaba
  • Brand
    Dormakaba
  • Warranty
    N/A
General
  • Country of origin
    Australia
  • Type of use
    Commercial and Residential
  • Package type
    Fragile - handle with care
  • Care and cleaning
    Easy maintenance
  • Installation
    Easy self install
  • Assembly
    Minor assembly required
Specifications

Specifications:

  • Length: 275mm
  • Width: 53mm
  • Height: 60mm
  • Spring Strength: EN 1-5
  • Back Check: Yes
  • Cam Action: Yes
  • Delayed Action: Yes
  • Fire Tested: Yes
  • Include PA Bracket: No
  • Includes Fixing Screws: Yes
  • Material: Aluminium
  • Max Door Width: up to 1600mm
  • Has Hold Open: Optional
  • Has Slide Arm: Yes
  • Adjustable Latching Speed: Yes
  • Finish: Silver
What's in the box

Includes:

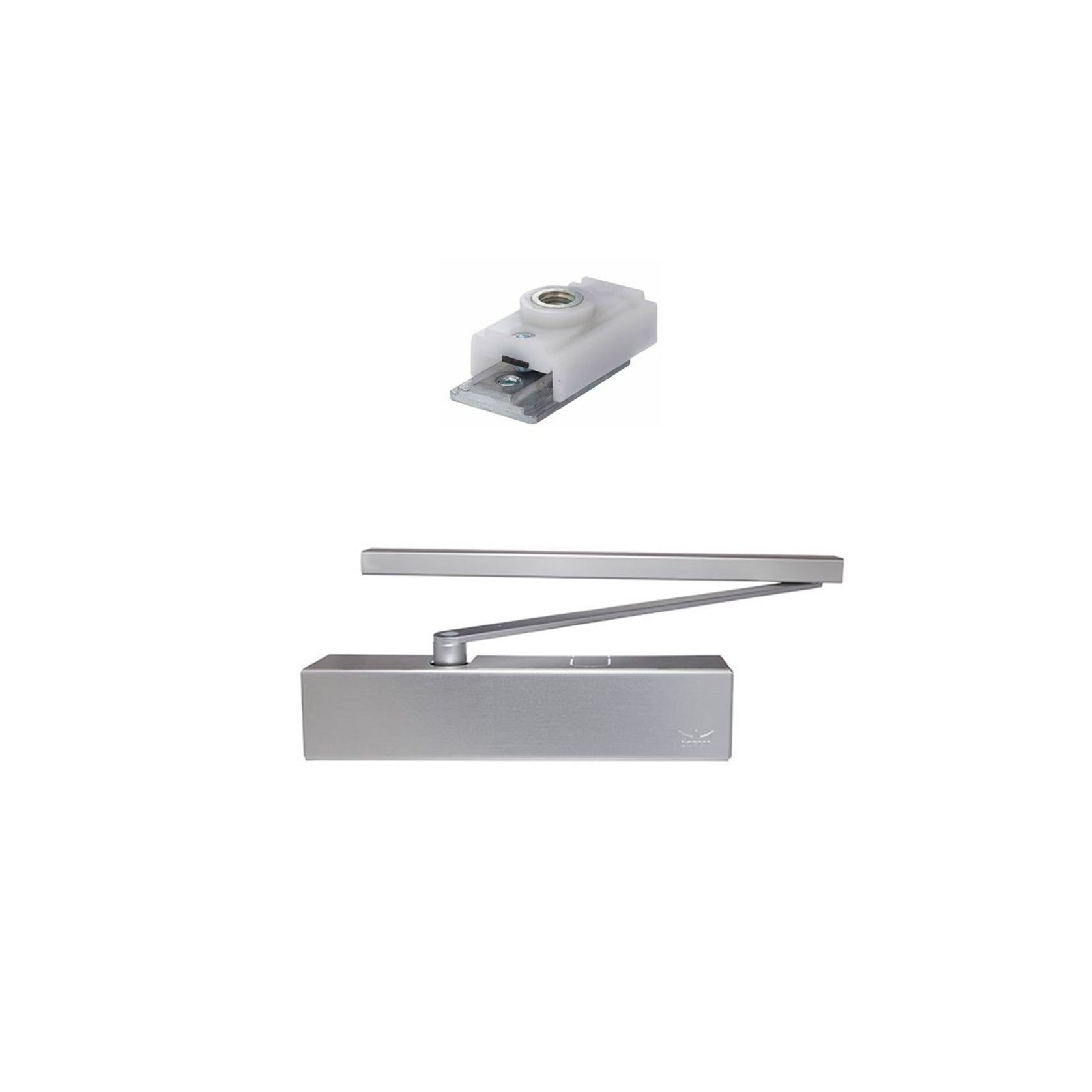

  • 1 x Dorma Door Closer TS93B EN1-5 Pull Side Silver (43090501)
  • 1 x Dorma Hold Open Device (18570000)
SKU: DORMTS93B15GNRF
