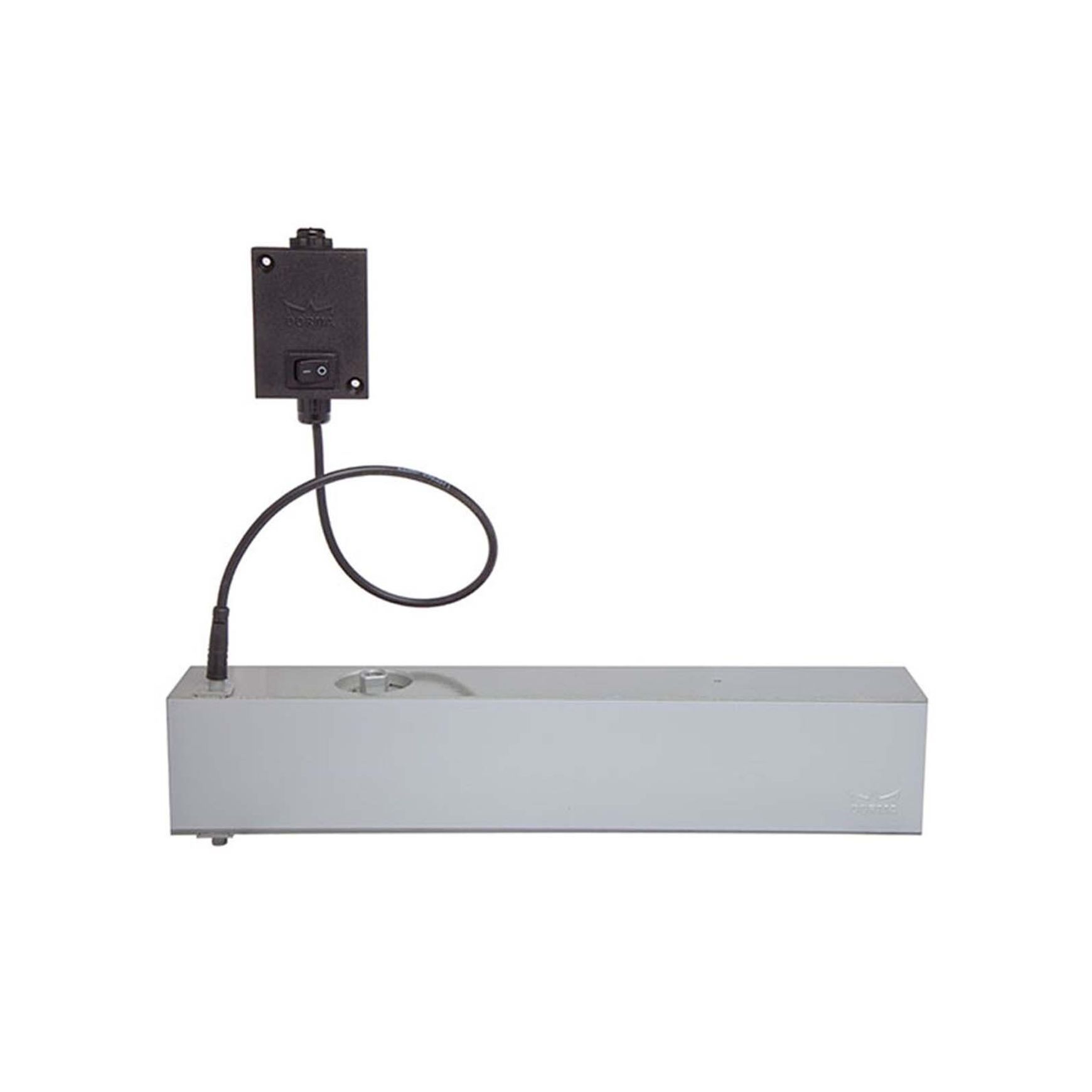

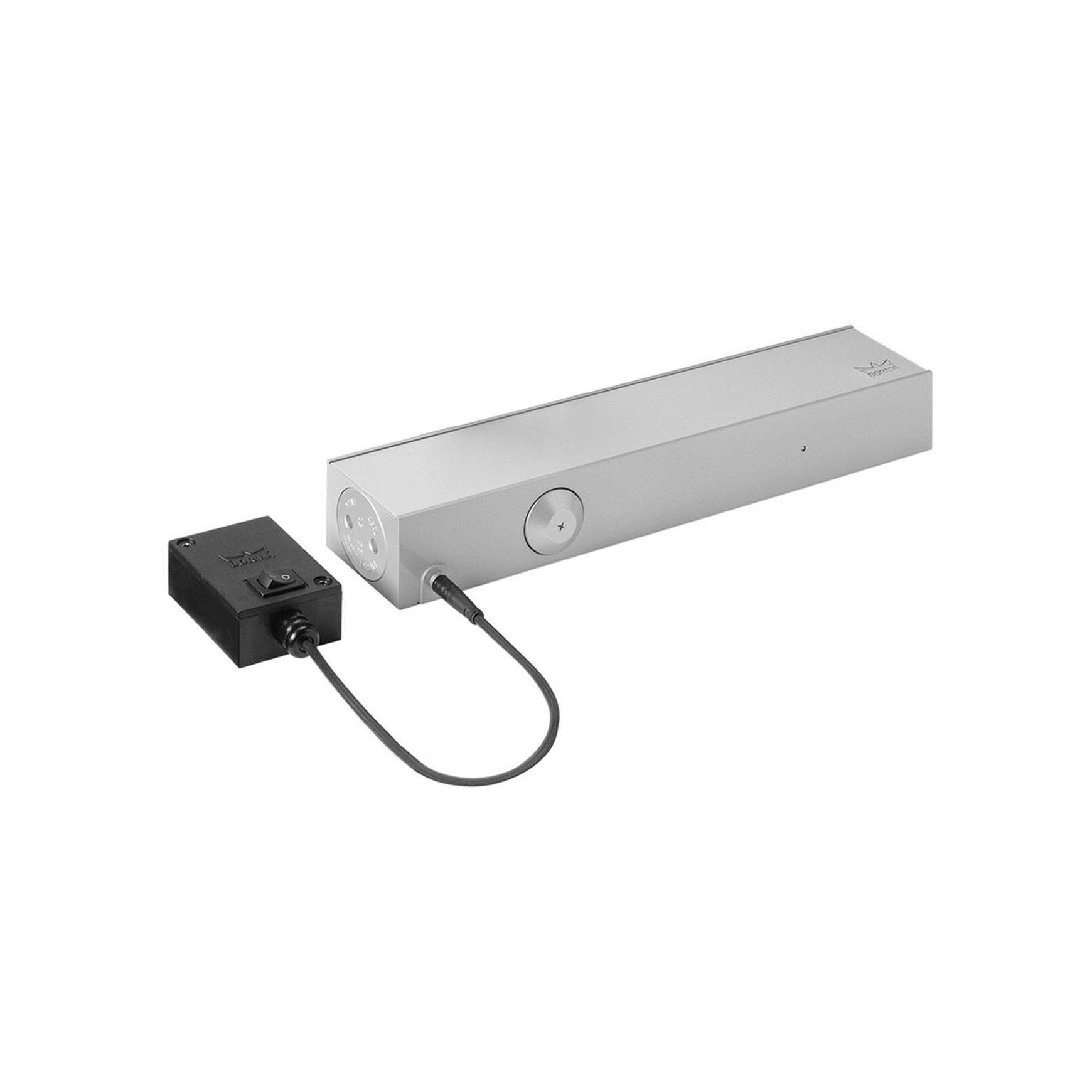

Dorma TS73EMF EN4 Door Closer Electro Magnetic Hold Open Body Only 53010101

By Keeler Hardware
Website

Dorma TS73EMF EN4 Door Closer
53010101

Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.

Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.

  • Combination of hydraulic door closer and electromagnetic hold-open unit.
  • Hold-open of the door is performed under electromagnetic control.
  • In the event of a fire, the door is reliably closed by the integral hydraulic closer. A closing cycle is also initiated by manual door operation or automatically in the event of a power failure.
Details
  • Category
    Door Closers
  • Range
    Dorma
Specifications

Features:

  • Suitable for fire doors
  • Input voltage is 24VDC
  • Power input max is 2 volts
  • Closing speed adjustable by valve and latching speed is adjustable by arm.
  • Free selection of the hold open point (opening angles over 75°) is variable at any time without the need for adjustment of setting controls.
  • Body Only

Specifications:

  • Spring Strenght: EN4
  • Max Door Width: 1100mm
  • Operating Voltage: 24V DC
  • Type: Standard Fix

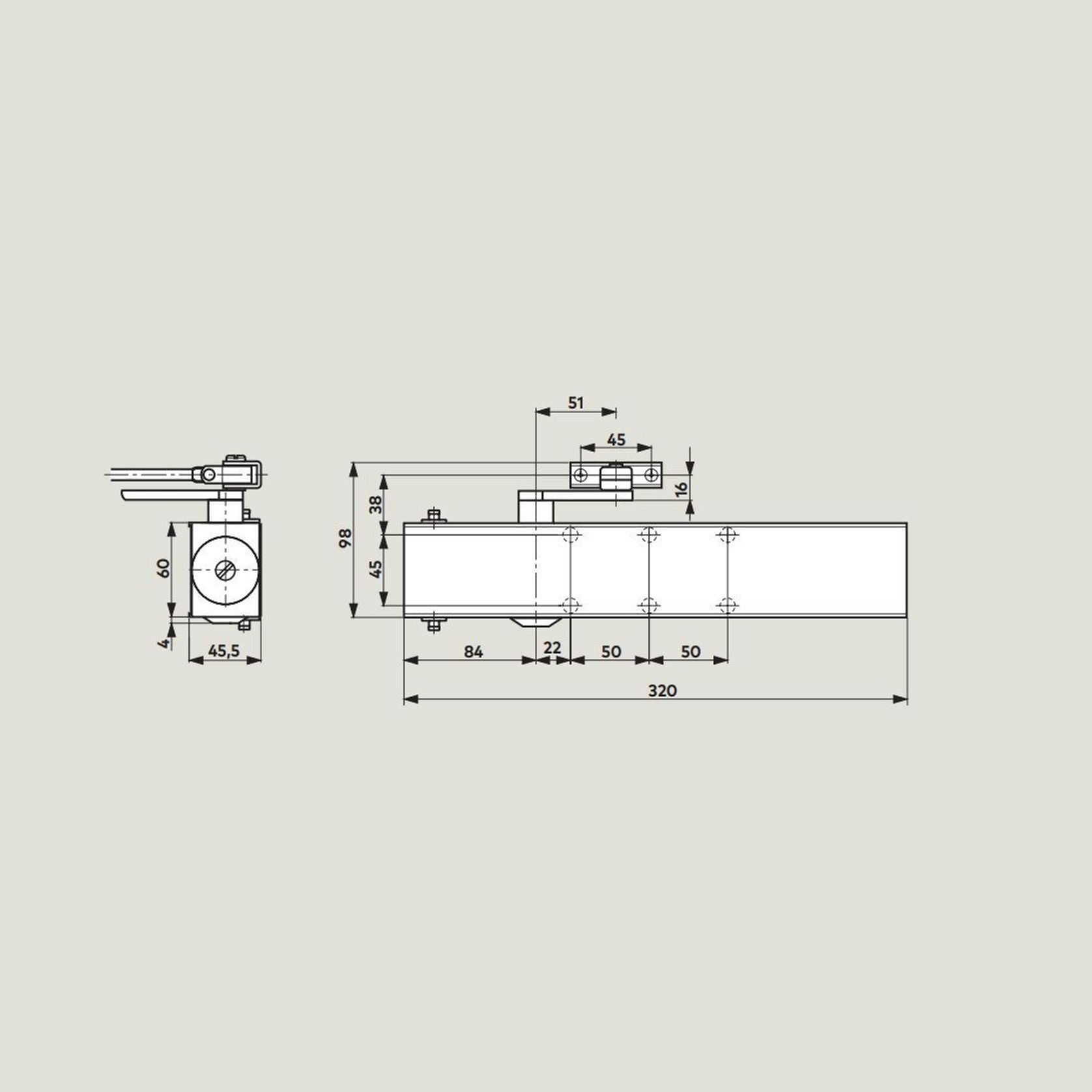

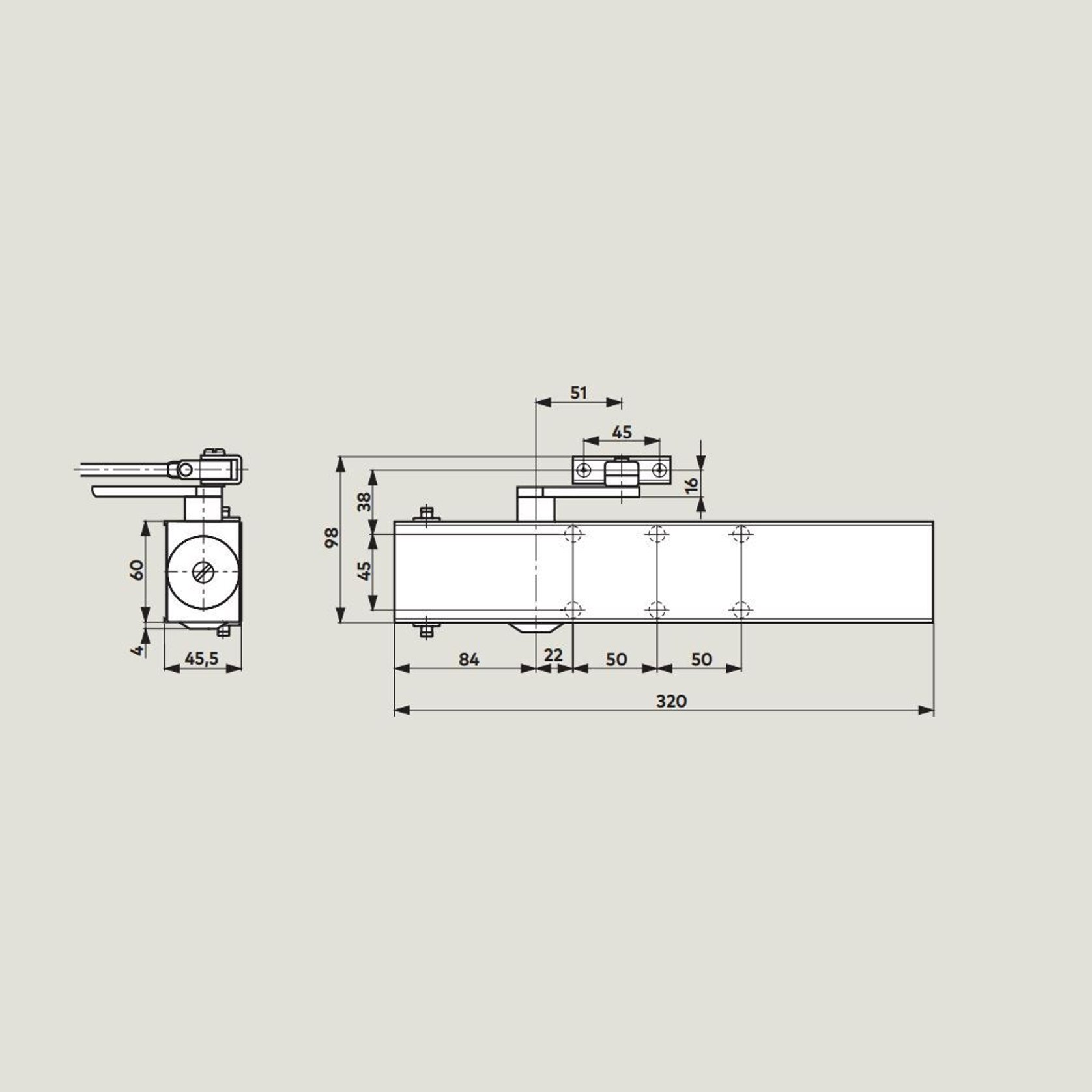

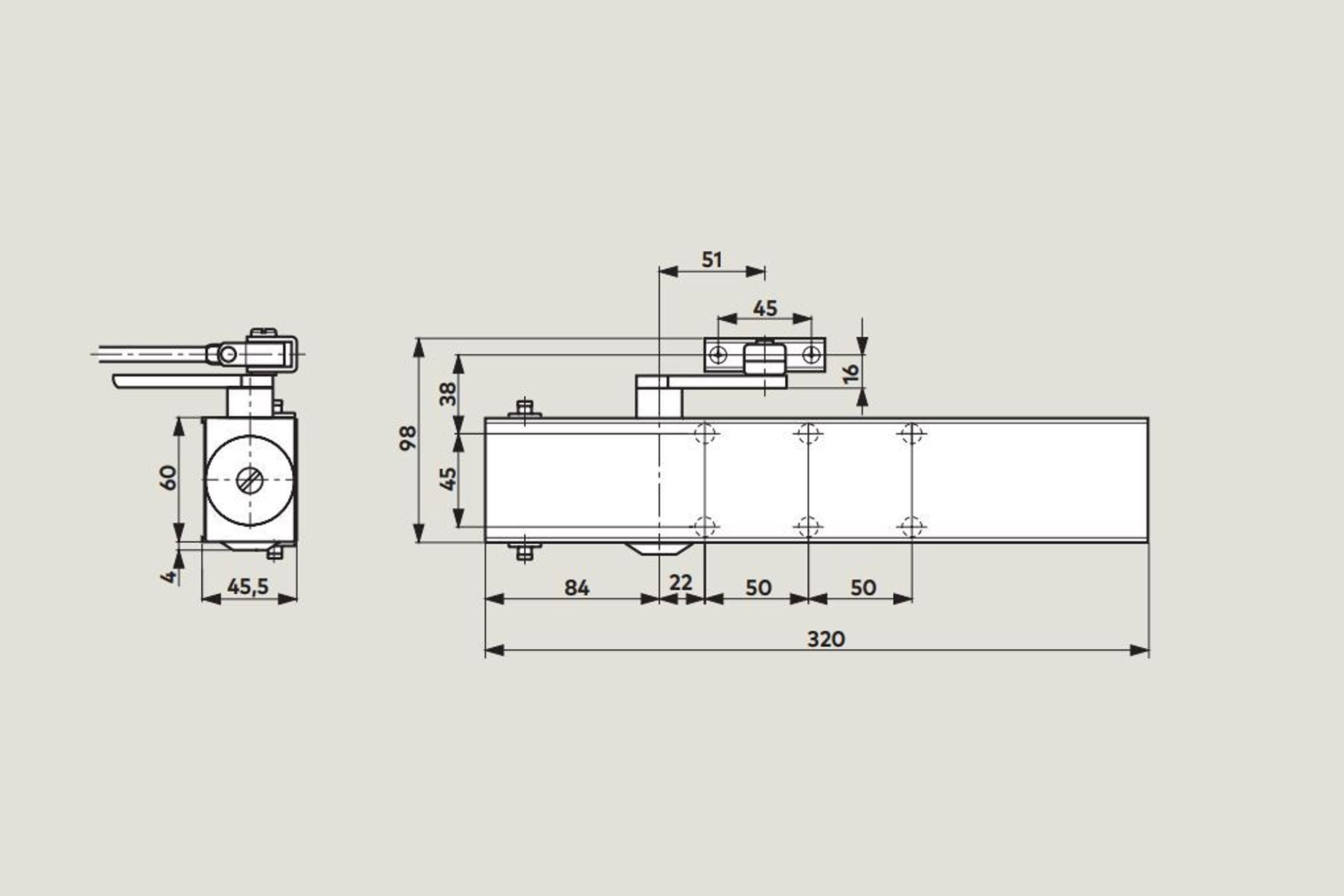

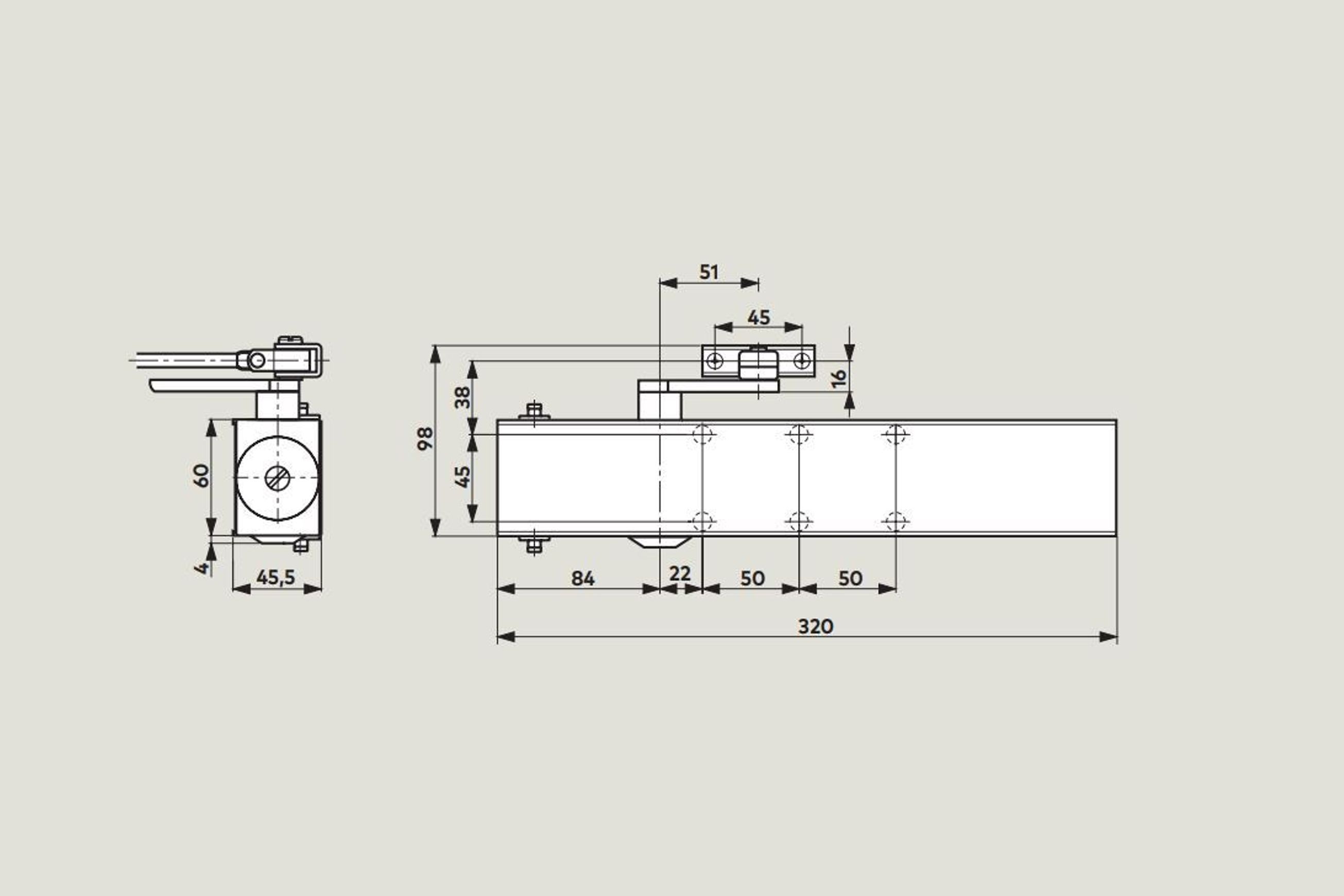

  • Length: 320mm
  • Width: 45.5mm
  • Height: 60mm
  • Finish: Silver

Certification:

  • CE Marked
  • CERTIFIRE approved for fire doors: ITT120 MM/IMM240
  • BSI approved BS EN1155
