Dorma RTS85A EN4 Transom Closer Set Non Hold Open

Name: Dorma RTS85A EN4 Transom Closer Set Non Hold Open
Brand: Dormakaba

Wetherill Park, Australia

992.8K profile views
51 saves

Dorma RTS85A EN4 Transom Closer Set
RTS854A

Transom Closer Function - Above the door, a concealed in the aluminium transom profile ensures that the door closes after usage.

Features:

The Dorma RTS 85 transom concealed door closer offers a solution for installations where door control must be provided without disturbing the aesthetic appearance of the door.
Complete with the choice of three spring strength sizes, hold open and non hold open variants, back check function and our wide range of accessories makes the RTS 85 the perfect choice for shop fronts, office partitions and frameless glass door applications.
For single and double action doors
Backcheck function as standard
Wide range of accessories for almost every configuration
Concealed in the door frame

Tags

hardware door hardware door handles door locks handles

Product Details

Product: Dorma RTS85A EN4 Transom Closer Set Non Hold Open
Category: Door Closers
Sold by: Keeler Hardware
Range: Dormakaba
Brand: Dormakaba
Country of origin: Australia
Type of use: Commercial
Package type: Fragile - handle with care
Care and cleaning: Easy maintenance
Installation: Minor installation required
Assembly: Minor assembly required

Product Variants

Closing Force
Back Check

Keeler Hardware is specified by

(34) Professionals

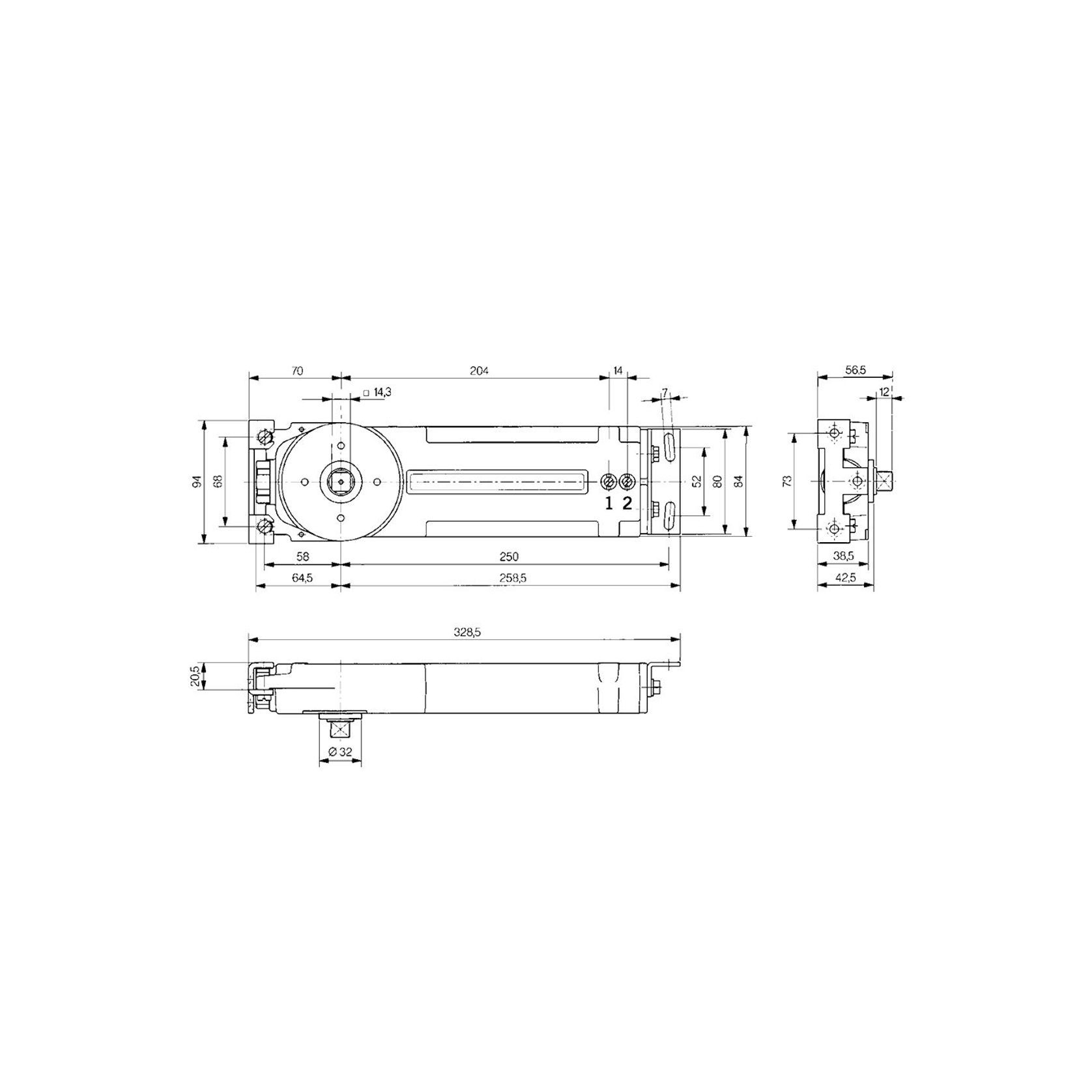

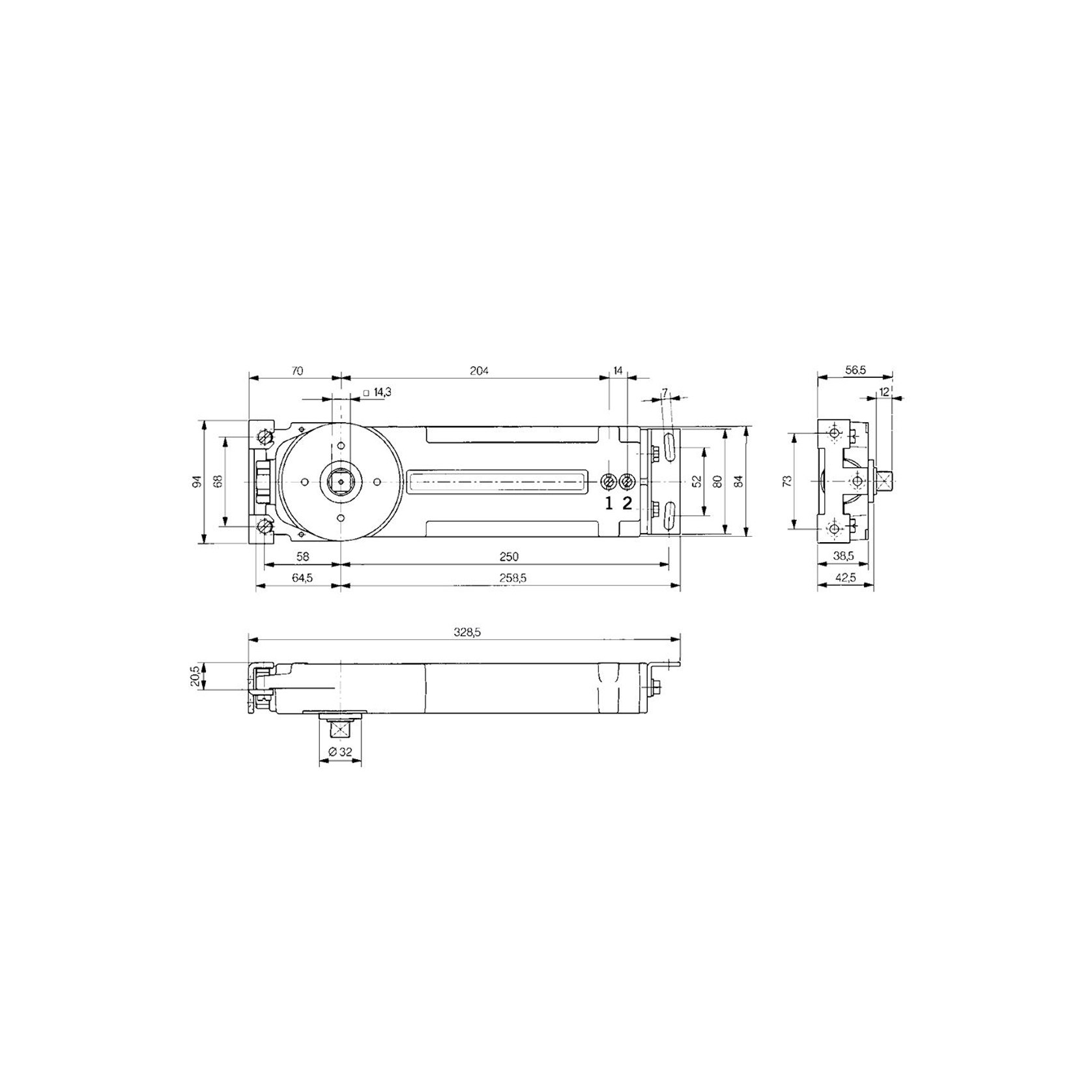

Dorma RTS85A EN4 Transom Closer Set Non Hold Open dimensions

Visit site

Features: The Dorma RTS 85 transom concealed door closer offers a solution for installations where door control must be provided without disturbing the aesthetic appearance of the door. Complete with the choice of three spring strength sizes, hold open and non hold open variants, back check function and our wide range of accessories makes the RTS 85 the perfect choice for shop fronts, office partitions and frameless glass door applications. For single and double action doors Backcheck function as standard Wide range of accessories for almost every configuration Concealed in the door frame

Dorma RTS85A EN4 Transom Closer SetRTS854ATransom Closer Function - Above the door, a concealed in the aluminium transom profile ensures that the door closes after usage.

Features:

The Dorma RTS 85 transom concealed door closer offers a solution for installations where door control must be provided without disturbing the aesthetic appearance of the door.
Complete with the choice of three spring strength sizes, hold open and non hold open variants, back check function and our wide range of accessories makes the RTS 85 the perfect choice for shop fronts, office partitions and frameless glass door applications.
For single and double action doors
Backcheck function as standard
Wide range of accessories for almost every configuration
Concealed in the door frame

Specs

Specifications:

Closing Force: EN4
Internal doors up to and external doors: up to 1100mm
Closing speed variable by valve adjustment: Yes
Final closing speed variable by valve adjustment: Yes
Backcheck: Yes
Length: 323mm
Width: 90mm
Height: 38mm
Weigth: 4.8kg

Protection:

Certified manufactur to ISO 9001.
Certification CE marked.
Successful independently tested to BS EN 1154.

Scope of use

Transom Closer allows a single or double action aluminium door or doors to be closed with precision.

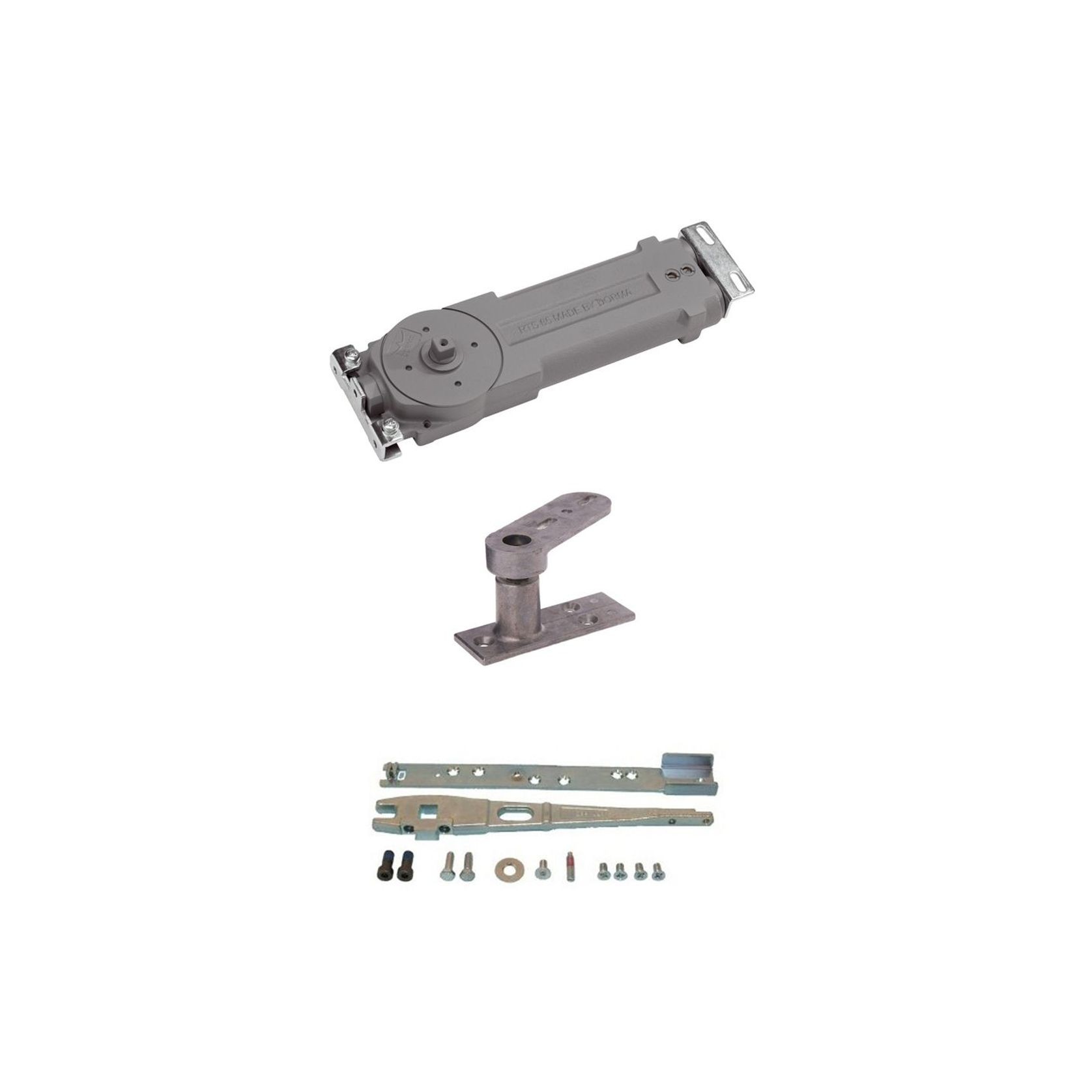

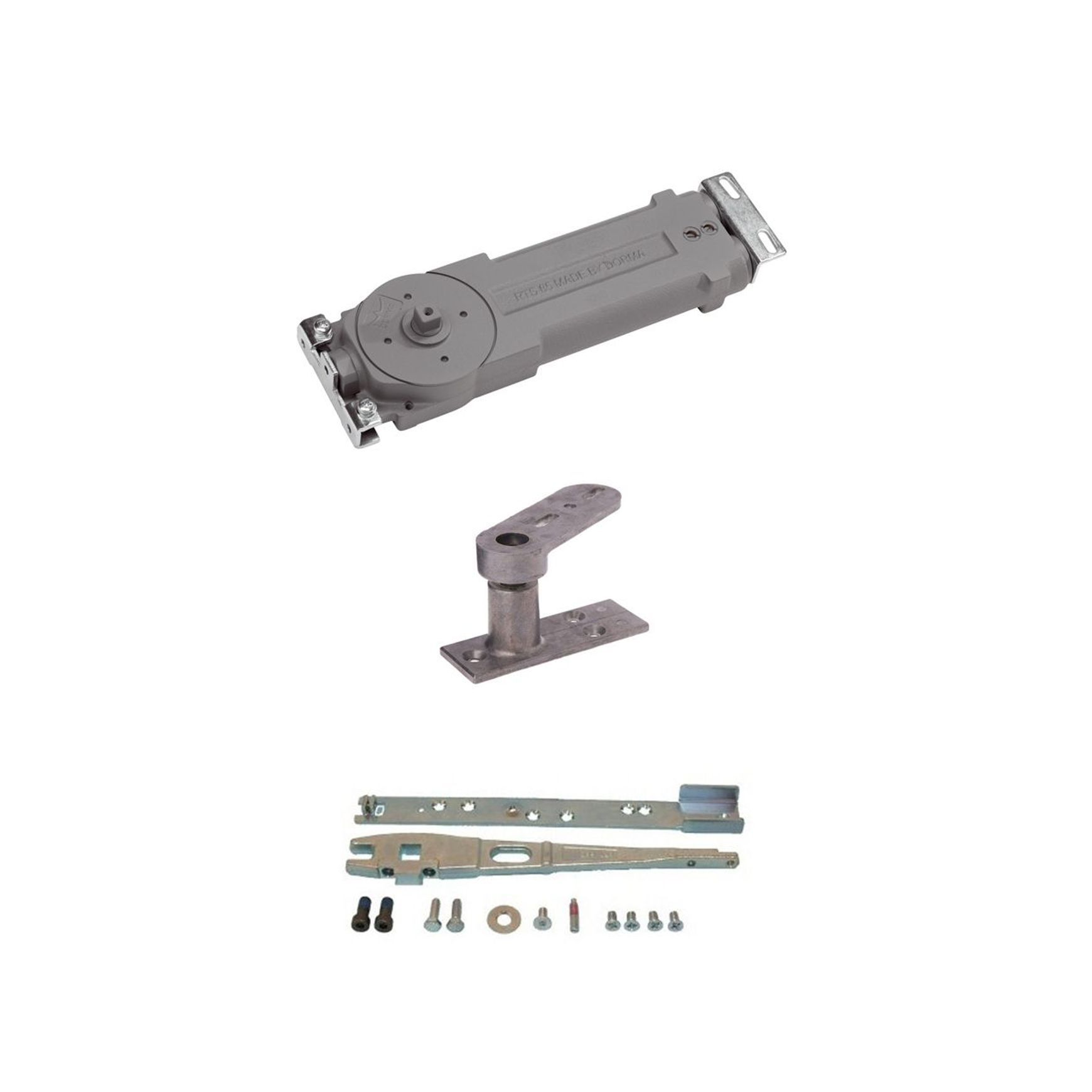

What's in the box

Includes:

1 x RTS85 EN4 Non-Hold Open Transom Closer Body
1 x 8530 Side Load Arm
1 x 8551 Bottom Pivot
