Fixed Lite Window

Rylock Windows & Doors
Visit Website

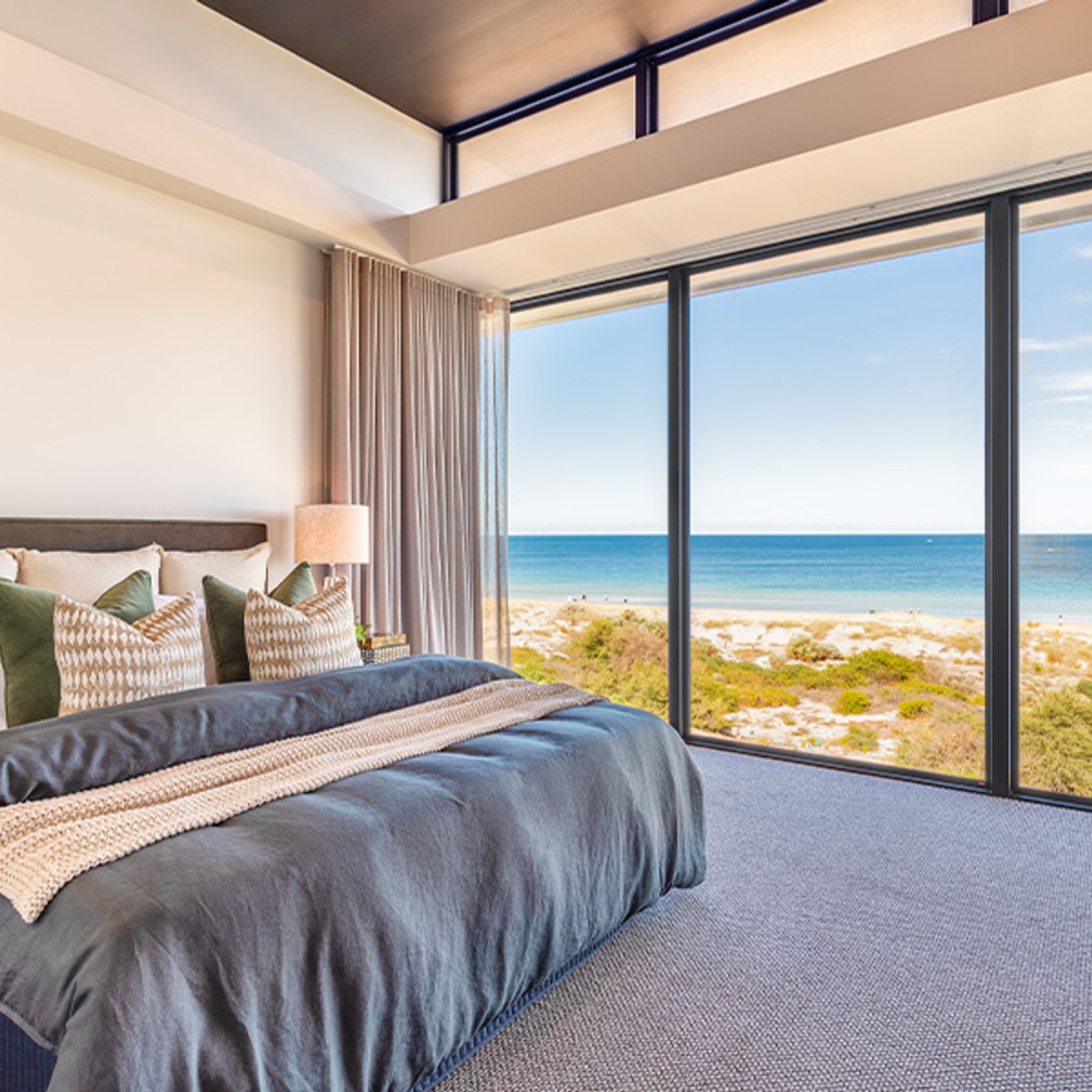

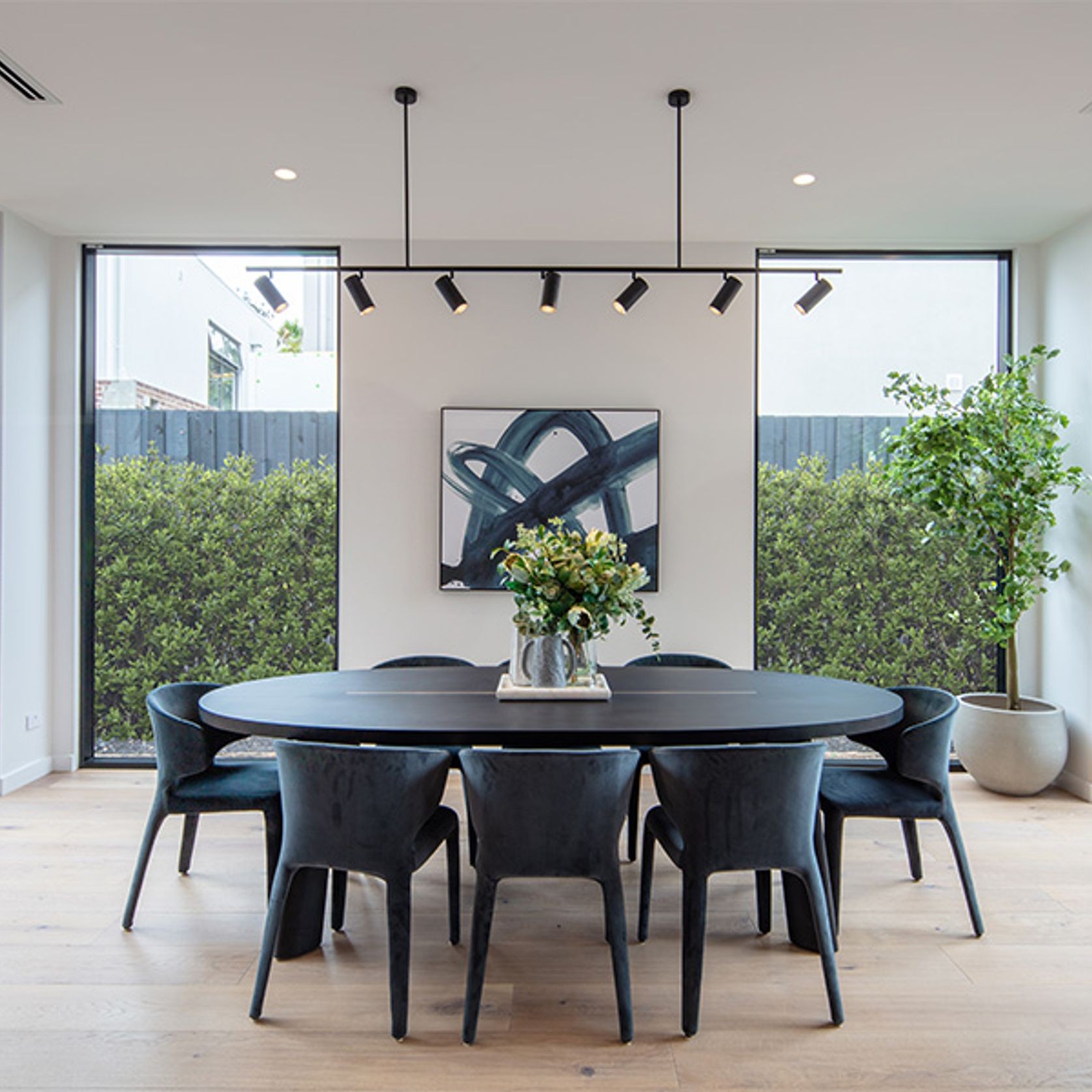

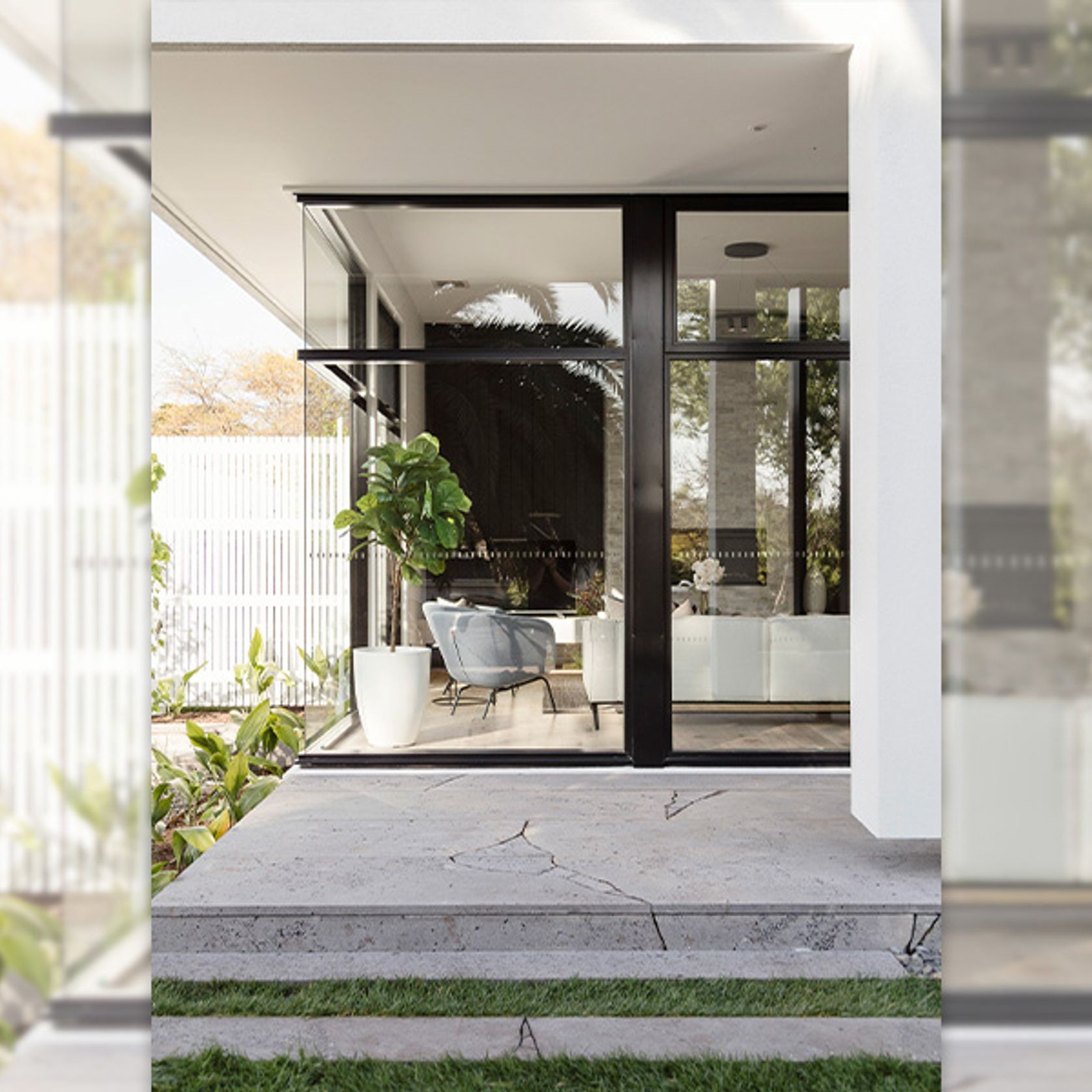

Fixed Lite Window gallery detail image
Fixed Lite Window gallery detail image
Fixed Lite Window gallery detail image
Fixed Lite Window gallery detail image
Fixed Lite Window gallery detail image
Fixed Lite Window gallery detail image
Fixed Lite Window gallery detail image
Fixed Lite Window gallery detail image

Fixed Lite Windows are endlessly customisable to enhance a home’s architectural style. They are available with a maximum area of 6m², as custom raked head (3, 4 or 5-sided configurations), or butt joint windows. Rylock offers a range of structural members, and Fixed Lite Windows can also be coupled to other Commercial Series products to deliver custom configurations for your project’s individual requirements. Fixed Lite Windows are glazed in accordance with Australian Standards AS 1288 Glass in Buildings and whilst a large range of options are available, all products are glazed with Grade A Safety Toughened Low-e Double Glazing (Argon Fill) as a standard specification.

Details
  • Category
    Sash Windows
Specifications
  • Max Product Height: 6000mm ⁽¹⁾
  • Max Product Width: 6000mm ⁽¹⁾
  • Glazing Capacity: 4mm - 24.76mm
  • Wind Rating: N1 - N3
  • Air Infiltration: 0.1 L/s.m²
  • Water Resistance: 600 Pa

¹⁾ Sash / panel height and width are relative measures and must comply with maximum area and mass limitations.

  • Uw Value: 2.1 ⁽²⁾
  • SHGCw Value: 0.25 - 0.54 ⁽²⁾

⁽²⁾ Energy results are product and size specific. As product sizes reduce, energy values increase. Custom energy results will be supplied with your Quotation - Sales Order.

Commercial Series – 125mm Frame

Fixed Lite Windows introduce sunlight and landscapes into the home, offering endlessly customisable designs for traditional, contemporary and cutting edge projects.

Installation Guide

The most vital aspect of correct function – is correct installation.

It is recommended that the manufacturer’s specification is always followed as improper installation can lead to air infiltration, moisture and poor overall performance.

Rylock has detailed Typical Building-In Details for four common wall types to assist in the best practice installation of product:

  • Linea Board
  • Hebel PowerPanel
  • Brick Veneer; and
  • Double Brick
