Bifold Door
Rylock Architectural Aluminium Series Bifold Doors are a bold architectural feature with superior Centor™ bottom-rolling hardware for smooth operation. Available in 2, 3, 4, 5 or 6-panel configurations, pull handles are fitted between each panel to assist when flush-bolt compression latches are engaged, fitted both top and bottom for secure locking, and to ensure resistance against air and water infiltration for AS 2047 Windows and External Glazed Doors compliance testing.
Bifold Doors are glazed in accordance with AS 1288 Glass in Buildings and whilst a large range of options are available, all products are glazed with Grade A Safety Toughened Low-e Double Glazing (Argon Fill) as a standard specification. Bifold Doors are fitted with the Lockwood™ Aria or Summit handle hardware, available in black, white and satin chrome. Products are powder coated in-house from a selection of 30 standard colours and textures and tested by the CSIRO for durability.
- CategoryBifold Doors
- Max Product Height: 2700mm
- Max Product Width: 6000mm
- Max Panel Height: 3000mm ⁽¹⁾
- Max Panel Width: 1000mm ⁽¹⁾
- Glazing Capacity: 4mm - 22.38mm
- Wind Rating: N1 - N2
- Uw Value: 3.0 ⁽²⁾
- SHGCw Value: 0.20 - 0.41 ⁽²⁾
⁽²⁾ Energy results are product and size specific. As product sizes reduce, energy values increase. Custom energy results will be supplied with your Quotation - Sales Order.

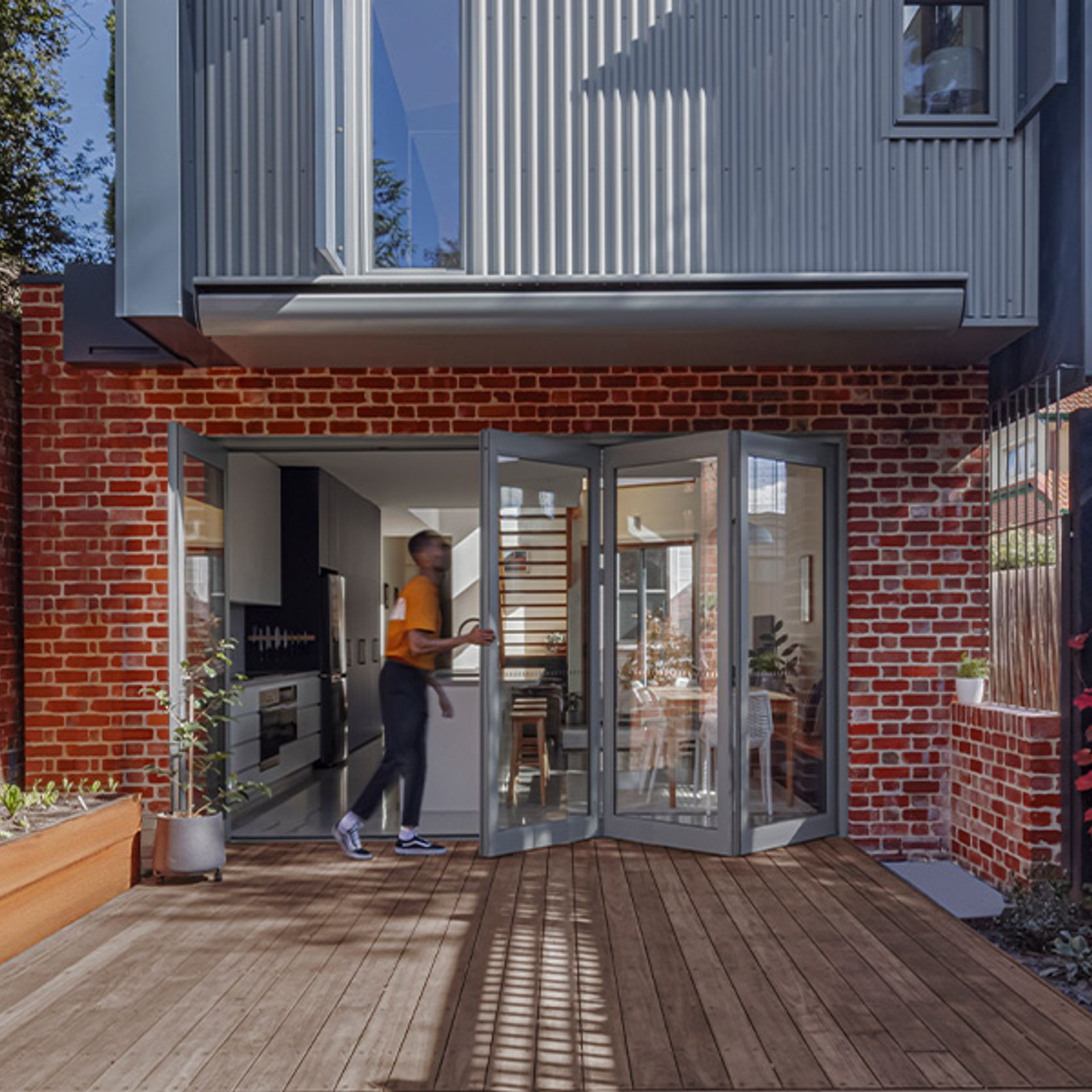

Bifold Doors provide a large opening with panels that fold back to blend the transition between outside and in, ideal for alfresco entertaining.
The Lockwood™ Aria Handle (pictured left) features a contemporary design with clean lines. The Lockwood™ Summit Handle (pictured right) features a classic design with smooth edges. Both the Aria and Summit Handles feature a keylock and (optional) snib and are available in black, white and satin chrome.
EASILY SECURE BIFOLD PANELS
Pull Handles are fitted between each panel to assist when flush-bolts are engaged for closure.
SECURE COMPRESSION LATCH CLOSURE
Flush-bolt Compression Latches are fitted top and bottom on all folding panels for secure locking.
The most vital aspect of correct function – is correct installation.
It is recommended that the manufacturer’s specification is always followed as improper installation can lead to air infiltration, moisture and poor overall performance.
Rylock has detailed Typical Building-In Details for four common wall types to assist in the best practice installation of product:
- Linea Board
- Hebel PowerPanel
- Brick Veneer; and
- Double Brick
