Max Lite Window
Rylock Commercial Series Max Lite Windows are endlessly customisable to enhance a home’s architectural style. They are available with a maximum area of 7.5m², as custom raked head (3, 4 or 5-sided configurations), or butt joint windows and can be coupled to other Commercial Series products with a 125mm depth, to suit your project’s individual requirements. Max Lite Windows are glazed in accordance with Australian Standards AS 1288 Glass in Buildings and whilst a large range of options are available, all products are glazed with Grade A Safety Toughened Low-e Double Glazing (Argon Fill) as a standard specification.
- CategorySash Windows
- Max Product Height: 6000mm ⁽¹⁾
- Max Product Width: 6000mm ⁽¹⁾
- Glazing Capacity: 32mm - 36.76mm
- Wind Rating: N1 - N3
- Air Infiltration: 0.1 L/s.m²
- Water Resistance: 600 Pa
⁽¹⁾ Sash / panel height and width are relative measures and must comply with maximum area and mass limitations.
- Uw Value: 2.0 ⁽²⁾
- SHGCw Value: 0.21 - 0.53 ⁽²⁾
⁽²⁾ Energy results are product and size specific. As product sizes reduce, energy values increase. Custom energy results will be supplied with your Quotation - Sales Order.

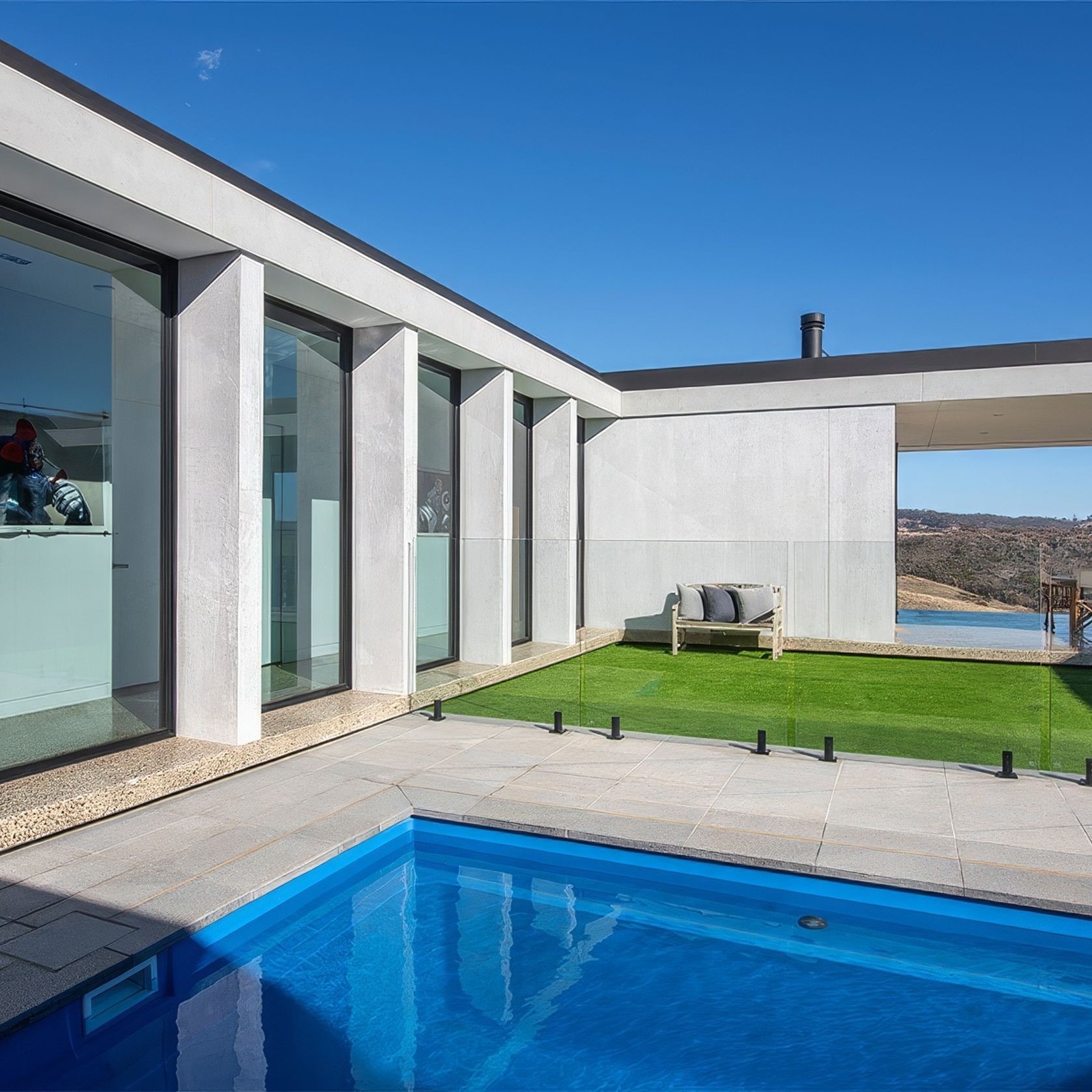

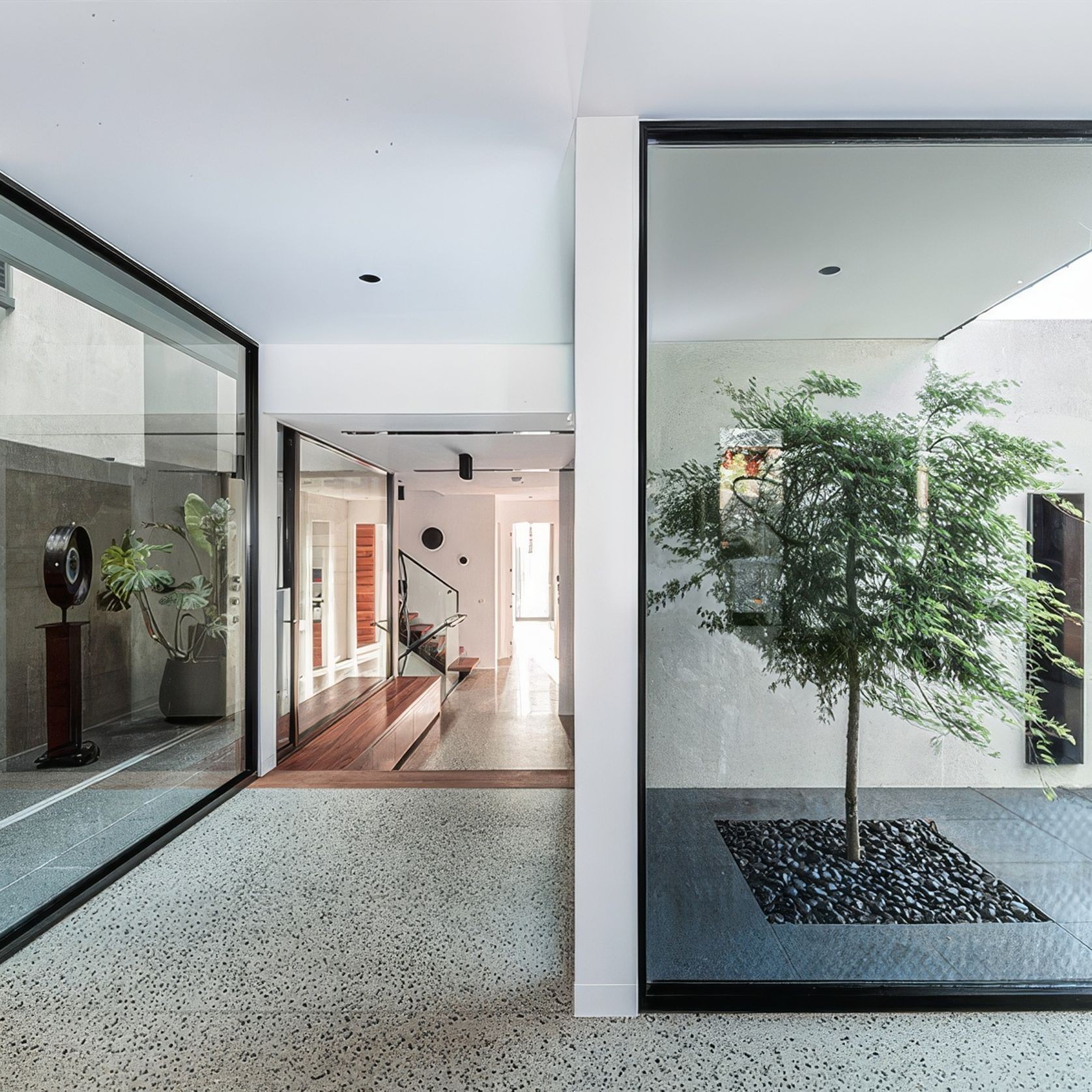

Max Lite Windows introduce sunlight and landscapes at maximum sizes to provide an exceptional architectural feature.
The most vital aspect of correct function – is correct installation.
It is recommended that the manufacturer’s specification is always followed as improper installation can lead to air infiltration, moisture and poor overall performance.
Rylock has detailed Typical Building-In Details for four common wall types to assist in the best practice installation of product:
- Linea Board
- Hebel PowerPanel
- Brick Veneer; and
- Double Brick
