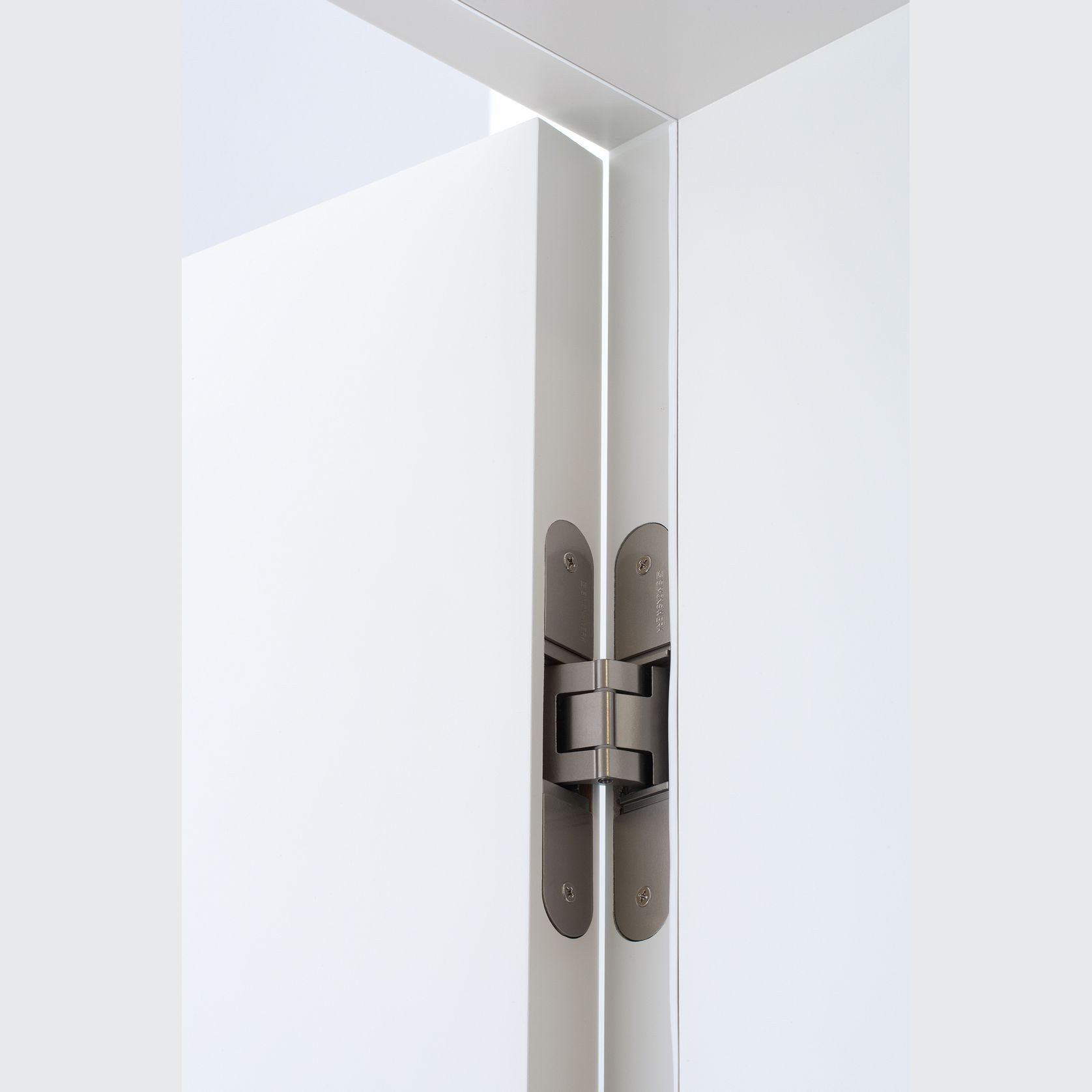

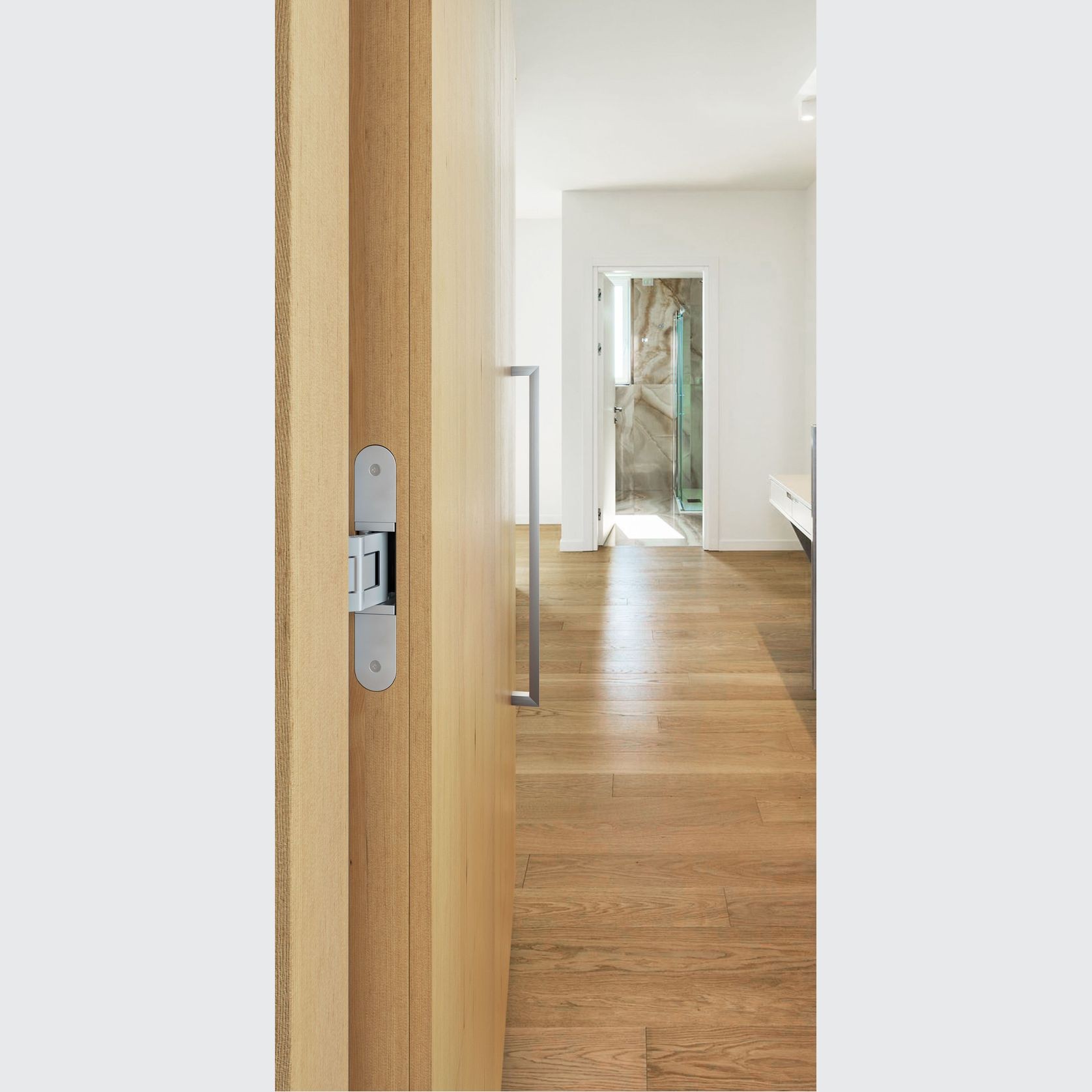

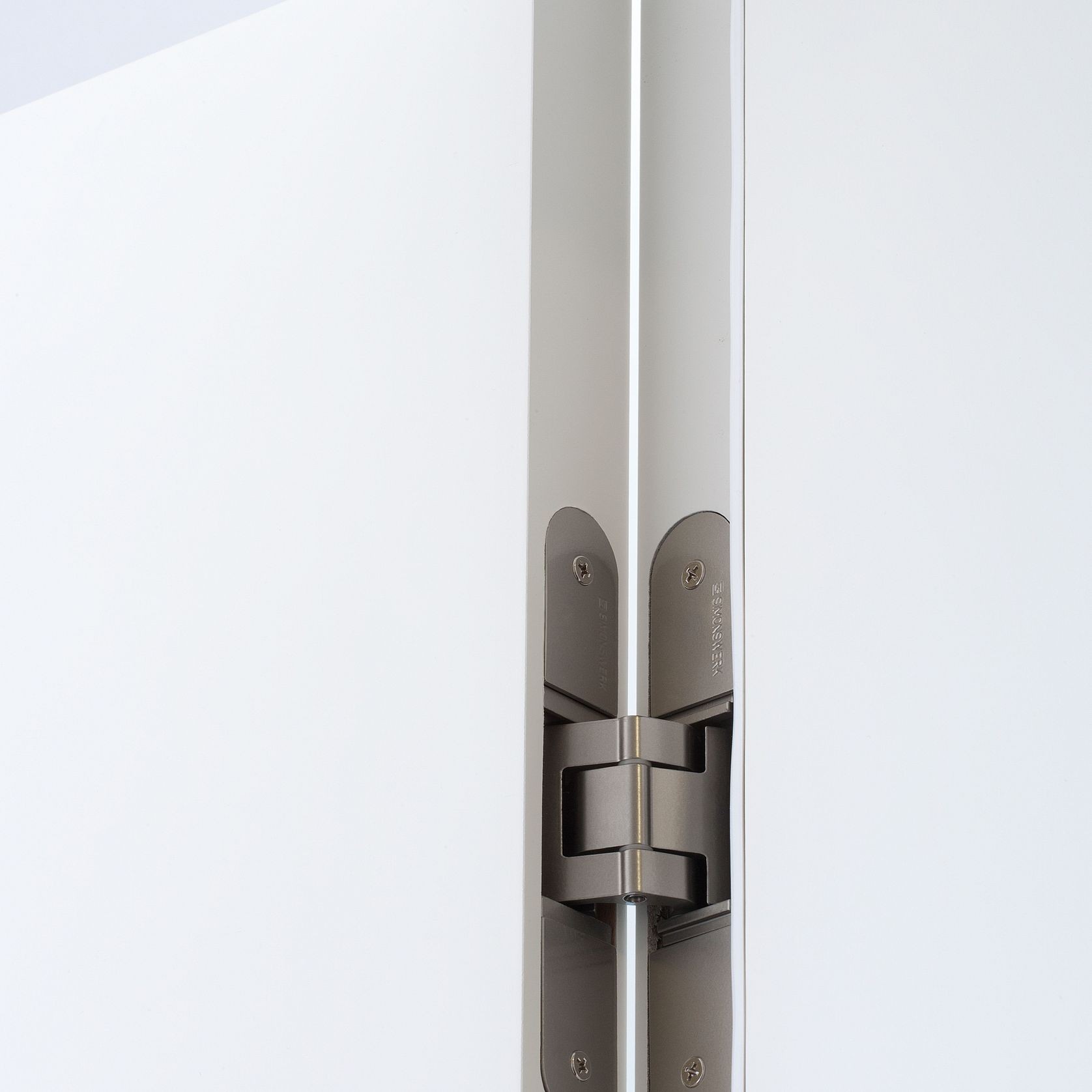

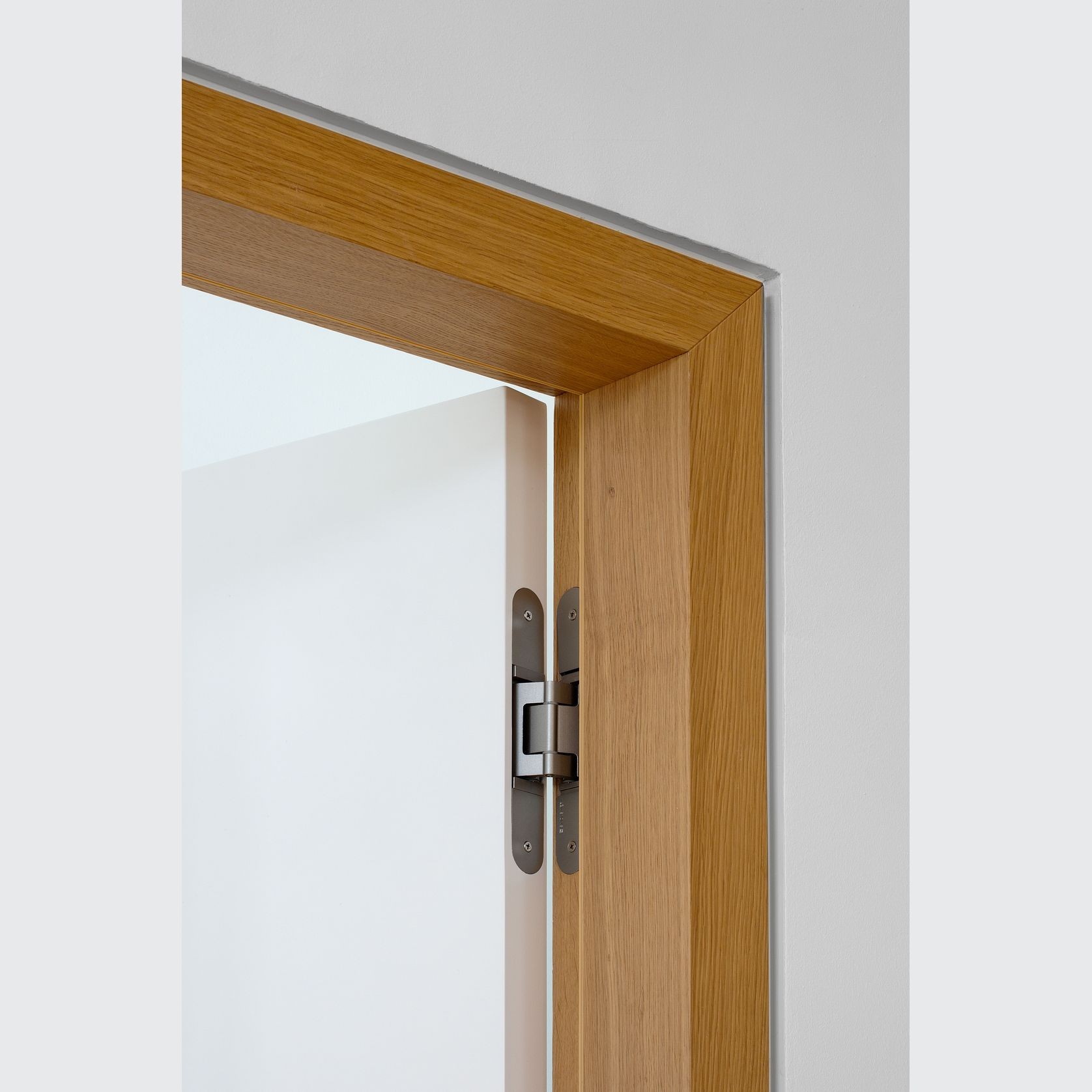

Tectus Concealed
Victoria
- 680.3K profile views
- 58 saves

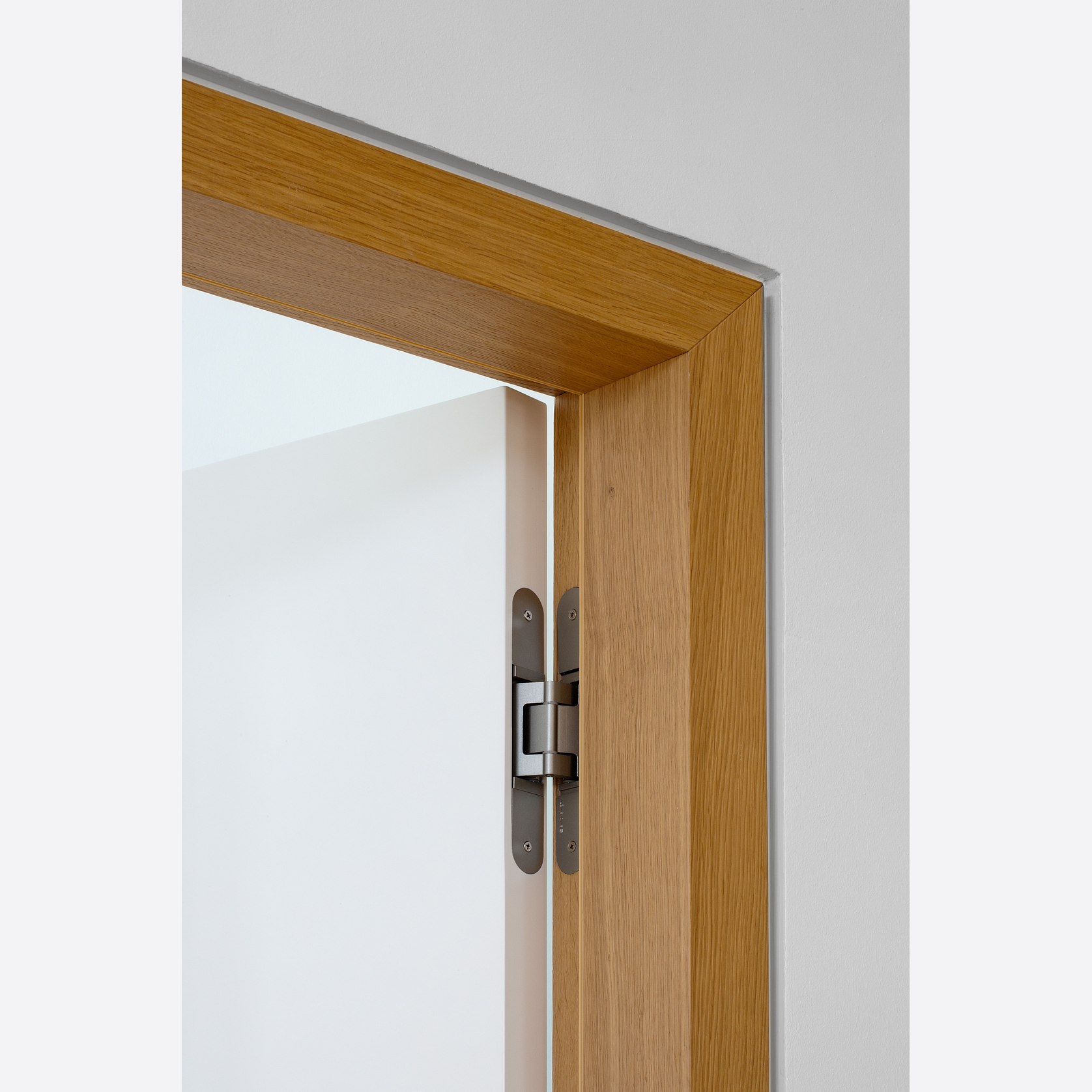

Tectus Concealed hinges are the original and pioneering solution in the industry, crafted to support a vast range of door weights from a standard 80kg right up to a hefty 300kg. Their innovative design allows for fewer hinges to be used, efficiently carrying the weight of the door with ease.
These hinges are perfect for a range of applications, from hidden doors to flush cabinetry doors/walls, providing a seamless look without compromising on quality. The hinges come in a variety of finishes to suit different aesthetics. Designed with a convenient continuous height adjustment of +/- 3mm, these hinges prevent sagging and allow for easy alignment, making the installation process hassle-free. With a full hinge body covering the routing entirely, these hinges ensure a safe and secure fit with minimal gap between the door and jamb to prevent any finger injuries. Explore the optimized load capacities for different hinge models to find the perfect fit for your project.
Product Details
- Product
- Tectus Concealed
- Category
- Door and Window Hinges
- Sold by
- Halliday + Baillie
- Designer
- Halliday + Baillie
- Brand
- Halliday + Baillie
- Country of origin
- Germany
- Package type
- Fragile - handle with care
- Care and cleaning
- Easy maintenance
- Installation
- Professional installation required
- Assembly
- Professional assembly required
Halliday + Baillie is specified by
TKD ArchitectsArchitects
MHNDUArchitects
Studio IlkArchitects
Abe McCarthy ArchitectsArchitects
Smyth & SmythArchitects
Anderson ArchitectureArchitects
Woods BagotArchitects
Utz Sanby ArchitectsArchitects
Cadence & CoArchitects
Bryant Alsop ArchitectsArchitects
DX ArchitectsArchitects
Shade FactorManufacturers and Suppliers
Tectus Concealed hinges are the original and pioneering solution in the industry, crafted to support a vast range of door weights from a standard 80kg right up to a hefty 300kg.
Their innovative design allows for fewer hinges to be used, efficiently carrying the weight of the door with ease.
These hinges are perfect for a range of applications, from hidden doors to flush cabinetry doors/walls, providing a seamless look without compromising on quality. The hinges come in a variety of finishes to suit different aesthetics. Designed with a convenient continuous height adjustment of +/- 3mm, these hinges prevent sagging and allow for easy alignment, making the installation process hassle-free. With a full hinge body covering the routing entirely, these hinges ensure a safe and secure fit with minimal gap between the door and jamb to prevent any finger injuries. Explore the optimized load capacities for different hinge models to find the perfect fit for your project.
- Type of use
- Commercial, Commercial and Residential, Residential
- Specs
- Continuous height adjustment of ±3 mm for precise alignment
- Full hinge body covers all routing for a secure, clean installation
- Minimal door-to-jamb gap to reduce finger-pinch risk
- Suitable for interior applications; selected stainless-steel models for sheltered exterior use
- Available in multiple architectural finishes, with special-order options available
- A8 versions available for cladding up to 8 mm (special order)
- Continuous height adjustment of ±3 mm for precise alignment
- Features
Tectus are the ORIGINAL and first designers of adjustable hinges for standard doors and now huge doors. Used on Apple Stores and high use entry doors these hinges are the best. Don't fall for the copies!
- Scope of use

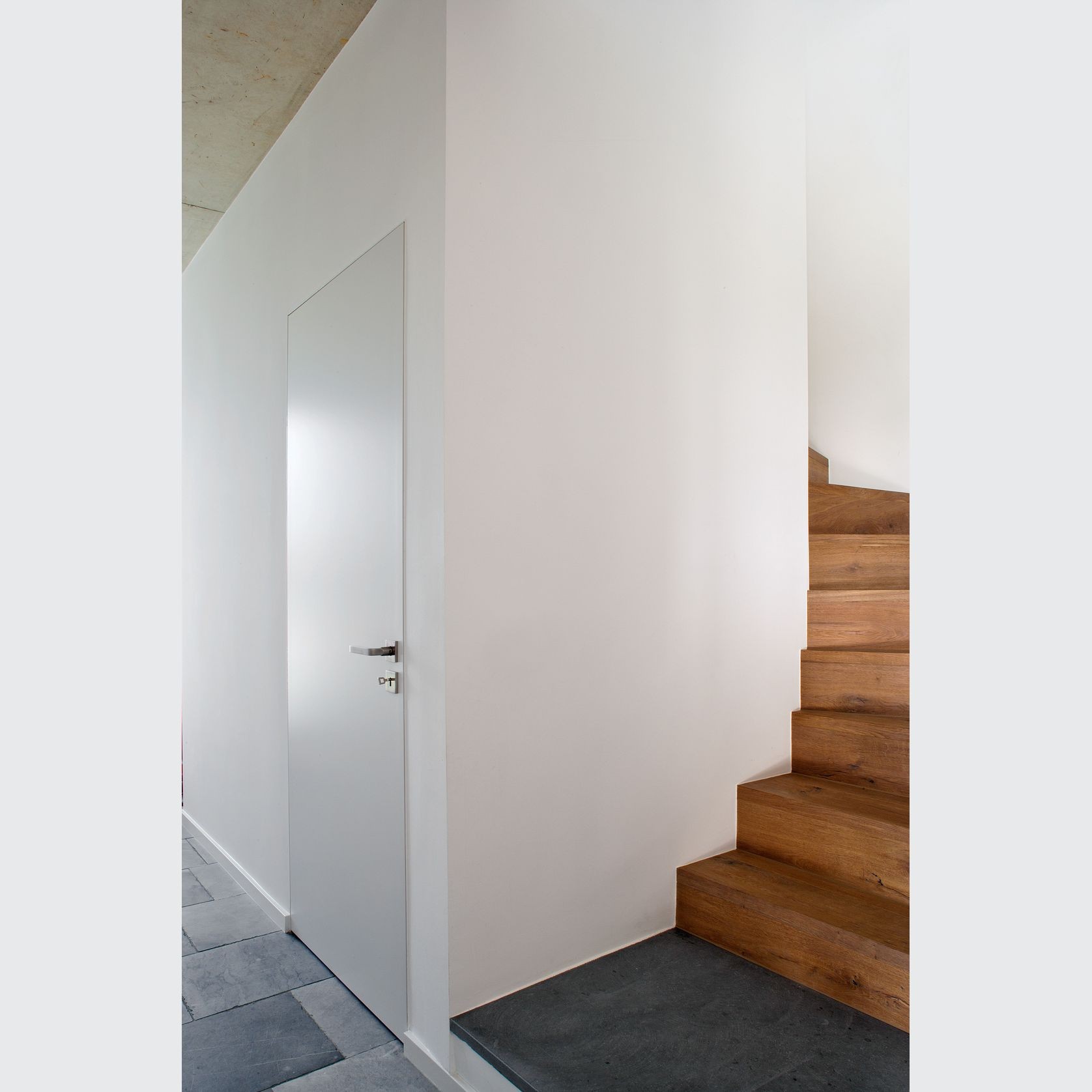

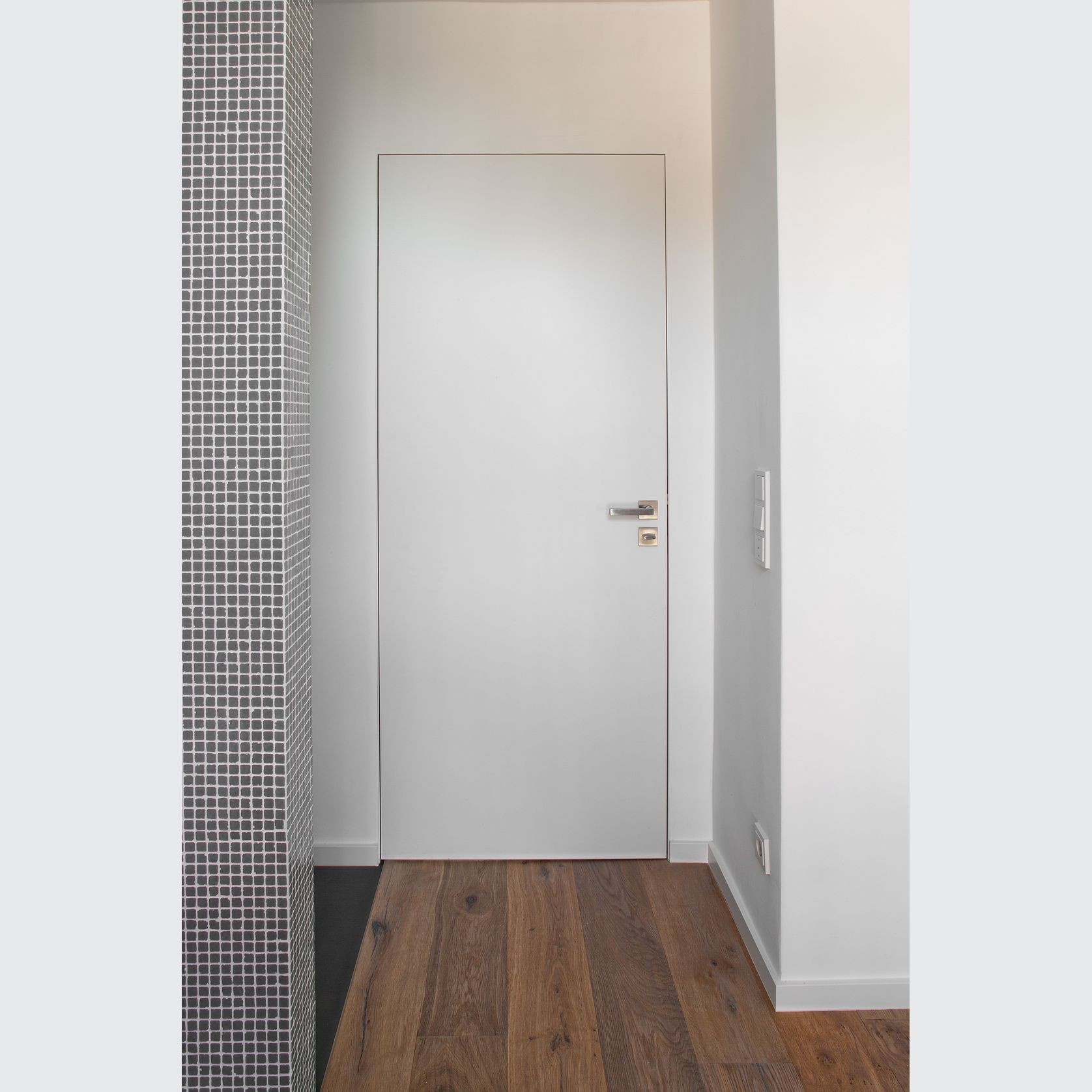

- Designed for hidden doors, flush cabinetry doors/walls and wherever a seamless look is required.
- Suitable for interior use; some models (specifically the TE526 in stainless steel) can be used for external sheltered conditions.
- Load capacities (for 2 hinges) vary by model:
TE 240 3D: up to 60 kg, minimum door thickness 30 mm
TE 340 3D: up to 80 kg, minimum door thickness 35 mm
TE 526 3D: up to 120 kg (die-cast stainless steel), minimum door thickness 35 mm
TE 540 3D: up to 120 kg, minimum door thickness 45 mm
TE 640 3D: up to 200 kg, minimum door thickness 45 mm
- Designed for hidden doors, flush cabinetry doors/walls and wherever a seamless look is required.
