WALSC INTERNAL WALL SYSTEM
This is the best option as an infill wall system for apartment and commercial buildings. In this system, the following wall options are included:
- Internal Cavity Wall Options
- Common Wall/Corridor Wall Options
- Service Shaft Wall Options.
Start visualising the Walsc Internal Wall System: https://walsc.com.au/products/walsc-internal-wall-systems
Product Details
- Product
- Walsc Internal Wall System
- Category
- Concrete Cladding
- Sold by
- Walsc AAC Panel Systems
- Brand
- Walsc AAC Panel Systems
Walsc AAC Panel Systems is specified by
WALSC INTERNAL WALL SYSTEM This is the best option as an infill wall system for apartment and commercial buildings.
In this system, the following wall options are included:
- Internal Cavity Wall Options
- Common Wall/Corridor Wall Options
- Service Shaft Wall Options.
Start visualising the Walsc Internal Wall System: https://walsc.com.au/products/walsc-internal-wall-systems
- Features
- Lightweight and strong
- NCC/BCA compliant
- Easy to Transport
- Up to Rw 66 / Rw+Ctr 54 dB across tested WIW cavity systems
- Quick to install
- Local technical support team
- Scope of use
For High-rise Apartments and Commerical Buildings
- Technical Data
- Panel Thickness: 75 mm
- Panel Width: 600 mm
- Panel Length: Check with Distributor
- Panel Edge Profile: Square Edge / Tongue & Groove
- Dry Density: 525 kg/m³
- Ambient Density: 600 kg/m³
- Density for Design: 650 kg/m³
- Panel Weight per Square Metre: 50 kg/m²
- Characteristic AAC Compressive Strength: 2.9 MPa
- Reinforcement Tensile Yield Stress: 500 MPa
- Reinforcement Characteristic Weld Strength: 3.1 kN
- Ultimate Strength Bending Capacity: 0.7 kNm/m
- Thermal Resistance: R 0.52
- Coefficient of Thermal Expansion: 7.0 × 10⁻⁶/K
- System Components
- Walsc AAC Panel 75mm Commercial
- Walsc AAC Adhesive
- Deflection Track and Slotted Angle
- Screw Fixings
- Fire Rated Sealant
- Walsc Anti-corrosion Protection Paint
Learn more about System Components here.
- System Overview
System overview depends on varieties of wall, including Cavity Wall, Common Wall, and Service Shaft Wall.
Learn and visualise more here
Downloads
Downloads (3)3 Direct downloads • 5 Available on request
Frequently asked questions about
Walsc Internal Wall System
The Walsc Internal Wall System is supplied by Walsc AAC Panel Systems. It is also on their website, and you can browse every product Walsc AAC Panel Systems lists on ArchiPro.
Walsc AAC Panel Systems does not publish a price for the Walsc Internal Wall System on ArchiPro. for pricing, or visit their website.
Yes. It is part of the Apartment & Commercial Buildings range from Walsc AAC Panel Systems, where you can see every product in the range together.

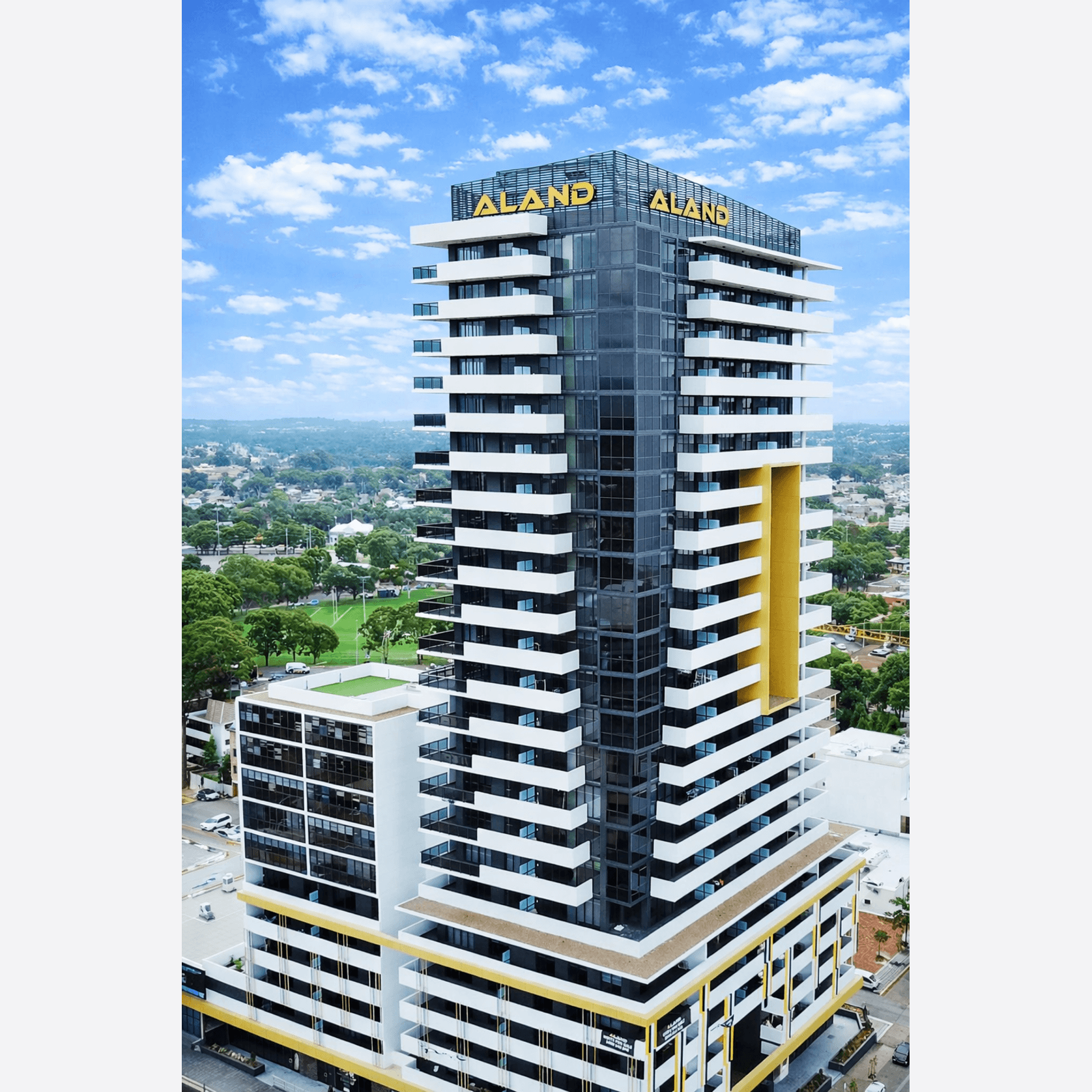

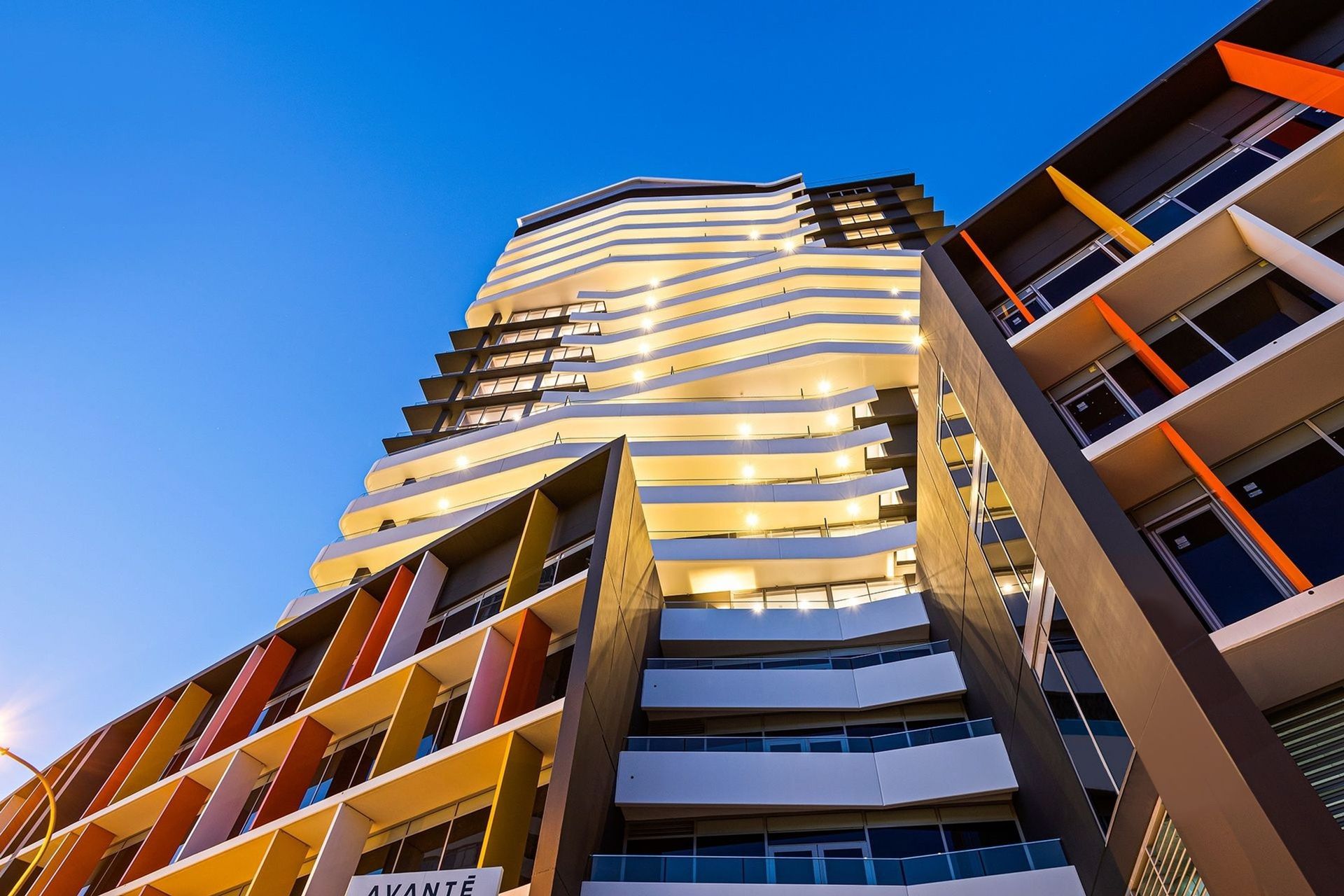

Yes. It has been specified in projects on ArchiPro, including Babylon, Rouse Hill by Walsc AAC Panel Systems, Hope Gardens Apartment by Walsc AAC Panel Systems and East Pearl Apartment by Walsc AAC Panel Systems. See how it was used in a finished space.
