WALSC EXTERNAL WALL SYSTEM 50

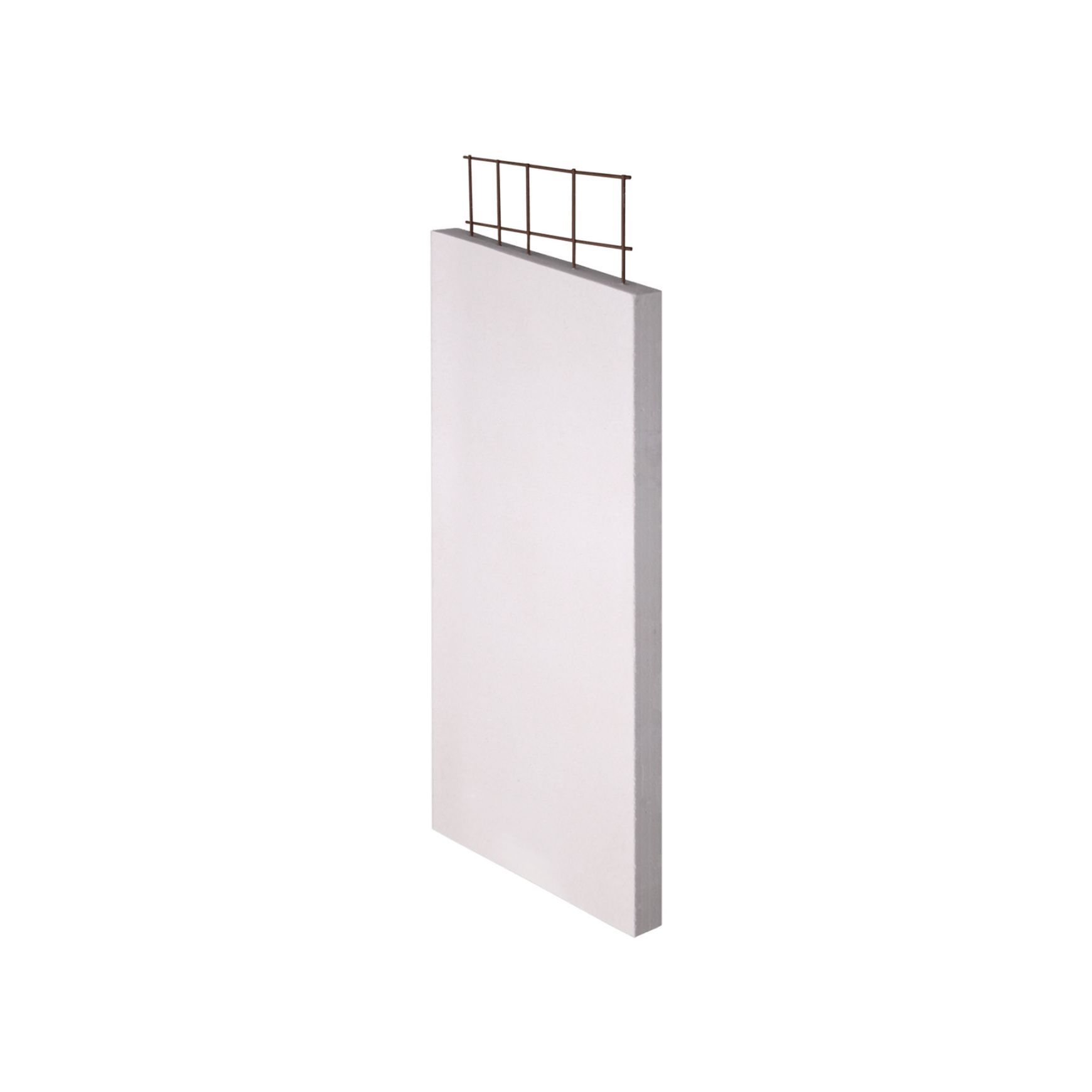

Consists of 50mm reinforced Walsc AAC Panels fixed to the structural frame of a building with battens in between to form a cavity system.
The orientation of the installed panels are either vertically aligned or horizontally staggered. Each panel orientation represents a different system which have slightly different component details and are not interchangeable on a single building installation unless completely isolated by control joints.
All panel orientation systems include Walsc AAC Adhesive applied to the panel edges where there are adjoining panels and finished using a Walsc approved coating system.
Start visualizing the External Wall System 50: https://walsc.com.au/products/walsc-external-wall-system-50
Product Details
- Product
- Walsc External Wall System 50
- Category
- Concrete Cladding
- Sold by
- Walsc AAC Panel Systems
- Brand
- Walsc AAC Panel Systems
- Dimensions
- Panel - 2200 - L2200 x W600 x H50 mm
Product Variants
- Panels Per Pack
- Size
Walsc AAC Panel Systems is specified by
WALSC EXTERNAL WALL SYSTEM 50 Consists of 50mm reinforced Walsc AAC Panels fixed to the structural frame of a building with battens in between to form a cavity system.
The orientation of the installed panels are either vertically aligned or horizontally staggered. Each panel orientation represents a different system which have slightly different component details and are not interchangeable on a single building installation unless completely isolated by control joints.
All panel orientation systems include Walsc AAC Adhesive applied to the panel edges where there are adjoining panels and finished using a Walsc approved coating system.
Start visualizing the External Wall System 50: https://walsc.com.au/products/walsc-external-wall-system-50
- Features
- Lightweight and strong
- NCC/BCA compliant
- CSIRO-tested FRL 120/120/120
- Non-combustible AAC core
- Quick to install
- Local technical support team
- Scope of use
For Multi-Residential Buildings
- Technical Data
- Panel Thickness: 50 mm
- Panel Width: 600 mm
- Panel Length: Up to 3000 mm
- Panel Edge Profile: Square Edge
- Dry Density: 525 kg/m³
- Ambient Density: 600 kg/m³
- Density for Design: 650 kg/m³
- Panel Weight per Square Metre: 35.6 kg/m²
- Characteristic AAC Compressive Strength: 2.7 MPa
- Reinforcement Tensile Yield Stress: 350 MPa
- Reinforcement Characteristic Weld Strength: 3.4 kN
- Ultimate Strength Bending Capacity: 0.33 kNm/m
- Coefficient of Thermal Expansion: 7.0 × 10⁻⁶/K
- Thermal Resistance: R 0.331
- System Components
- Walsc AAC Panel 50mm
- Walsc AAC Adhesive
- Steel Tophat
- Screw Fixings
- Wall Wrap & Tape
- Damp Proof Course
- Walsc Base Sealer
- Walsc Anti-Corrosion Protection Paint
- Control Joints
- Approved Render Coating System
Learn more about System Components in details.
- System Overview
- Walsc AAC Panel 50mm
- Wall Wrap
- Horizontal Control Joint
- Timber or Steel Structural Wall Frame
- Walsc Approved Coating System with Mesh
- Concrete Slab
- Damp Proof Course / Flashing
Visualise the system overview here
Downloads
Downloads (6)6 Direct downloads • 7 Available on request
Frequently asked questions about
Walsc External Wall System 50
The Walsc External Wall System 50 is supplied by Walsc AAC Panel Systems. It is also on their website, and you can browse every product Walsc AAC Panel Systems lists on ArchiPro.
Walsc AAC Panel Systems does not publish a price for the Walsc External Wall System 50 on ArchiPro. for pricing, or visit their website.
It comes in 2 panels per pack options (20, 15). Pick one in the row under the description to see it.

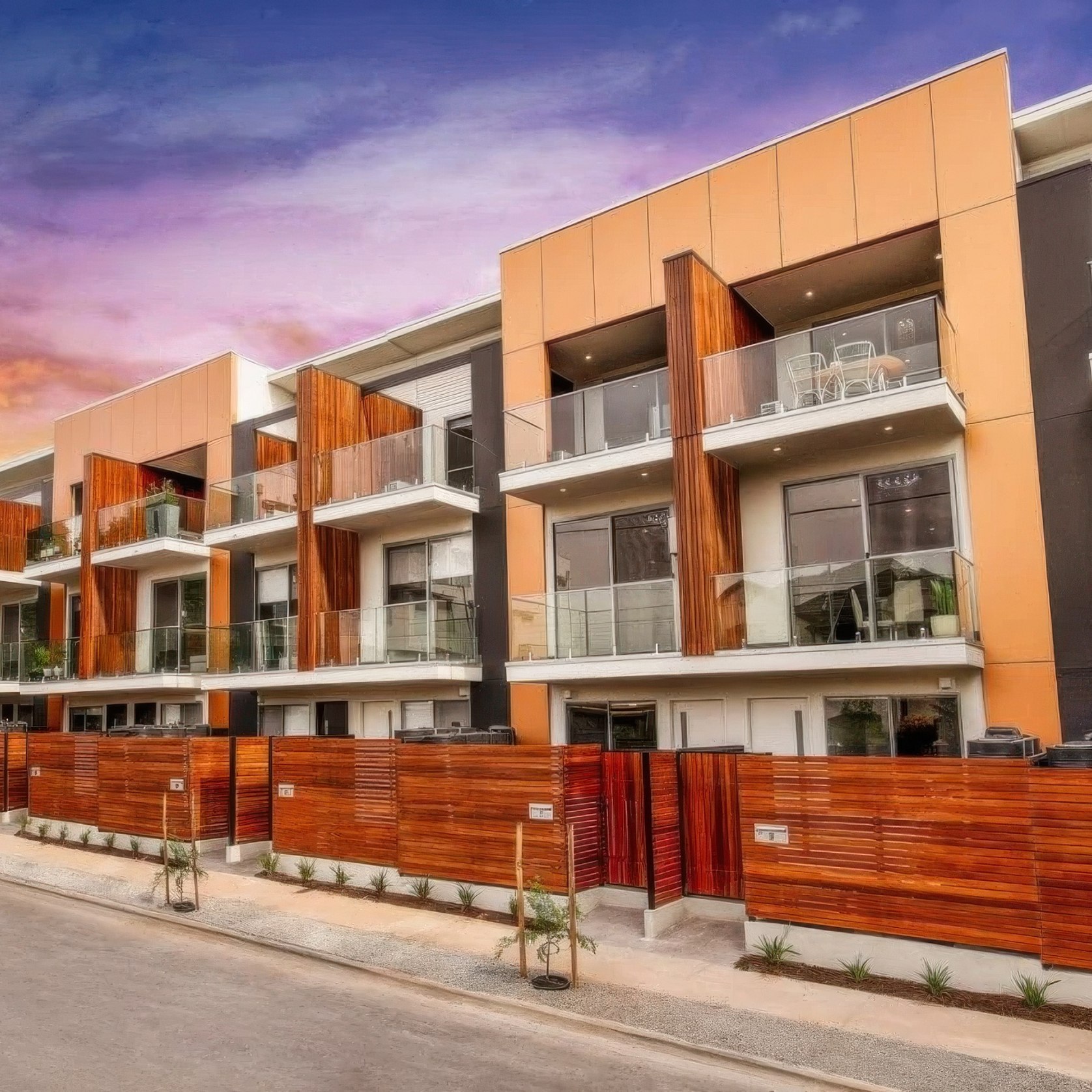

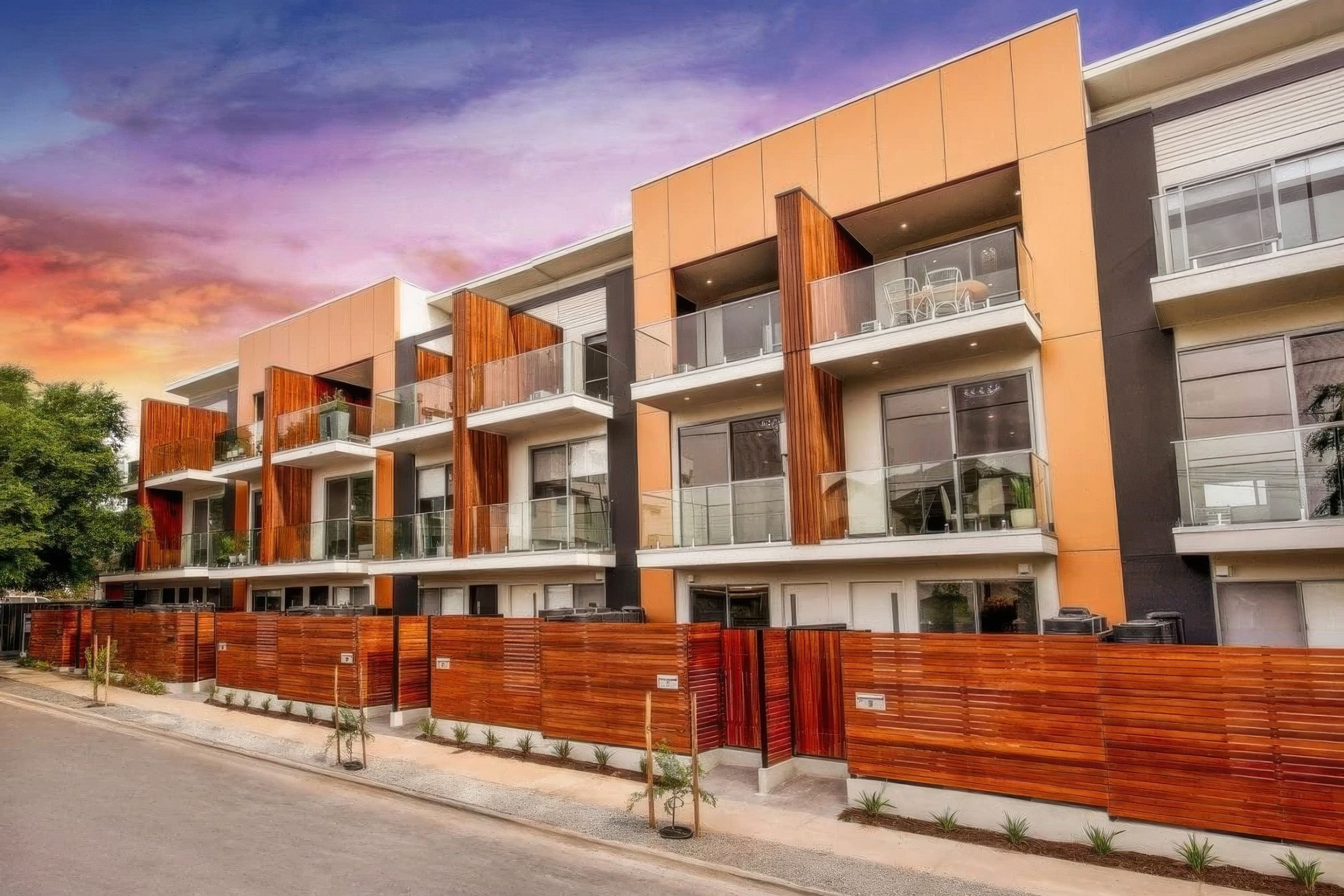

Yes. It has been specified in projects on ArchiPro, including Contemporary House| Concord NSW by Walsc AAC Panel Systems, Semaphore Park House by Walsc AAC Panel Systems and Caringbah South, NSW by Walsc AAC Panel Systems. See how it was used in a finished space.
from this page, see their contact details on ArchiPro, or visit their website. The Walsc AAC Panel Systems profile on ArchiPro has the rest of their products.
