WALSC INTERTENANCY WALL SYSTEM 75

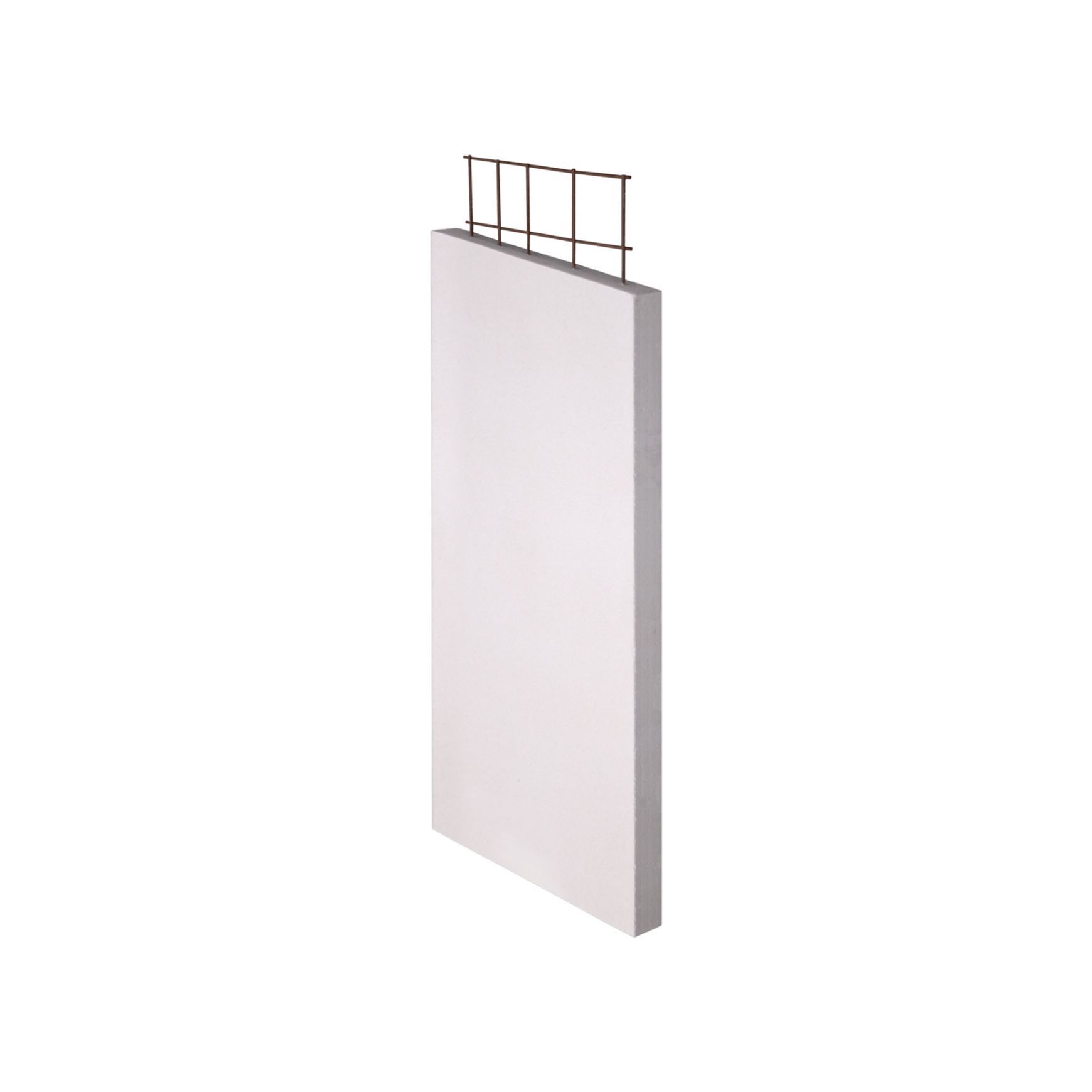

Consists of reinforced Walsc AAC Panel 75mm installed vertically and fixed to the structural frame on each side using aluminium brackets as shown. Walsc AAC Adhesive is applied to the vertical edges where there is an adjoining panel.
The Walsc Intertenancy Wall System 75 offers a steel top hat connection where the reinforced Walsc AAC Panel 75mm Light is secured to the structural frame with horizontal steel top hats as shown. Walsc AAC Adhesive is applied to the vertical edges where there is an adjoining panel.
Start visualising the Intertenancy Wall System 75: https://walsc.com.au/products/walsc-intertenancy-wall-system-75
Product Details
- Product
- Walsc Intertenancy Wall System 75
- Category
- Firewalls
- Sold by
- Walsc AAC Panel Systems
- Brand
- Walsc AAC Panel Systems
Product Variants
- Panels Per Pack
- Size
Walsc AAC Panel Systems is specified by
WALSC INTERTENANCY WALL SYSTEM 75 Consists of reinforced Walsc AAC Panel 75mm installed vertically and fixed to the structural frame on each side using aluminium brackets as shown.
Walsc AAC Adhesive is applied to the vertical edges where there is an adjoining panel.
The Walsc Intertenancy Wall System 75 offers a steel top hat connection where the reinforced Walsc AAC Panel 75mm Light is secured to the structural frame with horizontal steel top hats as shown. Walsc AAC Adhesive is applied to the vertical edges where there is an adjoining panel.
Start visualising the Intertenancy Wall System 75: https://walsc.com.au/products/walsc-intertenancy-wall-system-75
- Features
- CSIRO FCO-3092B assessed FRL 90/90/90
- Rw+Ctr up to 52 dB
- Lightweight and strong
- NCC/BCA compliant
- Easy to Transport
- Quick to install
- Local technical support team
- Scope of use
For Multi-Residential Buildings
- Technical Data
- Panel Thickness: 75 mm
- Panel Width: 600 mm
- Panel Length: Up to 3300 mm
- Panel Edge Profile: Square Edge
- Dry Density: 450 kg/m³
- Density for Design: 525 kg/m³
- Panel Weight per Square Metre: 42 kg/m²
- Reinforcement Tensile Yield Stress: 500 MPa
- Reinforcement Characteristic Weld Strength: 3.1 kN
- Ultimate Strength Bending Capacity: 1.0 kNm/m
- Thermal Resistance: R 0.584
- System Components
- Walsc AAC Panel 75mm Light (XL)
- Walsc AAC Adhesive
- C-Channel
- Screw Fixings
- Walsc Aluminium Bracket
- Horizontal Control Joints
- Vertical Control Joints
- Walsc Anti-Corrosion Protection Paint
- Conjunction Gap Filler
Learn more about System Components in details
- System Overview
- Aluminium Brackets
- 75mm Reinforced Walsc AAC Panel
- Timber / Steel Structural Frame
- Insulation
- Wall Lining
- Thin Bed Mortar
Visualize the system overview here.
