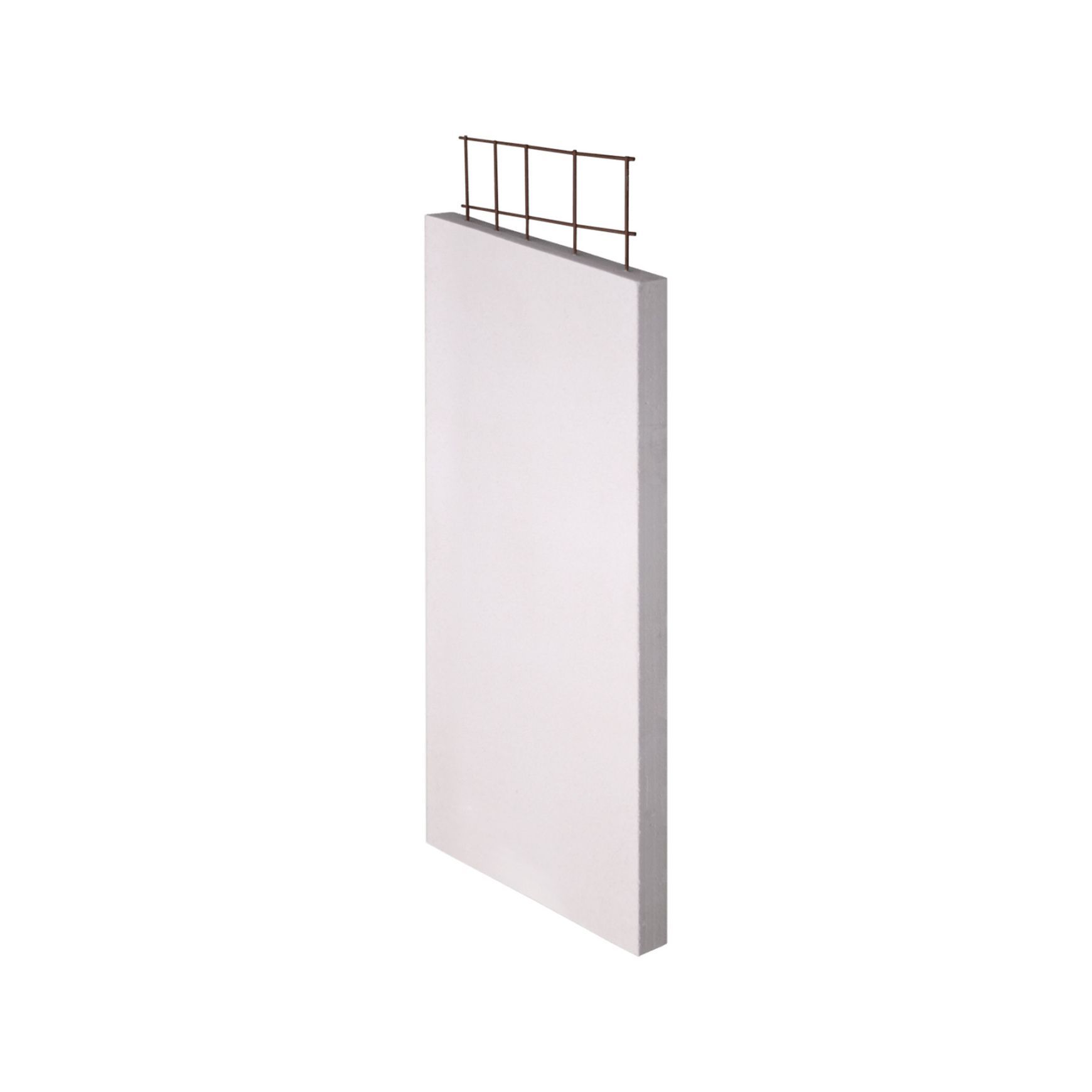

Walsc Intertenancy Wall System 50
Sydney, Australia
- 28.8K profile views
- 1 save
WALSC INTERTENANCY WALL SYSTEM 50
Consists of a single leaf of 50mm reinforced Walsc AAC Panels separated by a cavity and stud frames (with insulation and plasterboard) on each side. The single leaf of reinforced Walsc AAC Panels are arranged in one of the following three systems, Horizontally Aligned, Vertically Aligned and Vertically Staggered.
Each system orientation represents a different system which have slightly different components and fixing methods. The systems are not interchangeable on a single building installation unless completely isolated by control joints. All panel orientation systems include Walsc AAC Adhesive applied to the panel edges where there are adjoining panels.
Start visualising the Intertenancy Wall System 50: https://walsc.com.au/products/walsc-intertenancy-wall-system-50
Product Details
- Product
- Walsc Intertenancy Wall System 50
- Category
- Firewalls
- Sold by
- Walsc AAC Panel Systems
- Brand
- Walsc AAC Panel Systems
Product Variants
- Panels Per Pack
- Size
Walsc AAC Panel Systems is specified by
WALSC INTERTENANCY WALL SYSTEM 50 Consists of a single leaf of 50mm reinforced Walsc AAC Panels separated by a cavity and stud frames (with insulation and plasterboard) on each side.
The single leaf of reinforced Walsc AAC Panels are arranged in one of the following three systems, Horizontally Aligned, Vertically Aligned and Vertically Staggered.
Each system orientation represents a different system which have slightly different components and fixing methods. The systems are not interchangeable on a single building installation unless completely isolated by control joints. All panel orientation systems include Walsc AAC Adhesive applied to the panel edges where there are adjoining panels.
Start visualising the Intertenancy Wall System 50: https://walsc.com.au/products/walsc-intertenancy-wall-system-50
- Features
- Rw+Ctr up to 51 dB across CodeMark-certified build-ups
- NCC/BCA compliant
- Easy to Transport
- CSIRO-tested FRL 90/90/90
- Quick to install
- Lightweight and strong
- Local technical support team
- Scope of use
For Multi-Residential Buildings
- Technical Data
- Panel Thickness: 50 mm
- Panel Width: 600 mm
- Panel Length: Up to 3000 mm
- Panel Edge Profile: Square Edge
- Dry Density: 525 kg/m³
- Ambient Density: 600 kg/m³
- Density for Design: 650 kg/m³
- Panel Weight per Square Metre: 35.6 kg/m²
- Characteristic AAC Compressive Strength: 2.7 MPa
- Reinforcement Tensile Yield Stress: 350 MPa
- Reinforcement Characteristic Weld Strength: 3.4 kN
- Ultimate Strength Bending Capacity: 0.33 kNm/m
- Coefficient of Thermal Expansion: 7.0 × 10⁻⁶/K
- Thermal Resistance: R 0.331
- System Component
- Walsc AAC Panel 50mm
- Walsc AAC Adhesive
- C-Channel
- Screw Fixings
- Walsc Aluminium Bracket
- Horizontal Control Joints
- Vertical Control Joints
- Walsc Anti-corrosion Protection Paint
- Conjunction Gap Filler
Learn more about System Components in details.
- System Overview
- Aluminium Bracket
- Walsc AAC Panel 50mm
- Timber / Steel Structural Frame
- Insulation
- Wall Lining
- Thin Bed Mortar
- C-Channel at the Base
Visualize the System overview here.
Downloads
Downloads (5)5 Direct downloads • 7 Available on request
Frequently asked questions about
Walsc Intertenancy Wall System 50
The Walsc Intertenancy Wall System 50 is supplied by Walsc AAC Panel Systems. It is also on their website, and you can browse every product Walsc AAC Panel Systems lists on ArchiPro.
Walsc AAC Panel Systems does not publish a price for the Walsc Intertenancy Wall System 50 on ArchiPro. for pricing, or visit their website.
It comes in 2 panels per pack options (20, 15). Pick one in the row under the description to see it.
It comes in 6 sizes: L2200 x W600 x H50 mm, L2400 x W600 x H50 mm, L2550 x W600 x H50 mm, L2700 x W600 x H50 mm, L2850 x W600 x H50 mm and L3000 x W600 x H50 mm. For a size that is not listed, .
