Louvre Window

• Max Product Height: 3050mm ⁽¹⁾
• Max Product Width: 1015mm ⁽¹⁾
• Glazing Capacity: 6mm single glazed
• Wind Rating: N1 - N3
• Air Infiltration: 0.5 L/s.m²
• Water Resistance: 300 Pa

⁽¹⁾ Sash / panel height and width are relative measures and must comply with maximum area and mass limitations.

• Uw Value: 4.8 ⁽²⁾
• SHGCw Value: 0.32 - 0.64 ⁽²⁾

⁽²⁾ Energy results are product and size specific. As product sizes reduce, energy values increase. Custom energy results will be supplied with your Quotation - Sales Order.

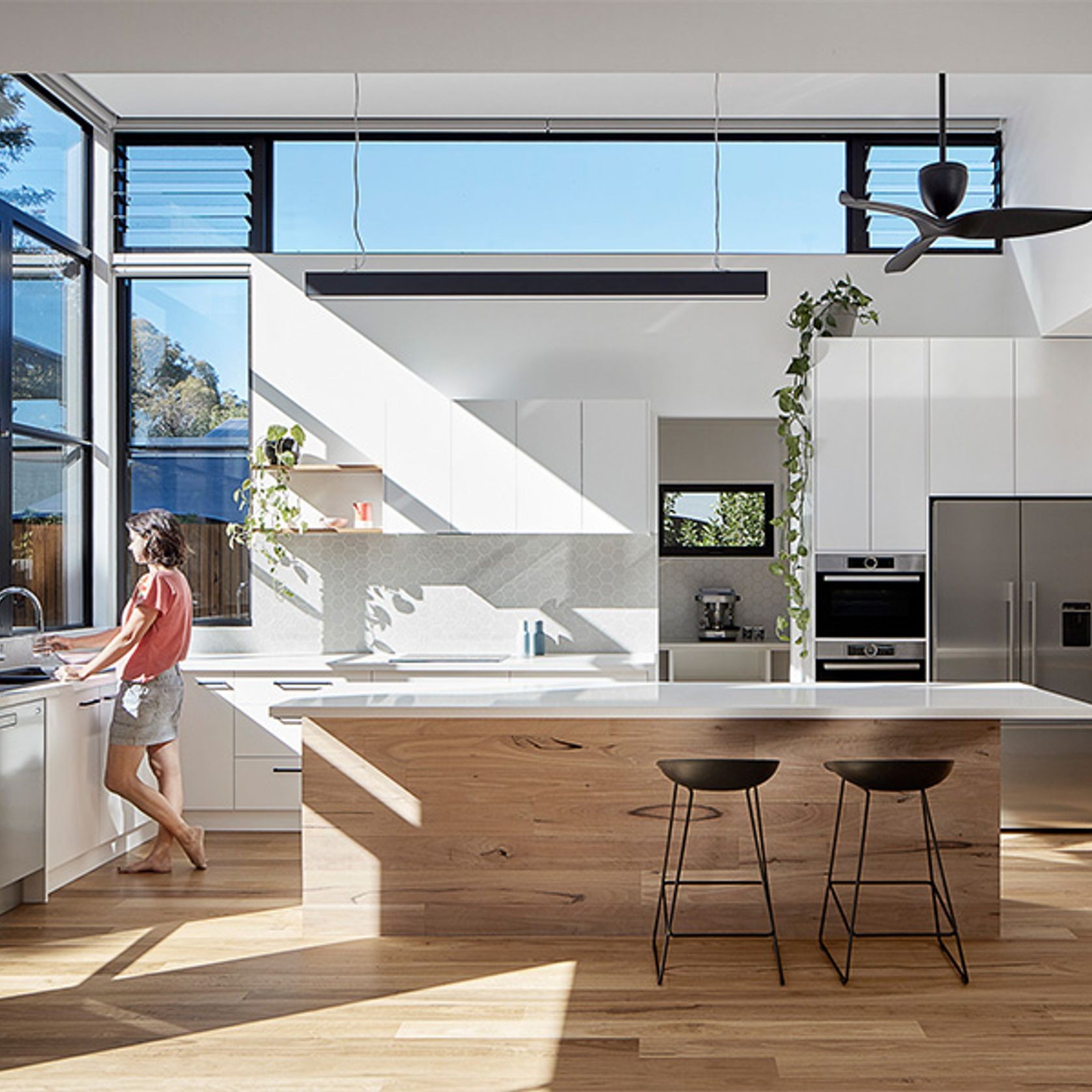

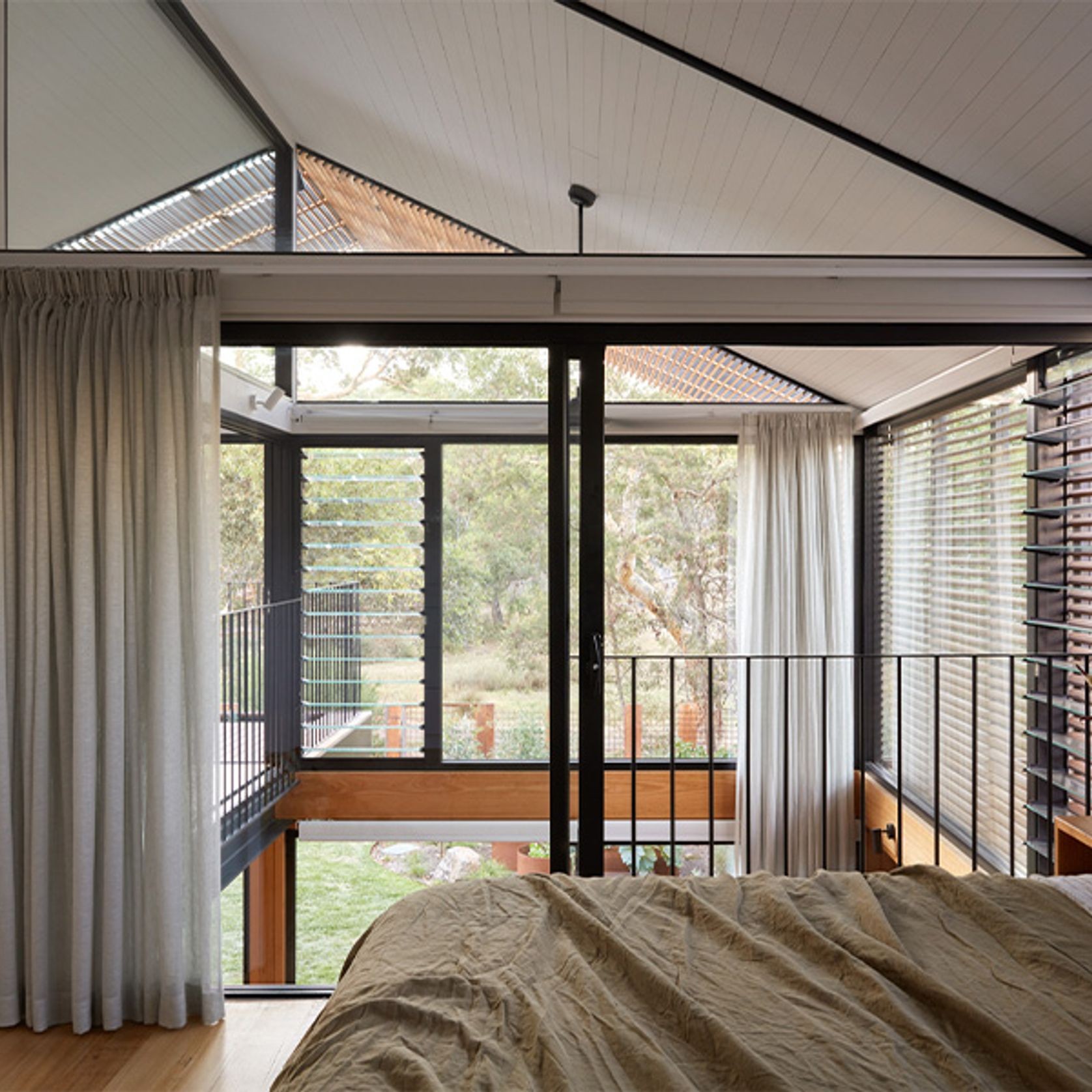

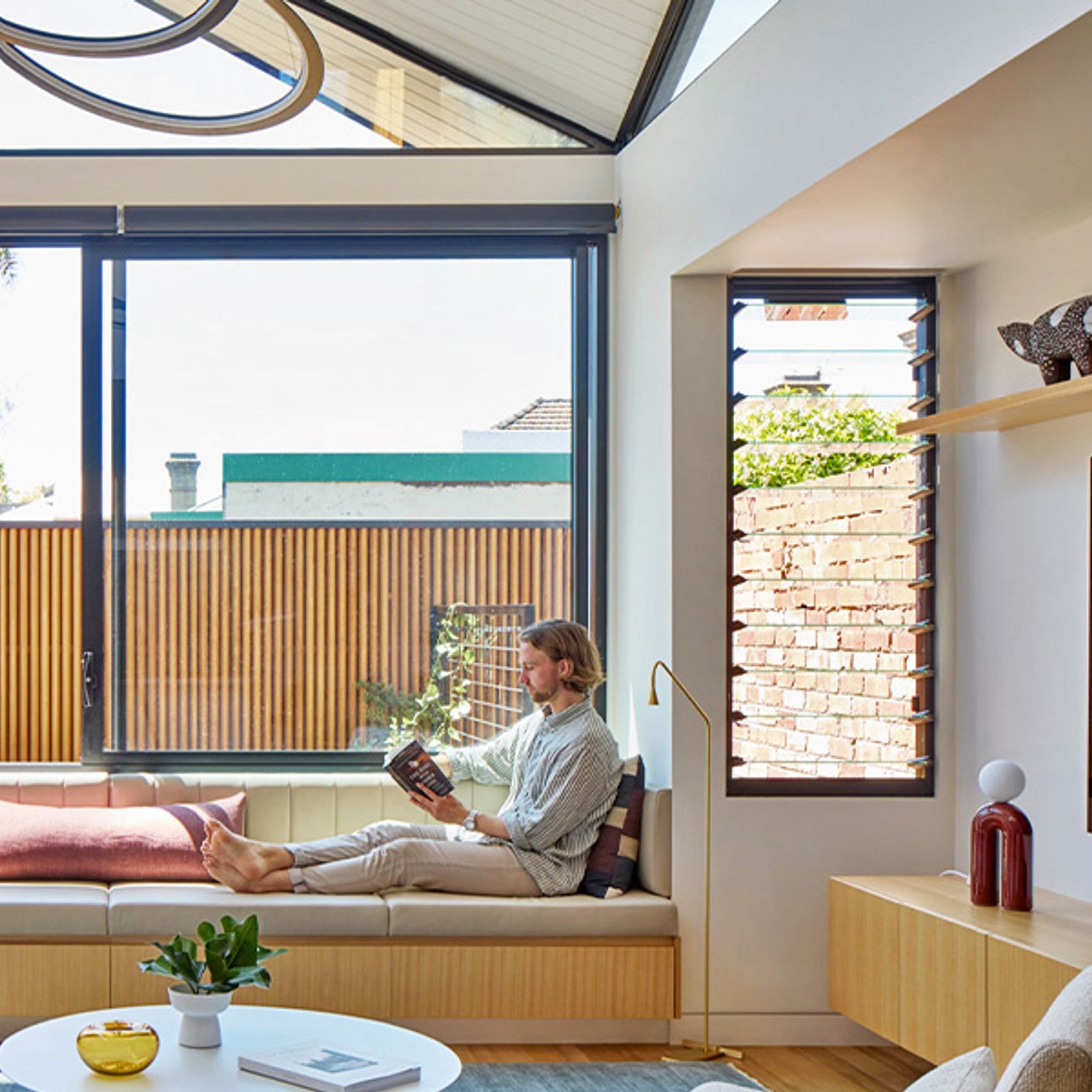

Louvre Windows provide outstanding ventilation, feature a narrow profile and can be coupled to other Commercial Series products.

The Louvre Window with BreezwayTM gallery inserts open twice as wide as any other window type to offer maximum ventilation and naturally cool the living space without the need for artificial air conditioning systems.

Whilst Louvre Windows offer a unique blend of fine ventilation and clean-clear sightlines, it should be well understood that they offer limited weather-water ingress protection, in high wind-water conditions.

IMPORTANT: Australian Standards make an exception for acceptable Water Ingress using Louvre Windows, whereby water is allowed a contained cascade to the inner face. In certain high wind-water gusting conditions, we have experienced cases of ‘spurting’ beyond the frame. This needs to be understood and accepted as a worldly reality with these Products, and we strongly suggest their purchase and use only in areas where wet floors are deemed ‘temporarily acceptable’ following storm like conditions.

The most vital aspect of correct function – is correct installation.

It is recommended that the manufacturer’s specification is always followed as improper installation can lead to air infiltration, moisture and poor overall performance.

Rylock has detailed Typical Building-In Details for four common wall types to assist in the best practice installation of product:

• Linea Board
• Hebel PowerPanel
• Brick Veneer; and
• Double Brick
