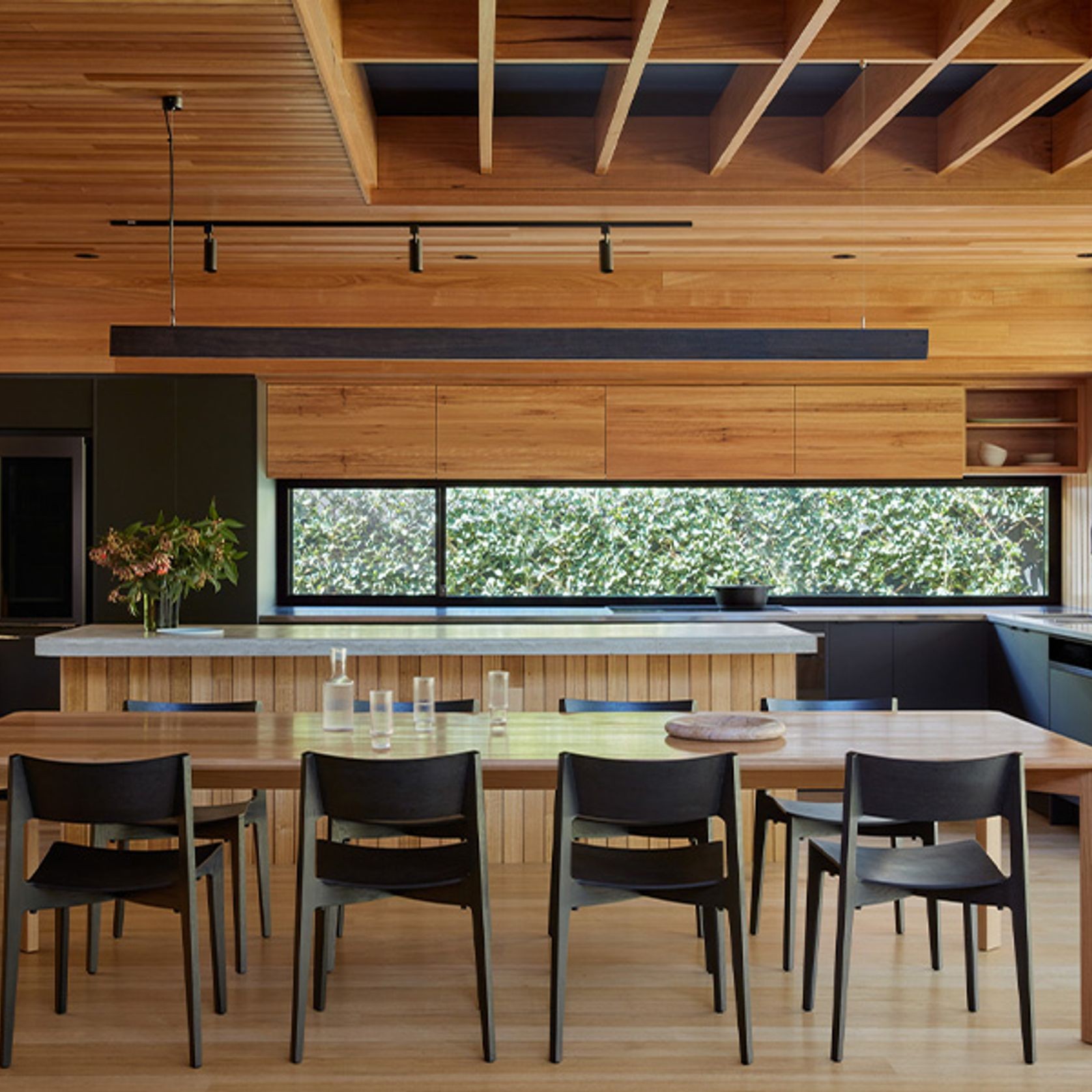

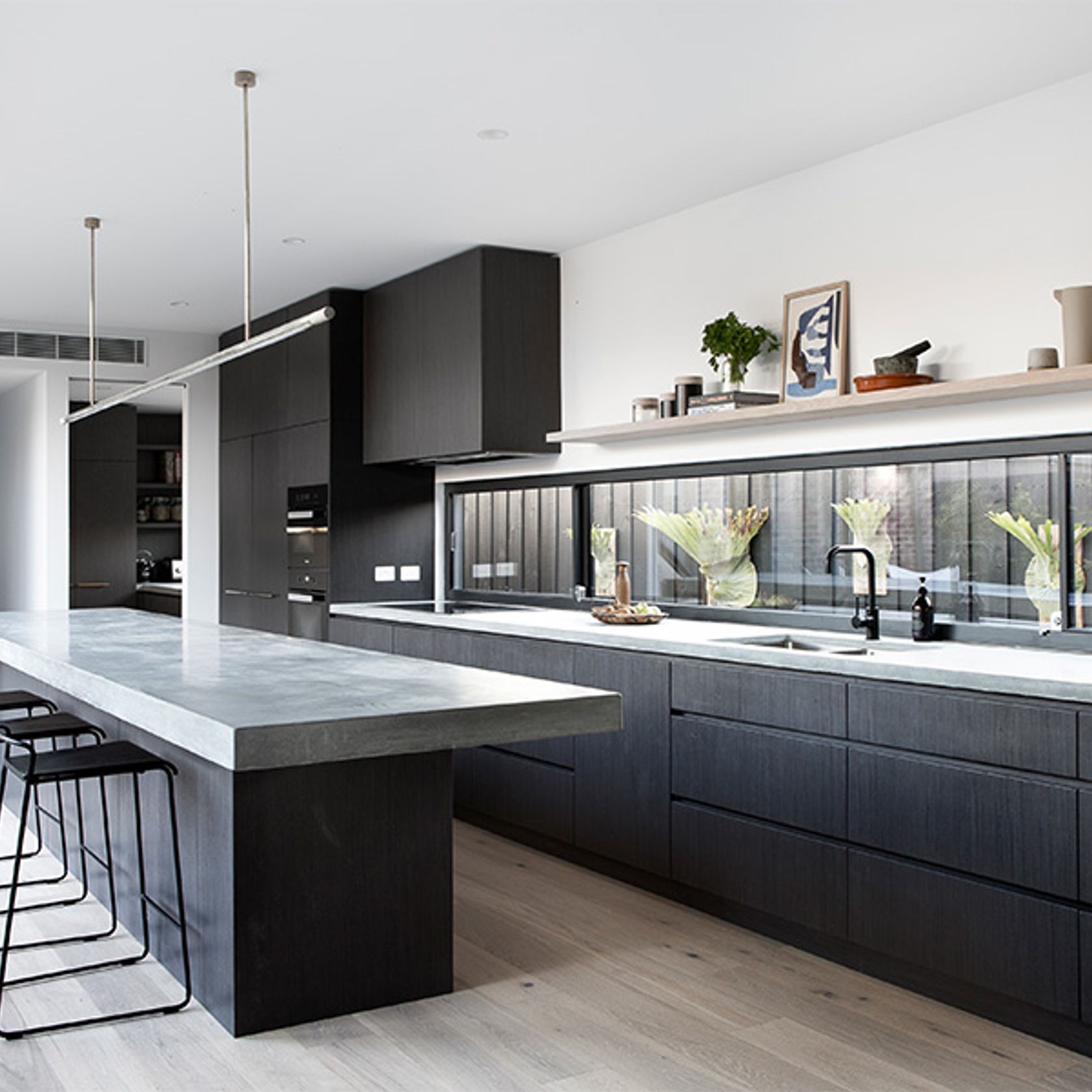

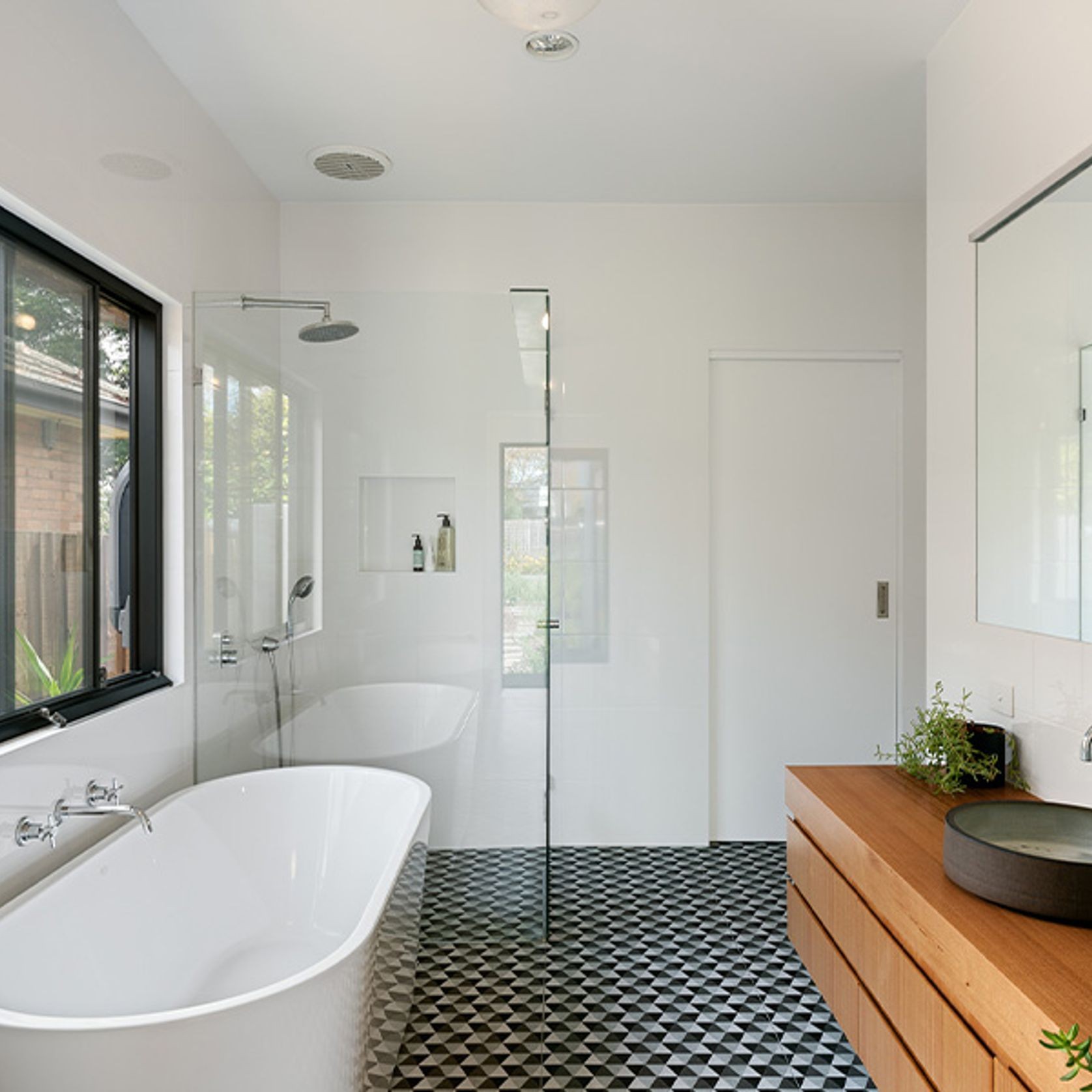

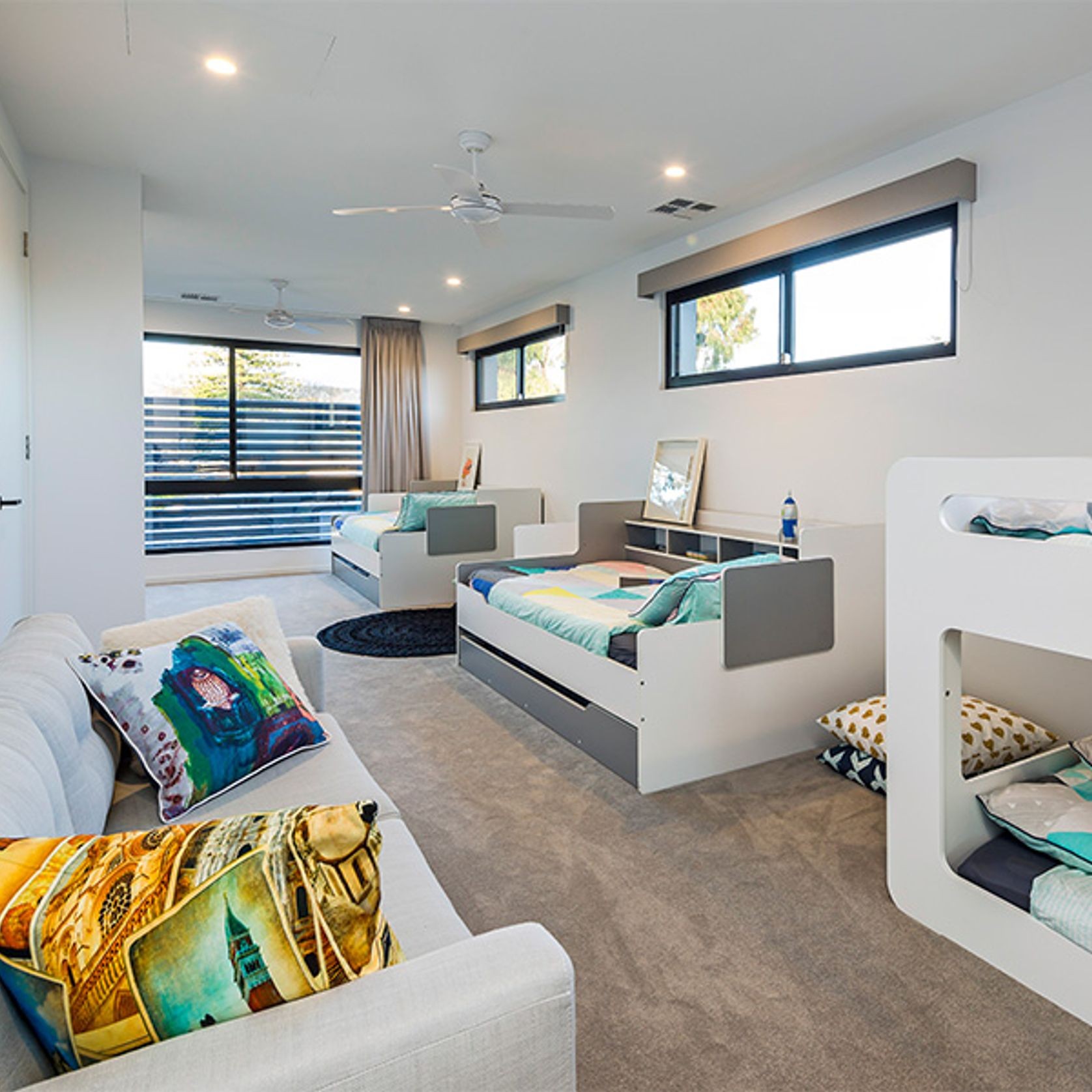

Sliding Window
Rylock Architectural Aluminium Series Sliding Windows deliver large openings for effective ventilation, with a slim profile that won’t protrude into surrounding spaces. The sash range of motion is controlled by an acrylic handle for minimal visual attention and a hinged dust cover prevents debris from falling into the product track. The Sliding Window features a key lock in stainless steel housing which can be engaged in a fully closed or vent-locked position, to safely allow trickle ventilation into the home.
Multiple sash seals ensure resistance against air and water infiltration for exceptional results in AS 2047 Windows and External Glazed Doors compliance testing and Sliding Windows are glazed in accordance with AS 1288 Glass in Buildings. Whilst a large range of options are available, all products are glazed with Grade A Safety Toughened Low-e Double Glazing (Argon Fill) as a standard specification.
- CategorySliding Windows
- Max Product Height: 5500mm
- Max Product Width: 5500mm
- Max Sash Height: 1800mm ⁽¹⁾
- Max Sash Width: 1800mm ⁽¹⁾
- Glazing Capacity: 18mm - 22.38mm
- Wind Rating: N1 - N3
- Air Infiltration: 0.6 L/s.m²
- Water Resistance: 450 Pa
⁽¹⁾ Sash / panel height and width are relative measures and must comply with maximum area and mass limitations.
- Uw Value: 2.5 ⁽²⁾
- SHGCw Value: 0.22 - 0.49 ⁽²⁾
⁽²⁾ Energy results are product and size specific. As product sizes reduce, energy values increase. Custom energy results will be supplied with your Quotation - Sales Order.
Sliding Windows feature a dust cover that prevents debris from falling into the window track, whilst also providing additional security. The dust cover is powder coated to match the product’s frame colour, whilst the hinge hardware and key lock are featured in a brushed stainless steel finish only.
Sliding Windows promote considerable natural air flow, with a large opening sash to deliver effective ventilation.
The most vital aspect of correct function – is correct installation.
It is recommended that the manufacturer’s specification is always followed as improper installation can lead to air infiltration, moisture and poor overall performance.
Rylock has detailed Typical Building-In Details for four common wall types to assist in the best practice installation of product:
- Linea Board
- Hebel PowerPanel
- Brick Veneer; and
- Double Brick
