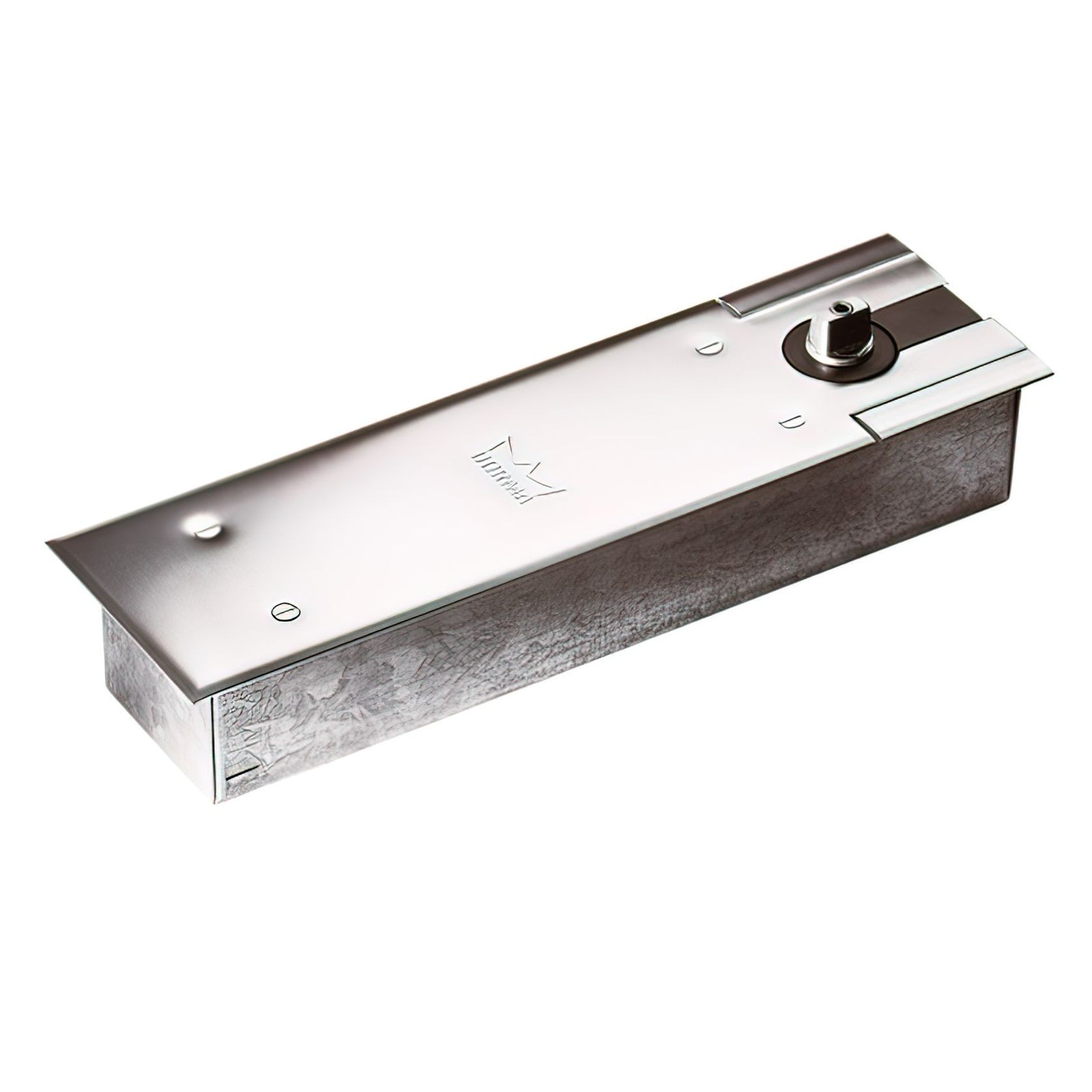

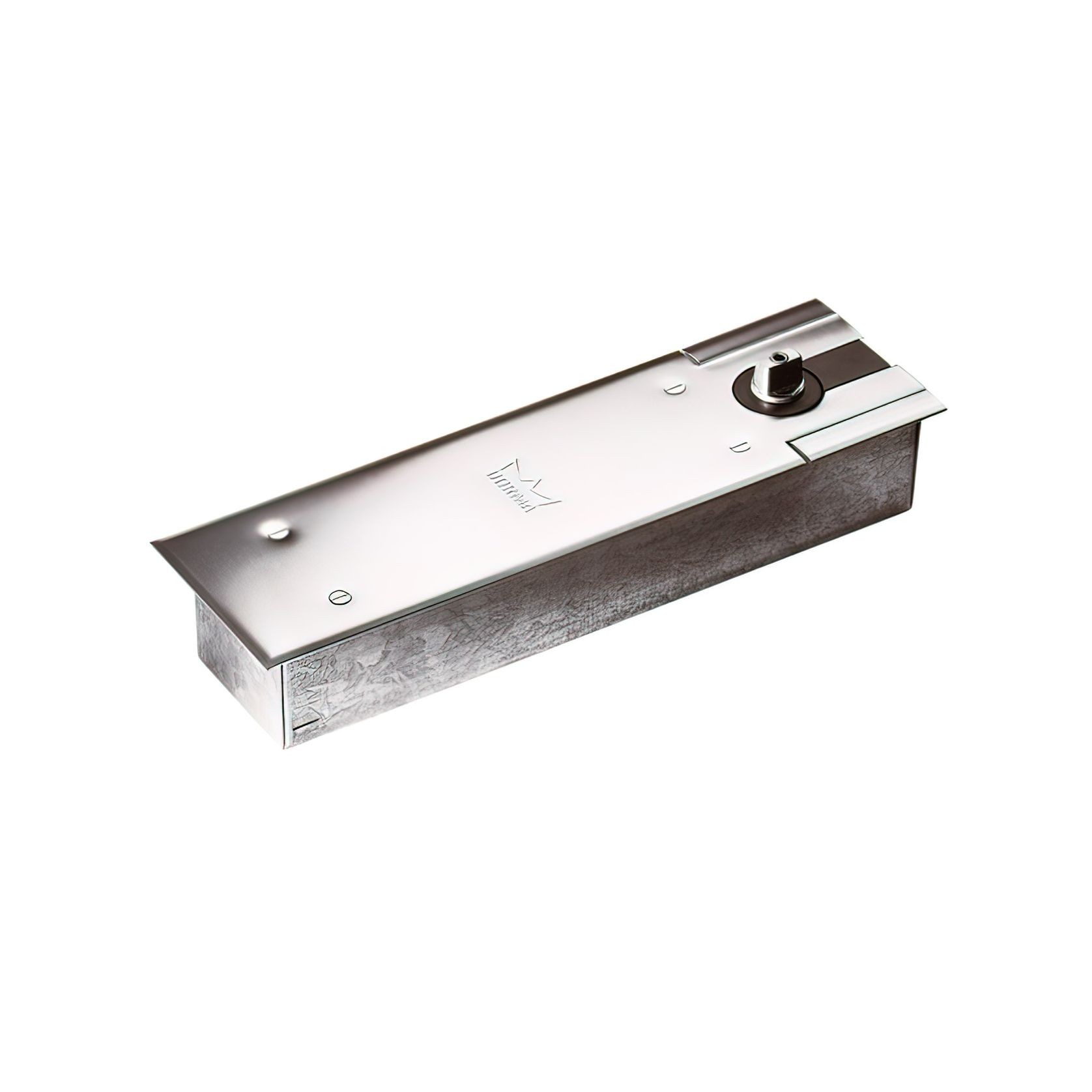

Dorma BTS804T EN4 Floor Spring Body Combi Pack Timber
Wetherill Park, Australia
- 1.0M profile views
- 51 saves
Dorma Door CloserEN4 Floor Spring Body Combi Pack For Timber Door BTS804T Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming. Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts. Includes: 1 x Dorma BTS80 EN-4 Door Closer Floor Spring Adjustable Hold Open (80110000) 1 x Dorma 8062 Top Center for Double Action Doors (46300003) 1 7421 Bottom Strap for Double Action Doors (46010001) 1 x Dorma 7410 Cover Plate Satin Stainless Steel Suits BTS80 (46700000) 1 x Dorma 8064 Cover Plate Satin Stainless Steel (46020044) 1 Sealing Compound 2300 (45090086) Dorma BTS80 EN-4 Door Closer Floor Spring 80110000 Features: With adjustable closing speed and closing action from approx. 175 degrees, with hydraulically controlled closing cycle and mechanical backcheck Allows for temperature-independent hold-open between 75 degrees and 175 degrees(removable) Hold-open start point and delayed action is easily adjustable by valve Concealed assembly Can be used on fire and smoke check doors Easy to install
Product Details
- Product
- Dorma BTS804T EN4 Floor Spring Body Combi Pack Timber
- Category
- Door Closers
- Sold by
- Keeler Hardware
- Range
- Dormakaba
- Brand
- Dormakaba
- Dimensions
- 165mm
Product Variants
- Colours
- Size
Keeler Hardware is specified by
J Mammone ArchitectureArchitects
Bryant Alsop ArchitectsArchitects
Cadence & CoArchitects
Ha ArchitectureArchitects
JOST ArchitectsArchitects
Dieppe DesignArchitects
Bones StudioArchitects
David Baillie ArchitectArchitects
Scale ArchitectureArchitects
Habitat Studio ArchitectsArchitects
Ironbark ArchitectureArchitects
Bijl ArchitectureArchitects
De Moyer ArchitectureArchitects
Ian Moore ArchitectsArchitects
TDDP ArchitectsArchitects
Anderson ArchitectureArchitects
Alexander &CO.Architects
Hive ArchitectureArchitects
mcmahon and nerlichArchitects
R ARCHITECTUREArchitects
Invilla ArchitectureArchitects
Ilm InteriorsJoiners
APC BuildBuilders
Jumble & StackInterior Designers
X + OInterior Designers
IverManufacturers and Suppliers
TrueBuild HomesDesign & Build
Schemes & SpacesInterior Designers
STUDIO GAXAInterior Designers
Susie Miles DesignInterior Designers
New SpacesBuilders
Kate NixonInterior Designers
ASSA ABLOY Door Locks & Security SolutionsManufacturers and Suppliers
Rise Architectural BuildersBuilders
Brianda ProjectsBuilders
Dasch AssociatesInterior Designers
Matic by DesignInterior Designers
CastellaManufacturers and Suppliers
Dorma Door CloserEN4 Floor Spring Body Combi Pack For Timber Door BTS804T Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.

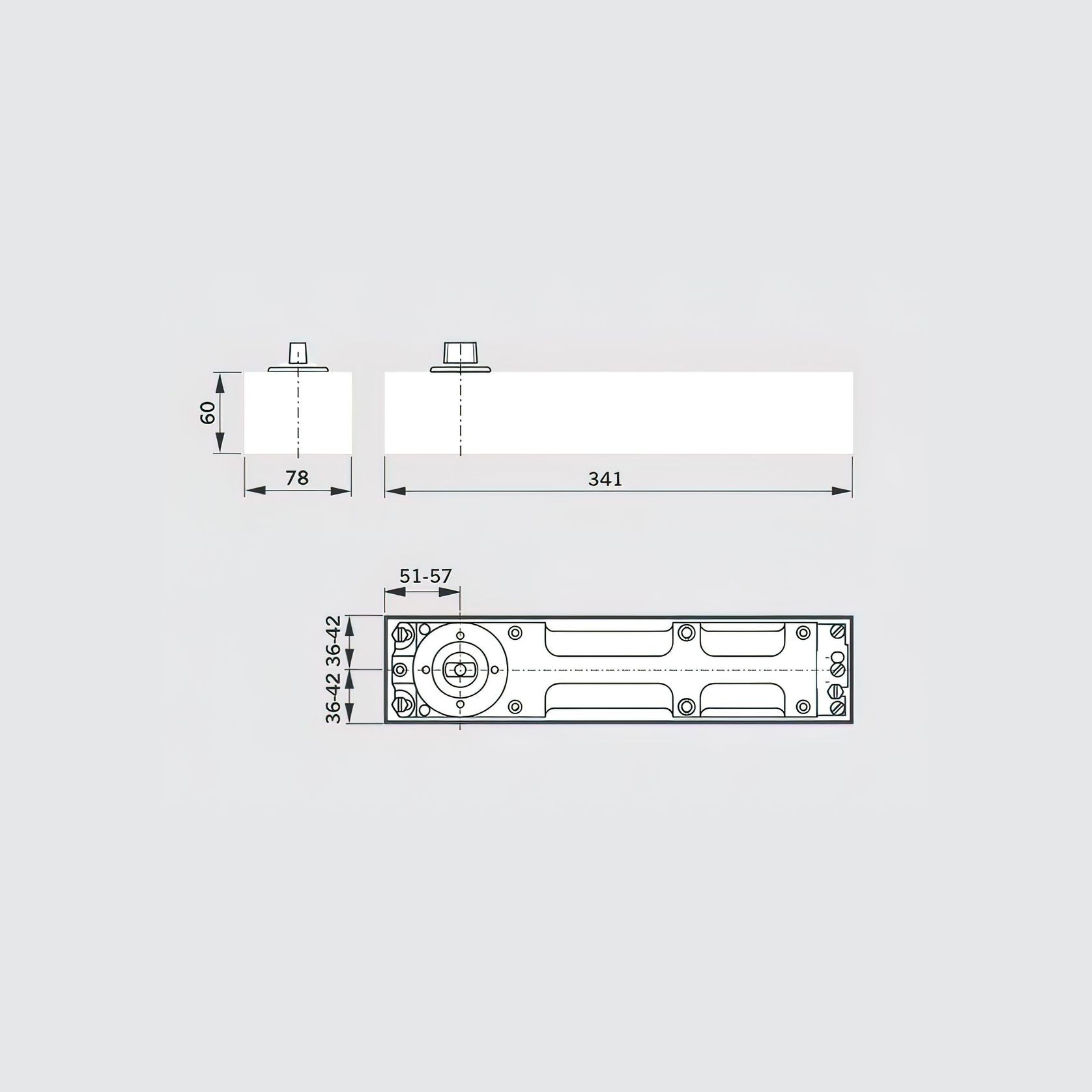

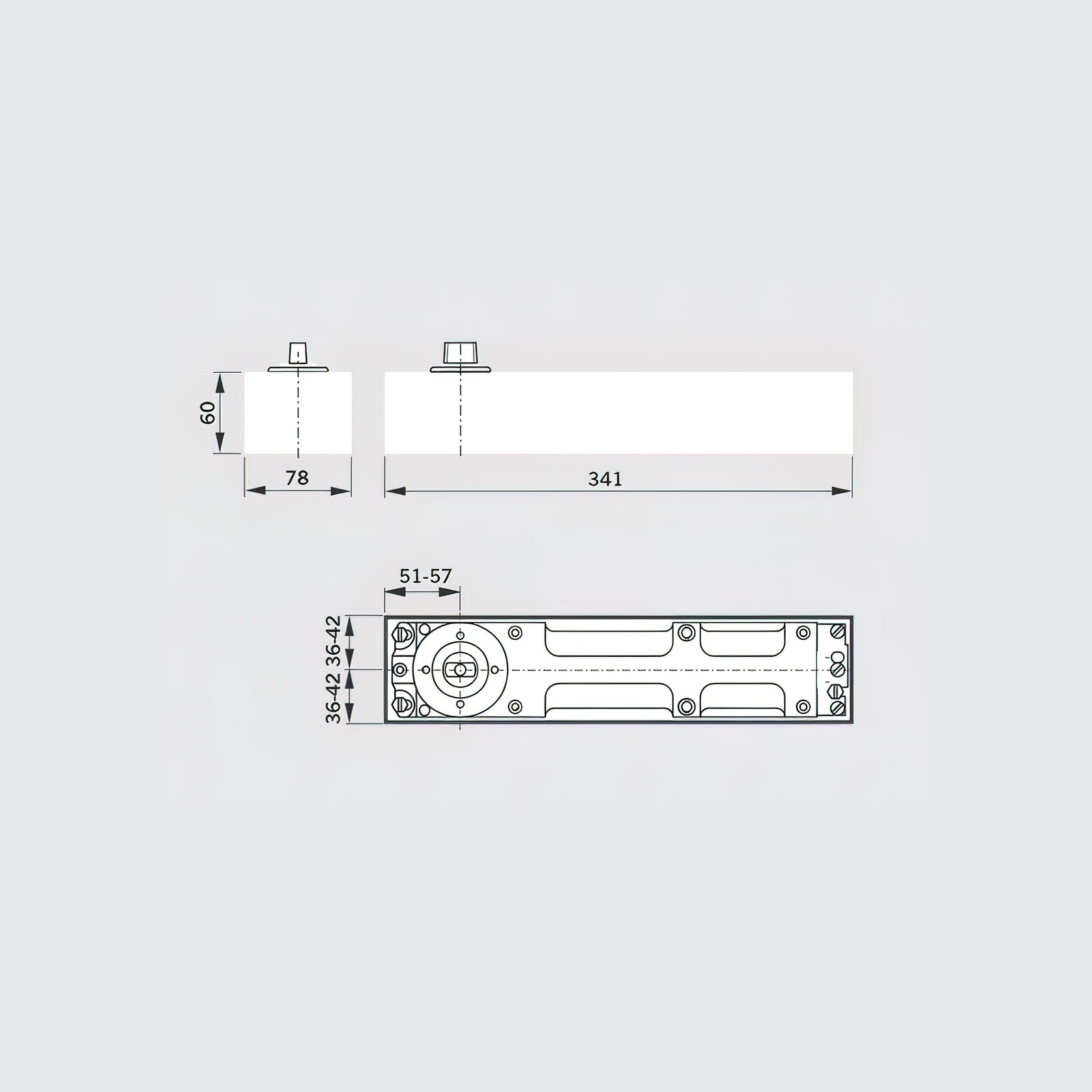

Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts. Includes: 1 x Dorma BTS80 EN-4 Door Closer Floor Spring Adjustable Hold Open (80110000) 1 x Dorma 8062 Top Center for Double Action Doors (46300003) 1 7421 Bottom Strap for Double Action Doors (46010001) 1 x Dorma 7410 Cover Plate Satin Stainless Steel Suits BTS80 (46700000) 1 x Dorma 8064 Cover Plate Satin Stainless Steel (46020044) 1 Sealing Compound 2300 (45090086) Dorma BTS80 EN-4 Door Closer Floor Spring 80110000 Features: With adjustable closing speed and closing action from approx. 175 degrees, with hydraulically controlled closing cycle and mechanical backcheck Allows for temperature-independent hold-open between 75 degrees and 175 degrees(removable) Hold-open start point and delayed action is easily adjustable by valve Concealed assembly Can be used on fire and smoke check doors Easy to install
- Specs
SPECIFICATIONS: Length: 165mm Width: 25mm Height: 1mm Dorma Sealing Compound 2300 45090086 Features: Recommended for floor springs exposed to wet conditions For filling the cavities between the floor spring body and the cement box to prevent moisture penetration (mandatory according to e.g. VOB regulations for wet rooms). Notes-icon: The contents of the two tins (the basic fluid and the accelerator) are sufficient for one floor spring. Warning-icon: Use compound immediately after mixing. Hardening process takes place after 20 minutes. After 24 hours the sealing compound is fully hardened.
- Features
- For single & double action doors
- Suitable for doors up to 300 kg
- Suits 950-1100mm wide doors
- Hold open or non-hold open settings
- Large range of optional pivot accessories
- Concealed assembly

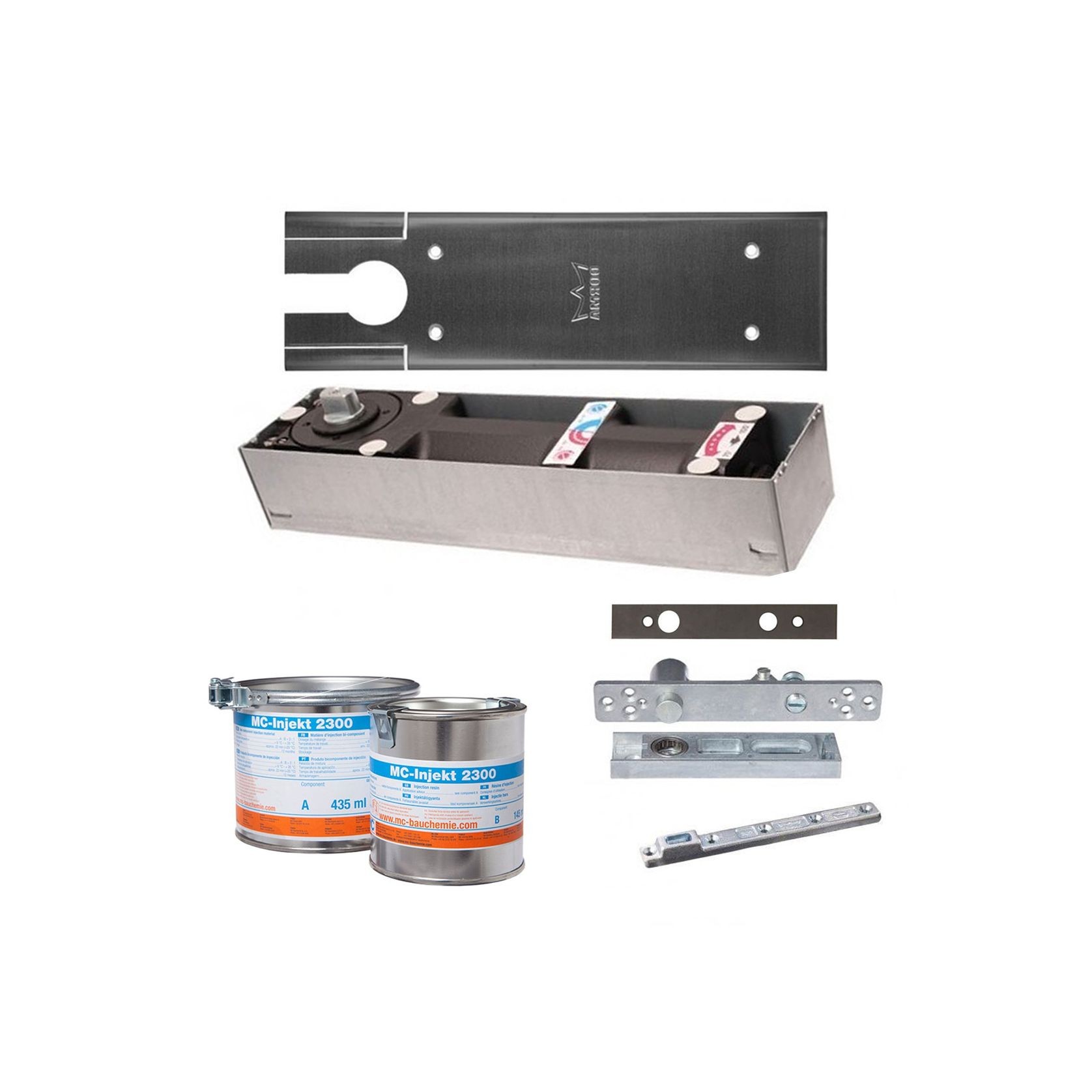

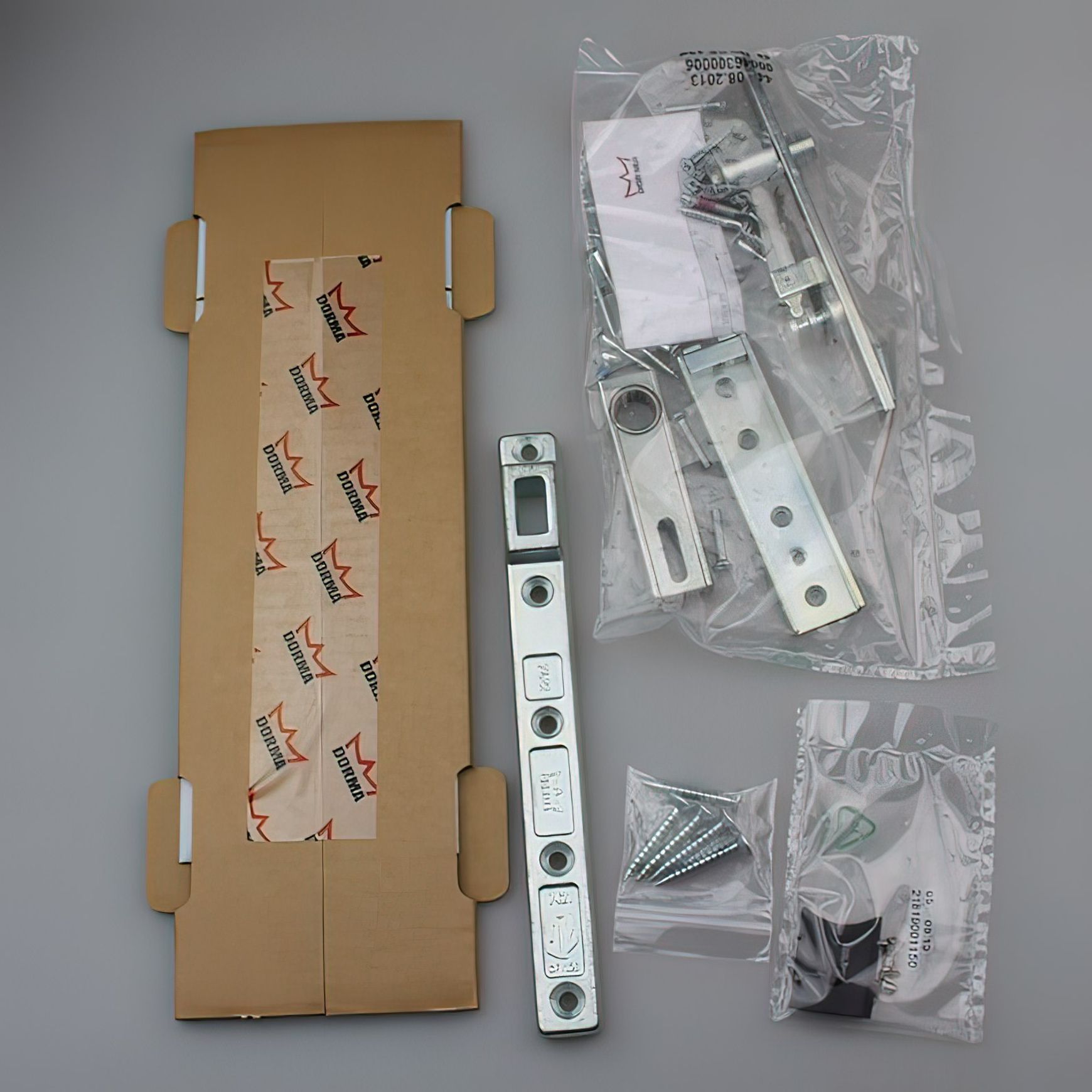

Includes:

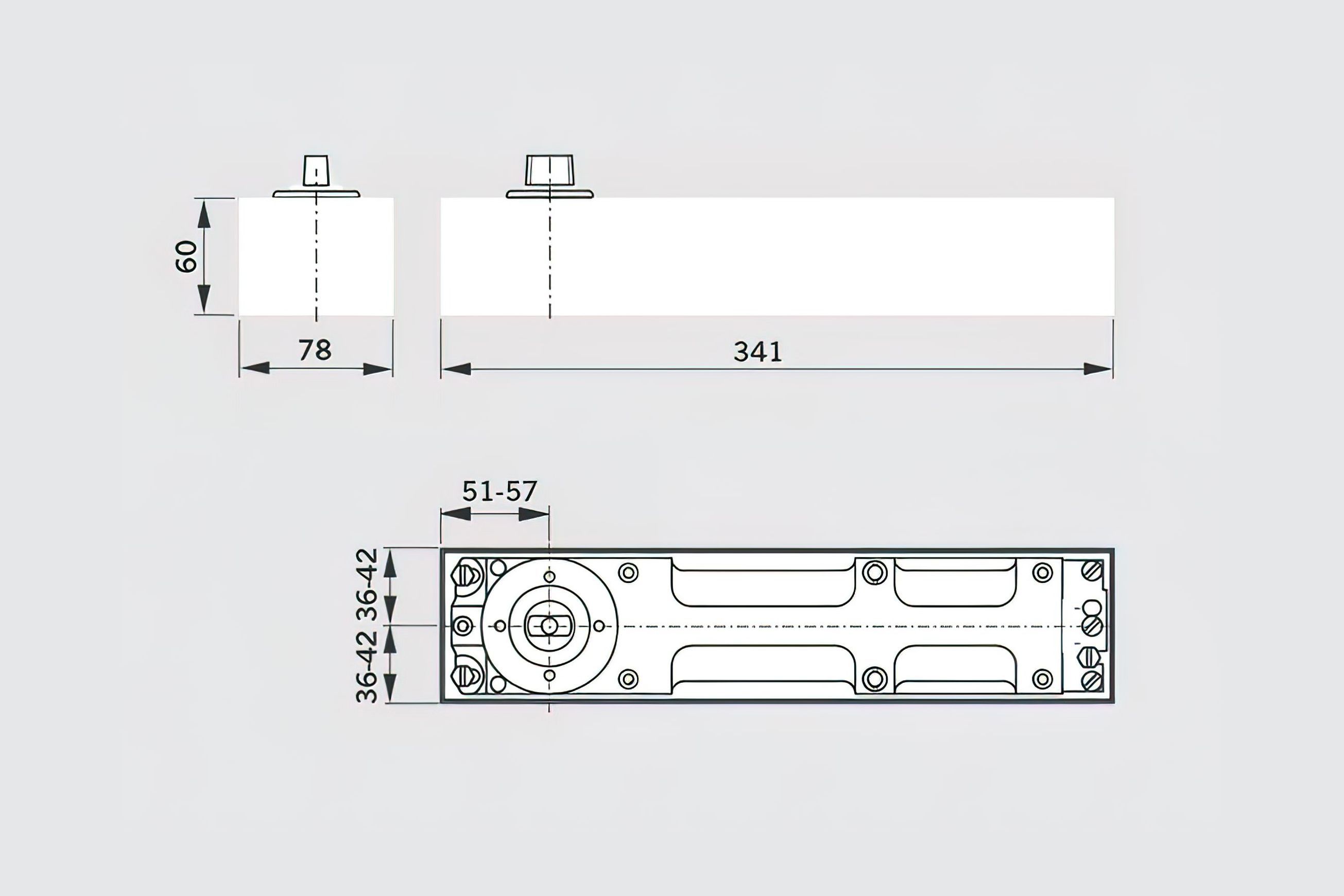

- 1 x Dorma EN4 Floor Spring (DORM80110000)

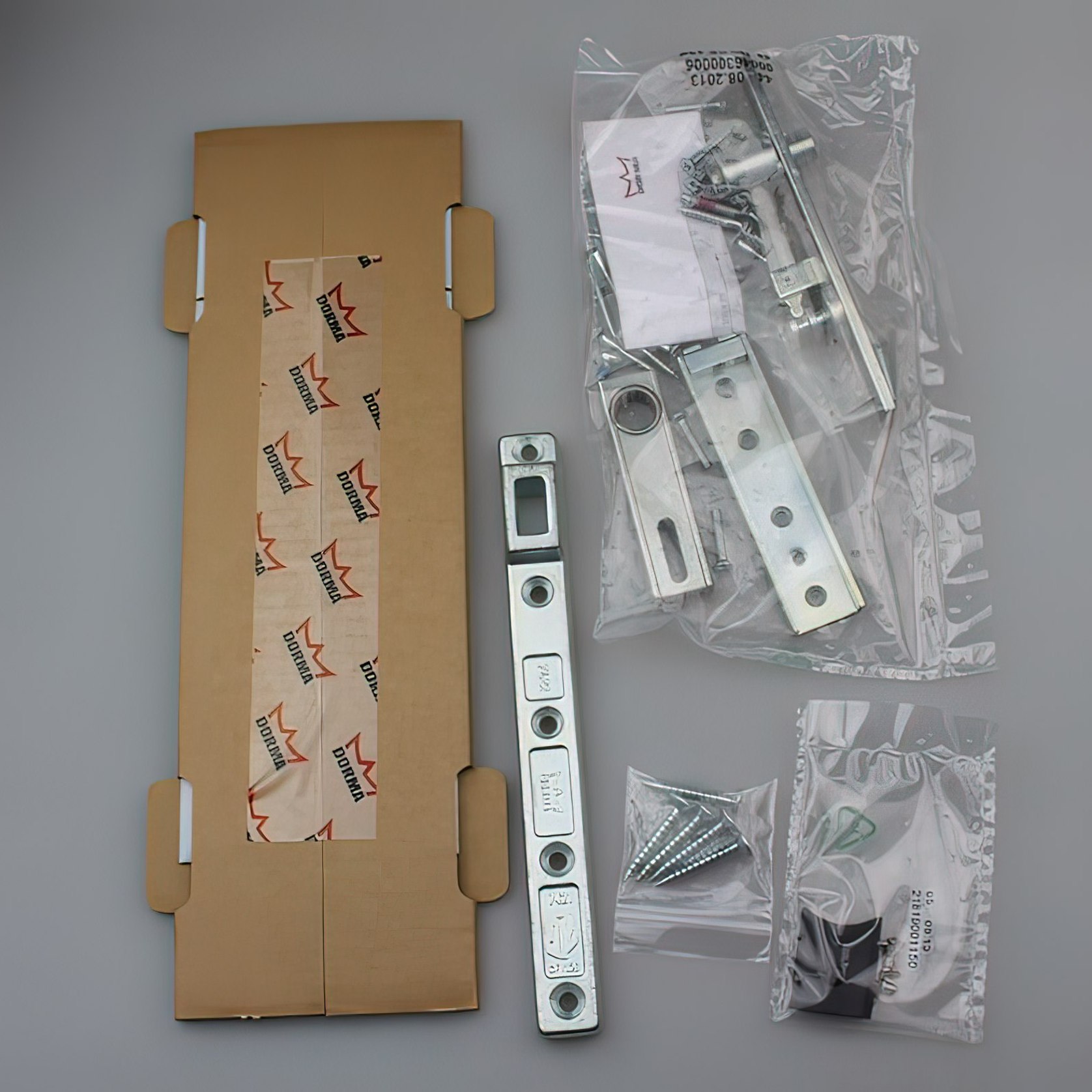

- 1 x Dorma Top Centres 8062 (DORM8062)
- 1 x Door Strap 7421 (DORM46010001)

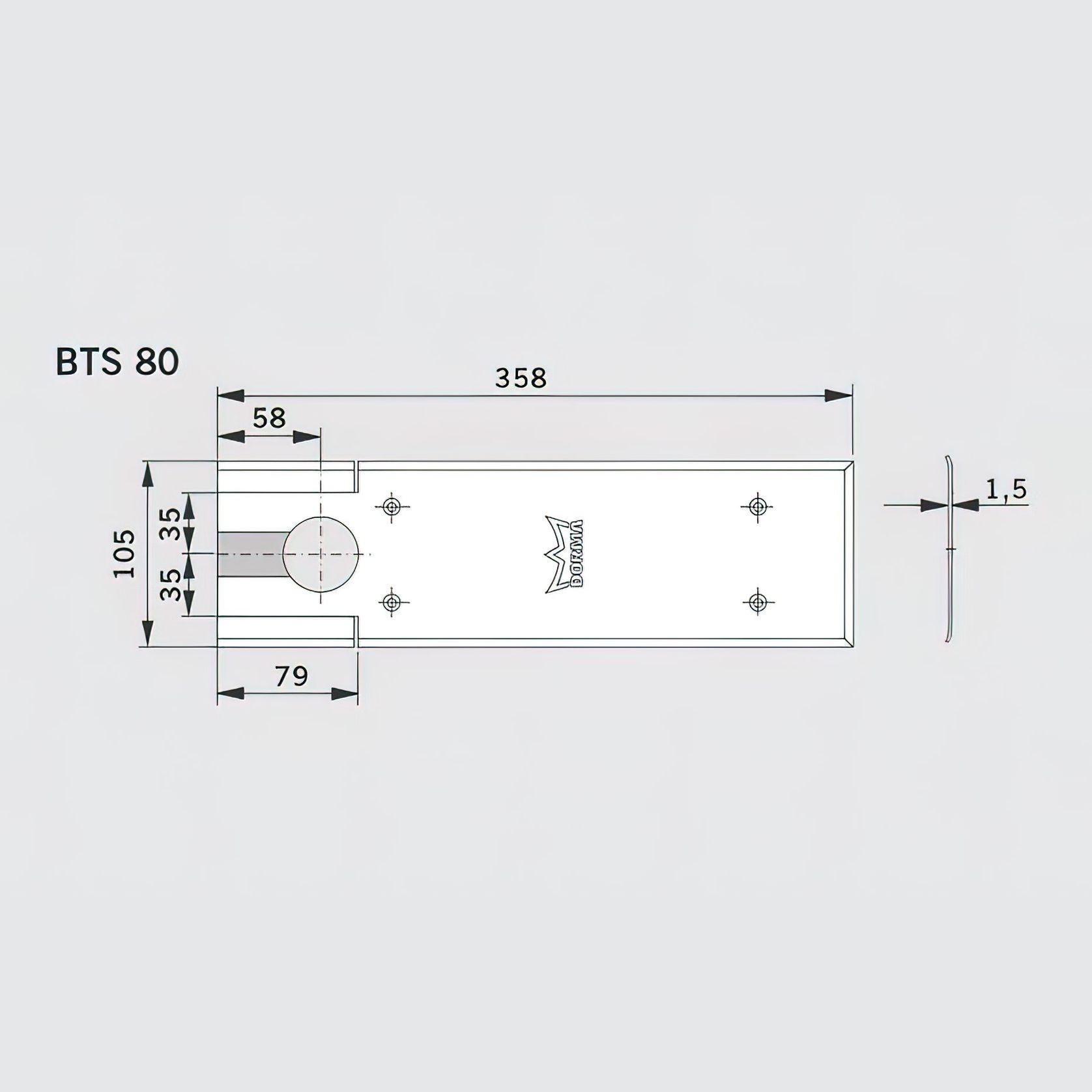

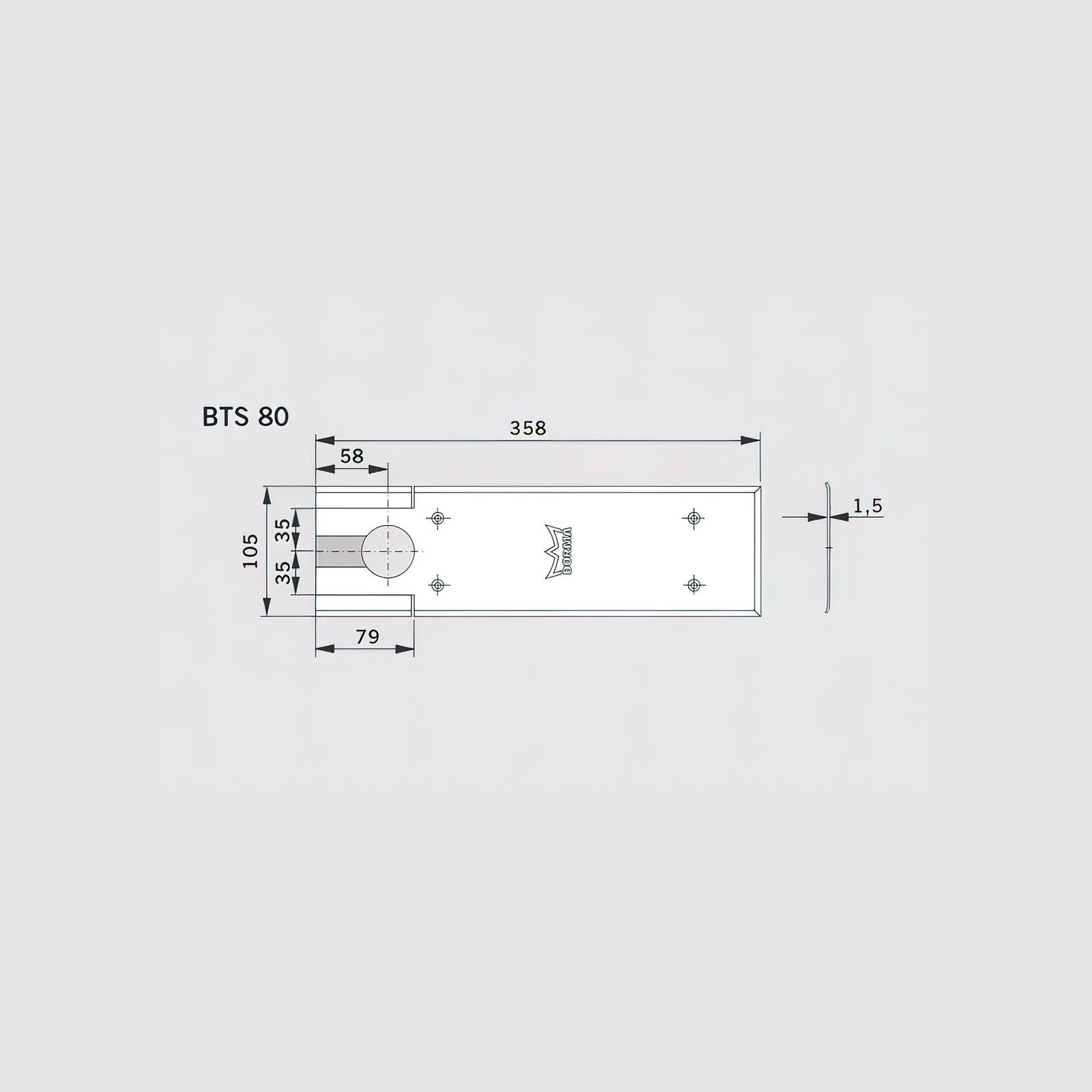

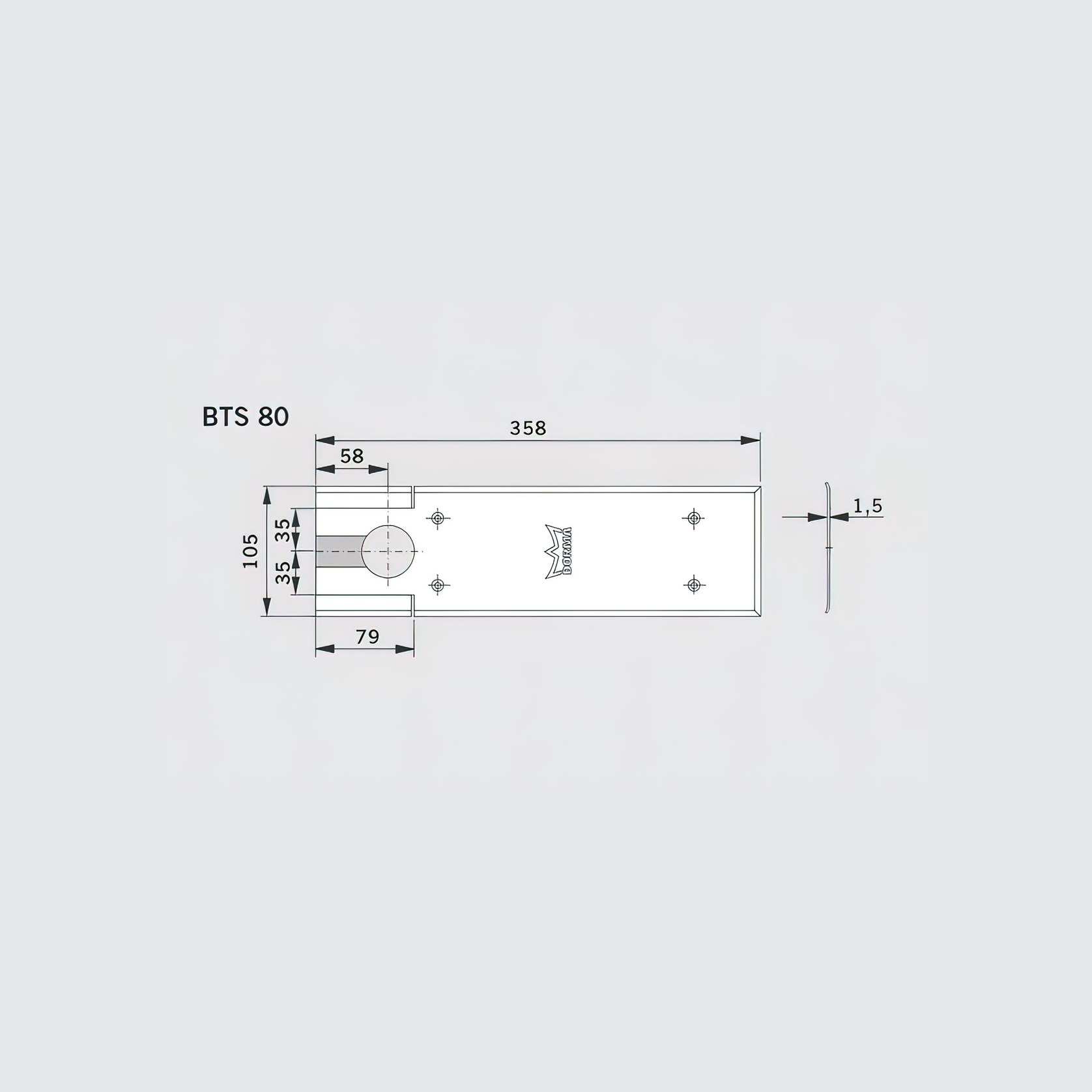

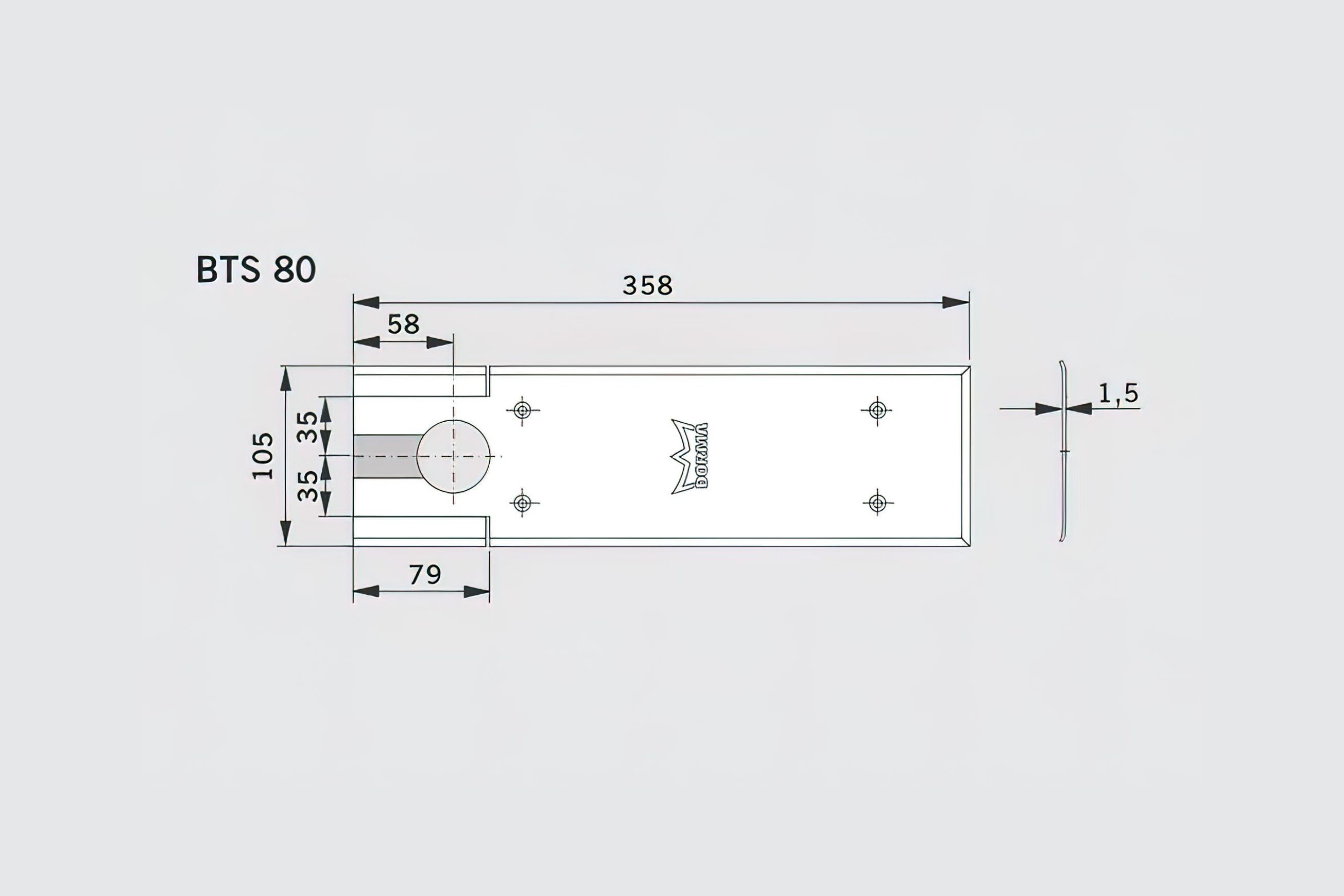

- 1 x Dorma Cover Plate 7410 (DORM46700000)
- 1 x Dorma Top cover plate 8064 (DORM46020044)
- 1 x Dorma Sealing Compound 2300 (DORM45090086)
