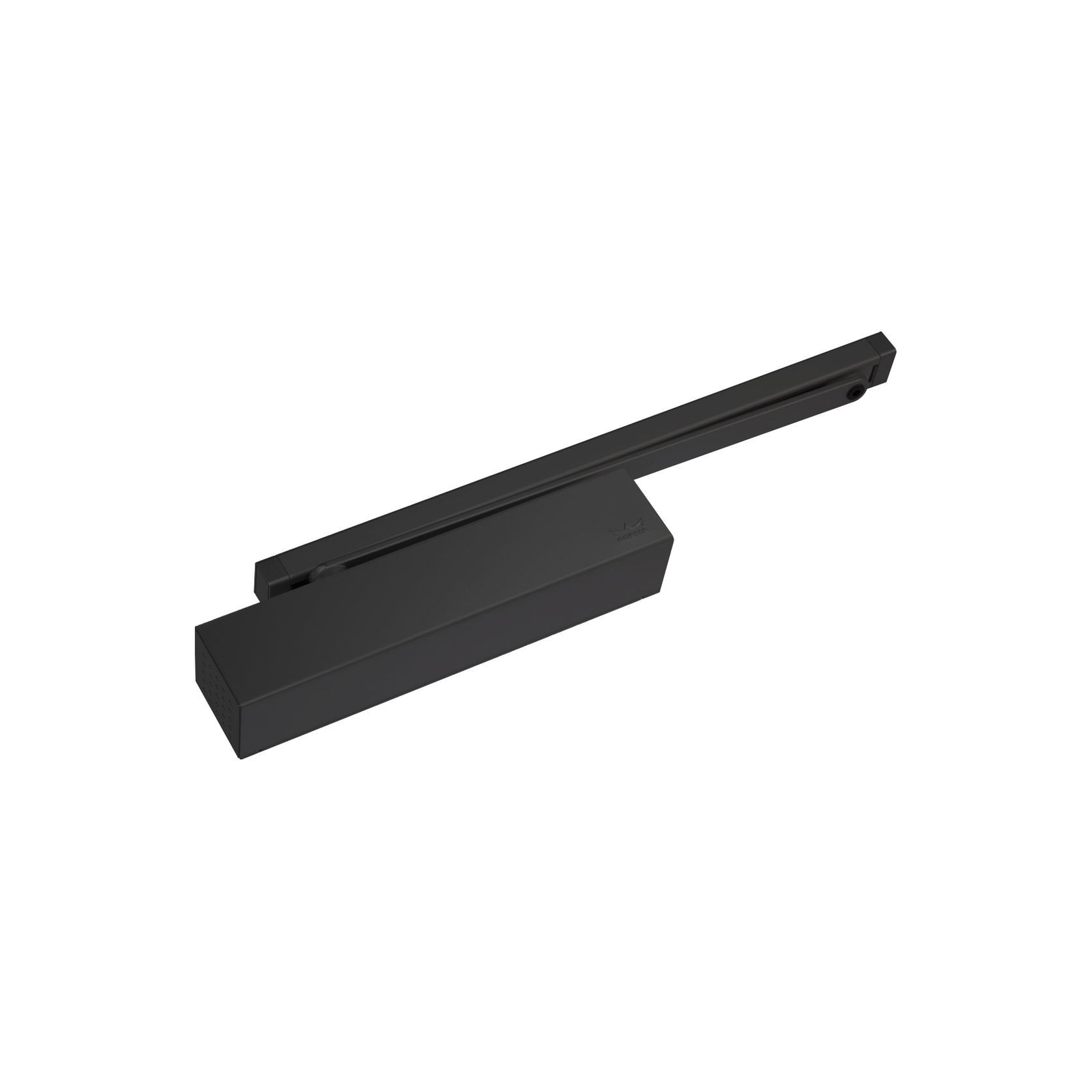

Dorma TS93G EN1-5 Door Closer Pull Side Black 43100519

Name: Dorma TS93G EN1-5 Door Closer Pull Side Black 43100519
Brand: Dormakaba

by Keeler Hardware

Wetherill Park, Australia

994.2K profile views
51 saves

Visit Website

Dorma Door Closer TS93G EN1-5 Pull Side with Arm Fire Rated
43100519

Features:

Suitable for fire and smoke check doors where the cushioned limit stay is also used.
Suitable for single and double doors installation up to 1250 mm (W).
Closing force Adjustable EN1-5
For fire and smoke check doors
Handed design
Slide Channel
Closing force variable by means of adjustment screw
Latching and closing speed adjustable by valve
Back Check
Delayed action
Push side door leaf fixing/ Pull side transom fixing

Tags

hardware door hardware door handles door locks handles

Product Details

Product: Dorma TS93G EN1-5 Door Closer Pull Side Black 43100519
Category: Door Closers
Sold by: Keeler Hardware
Size: 275mm
Range: Dormakaba
Brand: Dormakaba
Country of origin: Australia
Type of use: Commercial and Residential
Package type: Special packaging required
Care and cleaning: Easy maintenance
Installation: Minor installation required
Assembly: Minor assembly required

Product Variants

Colours
Material

Keeler Hardware is specified by

(29) Professionals

Dorma TS93G EN1-5 Door Closer Pull Side Black 43100519

Visit site

Dorma Door Closer TS93G EN1-5 Pull Side with Arm Fire Rated43100519 Features: Suitable for fire and smoke check doors where the cushioned limit stay is also used.

Suitable for single and double doors installation up to 1250 mm (W).

Closing force Adjustable EN1-5

For fire and smoke check doors

Handed design

Slide Channel

Closing force variable by means of adjustment screw

Latching and closing speed adjustable by valve

Back Check

Delayed action

Push side door leaf fixing/ Pull side transom fixing

Specs: Adjustable Closing Speed: Yes

Adjustable Latching Speed: Yes

Finish: Black

Backcheck: Yes

Delay Action: Yes

Holdopen: No

Slide Arm: Yes

Spring Strength (CLOSER2): EN1-5

Suits Push Side Of Door: Yes

Fire Rated (FIRERATED): Yes

Length: 275mm

Overall depth: 53mm

Height: 60mm
Scope of use: Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.
